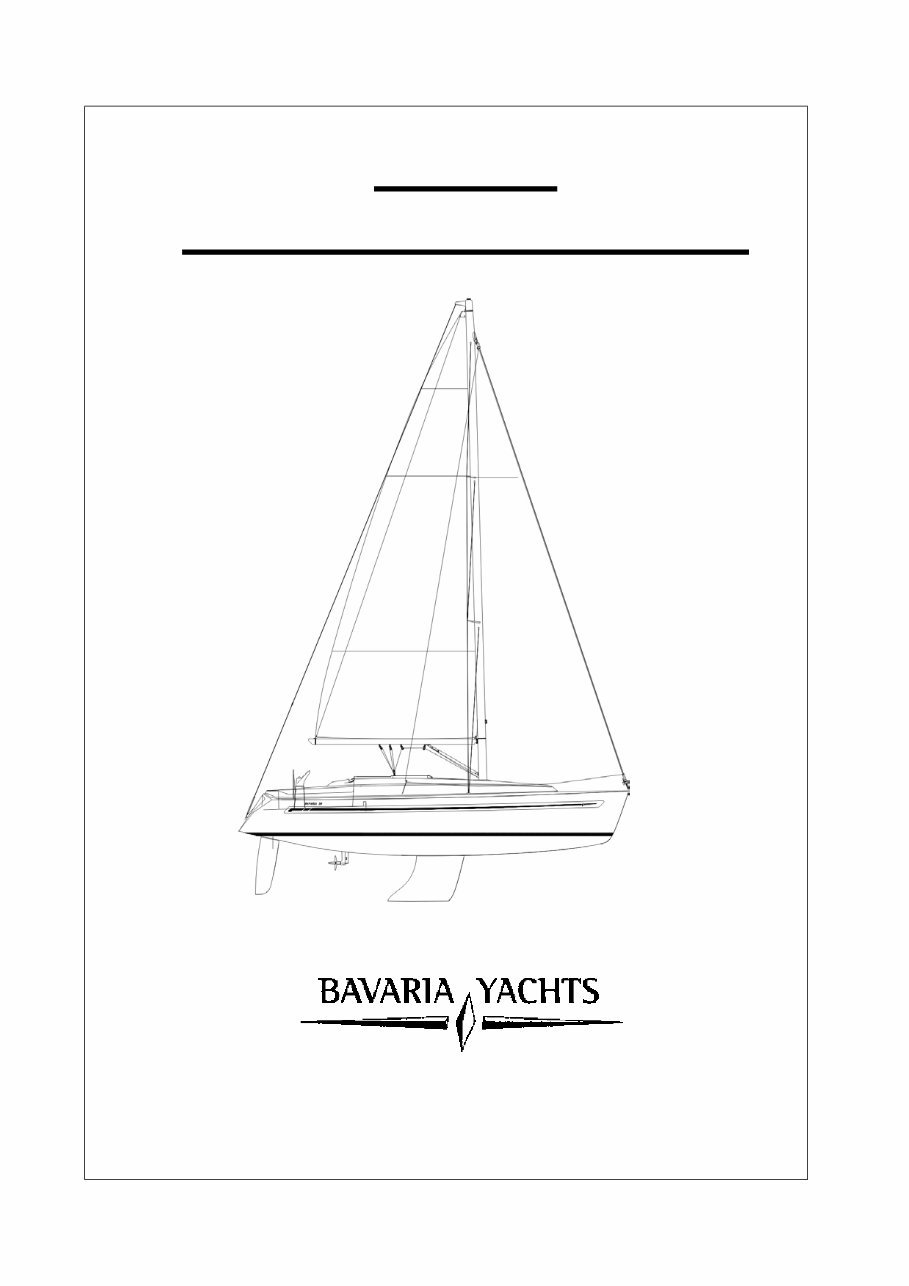

Manual for owners and skippers Sailing yacht „BAVARIA 36 “ Bavaria Yachtbau GmbH • Bavariastr. 1 • D – 97232 Giebelstadt Tel.: +49 (0) 9334 942 – 0; Fax: +49 (0)9334 942 – 116 E-Mail : info@bavaria-yachtbau.com

INDEX Introduction page 3 Category of design page 4 Builder’s plate page 5 Warnings page 5 Declaration of Conformity page 6 1. Description of the yacht 1.1 Main particulars 1.1.1 Principal dimensions 1.1.2 Displacement and weight 1.1.3 Motorization 1.1.4 Electrical installation 1.1.5 Tank capacities 1.1.6 Fixing point for cranes, resting- points for slipping and transport 1.2 General arrangement 1.2.1 Rigging plan 1.2.2 Deck arrangement 1.2.3 Accommodation plan 1.3 Drive system 1.3.1 Sails 1.3.2 Rigging 1.3.3. Motorizing, engine room, gear, propeller 2. Installations and circuits 2.1 Tanks and piping - water 2.1.1 Fresh water, drinking water - cold 2.1.2 Sea-water circulation 2.1.3 WC-installation, holding tank 2.2 Tanks and piping - fuel 2.3 Steering gear 2.3.1 Description of the system 2.3.2 Rudder blade and rudder bearing 2.4 Bilge pump, bilge lines 2.4.1 Description of the pumping arrangement 2.5 Electric installation 2.5.1 AC-installation 2.5.2 DC-installation 2.5.3 Operating the installation and specific features 2.5.4 Important warnings on the DC- installation 2.5.5 Important warnings on the AC- installation 2.5.6. Distribution of electric devices 2.5.7. Wiring plans 2.5.8. Distribution plans 2.5.9. AC-distribution 2.6 L.P.G. installation 2.6.1 The components 2.6.2 Operation 2.7 Fire protection 2.8 Anchor 2.9 Engine cooling system 2.10 Exhaust gas system 2.11 Ventilation/Airing 2.12 Board ducts, sea water valves 3. Environmental protection 3.1 Fuel and oil 3.2 Waste 3.3 Sound 3.4 Swell 3.5 Exhaust gas 3.6 Antifouling, coatings 3.7 Varnish remover 4. Maintenance 4.1 Maintenance, cleaning 4.2 Wearing- and spare parts 4.3 Repair work 4.4 Winter storage 5. Final remarks and notes 6. List of manuals supplied

Sailing yacht Bavaria 36 Bavaria Yachtbau GmbH (47) – 3 – Introduction This manual will help you to handle your yacht safely and with pleasure. Apart from information about the yacht itself and installed or additionally supplied fittings the manual also contains information on operation and maintenance. Please familiarise yourself with everything before you go on your first voyage. If this is your first yacht or if you are not really familiar with the special characteristics of a motor yacht please make sure you get proper training before you put it into operation. Do not hesitate to contact the dealer or our shipyard for information about further training possibilities. As the scope of supply depends on the order, the equipment of your yacht can deviate with some descriptions and illustrations. In order to be able to adapt our yachts to the constantly progressing technical standard, we must reserve ourselves changes in form, equipment and technology. For these reasons no requirements can be derived from all data, illustrations and descriptions in this manual. PLEASE KEEP THIS MANUAL IN A SAFE PLACE AND HAND IT OVER TO THE NEW OWNER IF YOU SELL THE YACHT. BAVARIA would like to welcome you to the circle of BAVARIA owners and would like to thank you for placing your confidence in our products by acquiring this yacht. Your contract partner and the management and staff of Bavaria Yachtbau GmbH hope you will enjoy your new yacht. Bon voyage, fair winds and fine weather. BAVARIA Yachtbau GmbH Management W. Herrmann

Sailing yacht Bavaria 36 Bavaria Yachtbau GmbH (47) – 4 – Category of design Following the European Recreational Craft Directive each boat has to be classified according to a category of design. All sailing yachts of BAVARIA belong to the category of design A, designed for extended voyages where conditions may exceed wind force 8 (Beaufort scale) and significant wave heights of 4m and above, and vessels largely self-sufficient. Certification For yachts with this hull length the EC-Directive intends the certification module B (EC type- examination) in combination with module C (Check of the stock boat in regard to its conformity with the specimen). IMCI (International Marine Certification Institute) was put into charge as a notified body (see: Declaration of Conformity). Identification The hull identification was formed into the transom on starboard side. This is a unique sequence of digits and letters. It is DE-BAVV36S2E303

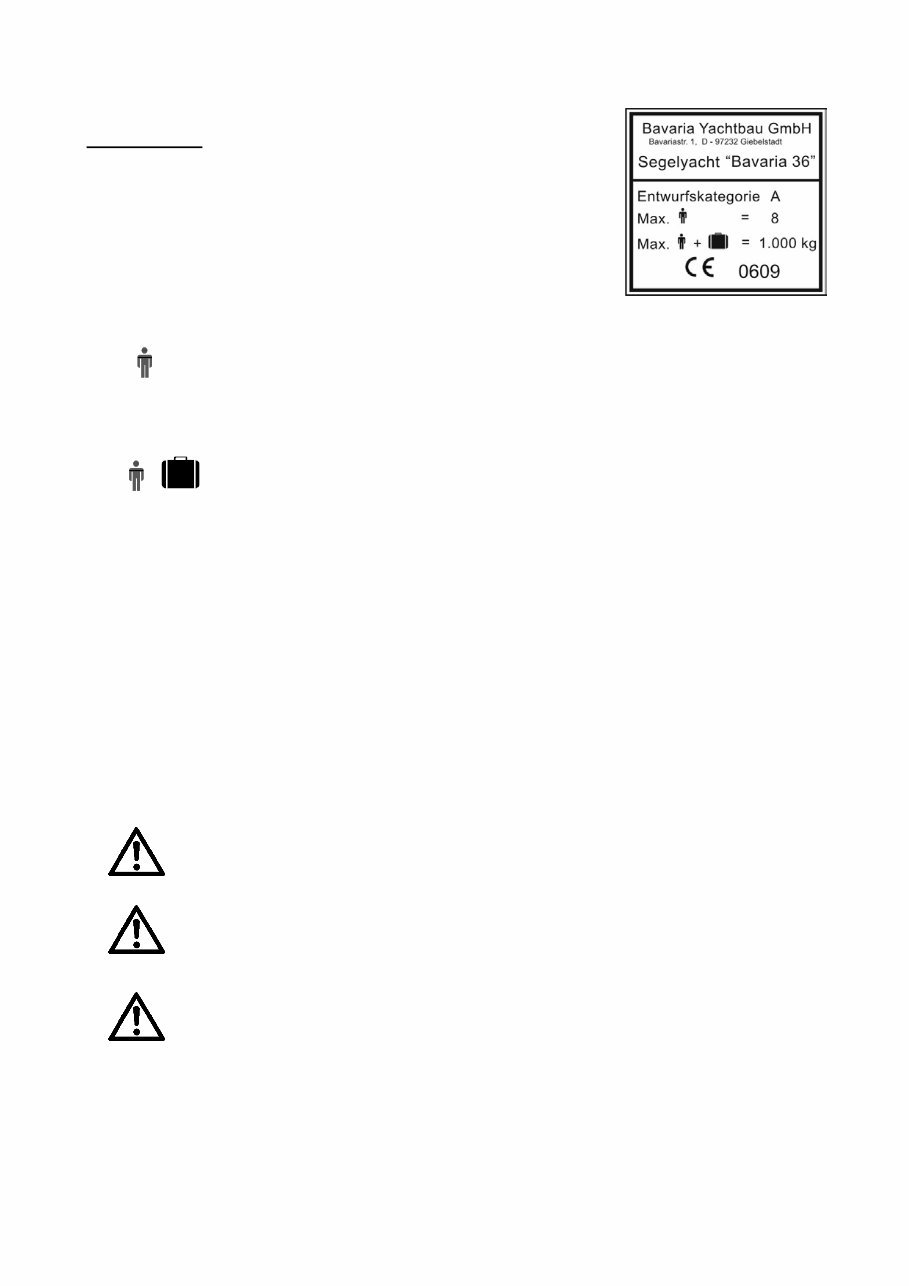

Sailing yacht Bavaria 36 Bavaria Yachtbau GmbH (47) – 5 – Builder’s plate The builder’s plate on the front wall of the cockpit is a demand of the Directive because certain information are required which will be explained in the following. Explanations - Category of design A : Ocean - Max. =8: Maximum number of persons recommended by the manufacturer if the yacht is situated in the sea area corresponding to the category of design. The number of crew can be increased under consideration of the maximum additional loading capacity if the yacht is on a voyage in non- ocean areas. -Max + = 1000 kg: Maximum additional loading including 8 persons, stores, provisions and personal equipment (excluding tank capacities). - CE 0609: CE marking which indicates the conformity of the yacht with all provi sions of the Directive. The sequence of digits is the code number of the certifying body ,in this case the IMCI (International Marine Certification Institute) - (see: Declaration of Conformity). Warnings Many chapters of this manual will support a troublefree operation, maintenance or draw your attention to signs of dangers. To find them more easily they are especially marked (in boxes or in bold). We advise you to study them carefully although the experienced skipper might be quite familiar with many of them. The following chapters contain such warnings/notes or other important information for operating the yacht. Danger means that an extreme real hazard which will lead to the death or too irreparable injuries with great probability exists if no adequate precautions are found. Warning means that a hazard which can lead to injuries or death exists if no adequate precautions are found. Caution means, that a memory of safety measures or the attention judges on handling, that can be unsure or lead to personal injuries or to harm of the vessel or from components.

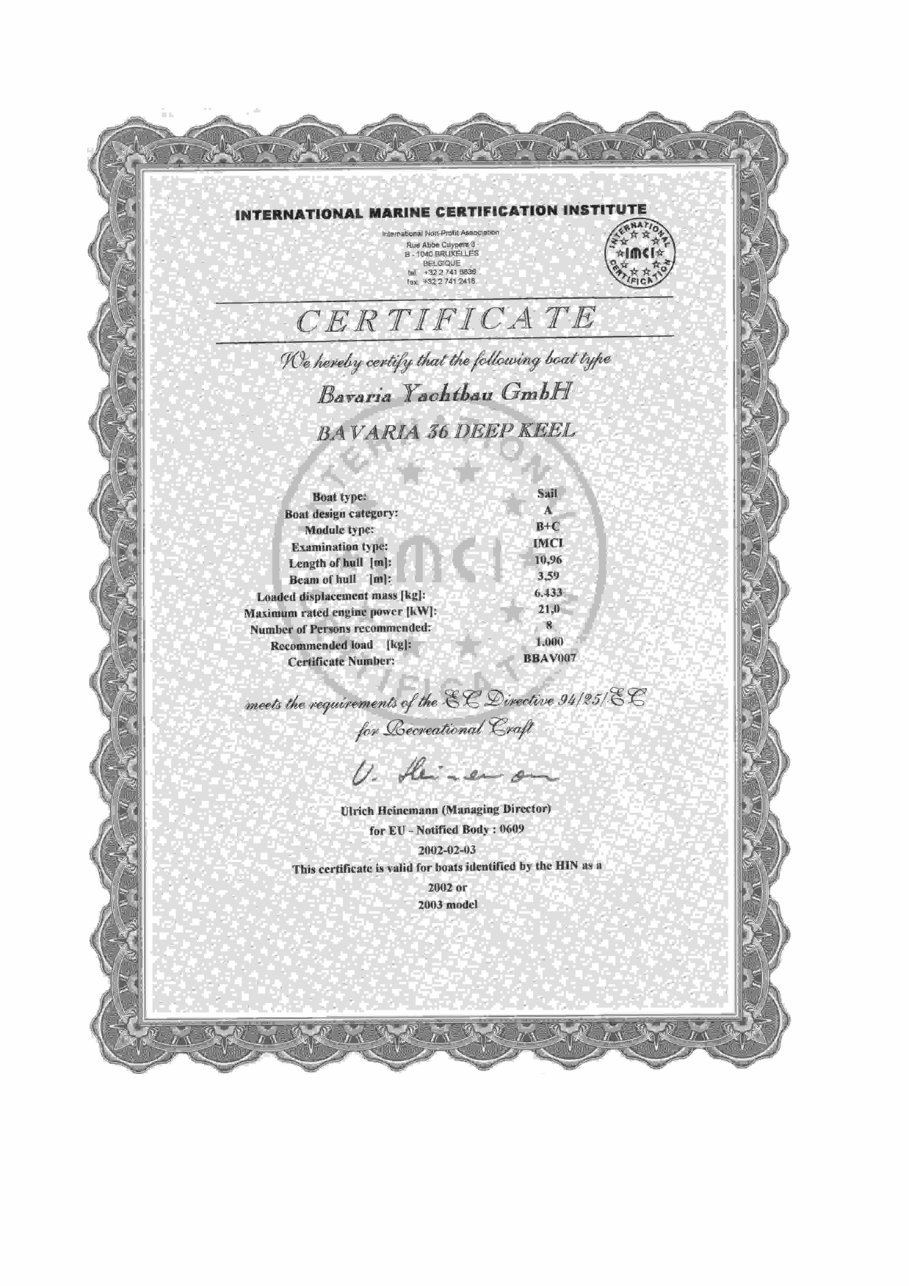

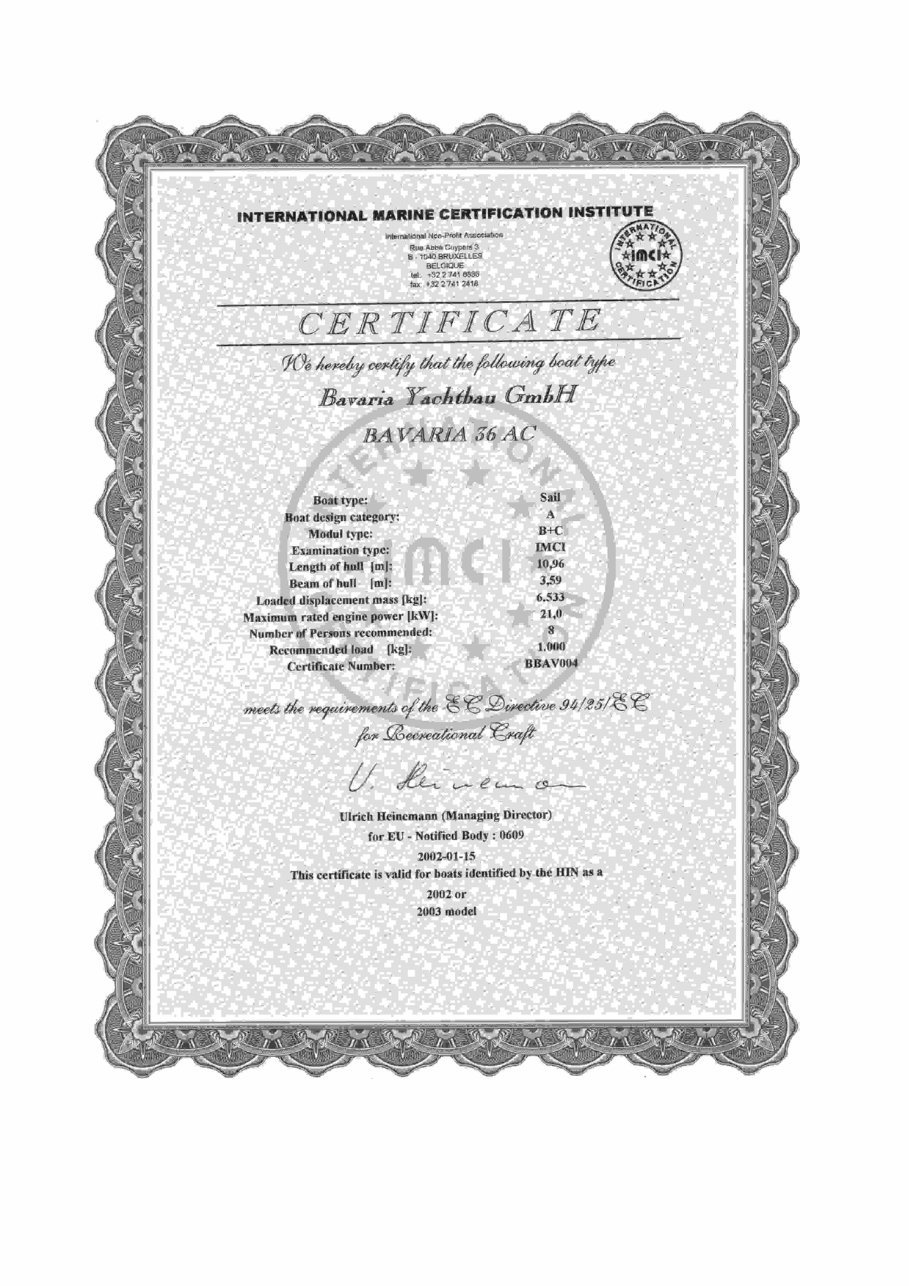

Sailing yacht Bavaria 36 Bavaria Yachtbau GmbH (47) – 6 – EC-Declaration of Conformity corresponding to the EC- Recreational Craft Directive 94/25/EC, Annex XV With this we declare that the design and type of the following characterised yacht as well as the carried out product that was brought into service by us is conform to the essential health and safety requirements of the European Recreational Craft Directive. This declaration will lose its validity if anyone carries out changes on board which touch the ‘essential safety requirements’ and are not settled amongst ourselves. Description of the boat: Bavaria 36 Type: : Keelyacht Serial number of the hull: DE-BAV36S2E303 Category of design: A (OCEAN) Module of certification: B+C Relevant Directive: EC Recreational Craft Directive (94/25/EC) Used standards: see annex Examining authority: IMCI International Marine Certification Institute Address: Rue Abbé Cuypers 3, B-1040 Bruxelles, Belgien Module: B EC-Type Examination Certification no.: BBAV007 (Deepkeel) BBAV004 (Normal keel) Date / Signature of manufacturer 2003-04-30 Winfried Herrmann Manager Manufacturer: Bavaria Yachtbau GmbH; Bavariastr. 1; 97232 Giebelstadt; GERMANY

Sailing yacht Bavaria 36 Bavaria Yachtbau GmbH (47) – 7 –

Sailing yacht Bavaria 36 Bavaria Yachtbau GmbH (47) – 8 –

Sailing yacht Bavaria 36 Bavaria Yachtbau GmbH (47) – 9 – Declaration of conformity Applied harmonised standards or drafts for standards, respectively, corresponding to the EC-Recreational Craft Directive 94/25/EG EC-Directive ISO-Norm 1. Principal Data 8666 2.1. Identification of hull 10087 2.2. Manufacturer‘s plate 14945 2.3. To go over the side protection 15085 2.5. Owner’s manual 10240 3.1. Structure 12215 Part1 3.2. Stability and freeboard 12217 Part 2 3.3. Buoyancy and flotation 12217 Part 2 3.4. Openings in the hull 12216; 9093-1,9093-2 3.5. Flooding 11812; 12217; 12216; 15083 3.6. Manufacturer’s maximum recommended load 14946 3.7. Place for life rafts Saftey guide of DSV 3.8. Emergency exit 9094 Part 1, 12216 3.9. Anchoring, mooring and towing 15084 4. Handling characteristics 8665, 11592 5.1. Engine and engine spaces 7840; 9094; 10088 11812; 16147 5.2. Fuel system 7840; 8469; 9094; 10088, 5.3. Electrical system 9097, 10133, 13297, 28849 5.4. Steering system 13929, 28848, 28847 5.5. Gas system 10239 5.6. Fire protection 9094 5.7. Navigation lights KVR 5.8. Discharge prevention 8099

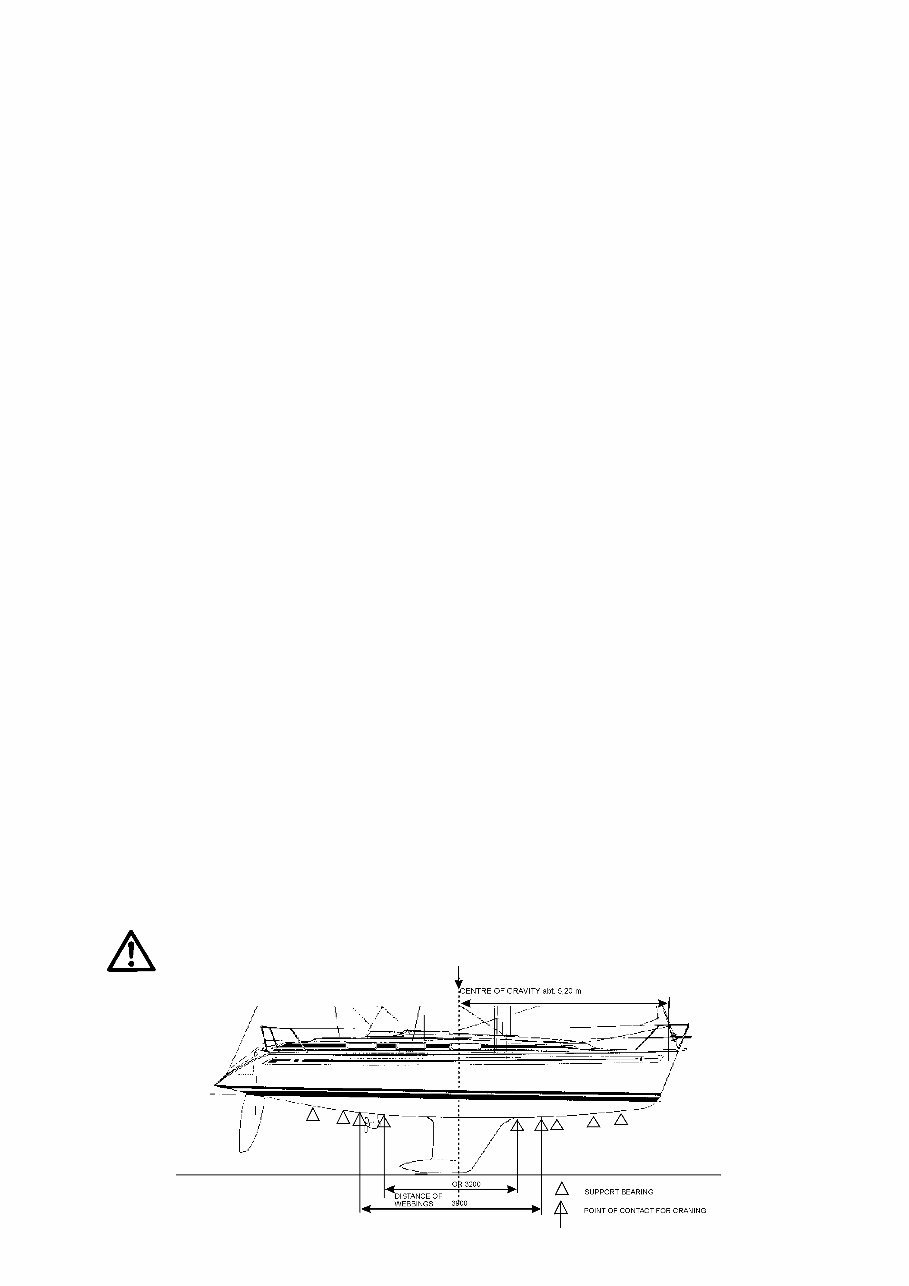

Sailing yacht Bavaria 36 Bavaria Yachtbau GmbH (47) – 10 – 1. Description of the yacht 1.1 Main particulars 1.1.1 Principal dimensions Length overall L OA 11,40m Length of hull L H 10,96 m Length on waterline L W 9,39 m Breadth max. B max 3,59 m Draught - normal keel D max abt 1,60 m Draught - flat keel D max abt 1,91 m Headroom (without antenna and similar things) H D abt 15,16 m Headroom (for transport) H T abt 3,66 m 1.1.2 Displacement and weights Weight of the empty yacht -incl. safety equipment 5000 kg Weight of the fully equipped yacht- ready for sailing with crew 6530 kg Ballast normal keel 1600 kg Ballast deep keel 1560 kg 1.1.3 Motorization Diesel engine: Manufacturer Volvo Type MD 2020 Output 14 kW or MD 2030, 21 kw Cooling indirect (sea-/fresh-water) Reverse-reduction gear Saildrive 120S-D Reduction ratio 2.48 : 1 propeller 2-bladed fixed propeller (option folded propeller) 1.1.4 Electrical installation 220/110 V (option) AC-installation shore connection (option) socket CEE-plug current operated 230 V earthed socket battery charger (option) 230 V AC / 12 V DC with 27 A max. current (option) 12 V DC-system 1 x engine battery 12 V 55 Ah 1 x bord battery (option 2 x) 12 V 140 Ah motor generator (alternator) battery charger (option) The distribution occurs about switchboard, electric circuits with thermal safety switches, LED display, rocker switches and voltmeters with changeover switch. 1.1.5. Tank capacities 1 fresh water tank abt 150 l on port side below the aftcabin berth. 1 fuel tank abt 150 l on starboard side below the aftcabin berth. 1 fresh water tank abt 150 l into the bow. 1 holding tank (option) abt 80 l in the locker in bath on starboard side. 1 gas cylinder abt 3 kg cylinder (Butane) 1.1.6. Fixing points for cranes, resting-points for slipping and transport Attention ! The rear webbing will be placed in the area of the sail drive.
