OWNER’S MANUAL AXOPAR 28 CABIN

TABLE OF CONTENT FOREWORD ............................................. 4 1 GENERAL ............................................. 5 1.1 CE-CERTIFICATION........................................ 5 1.1.1 IDENTIFICATION ............................................ 5 1.1.2 BUILDER’S PLATE ........................................... 6 1.1.3 ID OF NOTIFIED AUTHORITY .......................... 6 1.2 TECHNICAL DATA ......................................... 6 1.2.1 GENERAL FACTS ............................................ 7 1.3 DECLARATION OF CONFORMITY AND ESSEN- TIAL SECURITY REQUIREMENTS .............................. 8 1.4 GENERAL LAYOUT ......................................... 9 2 STABILITY AND BUOYANCY ............. 10 2.1 GENERAL .................................................... 10 2.2 SELF DRAINING SYSTEMS ............................ 10 2.3 DOORS, HATCHES AND SEACOCKS............ 10 2.4 BILGE PUMP SYSTEM ................................... 11 3 BOAT OPERATION ............................. 14 3.1 HANDLING DEVICES OF BOAT ..................... 14 3.1.1 STEERING CONSOLE .................................... 14 3.1.2 WINDSCREEN WIPERS.................................. 15 3.1.3 STEERING SYSTEM ....................................... 15 3.1.4 STARTING THE ENGINE ................................ 15 3.2 SWIVEL SEAT – DRIVET AND PASSENGER SEATS 16 3.3 REGULAR INSPECTION FOR USER ................. 16 3.3.1 BEFORE LEAVING HARBOUR ........................ 16 3.3.2 AFTER USE ................................................... 16 3.4 BOAT HANDLING ......................................... 16 3.4.1 BEFORE LEAVING HARBOUR ........................ 16 3.4.2 LEAVING THE JETTY ..................................... 17 3.4.3 DRIVING THE BOAT...................................... 17 3.4.4 VISIBILITY FROM HELMING POSITION ........... 18 3.4.5 USING THE TRIM TABS ................................. 19 3.5 PREVENTING FALLING OVERBOARD AND HOW TO GET BACK ON BOARD..................................... 19 3.6 ANCHRORING, DOCKING AND MOORING... 20 3.6.1 FASTENING POINTS ...................................... 20 3.6.2 DOCKING .................................................... 20 3.6.3 BEFORE ANCHORING................................... 20 3.6.4 TOWING AND MOORING ............................ 20 3.6.5 LIFTING AND TRANSPORTING ...................... 20 4 TECHNICAL SYSTEMS ....................... 22 4.1 ELECTRICAL SYSTEM ................................... 22 4.2 12 V SYSTEM............................................... 22 4.2.1 MAIN SWITCHES ......................................... 23 4.2.2 DIRECT SUPPLY SWITCHES ........................... 23 4.2.3 FUSES .......................................................... 23 4.2.4 HEAVY DUTY FUSES .................................... 24 4.2.5 BATTERIES ................................................... 24 4.3 110/230 V SYSTEM...................................... 25 4.4 FUEL SYSTEM .............................................. 25 5 OPTIONAL EQUIPMENT ..................... 27 5.1 FRESH WATER SYSTEM ................................ 27 5.2 SEPTIC SYSTEM ........................................... 28 5.2.1 TOILET SEAT ................................................ 28 5.2.2 SEPTIC TANK ............................................... 28 5.2.3 SEPTIC DIAGRAM ........................................ 28 5.3 HEATING SYSTEM ........................................ 29 5.4 BOW THRUSTER .......................................... 29 5.5 ANCHOR WINDLASS.................................... 29 6 SAFETY .............................................. 30 6.1 GENERAL ..................................................... 30 6.2 FIRE CONTROL ............................................. 30 6.2.1 BOAT OWNER’S/USER’S RESPONSIBILITIES.... 30 6.3 LIFE RAFT STORAGE ..................................... 30 6.3.1 USE OF LIFE RAFT......................................... 30 6.4 CARBON MONOXIDE................................... 31 6.5 GENERAL SAFETY DIAGRAM ....................... 32 7 MAINTENANCE ................................. 33 7.1 MAINTENANCE............................................ 33 7.1.1 MAINTENANCE NOTES ................................ 33 7.2 CORRECTIVE PROCEDURES ......................... 33 7.2.1 WOODEN INTERIORS ................................... 33 7.2.2 CLEANING THE COVER ................................ 34 7.2.3 COVER ........................................................ 34 7.2.4 PREVENTING FROST DAMAGE ..................... 34 7.2.5 ACTIONS BEFORE WINTER LAY-UP ............... 34 7.2.6 ACTION BEFORE LAUNCHING ...................... 34 8 THE ENVIROMENT ............................. 35 8.1 REQUIREMENTS FOR NORTH AMERICAN RE- GION 35 9 APPENDIxES...................................... 36 APPENDIX 1 WARRANTY POLICY .......................... 36 APPENDIX 2 ELECTRIC DIAGRAM.......................... 36 APPENDIX 3 EPA FUEL SYSTEM ............................. 37 3

FOREWORD Congratulations on your new Axopar boat! We thank you for choosing this boat and wish you safe and enjoyable moments out on the waters will occur over time and as a result of heavy use or misuse of the boat. Any boat, no matter how strong it may be, can be severely damaged if not used properly. Inappropriate use of this boat i.e. use which is not compatible with safe boating, is not allowed. It is always important to adjust the speed and direction of the boat to the sea conditions and your own boating experience. Gelcoat parts especially coloured parts should be polished and waxed approximately every fourth months that parts won’t come fading or other visual defects. If your boat is fitted with a life raft, carefully read its operating manual. Onboard, the boat should have the appropriate safety equipment according to the type of boat, weather conditions, etc. This equipment is compulsory in some countries. The crew should be familiar with the use of all safety equipment and the most important actions in different emergency situations (man overboard recovery, towing, etc.). Sailing schools and clubs regularly organize rescue drills. The equipment in your boat may differ from the equipment used in the pictures and illustrations in this manual. The reason for this might be due to any optional equipment you have chosen or modifications that have been adapted since this manual was made. In such cases we recommend that you contact your local dealer for additional information regarding the equipment in question. Keep this manual in a safe place and pass it on to the new owner if you sell your boat. If the manual is mislaid or destroyed, a copy can be ordered from your dealer. The warranty on the engine, as well as optional equipment such as trim tabs, bow thrusters, navigation equipment and other equipment fitted afterwards, is on the individual supplier’s conditions. The warranties for this equipment and the suppliers’ contact information are enclosed. Concerning all other warranty claims, please contact you Axopar dealer mentioned on the cover page. See the purchase agreement/order for the scope of your purchase. In case something does not work satisfactorily with your boat or its equipment, you can check the service documents for possible service and repair measures. In the event of uncertainty, you should always contact your dealer. Please note that your boat is a recreational boat, thus not suitable for professional use. Specifications, illustrations and examples and related constructional data in this publication are not binding. We reserve the rights for changes. In this owner´s manual you will find important information that will help you handle and maintain your boat in a safe and easy manner. Furthermore, the manual contains detailed information about the boat and the systems installed, and general information about handling and taking care of your boat. We advise you to read the manual carefully and familiarise yourself with your boat before you start to use it. Naturally this owner’s manual is not a substitute for boating safety skills or good seamanship. If this is your first boat or if this boat type is new to you, we ask for your own comfort and safety that you ensure you can handle the boat before you set out for the first time. Your boat dealer, local boat clubs and national motorboat or yacht federations will gladly inform you about local sea schools or recommend approved instructors. You should ensure that the anticipated wind and wave conditions correspond to the design category of your boat, and that you and your crew are able to handle the boat in these conditions. Design category B corresponds to wind and wave conditions that can vary from storm to strong winds. Category C also indicates a risk of exceptional swell and gust. Even though your boat is designed for such conditions, they are still very dangerous. Only a capable, fit and trained crew, using a well maintained boat, can satisfactorily operate in such conditions. This owner’s manual is not a detailed maintenance or troubleshooting guide. If problems occur, you should contact the boat manufacturer or their representative. When you are in need of maintenance or repair and alteration work, you should always turn to competent and trained workshops. Changes that can affect the boat’s security features must be assessed, carried out and documented by competent professionals. The boat manufacturer cannot be held responsible for unauthorised modifications. Every change to the boat’s centre of gravity (from highly mounted heavy equipment or a new engine type etc.) will significantly affect the stability, trim and performance of the boat. The boat owner must take local and international regulations into consideration concerning the boat crew, equipment and handling of the boat. In some countries, a driving licence or a separate authorization is required for driving the boat and in some countries special regulations might also be in force. Always maintain your boat properly and make allowance for the deterioration that 4

1 GENERAL The purpose of the owner’s manual is not to be a complete service guide or repair handbook, but to guide the owner into the characteristics of his/her new boat and to handle it in a proper way. The warnings and precautions in this manual are defined as follows: DANGER! Maximum caution should be observed to prevent fatal injury or permanent harm. WARNING! Denotes that an extreme inherent hazard exists which very likely could result in death or serious injury if proper precautions are not taken. CAUTION! Take precautions to prevent injury and/or damage to the boat and its components. Units in line with the SI system have been used in this manual, but in some cases other units have been added in parentheses. An exception is wind velocity, which in the Recreational Boat Directive is given in the Beaufort Scale. In this manual, the right side of the hull is referred to as STB (starboard) and the left side as Port. 1.1 CE-CERTIFICATION The category is determined according to the maximum number of persons allowed onboard. CE certification means that a boat is designed and built in such a way that it retains its stability and buoyancy in given circumstances and meets other important requirements that are characteristic of the category in question. One of these requirements is that the boats must be easy to manoeuvre. The CE-categories means also that boats in each category must be designed and constructed to withstand the following parameters in respect of stability, buoyancy, and other relevant essential requirements stated. A. Ocean These boats are designed for extended voyages, where conditions experienced may exceed wind force 8 Beaufort Scale and include significant wave heights of at least 4 metres. Under such conditions these boats must be largely self-sufficient. B. Offshore These boats are designed for offshore voyages, where conditions up to and including wind force 8 Beaufort Scale and significant wave heights up to and including 4 metres may be experienced. C. Inshore These boats are designed for voyages in coastal waters, large bays, estuaries, lakes and rivers, where conditions up to and including wind force 6 Beaufort Scale and significant wave heights up to and including 2 m may be experienced. 1.1.1 IDENTIFICATION Each boat is supplied with a unique identification code, containing the data This boat is classified as Category B and C. 5

described below. The identification code comprises 14 characters plus a hyphen. The height of the code text is 6 mm and it is applied to the starboard side of the stern. The identification code reads as follows: FI – AXOC8001E818 FI Country of manufacturer - Hyphen AXO Manufacturer: C8 Boat model A = Open B = TT C = Cabin 001 Boat number E Month of manufacture: A = January, B = February, etc. 6 Year of manufacture 18 Model year 1.1.2 BUILDER’S PLATE The cooperation with VTT (Technical Research Centre of Finland) means that VTT as an external and independent organisation has inspected that the boat fulfils the Recreational Boat Directive and related standards requirements. The manufacturer’s plate is always fitted close to the steering position in the boat. The manufacturer’s plate gives the following information: BOAT TYPE Boat model DESIGN CATEGORY Boat class. See additional information in the chapter CE-category. MAX. LOAD Buoyancy. Total weight of persons including personal luggage (excluding tank contents). MAX. NO Maximum number of persons on board A comprehensive explanation of the information given on the plate is presented in each chapter respectively in this manual. (Load and max. engine power) 1.1.3 ID OF NOTIFIED AUTHORITY VTT Expert Services Oy, Notified authority number 0537 1.2 TECHNICAL DATA WARNING! When loading the boat, never exceed the maximum recommended load of the boat. Always load the boat carefully and always distribute loads appropriately to maintain design trim. Avoid placing heavy equipment or material high up in the boat. Overloading the boat can damage the engine, even when shut off. CAUTION! The specified tank capacity is not necessarily fully available, depending on the trim and load on board. The tank should always be kept at least 20% full. WARNING! You must not exceed the max. number of persons of the boat. Regarding the number of persons you must also always take into consideration that the total weight of the persons on board and their personal luggage must never exceed the max. load of the boat. When out on the water, always use the seats intended for passengers. CAUTION! The liquids in the built-in tanks are not included in the max. load shown on the Builder’s plate. 6

1.2.1 GENERAL FACTS BOAT MODEL AXOPAR 28 CABIN DESING CATEGORY B AND C DIMENSIONS SI units US units HULL LENGTH LH 9,2 M 30ft 1in OVERALL LENGTH LMAX (excl. Engine) 9,2 M 30ft 1in HULL BEAM BH 3,0 M 9ft 8in MAXIMUM NUMBER OF PERSONS (CATEGORY B) 6 (DEFAULT WEIGHT OF ONE ADULT 75KG, A CHILD 37,5 KG) MAXIMUM NUMBER OF PERSONS (CATEGORY C) 9 DRAUGHT AT MAX. LOAD (EXCLUDING ENGINE) 0,8 M 2ft 8in HEIGHT MEASURED FROM WATERLINE AT LIGHT LOAD 2,8 M 9ft 8in MAXIMUM RECOMMEDED ENGINE POWER 298 Kw 400 hp MAXIMUM RECOMMEDED POWER WITH TWIN ENGINES 2x149 Kw 2x200 hp WEIGHT OF BOAT´S HULL (EXCLUDING ENGINE) 2383 kg 5254 lb LOADING CATEGORY B CATEGORY C CREW LIMIT 6 9 SI units US units SI units US units TOTAL WEIGHT OF ALL PERSONS 450 kg 992 lb 675 kg 1488 lb WEIGHT OF UNLOADED BOAT WITH MAX. WEIGHT OUTB. ENGINES 3050 kg 6724 lb 3050 kg 6724 lb MAXIMUM RECOMMEDED LOAD 826 kg 1821 lb 1051 kg 2317 lb BOAT WEIGHT AT MAX. LOAD 3876 kg 8545 lb 4101 kg 9041 lb OF WHICH: SI units US units MAXIMUM RECOMMEDED ENGINE WEIGHT 522 kg 1151 lb PERSONAL LUGGAGE 50 kg 110 lb FRESH WATER (39 L) 39 kg 86 lb SEPTIC WATER (45 L) 45 kg 99 lb FUEL (260 L) 225 kg 430 lb OTHER LIQUIDS (HEATER FUEL) 17 kg 37 lb WEIGHT OF LIFERAFT 24 kg 53 lb TOTAL WEIGHT OF FUEL, WATER AND OTHER LIQUIDS 309 kg 681 lb MASS AT TRAILER 3331 kg 7344 lb 7

1.3 DECLARATION OF CONFORMITY AND ESSENTIAL SECURITY REQUIREMENTS SAFETY Basic data EN ISO 8666:2002 Hull identiﬁcation ISO 10087:2006 Manufacturer’s plate RDC ANNEX I Owner’s manual EN ISO 10240:2004/A1:2015 Preventing falling overboard EN ISO 15085:2003/DAM 2.3.2 Life raft stowage RSG Guidelines Escape EN ISO 9094:2017 Anchoring and towing EN ISO 15084:2003 Running lights 1972 COLREG Emissions control EN ISO 8099:2000 INSTALLATIONS Engines and engine spaces - Fuel system EN ISO 10088:2017, EN ISO 11105:2017 Electrical system EN ISO 10133:2017, ISO 28846:1993/ A1:2000 EN ISO 13297:2017 Steering system EN ISO 10592:2017 Gas systems - Fire protection EN ISO 9094:2017 DIMENSIONING Structure RSG Guidelines, ISO 12215-5:2008+A1:2014, ISO 12215-6:2008 HYDROSTATICS Stability and freeboard EN ISO 12217-1:2017 Buoyancy and ﬂoatation EN ISO 12217-1:2017 Manufacturer’s maximum recommended load EN ISO 14946:2001/AC 2005 Openings in hull, deck and superstructure EN ISO 9093-1:1997, EN ISO 9093-2:2002, EN ISO 12216:2002 Flooding EN ISO 11812:2001, EN ISO 15083:2003, ISO 8849:2003 HANDLING CHARACTERISTICS Handling characteristics RSG Guidelines RFU 114, EN ISO 8665:2006 Visibility from the steering position EN ISO 11591:2011 EXHAUST EMISSIONS OF ENGINES - NOISE EMISSIONS - TANK CAPACITY FUEL TANK 300 L FUEL TANK (NORTH AMERICAN REGION) 63 gal FRESH WATER TANK 39 L 10 gal SEPTIC TANK 45 L 12 gal Assessment of the stability of the boat has been done at max. load conditions. The maximum recommended load contains only the weight components mentioned above. LAYOUT AND EQUIPMENT GELCOAT / PAINT HULL (WHITE) ............................................SVG 80541 S (Reichhold) HULL (GREY, VERSION R OR COOL GREY) ..GN RAL 7037 HA (Ashland) DECK ........................................................SVG 80541 S (Reichhold) SWITCH PANEL MODULE ...........................SOFT TOUCH ELECTRICAL SYSTEM 12V (RECOMMENDATION) START BATTERY .........................................AGM BATTERIES WITH MIN. 975 CCA AND 65AH REQUIRED SERVICE BATTERY ......................................AGM BATTERY WITH 110 AH REQUIRED ELECTRICAL SYSTEM 230V BATTERY CHARGER ...................................40 AH SHOREPOWER CONNECTOR 8

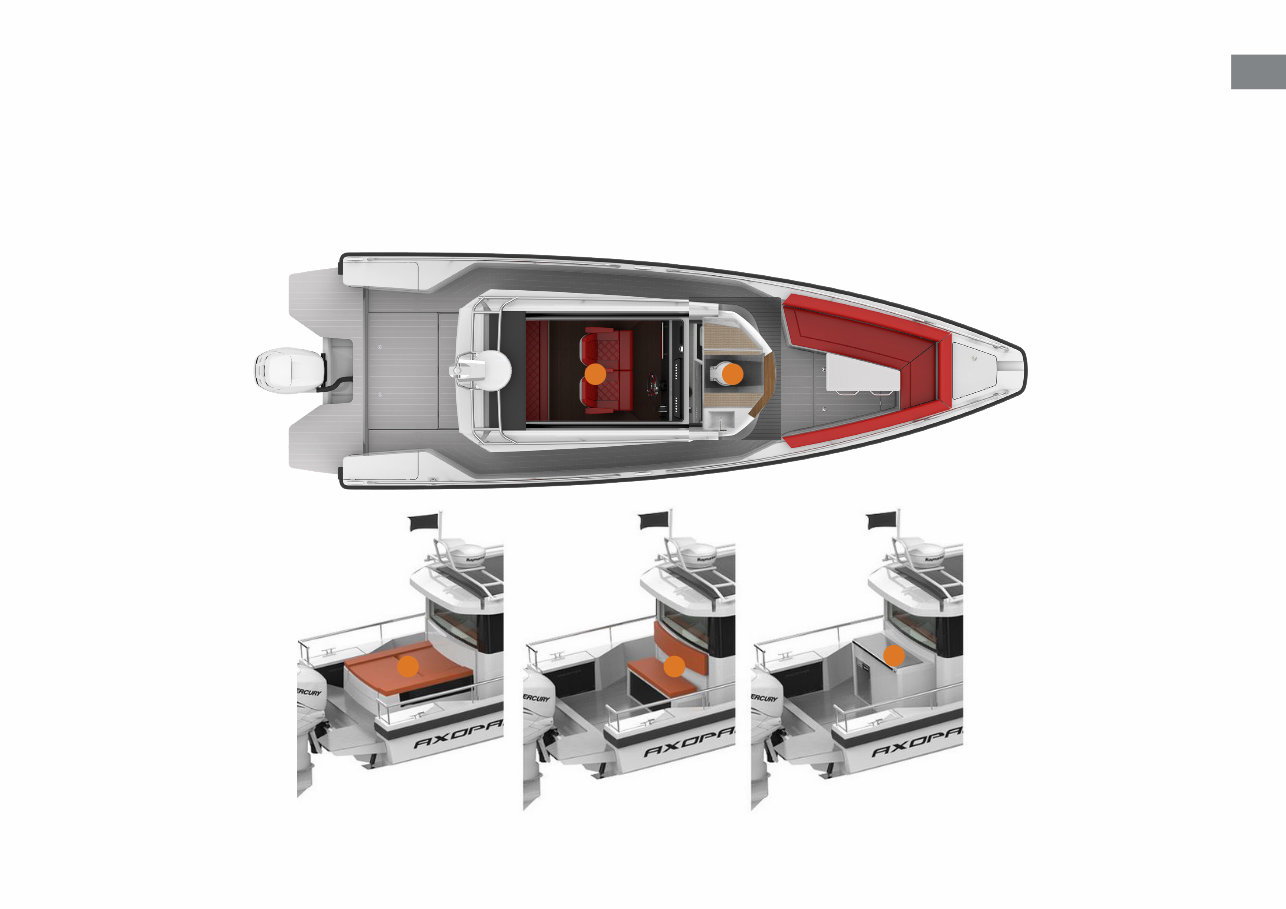

1.4 GENERAL LAYOUT 1 2 3 The Axopar 28 boat have several deck options. The standard speciﬁcation boat has a ﬂat afterdeck with stowage underneath. As an optional extra, this can be replaced with an aft cabin (1), bench/storage box (2) or pentry modul (3). The cabin may equipped with smaller pentry (4). Front part of the cabin are separate Toilet/Storage room (5). Door of the room is in the front deck. The layout of equipment and technical components may vary between boats due to different accessory alternatives. 5 4 9

2 STABILITY AND BUOYANCY 2.1 GENERAL All weight dispositions (for example installing a fishing tower, radar or furling mast, engine replacement etc.) can have a significant impact on the stability, trim, and performance of your boat. The bilge water level should be kept at a minimum. The stability of your boat will be compromised if any weight is placed in a high position. In stormy weather all hatches, compartments and doors should be kept closed to minimize the risk of flooding. The stability can be diminished when towing or lifting heavy objects using the davit or jib crane. Breaking waves represent a serious significant danger to stability. CAUTION! To avoid the risk of flooding, always keep sea valves closed when not in use. (For example, the sea valve for the toilet’s flushing water). 2.2 SELF DRAINING SYSTEMS The Axopar boat is equipped with self-draining systems for the forward and aft cockpits, which include drain holes. There are drain holes for water in both aft corners of the deck (see next Figure). The openings are directly connected to the sea. The deck of the boat has been designed to allow the water to drain straight into the sea via the water gullies (see next Figure). In addition to rainwater, the drain holes are intended to drain water ending up on the deck through splashing or from breaking waves. The drain holes must be open at all times and the holes regularly cleaned by removing any accumulated debris to prevent clogging. The system is built so as to drain the water from the deck in normal use. Do not close the taps when using the boat or when the boat is attached to the dock. CAUTION! The self-emptying open space is meant for the removal of such water that ends up on the deck through rain, splashing or from breaking waves. A part of the rain water as well as water condensation in the bilge may end up in the bilge. Do not leave the boat unattended in the water for a long time. Observe the floating position of the boat and empty the bilge when necessary. Leaving the boat unattended in the water for a long time may cause damage. WARNING! Do not close the drain holes when using the boat. 2.3 DOORS, HATCHES AND SEACOCKS There are several inlets through the boat that include taps for opening and closing the inlets. It is recommended to keep these closed if the boat is out of use for a long time, and to open them again when the boat is used again. Check always before and after boat use that every deck- and service hatches are securely closed especially inspection hatch of the engine bracket. We recommended that you keep the windows, doors, deck hatches and vents shut while driving. However, on occasion and depending on the weather they can be kept open. In stormy weather, always keep deck hatches, storage room doors and openings closed to minimize the risk of water getting into the boat. In certain conditions and speeds it is possible that water is sprayed inside through canopies, hatches or other openings, due to negative pressure or other effects. This can be prevented by closing the canopies, hatches or other openings. WARNING! Doors to cabin and toilet, aft cabin hatches, cabin roof hatch must be kept shut when under way. On the next page is shown openings 1-10 that are required to be shut. These openings can be open at nice conditions when boat is under control and must be closed if waves or wind conditions are harsh. 10
