Exploded Views and Parts List
1. Main
Exploded View
Parts List
No. Parent Lvl. Loc. Material Code Description & Specification SNA Qty.
1 DC90-09433A 2 WF0004 DC97-16016J ASSY FRAME;
GRACE-S,WF455ARGSWR,PCM,T0.8,
SA 1
2 DC90-09431A 2 WF0003 DC97-16941P ASSY COVER TOP; GRACE
S,WF457ARGSWR,EGI,T
SNA 1
3 WF455ARGSWR/AA1 WG0013 DC90-09428A ASSY TUB & DRUM;
GRACE-S,WF457ARGSGR
SNA 1
4 DC90-09431A 2 WF0005 DC97-16397D ASSY FRAME FRONT;
GRACE-S,WF455ARGSWR/AA,
SA 1
5 DC90-09431A 2 WI0012 DC97-16401A ASSY COVER FILTER;
GRACE,WF520ABW/XAA,T2.
SA 1
6 DC90-09431A 2 WD0003 DC97-16145A ASSY DOOR;
GRACE,WF520ABP/XAA,ABS,OD590,C
SA 1
7 DC90-09431A 2 WC0016 DC97-17115A ASSY PANEL CONTROL;
GRACE-S,WF455ARGSWR,N
SNA 1
8 DC90-09431A 2 WR0005 DC97-16144H ASSY DRAWER;
GRACE-S,WF455ARGSWR/AA,WHITE
SA 1
Copyright© 1995-2012 SAMSUNG. All rights reserved. 1
Exploded Views and Parts List
No. Parent Lvl. Loc. Material Code Description & Specification SNA Qty.
9 DC90-09427A 2 WR0008 DC97-16142D ASSY HOUSING DRAWER;
GRACE-S,WF457ARGSGR
SNA 1
10 DC99-00646H 3 WJ5077 DC60-40146A BOLT-SPANER; -,CR,-,T2.5,OD36,-,-,-,- SA 1
11 DC99-00646H 3 WH5379 DC62-10278A HOSE-HANGER; PUMP
MODEL,PP,BLK,RM60 RESIN
SA 1
12 DC99-00646H 3 WA5001 DC67-00307A CAP-FIXER;
WF438AAC/XAA,PP,T1.5,BLK,RM60
SC 6
13 DC99-00646H 3 WH5002 DC97-15691A ASSY HOSE WATER;
ACE,WF419AAW,HOT,L1240,O
SC 1
13-1 DC97-15691A 4 WH5340 DC62-00075A HOSE-WATER(H);
NBR+NYLON,ID10.2,OD16.5,L1
SNA 1
13-2 DC97-15692A 4 WT0033 DC62-40178A SEAL-WATER;
EPDM,BLK,ID12XOD25XT3
SA 2
14 DC99-00646H 3 WH5001 DC97-15692A ASSY HOSE WATER;
ACE,WF419AAW,COLD,L1240,
SC 1
14-1 DC97-15692A 4 WH5339 DC62-00075B HOSE-WATER(C);
NBR+NYLON,ID10.2,OD16.5,L1
SNA 1
14-2 DC97-15692A 4 WT0033 DC62-40178A SEAL-WATER;
EPDM,BLK,ID12XOD25XT3
SA 2
2 Copyright© 1995-2012 SAMSUNG. All rights reserved.
Exploded Views and Parts List

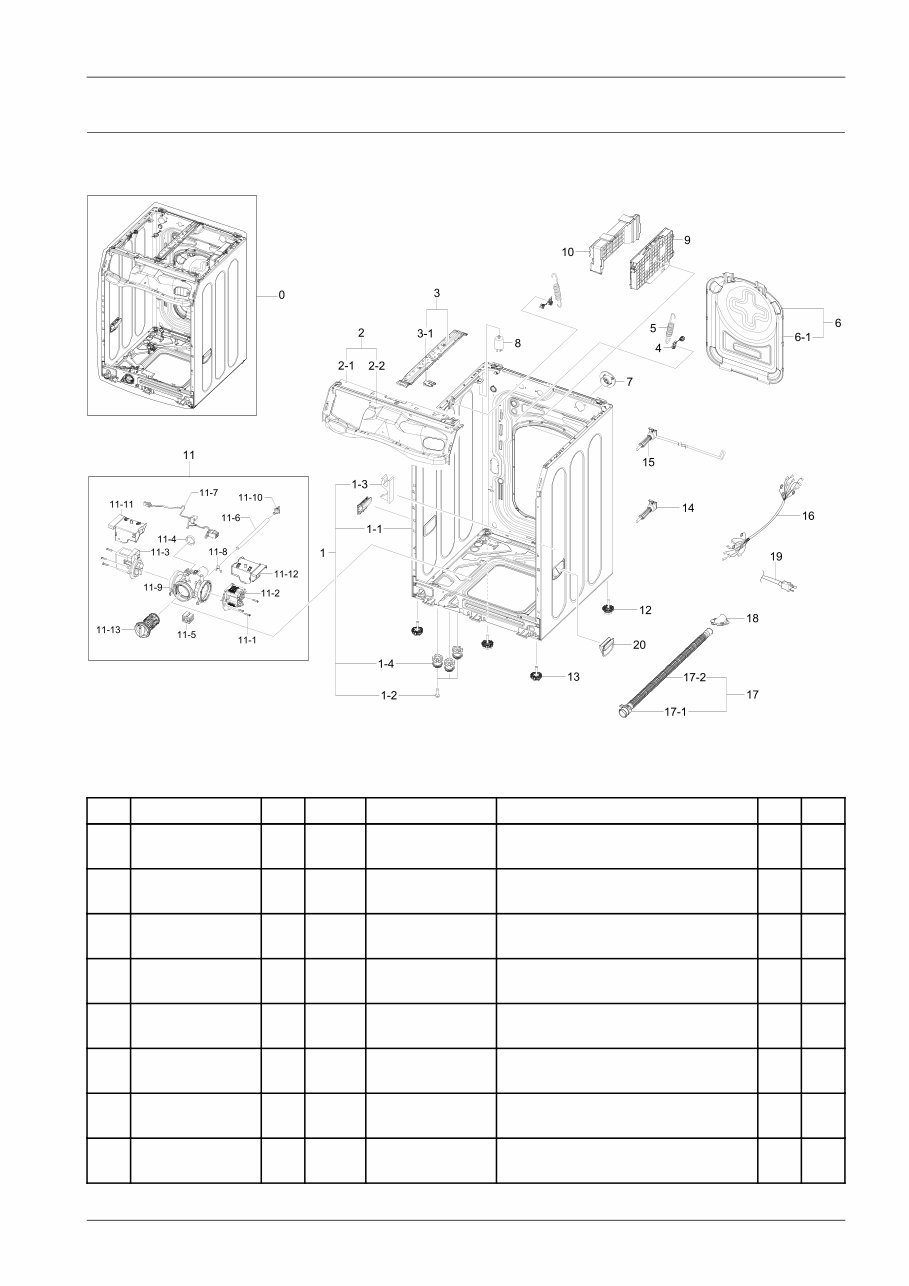

1.1. Assy Frame & Cover Parts
Exploded View
Parts List
No. Parent Lvl. Loc. Material Code Description & Specification SNA Qty.
1 DC90-09433A 2 WF0004 DC97-16016J ASSY FRAME;
GRACE-S,WF455ARGSWR,PCM,T0.8,
SA 1
1-1 DC97-16016J 3 WF0067 DC61-02602B FRAME;
GRACE,EGI-SECC,WHITE,T1.0,W686,L68
SNA 1
1-2 DC97-14603N 4 WX0555 6011-001565 BOLT-HEX;
M6,L35.1,ZPC(YEL),SWCH25K,TAPPI
SA 3
1-3 DC97-14603N 4 WH0010 DC61-02706A HOLDER-HOSE;
WF210ANW,PA,W14.9,L66,NATURA
SA 2
1-4 DC97-14603N 4 WO0003 DC99-00815A ASSY CUSHION PUMP;
MARS-PJT,WF206LNW,-,-,
SA 3
2 DC90-09427A 2 WF0008 DC97-16017B ASSY FRAME PLATE(U);
GRACE-S,WF455,T1.4
SNA 1
2-1 DC97-16017B 3 WF0088 DC61-02617A FRAME-PLATE(U);
WF520ANP,GI,NTR,T1.4,W675
SNA 1
2-2 DC97-16017B 3 WI0256 DC61-02008B GUIDE-PANEL;
WF438AAW,PP,T2.0,FC2305/NTR,
SA 1
Copyright© 1995-2012 SAMSUNG. All rights reserved. 3
Exploded Views and Parts List
No. Parent Lvl. Loc. Material Code Description & Specification SNA Qty.
3 DC90-09427A 2 WI0039 DC97-08632N ASSY GUIDE WIRE;
GRACE,WF520,SGCC(GI),T0.
SNA 1
3-1 DC97-08632N 3 DC93-00278D ASSY SENSOR; MEMS
SENSOR,320mm,GRACE
SA 2
4 DC90-09433A 2 WI0266 DC61-02432A GUIDE-SPRING;
WF419AAW,POM,T2.0,W81.5,L36
SA 2
5 DC90-09433A 2 WF0102 DC61-01257N SPRING ETC-HANGER; GRACE-S
PJT,SWP,CD4.5,
SNA 2
6 DC90-09431A 2 WF0002 DC97-16289A ASSY COVER BACK;
GRACE-PJT,WF520ABP/XAA,C
SA 1
6-1 DC97-16289A 3 WF0042 DC63-01163A COVER-BACK;
WF520ANP,GI-SGCC,T0.35,W421.0
SA 1
7 DC90-09433A 2 WI0120 DC67-00316A CAP-O.F;
WF448AAG,PP,T2.0,-,-,-,OVER FLOW
SA 1
8 DC90-09427A 2 DC29-00013H FILTER EMI; 250V,12,50/60Hz,CAN SA 1
9 DC90-09433A 2 WZ0010 DC92-01040B ASSY PCB MAIN; GRACE S WASHER
MAIN,BETTER
SA 1
10 DC90-09433A 2 WI0017 DC92-01104A ASSY COVER PCB(M);
GRACE-S,WF457ARGSGR,N
SA 1
11 DC90-09433A 2 DC97-15974G ASSY PUMP DRAIN;
GRACE-S,WF457,BUBBLE/32W
SA 1
11-1 DC97-15974G 3 RV005 6002-000632 SCREW-TAPPING;
PH,+,-,2S,M4,L16,ZPC(WHT),
SNA 6
11-2 DC97-15974G 3 DC31-00054D PUMP-DRAIN; 120V,60Hz,80W,40mm SA 1
11-3 DC97-15974G 3 WU5009 DC31-00030E PUMP-DRAIN;
B20-3,120V,60Hz,25MM,-
SA 1
11-4 DC97-15974G 3 WE5185 DC62-00299A VALVE-CHECK;
BIGBANG,NBR,ID28.6/OD33,HS70
SA 1
11-5 DC97-15974G 3 WO0031 DC63-01487A CUSHION-PUMP;
WF457,EPDM,Hs40,BLK,GRACE-S
SNA 1
11-6 DC97-15974G 3 WH5224 DC67-00244A HOSE-DRAIN;
HOSE-DRAIN,EPDM,ID6,OD11,T2.5
SA 1
11-7 DC97-15974G 3 DC93-00150C ASSY M. WIRE HARNESS-PUMP;
YUKON-BEST,WF4
SA 1
11-8 DC97-15974G 3 DD65-00001F CLAMPER HOSE; HSWR,D10.5/T1.2 SNA 1
11-9 DC97-15974G 3 WU0023 DC61-02017D CASE-PUMP;
WR-PA179UR,PP,T3,W122,L140,-,B
SA 1
11-10 DC97-15974G 3 WI0107 DC61-10673A CAP-DRAIN; SWF-P12,PP,-,-,-,NTR,- SNA 1
11-11 DC97-15974G 3 WI0203 DC63-01375A COVER-PUMP;
WF461,PP,T1.5,W63,L90.1,WHT,H
SNA 1
11-12 DC97-15974G 3 WI0203 DC63-00830A COVER-PUMP;
COVER-PUMP,PP,T2.1,W60.5,L75,
SNA 1
11-13 DC97-15974G 3 WA0006 DC97-14976A ASSY FILTER;
PURPLE-PJT,ASSY-FILTER,-,-
SA 1
12 DC90-09433A 2 WB5008 DC97-00920N ASSY LEG; K4/Bonanza,WHT /
LEG-RING+NYLON
SA 2
4 Copyright© 1995-2012 SAMSUNG. All rights reserved.
Exploded Views and Parts List
No. Parent Lvl. Loc. Material Code Description & Specification SNA Qty.
13 DC90-09433A 2 WB5006 DC97-14293A ASSY LEG;
SEW-HVR149ATA,HYBRAR-RUBBER,-,-
SA 2
14 DC90-09431A 2 WJ5006 DC97-14489A ASSY FIXER TUB;
PURPLE-PJT,WF438AAC/XAA,-
SA 3
15 DC90-09431A 2 WJ5005 DC97-14489B ASSY FIXER TUB;
PURPLE-PJT,WF448AAW/XAA,F
SA 1
16 DC90-09433A 2 WW0026 DC93-00317B ASSY M.GUIDE WIRE HARNESS;
GRACE-S BETTER
SA 1
17 DC90-09433A 2 DC97-17093A ASSY HOSE DRAIN(I);
SQUALL,WF350,GRAY
SA 1
17-1 DC97-17093A 3 WJ5075 DC61-01679A CLAMPER HOSE;
SEW-HFR177AR,SK5,-,T1.6/ID3
SA 1
17-2 DC97-17093A 3 WH0013 DC67-00330D HOSE-PUMP;
PURPLE,PP,ID20.6,OD27.0,-,L241
SNA 1
18 DC90-09433A 2 DC61-02084A GUIDE-HOSE;
PURPLE,PP,CNTK-P-100,NTR
SA 1
19 DC90-09433A 2 WE0016 DC96-00757D ASSY POWER CORD;
USA,125V/13A,SJT 16,1500
SA 1
20 DC90-09433A 2 WI5007 DC97-15854A ASSY HANDLE; ACE,DRUM
WASHER,PP,WHITE
SA 2
Copyright© 1995-2012 SAMSUNG. All rights reserved. 5
