1 WASHING MACHINE SERVICE MANUAL Before servicing the washer, Read the safety precautions in the manual. CAUTION MODEL : WT-R107/R854

2 SAFETY PRECAUTION! IMPORTANT SAFETY NOTICE! DISASSEMBLE POWER CORD BEFORE SERVICING RECONNECT ALL GROUNDING DEVICES This service information is intended for individuals possessing adequate backgrounds of electrical, electronic and mechanical experience. Any attempt to repair this appliance may result in personal injury or property damage. The manufacturer or seller can not be responsible for the interpretation of this information, nor can it assume any liability in connection with its use. CONTENTS 1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 2. Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 3. Operating Instructions 3-1. Identification of Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 3-2. Before Starting to Wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3-3. Function of Each Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3-4. Washing Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3-5. Other Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3-6. Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 4. Service Information 4-1. Schematic Diagram(Inverter Part) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 4-2. Schematic Diagram(Display Part) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 4-3. Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 4-4. Program Time Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 4-5. Disassembly Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 4-6. Test Running without water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 4-7. Trouble Shooting Methods against Common Washing Problems . . . . . . . . . . . . . . . 39 4-8. Trouble Shooting Methods according to Error Message . . . . . . . . . . . . . . . . . . . . . . . 40 4-9. How to Diagnose and Repair by Symptom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 5. Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

3 1. SPECIFICATIONS Input Refer to rating label on the back of Washer Capacity Refer to rating label on the back of Washer Inner Tub Stainless Inlet Water Pressure 0.5kgf/cm 2 ~6kgf/cm 2 Rating of Fuse 250V, 8A for 220~240V/50,60Hz 125V, 12A for 100~127V/60Hz Spin Speed 950 30 Dim. Refer to rating label on the back of Washer Weight Refer to rating lavel on the back of Washer Program Fuzzy, Eco Cotton, Perm. press, Delicates, Woo/Silk, Hand Wash, Speed Wash, Rinse/Spin, Bulky Large, Heavy Duty Water Level 7 Stages Sping Speed Level Extra High, High, Medium, Low, No Spin Reservation Available for 1~24Hr Lid Interlock Switch Magnet Sensor Child Lock Applied Softener Dispenser Applied Dtergent Dispenser Applied Bleach Inlet Applied Auto Power Off Applied Additivies Dispenser Applied Model WT-R107/R854 Power Refer to rating label on the back of Washer

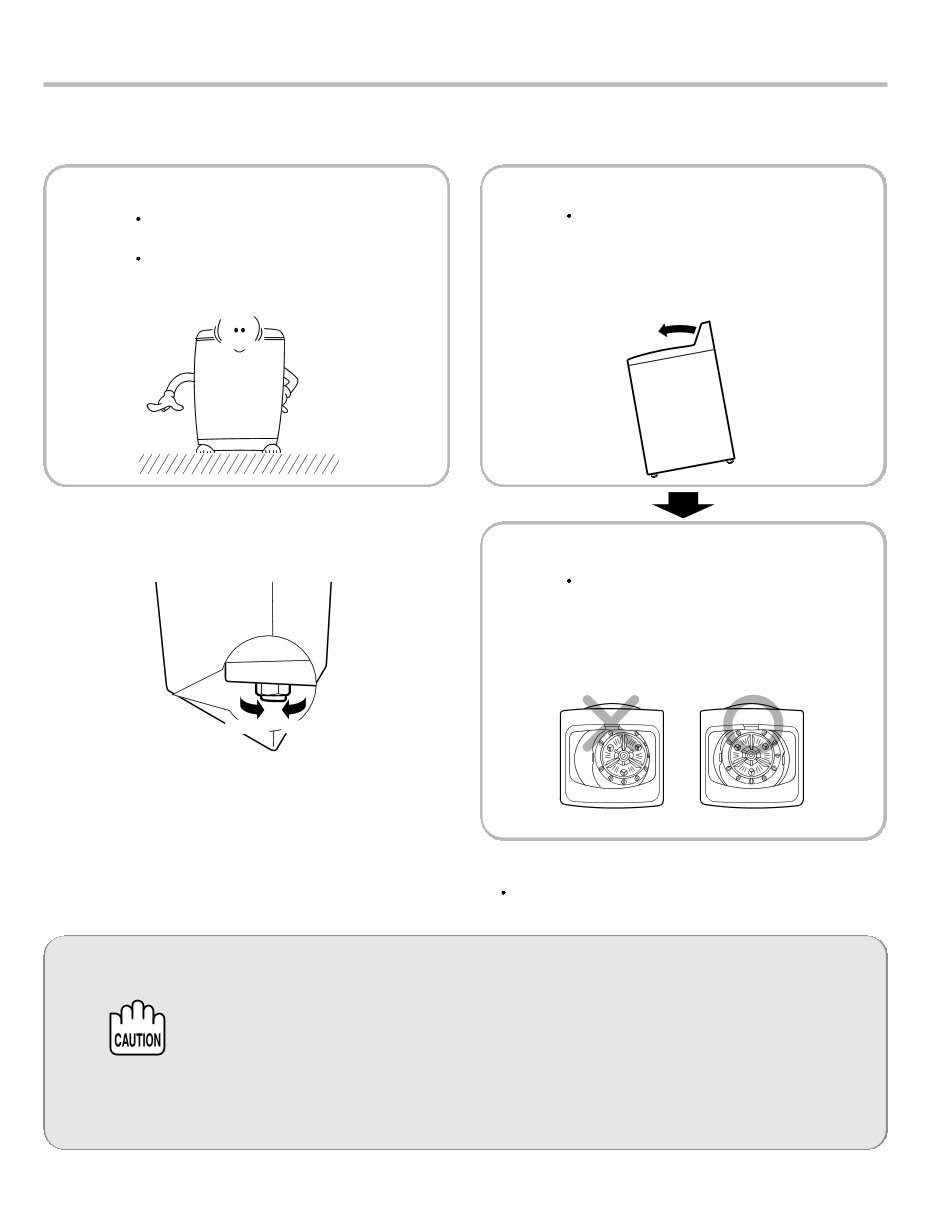

4 2. INSTALLATION INSTRUCTIONS 2-1. HOW TO ADJUST LEVEL Lower Raise How to use the adjusting plates Use the adjusting plates to level the washer when the adjustable legs cannot cover the gap. Checking level Open the lid, and check if the washer is correctly leveled by looking down from the top. 3 Set rear legs Remove the level and tilt the washer forward (pivot on front legs) about 4 to 6 inches (10 to 15cm) and gently lower the rear legs back onto the floor. This action will set rear leg adjustments to correspond to front settings Installation area Install the washer on flat and firm surface. If the washer is installed on an unsuitable floor, it could make considerable noise and vibration. 1 2 Improper installation of the washer may cause noise and malfunctioning. 1. The ventilating openings in the base area must not be obstructed be carpeting when the washing machine is installed on a carpeted floor. 2. Install the washing machine on a level and firm surface, any tilt should be less than 1° . 3. Wooden floors may need reinforcing to prevent the normal vibration which occurs with an unbalanced load. 4. If the washer is installed on an inclined floor, it could make considerable noises and vibration and could cause a malfunction. Turn the adjustable legs to set the washer horizontal(2EA).

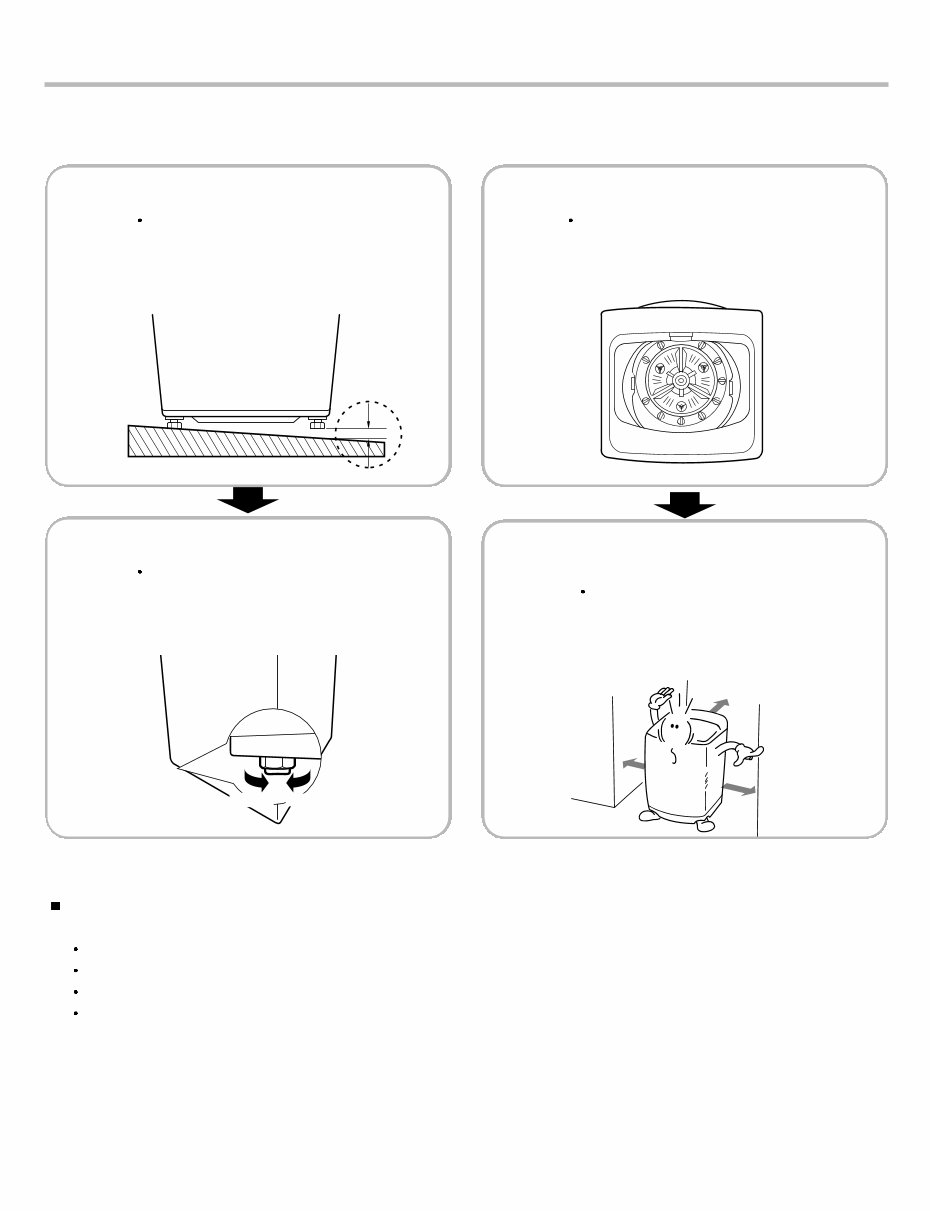

5 More than 10cm More than 2cm More than 2cm Distance between drain hose and the wall Distance between drain hose and the wall should be more than 10cm, and the distance between the other part and the wall should be more than 2cm. 7 Confirming level Place the washer to original position and confirm the level. Checking slope If installation surface is tilted, the washer will be shaken. 4 Lower Raise Horizontal setting Lift up the front of the washer and adjust level by turnings the adjustable legs clockwise or using the adjusting plate. Do not install the washer in the following places Where the washer is exposed to direct sunlight. Near a heater or heating appliance. Where the washer is exposed to freezing temperatures. In damp environments such as bathrooms or harmful environments such as near a coal gas source. 5 6

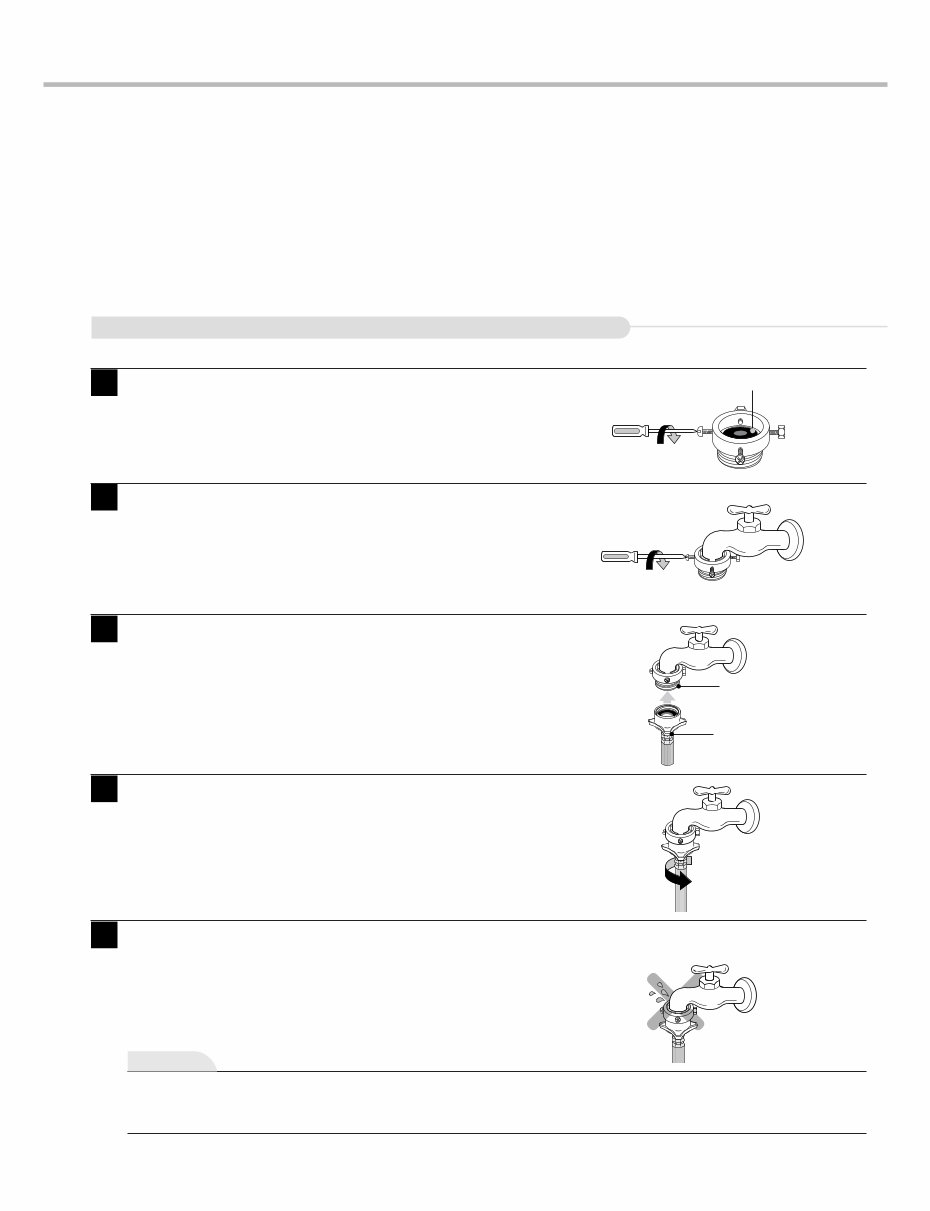

6 2-2. CONNECTING WATER SUPPLY HOSE Before connecting the Water Supply Hose to the water tap, check the hose type and then choose the correct instruction here under. Note that the Water Supply Hose supplied may vary from country to country, Make sure to connect the blue inlet hose to the COLD water tap, and the orange inlet hose to the HOT water tap. Connecting Water Supply Hose to water tap Normal Type (Normal tap without thread & screw type inlet hose.) 1 2 3 4 5 Untighten the screw Untighten the screw of the connector so that the tap can be placed in the middle. Fixing the connector to the tap Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws. Rubber packing Attach the water supply hose securely to the connector Push the water supply hose vertically upwards so that the rubber seal within the hose can adhere completely to the tap. Connector Water supply hose Fixing the connector to the water supply hose Attach the water supply hose to the connector and then tighten it by screwing it to the right. Check the connection of water supply hose and the connector After connecting the hose, open the tap to check for any water leakage. If the water leaks, close the tap and start again from step 1. The washing machine is to be connected to the water mains using new hose-sets and old hose-sets should not be reused. Note

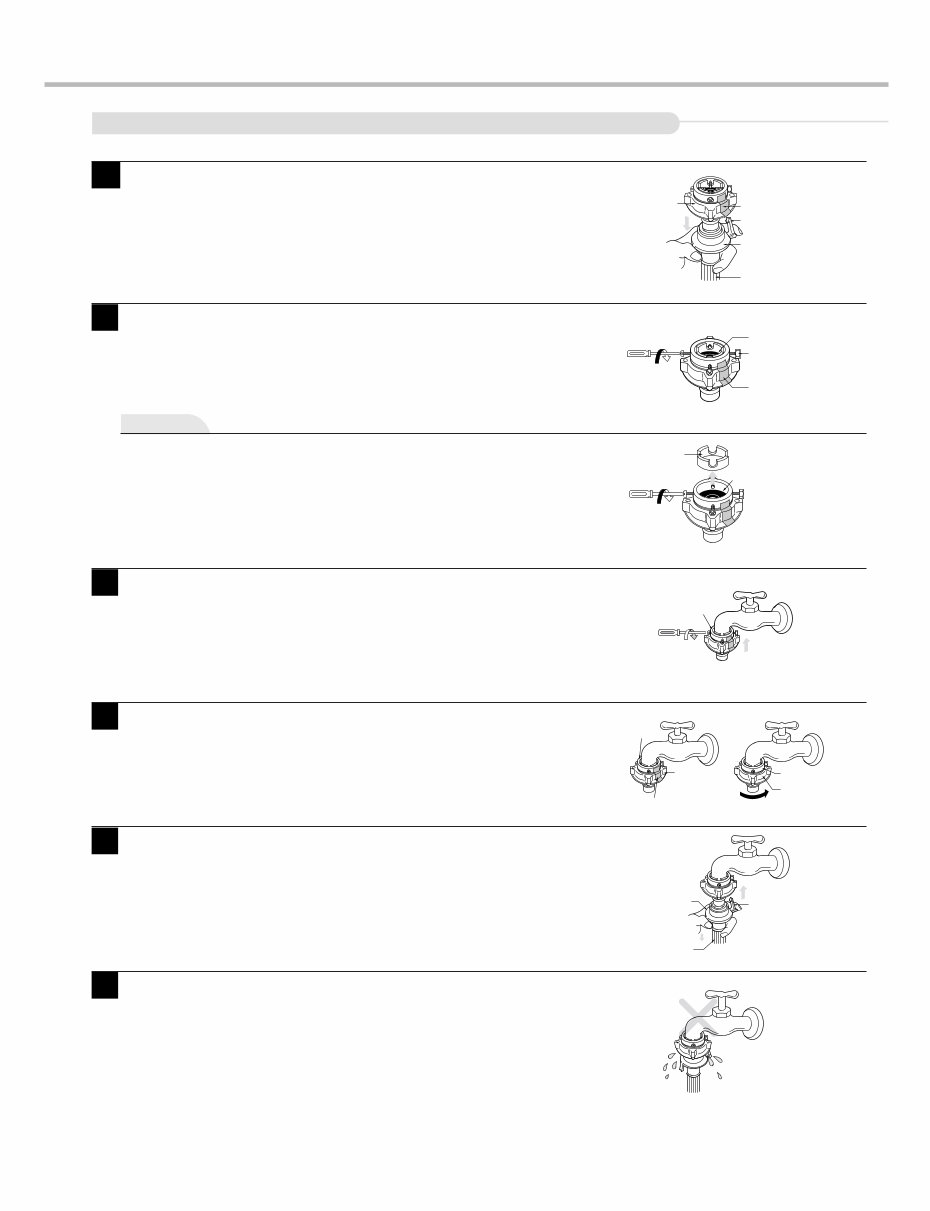

Note 7 One Touch Type 1 2 3 4 5 6 Separate Middle connector from Water Supply Hose Separate Middle connector from the Water Supply Hose by pulling the Pressing Rod and the Pressing Handlre that is attached to the Water Supply Hose. Fixed Sticker Pressing Handle Pressing Rod Water Supply Hose Middle connector Loosen the fixed nuts to connect the connector to the tap Untighten the screw of the connector so that the tap can be placed in middle. In case tap is too large. If the tap diameter is too large or is square, untighten the 4 screws and remove the guide plate. Then follow step1. Rubber packing Screw Fixed sticker Guide plate Rubber packing Fixing Connectors to the Tap Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws. Connector Fixing Upper Connector and Middle Connector Remove the fixed sticker in between the Upper and Middle Connectors. Tighten the connectors by holding one connector and twist middle connector to the right. Connector Fixed sticker Middle Connector Middle Connector Connector Connecting Middle Connector and water Supply Hose Press down the pressing rod of the Water Supply Hose whick was separated from middle connector (refer to Step 1) and then join it to the middle connector. Pressing handle Pressing Rod Water Supply Hose Check for water leakage After connecting the hose, open the tap to check for any water leakage. If the connection leaks, close the tap and start again from step 1. If you skip step 1, water leakage may occur. (Normal tab without thread & one touch type inlet hose.)

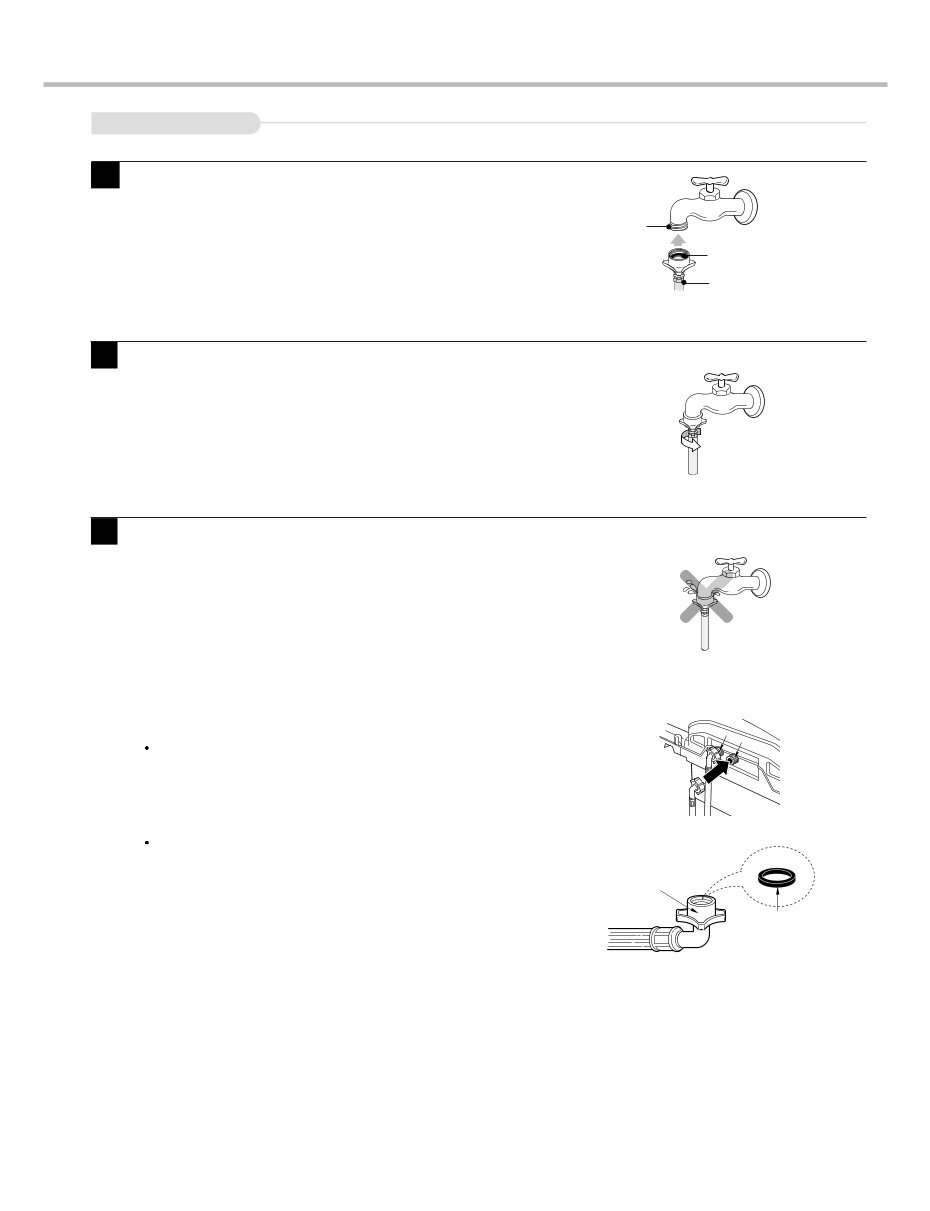

8 Screw Type 1 2 3 Attach the water supply hose to the tap. Push the water supply hose up so that the rubber packing within the hose can adhere completely to the tap. Water Supply Hose Rubber Packing Water tap Connect the water supply hose to the tap. Connect the water supply hose to the tap and then tighten it by screwing it to the right. Check water leakage. After connecting the hose, open the tap to check for any water leakage. Connecting Water Supply Hose to the machine Connect the water supply hose to inlet valve of the washing machine, and then lock it by turning the hose connecting part. Check to see if there is a rubber seal inside the connector. Cold Hot Hose connector Rubber seal

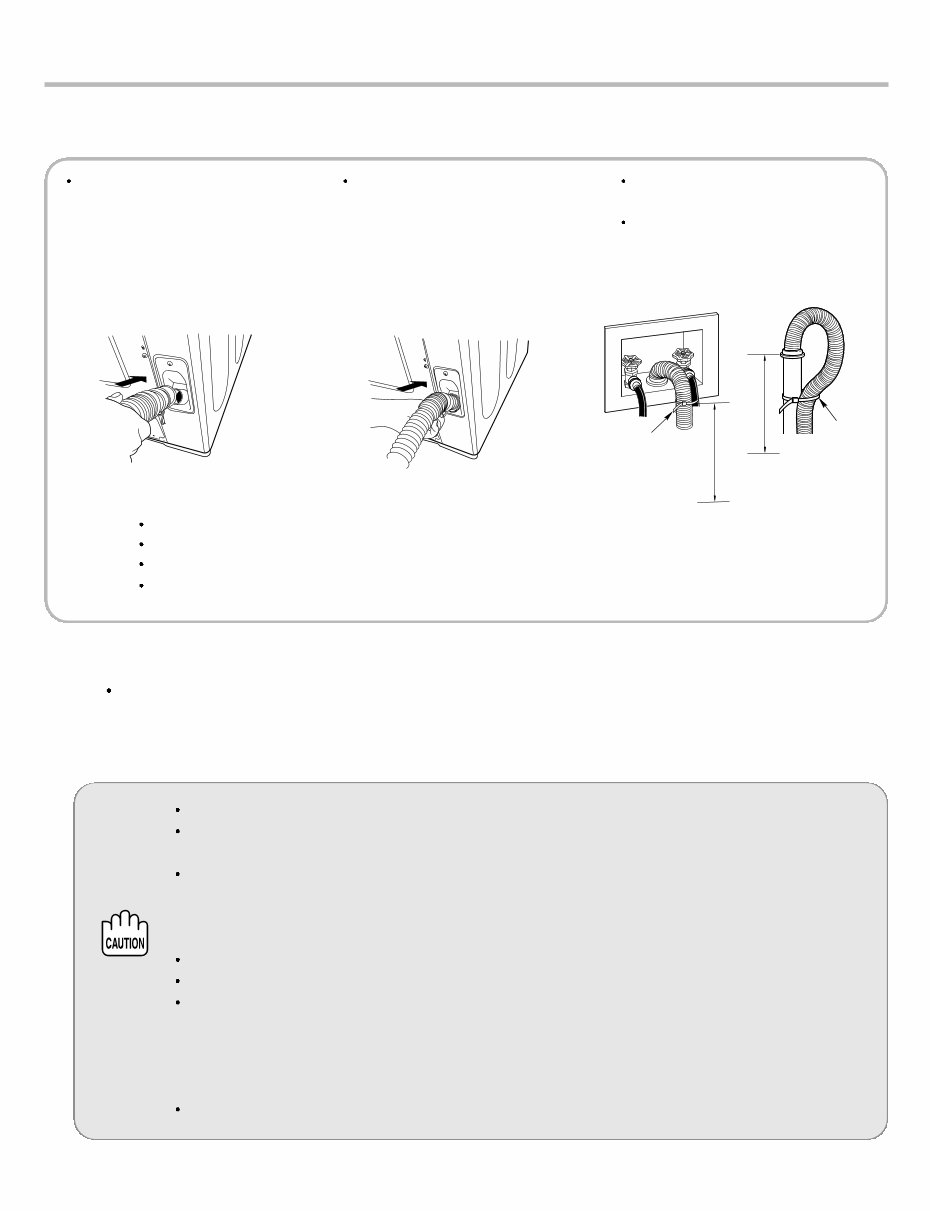

9 2-3. CONNECT THE DRAIN HOSE 2-4. FLOODING DRAINAGE Do not install the washer where it is directly exposed to sunlight, wind, rain, etc. Plug the power cord of this washer into a properly installed standard power outlet that is grounded. Your machine requires a floor drainage slope (or hole) that will SAFELY DISPOSE of the FULL FLOW of any water that may leak out should the machine malfunction.It is therefore the OWNER’S RESPONSIBILITY to make sure this machine is installed in an area with a drain hole (or slope) that will prevent any possibility of water damage to floor coverings or property. Permissible water temperature : Max 70 ˚C (160 ˚F) Permissible water pressure : Max 116psi (800 kpa, 8 kg /cm 2 ), Min 4 psi (30 kpa, 0.3 kg/cm 2 ) If water temperature and pressure are greater than above, it may cause damage to the machine. If you have uncontrolled water temperature and pressure you should fit a temperature and pressure relief valve to ensure that water temperature and water pressure remain within the safe limits. Consult a plumber or electrician if you are unable to adjust water temperature and pres sure. Do not over tighten the coupling nuts with a tool.Inlets are plastic : Do not strip or crossthread. Cable Tie 0.9~1.2m 0.9~1.2m Cable Tie Connect the drain hose to the outlet of the drain pump located at the rear of the washing machine. Attach the clip to the drain hose. And then push it toward the body of the washing machine as indicated by the arrow. Check that the drain hose is hung up over the edge of the laundry tub. Do not use an extension hose. NOTE : Never lay down the drain hose, as water will be discharged. Be sure the drain hose is properly routed so it will not kink or lift from the sink. The discharge height should be approximately 0.9 ~1.2 m from the floor. Connect the drain hose adjusting the length of it not to be dropped. If drain hose is dropped the drainage could be poor because of blockage in the hose. You machine requires a floor drainage slope (or hole)that will SAFELY DISPOSE of the FULL FLOW of any water that may leak out should the machine malfunction. It is therefore the OWNER'S RESPONSIBILITY to make sure this machine is installed in an area with a drain hole (or slope)that will prevent any possibility of water damage to floor coverings or property.

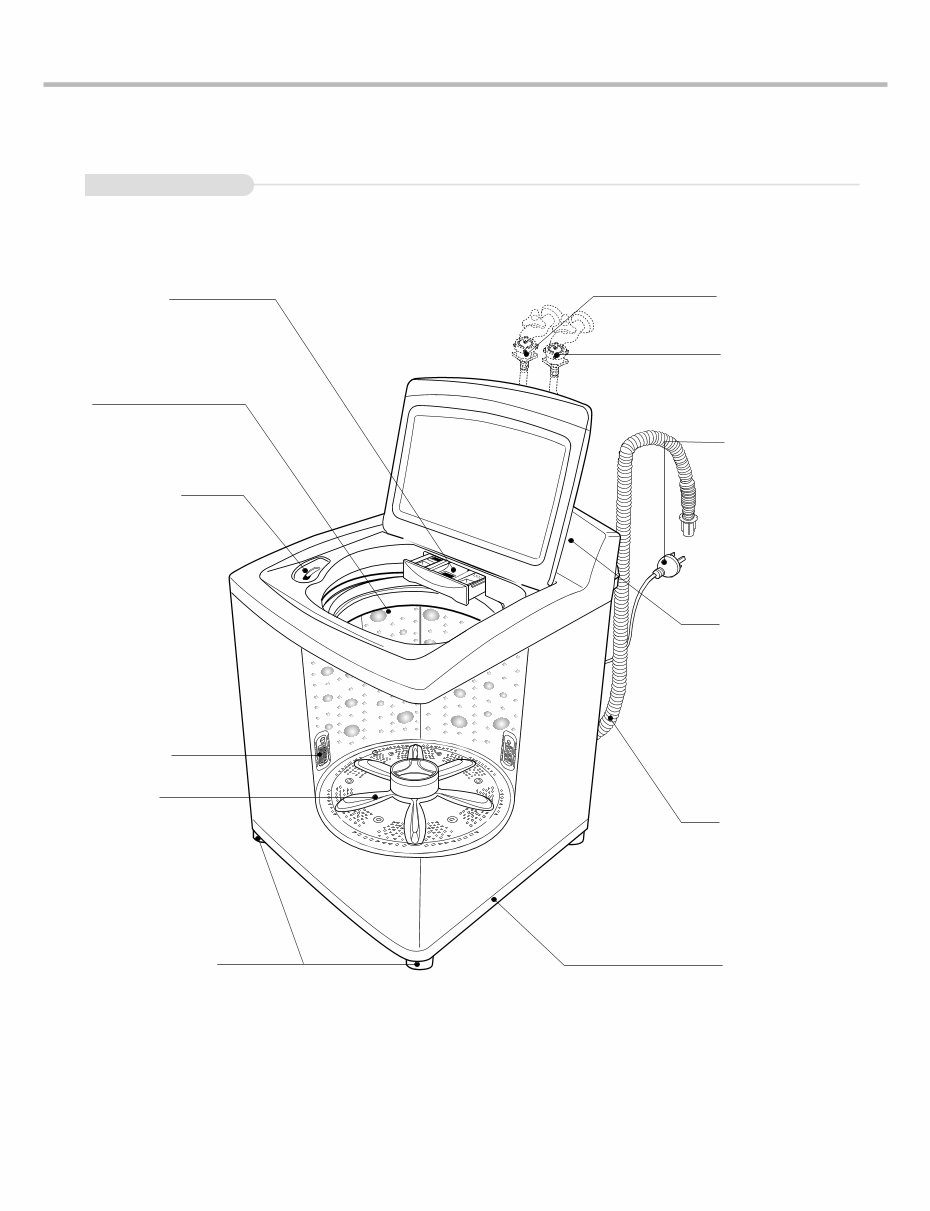

3. OPERATING INSTRUCTION 10 3-1. IDENTIFICATION OF PARTS HOT WATER SUPPLY HOSE COLD WATER SUPPLY HOSE Make sure the water does not leak. Powder detergent Box for delayed washing/softener additves box INLET HOLE FOR BLEACH TUB BASE LEVELLING LEGS Use to level the washing machine for correct balance & spin operation. DRAIN HOSE Check if the drain hose is hung up before operating the washing machine. FUNCTION SELECTOR POWER PLUG If the supply cord is damaged,it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard. Clean regularly to stop linting on the clothes load. Multi Clean filter Washing Wing (unique with lnner Tub) Body
