WASHING MACHINE SERVICE MANUAL CAUTION READ THIS MANUAL CAREFULLY TO DIAGNOSE TROUBLE CORRECTLY BEFORE OFFERING SERVICE. MODEL : F**96(T/Q)D(P)(1~9) website : http://biz.lgservice.com e-mail : http://LGEservice.com/techsup.html

MFL42617237 : . No / P

2 CONTENTS 1. SPECIFICATION ............................................................................................................................ 3 4 2. FEATURES & TECHNICAL EXPLANATION .................................................................................... 3. PARTS IDENTIFICATION ............................................................................................................... 6 4. INSTALLATION ................................................................................................................. ................. 7 5. OPERATION................................................................................................................... ................. 12 5-1. F**96(T/Q)D(P)(1~9) .................................................................................................................. 12 14 6. WIRING DIAGRAM / PCB LAYOUT / PROGRAM CHART.............................................................. 7. TROUBLESHOOTING ...................................................................................................................... 17 17 17 17 7-1. BEFORE PREFORMING SERVICE .......................................................................................... 7-2. LOAD TEST MODE ................................................................................................................... 7-3. HOW TO KNOW THE WATER LEVEL FREQUENCY.............................................................. 7-4. ERROR DISPLAY ...................................................................................................................... 18 19 7-5. TROUBLESHOOTING WITH ERROR ...................................................................................... • IE ( Water Inlet Error) ............................................................................................................... 19 • UE (Unbalanced Error) ............................................................................................................. 20 • OE ( Water Outlet Error) ........................................................................................................... 21 • FE (Flow over Error) ................................................................................................................. 23 24 • PE (Pressure Sensor S/W Error) .............................................................................................. • DE (Door open Error) ............................................................................................................... 25 • tE (Thermistor (Heating) Error)................................................................................................. 26 • LE (Motor Lock Error) ............................................................................................................... 27 29 29 8. TROUBLESHOOTING WITHOUT ERROR CODES ........................................................................ • PF (Power Failure or no power) ............................................................................................... • Vibration & Noise in spin ........................................................................................................... 30 31 • Detergent & Softener does not flow in ..................................................................................... • Water Leak ............................................................................................................................... 32 9. DISASSEMBLY INSTRUCTIONS .................................................................................................... 34 10. EXPLODED VIEW .......................................................................................................................... 41

3 1. SPECIFICATION IMTE F**96(T/Q)D(P)(1~9) POWER SUPPLY PRODUCT WEIGHT OPERATION WATER PRESSURE CONTROL TYPE WASH CAPACITY DIMENSION DOOR SWITCH TYPE WATER LEVEL DELAY FINISH TIME SENSING OF THE LAUNDRY AMOUNT FUZZY LOGIC DISPLAY OF THE REMAINING TIME ERROR DIAGNOSIS POWER AUTO OFF CHILD LOCK AUTO RESTART ELECTRICITY CONSUMPTION WASHING SPIN (1400rpm) DRAIN MOTOR WASH HEATER REVOLUTION SPEED WASH SPIN F10**(T/Q)D(P)(1~9) F12**(T/Q)D(P)(1~9) F14**(T/Q)D(P)(1~9) No Spin~1000 rpm No Spin~1200 rpm No Spin~1400 rpm 50rpm 0.3-10kgf/cm 2 (30-1000kPa) Electronic T_Cotton 8kg / Q_Cotton 7kg (Max.) 600mm(W)x550mm(D)x850mm(H) Auto Sw i tch t ype 9 st eps ( by s ensor) Fr om 3 hour s t o 1 9 ho urs Available Available Available Available Available Available 10 items 135W 530W 30W 2000W 220-240V~, 50Hz 62kg

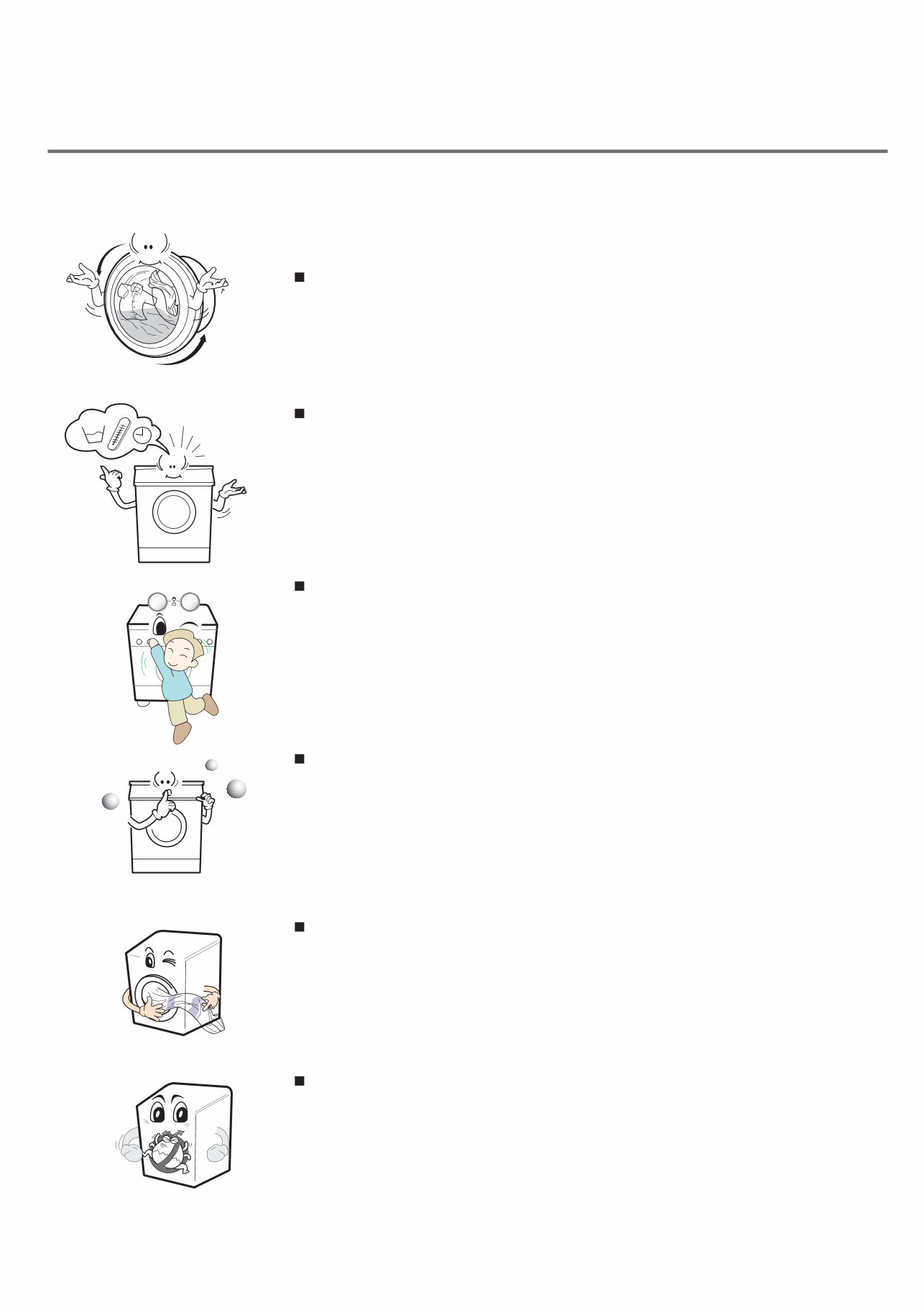

2-1. FEATURES Anti Crease function With the alternate rotation of the drum, creasing in the laundry is minimized. More economical by Fuzzy Logic System FUZZY Logic System detects the amount of load and water temperature, and then determines the optimum water level and washing time to minimize energy and water consumption. Child-Lock The Child-Lock system has been developed to prevent children from pressing any button (except Power button) to change the programme during operation. Low noise speed control system By sensing the amount of load and balance, this system automatically distributes load evenly to minimize the spinning noise level. Direct Drive System The advanced Brushless DC motor rotates the drum directly without a belt and a pulley. Built-in heater Internal heater automatically heats the water to the best temperature on selected cycles. 4 2.FEATURES & TECHNICAL EXPLANATION

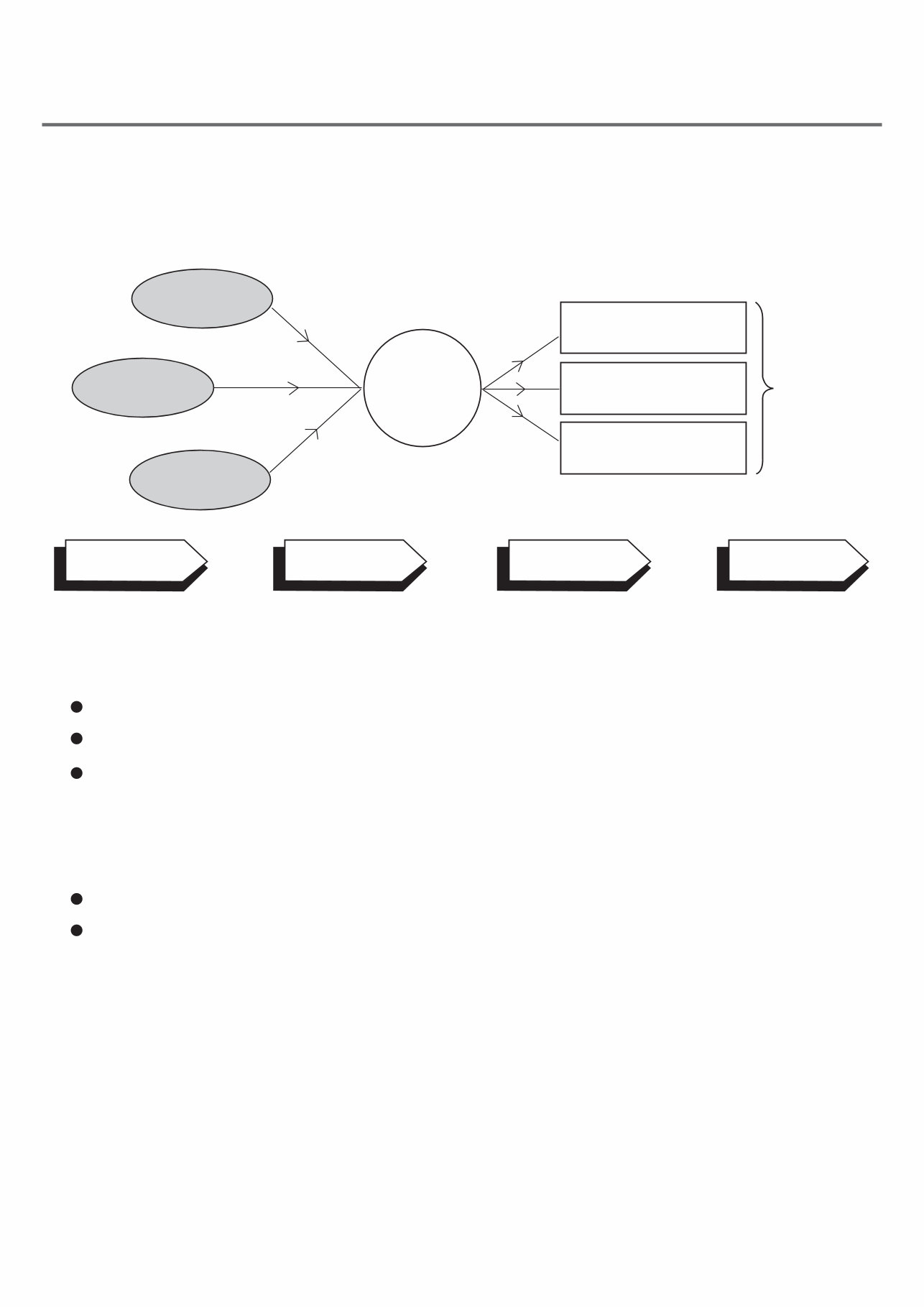

5 2-2. DETERMINE WASHING TIME BY FUZZY LOGIC To get the best washing performance optimal time is determined by sensing of water temperature, selected washing temperature and laundry amount. 2-3. WATER LEVEL CONTROL This model uses a pressure sensor to determine the water level in the tub. When the preset water level reached, water supply is stopped and the program proceeds. W ater needs to be below a preset level before spining will proceed. water temperature washing time rinse time the best washing performance spin rhythm, time laundry amount FUZZY LOGIC selected washing temperature SENSING EFFECT PROCESSING DETERMINATION 2-4. THE DOOR CAN NOT BE OPENED While program is operating. While Door Lock light turns on.

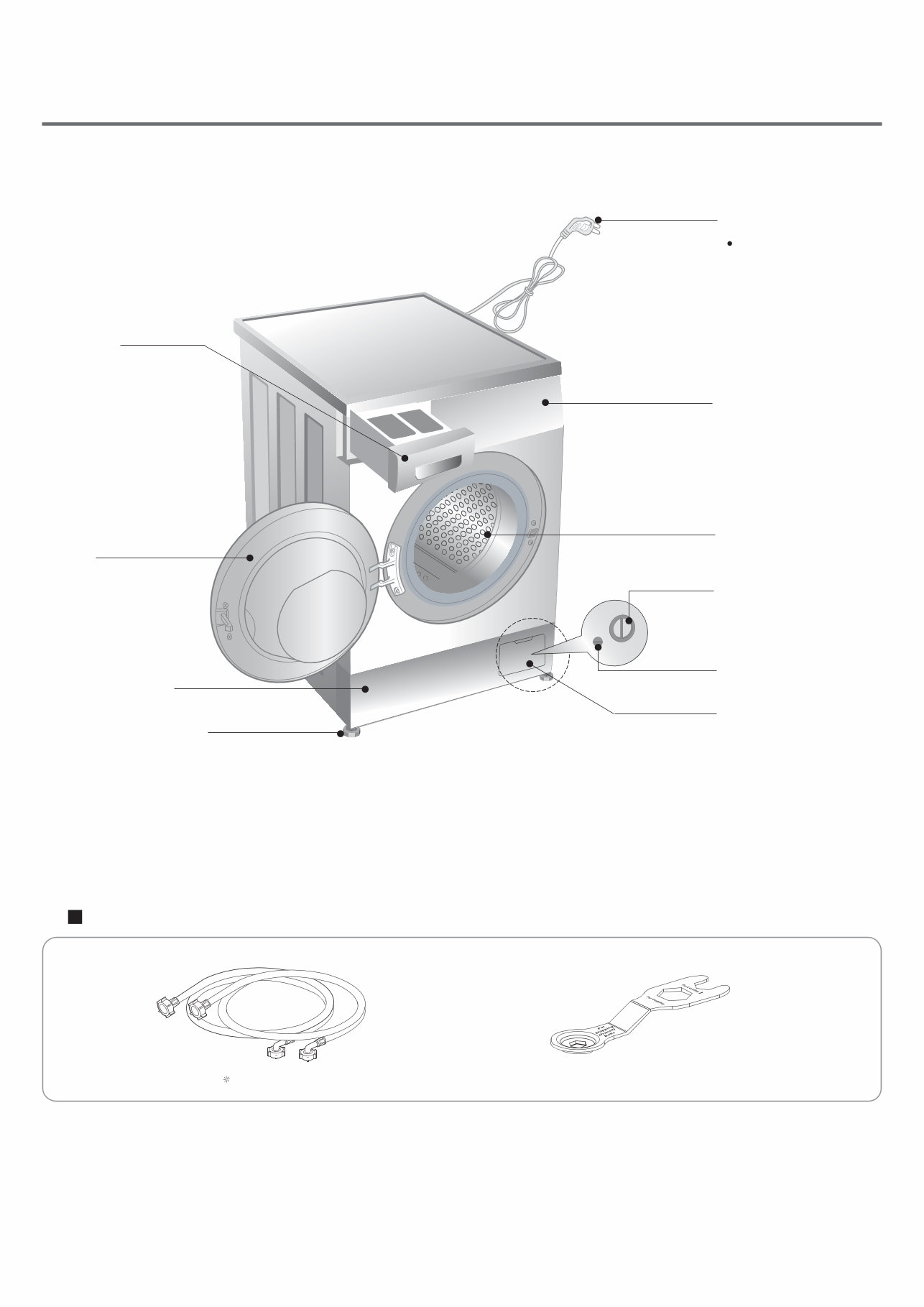

6 3 . PARTS IDENTIFICATION Drawer Door Adjustable Feet Power Plug Control Panel Drain Pump Filter Drain Plug Lower cover cap If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or a similarly qualified person in order to avoid a hazard. ACCESSORIES Inlet hose(1EA) Option : Hot / Cold(2EA) Spanner Drum Lower cover (For datergent and fabric softener)

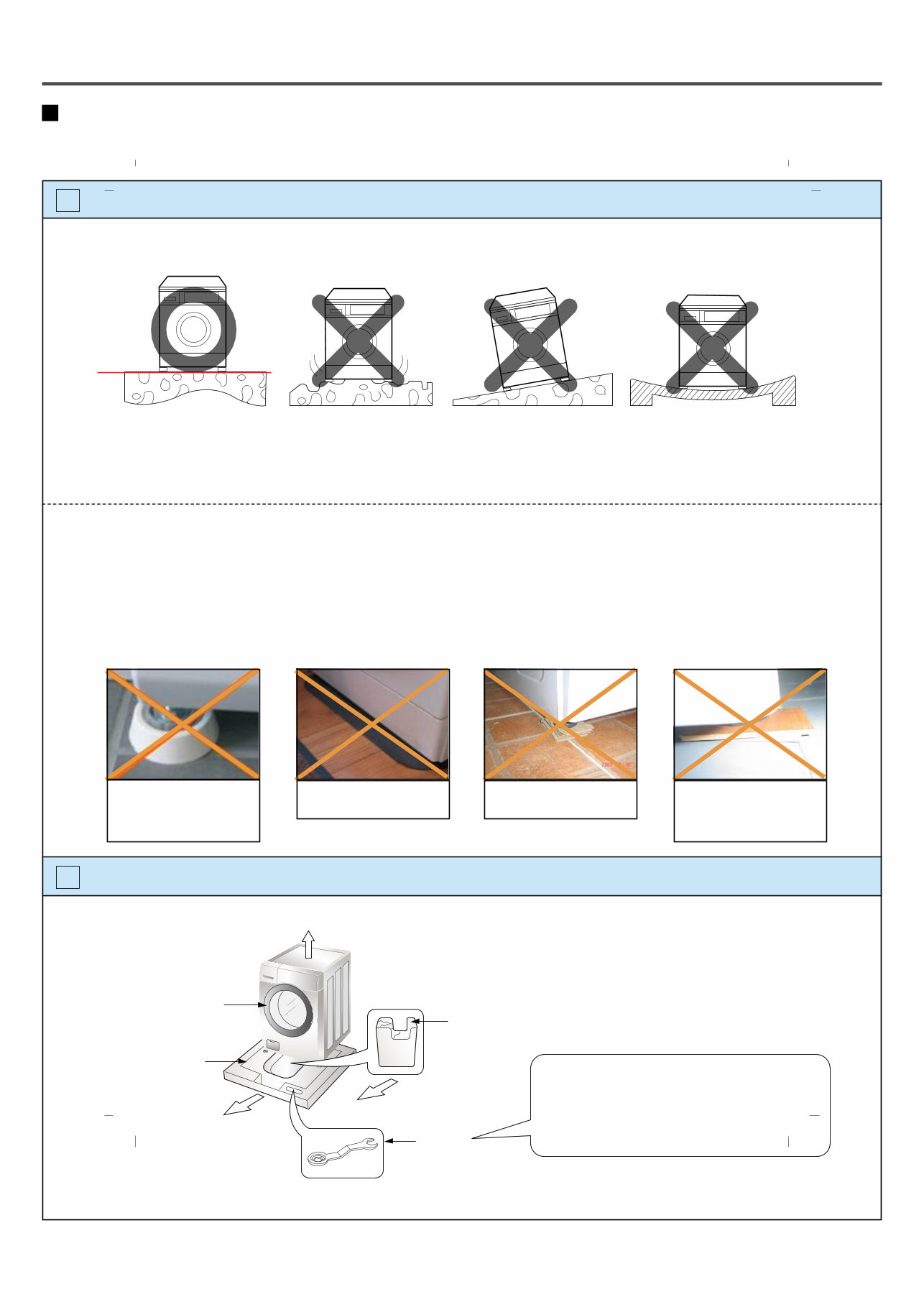

7 4.INSTALLATION INSTALLATION The appliance should be installed as follows. Check the conditions of installation area. 1. Check level ground. On raised foundations or upper level homes, the vibrations can be caused by the type of flooring. It may be necessary to move the machine to a different area in the home or have the floor reinforced to properly support the operation of the unit. 2. Check humidity or any foreign objects under the feet. Clean the floor, and there should not be any foreign objects under the feet. If the unit has foreign objects underneath the feet, this will prevent the unit from being leveled properly and will cause vibrations and slipping . Remove any foreign objects , if any from underneath the machine and level unit properly. See below for examples of foreign objects. 1 Open the box and check appliance condition. 2 horizontal Capet Paper Laminated paper Washer Base Packing Wrench This leveling (or spanner) wrench must be used to remove the shipping bolts and level the unit. This should be kept for future use. Packing Support Purchased stopper

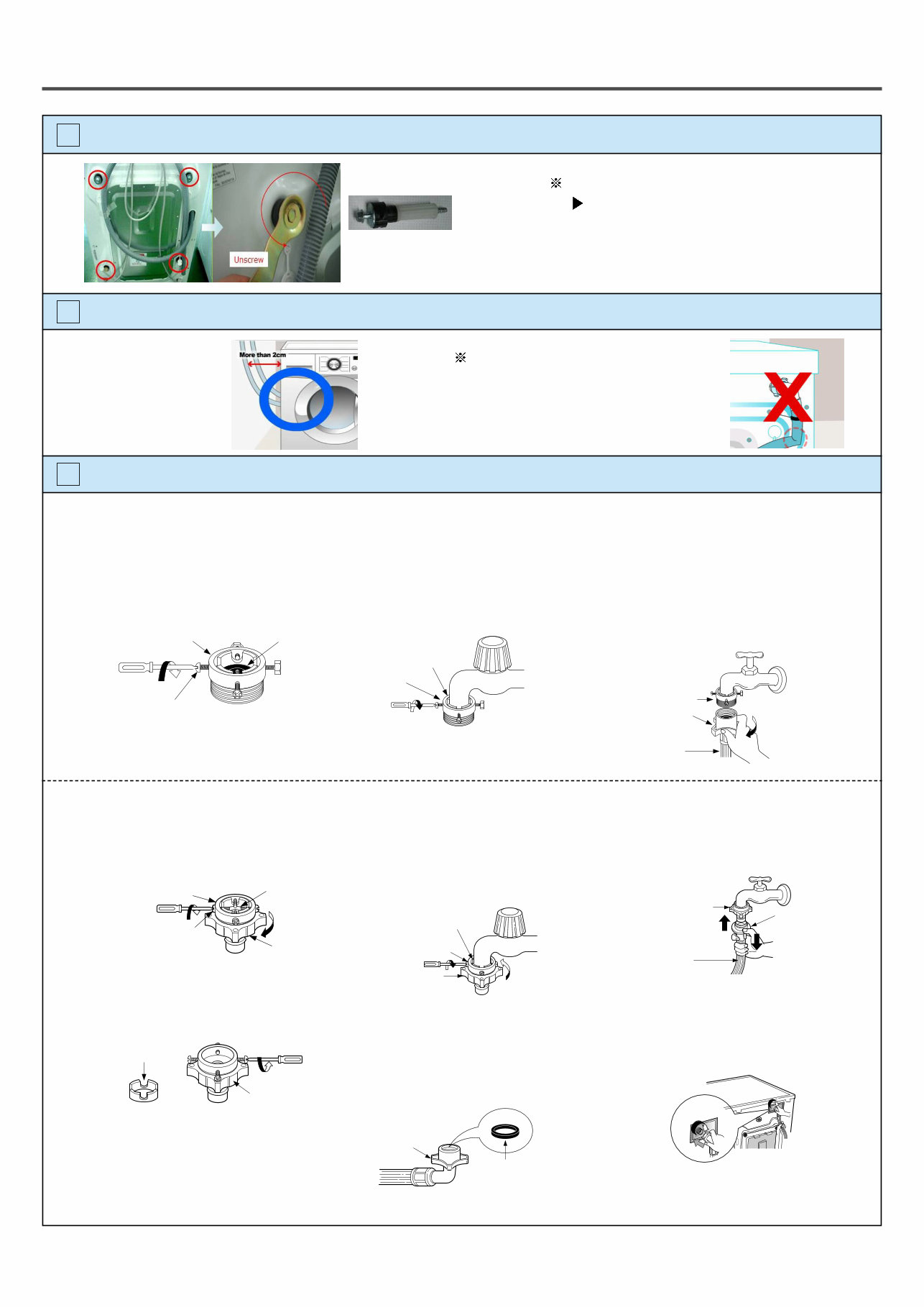

8 Use spanner to remove transit bolts. 3 Confirm the distance between the appliance and the wall. 4 The tap connection and hose connection must be parallel. 5 Without removal of transit bolts Spin noise and shaking . X 4 EA Transit bolts More than 2cm If the distance is less than 2cm, the water supply hose will kink or fold . 1. Normal Tap without thread & screw type inlet hose. 1. Unscrew the fixing screw to attach the tap. 2. Push the connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws. 3. Push the water supply hose vertically upwards so that the rubber packing within in the hose can adhere completely to the tap and then tighten it by screwing it to the right. 1. Untighten the upper connector screw. 2. Push the upper connector up till the rubber packing is in tight contact with the tap. Then tighten the 4 screws. 3. Connect the water supply hose to the middle connector, pushing the plate down. • In case the diameter of the tap is large remove the guide plate. • Turn the middle connector not to have water leaked. • Make sure that the rubber seal is inside the hose connector. • To separate the water supply hose from the middle connector shut off the tap. Then pull the inlet hose down, pushing the plate down. • Make sure that there are no kinks in the hose and that it is not crushed. 2. Normal Tap without thread & one touch type inlet hose (Single inlet models) Upper Connector Fixing screw Guide plate Connector Rubber packing Upper Connector Rubber packing Upper Connector Plate Water supply hose Rubber seal Hose connector Upper Connector Middle connector Rubber packing Upper Connector Fixing screw Middle connector Rubber packing Upper Connector Plate Water supply hose

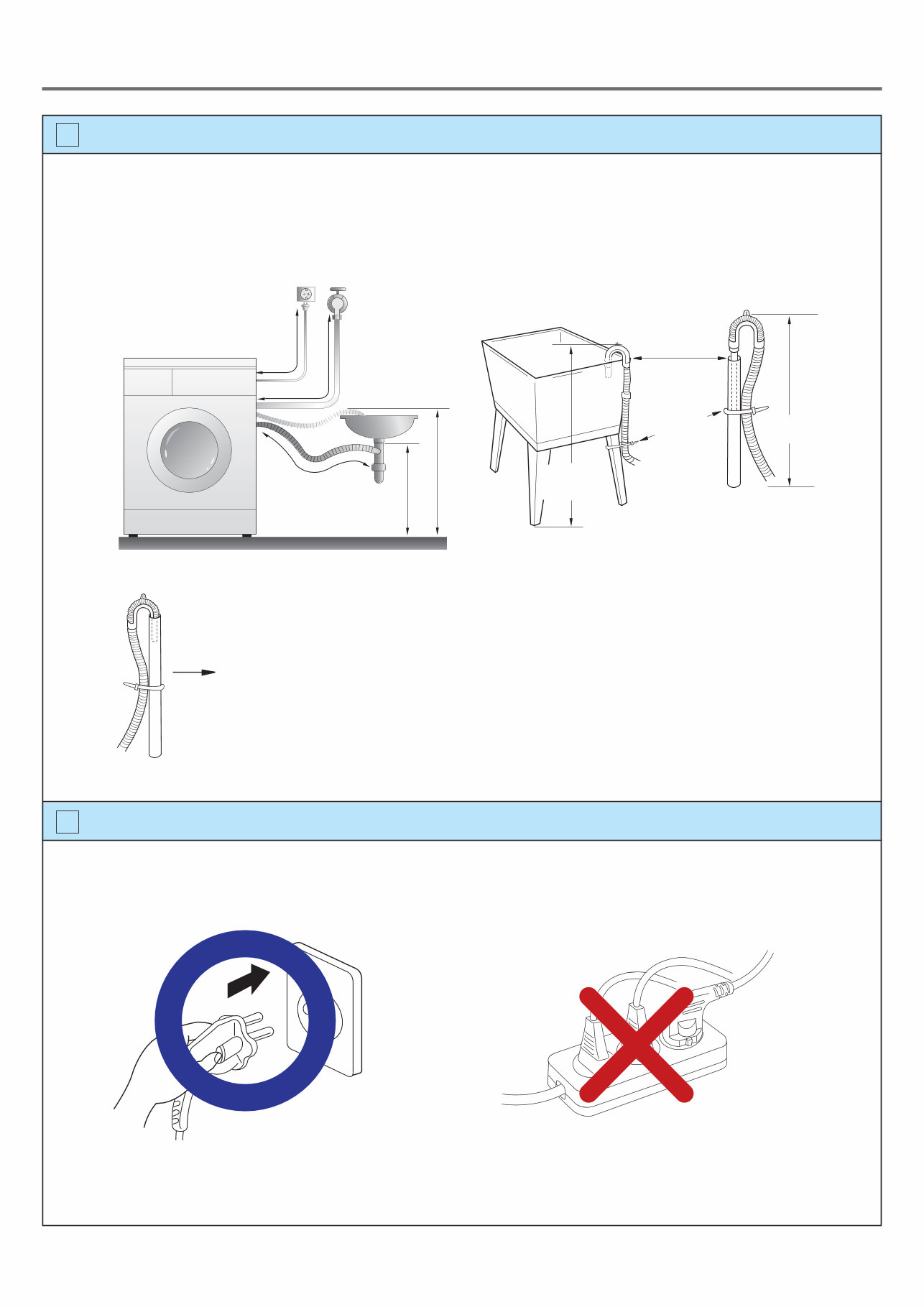

9 Connect Drain Hose. 6 Connect power plug. 7 If the drain hose is not installed properly, the unit will not drain properly. This allows water to back flow into the unit which can cause odors. Refer to Owner Manual for proper drain hose installation. The odor could also be coming from the home’s drain to which the drain hose is attached. In this type of drain hose installation, the odor could be coming from the standpipe. This odor can come up the drain hose and into the unit. Pour a cup or two of bleach or vinegar down the home drain and let it sit for 24 hours before running another cycle. This will help eliminate odor from the home drain. If a cycle is started too soon after doing this, it will not help the issue. Connect the power plug to the wall outlet. Avoid connecting several electric devices, it may be the cause of a fire. about 100 cm about 145 cm about 105 cm Laundry tub Max. 100cm min. 60cm Max. 100cm min. 60cm Retainer Tie strap Hose min. 60 cm max. 100 cm
