Repair Manual HAIER XQB60 / 91AF WASHING MACHINE

1 HAIER Full Automatic Washing Machine Service Manual PART # WD-8888-68 HAIER AMERICA TRADING, LLC www.haieramerica.com

2 Table Of Contents Contents 2 Product Code Explanation And Series Introduction 3 Features 4 Specifications 5 Safety Precaution 7 Warning And Caution 9 Net Dimension 11 Installation And Accessory Parts 12 Parts And Functions 20 Maintenance Service And Troubleshooting 22 Wiring Diagram 33

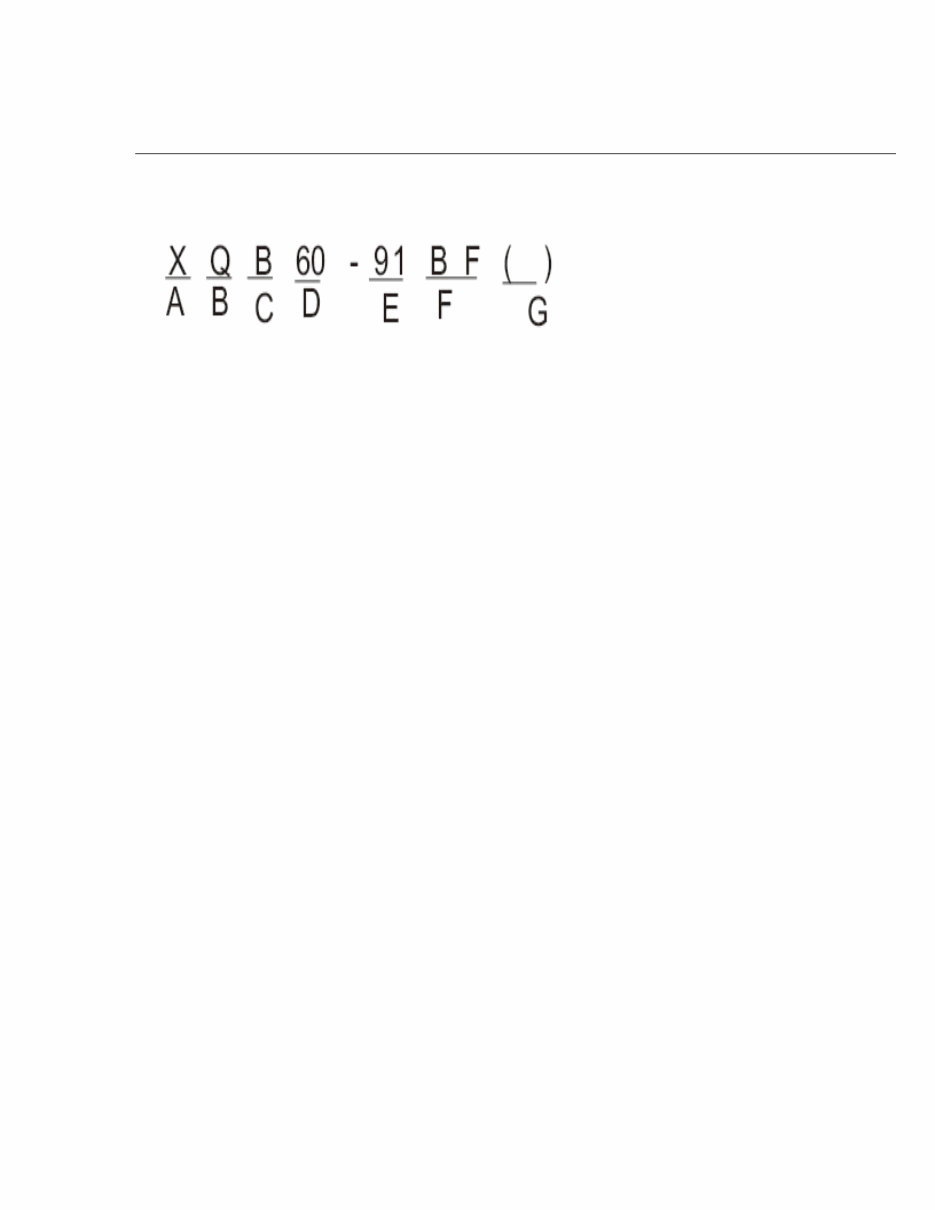

3 PRODUCT CODE EXPLANATION AND SERIES INTRODUCTION A: Washing machine B: Computerized Automatic C: Pulsator washing machine D: Decuple of Capacity E: Appearance code F: Special No G: Country

4 Features Antibacterial plastic eccentric pulsator. The eccentric pulsator with selected antibacterial plastic cannot retrain bacterial growth, but also can reduce abrasion ratio and wash cleanly. Hand-wash type washing: The special hand-wash type washing function of XQB60-91AF washing can make the pulsator rotate to the opposite direction of the inner tub during washing, The two-direction rotation and double rubbing can make the washing cleaner. Folding transparent view window: The top lid adopts folding design to reduce the height of the whole unit. And it is capable of observing the complete washing procedures. Synthetic wash process: Low noise synthetic wash process is specially added so that night silence will not be broken as much as possible. Combining this process with reservation washing brings you mush convenience. Cascade current: In washing, three high and one low cascade current flush the laundries continuously, which can improve the cleaning effect significantly and strengthen the rinsing function. Moreover, the lint is collected more completely. 10-minute quick wash program (suitable for laundries less than 6.6Ib): Please select this program to wash laundries with light dirt. This program only costs 10 minutes for the whole washing procedure from water inlet, wash, rinse to spin. 10-water level selection: This machine offers 10 water level selections with the lowest level 5(gal). It can offer water levels corresponding laundries from below 1.1Ib to 13.2Ib. It can save more water. Spraying and rinsing: For washed and spun clothes, the washer will rotate at low speed while water is filling, so that clothes tightly close to drum wall can get waterlogged after spraying. Then the washer will spin at high speed to get rid of remained detergent with the drainage of water. In this process, 2/3 water is saved compared with water storage rinsing, and it also saves time. Two-level spin drum, water and detergent saving, anti-wear: There are two level spin holes at the stainless steel drum. Bigger holes at the upper part of drum for the convenient of water circulation; tiny holes at lower part of drum which are fine produced and can prevent clothes wearing; on the other hand, water level is increased and water and detergent can be saved.

5 Specifications Model XQB60- 91BF America Features for use Wash capacity Ib 13.2 Spin capacity Ib 13.2 Level/Volume (gal) 0.22/5 0.44/6.6 0.66/7.5 0.88/8.8 1.1/9.7 1.3/10.8 1.5/11.7 1.7/12.5 2/13.4 2.2/14.5 Preset H 2--24 Residual dampness % 100% Control model Controller × Normal computerized × Fuzz y computerized Frequency conversion × Service features Programs 4 Short cycle Inlet heating select Cold/warm Heating selection × Spinning cycle (selector) × Spinning cycle (variable) Start/Pause Automatic balancing Aesthetics Cabinet material (P= Plastic Z=Zincking / C=Cold) / Z Rolled stainless steel Inner drum (stain. steel= s / plastic= p) S Drain type With pump Door (glass= g / plastic =p) Adjustable feet Technical data Voltage/frequency V/Hz 115V/60Hz Energy consumption Kwh × Water consumption (gal) About 41(High water level, Standard program) Was h power W 500 Spin power W 550 Special function Air-Bubble × Feet wheel × Water fall current Dimensions (measurements) Height / built under (in) 37

6 Width (in) 22 Depth / with open door (in) 23 NOTE: " " FOR AVAILABLE, "×" FO R NOT AVAILAB LE "-"FOR B E AP PLICABLE

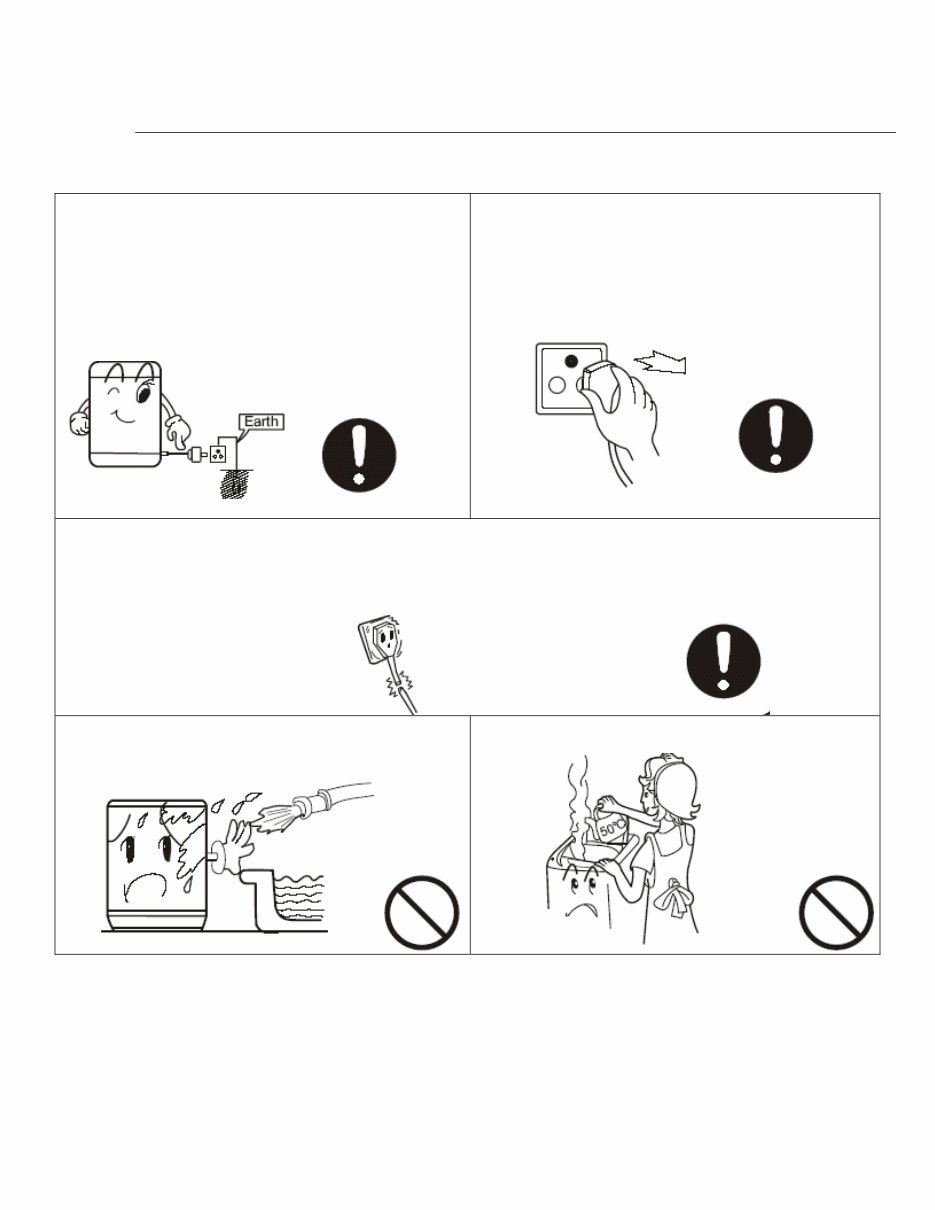

7 SAFETY PRECAUTION Please insert the power cord into special receptacle with rated voltage. If the power cord is three-pole wire, please use three-pole receptacle. The earthling terminal of the receptacle must be earthed reliably. If it is two-pole wire, please guarantee that the earthling wire is earthed reliably. If possible please adopt electric leakage protector. The power cord plug should be convenient to be plugged in or plugged out with hand while the washing machine runs normally. Be sure to pull the plug out and close the water tap when the machine is idle, when moving the machine, or when cleaning the machine. Do not use wet hand to insert or pull out the power plug Do not damage the power cord, bend, extend, twist, bind or alter it by force. Do not press or nip it with weight. If the power cord or the power plug is bad, or the power plug becomes flexible, to avoid risk it is required to have it replaced by the technicians of our special shop or the after-sale service department. Keep the pin of the power plug clean, if the power plug is polluted with dust, please wipe with dry cloth carefully. Do not put the machine at damp place like the bathroom. Never wash it with water. Do not use water hotter than 122˚F.

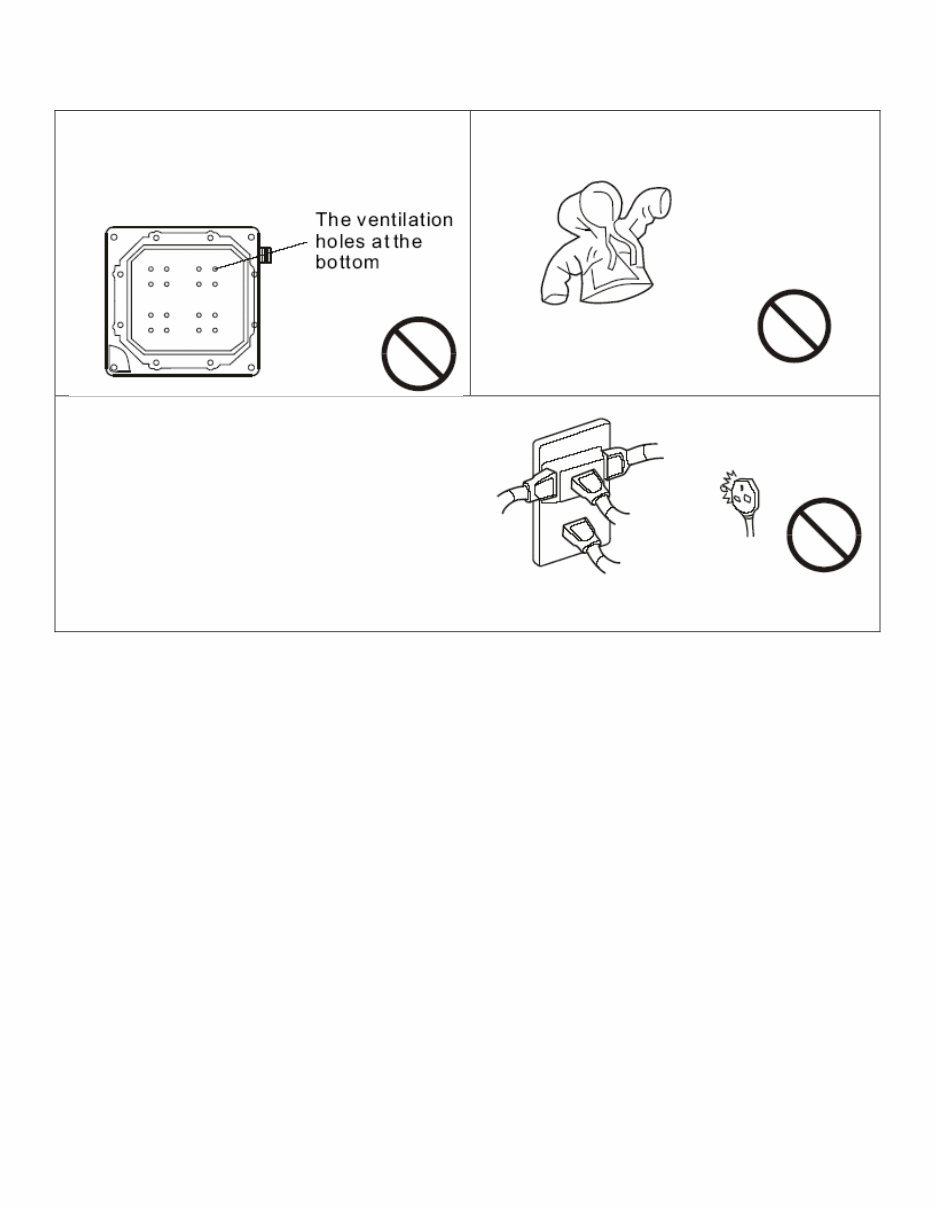

8 In case the washing machine is installed on the ground with carpet, do not block the ventilation hole with the carpet. Do not wash water-proof laundries like the raincoat, bike covers etc. to avoid abnormal vibrations in spinning. Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the plugging into the receptacle is loose, do not use the plug any.

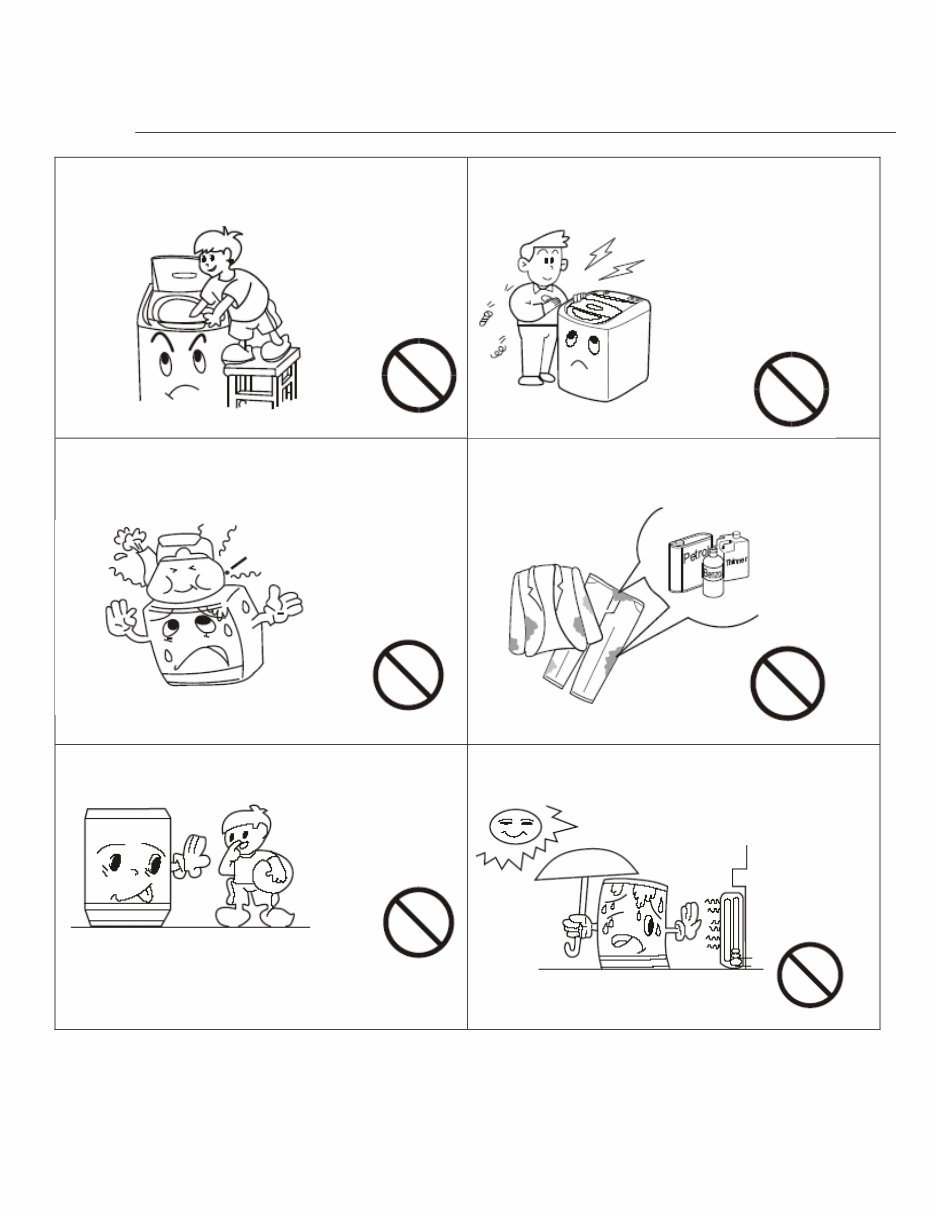

9 WARNING AND CAUTION Do not stretch hands into the working machine. It is dangerous even if the rotation is slow. Take special care of the children. Do not decompose, repair or alter the machine by yourself. Do not put any hot or heavy items (such as the kettle with hot water) on the washing machine. Do not wash laundries with volatile materials (such as thinner, petrol etc.) The handicapped or children without care shall not use the machine. Keep the machine away from direct sunlight and heat source like the heater.

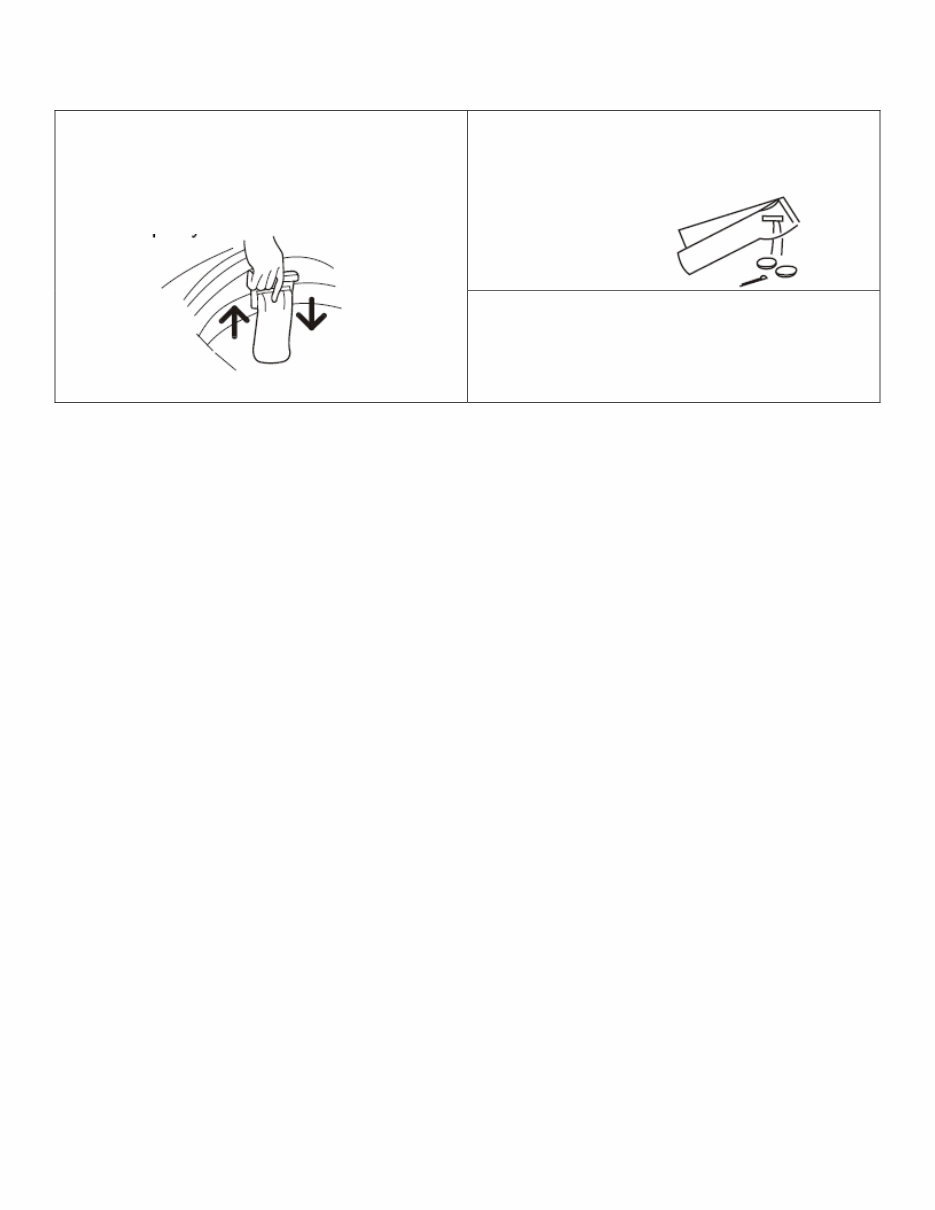

10 • To prevent your laundries and washing machine from damages, be sure to take out all foreign materials such as coins, buttons, sand or, hairpins etc. from your pocket. To prevent the lint inside the tub from blocking the cascade outlet during washing, please keep the lint filter in good condition, and install lit to proper position. If the lint filter is lost or damaged, please contact the local after-sales service department of our company. • Before washing, please check if the water tap is open, and if the water inlet pipe is connected properly. • It is suggested to use low-foaming washing powder.
