HAIER XQG50 / QF802 WASHING MACHINE Service Manual

1 HAIER FRONT LOADING WASHING MACHINE Service Manual PART # AC-8888-07 HAIER AMERICA TRADING, LLC www.haieramerica.com

2 Table Of Contents Product Code Explanation And Series Introduction 3 Features 4 Specifications 5 Safety Caution 7 Installation 11 Names of Parts 13 Function 14 Troubleshooting 17 Circuit Wiring 24

3 Product Code Explanation and Series Introduction Model code rule description Model identification XQG50 – QF802 A, B, C, D, E, F. A. Washing machine B. Automatic C. Drum style D. Max washing capacity E. Appearance symbol F. Max spin speed: 800rpm Examples XQG50 - QF802 It represents QF series appearance with oval porthole push appearance and handgrip opening door. Max washing capacity 11.0lb, 800rpm spin speed. temperature is adjustive from 86ºF -194ºF.

4 Features ● Washing Programs. ● Selecting-washing temperature according to the type of fabrics. ● Max spinning speed 800r/min. ● Max load 11.0lb. ● Stainless steel tub. ● No button spin. ● Spin speed switch: 500/800. ● Oval porthole appearance. ● Opening hand grip door.

5 Specification WASHING MACHINE MODEL XQG50-QF802 Free standing ● Built under Front F or Top T loader F EAN code Certification C-ETL Features for use Capacity lb 11 Drum volume lb 42 Spinning cycle rpm 800 Washing time (max) min 122 Residual dampness % 67 Other Features Programs qty 14 Drying Quick wash Cold wash Delicate and wool cycle ● Special cashmere cycle Temperature selection Two speed selector Variable spin Setting for ½ load ● Spin exclusion button ● Rinse stop button Extra rinse button Automatic balancing Self clean pump ● Outer drum9stainless steel=s / plastic=p) S Door (glass=g /plastic=p) G Work top ● Adjustable feet qty 4 Technical data Voltage frequency WHz 110-120V-60Hz Nominal power w 1100 Main fuse A 12 Water consumption I 76 Product dimensions Height/ built under inch 33.4 Width inch 23.4

6 Depth / with open door inch 21.6 / 38.1 Dimensions packed Height inch 34.4 Width inch 25.9 Depth inch 23.9 Net weight lb 158.7 Gross weight lb 171.9 Container 40'HC

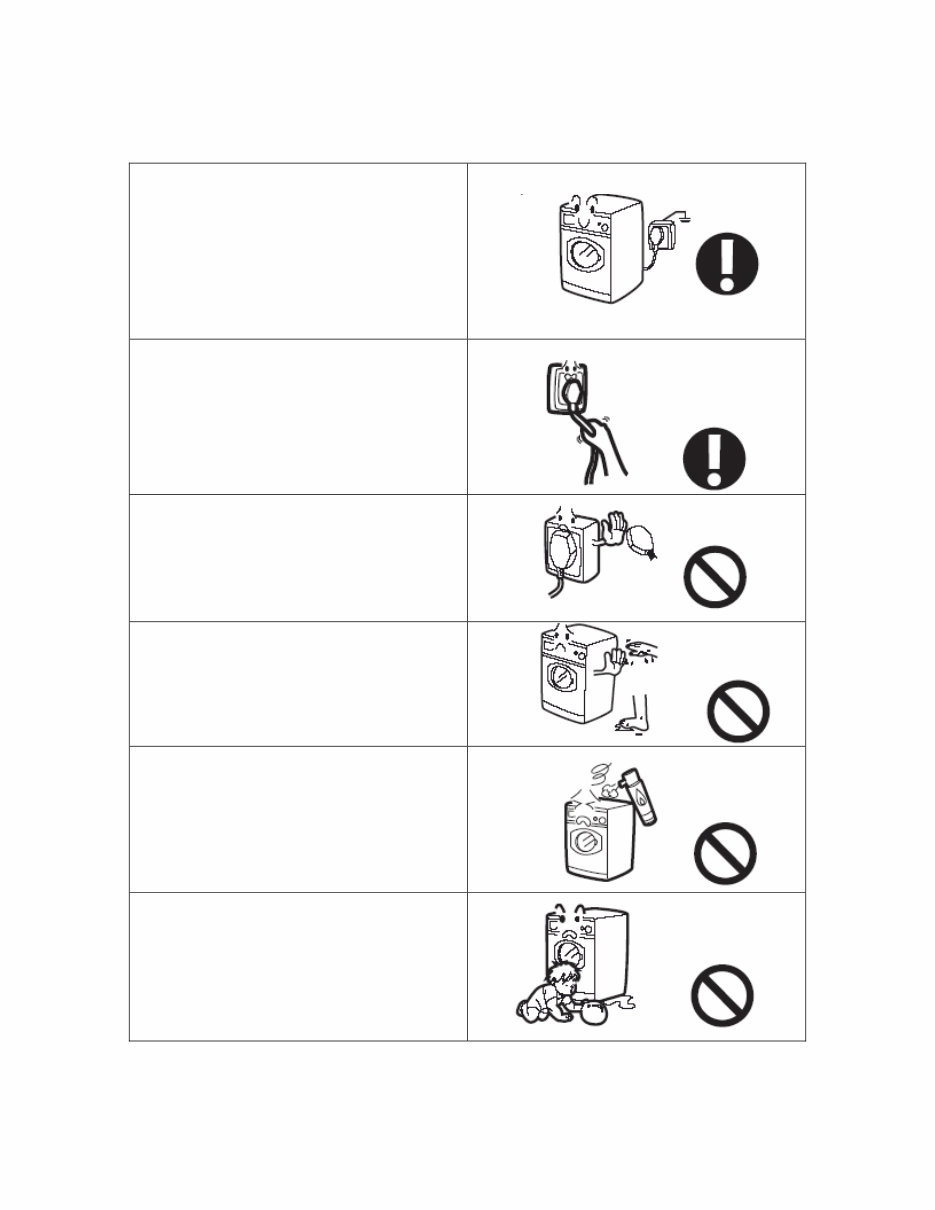

7 Safety caution 1. A separate earthed socket is required for the power supply. After installation of the washing machine the power plug must be accessible during normal operation. 2. Pull the plug and not the electric cable when unplugging the washing machine. 3. Fuses in the power circuit should berate for 15A. Contact a washing machine technician or a Haier designated service point for power cable replacement. 4. For your safety, dry your hands before touching the washing machine and wear appropriate footwear. 5. Do not use flammable detergents or dry cleaning agents. Do not use flammable sprays near the washing machine. Do not remove or insert the plug in the presence of flammable gas. 6. The door of the washing machine becomes hot during the water heating process. Avoid contact with the door during the heating process. For safety, keep children away from the washing machine.

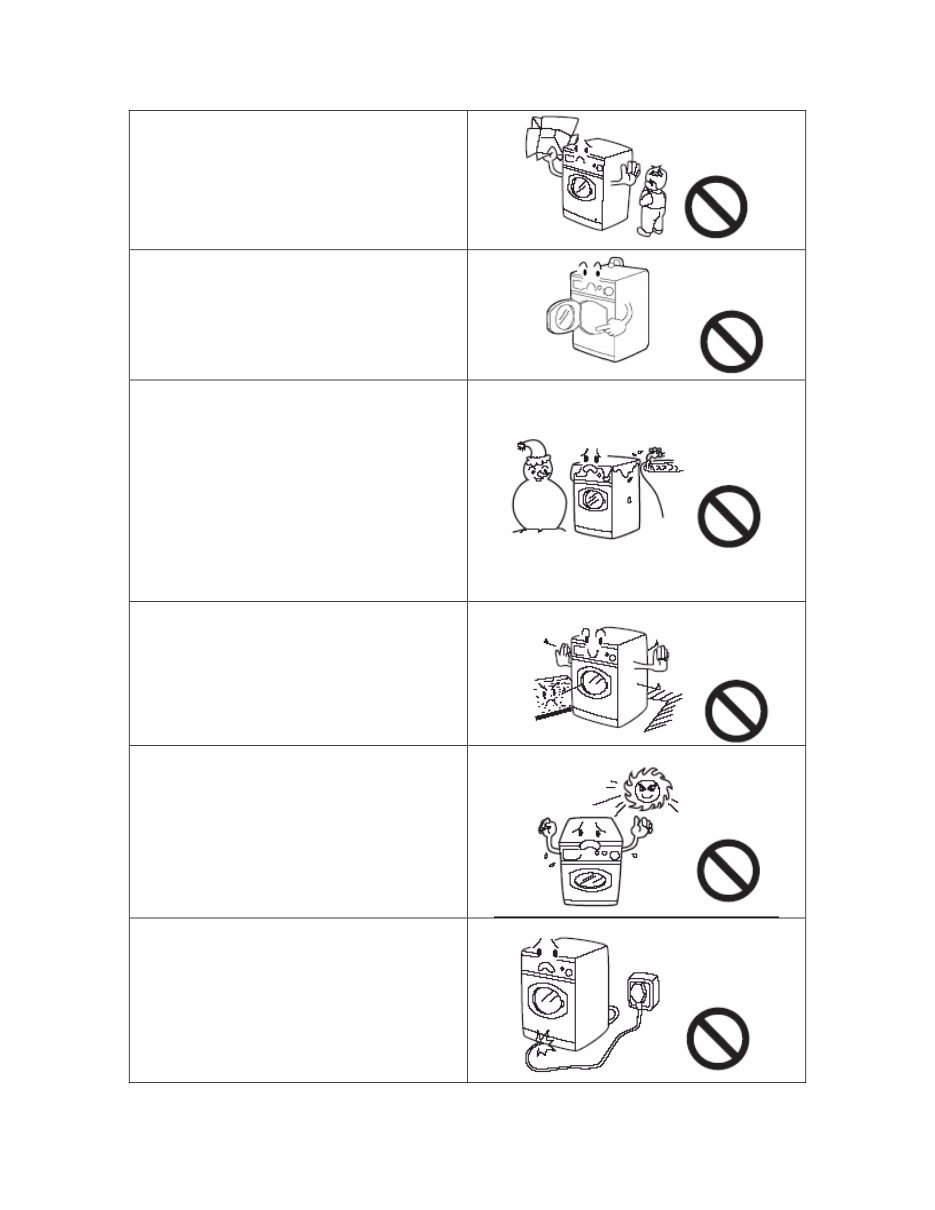

8 7. Do not allow children to play with the packing materials after unpacking. 8. Do not touch the inside of the door if it is opened during the drying process. 9. The washing machine must not be used in the open or in an area of high humidity, as water droplets may form on the electrical components. Air-dry the appliance if the washing machine components become wet. 10. The washing machine should be placed in a well-ventilated area, leaving a space between the appliance and adjacent walls or furniture. 11. Keep away from heat sources and direct sunlight to prevent plastic and rubber components from ageing. 12. During installation, ensure that the electric cable is not trapped by the washing machine and damaged.

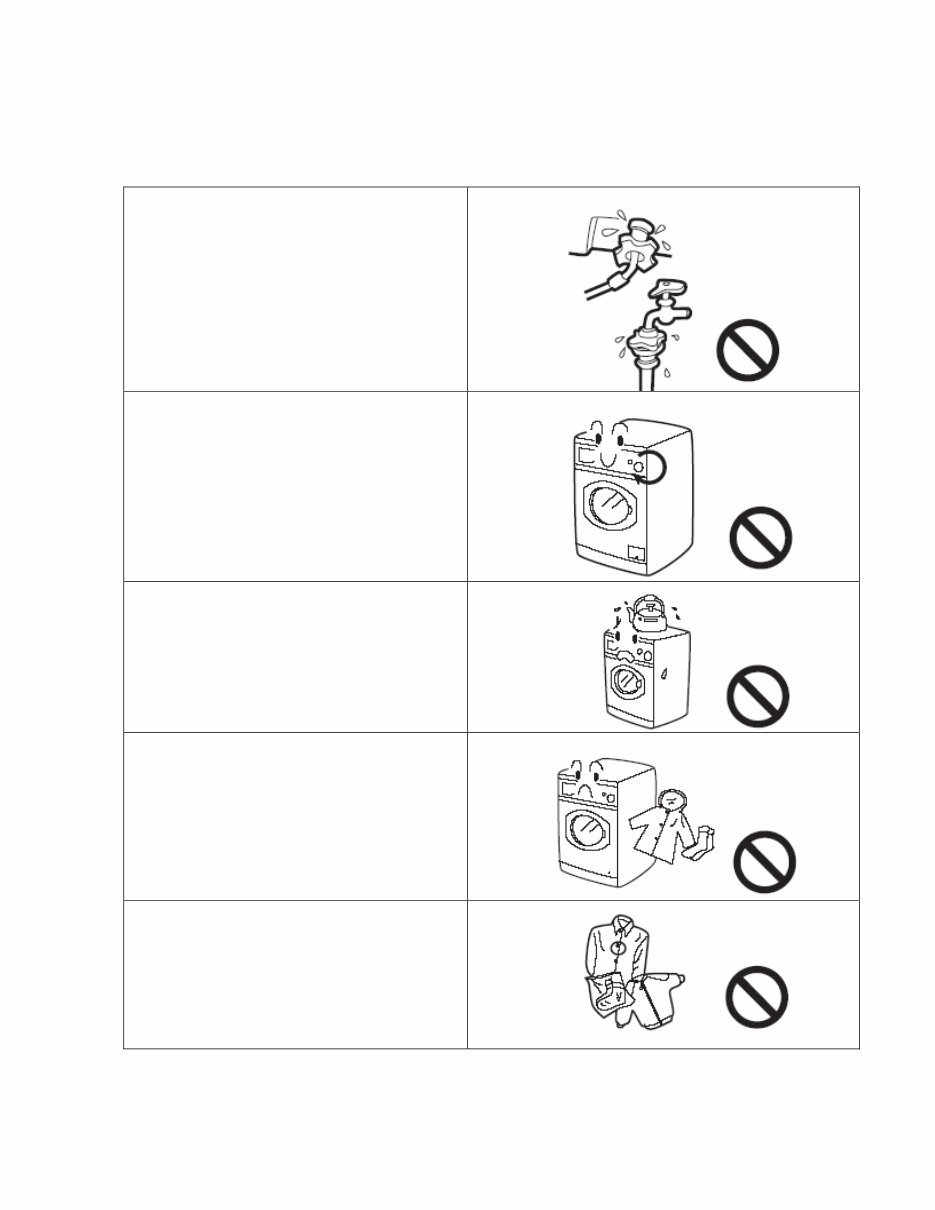

9 ● Use 1.Make sure that the washing machine is securely connected to the water supply. Take the necessary precautions or contact the local service center if the connection is poor or there is a water leak. 2. After turning the power off, turn the program knob clockwise to set the wash cycle. 3. Never place heavy objects, e.g. a heating appliance or water container, on the top panel of the washing machine. 4. Do not wash foam rubber or similar sponge materials. 5. Before washing, close zippers, buttons, laces and repair damaged areas. Underwear and small items should be placed in a laundry bag or pillowslip. Do not wash clothes containing wire frames.

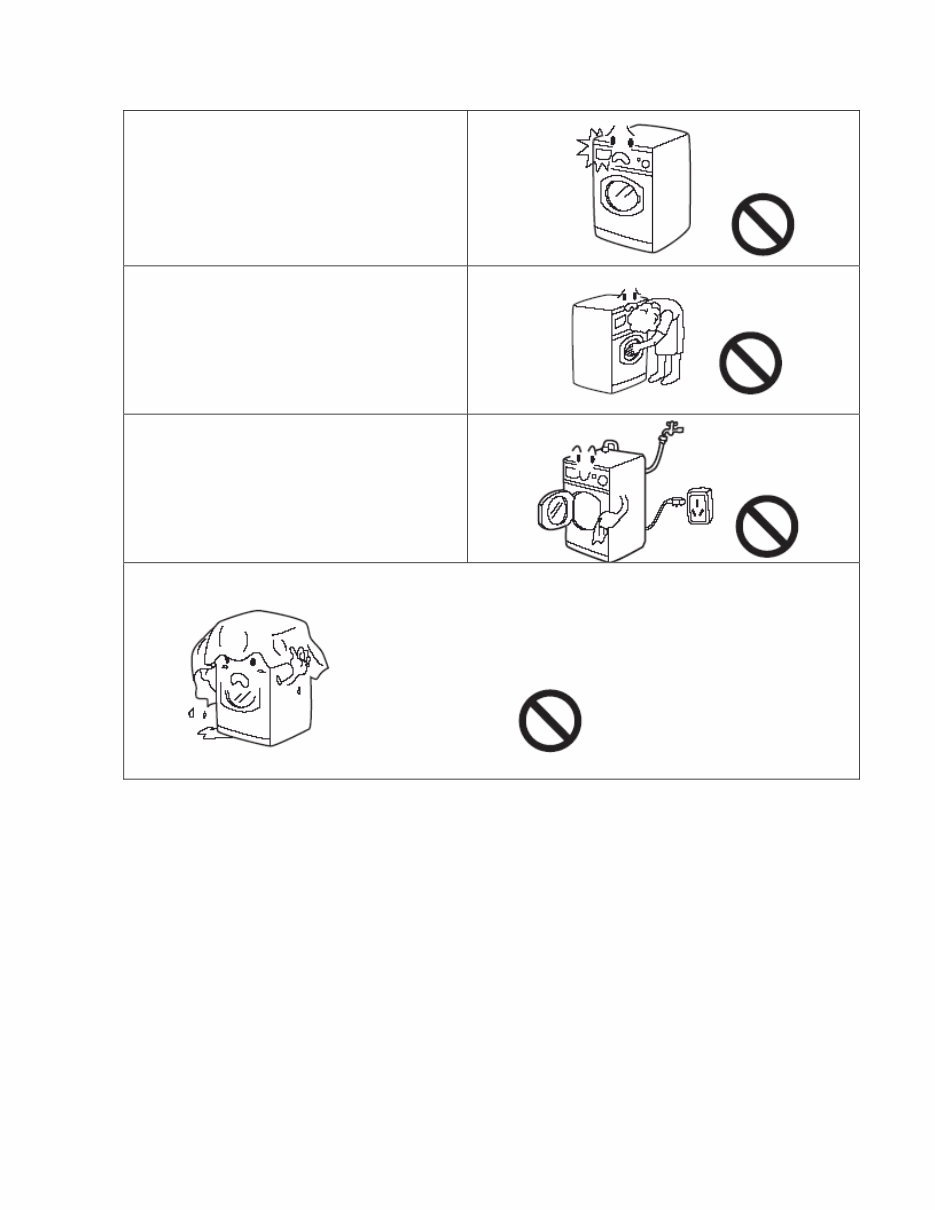

10 6. Do not open the detergent dispenser during the wash cycle. 7. The door is fitted with a self-locking device and will only open 2-3 minutes after the washing machine stops. Do not force the door open. Do not open the door when the water level reaches the porthole. 8. After washing, turn off the tap to prevent leaking; unplug the washing machine and wipe clean the lower part of the porthole. 9. Keep the door slightly open when the washing machine is not being used. Never cover the machine with a plastic sheet.
