Service Manual
RV Mobile Generator Sets
KV
KVC
KVD
English 9−2009 981−0518 (Issue 9)
i
Table of Contents
SAFETY PRECAUTIONS iii . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1. INTRODUCTION 1-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. SPECIFICATIONS 2-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. CLEARANCES AND DIMENSIONS 3-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4. TORQUE SPECIFICATIONS 4-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5. PREPARING FOR SERVICE 5-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 5-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Special Tools 5-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Considerations 5-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the Genset 5-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reinstalling the Genset 5-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6. TROUBLESHOOTING 6-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting Control 6-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting Generator 6-15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting Engine Primary Systems 6-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fault Code Blinking 6-22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restoring Fault Code Blinking 6-22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7. CONTROL 7-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Description 7-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Operation 7-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Component Tests 7-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8. ENGINE PRIMARY SYSTEMS 8-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exhaust System 8-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cooling System 8-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition System 8-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Crankcase Ventilation 8-10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Governor 8-11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gasoline Fuel System 8-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LPG Fuel System 8-21 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electric Starter 8-26 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9. GENERATOR 9-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Generator Description 9-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Generator Operation 9-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltage Regulator Tests 9-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Field Voltage Tests 9-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Generator Tests 9-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Generator Service 9-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brushes and Slip Rings 9-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rotor Bearing Replacement 9-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ii
10. ENGINE BLOCK ASSEMBLY 10-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction 10-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leak Down Test 10-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil Pan and Oil Level Switch 10-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head Cover 10-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder Head 10-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Valve System 10-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Crankcase Cover 10-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Camshaft and Tappet Removal 10-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Governor 10-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Piston Assembly Removal and Service 10-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Crankshaft 10-13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder Block 10-14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Timing Gears 10-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bearings 10-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil Seal 10-16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Compression Release System 10-17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11. SERVICE CHECK LIST 11-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12. WIRING DIAGRAMS 12-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
iii
SAFETY PRECAUTIONS
Thoroughly read the OPERATOR’S MANUAL
before operating the genset. Safe operation and
top performance can be obtained only when
equipment is operated and maintained properly.
The following symbols in this manual alert you to po-
tential hazards to the operator, service person and
equipment.
DANGER alerts you to an immediate hazard
which will result in severe personal injury or
death.
WARNING alerts you to a hazard or unsafe
practice which can result in severe personal in-
jury or death.
CAUTION alerts you to a hazard or unsafe
practice which can result in personal injury or
equipment damage.
Electricity, fuel, exhaust, moving parts and batteries
present hazards which can result in severe personal
injury or death.
GENERAL PRECAUTIONS
S Keep children away from the genset.
S Do not use evaporative starting fluids. They are
highly explosive.
S To prevent accidental or remote starting while
working on the genset, disconnect the nega-
tive (−) battery cable at the battery.
S Keep the genset and its compartment clean.
Excess oil and oily rags can catch fire. Dirt and
gear stowed in the compartment can restrict
cooling air.
S Make sure all fasteners are secure and torqued
properly.
S Do not work on the genset when mentally or
physically fatigued or after consuming alcohol
or drugs.
S You must be trained and experienced to make
adjustments while the genset is running—hot,
moving or electrically live parts can cause se-
vere personal injury or death.
S Used engine oil has been identified by some
state and federal agencies as causing cancer
or reproductive toxicity. Do not ingest, inhale, or
contact used oil or its vapors.
S Benzene and lead in some gasolines have
been identified by some state and federal
agencies as causing cancer or reproductive
toxicity. Do not to ingest, inhale or contact gaso-
line or its vapors.
S Keep multi-class ABC fire extinguishers handy.
Class A fires involve ordinary combustible ma-
terials such as wood and cloth; Class B fires,
combustible and flammable liquid fuels and
gaseous fuels; Class C fires, live electrical
equipment. (ref. NFPA No. 10)
S Genset installation and operation must comply
with all applicable local, state and federal codes
and regulations.
GENERATOR VOLTAGE IS DEADLY!
S Disable the automatic genset starting feature of
an inverter-charger or other automatic starting
device before servicing the genset.
S Generator electrical output connections must
be made by a trained and experienced electri-
cian in accordance with applicable codes.
S The genset must not be connected to shore
power or to any other source of electrical pow-
er. Back-feed to shore power can cause electric
shock resulting in severe personal injury or
death and damage to equipment. An approved
switching device must be used to prevent inter-
connections.
S Use caution when working on live electrical
equipment. Remove jewelry, make sure cloth-
ing and shoes are dry, stand on a dry wooden
platform or rubber insulating mat and use tools
with insulated handles.
iv
ENGINE EXHAUST IS DEADLY!
S Inspect for exhaust leaks at every startup and
after every eight hours of running.
S Learn the symptoms of carbon monoxide poi-
soning in this manual.
S Never sleep in the vehicle while the genset is
running unless the vehicle is equipped with a
working carbon monoxide detector.
S Make sure there is ample fresh air when operat-
ing the genset in a confined area.
S Disable the automatic genset starting feature of
an inverter-charger or other automatic starting
device before storing the vehicle or parking it in
a garage or other confined space.
S The exhaust system must be installed in accor-
dance with the genset Installation Manual.
S Engine cooling air must not be used for heating
the working or living space or compartment.
FUEL IS FLAMMABLE AND EXPLOSIVE
S Do not smoke or turn electrical switches ON or
OFF where fuel fumes are present or in areas
sharing ventilation with fuel tanks or equip-
ment. Keep flame, sparks, pilot lights, arc-pro-
ducing equipment and switches and all other
sources of ignition well away.
S Fuel lines must be secured, free of leaks and
separated or shielded from electrical wiring.
S Leaks can lead to explosive accumulations of
gas. Natural gas rises when released and can
accumulate under hoods and inside housings
and buildings. LPG sinks when released and
can accumulate inside housings and base-
ments and other below-grade spaces. Prevent
leaks and the accumulation of gas.
BATTERY GAS IS EXPLOSIVE
S Wear safety glasses.
S Do not smoke.
S To reduce arcing when disconnecting or recon-
necting battery cables, always disconnect the
negative (−) battery cable first and reconnect it
last.
MOVING PARTS CAN CAUSE SEVERE
PERSONAL INJURY OR DEATH
S Disable the automatic genset starting feature of
an inverter-charger or other automatic starting
device before servicing the genset.
S Do not wear loose clothing or jewelry near mov-
ing parts such as PTO shafts, fans, belts and
pulleys.
S Keep hands away from moving parts.
S Keep guards in place over fans, belts, pulleys,
and other moving parts.
MOBILE 7
1-1
1. Introduction
This is the service manual for the KV, KVC, KVD se-
ries of generator sets (gensets). Read and carefully
observe all of the instructions and safety precau-
tions in this manual.
WARNING Improper service or parts replace-
ment can lead to severe personal injury or death
and to damage to equipment and property. Ser-
vice personnel must be qualified to perform
electrical and mechanical service.
WARNING Unauthorized modifications or re-
placement of fuel, exhaust, air intake or speed
control system components that affect engine
emissions are prohibited by law in the State of
California.
WARNING LPG (liquified petroleum gas) is
flammable and explosive and can cause as-
phyxiation. NFPA 58, Section 1.6 requires all
persons handling LPG to be trained in proper
handling and operating procedures.
See the Operator’s Manual for instructions concern-
ing operation, maintenance and storage and for rec-
ommendations concerning engine lubricating oil
and fuel.
See the Installation Manual for important recom-
mendations concerning the installation and for a list
of the installation codes and standards for safety
which may be applicable.
See the Parts Manual for parts identification num-
bers and required quantities and for exploded views
of the genset subassemblies. Genuine Onan® re-
placement parts are recommended for best results.
When contacting Onan for parts or product informa-
tion, be ready to provide the model and serial num-

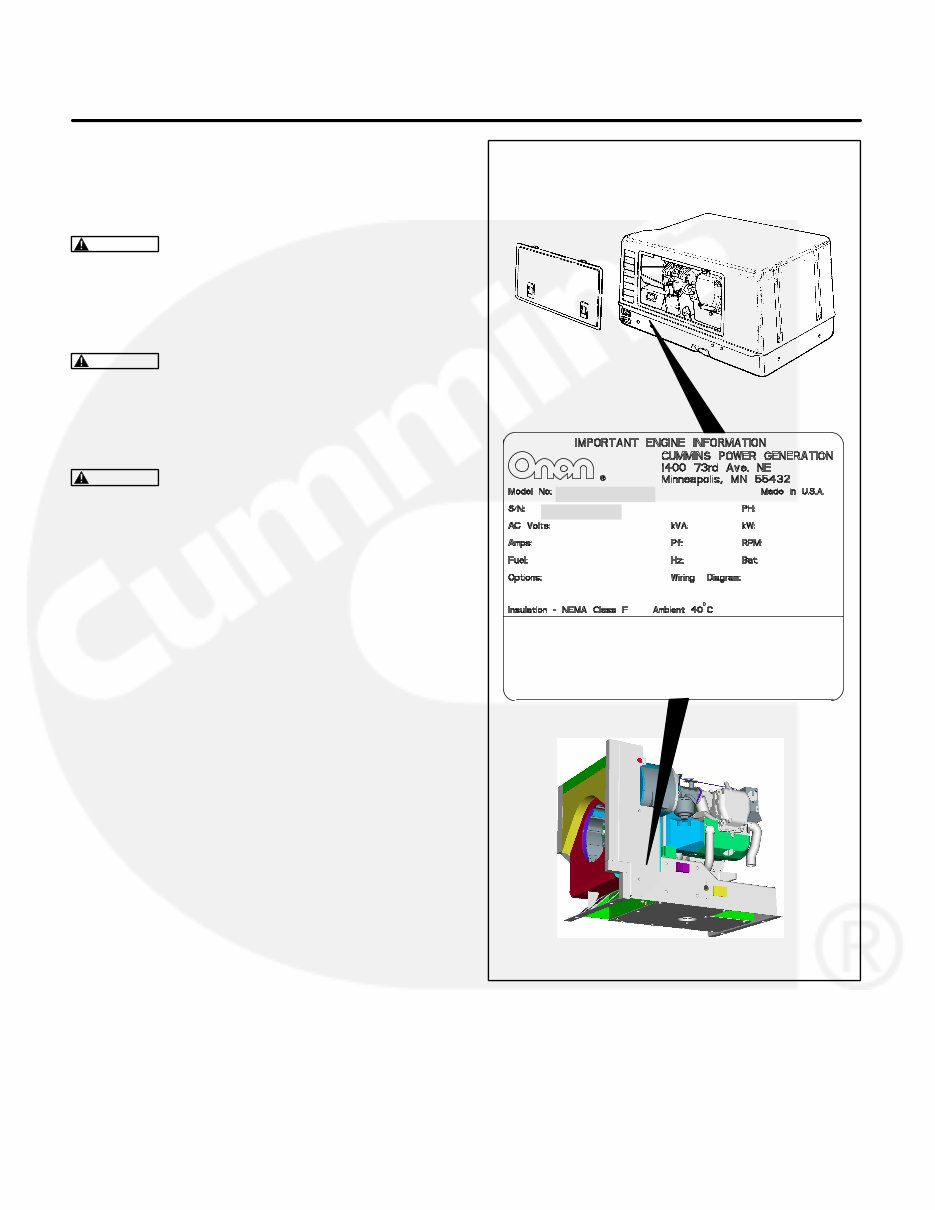

bers on the genset nameplate. Figure 1-1 illustrates
the nameplate and its location. Every character in
these numbers is significant. (The last character of
the model number is the specification letter, which is
important for obtaining the right parts.)
MODEL KVC
MODEL KV / KVD
[THE ENGINE FAMILY DESIGNATION, EN-
GINE DISPLACEMENT, STATEMENT OF COM-
PLIANCE WITH THE APPLICABLE EPA AND /
OR CALIFORNIA EMISSIONS REGULATIONS,
INCLUDING THE COMPLIANCE PERIOD OR
CATEGORY, APPEAR IN THIS BLOCK ON THE
ACTUAL NAMEPLATE ON THE GENSET.]
FIGURE 1-1. TYPICAL NAMEPLATE
2-1
2. Specifications
KV MODELS
GASOLINE LPG
2.8 KV 2.0 KV 2.3 KV 2.5 KV 2.0 KV
GENERATOR: 2-Pole Revolving Field, Self-Excited, Electronically Regulated, 1-Phase
Power 2800 watts 2000 watts 2300 watts 2500 watts 2000 watts
Frequency 60 Hertz* 50 Hertz 50 Hertz 60 Hertz* 50 Hertz
Voltage 120 volts 220 volts 230 volts 120 volts 220/230 volts
Current 23.3 amperes 9.1 amperes 10 amperes 20.8 amperes 9.1/8.7 amperes
Speed 3600 rpm 3000 rpm 3000 rpm 3600 rpm 3000 rpm
FUEL CONSUMPTION:
No load
Half load
Full load
0.16 gph (0.6
l/h)
0.28 gph (1.1
l/h)
0.46 gph (1.7
l/h)
0.16 gph (0.6
l/h)
0.23 gph (0.9
l/h)
0.32 gph (1.2
l/h)
0.16 gph (0.6
l/h)
0.23 gph (0.9
l/h)
0.32 gph (1.2
l/h)
1.0 lbs/h (0.44
kg/h)
1.5 lbs/h (0.68
kg/h)
2.5 lbs/h (1.1
kg/h)
0.9 lbs/h (0.40
kg/h)
1.3 lbs/h (0.59
kg/h)
2.1 lbs/h (0.92
kg/h)
ENGINE: 1-Cylinder, 4-Cycle, Spark-Ignited, OHV, Air Cooled
Bore 2.64 inch (67 mm) 2.64 inch (67 mm)
Stroke 2.2 inch (56 mm) 2.2 inch (56 mm)
Displacement 12 inch
3
(197 cc) 12 inch
3
(197 cc)
Compression
Ratio
8.5 : 1 8.5 : 1
Oil Capacity** 1 quart (0.95 l) 1 quart (0.95 l)
Intake Valve
Clearance
(Cold)
0.002 inch (0.05 mm) 0.002 inch (0.05 mm)
Exhaust Valve
Clearance
(Cold)
0.002 inch (0.05 mm) 0.002 inch (0.05 mm)
Spark Plug
Gap
0.025 inch (0.64 mm) 0.020 inch (0.51 mm)
Spark Plug
Torque
13 lbs-ft (17 N-m) 13 lbs-ft (17 N-m)
Ignition Tim-
ing (magneto
type ignition)
25° BTDC, non-adjustable 25° BTDC, non-adjustable
LPG Vapor
Supply Pres-
sure
−
9 to 13 inch (229 to 330 mm)
W.C. (water column)
DC SYSTEM:
Nominal Bat-
tery Voltage
12 volts 12 volts
2-2
Min. Battery
Cold Cranking
Capacity
360 amperes 360 amperes
Control Fuse 5 amperes 5 amperes
* − 60 Hertz models are Listed by CSA and the U.S. Testing Company.
** −See Periodic Maintenance in the Operator’s Manual for oil filling instructions.
2-3
KVC MODELS
GENERATOR: 2-Pole Revolving Field, Self-Excited, 1-Phase, Electronically Regulated
Power 2800 watts 2500 watts
Frequency 60 Hertz* 60 Hertz
Voltage 120 volts 120 volts
Current 23.3 amperes 20.8 amperes
Speed 3600 rpm 3600 rpm
FUEL CONSUMPTION (GASOLINE): Gasoline LPG
No load
Half load
Full load
0.16 gph (0.6 l/h)
0.28 gph (1.1 l/h)
0.46 gph (1.7 l/h)
1.0 lbs/h (0.44 kg/h)
1.5 lbs/h (0.68 kg/h)
2.5 lbs/h (1.1 kg/h)
ENGINE: 1-Cylinder, 4-Stroke Cycle, Spark-Ignited, OHV, Air Cooled, Mechanically Governed
Bore 2.64 inch (67 mm) 2.64 inch (67 mm)
Stroke 2.2 inch (56 mm) 2.2 inch (56 mm)
Displacement 12 inch
3
(197 cc) 12 inch
3
(197 cc)
Compression Ratio 8.5 : 1 8.5 : 1
Oil Capacity 1 quart (0.95 l) 1 quart (0.95 l)
Intake Valve Lash (Cold) 0.002 inch (0.05 mm) 0.002 inch (0.05 mm)
Exhaust Valve Lash (Cold) 0.002 inch (0.05 mm) 0.002 inch (0.05 mm)
Spark Plug Gap 0.025 inch (0.64 mm) 0.020 inch (0.51 mm)
Spark Plug Tightening Torque 13 lbs-ft (17 N-m) 13 lbs-ft (17 N-m)
Ignition Timing (magneto type ignition) 25° BTDC, non-adjustable 25° BTDC, non-adjustable
DC SYSTEM:
Nominal Battery Voltage 12 volts 12 volts
Min. Battery Rating: Cold Cranking Amps
(CCA)
@ 0° F (−18° C)
360/450
above/below 32° F (0° C)
360/450
above/below 32° F (0° C)
Control Fuse 5 amperes 5 amperes
INSTALLATION:
Weight of Genset (with engine oil) 100 lbs (45 kg)
Minimum Compartment Size
(H x D x W)**
15.5 inch x 17.5 inch x 20.2 inch
(394 mm x 445 mm x 512 mm)
Minimum Free Air Inlet Area 40 inch
2
(258 cm
2
)
Muffler Outlet Collar O. D. 1.13 inch
Fuel Connection 1/4 inch barb fitting for gasoline hose
* Listed by CSA and the U. S. Testing Company.
** See the Installation Manual for additional considerations when sizing the genset compartment.
2-4
KVD MODELS
GASOLINE LPG
GENERATOR: 2-Pole Revolving Field, Self-Excited, 1-Phase, Electronically Regulated
Power 2800 watts 2500 watts
Frequency 60 Hertz 60 Hertz
Voltage 120 volts 120 volts
Current 23.3 amps 20.8 amps
Speed 3600 rpm 3600 rpm
FUEL CONSUMPTION: Gasoline LPG
No load
Half load
Full load
0.20 gph (0.76 l/h)
0.30 gph (1.14 l/h)
0.43 gph (1.63 l/h)
0.85 lbs/h (0.39 kg/h)
1.45 lbs/h (0.66 kg/h)
2.35 lbs/h (1.07 kg/h)
ENGINE: 1-Cylinder, 4-Stroke Cycle, Spark-Ignited, OHV, Air Cooled, Mechanically Governed
Bore 2.64 in (67 mm) 2.64 in (67 mm)
Stroke 2.2 in (56 mm) 2.2 in (56 mm)
Displacement 12 in
3
(197 cc) 12 in
3
(197 cc)
Compression Ratio 8.5 : 1 8.5 : 1
Oil Capacity 1 quart (0.95 liter) 1 quart (0.95 liter)
Intake Valve Lash (Cold) 0.002 in (0.05 mm) 0.002 in (0.05 mm)
Exhaust Valve Lash (Cold) 0.002 in (0.05 mm) 0.002 in (0.05 mm)
Spark Plug Gap 0.025 in (0.64 mm) 0.020 inch (0.51 mm)
Spark Plug Tightening Torque 13 lbs-ft (17 N-m) 13 lbs-ft (17 N-m)
Ignition Timing (magneto type ignition) 25° BTDC, non-adjustable 25° BTDC, non-adjustable
DC SYSTEM:
Nominal Battery Voltage 12 volts
Min CCA Rating − SAE @ 32° F (0° C) 360/450 above/below 32° F (0° C)
Control Fuse 5 amp
INSTALLATION:
Noise 71 dB(A)*
Weight of Genset (with muffler) 111.6 lbs (50.6 kg)
Weight of Genset (without muffler) 107.2 lbs (48.6 kg)
Minimum Compartment Size (H x D x W)**
12.52 in x 18.20 in x 20.46 in (317.9 mm x 462.2 mm x
519.8 mm)
Minimum Free Air Inlet Area 24 in
2
(155 cm
2
)
Muffler Outlet Collar O. D. 1.13 in (28.3 mm)
Maximum Exhaust Back Pressure 20 in WC
Gasoline Fuel Connection 1/4 in Hose Barb
Maximum Gasoline Fuel Pump Lift 3 ft (1 m)
LPG Vapor Fuel Connection 1/4 in NPTF
LPG Vapor Connection Pressure 9-13 in (228-330 mm) WC
* In a typical RV installation at half load and distance of 10 ft (3 m).
** See the Installation Manual for additional considerations when sizing the genset compartment.
