This service manual contains
detailed descriptions of all the
typical repair and servicing
procedures for this power tool.
You should make use of the
illustrated parts lists while carrying
out repair work. They show the
installed positions and sequence of
steps for the individual components
and assemblies.
Always refer to the latest edition of
the relevant parts list to check the
part numbers of any replacement
parts.
A fault on the machine may have
several causes. To help locate the
fault, consult the chapter on
"Troubleshooting" and the "STIHL
Service Training System" for all
functional groups.
Refer to the Technical Information
bulletins for engineering changes
which have been introduced since
publication of this service manual.
Technical information bulletins also
supplement the parts list and
service manual until an updated
edition is issued.
The special tools mentioned in the
descriptions are listed in the chapter
"Special Tools" of this manual. Use
the part numbers to identify the
tools in the "STIHL Tools" manual
which lists all the tools currently
available from STIHL.
Symbols are included in the text and
pictures for greater clarity. The
meanings are as follows:
In the descriptions:
: = Action to be taken as shown
in the illustration
(above the text)
– = Action to be taken that is
not shown in the illustration
(above the text)
In the illustrations:
A Pointer (short)
aDirection of movement (long)
b 4.2 = Reference to another
chapter, i.e. chapter 4.2
in this example.
Service manuals and technical
information bulletins are intended
exclusively for the use of properly
equipped repair shops. They must
not be passed to third parties.

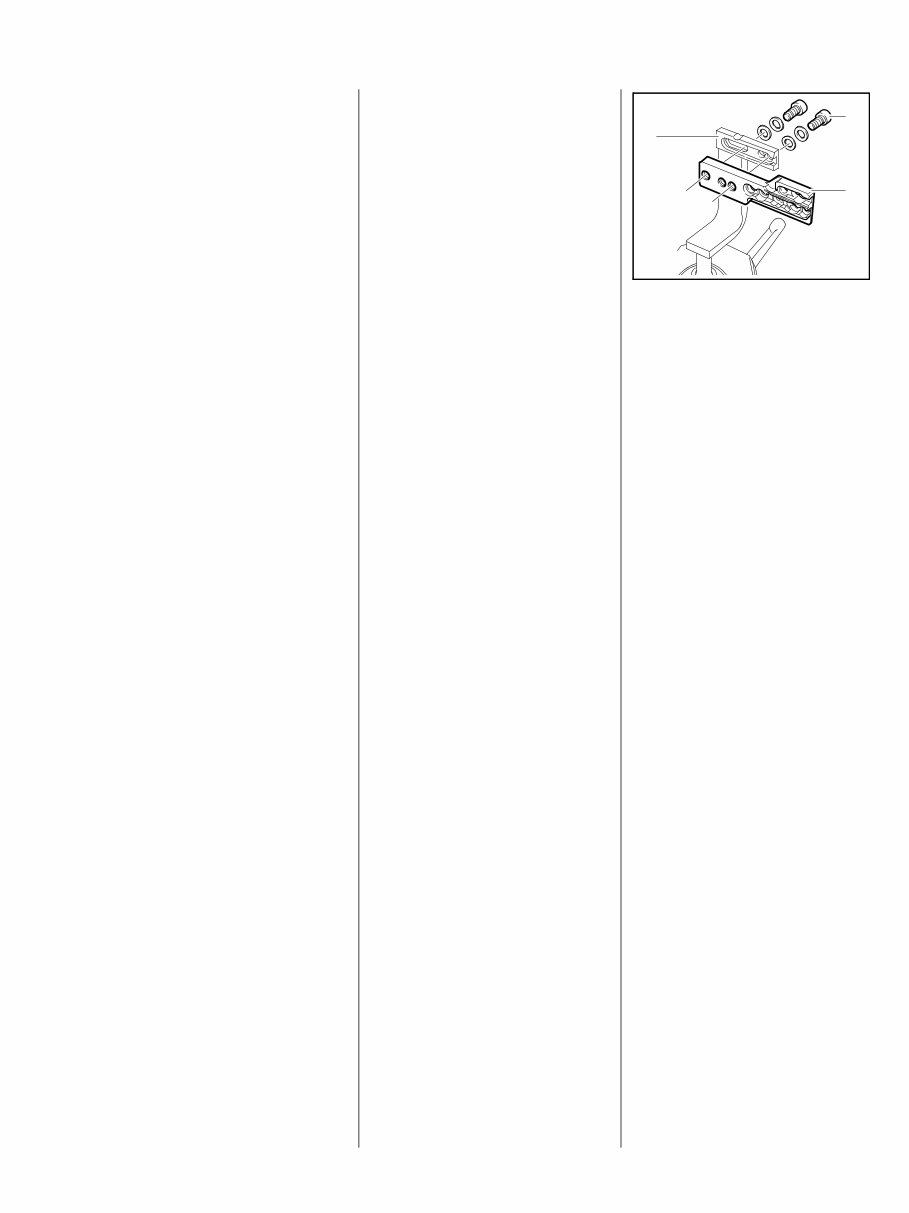

Servicing and repairs are made
considerably easier by mounting the
machine on assembly stand (3)
5910 890 3100. For this purpose,
secure the clamping rail (2)
5910 850 1650 to the assembly
stand with two screws (1) and
washers.
1
2
3
219RA000 TG
The screws must not protrude,
as they may damage the housings
when clamping the machine,
depending on the model.
1. Introduction
4 MS 441, MS 441 C

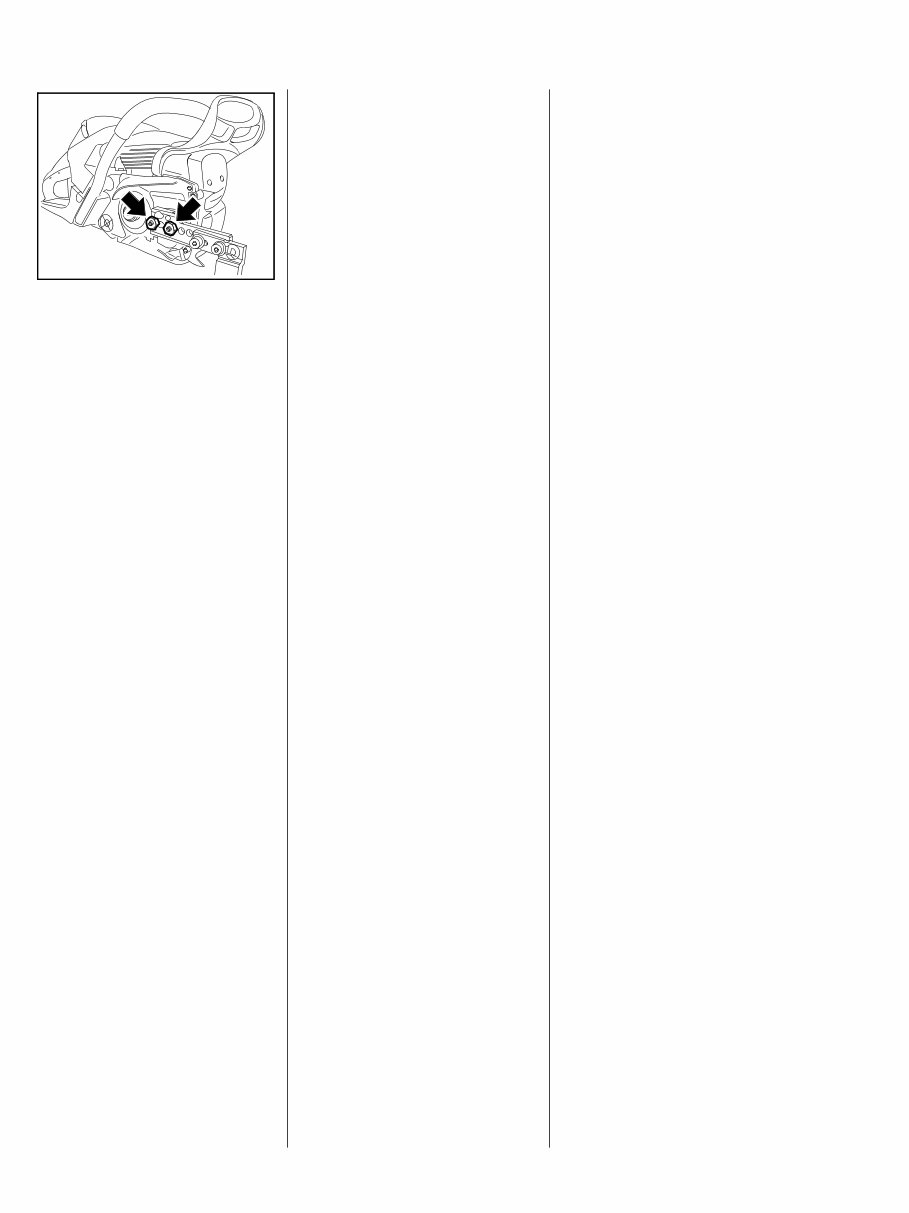

The flange bolts on the chainsaw
are guided through the outer holes
in the clamping rail and secured
with the nuts (arrows).
The sprocket wheel cover, bar and
chain must be removed first. Pull
the hand guard back against the
219RA001 TG
front handle for this purpose.
Always use original STIHL
replacement parts.
They can be identified by the
STIHL part number,
the STIH) logo and
the STIHL parts symbol (
This symbol may appear alone on
small parts.
All local and specific national safety
regulations as well as the safety
precautions and warnings in the
instruction manual must be
observed if the machine is started
up in the course of repairs or
maintenance work.
Gasoline is an extremely flammable
fuel and can be explosive in certain
conditions.
Suitable gloves must be worn
without fail if parts are heated for
assembly/disassembly purposes.
Improper handling may result in
burns or other serious injuries.
Do not bring any fire, flame, spark or
other source of heat near the fuel.
All work with fuel must be performed
outdoors only. Spilled fuel must be
wiped away immediately.
Test for leakages after all work on
the fuel system and engine.
2. Safety
5 MS 441, MS 441 C
3. Specifications
3.1 Engine
MS 441
Displacement: 70.7 cm
3
Bore: 50 mm
Stroke: 36 mm
Engine power to ISO 7293: 4.1 kW (5.8 HP)
at 9,500 rpm
Max. permissible engine speed
(with bar and chain): 13,500 rpm
Idle speed: 2,800 rpm
Clutch: Centrifugal clutch without linings
Clutch engages at: 3,700 rpm
Crankcase leakage test
at gauge pressure: p
ü
= 0.5 bar
under vacuum: p
u
= 0.5 bar
3.2 Fuel system
Carburetor leakage test
at gauge pressure: p
ü
= 0.8 bar
Operation of tank vent
at gauge pressure: p
ü
= 0.5 bar
Fuel: as specified in instruction
manual
3.3 Ignition system
Air gap between ignition
module and fan wheel: 0.15...0.35 mm
Spark plug (suppressed): NGK BPMR 7 A
Electrode gap: 0.5 mm
3.4 Chain lubrication
Speed-controlled oil pump with reciprocating piston –
manual oil flow control
Oil delivery rate: 6.0...17 cm
3
/min
at 10,000 rpm
Oil pump with elevated
oil flow:
6.0...24 cm
3
/min
at 10,000 rpm
6 MS 441, MS 441 C
3.5 Tightening torques
DG or P screws are used in polymer and light metal components. These screws form a permanent thread when
they are installed for the first time. They can be removed and installed as often as necessary without impairing
the strength of the screwed assembly if the specified tightening torque is observed.
For this reason it is essential to use a torque wrench.
Fastener Thread size For component Torque Remarks
Nm
Screw M 4x8 Chain tensioner cover plate/crankcase 3.0
Screw M 7x12.5 Fan housing shaft 12.0
Screw P 5x20 AV spring, crankcase/bearing plug 4.0
Screw M 5x20 AV spring, bearing plug/front handle 6.0
Screw M 5x16 AV spring, bearing plug/cylinder 10.0 2)
Screw P 5x20 AV spring, tank housing/bearing plug 4.0
Screw P 4x10 Brake cable/throttle cable retainer 1.0 Q
Collar screw M 8x21.5 Bar mounting stud 23.0 1)
Collar screw M 6x20 Collar screw/crankcase 12.0 1)
Screw M 4x12 Cover, chain brake/crankcase 3.0
Screw UNC 2.84x9 Switch/carburetor cover 0.7 VW
M 10x1 Decompression valve 14.0
Collar nut M 5 Filter base/baffle/carburetor/collar
screw
3.5
Collar nut M 5 Filter base/carburetor/collar screw 3.5
Screw B 4.2x9.5 Spark arresting screen/muffler 2.0
Screw P 4x10 Throttle cable retainer/handle housing 0.8
Screw M 5x16 Housing/crankcase 7.5
Mutter M 12x0.75 Housing/switch 2.0 W, VW
Screw M 4x12 Generator/crankcase 3.0 1), W, VW
Screw P 6x30 Front handle/tank housing 7.0
Screw M 5x35 Hand guard, left/crankcase 6.0
Screw M 5x20 Chain catcher/spiked bumper/
crankcase
8.0
Screw M 5x12 Spiked bumper/top of crankcase/
lock nut
8.0
Screw M 5x16 Intake elbow/cylinder 6.0
Screw M 5x8.8 Crankcase 6.0
Screw M 5x25 Crankcase 10.0
Screw M 4x12 Crankcase/brake band 3.0 1)
Screw M 5x20 Fan housing/crankcase 6.0
M 12x1 L Crankshaft carrier 50.0
Nut M 5 Muffler/flange bolt (with washer) 10.0
7 MS 441, MS 441 C
Fastener Thread size For component Torque Remarks
Nm
Screw M 4x12 Oil pump/crankcase 3.5
Screw M 5x16 Muffler/cylinder 10.0 1)
Screw P 4x10 Slide/housing 1.0
Nut M 5 Slotted nut, shroud/stud, cylinder 3.0
Screw P 4x10 Guard/handle housing 1.5
Nut M 8x1 Flywheel/crankshaft 28.0 3)
Screw M 4x8 Side plate/crankcase 3.0
Screw M 5x8.5 Stud/cylinder 1.4
Nut M 5 Hexagon cap nut/baffle/flange bolt 1.5
Screw M 4x12 Pre-separator/crankcase 3.0 1)
Screw M 5x16 Elbow connector/front handle 10.0 R
Screw P 6x30 Elbow connector/front handle/
handle housing
7.0 R
M 14x1.25 Spark plug 25.0
Screw M 5x20 Ignition module/crankcase
(with washer)
8.0
Screw M 5x12 Spacer flange/housing 5.0
Screw M 6x25 Cylinder/crankcase 15.0
Remarks:
1) Loctite 243 medium strength
2) Loctite 270 high strength
3) Connection between crankshaft and flywheel must be degreased and installed oil-free
Q = QuickStop Super chain brake
R = Wrap-around handle
V = Carburetor heating
W = Handle heating
When inserting the DG and P-type screws in an existing thread:
Insert the DG or P-type screw in the hole and turn it counterclockwise until it gently drops into the hole in axial
direction.
Turn the screw in clockwise and tighten with the specified torque.
This ensures that the screw engages the existing thread and does not cut a new thread, thus preserving the
strength of the screw connection.
Micro-encapsulated screws must be wetted with Loctite 243, medium strength, before being refitted.
Screwdriver speed when fitted in plastic material: max. 500 rpm for DG and P-type screws.
An impact wrench must not be used to unscrew or tighten the screw connections!
Screws with and without locking serration must not be confused!
8 MS 441, MS 441 C
4. Troubleshooting
4.1 Clutch
Condition Cause Remedy
Saw chain stops under load at full
throttle
Clutch shoes badly worn Install new clutch
Clutch drum badly worn Install new clutch drum
Saw chain rotates at idle speed Engine idle speed too high Readjust with idle speed screw LA
(counterclockwise)
Clutch springs stretched
or fatigued
Replace the clutch springs or install
new clutch
Clutch spring hooks broken Replace the clutch springs
Loud noises Clutch springs stretched
or fatigued
Replace all clutch springs
Needle cage damaged Fit new needle cage
Clutch shoe retainer broken Fit new retainer
Clutch shoes and carrier worn Install new clutch
9 MS 441, MS 441 C
4.2 Chain drive, chain brake, chain tensioner
Condition Cause Remedy
Chain sprocket wears rapidly Chain not properly tensioned Tension chain as specified
Wrong chain pitch Fit chain of correct pitch
Insufficient chain lubrication Check chain lubrication
Chain sprocket worn Fit new chain sprocket
Saw chain stops under load at full
throttle
Clutch shoes badly worn Install new clutch
Clutch drum badly worn Install new clutch drum
Brake band blocked Check freedom of movement and
function of brake band. Check
brake cable on machines with
QuickStop Super.
Saw chain rotates at idle speed Engine idle speed too high Readjust with idle speed screw LA
(counterclockwise)
Clutch springs stretched or fatigued Replace the clutch springs or install
new clutch
Clutch spring hooks broken Replace the clutch springs
Saw chain does not stop
immediately when brake
is activated
Brake spring stretched or broken Fit new brake spring
Brake band stretched, worn or
broken
Fit new brake band
Clutch drum worn Fit new clutch drum
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$39.99
$51.99
Viewed 66 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$39.99
$51.99
The Stihl MS 441 and MS 441 C Chainsaw Full Service & Repair Manual is a comprehensive factory workshop manual that is instantly accessible on your computer, tablet, or smartphone. This professional manual is designed to cover all repair, servicing, and troubleshooting procedures, making it an invaluable resource for both professional mechanics and DIY enthusiasts.
The manual is incredibly detailed, featuring hundreds of pages with in-depth photos, diagrams, step-by-step instructions, and highly detailed exploded diagrams and pictures to guide you through each task accurately. You have the flexibility to print out single pages or the entire manual based on your preference, and it can be used on multiple computers without any limitations or trial periods.
There are no expiry dates or renewal fees associated with this manual, and it is fully compatible with both Windows and MAC computers. Whether you are a professional mechanic or a DIY enthusiast, this manual provides the essential information needed to effectively service and repair the Stihl MS 441 and MS 441 C chainsaws.
