STIHL 019 T 2
1. INTRODUCTION
This service manual contains detailed
descriptions of all the repair and
servicing procedures specific to this
series of chainsaws There are separate
handbooks for servicing procedures on
standardized parts and assemblies that
are installed in several STIHL power
tool models. Reference is made to
these handbooks in the appropriate
chapters of this manual.
You should make use of the illustrated
parts lists while carrying out repair
work. They show the installed positions
of the individual components and
assemblies.
Always use the latest edition of the
parts list to determine the part numbers
of any replacement parts required.
Microfilmed parts list are always more
up to date than printed lists.
A fault on the machine may have
several causes. Consult the
troubleshooting charts for all
assemblies in the "Standard Repairs,
Troubleshooting" handbook.
Refer to the "Technical Information"
bulletins for engineering changes which
have been introduced since publication
of this service manual. Technical
information bulletins also supplement
the parts list until a revised edition is
issued.
Special servicing tools mentioned in
the descriptions are listed in the last
chapter of this manual. Use the part
numbers to identify the tools in the
"STIHL Special Tools" manual. The
manual lists all special servicing tools
currently available from STIHL.
Symbols are included in the text and
pictures for greater clarity. The
meanings are as follows:
In the descriptions:
• = Action to be taken as shown in
the illustration (above the text)
- = Action to be taken that
is not shown in the illustration
(above the text)
In the illustrations:
P = Pointer
= Direction of movement
Service manuals and all technical
information bulletins describing
engineering changes are intended
exclusively for the use of STIHL
servicing dealers. They must not be
passed to third parties.

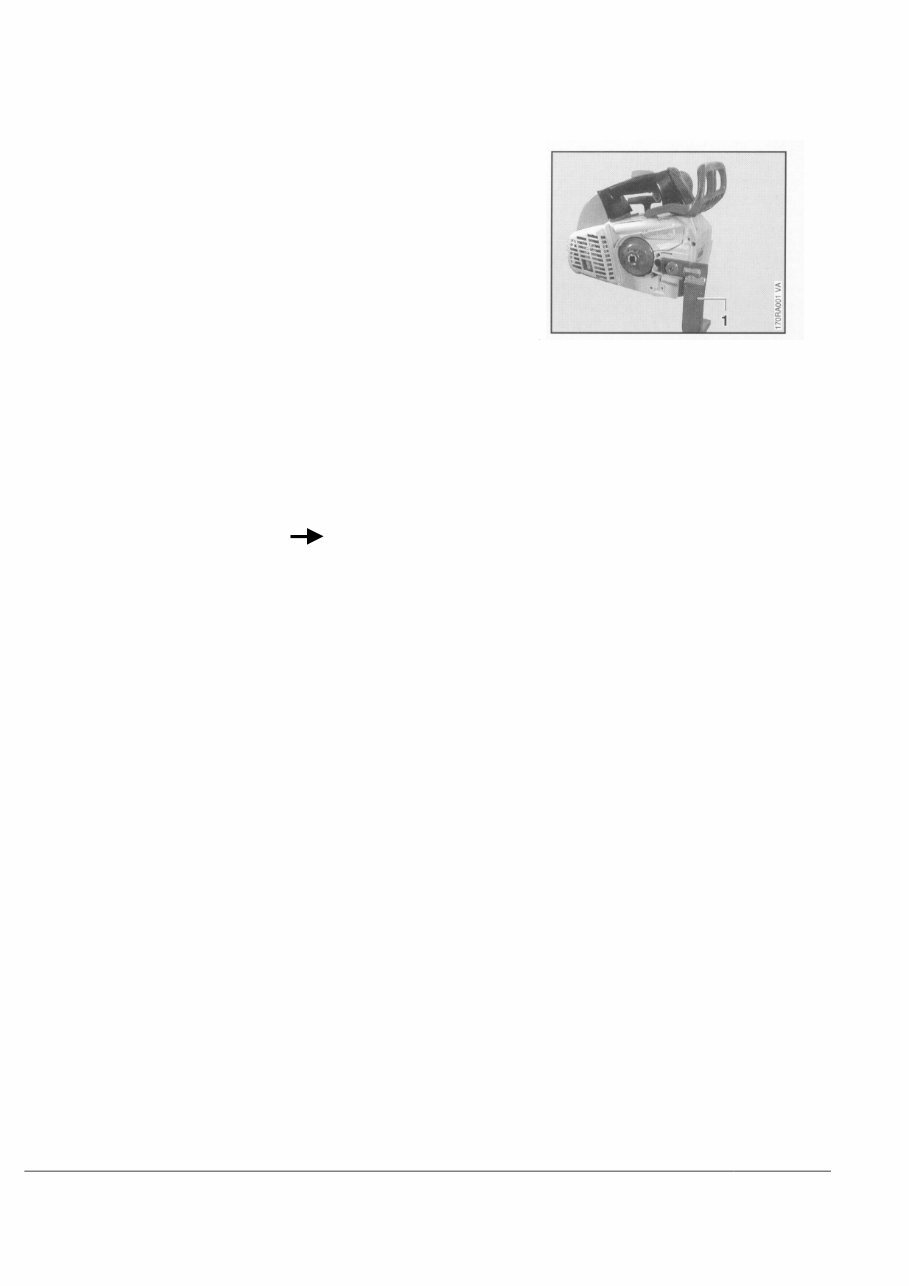

Servicing and repairs are made
considerably easier if the powerhead
is mounted to the assembly stand (1)
5910 890 3100.
This enables the powerhead to be
swivelled to the best position for the
ongoing repair and leaves both hands
free.
It is secured with the bar mounting
stud after removing the chain sprocket
cover and tensioner.
Always use original STIHL
replacement parts. They can be
identified by the STIHL part number,
the STIHL
STIHL STIHL
STIHL logo and the STIHL
parts symbol (The symbol may
appear alone on small parts.
STIHL 019 T 3
2. SPECIFICATIONS
2.1 Engine
STIHL single cylinder two-stroke engine with special
impregnated cylinder bore
Displacement:
Bore:
Stroke:
Engine power to ISO 8893:
Max. engine speed
with bar and chain:
Idle speed:
Bearings:
Piston pin diameter:
Connecting rod length:
Rewind starter:
Reserve pull on rope rotor:
Starter rope:
Clutch:
Diameter:
Clutch engages at:
Crankcase leakage test
at gauge pressure:
under vacuum:
35.2 cm
3
(2.15 cu.in)
40 mm (1.57 in)
28 mm (1.10 in)
1.2 kW (1.6 bhp)
12,000 rpm
2,800 rpm
Crankshaft supported in heavy-
duty ball bearings, needle cages
on small and big ends
8 mm (0.3 in)
51 mm (2 in)
Single pawl system
min. 1/2 turn
3.0 mm (0.12 in) dia.,
800 mm (31.5 in) long
Centrifugal clutch without linings
64 mm (2.52 in)
3,700 rpm
0.5 bar (7.25 psi)
0.4 bar (5.8 psi)
Carburetor:
Standard setting
High speed screw H:
Low speed screw L:
Carburetor leakage test
at gauge pressure:
Fuel tank capacity:
Octane number:
Fuel mixture:
Mix ratio:
Air filter:
Diaphragm carburetor
Open approx. 1 turn
Open approx. 1 turn
0.4 bar (4.8 psi)
0.29 1 (0.61 US pt)
min. 90 RON (US/CAN: pump
octane min. 87 unleaded)
Regular brand-name gasoline
and two-stroke engine oil
1:50 with STIHL 50:1 two-stroke
engine oil
25:1 with other brand-name
two-stroke, air-cooled engine oils
Felt element
2.2 Fuel System
STIHL 019 T 4
STIHL repair kit
6-tooth 3/8" P spur sprocket
8-tooth 1/4" spur sprocket
ElastoStart
Carburetor parts kit
1132 900 5000
1123 640 2005
1123 640 2010
0000 190 3400
1132 007 1060
2.5 Special Accessories
2.5.1 For User
2.5.2 For Service
2.3 Ignition System
2.4 Cutting Attachment
Electronic magneto ignition
(breakerless) with integral
trigger unit
0.25 mm (0.010 in)
1.6 - 2.3 mm (0.063-0.091 in)
B.T.D.C. at 8,000 rpm
NGK BPMR 7 A or
CHAMPION RCJ6Y
0.5 mm (0.02 in)
M14x1.25
9.5 mm (0.37 in)
9.32 mm (3/8") Picco-Micro-Mini
7-tooth 3/8" P spur sprocket
21.7 m/s (71.2 ft/sec)
at 10,000 rpm
Speed-controlled reciprocating
oil pump. No oil feed at idle speed
Adjustable 5 - 9 cm
3
/min
(0.17 - 0.30 fl.oz/min)
0.16 l (0.34 US pt)
Type:
Air gap:
Ignition timing:
Spark plug (suppressed):
Electrode gap:
Spark plug thread:
Length of thread:
Oilomatic chain:
Chain sprocket:
Chain speed:
Chain lubrication:
Oil delivery rate:
Oil tank capacity:
STIHL 019 T 5
2.6 Tightening Torques
Plastoform screws are used for polymer components and "DG" screws for lightmetal components. These screws form a
permanent thread when they are installed for the first time. They can be removed and installed as often as necessary
without detrimentally affecting the strength of the screwed assembly, providing the specified tightening torque is observed.
For this reason it is essential to use a torque wrench.
Fastener
Spline screw
Spline screw
Spline screw
Spline screw
Spline screw
Spline screw
Spline screw
Spline screw
Collar screw
Spline screw
Collar nut
Plastoform screw
Screw
Thread
size
IS-DG 4x20
IS-DG 5x24
IS-DG 5x24
IS-DG 5x24
IS-DG 5x24
IS-DG 5x24
IS-DG 5x24
IS-DG 5x24
IS-DG 8x18
IS-M5x52
M8x1
M12x1 L
M14x1.25
IS-P4x12
IS-DG 3.5x12
For component
Ignition module/cylinder
Handle molding/front handle
Fan housing/engine housing
Engine pan/cylinder
Handle molding/handle
Muffler/cylinder
Spacer flange/cylinder
Engine housing/cylinder
Bar mounting/engine housing
Intake casing/carburetor/flange
Flywheel
Clutch
Spark plug
Hand guard, left/fan housing
Support plate /diaphragm/
spacer flange
Torque
Nm Ibf.ft
4.5 3.3
3.5 2.6
4.0 3.0
8.0 5.9
4.0 3.0
7.0 5.2
8.0 5.9
8.0 5.9
16.0 11.8
5.0 3.7
28.0 21.0
50.0 37.0
25.0 18.5
1.7 1.3
2.0 1.5
Remarks
Use the following procedure when refitting a P or DG screw in an existing thread:
- Place the screw in the hole and rotate it counterclockwise until it drops down slightly.
- Tighten the screw clockwise to the specified torque.
This procedure ensures that the screw engages properly in the existing thread and does not form a new thread and
weaken the joint.
Note: Power screwdriver speed for use in polymer: Plastoform screws max. 600 rpm,
DG screws max. 500 rpm.
Use only screws specified in parts list.
Do not use screws with underhead locking teeth on polymer components.
STIHL 019 T 6

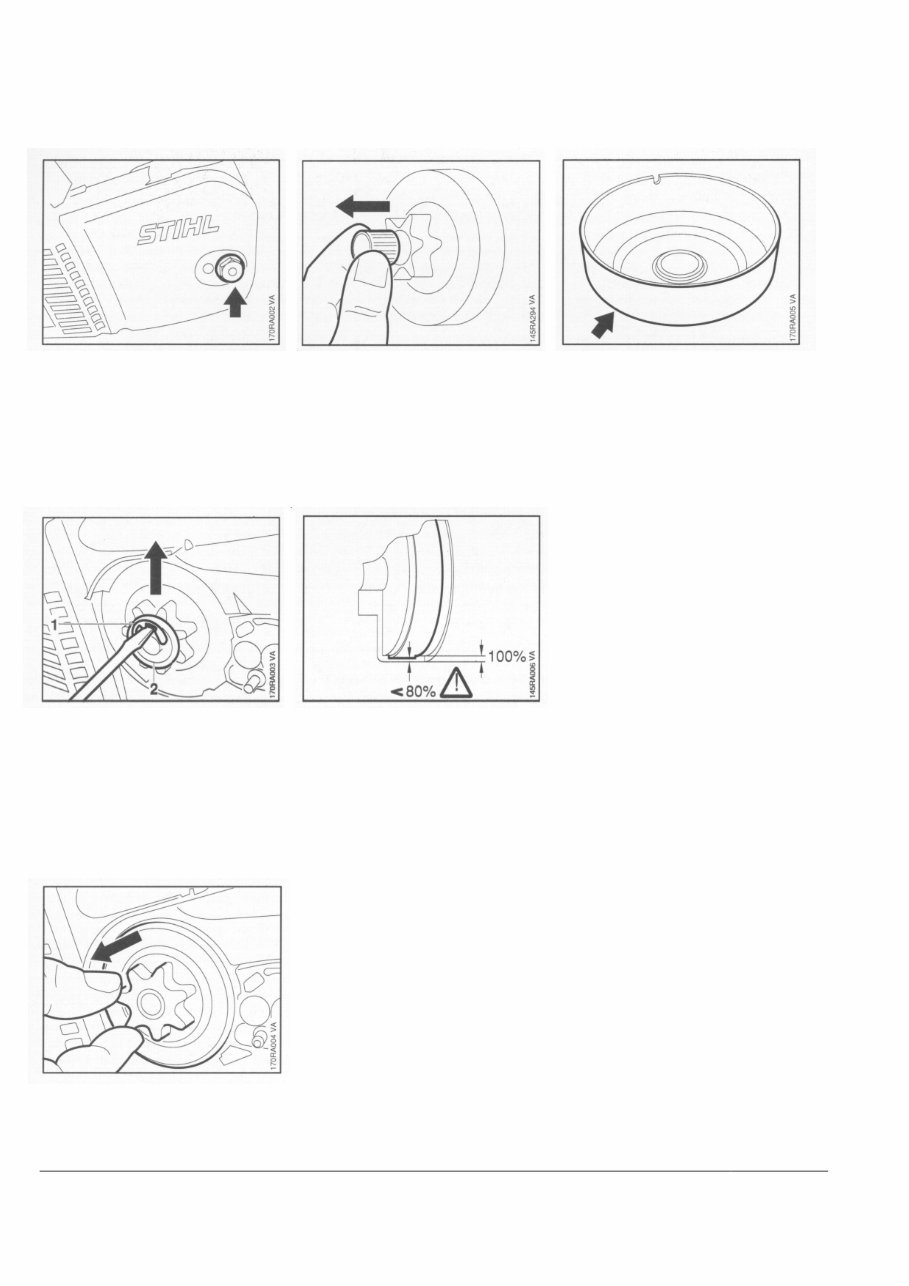

• Remove the E-clip (1).
• Remove the washer (2).
• Pull off the chain sprocket.
• If the clutch drum is still serviceable,
use No. 120 emery paper or emery
cloth (grain size approx. 120μm) to
clean and roughen its friction
surface.
Reassemble in the reverse sequence.
- Clean stub of crankshaft. Wash
needle cage in clean white spirit and
lubricate with grease - see 11.2.
- Replace damaged needle cage.
- Rotate chain sprocket and apply
slight pressure at the same same
until oil pump drive spring engages
properly.
• Take the needle cage out of the
sprocket.
- Clean and inspect the chain
sprocket.
• Unscrew the nut.
- Pull off the chain sprocket cover.
- Disengage the chain brake by
pulling the hand guard toward
the front handle.
3. CLUTCH, CHAIN DRIVE, CHAIN BRAKE AND CHAIN TENSIONER
3.1 Chain Sprocket
Important: If there are noticeable
wear marks on the inside diameter of
the clutch drum, check its wall
thickness. If it is less than 80% of the
original wall thickness, fit a new
sprocket.
Note: If the clutch drum has to be
replaced, also check the brake band
- see 3.3.2.
STIHL 019 T 7
3.2 Clutch
Troubleshooting chart - see "Standard
Repairs, Troubleshooting" handbook.
- Remove chain sprocket - see 3.1.
3.3 Chain Brake
3.3.1 Checking Function
The chain brake is one of the most
important safety devices on the
chainsaw. Its efficiency is measured in
terms of braking time, i.e. the time that
elapses between activating the brake
and the saw chain coming to a
standstill. The shorter the braking time,
the better the efficiency and protection
offered against being injured by the
rotating chain.
Contamination (with chain oil, chips,
fine particles of abrasion, etc.) and
smoothing of the friction surfaces of the
brake band and clutch drum impair the
coefficient of friction. This, in turn,
reduces the frictional forces and thus
prolongs the braking time. A fatigued or
stretched brake spring has the same
negative effect.
- Start the engine.
- With the chain brake activated
(locked), open throttle wide for brief
period (max. 3 seconds) the chain
must not rotate.
- With the chain brake released, open
throttle wide and activate the brake
manually - the chain must come to an
abrupt stop.
Note: The braking time is in order if
deceleration of the saw chain is
imperceptible to the eye.

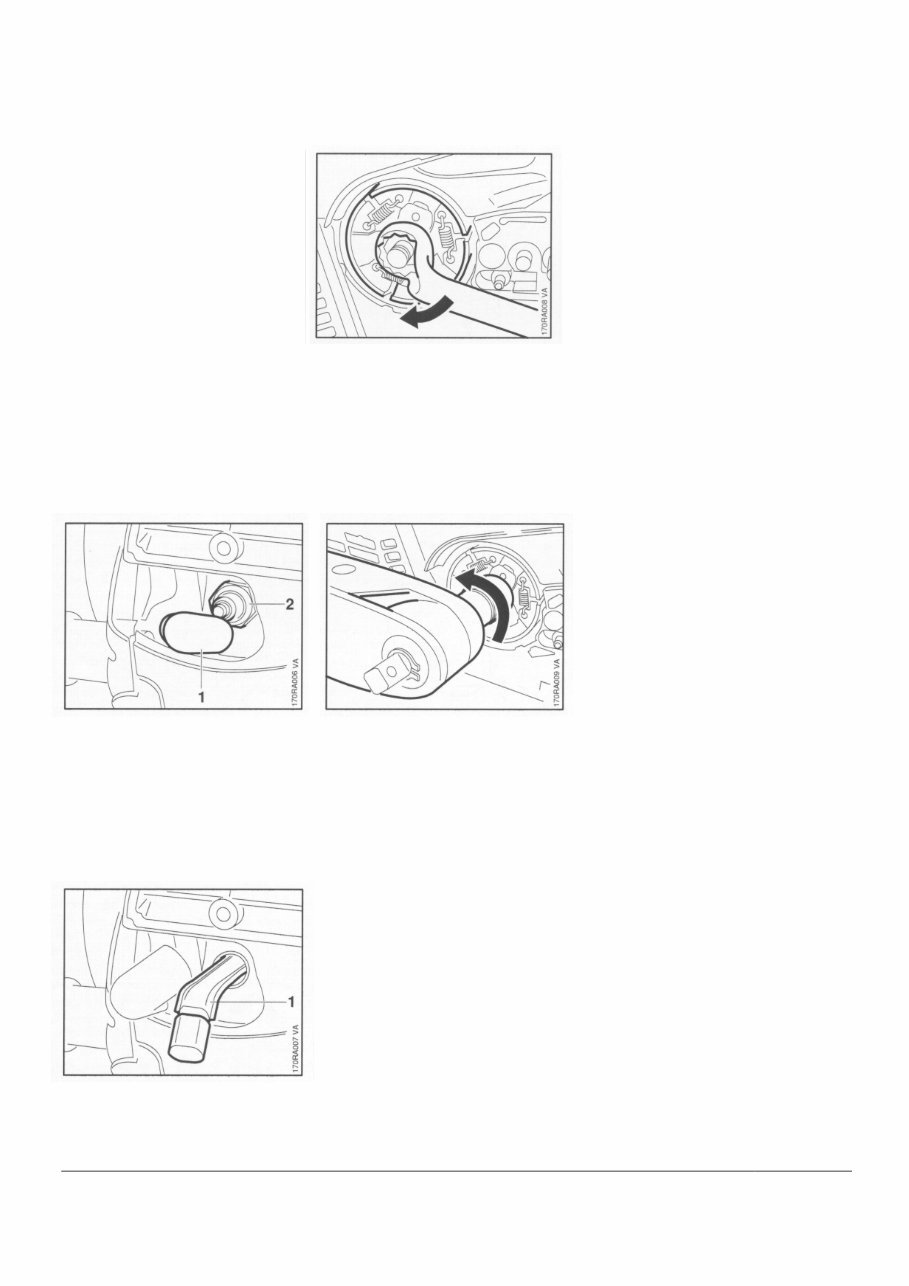

• Pull boot (1) off the spark plug.
- Unscrew the spark plug (2).
• Push the locking strip (1)
0000 893 5903 into the cylinder.
• Unscrew the clutch from the
crankshaft in the direction of the
arrow (left-hand thread).
- Disassemble and reassemble
the clutch - see "Standard
Repairs, Troubleshooting"
handbook.
• Screw clutch onto crankshaft
and torque down to 50 Nm
(37 Ibf.ft).
- Remove locking strip from
cylinder.
- Install spark plug and torque
down to 25 Nm (18.5 Ibf.ft).
Important: If spark plug has a
separate terminal nut, make sure
that it is properly tightened down.
- Fit spark plug boot.
- Install the chain sprocket -
see 3.1.
STIHL 019 T 8

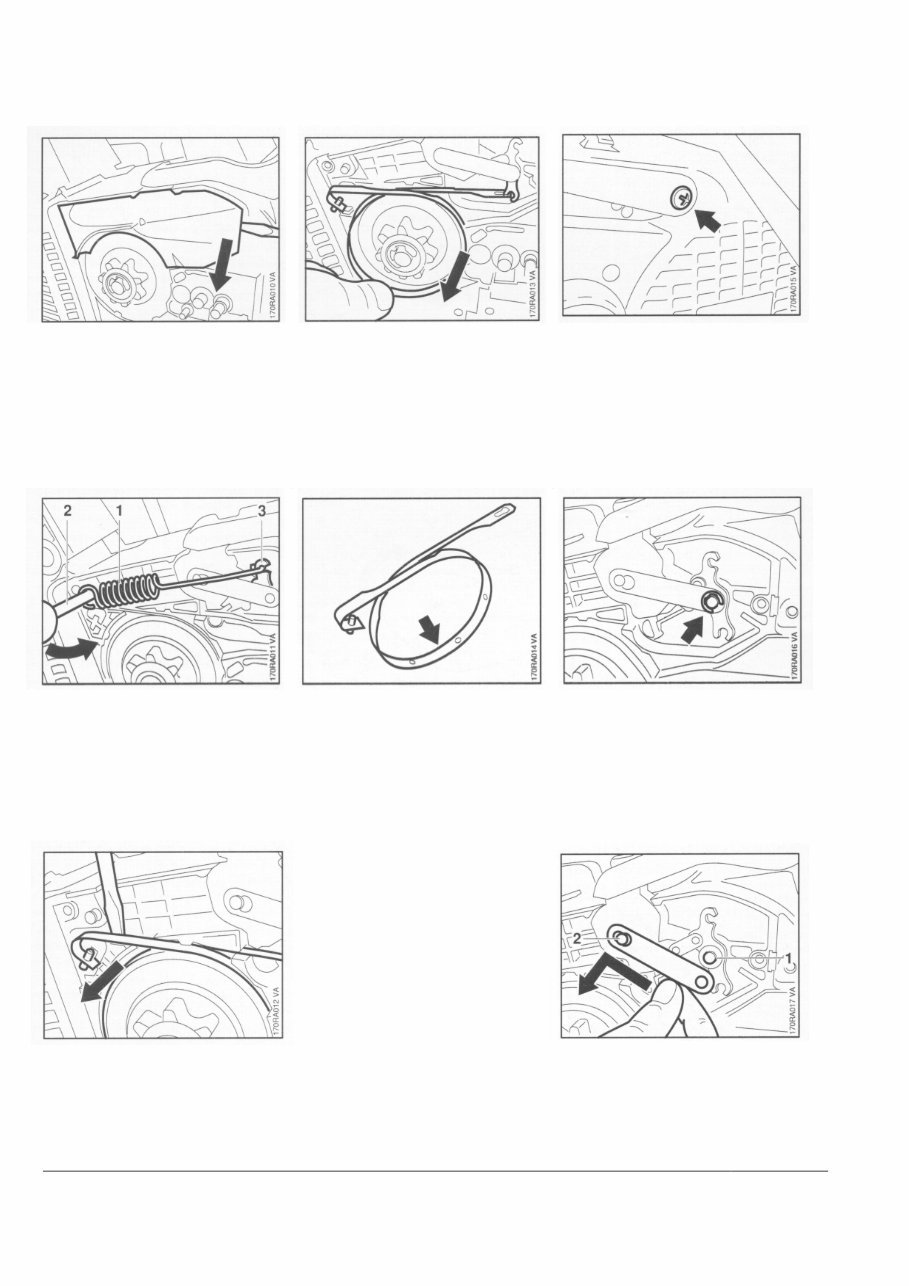

• Lever the brake band out of the
engine housing.
• Slip the strap off the bell crank
pivot pin (1).
• Push the strap to one side and
remove it from the hand guard
pivot pin (2).
Replace the brake band if:
- there are noticeable signs of wear
(large areas on inside diameter
and/or parts of outside diameter) and
- its remaining thickness is less than
0.6 mm (0.024").
Important! Thickness of brake band
must not be less at any point.
• If the brake band is still serviceable,
use No. 120 emery paper or emery
cloth (grain size approx. 120μm) to
clean and roughen its entire friction
surface (inside diameter).
• Take out the screw.
- Remove the hand guard from its
seat on the fan housing.
• Remove brake band from the chain
sprocket and detach it from the bell
crank.
- Release tension of brake spring by
pushing the hand guard forwards.
- Remove chain sprocket cover.
• Ease the cover out of its
retainers.
3.3.2 Disassembly
• Use assembly tool (2)
1117 890 0900 to carefully
disconnect the brake spring (1).
• Unhook the brake spring from
the bell crank (3).
• Remove the E-clip,

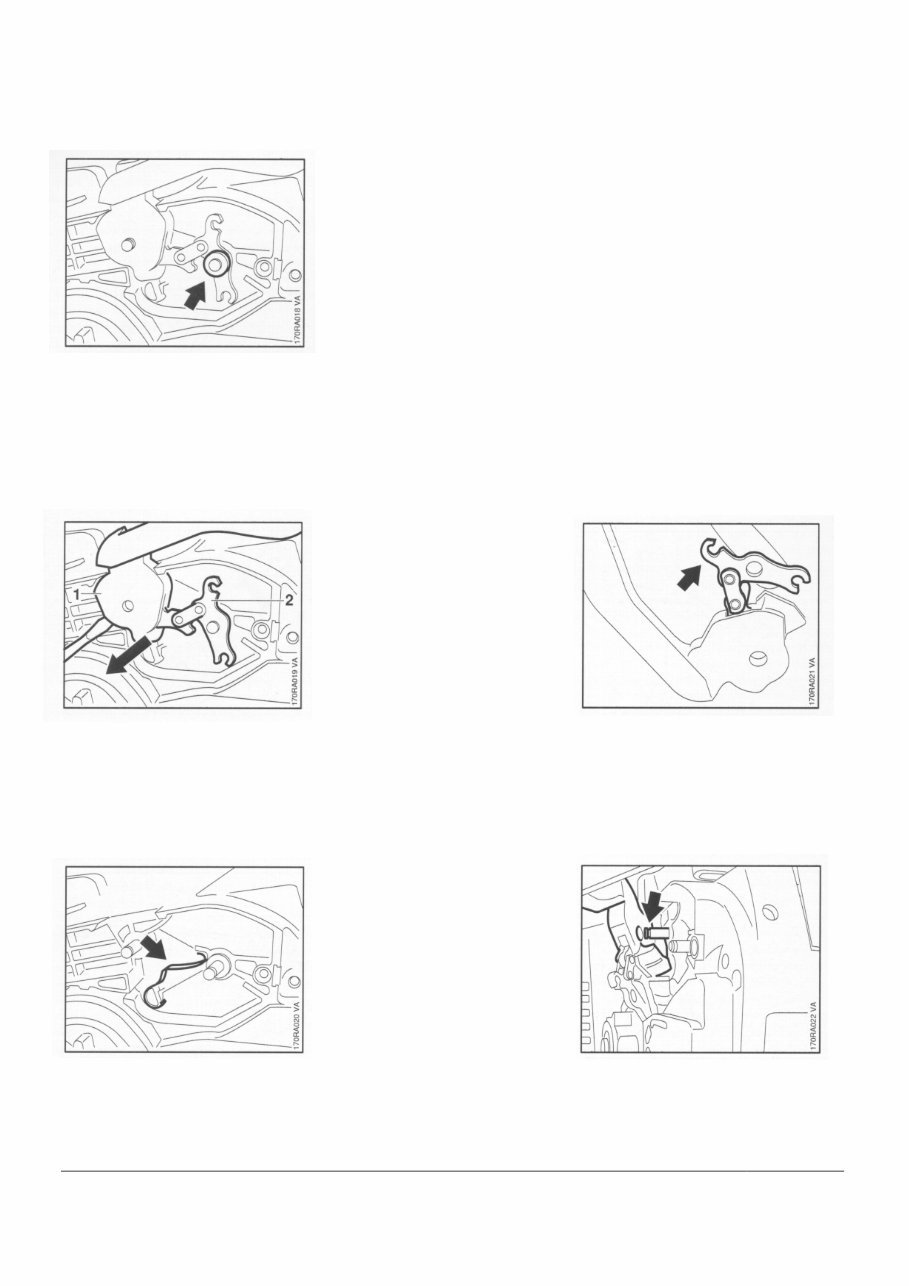

STIHL 019 T 9
- Clean chain brake seat in
housing.
- If the groove of the brake spring
anchor pin is worn, replace the
housing.
3.3.3 Assembly
- Lubricate sliding and bearing points
of chain brake with STIHL
multipurpose grease or, preferably,
Molykote grease - see 11.2.
- Fit flat spring in position.
• Remove the washer.
• Carefully ease the hand guard
(1) and bell crank (2) off the pivot
pins and lift them away together.
- Pull the bell crank out of the hand
guard.
• Take out the flat spring.
- Inspect parts. Replace any worn or
damaged parts.
• Locate bearing boss of hand
guard (1) on pivot pin.
- Fit other end over the housing.
• Slide bell crank into end of hand
guard. The short arm of the bell
crank must point to top of hand
guard.
STIHL 019 T 10

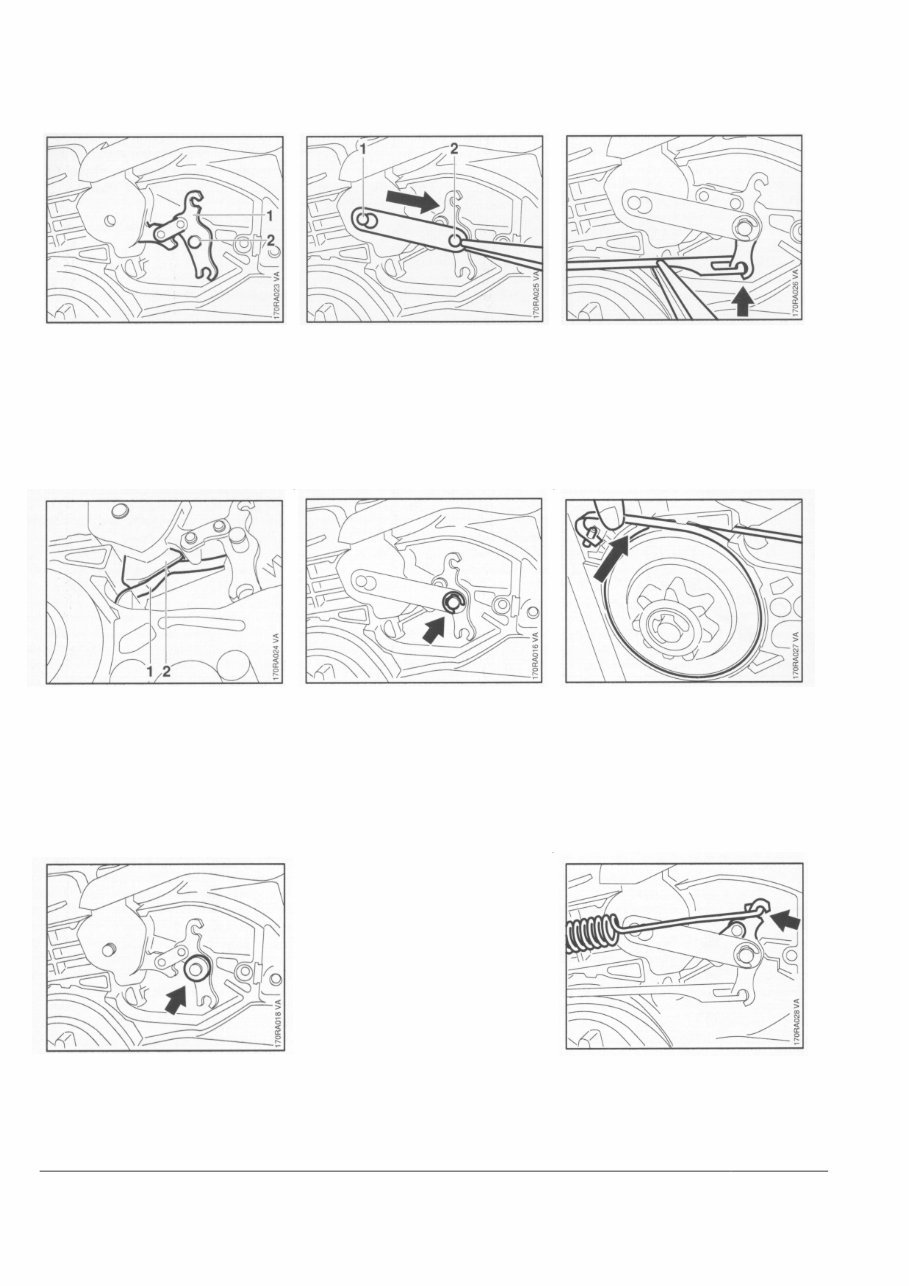

• Fit the washer. • Hook the brake spring onto the bell
crank.
• Fit the brake band and press it
into the engine housing.
• Secure strap with E-clip.
- Coat brake band with chain oil
(STIHL Bioplus), see 11.2, to
protect it from corrosion an
cushion "snatching" during the
first few brake applications.
• Check that flat spring (1)
is properly located on face (2)
of bearing boss.
• Attach brake band to the bell
crank.
• Place strap on pivot pin (1) and
pull it in direction of arrow until it
engages the groove.
• Then push it over the pivot pin
(2).
• Position bell crank (1) against
pivot pin (2).
- Push hand guard and bell crank fully
onto the pivot pins.
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$31.99
Stihl MS 191 T MS 190 T Brushcutters & Parts Workshop Service Repair Manual
Viewed 42 Times Today
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$31.99
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Description
This Service Repair Manual is an essential resource for anyone working with Stihl MS 191 T MS 190 T Brushcutters & Parts. It provides high-quality diagrams and instructions for servicing and repairing your equipment. Whether you're a professional mechanic or a DIY enthusiast, this manual covers a wide range of topics, including:
- Introduction
- Specifications
- Clutch, Chain Drive, Chain Brake And Chain Tensioner
- Engine
- Ignition System
- Rewind Starter
- AV Handle System
- Master Control / Handle System
- Chain Lubrication
- Fuel System
- Special Servicing Tools And Aids
This manual is available in PDF format, compatible with all versions of Windows & Mac, and can be viewed using Adobe Reader. It's a valuable resource that can save you time and money on maintenance and repairs. Don't miss out on the opportunity to enhance your understanding of Stihl equipment. Get your copy now!
