Parts Breakdown DCS34
Page 1 of 8 2/8/2008
Parts Breakdown DCS34
Page 2 of 8 2/8/2008
Parts Breakdown DCS34
Page 3 of 8 2/8/2008
Parts Breakdown DCS34
Page 4 of 8 2/8/2008
Parts Breakdown DCS34
Page 5 of 8 2/8/2008
Parts Breakdown DCS34
Page 6 of 8 2/8/2008
Parts Breakdown DCS34
Fig # Part ID Part Name Quantity

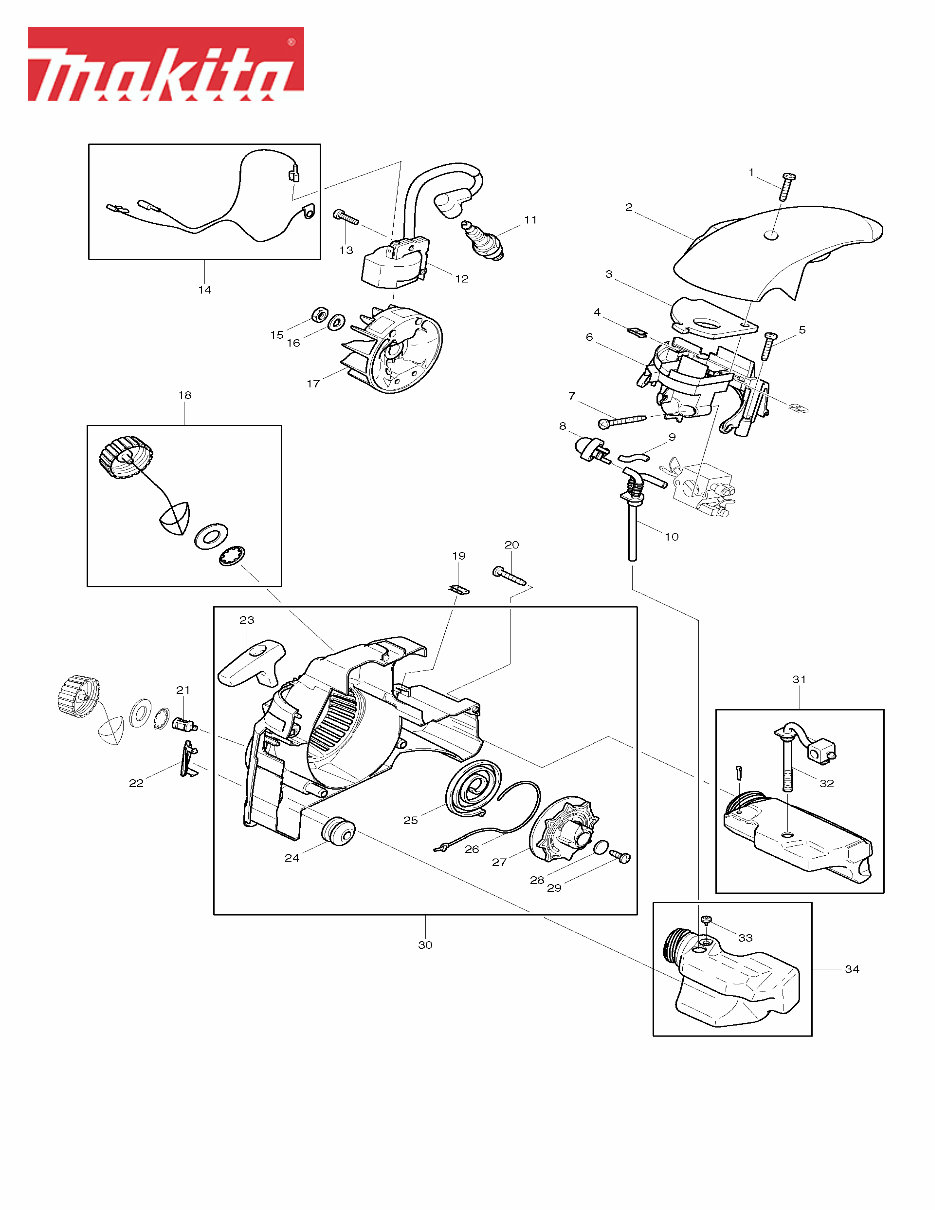

1 913650304 SCREW 5X30, DCS34 3
2 036118020 HOOD (GREY), DCS34 1
3 036173011 AIR FILTER 1
4 923750340 NUT, DCS34 2
5 913650304 SCREW 5X30, DCS34 2
6 036171011 CONNECTING MUFF, DCS34 1
7 913650504 SCREW 5X50, DCS34 2
8 369155010 PRIMER, DCS34 1
9 965452060 VENTILATION LINE, DCS9000 1
10 965404980 FUEL LINE, DCS34 1
11 965603021 SPARK PLUG,WSR5F DPC6200 1
12 036140010 IGNITION ELECTRONIC CPL., DCS34 1
13 913340204 SCREW 4X20, DCS34 2
14 970311490 SHORT-CIRCUIT CABLE, DCS34 1
15 920308024 HEX NUT M8X1, DCS340 1
16 926208001 SPRING WASHER 8, DPC7000 1
17 036141100 FLYWHEEL W/STARTER RATCH CPL.,DCS34 1
18 010114060 TANK PLUG CPL., DCS34 2
19 923750340 NUT, DCS34 1
20 913650304 SCREW 5X30, DCS34 4
21 963601380 SUCTION HEAD, DCS34 1
22 036112630 COVER, DCS34 1
23 965404031 STARTER GRIP, DCS340 1
24 965403490 RUBBER BUFFER, DCS341 1
25 036163010 REWIND SPRING. DCS34 1
26 985000155 STARTER ROPE 100 METER,DCS431 1
27 036162010 CABLE DRUM, DCS34 1
28 924805310 DISC (WASHER), DCS430 1
29 913650154 SCREW 5X15, DCS34 1
30 036112650 STARTER CPL., DCS34 1
31 036114100 OIL TANK CPL., DCS34 1
32 965402490 SUCTION LINE ASSY FOR OIL, DCS34 1
33 965404220 VENT VALVE, DCS330S,430 1
34 036114150 FUEL TANK CPL., DCS34 1
35 036155020 CHOKE LEVER, DCS34 1
36 036155031 CONTACT SPRING, DCS34 1
37 913650304 SCREW 5X30, DCS34 1

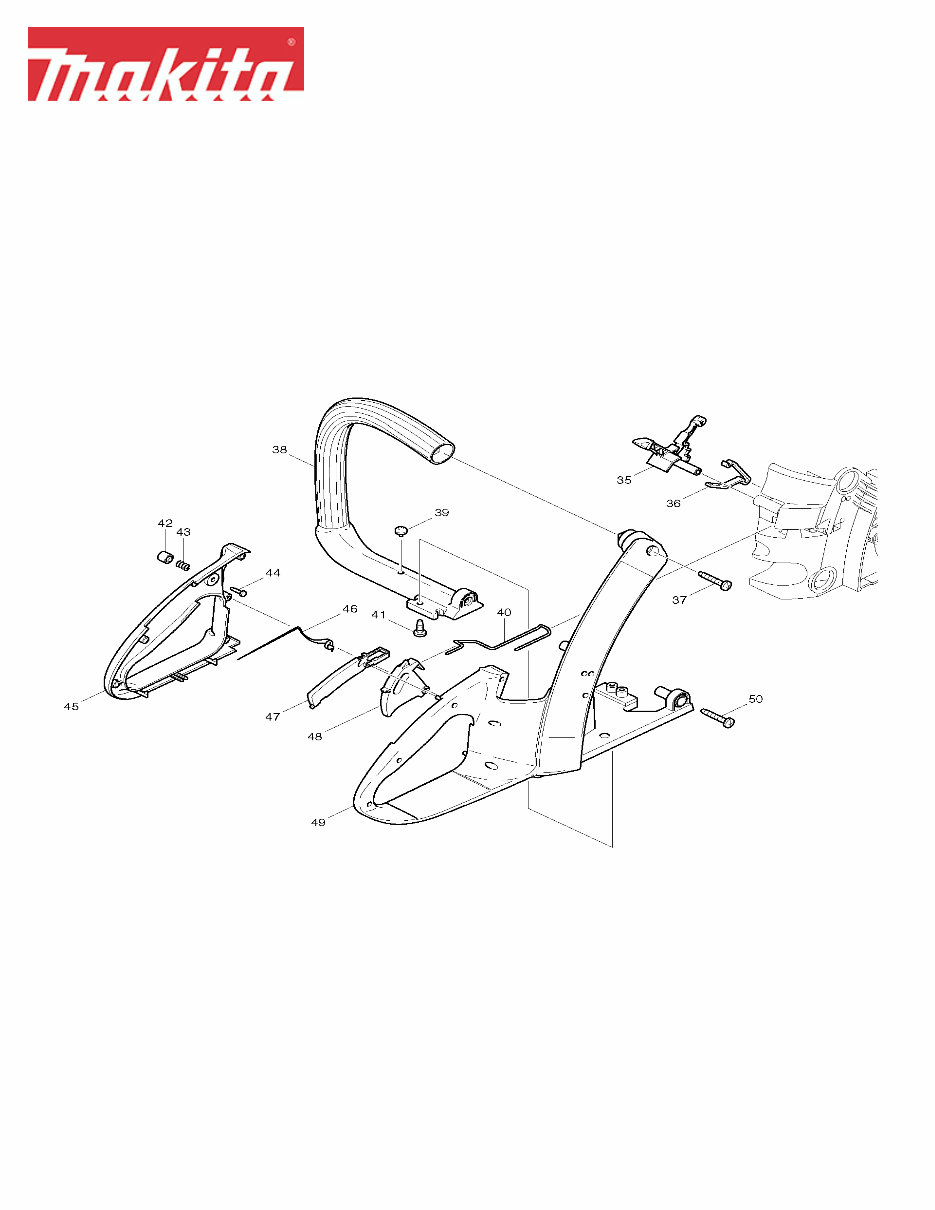

38 036310010 TUBULAR HANDLE, DCS34 1
39 965402360 RUBBER BUFFER, DPC7000 1
40 036117020 THROTTLE LINKAGE, DCS34 1
41 913650154 SCREW 5X15, DCS34 1
42 965451750 BUTTON, DCS6000I21 1
43 965551160 PRESSURE SPRING, DCS6000I21 1
44 965551150 STOP PIN, DCS6000I21 1
45 036117660 HANDLE HALF, DCS34 1
46 036117050 SPRING,DCS34 1
47 036117040 CATCH LEVER, DCS34 1
48 036117030 THROTTLE LEVER, DCS34 1
49 036117610 HANDLE HALF, DCS34 1
50 913650304 SCREW 5X30, DCS34 1
51 036174110 SPARK ARREST. MUFFLER ASSY., DCS34 1
52 036174200 SPARK ARRESTER SCREEN CPL., DCS34 1
53 913350654 SCREW 5X65, DCS34 2
54 928405000 WASHER, DCS340 2
55 965522032 GASKET, DCS5200I 1

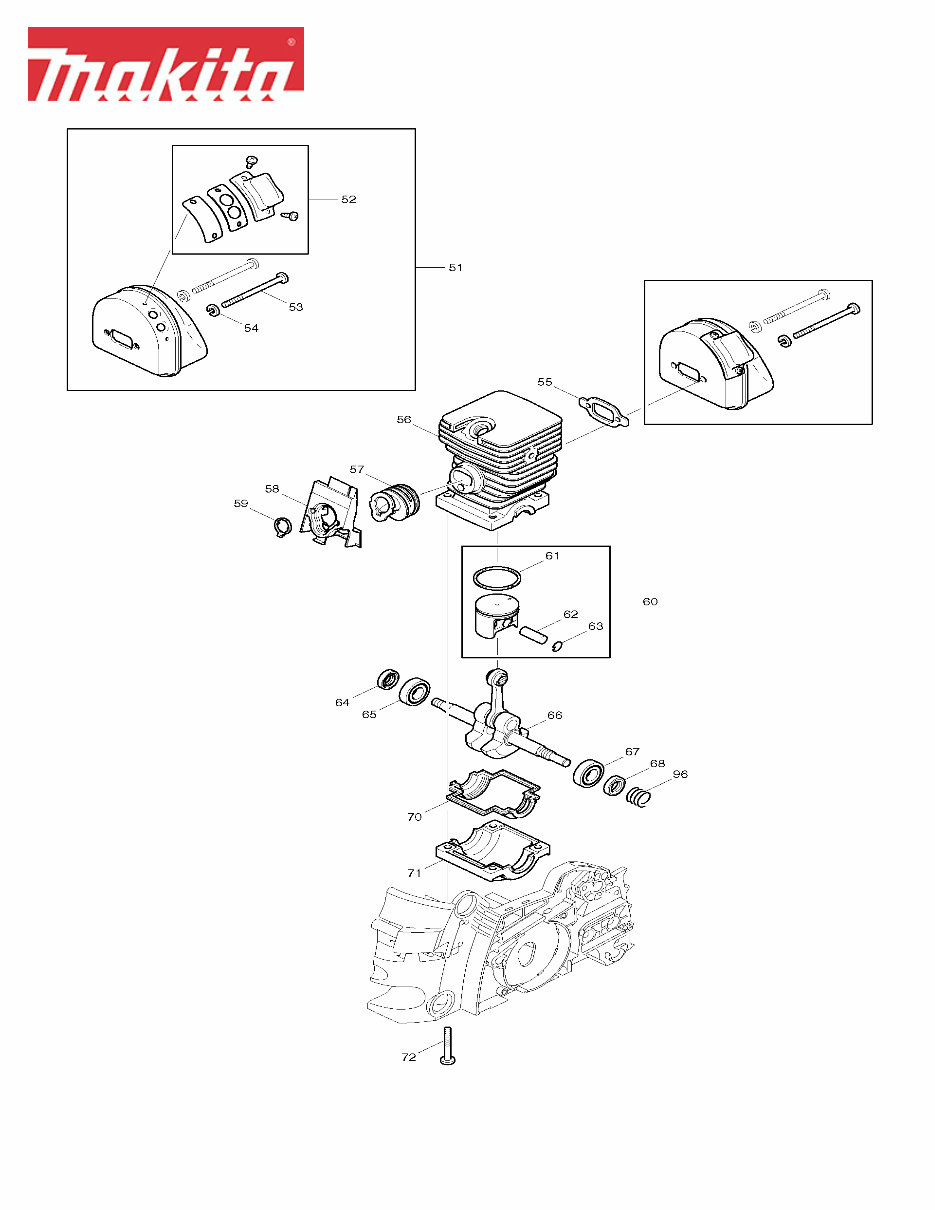

56 036131011 CYLINDER, DCS34 1
57 036131020 SUCTION HOSE, DCS34 1
58 036171020 CLAMP, DCS34 1
59 036131030 INSERT FOR SUCTION HOSE, DCS34 1
60 021132110 PISTON ASS'Y, DCS341 1
Page 7 of 8 2/8/2008
Parts Breakdown DCS34
61 021132030 PISTON RING, DS340 1
62 021132020 PISTON PIN, DCS340 1
63 108132050 SPRING RING, DCS340 1
64 962900057 RADIAL RING, DCS34 1
65 960102129 BALL BEARING, DCS431 1
66 036120010 CRANKSHAFT ASSY., DCS34 1
67 960102129 BALL BEARING, DCS431 1
68 962900057 RADIAL RING, DCS34 1
70 965531010 GASKET, DCS34 1
71 036111010 CRANKCASE LOWER PART, DCS34 1
72 913350404 SCREW 5X40/20, DCS34 4

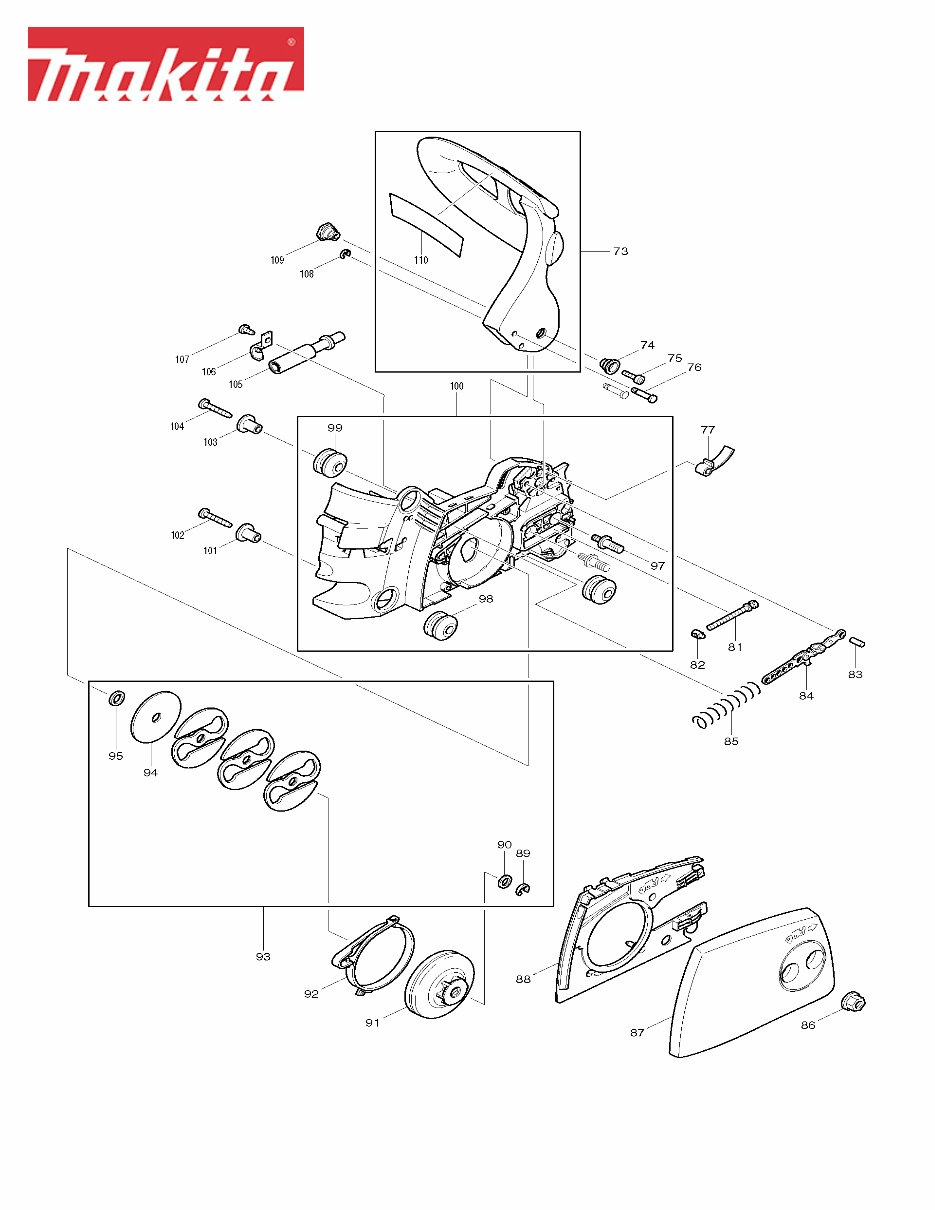

73 036213120 HAND GUARD CPL., DCS34 1
74 036213070 BUSH, DCS34 1
75 908005165 HEAD SCREW M5X16, DCS340 1
76 934150200 BOLT 5X22, DCS34 2
77 036213030 SPRING, DCS34 1
81 036213090 STRAINING SCREW, DCS34 1
82 001213042 NUT WITH PIVOT 1
83 962650128 CYLINDRICAL PIN, DCS34 1
84 036213020 BREAK SPRING HOLDER CPL., DCS34 1
85 028213200 SPRING, DCS34,T2 1
86 923208004 HEX NUT, DCS341 2
87 036213650 SPROCKET GUARD CPL., DCS34 1
88 036213040 COVER PLATE, DCS34 1
89 927306000 SAFETY WASHER , DCS6800I 1
90 900006065 SPACER, DCS6800I 1
91 036223110 CLUTCH DRUM CPL 3/8, DCS34 1
92 028213501 BRAKE SPRING, DCS341 1
93 036114020 FIXING BUSH, DCS34 1
94 027182030 STOP DISC, DCS5200I 1
95 036224010 WASHER 10/16X2.5, DCS34 1
96 036245020 WORM, DCS34 1
97 036110020 BOLT, DCS34 1
98 965403490 RUBBER BUFFER, DCS341 2
99 965403490 RUBBER BUFFER, DCS341 1
100 036110600 MOTOR HOUSING CPL., DCS34 1
101 036114020 FIXING BUSH, DCS34 1
102 913650304 SCREW 5X30, DCS34 1
103 036114020 FIXING BUSH, DCS34 1
104 913650304 SCREW 5X30, DCS34 1
105 021245003 OIL PUMP CPL.,UC3500, UC4000 1
106 203245001 OIL PUMP HOLDER, UC3500, UC4000 1
107 913335060 SCREW 3.5X6.5, DCS34 1
108 927304000 SAFETY WASHER , DCS431 1
109 036213081 BUSH, DCS34 1
110 980114674 LABEL, DCS34 2

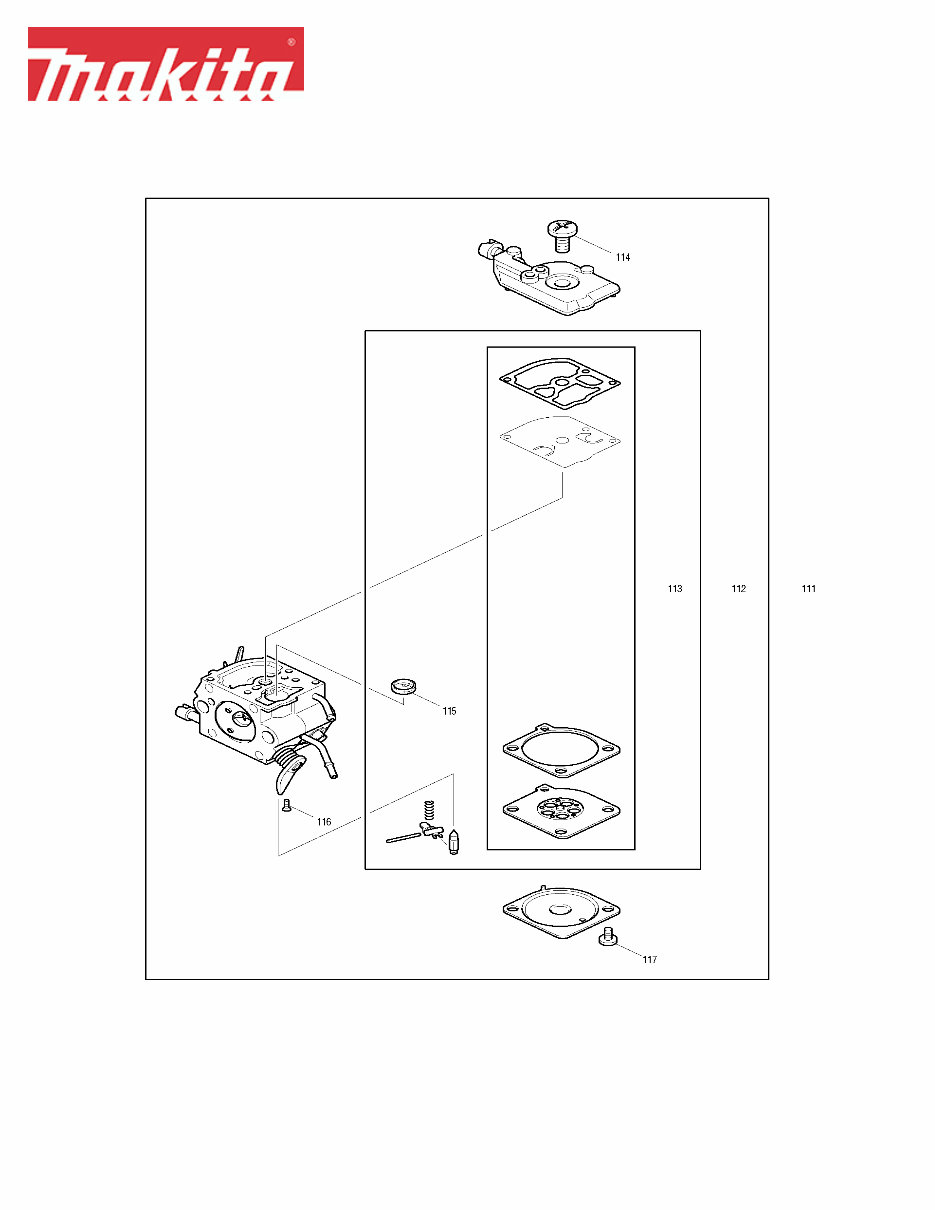

111 036153150 CARBURETOR COMPLETE 1
112 036153100 REPAIR KIT, DCS34 1
113 036153110 GASKET-DIAPHRAGM KIT, DCS34 1
114 036153080 SCREW, DCS34 1
115 036153040 SCREEN, DCS34 1
116 036153120 SCREW, DCS34 1
117 001153020 SCREW, DCS34 2

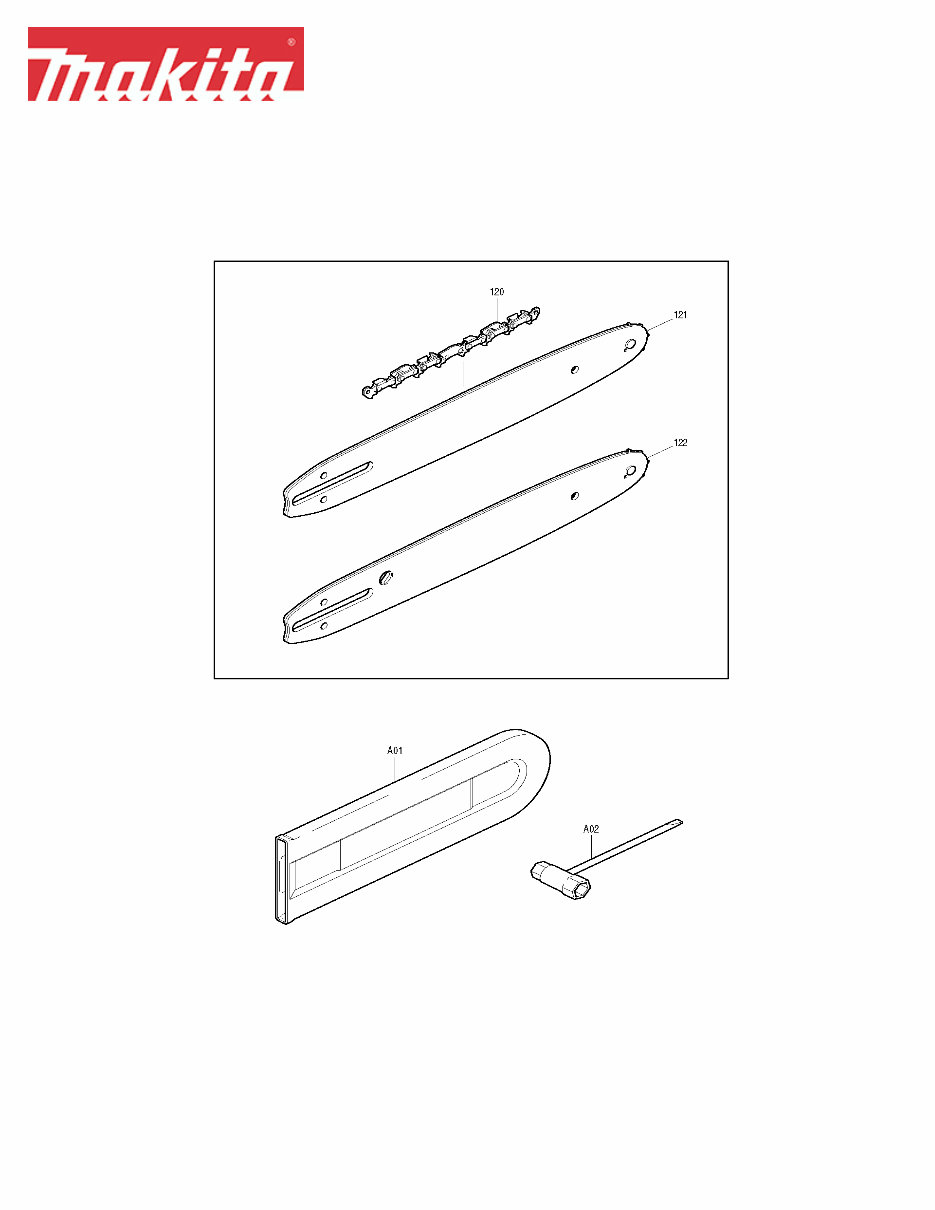

120 528092652 14 CHAIN, DCS34 1
120 528092656 16 SAW CHAIN, UC4000 1
121 442040661 16 GUIDE BAR, DCS34-16 1
121 442035661 GUIDE BAR 14, DCS340 1
122 442040061 SPROCKET NOSE BAR 16,DCS34 1
122 442035061 SPROCKET NOSE BAR 14, DCS34 1
1,001 952100633 CHAIN PROTECT COVER, DCS340 1
1,002 941719131 UNIVERSAL WRENCH, DCS431 1
Page 8 of 8 2/8/2008
