English GB1 Deutsch DE1 Français FR1 Italiano IT1 Español ES1 Nederlands NL1 Svenska SV1 Dansk DA1 Nordmann NO1 Русский RU1 1 Operating Instruction Bedienungsanleitung Mode d'emploi Istruzioni d’uso Instrucciones de Uso Gebruiksaanwijzing Bruksanvisning Brugsanvisning Bruksanvisning Инструкции по эксплуатации Relax Chair Relaxsessel Fauteuil de relaxation Poltrona relax Sillón de relax Relax-stoel Relax Chair Afslapningsstol Avslapningsstol Кресло для расслабления Model No. EP-MR30 Before operating this unit, please read these instructions completely. Lesen Sie diese Bedienungsanleitung vor der Inbetriebnahme des Sessels vollständig durch. Avant d'utiliser le fauteuil, veuillez lire soigneusement le présent mode d'emploi. Prima di mettere in funzione questo apparecchio, leggere tutte le istruzioni. Antes de utilizar el Sillón de relax, lea por completo estas instrucciones. Lees de gehele gebruiksaanwijzing voor de ingebruikname van de stoel. Läs dessa anvisningar i sin helhet innan apparaten tas i bruk. Læs venligst alle instruktioner, før du anvender denne enhed. Les disse instruksjonene i sin helhet før enheten tas i bruk. Перед началом эксплуатации данного устройства следует в поном объеме ознакомиться с данными инструкциями.

GB1 English TABLE OF CONTENTS BEFORE USE IMPORTANT SAFETY INSTRUCTIONS.........................................................................GB2 GROUNDING INSTRUCTIONS .....................................................................................GB4 SPECIFICATIONS..........................................................................................................GB5 PRODUCT INTRODUCTION .........................................................................................GB6 Features .................................................................................................................................................................................... GB6 Introduction of Courses ...................................................................................................................................................... GB6 PART NAMES AND FUNCTIONS ..................................................................................GB7 Main Unit .................................................................................................................................................................................. GB7 Controller ................................................................................................................................................................................. GB8 SETTING UP THE UNIT .................................................................................................GB9 Where to Use the Unit ......................................................................................................................................................... GB9 How to Set Up the Unit ....................................................................................................................................................... GB9 HOW TO USE PREPARATIONS ........................................................................................................ GB11 Controller .............................................................................................................................................................................. GB11 Notes for Batteries.............................................................................................................................................................. GB11 Unit (Every Time Before Operation) ............................................................................................................................. GB11 BASIC OPERATION ................................................................................................... GB13 Interrupting a Course ........................................................................................................................................................ GB14 CONTENTS OF COURSES .......................................................................................... GB15 Relax Course (Approx. 20 minutes) .............................................................................................................................. GB15 Refresh Course (Approx. 20 minutes) ......................................................................................................................... GB15 Comfort Course (Approx. 120 minutes) ..................................................................................................................... GB16 ADJUSTING THE CONTENTS OF A COURSE TO YOUR PREFERENCE ..................... GB17 To Adjust the Swing Speed............................................................................................................................................. GB17 To Adjust the Recline Angle of the Backrest ............................................................................................................. GB17 To Adjust the Volume of the Music.............................................................................................................................. GB17 To Adjust the Intensity of Bass Waves ........................................................................................................................ GB17 OPERATING THE UNIT WITHOUT USING THE CONTROLLER ................................. GB18 CONNECTING EXTERNAL EQUIPMENT TO ENJOY MUSIC...................................... GB18 CLEANING AND MAINTENANCE .............................................................................. GB19 Synthetic Leather Areas ................................................................................................................................................... GB19 Plastic Areas.......................................................................................................................................................................... GB19 Seat Fabric............................................................................................................................................................................. GB19 TROUBLESHOOTING ................................................................................................ GB20

BEFORE USE GB2 English BEFORE USE IMPORTANT SAFETY INSTRUCTIONS WARNING Follow these Precautions 1. Persons with any of the conditions listed below or who are undergoing medical treatment or suffer from medical conditions should consult with their physicians before using the unit: a) People who have a pacemaker, defibrillator, or other personal medical devices prone to electronic interference. b) People who suffer from malfunction of the circulatory system (heart disease, vascular disorder, high-blood pressure, advanced diabetes). c ) Pregnant women or women who might be pregnant. d) People who are feverish (38°C or over). e) People who are sick or are in poor physical shape. f ) People with irregular curvatures of the spine. g) People who have hernia of intervertebral disk. h) People who feel physical disorder in particular other than those mentioned above. Failure to observe these precautions may result in accident or poor medical conditions. 2. While using the unit, if you start feeling sick, stop using it immediately and consult with your physicians. Failure to observe this precaution may result in accident or poor medical conditions. 3. When reclining the backrest and the footrest, check that there are no children or pets around the unit. Failure to observe this precaution may result in accident or injury. 4. Always insert the power plug all the way into the outlet. Failure to observe this precaution may result in electric shock or fire due to heat generation. 5. Remove dust from the power plug periodically. Failure to observe this precaution may result in electrical fire due to deterioration of insulation caused by dust and moisture. Restrictions 1. Do not stand on the backrest or footrest. 2. Do not allow children to use the unit. Do not allow children to play on the unit, backrest, and footrest. 3. The unit is not to be used by people who cannot move or communicate on their own. Failure to observe this precaution may result in accident or injury. 4. Do not exceed the rated values of the plug and the wiring or use any voltage other than the rated voltage. Failure to observe this precaution may result in electric shock, malfunctioning or fire due to heat generation. 5. Do not damage the power cord or power plug. (Do not damage, alter, expose to heat sources, bend, twist, pull forcibly, bundle or place heavy objects on the cord.) Using the damaged power cord or power plug may result in electric shock, short-circuit or fire. 6. Do not plug/unplug the power plug with wet hands. Failure to observe this precaution may result in electric shock. 7. Do not disassemble, repair, or modify the unit. Failure to observe this precaution may result in fire or injury due to malfunctioning. 8. Keep the controller out of reach of children. Children might remove the batteries and accidentally swallow them. 9. Do not install the batteries with the + and - poles oriented incorrectly. Failure to observe this precaution may result in fire.

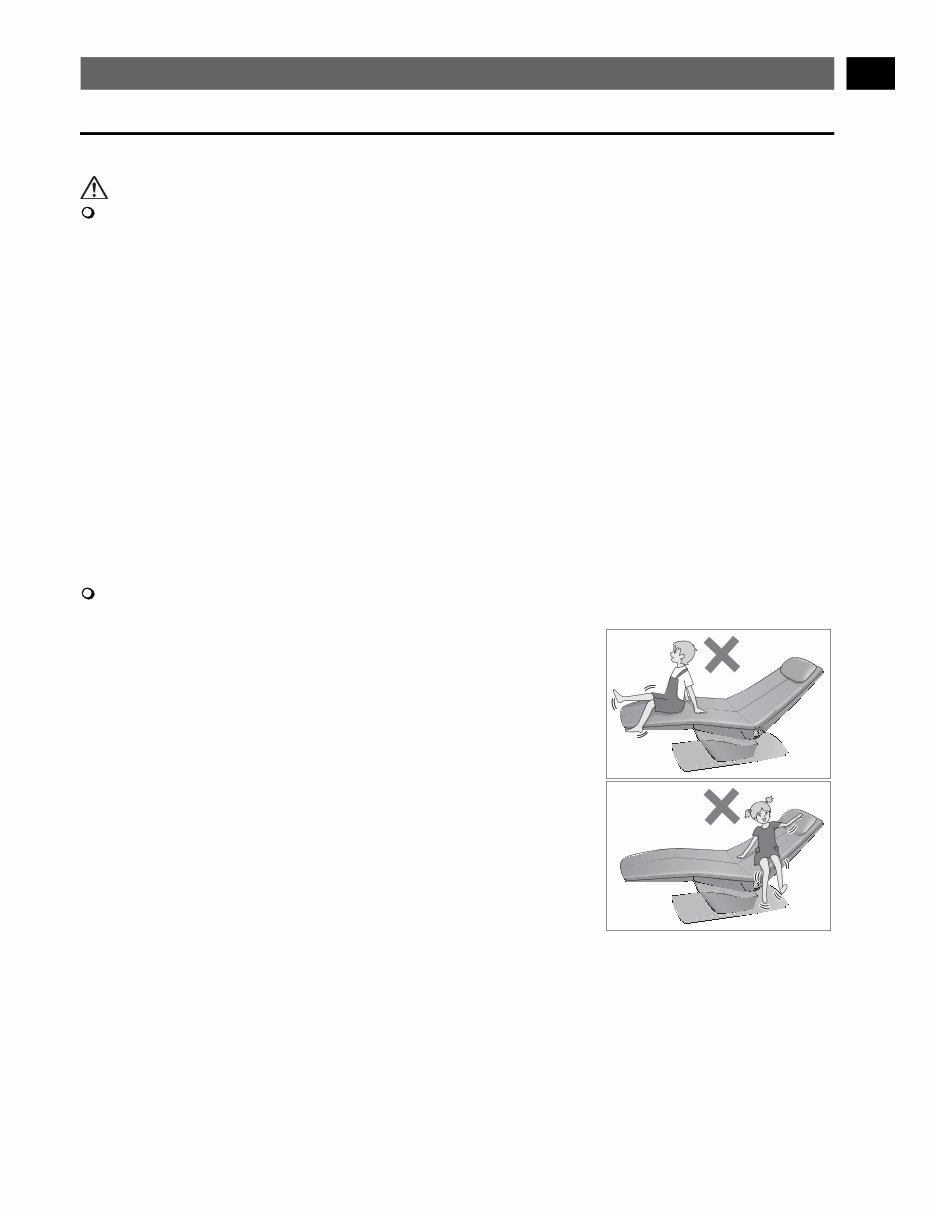

BEFORE USE GB3 English CAUTION Follow these Precautions 1. Persons with any of the conditions listed below should consult with their physicians before using the unit even if they are in good shape now: a) People who are susceptible to severe motion sickness. b) People who suffer from backaches caused by the bones or internal organs. Failure to observe this precaution may cause health damage. 2. Do not use the unit while wearing anything hard on your head like a hair accessory, etc. Failure to observe this precaution may result in injury. 3. Always stop operation of the unit before you get off the unit. Failure to observe this precaution may result in accident or injury. 4. When removing the power plug from the outlet, hold the power plug (not the power cord). Failure to observe this precaution may result in electric shock or short-circuit. 5. When moving the unit with the wheels, remove all obstacles from around it, make sure the backrest is in the upright position, lift the footrest no higher than waist height, and roll it slowly. Failure to observe this precaution may cause the unit to tip over, which may lead to damage or injury. 6. Place the unit on a totally flat surface. Failure to observe this precaution may result in the unit tipping over. 7. Unplug the power plug immediately and contact an authorised service centre to arrange for repairs if the unit ceases to function or is otherwise not working properly. Failure to observe this precaution may result in electric shock or fire. 8. If you feel sick by using the unit, stop using it and consult with your physicians. Failure to observe this precaution may result in poor medical conditions. Restrictions 1. Do not use the unit after drinking alcohol. Failure to observe these precautions may result in accident or injury. 2. Do not put your hands or feet in the following gaps in the unit: a) Gap between the backrest and the seat b) Gap between the footrest and the seat c ) Cover area between the pedestal and the seat Failure to observe this precaution may result in injury. 3. Do not move the unit while someone is seated in it. Failure to observe this precaution may result in accident or injury due to the unit tipping over. 4. Do not use the unit in bathrooms or other damp or humid places. Failure to observe this precaution may result in electric shock or malfunction. 5. Do not spill water or liquids on the unit or controller. Failure to observe this precaution may result in electric shock, short-circuit, or malfunction. 6. Always unplug the unit from the electrical outlet before cleaning. Failure to observe this precaution may result in electric shock or burns. 7. Unplug the unit immediately if there is a power outage. Failure to observe this precaution may result in accident or injury when the power is restored. 8. Always unplug the unit from the electrical outlet after using. Failure to observe this precaution may result in electrical fire due to deterioration of insulation caused by dust and moisture.

BEFORE USE GB4 English GROUNDING INSTRUCTIONS This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. DANGER Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. This unit has a grounding plug. Make sure that the product is connected to power outlet with the same configuration as the plug. Do not use an adaptor with this unit. Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households) This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product. Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. Information on Disposal in other Countries outside the European Union This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

BEFORE USE GB5 English SPECIFICATIONS System Main Unit (Chair) Amplifier Speaker Vibration Power Supply AC 230 V/50 Hz Power Consumption 90 W Standby Power Requirement 0 W Timer Relax course: Approx. 20 minutes Refresh course: Approx. 20 minutes Comfort course: Approx. 120 minutes Operating Environment (Temperature) 0 to 40 °C Dimensions (H x W x D) Approx. 110 cm x 70 cm x 102 cm Weight of Unit Approx. 46 kg (including cushion, pillow and controller) Coated Cloth Polyvinyl chloride leather (synthetic leather) Buffer Material Urethane Vibration Amplifier (maximum output) 14 W 8 Ω 70 Hz Total harmonic distortion: 10% Speaker Amplifier (maximum output) 14 W (7 W + 7 W) 8 Ω 1 kHz Total harmonic distortion: 10% Type 1-way, 1-speaker system Impedance 8 Ω Cone size Full range: 7 cm x 2 Shielded Design No Impedance 8 Ω External Input Terminal Stereo mini-jack (Diameter: 3.5 mm)

BEFORE USE GB6 English PRODUCT INTRODUCTION Features Comfortable swing You will feel like you are being rocked in a cradle. The comfortable swing the unit provides relaxes your mind and body. Bass waves generated from the music The unit creates bass waves that are generated from the bass frequencies of music to allow you to relax. Music has been preinstalled in the unit. You can also connect an external music source to the unit to enjoy the music you like. Introduction of Courses This product has three preset courses. "Relax" Course ( See page GB15 ) "Refresh" Course ( See page GB15 ) "Comfort" Course ( See page GB16 ) • those who search for the deep relaxation after an exhausting day. • those who have problems calming down or difficulties falling asleep. Courses Recommended for: • those in need of a quick refreshing break (powre-nap) during the noon time or in the evenings. • those who want to relish the comfortable seating with modest rocking motions while reading a book or watching TV.

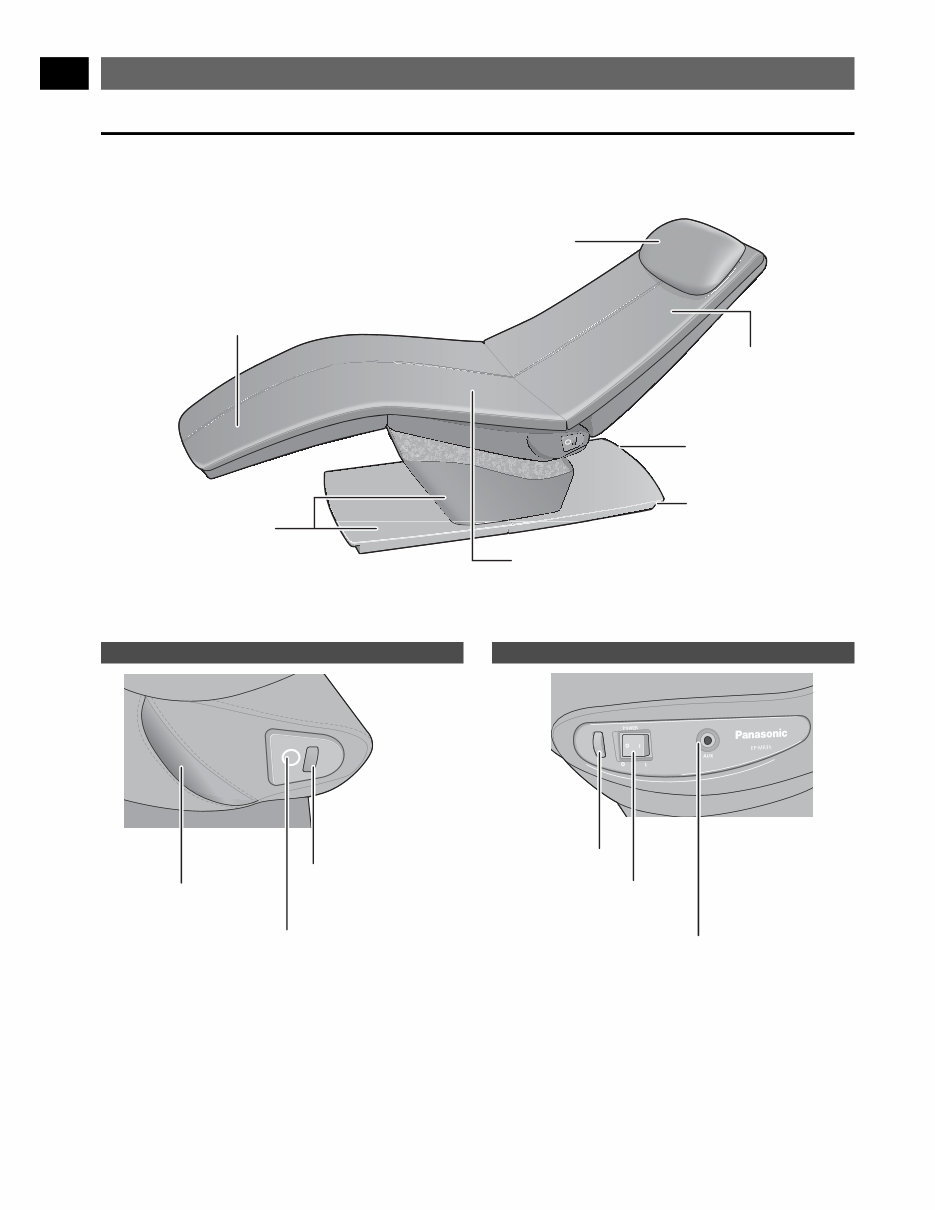

BEFORE USE GB7 English PART NAMES AND FUNCTIONS Main Unit Pillow Backrest Wheels Footrest You can adjust the recline angle manually. ( See page GB13 ) Pedestal AC Inlet Seat Left side Right side Controller Holder Unit Receiver Unit Operation Button You can operate the unit by using this button on the unit. ( See page GB18 ) Unit Receiver Main Power Switch AUX Terminal (Stereo mini-jack) An external music source can be connected to the unit. A cord for this purpose is not included with this unit. ( See page GB18 )

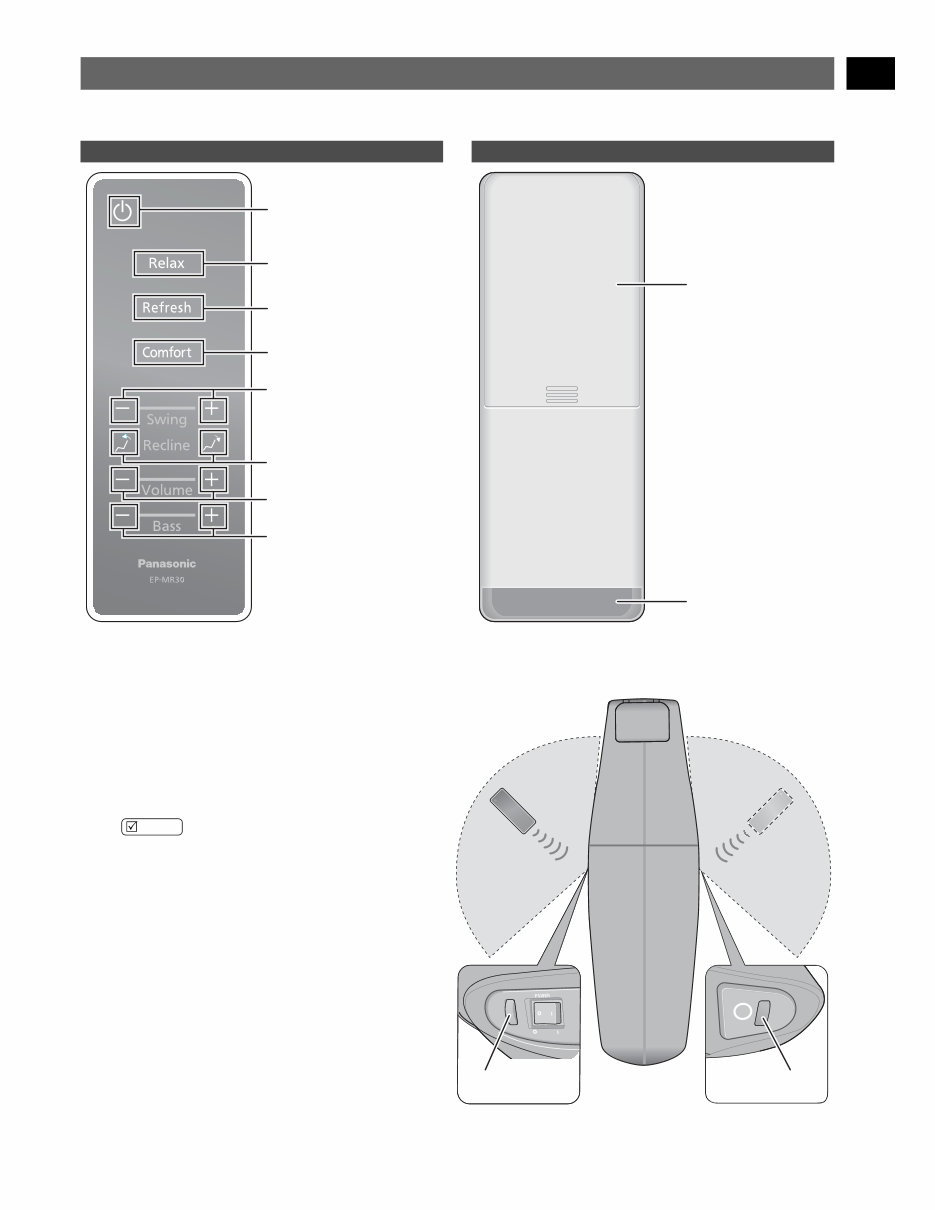

BEFORE USE GB8 English Controller Controller Transmitter and Unit Receivers • The operation range is approximately 1 m. • Point the transmitter on the controller at a receiver on the unit. • Controller signals do not reach the unit if they are away more than 1 m. • When the unit receives a command transmission, you should hear a "beep" sound. NOTE • If two or more units are set up in the same area, keep some distance (approx. 2 m) or a shielded screen between them to prevent interference. • An object located between the transmitter and receiver might hamper transmission. • If the receiver is exposed to direct sunlight or the strong light of an inverter fluorescent lamp, transmission might be hampered. Front Rear OFF Button "Relax" Course Button "Refresh" Course Button "Comfort" Course Button "Swing" Control Buttons "Recline" Control Buttons "Volume" Control Buttons "Bass" Control Buttons Battery Compartment Cover Controller Transmitter Operation Range Unit Receiver Unit Receiver Operation Range

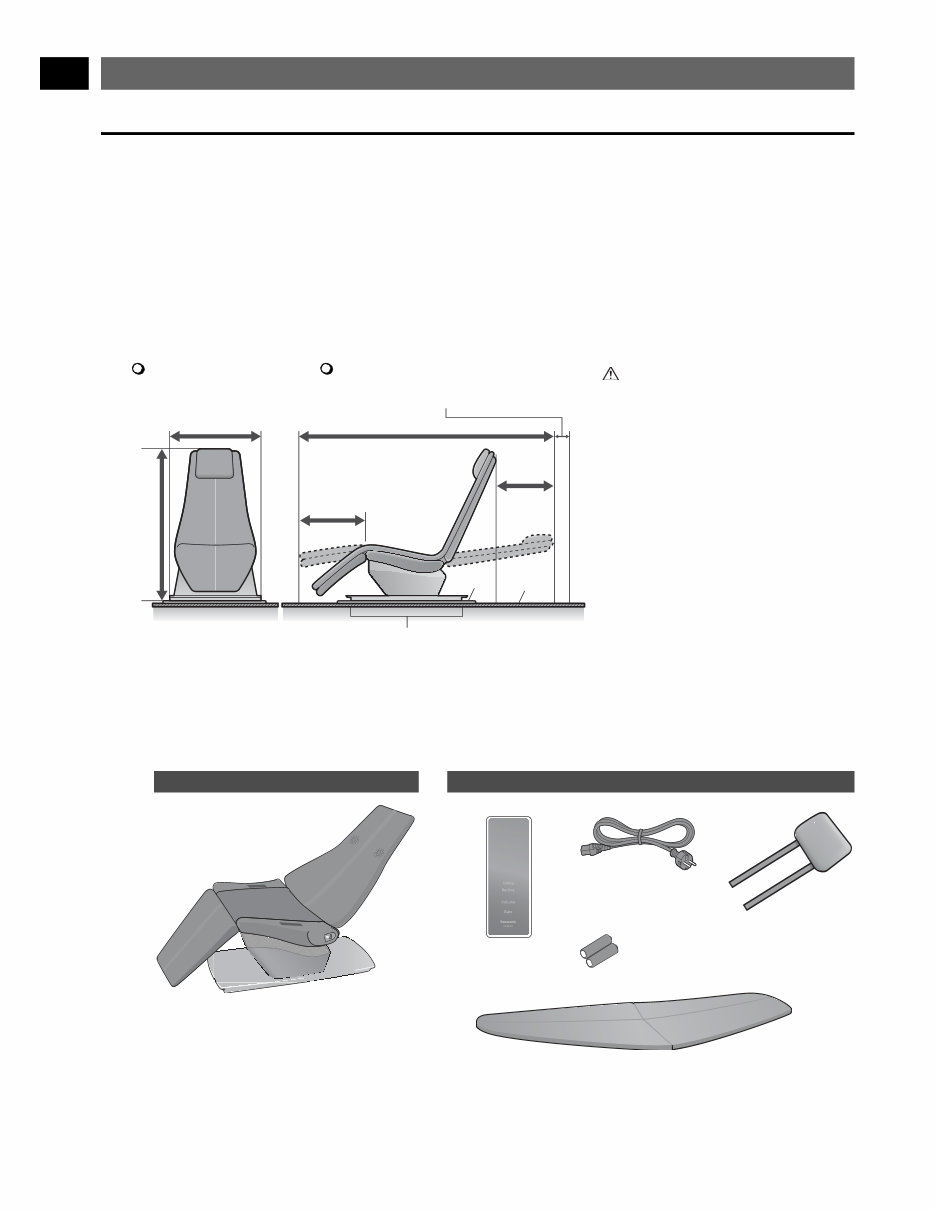

BEFORE USE GB9 English SETTING UP THE UNIT Determine where to use the unit before unpacking it. Where to Use the Unit • Do not expose the unit to direct sunlight or high temperature, such as in front of a heating source, because this can cause discolouration or hardening of the surface material. • Placing a mat or cloth under the unit is recommended to prevent floor damage. The size of the mat should be sufficient (at least 50 cm x 100 cm) to cover the areas where the unit touches the floor. • Set the unit near the electrical outlet. • Position the unit so that the back does not contact any other object (such contact may cause warping and lead to damage). • Adjust the location of the unit to suit the height of the users. How to Set Up the Unit 1 Unpack the unit. The cushion and the pillow have been attached to the unit before the unit ships. CAUTION • Do not use the unit in bathrooms or other damp or humid places. Failure to observe this precaution may result in electric shock or malfunction. • Place the unit on a totally flat surface. Failure to observe this precaution may result in the unit tipping over. Keep at least 10 cm away from the wall. Approx. 183 cm Approx. 27cm Area where the unit touches the floor Mat Approx. 54cm Floor Front View Approx. 110 cm Approx. 70 cm Side View Main unit Accessories Controller Power Cord Pillow Cushion Batteries for controller [two LR03 (AAA) alkaline batteries for testing]
