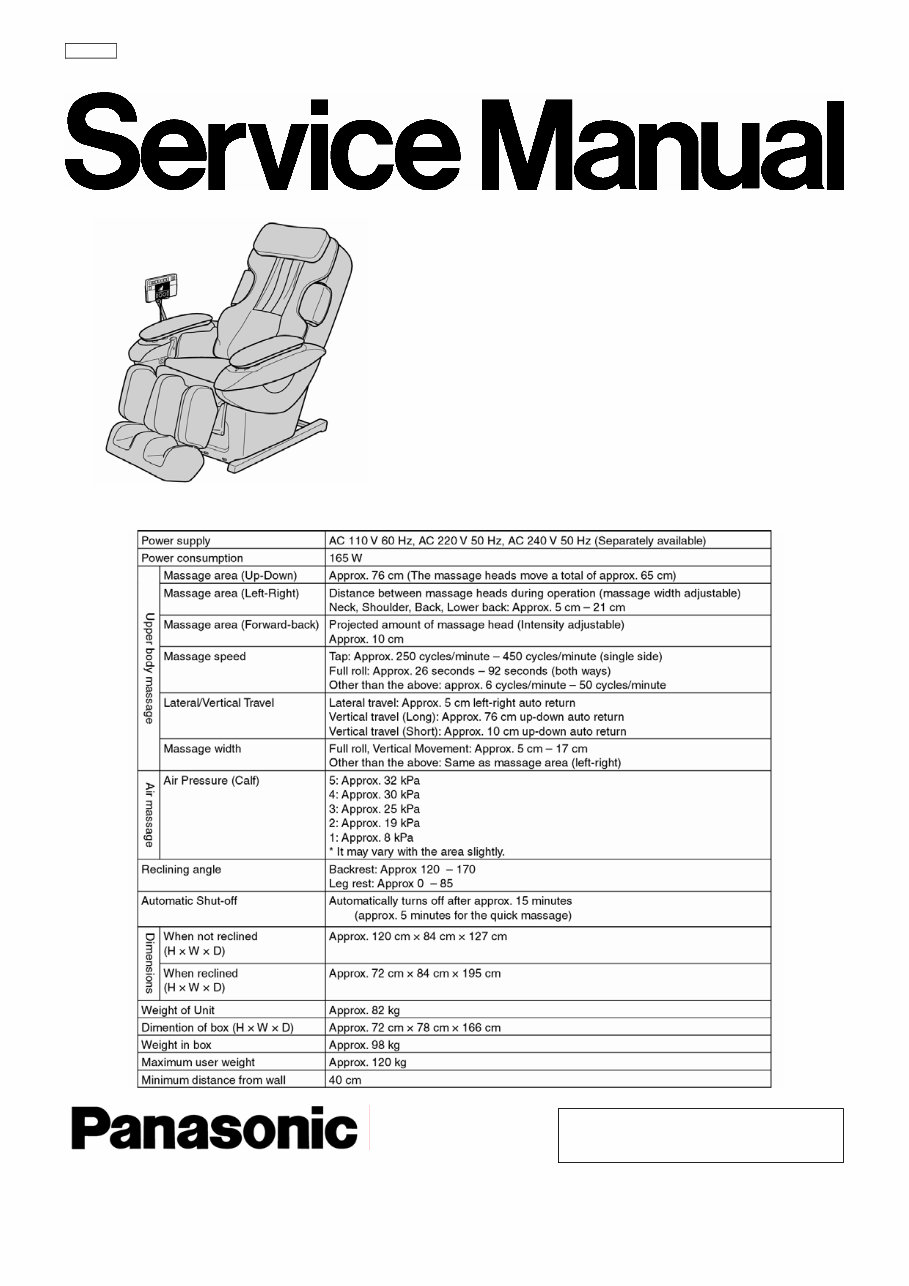

EP30002 ORDER NO.HPD0704X10C8 - 1 - MASSAGE LOUNGER EP30002 Asia , Middle East SPECIFICATIONS ©2007 Matsushita Electric Works, Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.

EP30002 ORDER NO.HPD0704X10C8 - 2 - CONTENTS Page 1 COMPONENTS IDENTIFICATION…………………………………………………………………………………………………………………………3 2 TURNING ON THE POWER………………………………………………………………………………………………………………………………7 3 REQUIRED TOOLS…………………………………………………………………………………………………………………………………………8 4 ADJUSTMENT OF PRESSURE SENSOR…………………………………………………………………………………………………………………9 5 OPERATIONS OF ELECTROMAGNETIC VALVES AND AIR BAGS………………………………………………………………………………10 6 DISPLAY METHOD OF MASSAGE BLOCK TOTAL USE TIME………………………………………………………………………………………11 7 DISPLAY METHOD OF EACH OPERATION USE TIME………………………………………………………………………………………………12 8 METHOD OF PACKAGING POSITION SET-UP…………………………………………………………………………………………………………12 9 METHOD OF MASSAGE MECHANISM BLOCK INSTALLATION MODE SET-UP (MANUAL SET-UP)…………………………………………13 10 DISASSEMBLY……………………………………………………………………………………………………………………………………………14 11 ACTUAL WIRING DIAGRAM……………………………………………………………………………………………………………………………44 12 PHENOMENA CAUSED BY THE SENSOR MALFUNCTION OR LOCK PROTECTION OPERATION…………………………………………47 13 CHECKING…………………………………………………………………………………………………………………………………………………49 14 GREASE……………………………………………………………………………………………………………………………………………………57 15 EXPLODED VIEW…………………………………………………………………………………………………………………………………………60 16 REPLACEMENT PARTS LIST……………………………………………………………………………………………………………………………66

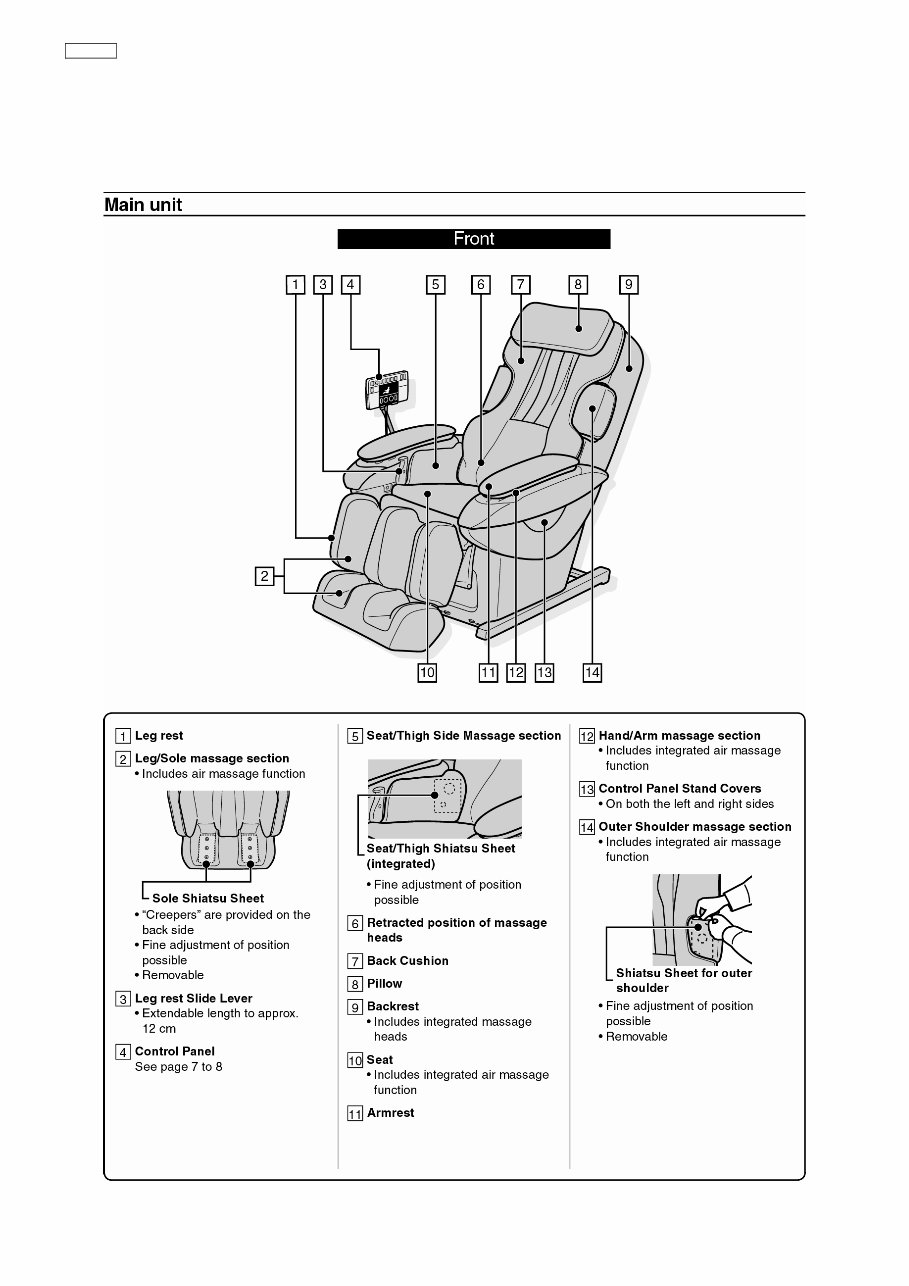

EP30002 ORDER NO.HPD0704X10C8 - 3 - 1. COMPONENTS IDENTIFICATION 1.1 MASSAGE LOUNGER

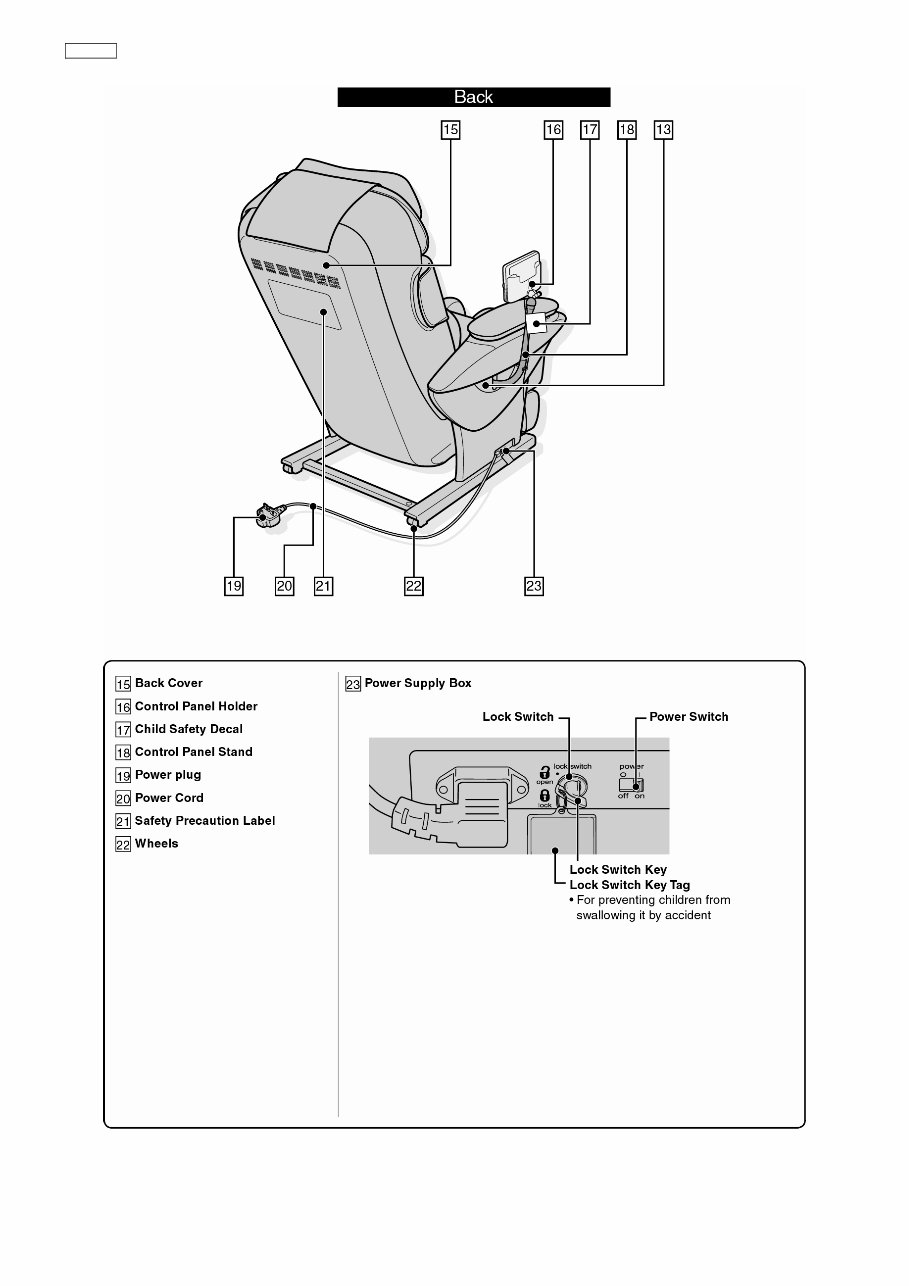

EP30002 ORDER NO.HPD0704X10C8 - 4 -

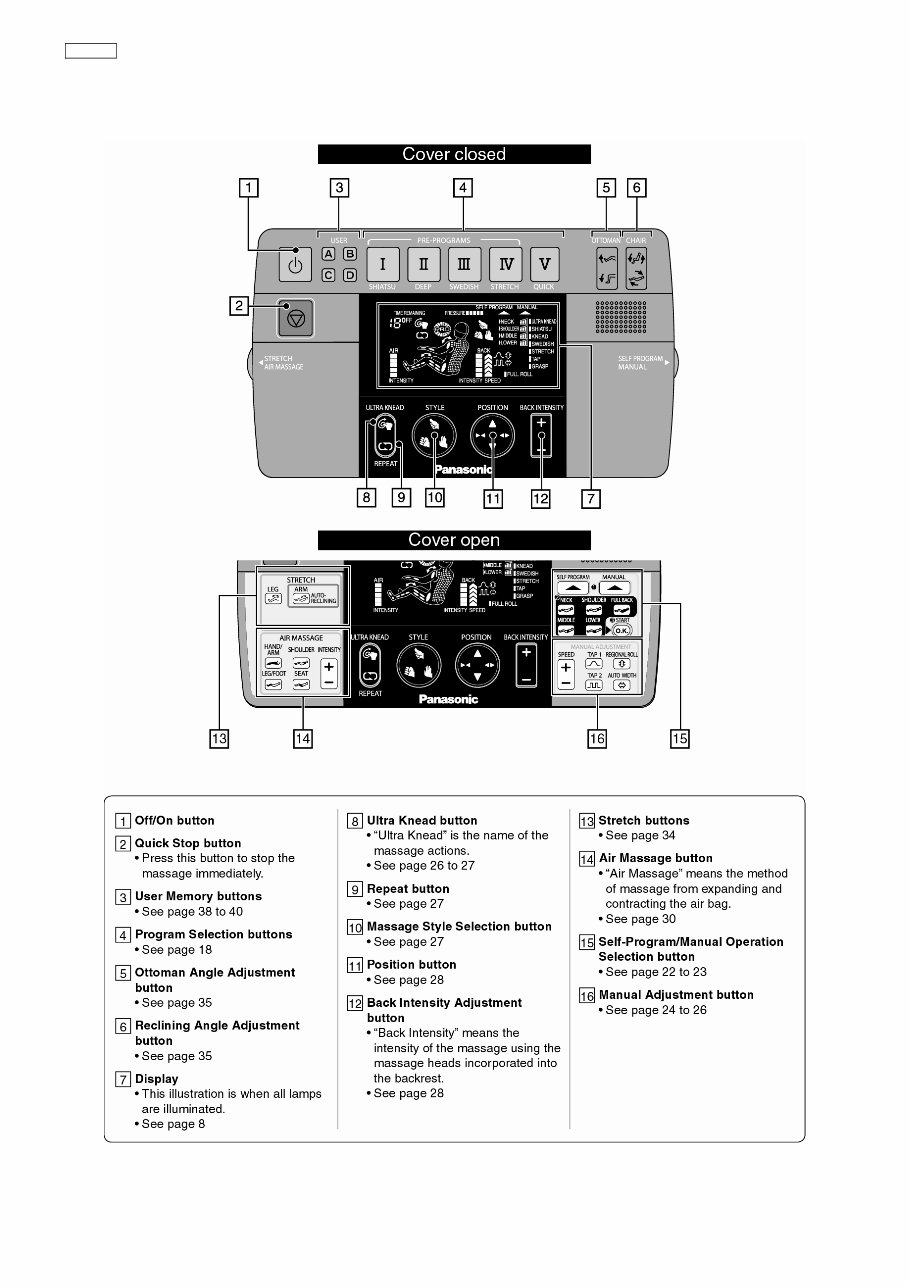

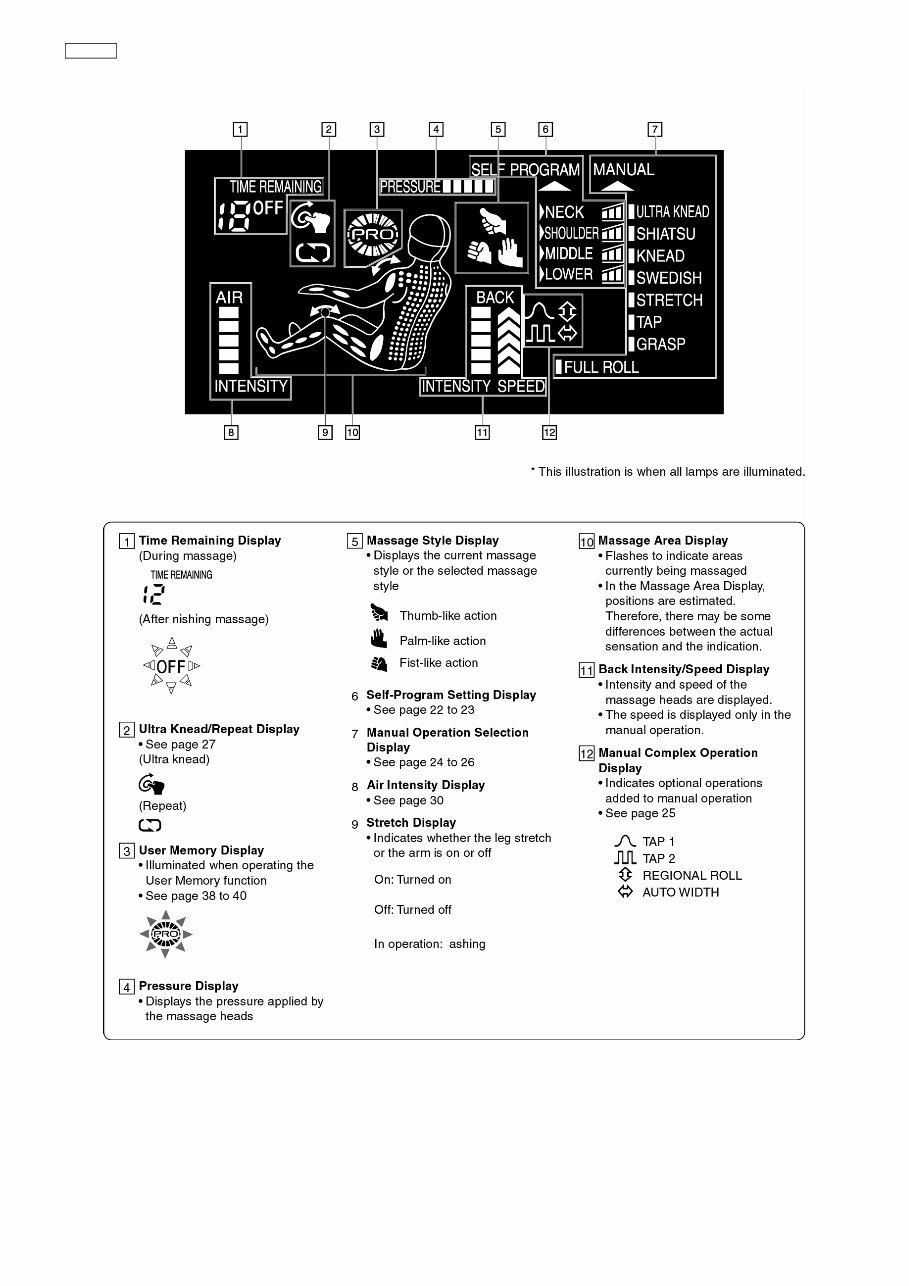

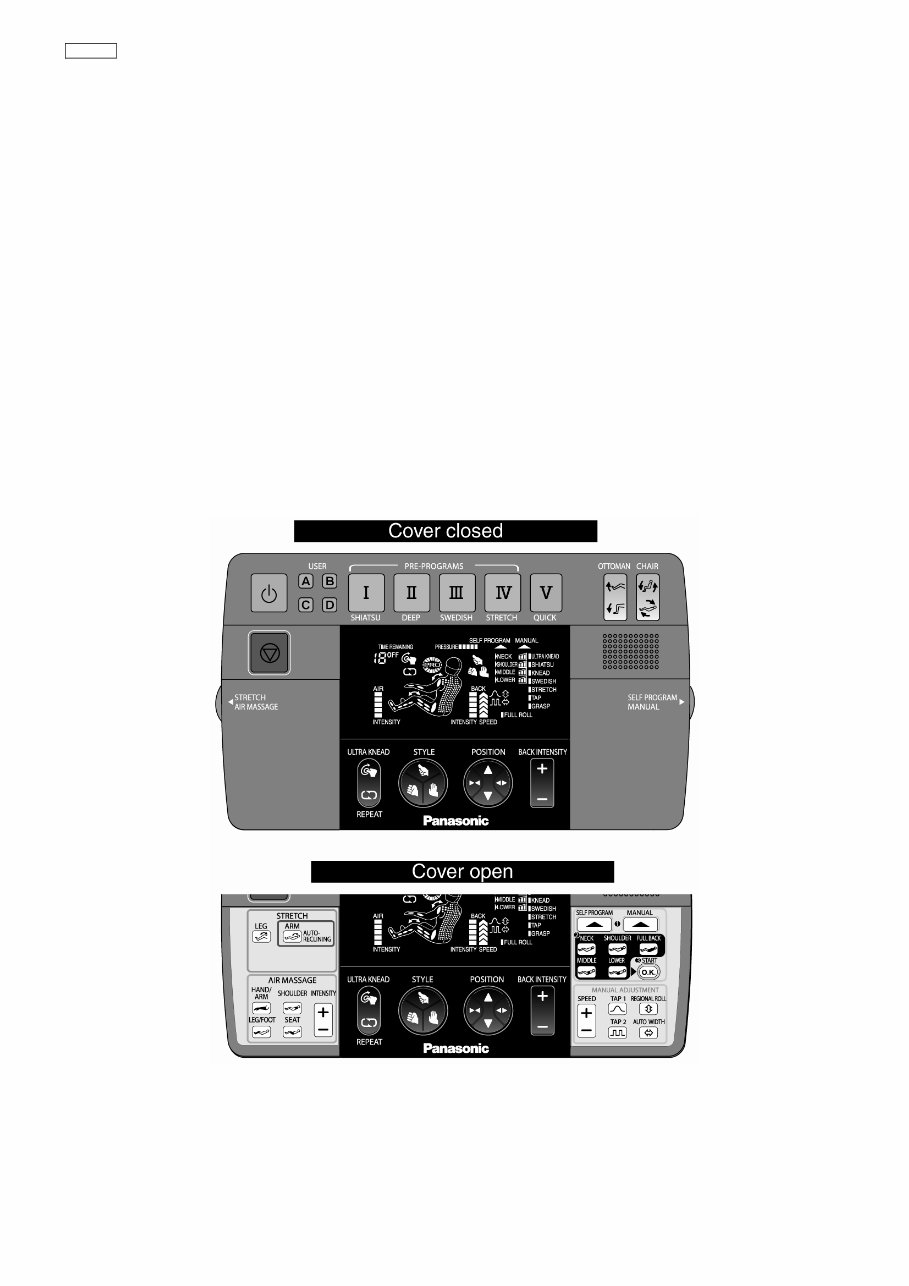

EP30002 ORDER NO.HPD0704X10C8 - 5 - 1.2 CONTROLLER

EP30002 ORDER NO.HPD0704X10C8 - 6 -

EP30002 ORDER NO.HPD0704X10C8 - 7 - 2. TURNING ON THE POWER 1. Plug the power plug into the power socket. 2. Turn the lock switch to the open position. 3. Turn on the power switch on the back of the unit. ･ When the operating lock switch is pointing toward ‘lock’, the power switch cannot be moved to the ‘on’ position. Timer When the on/off button is pushed, a timer begins to prevent overuse. After approximately 15 minutes, time expires and the massage wheel goes into storage position. After each use. ･ Be sure to turn the power switch to ‘off’. ･ To prevent children from using this unit, lock the power switch by moving the operating lock switch to the ‘lock’ position. ･ As a further caution, unplug the power cord from the power socket after each use.

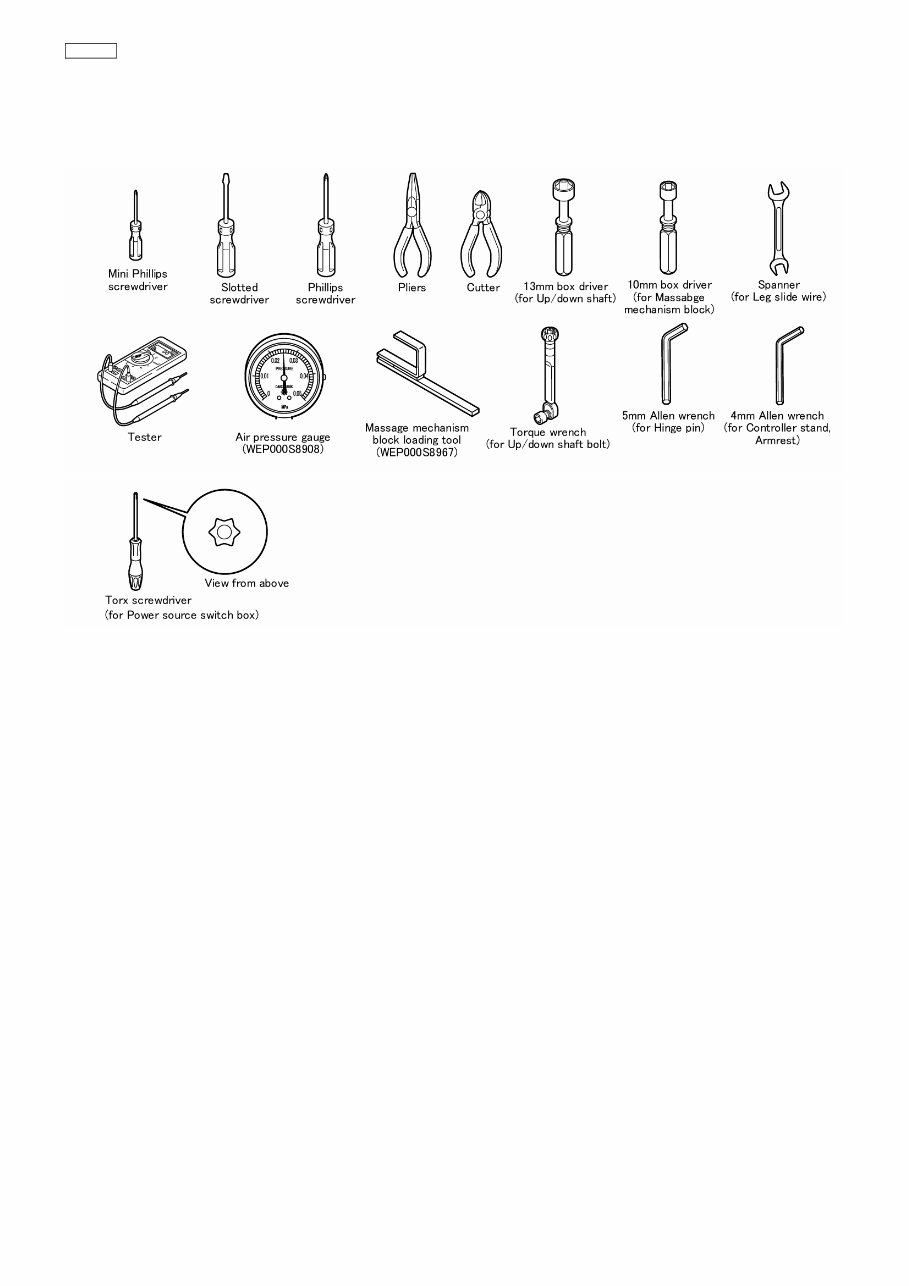

EP30002 ORDER NO.HPD0704X10C8 - 8 - 3. REQUIRED TOOLS

EP30002 ORDER NO.HPD0704X10C8 - 9 - 4. ADJUSTMENT OF PRESSURE SENSOR The adjustment of the Pressure sensor is necessary every time after the Main PCB or Massage mechanism block are replaced or repaired disassembled & reassembled. First, keep the Massage mechanism block unloaded without pressure and move it upward halfway. - If the Massage mechanism block is at the highest or lowest position, you cannot arrange the pressure sensor correctly because the fabric becomes tense with pressure. 1. Insert the Power plug into the power source and turn on the switch of the Power source switch block. 2. While pushing the buttons of Ⅰ and Ⅲ, continue to push the On/off button for more than approximately three seconds. Then, the buttons of Ⅰ, Ⅲ, and USER A light. 3. In ten seconds after the buttons of Ⅰ, Ⅲ, and USER A light, push the buttons as follows: ①SELF PROGRAM⇒② LEG/FOOT⇒③AUTO WIDTH⇒④START 4. Push the button of START again, then the adjustment of Pressure sensor finishes. 5. Push the button of Stop.

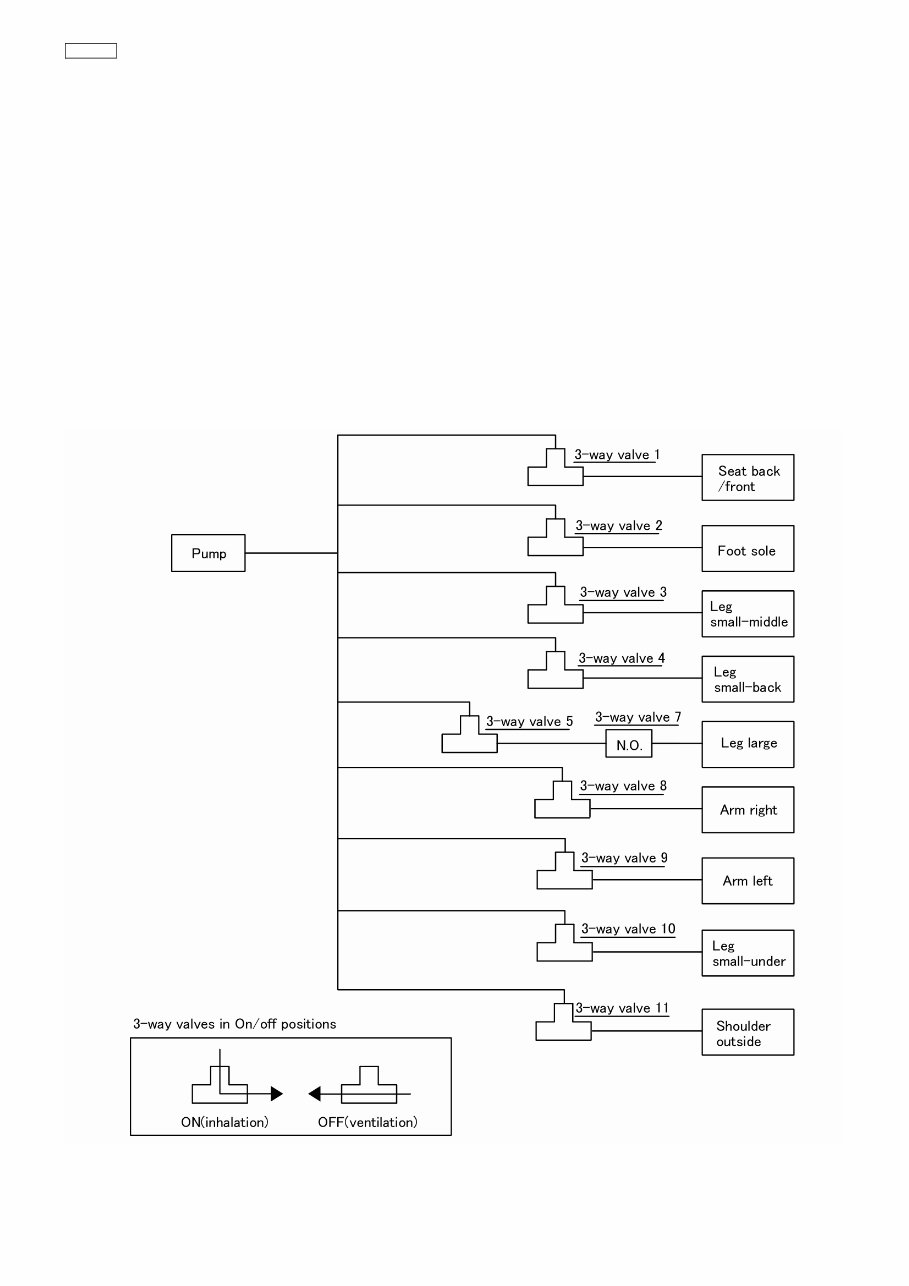

EP30002 ORDER NO.HPD0704X10C8 - 10 - 5. OPERATIONS OF ELECTROMAGNETIC VALVES AND AIR BAGS Air massage operates with one Pump unit, nine 3-way electromagnetic valves, an Switch electromagnetic valve. 1. Air massage operates with the Pump and the Electromagnetic valve. 2. The Pump and all the Electromagnetic valves are OFF when the operation stops. 3. Air control stops when the Reclining lift motor and the Ottoman lift motor operate.(Electromagnetic valves are OFF in ventilation.) 4. The Pump stops when in the On/off operation, or Electric reclining lift unit or Electric Ottoman lift unit operate in the standby mode.(Pressure level is maintained.) Electricity is OFF in five seconds after the Packaging mode, or the operation stop after the stop mode (Packaging mode), or Electric reclining lift or Electric Ottoman lift are OFF in the standby mode. *However, the Lift motors operate controlling the air when in stretching of legs and ankles.
