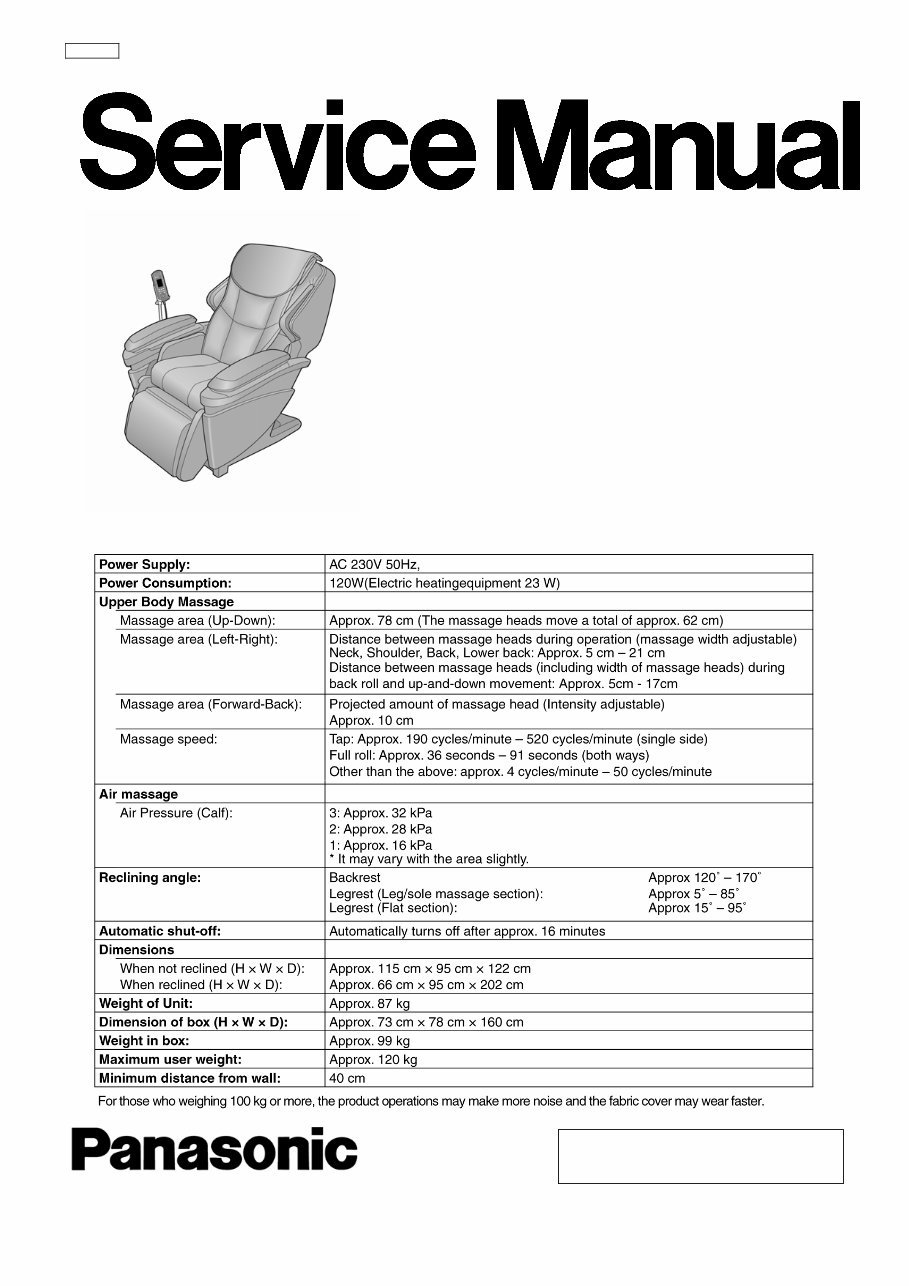

EP-MA70 ORDER NO. HPD1102E25CE - 1 - MASSAGE LOUNGER EP-MA70 EUROPE SPECIFICATIONS ©2011 Panasonic Electric Works Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.

EP-MA70 ORDER NO. HPD1102E25CE - 2 - Contents PAGE 1 COMPONENTS IDENTIFICATION………………………………………………………………………………………………………3 2 DISPLAY …………………………………………………………………………………………………………………………5 3 TURNING ON THE POWER……………………………………………………………………………………………………………6 4 REQUIRED TOOLS………………………………………………………………………………………………………………………7 5 OPERATION OF ELECTROMAGNETIC VALVES AND AIR BAGS…………………………………………………………………8 6 DISASSEMBLY…………………………………………………………………………………………………………………………9 7 ACTUAL WIRING…………………………………………………………………………………………………………………………41 8 CHECKING………………………………………………………………………………………………………………………………43 9 SECRET MODE…………………………………………………………………………………………………………………………59 10 EXPLODED VIEW………………………………………………………………………………………………………………………70 11 REPLACEMENT PARTS LIST…………………………………………………………………………………………………………76

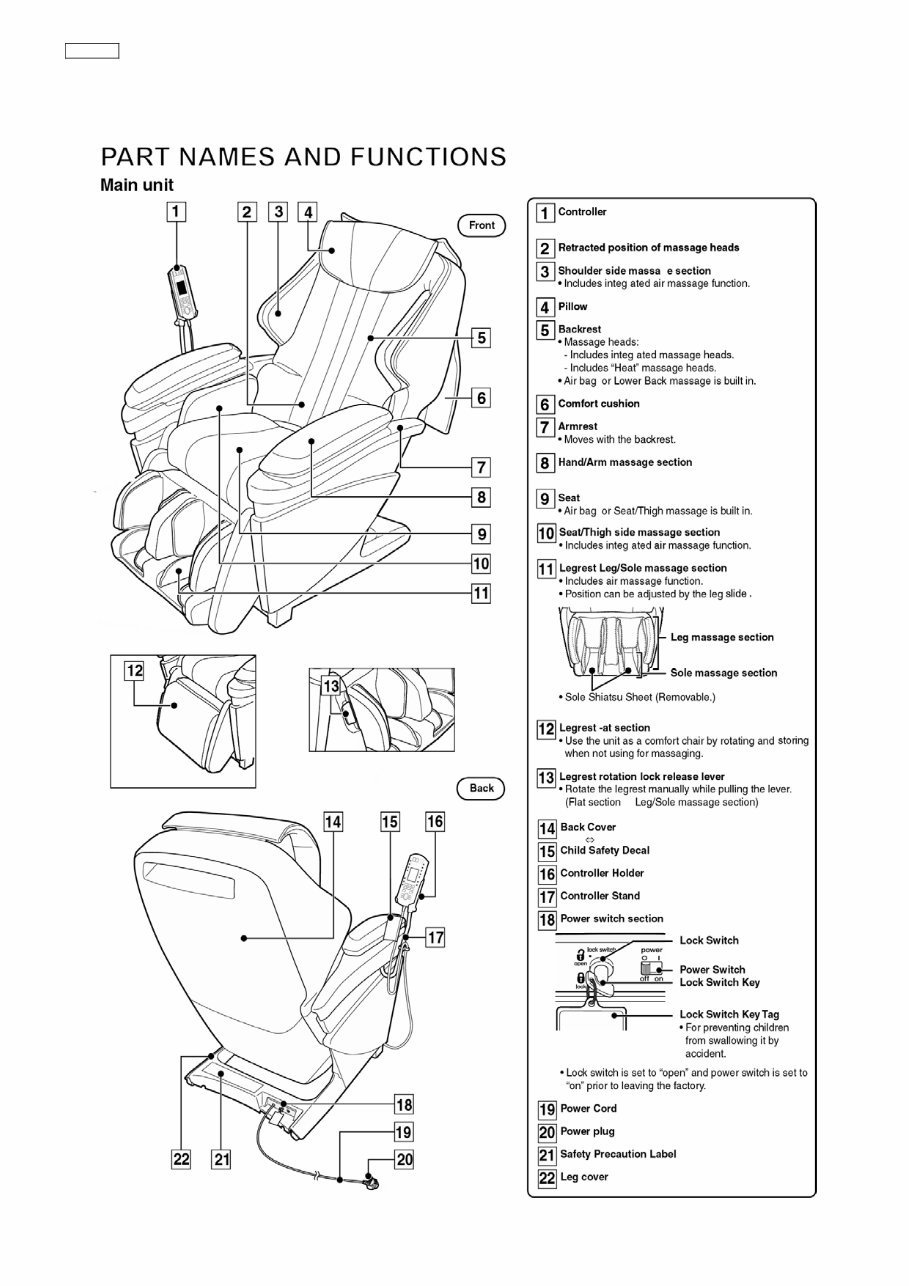

EP-MA70 ORDER NO. HPD1102E25CE - 3 - 1.COMPONENTS IDENTIFICATION 1.1 MASSAGE LOUNGER

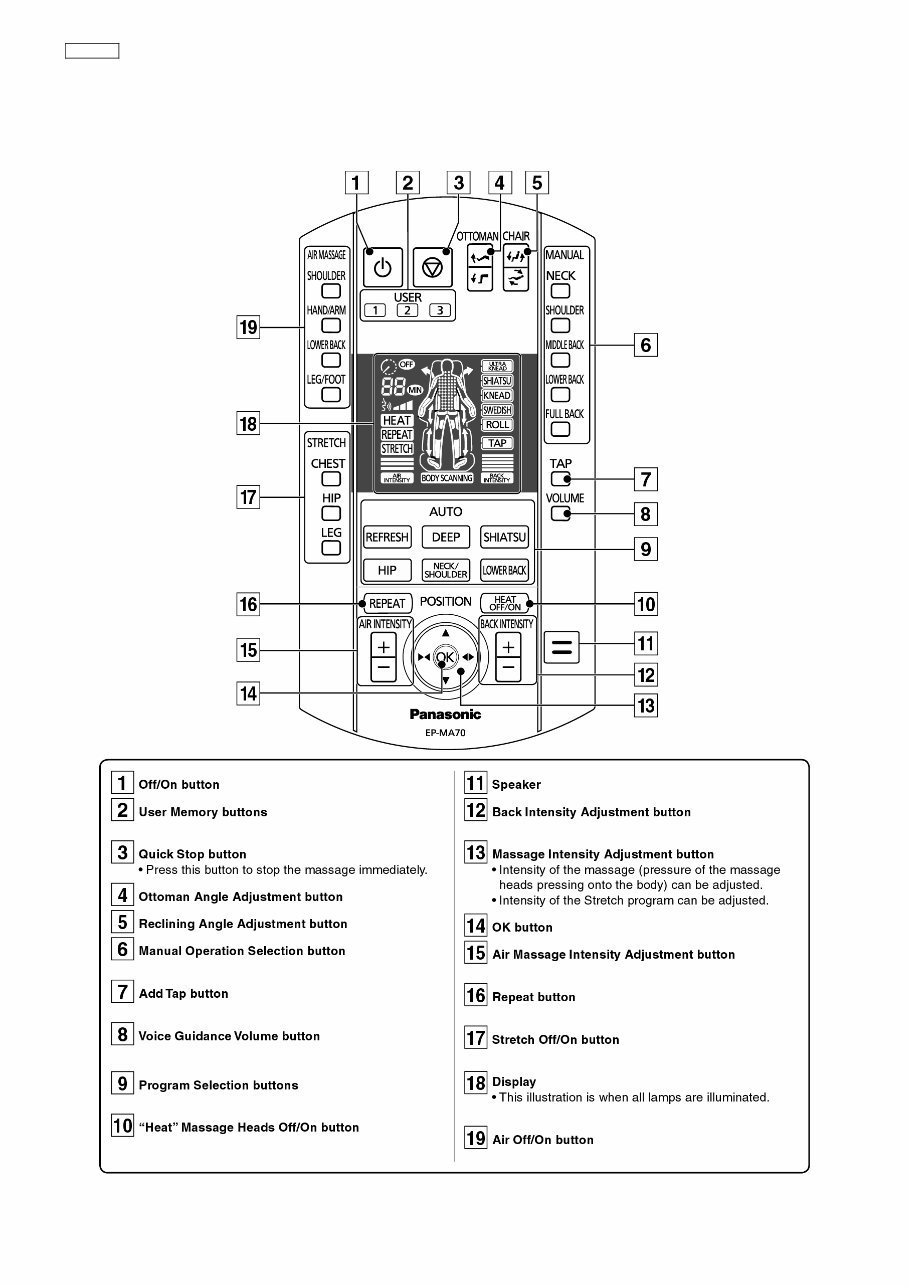

EP-MA70 ORDER NO. HPD1102E25CE - 4 - 1.2 CONTROLLER Control Panel *Display language on the control panel may differ depending on the region the unit was purchased.

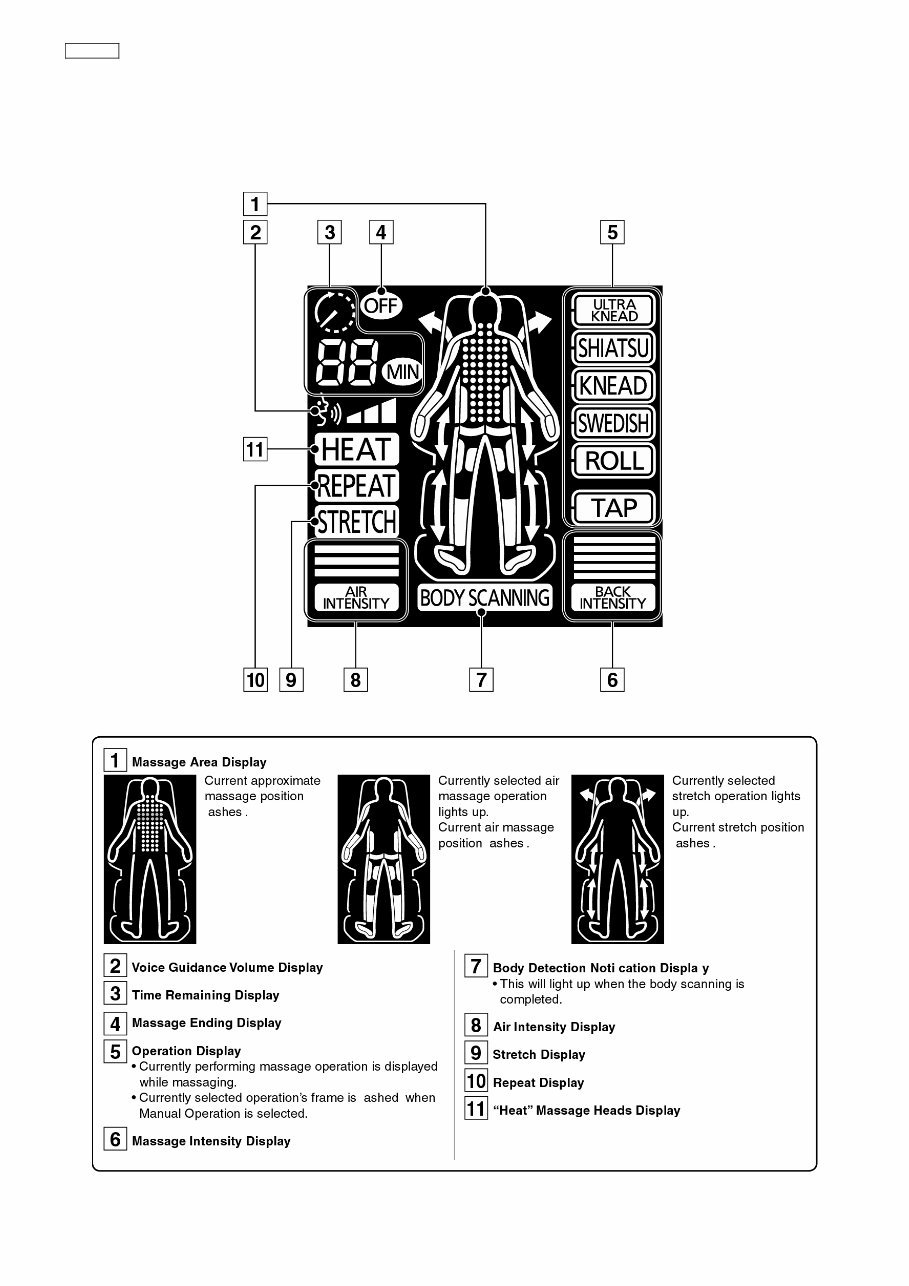

EP-MA70 ORDER NO. HPD1102E25CE - 5 - 2.Display *Display language on the control panel may differ depending on the region the unit was purchased.

EP-MA70 ORDER NO. HPD1102E25CE - 6 - 3. TURNING ON THE POWER 1. Plug the power into power socket. 2. Turn the lock switch to the open position. 3. Turn on the power switch on the power source switch box. ･When the operating lock switch is pointing toward ‘lock’, the power switch cannot be moved to the ‘on’ position. Timer When the on/off button is pushed, a timer begins to prevent overuse. After approximately 15 minutes, time expires and the massage wheel goes into storage position. After each use ･ Be sure to turn the power switch to ‘off’. ･To prevent children from using this unit, lock the power switch by moving the operating lock switch to the ‘lock’ position. ･ As a further caution, unplug the power cord from the power socket after each use.

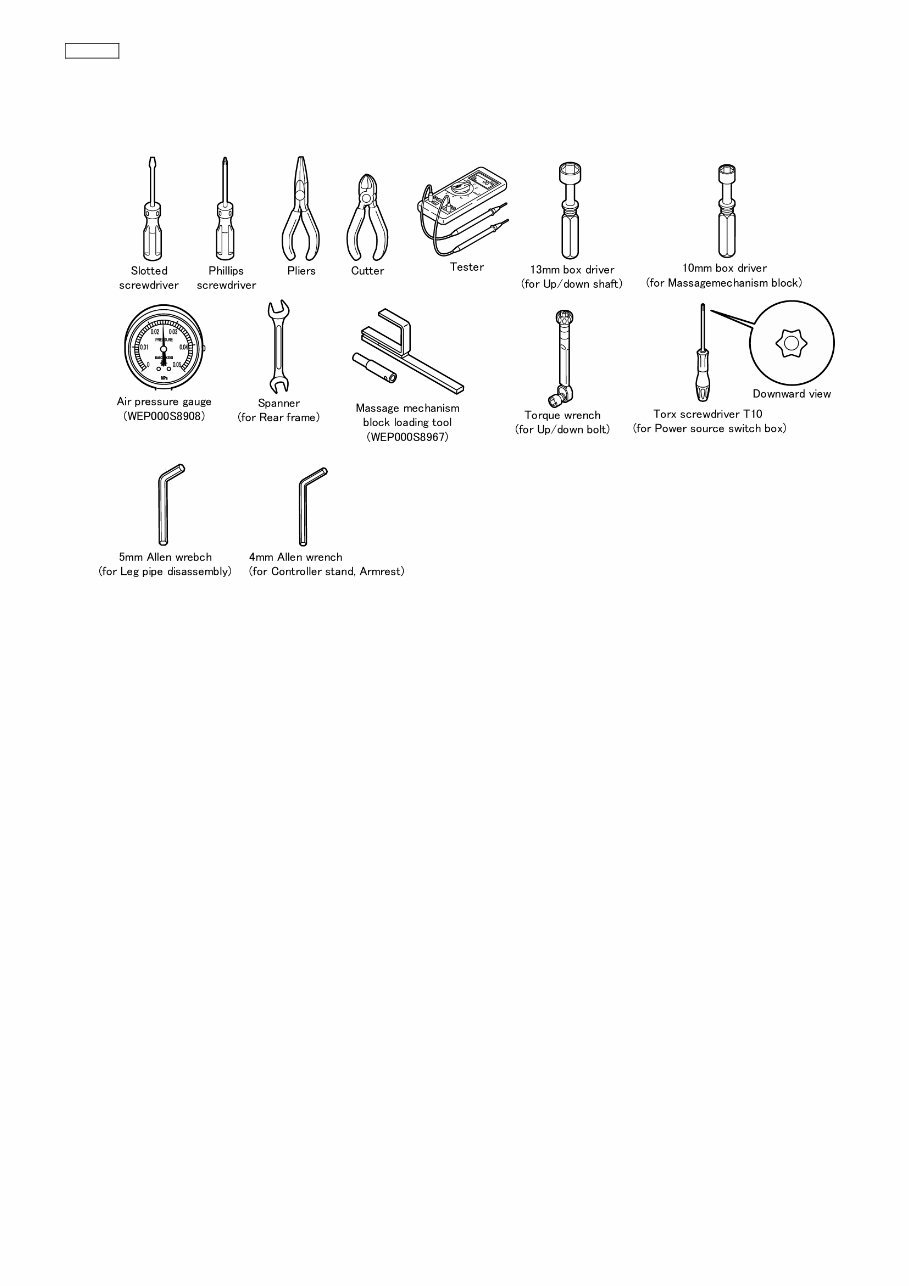

EP-MA70 ORDER NO. HPD1102E25CE - 7 - 4. REQUIRED TOOLS

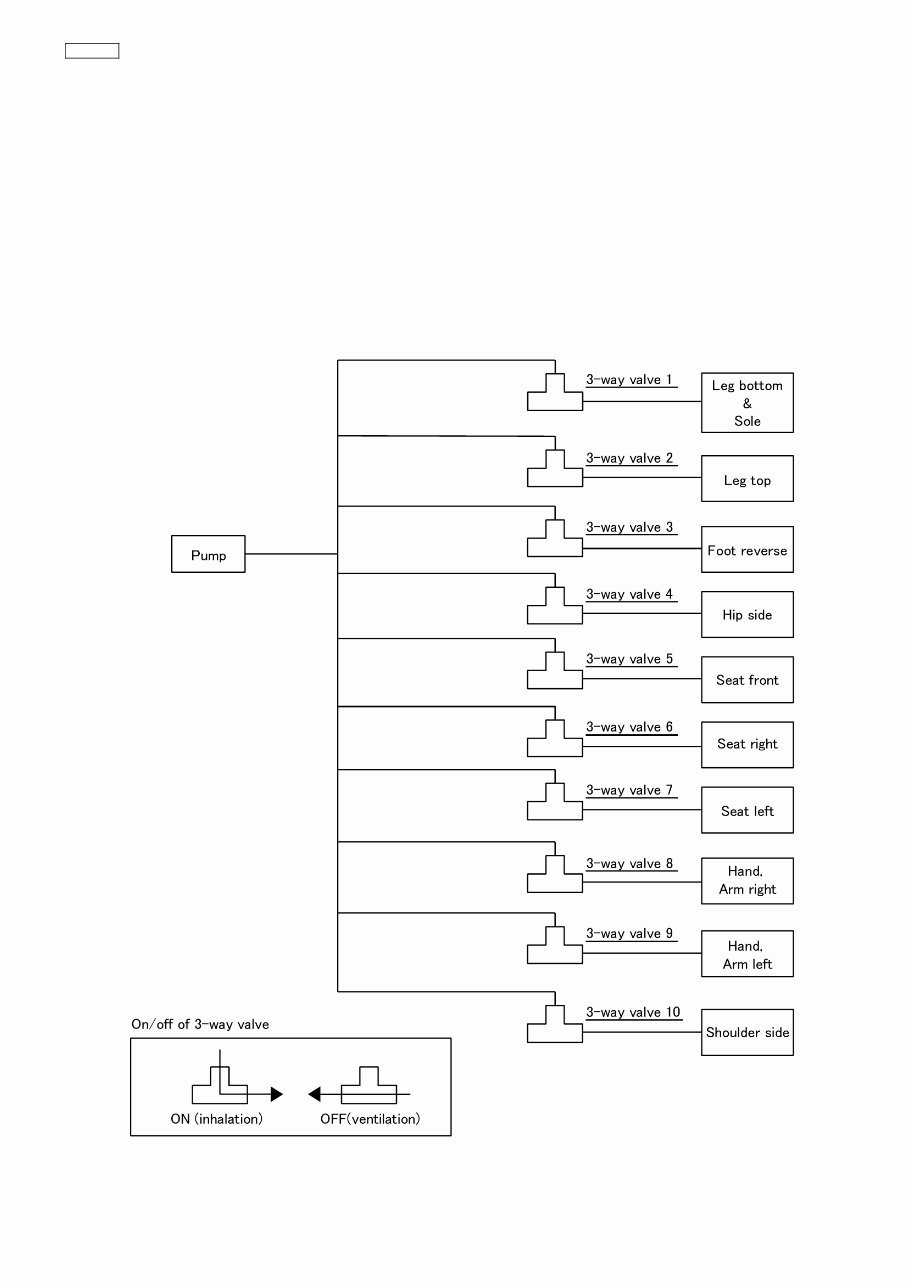

EP-MA70 ORDER NO. HPD1102E25CE - 8 - 5. OPERATION OF ELECTROMAGNETIC VALVES AND AIR BAGS Air massage is operated driving the Pump unit x 1pc, 3-way 3-roll electromagnetic valve, and 3-way 4-roll electromagnetic valve. 1. When the operation stops, the Pump and all the Electromagnetic valves are OFF. 2. While the Reclining lift motor and the Ottoman lift motor operates, the control of air stops. (Air is in the ventilation.) However, when the leg stretch operates, the Lift motor operates controlling the air. 3. When in the operation by the Controller Off/on switch, and the Electric reclining lift and the Electric ottoman lift are operated, the Pump stops. (The air pressure is maintained.)

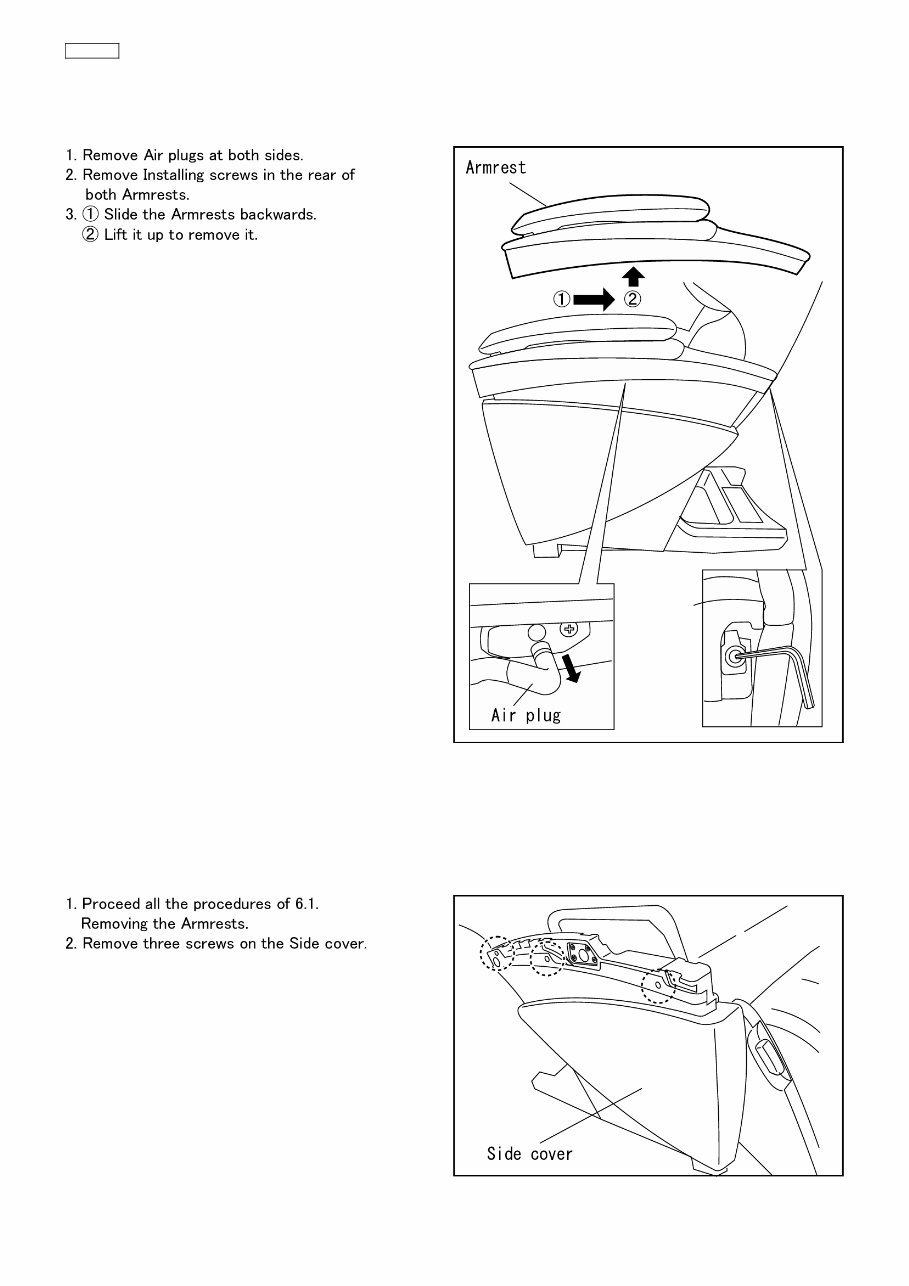

EP-MA70 ORDER NO. HPD1102E25CE - 9 - 6. DISASSEMBLY 6.1. Removing the Armrests (right/left) 6.2. Removing the Outside parts

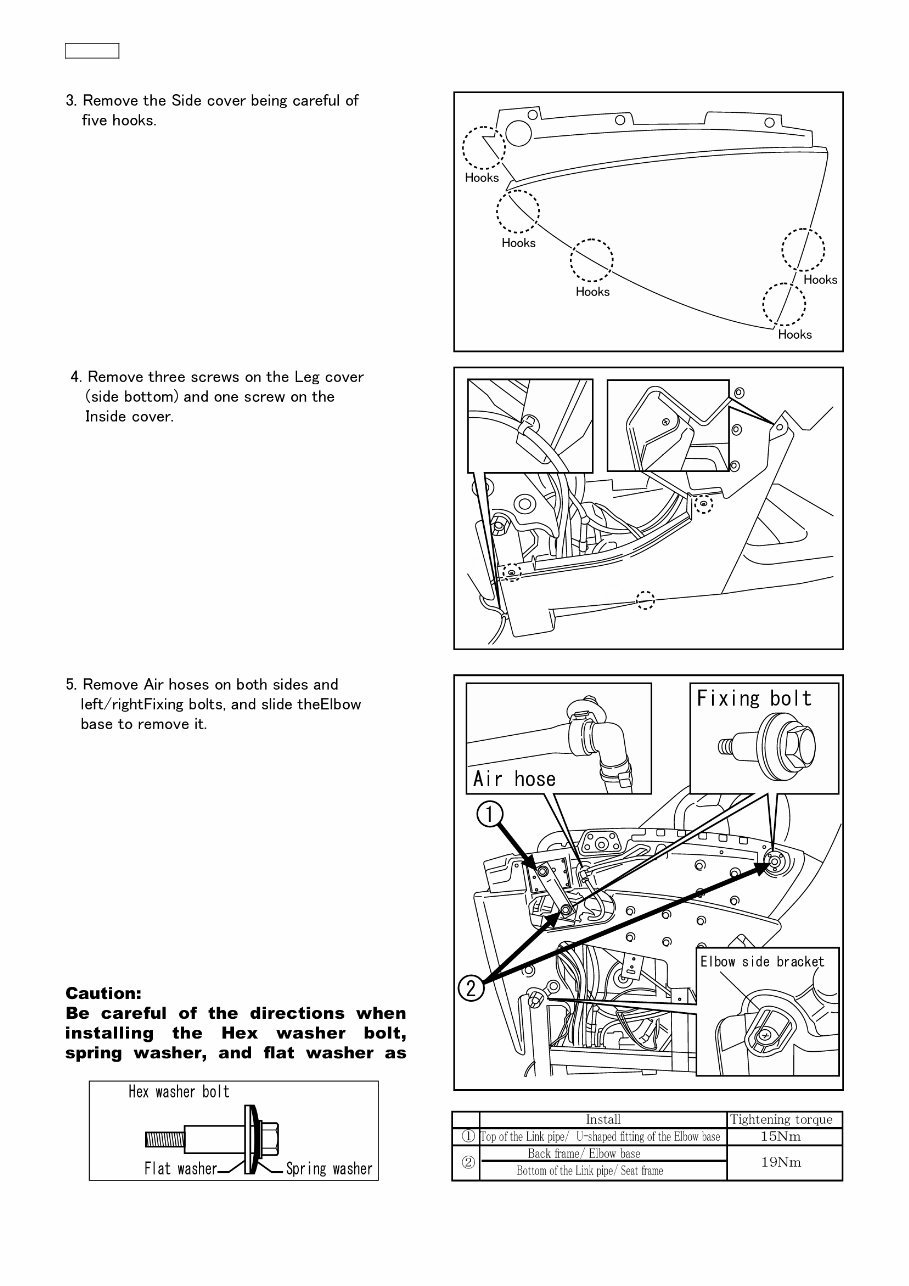

EP-MA70 ORDER NO. HPD1102E25CE - 10 -
