Samsung RF263BEAESR / RF263BEAESG Service & Repair Manual

French Door Type REFRIGERATOR REFRIGERATOR CONTENTS 1. PRECAUTIONS (SAFETY WARNINGS)·······4 2. PRODUCT SPECIFICATIONS ······················8 3. DISASSEMBLY AND REASSEMBLY ·········25 4. TROUBLESHOOTING ································50 5. PCB DIAGRAM ···········································94 6. WIRING DIAGRAM ·····································99 7. SCHEMATIC DIAGRAM ···························100 MODEL NAME : RF263TEAE** RF263BEAE**

IMPORTANT SAFETY NOTICE The service guide is for service men with adequate backgrounds of electrical, electronic, and mechanical experience. Any attempt to repair a major appliance may result in personal injury and property damage. The manufacturer or dealer cannot be responsible for the interpretation of this information. SAMSUNG ELECTRONICS AMERICA, INC. Technical Service Guide Copyright ©2012 All rights reserved. This service guide may not be reproduced in whole or in part in any form without written permission from the SAMSUNG ELECTRONICS Company. WARNING

Contents 1. Precautions (safety warnings) ....................................................................4 2. Product specifications ..............................................................................8 2-1) Introduction of Main Function ........................................................................................................................ 9 2-2) Specifications.................................................................................................................................................. 11 2-3) Interior Views ............................................................................................................................................... 12 2-4) Model Specification &Specification Chart ................................................................................................... 13 2-5) Dimensions of Refrigerator (Inches) ............................................................................................................ 16 2-6) Optional Material Specification..................................................................................................................... 17 2-7) Refrigerant Route in Refrigeration cycle ..................................................................................................... 18 2-7-1. Principle of freezeer ......................................................................................................................... 19 2-7-2. Operation theory of refrigeration cycle components .................................................................. 20 2-7-3. Refrigeration Cycle Type ............................................................................................................... 23 2-8) Cooling Air Circulation................................................................................................................................. 24 3. Disassembly and Reassembly ................................................................. 25 3-1) PRECAUTION ................................................................................................................................................ 26 3-2) Refrigerator Door .......................................................................................................................................... 27 3-3) Door Handle Refrigerator ............................................................................................................................ 29 3-4) Door Handle Freezer................................................................................................................................... 29 3-5) Refrigerator Light ......................................................................................................................................... 30 3-6) Cover-Display & Water-Dispenser ........................................................................................................... 30 3-7) Water-Dispenser........................................................................................................................................... 31 3-8) Glass Shelf.................................................................................................................................................... 32 3-9) Foldable Glass Shelf.................................................................................................................................... 32 3-10) Vegetable & Fruit Drawers Shelf .............................................................................................................. 33 3-11) Case Water Filter ........................................................................................................................................ 34 3-12) Cool Select Pantry...................................................................................................................................... 35 3-13) Motor Damper ............................................................................................................................................. 35 3-14) Water Filter (Assembly & Disassembly) ................................................................................................... 36 3-15) Gallon Door Bin ...........................................................................................................................................37 3-16) Vertical Hinged Section ..............................................................................................................................37 3-17) Evaporator Cover In Refrigerator .............................................................................................................. 38 3-18) Evaporator In Refrigerator ......................................................................................................................... 39 3-19) Freezer Door............................................................................................................................................... 40 3-20) Ice-Maker ................................................................................................................................................... 41 3-21) Auger Motor Fan ........................................................................................................................................ 43 3-22) Freezer Light .............................................................................................................................................. 44 3-23) Door Switch In Freezer ............................................................................................................................. 44 3-24) Evaporator Cover In Freezer .................................................................................................................... 45 3-25) Evaporator In Freezer ............................................................................................................................... 45 3-26) Machine Compartment .............................................................................................................................. 46 3-27) COMPRESSOR ........................................................................................................................................... 48 3-28) Electric Box ................................................................................................................................................ 49

Contents 4. Troubleshooting .................................................................................... 50 4-1) Function for failure diagnosis ....................................................................................................................... 51 4-1-1. Test mode (manual operation / manual defrost function) ............................................................ 51 4-1-2. Display function of Communication error...................................................................................... 52 4-1-3. Self-diagnostic function ................................................................................................................. 53 4-1-4. Display function of Load condition ................................................................................................ 56 4-1-5. Exhibition mode setting function .....................................................................................................57 4-1-6. Option setting function .................................................................................................................... 58 4-1-7. Option TABLE .................................................................................................................................. 60 4-2) Diagnostic method according to the trouble symptom(Flow Chart) ....................................................... 62 4-2-1. If the trouble is detected by self-diagnosis ................................................................................. 64 4-2-2. If FAN does not operate .................................................................................................................75 4-2-3. If ICE Room Fan does not operate ................................................................................................76 4-2-4. When ICE MAKER(FF) does not operate ...................................................................................... 77 4-2-5. When ICE MAKER(FZ) does not operate ......................................................................................78 4-2-6. If defrost does not operate (F,R DEF Heater)...............................................................................79 4-2-7. When Power is not applied ........................................................................................................... 80 4-2-8. When Compressor does not run (Inverter COMP.) ..................................................................... 81 4-2-9. When alarm sounds continuously without stop(related with buzzer sound) ............................ 82 4-2-10. When the Panel PCB does not operate normally ..................................................................... 84 4-2-11. If Pantry Panel PCB is not working normally ............................................................................................... 85 4-2-12. When refrigerator ROOM Lamp does not light up..................................................................... 86 4-2-13. If ICE Water is not supplied...........................................................................................................87 4-2-14. If Cubed or Crushed Ice is not supplied .................................................................................... 89 4-2-15. If Cover Ice Route Motor(Geared Motor) is not working normally ........................................... 90 4-2-16. IR Sensor Trouble-Shooting ......................................................................................................... 91 4-2-17. LED blinking frequency depending on protecting functions .................................................... 92 SPM FREEWHEELING DIODE VOLTAGE VALUE...................................................................................... 93 5. Pcb Diagram ......................................................................................... 94 5-1) PCB Layout with part position ................................................................................................................... 95 5-2) PCB Layout with part position (Inverter Board) ....................................................................................... 96 5-3) Connector Layout with part position (Main Board) ..................................................................................97 5-4) Connector Layout with part position (Inverter Board) .............................................................................. 98 6. Wiring Diagram ..................................................................................... 99 6-1) Model : RF263TEAE**, RF263BEAE** ....................................................................................................... 99 7. Schematic Diagram .............................................................................. 100 7-1) Whole block diagram ..................................................................................................................................100 7-2) Whole block diagram.................................................................................................................................. 101 7-3) CIRCUIT DIAGRAM ...................................................................................................................................... 102 7-3-1. Main ................................................................................................................................................. 102 7-3-2. INVERTER ....................................................................................................................................... 103

4 1. Precautions (safety warnings) ●Unplug the appliance before replacing or repairing electrical parts. ⇢ Be careful to avoid electric shock. ●Always use only the correct replacement parts. ⇢ Check the model, rated voltage, rated current and running temperature rating. ●When troubleshooting, verify that wiring harnesses are connected securely. ⇢ Make sure the connectors are not separated when power is supplied. ●Check for visible traces of water on electrical parts. ⇢ Replace or secure any part that may have come in contact with water. ●Check the status of parts after replacement or troubleshooting. ⇢ All parts must be reinstalled properly. ●Check the location where the refrigerator will be used. ⇢ If the refrigerator will be used in a damp or wet space, or if installation will be unstable, the unit should be relocated. ●The refrigerator must be grounded properly. ⇢ An earth ground should be used if there is a risk of high humidity or wetness. ● The refrigerator should be plugged into a dedicated outlet. Make sure the power cord is not damaged, crushed, squeezed or burned. ● If the plug is damaged it should be replaced. If the socket is damaged, it should not be used. ●Consumers must not try to repair the refrigerator. ●Nothing should be stored in the refrigerator except food. ⇢ Drugs requiring precise temperatures should not be stored in the refrigerator. ⇢ Flammable substances (alcohol, benzene, ether, LP gas, etc.) carry risk of explosion and should not be stored in the refrigerator.

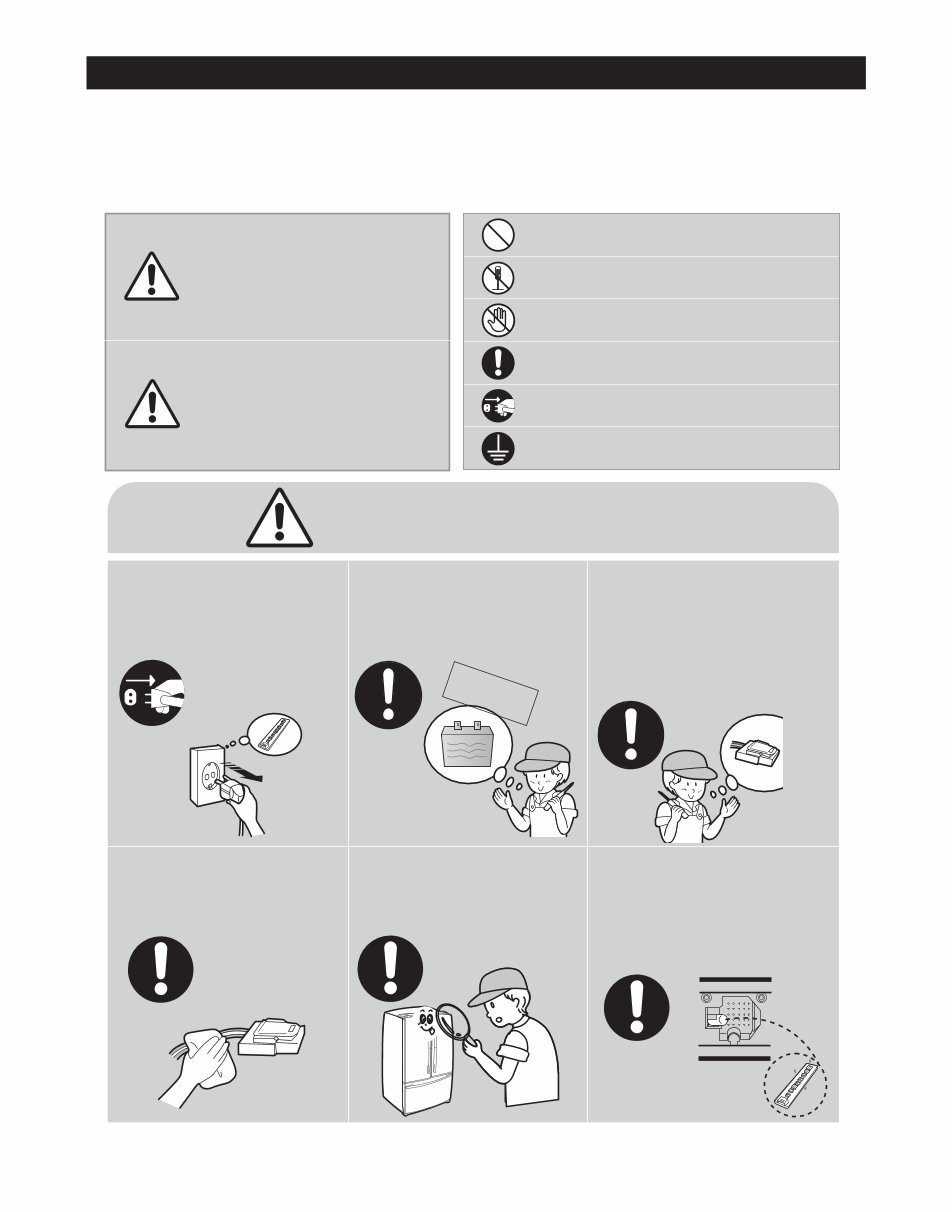

5 Precautions (safety warnings) Read all instructions before repairing the product and follow the instructions in order to prevent danger or property damage. Plug out and remove all the items in regrigerator prior to repair. CAUTION/WARNING SYMBOLS DISPLAYED SYMBOLS Indicates that a danger of death or serious injury exists. Indicates that a risk of personal injury or material damage exists. means "Prohibited". means "Do not disassemble". means "No contact". means "Warning or Caution". means "Earth or Ground". means "Unplug the unit before preforming service" Unplug to exchange the interior lamp. • It may cause electric shock. Warning Warning & Caution Caution Unplug Use the rated components on the replacement. • Check the correct model, rated voltage, rated current, operating temperature and so on. On repair, make sure that the all wiring harnesses are reconnected. • Wiring harnesses should be connected tightly and kept dry. • Bundle tightly wires in order not to be detached by the external force and then not to be wetted. Check for visible traces of water on electrical parts. • Replace or secure any part that may have come in contact with water. Check the status of parts after replacement or troubleshooting. • All parts must be reinstalled properly. On repair, Make sure that all parts and wires are free of dust and debris. • Cleaning parts could help prevent fire or shorting. Rated components

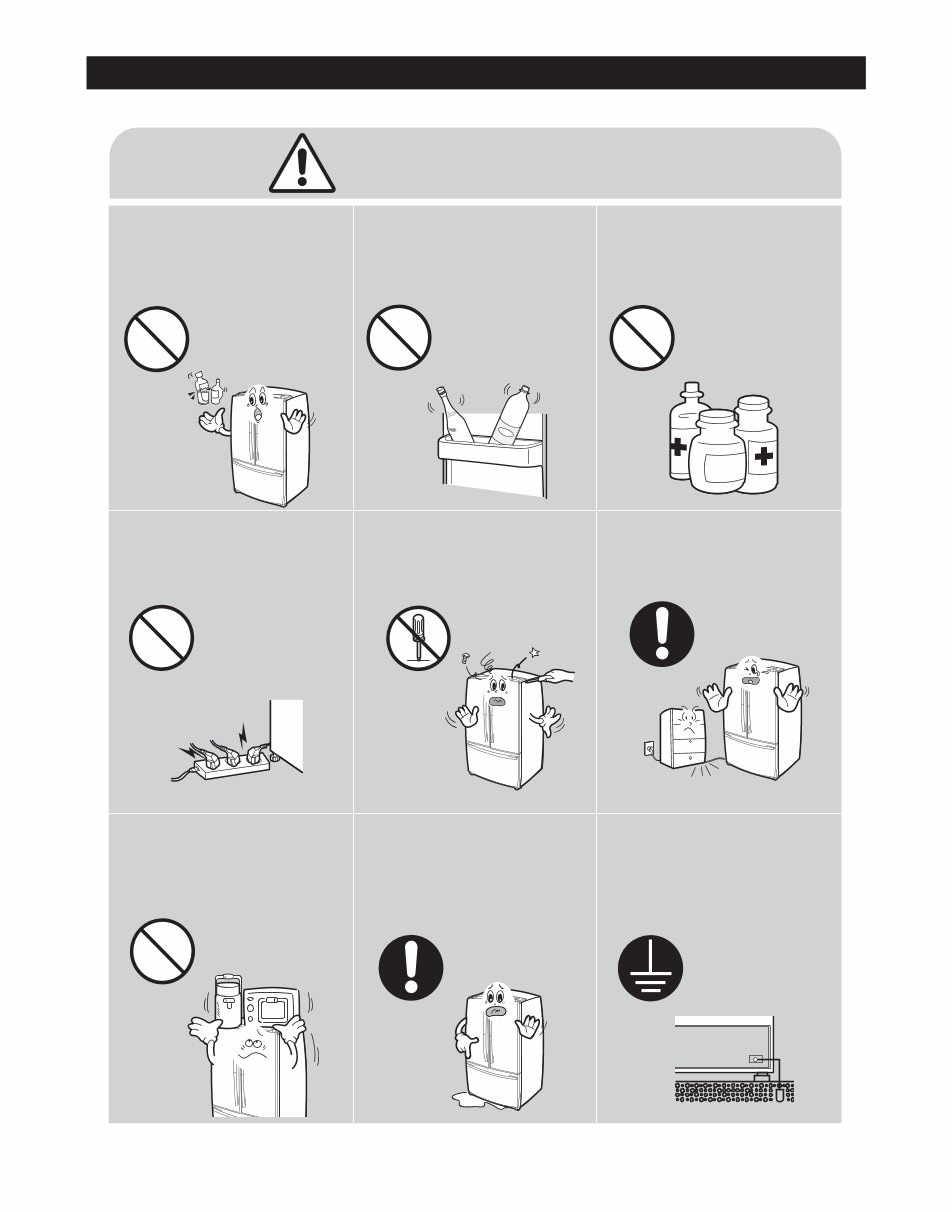

6 Precautions (safety warnings) ❈ Please let users know following warnings & cautions in detail. Customers should not store glass bottles of liquid in the freezer section. • Frozen bottles could explode and cause injury. Customers should not store narrow or long bottles or food in a small door shelf. • These items could fall when the door is opened, causing injury tot he customer. Drugs requiring precise temperatures should not be stored in the refrigerator. Customers should not store articles on the product. • Opening or closing the door may cause things to fall down, which may cause injury. Prohibited Warning & Caution Consumers must not try to repair the refrigerator. • Electrical and mechanical parts could injure the consumer. Do not disassemble The refrigerator should be plugged into a dedicated outlet. • Multiple plugs in the outlet could cause excessive heat or fire. Prohibited Make sure the power cord is not damaged or crushed. • A damaged cord could cause excessive heat or fire. Check the location where the refrigerator will be used. • If the refrigerator will be used in a damp or wet space, or if installation will be unstable, the unit should be relocated. The refrigerator must be grounded properly. • An earth ground should be used if there is a risk of high humidity or wetness. Earth

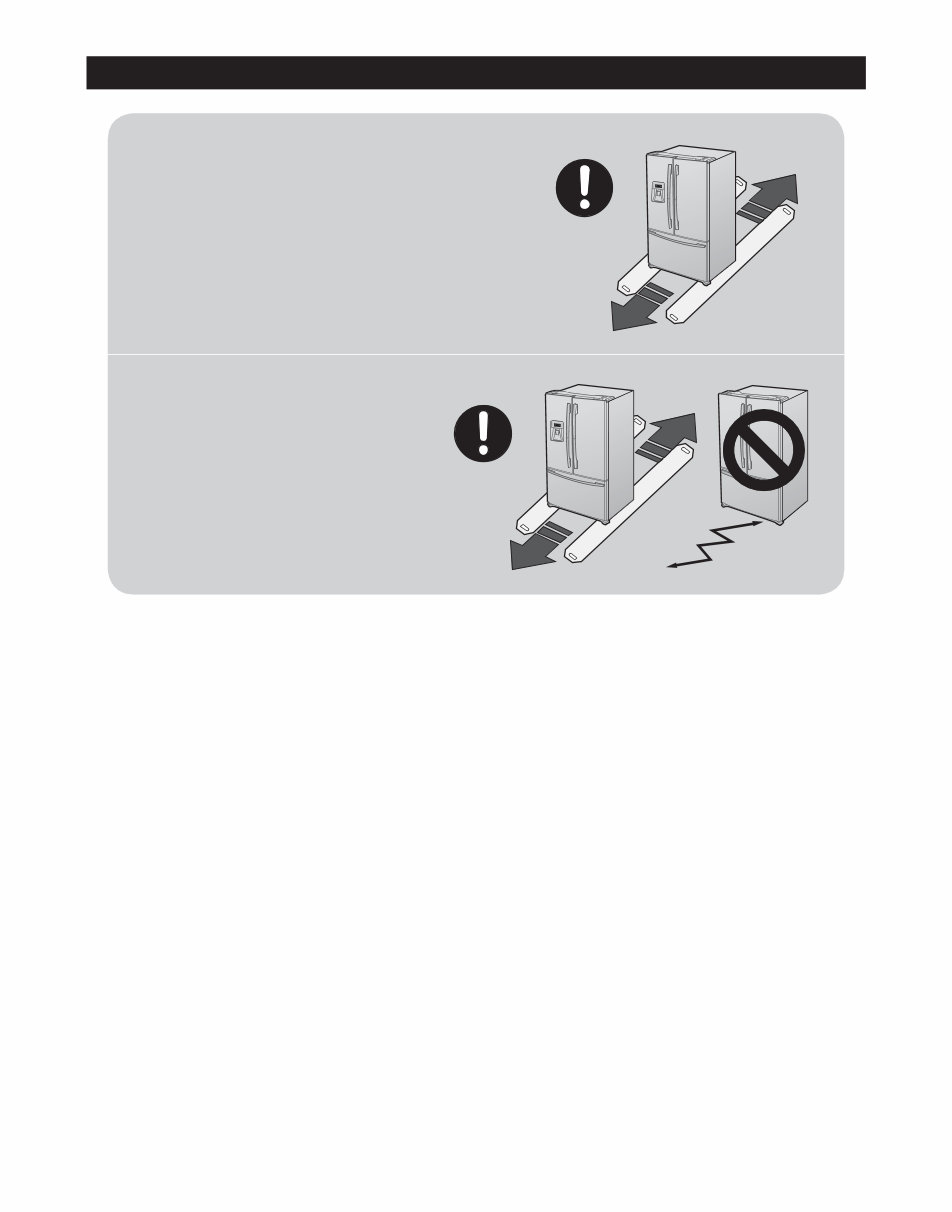

7 Precautions (safety warnings) For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator, or approximately 660lbs(299kg). FLOORING Protect the finish of the flooring. Cut a large section of the cardboard carton and place under the refrigerator where you are working. When moving, be sure to pull the unit straight out and push back in straight. MOVING

8 2. Product sPecifications 2-1) Introduction of Main Function ........................................................................................................................ 9 2-2) Specifications.................................................................................................................................................. 11 2-3) Interior Views ............................................................................................................................................... 12 2-4) Model Specification &Specification Chart ................................................................................................... 13 2-5) Dimensions of Refrigerator (Inches) ............................................................................................................ 16 2-6) Optional Material Specification..................................................................................................................... 17 2-7) Refrigerant Route in Refrigeration cycle ..................................................................................................... 18 2-7-1. Principle of freezeer ......................................................................................................................... 19 2-7-2. Operation theory of refrigeration cycle components .................................................................. 20 2-7-3. Refrigeration Cycle Type ............................................................................................................... 23 2-8) Cooling Air Circulation................................................................................................................................. 24

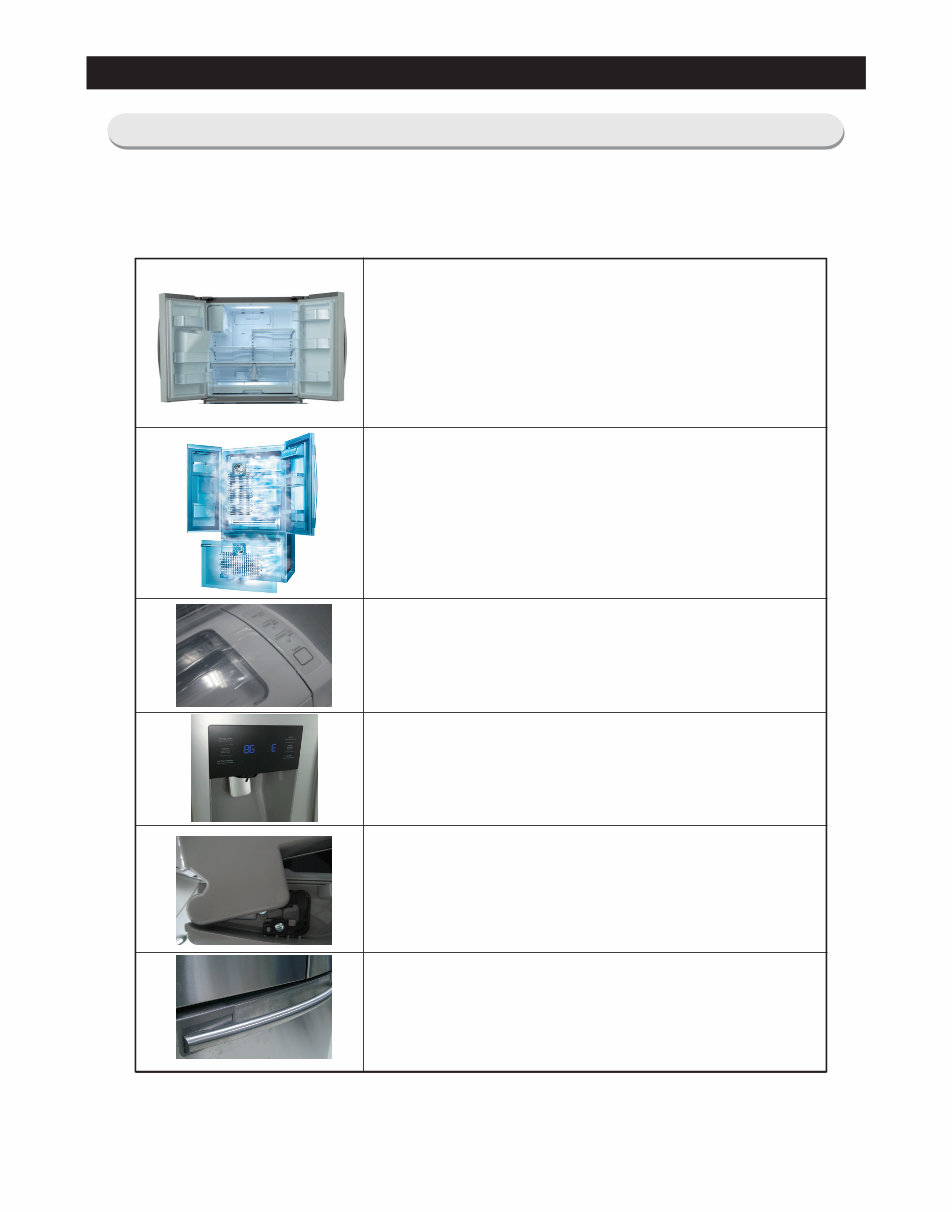

9 Product sPecifications • A newly developed SAMSUNG bottom mount freezer in 2012 has the following characteristics. Surround Multi Flow • Provides uniform cooling for each shelf and every corner in the fresh food section. This is accomplished by using a center positioned fan and duct with multiple cooling flow openings. Twin Cooling System • The refrigerator and the freezer each have an evaporator. Given this independent system, the freezer and the refrigerator are cooled individually as required and are, therefore, more efficient. Food odor from the refrigerator does not affect food in the freezer due to separate air flow circulation. One Lever Dispenser • One lever dispenser easily switches between ice and water. Secure Auto Close Door System • Doors close tightly. • Food on the doors stays cool. • Prevents moisture from forming on the outside of the doors. Easy Handle System • Ez-open Freezer Door • Ergonomic Door Design Electronic control from outside of Pantry Cover(RF263TEAE**,RF323BEAE**) • Adjustable temperature control ((around 41℉(5℃) : Deli / around 38℉(3℃) : Fresh / around 34℉(1℃) Chilled ) Temperature control from outside of the Pantry : user friendly design helps keep foods fresh for longer 2-1) Introduction of Main Function
