REFRIGERATOR
REFRIGERATOR CONTENTS
1. PRECAUTIONS (SAFETY WARNINGS)·······4
2. PRODUCT SPECIFICATIONS ······················8
3. DISASSEMBLY AND REASSEMBLY ·········24
4. TROUBLESHOOTING ································46
5. PCB DIAGRAM ···········································82
6. WIRING DIAGRAM ·····································87
7. SCHEMATIC DIAGRAM ·····························88
BOTTOM MOUNT FREEZER
BASIC : RF261B*/RF260B*
MODEL NAME : RF261BEAESR RF261BEAEBC
RF261BEAESP RF261BEAEWW
RF260BEAESR RF260BEAEBC
RF260BEAESP RF260BEAEWW
RF260BEAESL
MODEL CODE : RF261BEAESR/AA RF261BEAEBC/AA
RF261BEAESP/AA RF261BEAEWW/AA
RF260BEAESR/AA RF260BEAEBC/AA
RF260BEAESP/AA RF260BEAEWW/AA
RF260BEAESL/TA
RF261B*/RF260B*
AW1-12 (RF261BEAESR)-12.05.04.indd 1 AW1-12 (RF261BEAESR)-12.05.04.indd 1 2012.5.4 1:33:24 PM 2012.5.4 1:33:24 PM
IMPORTANT SAFETY NOTICE
The service guide is for service men with adequate backgrounds of
electrical, electronic, and mechanical experience.
Any attempt to repair a major appliance may result in personal injury
and property damage.
The manufacturer or dealer cannot be responsible for the
interpretation of this information.
SAMSUNG ELECTRONICS AMERICA, INC.
Technical Service Guide
Copyright ©2012
All rights reserved. This service guide may not be reproduced in whole or in part in
any form without written permission from the SAMSUNG ELECTRONICS Company.
WARNING
AW1-12 (RF261BEAESR)-12.05.04.indd 2 AW1-12 (RF261BEAESR)-12.05.04.indd 2 2012.5.4 1:33:25 PM 2012.5.4 1:33:25 PM
Contents
1. Precautions (safety warnings) ....................................................................4
2. Product specifications ..............................................................................8
2-1) Introduction of Main Function ........................................................................................................................ 9
2-2) Specifications.................................................................................................................................................. 11
2-3) Interior Views ............................................................................................................................................... 12
2-4) Model Specification &Specification Chart ................................................................................................... 13
2-5) Dimensions of Refrigerator (Inches) ............................................................................................................ 16
2-6) Optional Material Specification..................................................................................................................... 17
2-7) Refrigerant Route in Refrigeration cycle ..................................................................................................... 18
2-7-1. Principle of freezeer ......................................................................................................................... 19
2-7-2. Operation theory of refrigeration cycle components .................................................................. 20
2-7-3. Refrigeration Cycle Type ............................................................................................................... 23
2-8) Cooling Air Circulation................................................................................................................................. 24
3. Disassembly and Reassembly ................................................................. 25
3-1) PRECAUTION ................................................................................................................................................ 26
3-2) Refrigerator Door .......................................................................................................................................... 27
3-3) Door Handle Refrigerator ............................................................................................................................ 29
3-4) Door Handle Freezer................................................................................................................................... 29
3-5) Refrigerator Light ......................................................................................................................................... 30
3-6) Cover-Display & Water-Dispenser ........................................................................................................... 30
3-7) Water-Dispenser........................................................................................................................................... 31
3-8) Glass Shelf.................................................................................................................................................... 32
3-9) Foldable Glass Shelf.................................................................................................................................... 32
3-10) Vegetable & Fruit Drawers Shelf .............................................................................................................. 33
3-11) Case Water Filter ........................................................................................................................................ 34
3-12) Cool Select Pantry...................................................................................................................................... 35
3-13) Motor Damper ............................................................................................................................................. 35
3-14) Water Filter (Assembly & Disassembly) ................................................................................................... 36
3-15) Gallon Door Bin ...........................................................................................................................................37
3-16) Vertical Hinged Section ..............................................................................................................................37
3-17) Evaporator Cover In Refrigerator .............................................................................................................. 38
3-18) Evaporator In Refrigerator ......................................................................................................................... 39
3-19) Freezer Door............................................................................................................................................... 40
3-20) Ice-Maker ................................................................................................................................................... 41
3-21) Auger Motor Fan ........................................................................................................................................ 43
3-22) Freezer Light .............................................................................................................................................. 44
3-23) Door Switch In Freezer ............................................................................................................................. 44
3-24) Evaporator Cover In Freezer .................................................................................................................... 45
3-25) Evaporator In Freezer ............................................................................................................................... 45
3-26) Machine Compartment .............................................................................................................................. 46
3-27) COMPRESSOR ........................................................................................................................................... 48
3-28) Electric Box ................................................................................................................................................ 49
AW1-12 (RF261BEAESR)-12.05.04.indd 3 AW1-12 (RF261BEAESR)-12.05.04.indd 3 2012.5.4 1:33:25 PM 2012.5.4 1:33:25 PM
Contents
4. Troubleshooting .................................................................................... 50
4-1) Function for failure diagnosis ....................................................................................................................... 51
4-1-1. Test mode (manual operation / manual defrost function) ............................................................ 51
4-1-2. Display function of Communication error...................................................................................... 52
4-1-3. Self-diagnostic function ................................................................................................................. 53
4-1-4. Display function of Load condition ................................................................................................ 56
4-1-5. Exhibition mode setting function .....................................................................................................57
4-1-6. Option setting function .................................................................................................................... 58
4-1-7. Option TABLE .................................................................................................................................. 60
4-2) Diagnostic method according to the trouble symptom(Flow Chart) ....................................................... 62
4-2-1. If the trouble is detected by self-diagnosis ................................................................................. 64
4-2-2. If FAN does not operate .................................................................................................................75
4-2-3. If ICE Room Fan does not operate ................................................................................................76
4-2-4. When ICE MAKER(FF) does not operate ...................................................................................... 77
4-2-5. When ICE MAKER(FZ) does not operate ......................................................................................78
4-2-6. If defrost does not operate (F,R DEF Heater)...............................................................................79
4-2-7. When Power is not applied ........................................................................................................... 80
4-2-8. When Compressor does not run (Inverter COMP.) ..................................................................... 81
4-2-9. When alarm sounds continuously without stop(related with buzzer sound) ............................ 82
4-2-10. When the Panel PCB does not operate normally ..................................................................... 84
4-2-11.
If Pantry Panel PCB is not working normally ............................................................................................... 85
4-2-12. When refrigerator ROOM Lamp does not light up..................................................................... 86
4-2-13. If ICE Water is not supplied...........................................................................................................87
4-2-14. If Cubed or Crushed Ice is not supplied .................................................................................... 89
4-2-15. If Cover Ice Route Motor(Geared Motor) is not working normally ........................................... 90
4-2-16. IR Sensor Trouble-Shooting ......................................................................................................... 91
4-2-17. LED blinking frequency depending on protecting functions .................................................... 92
SPM FREEWHEELING DIODE VOLTAGE VALUE...................................................................................... 93
5. Pcb Diagram ......................................................................................... 94
5-1) PCB Layout with part position ................................................................................................................... 95
5-2) PCB Layout with part position (Inverter Board) ....................................................................................... 96
5-3) Connector Layout with part position (Main Board) ..................................................................................97
5-4) Connector Layout with part position (Inverter Board) .............................................................................. 98
6. Wiring Diagram ..................................................................................... 99
6-1) Model : RF260B* , RF261B* ........................................................................................................................ 99
7. Schematic Diagram .............................................................................. 100
7-1) Whole block diagram ..................................................................................................................................100
7-2) Whole block diagram.................................................................................................................................. 101
7-3) CIRCUIT DIAGRAM ...................................................................................................................................... 102
7-3-1. Main ................................................................................................................................................. 102
7-3-2. INVERTER ....................................................................................................................................... 103
AW1-12 (RF261BEAESR)-12.05.04.indd 4 AW1-12 (RF261BEAESR)-12.05.04.indd 4 2012.5.4 1:33:25 PM 2012.5.4 1:33:25 PM
4
1. PRECAUTIONS (SAFETY WARNINGS)
●Unplug the appliance before replacing or repairing electrical parts.
⇡ Be careful to avoid electric shock.
●Always use only the correct replacement parts.
⇡ Check the model, rated voltage, rated current and running temperature rating.
●When troubleshooting, verify that wiring harnesses are connected securely.
⇡ Make sure the connectors are not separated when power is supplied.
●Check for visible traces of water on electrical parts.
⇡ Replace or secure any part that may have come in contact with water.
●Check the status of parts after replacement or troubleshooting.
⇡ All parts must be reinstalled properly.
●Check the location where the refrigerator will be used.
⇡ If the refrigerator will be used in a damp or wet space, or if installation will be
unstable, the unit should be relocated.
●The refrigerator must be grounded properly.
⇡ An earth ground should be used if there is a risk of high humidity or wetness.
● The refrigerator should be plugged into a dedicated outlet.
Make sure the power cord is not damaged, crushed, squeezed or burned.
● If the plug is damaged it should be replaced.
If the socket is damaged, it should not be used.
●Consumers must not try to repair the refrigerator.
●Nothing should be stored in the refrigerator except food.
⇡ Drugs requiring precise temperatures should not be stored in the refrigerator.
⇡ Flammable substances (alcohol, benzene, ether, LP gas, etc.) carry risk of
explosion and should not be stored in the refrigerator.
AW1-12 (RF261BEAESR)-12.05.04.indd 4 AW1-12 (RF261BEAESR)-12.05.04.indd 4 2012.5.4 1:33:25 PM 2012.5.4 1:33:25 PM
5
PRECAUTIONS (SAFETY WARNINGS)
Read all instructions before repairing the product and follow the instructions
in order to prevent danger or property damage.
Plug out and remove all the items in regrigerator prior to repair.

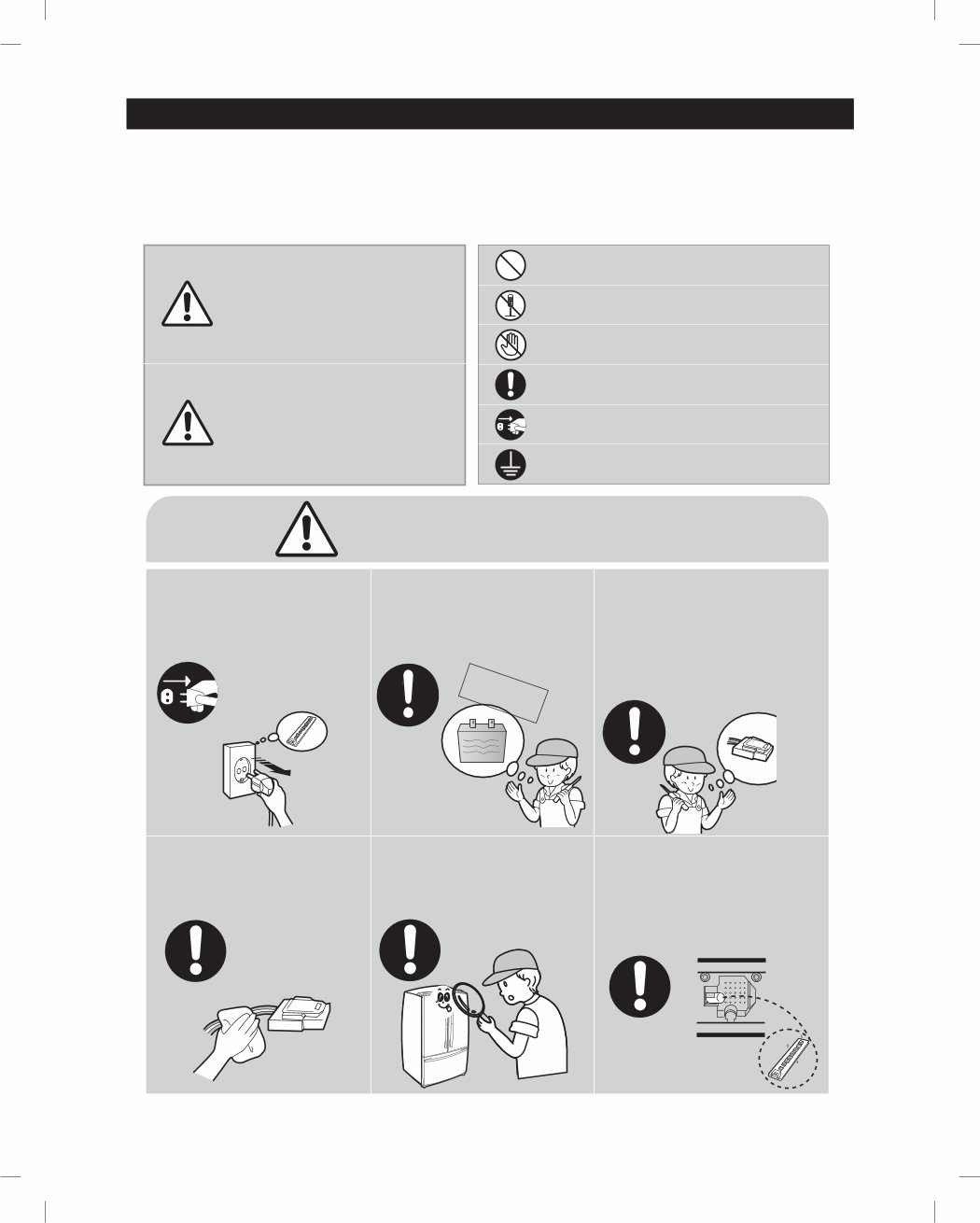

CAUTION/WARNING SYMBOLS DISPLAYED SYMBOLS
Indicates that a
danger of death
or serious injury
exists.
Indicates that a risk
of personal injury
or material damage
exists.
means "Prohibited".
means "Do not disassemble".
means "No contact".
means "Warning or Caution".
means "Earth or Ground".
means "Unplug the unit before
preforming service"
Unplug to exchange the interior
lamp.
• It may cause electric shock.
Warning
Warning & Caution
Caution
Unplug
Use the rated components
on the replacement.
• Check the correct model, rated
voltage, rated current, operating
temperature and so on.
On repair, make sure that the all
wiring harnesses are reconnected.
• Wiring harnesses should be connected
tightly and kept dry.
• Bundle tightly wires in order not to be
detached by the external force and then
not to be wetted.
Check for visible traces of water on
electrical parts.
• Replace or secure any part that may have
come in contact with water.
Check the status of parts after
replacement or troubleshooting.
• All parts must be reinstalled properly.
On repair, Make sure that all parts
and wires are free of dust and
debris.
• Cleaning parts could help prevent fire or
shorting.
Rated
components
AW1-12 (RF261BEAESR)-12.05.04.indd 5 AW1-12 (RF261BEAESR)-12.05.04.indd 5 2012.5.4 1:33:26 PM 2012.5.4 1:33:26 PM
6
PRECAUTIONS (SAFETY WARNINGS)

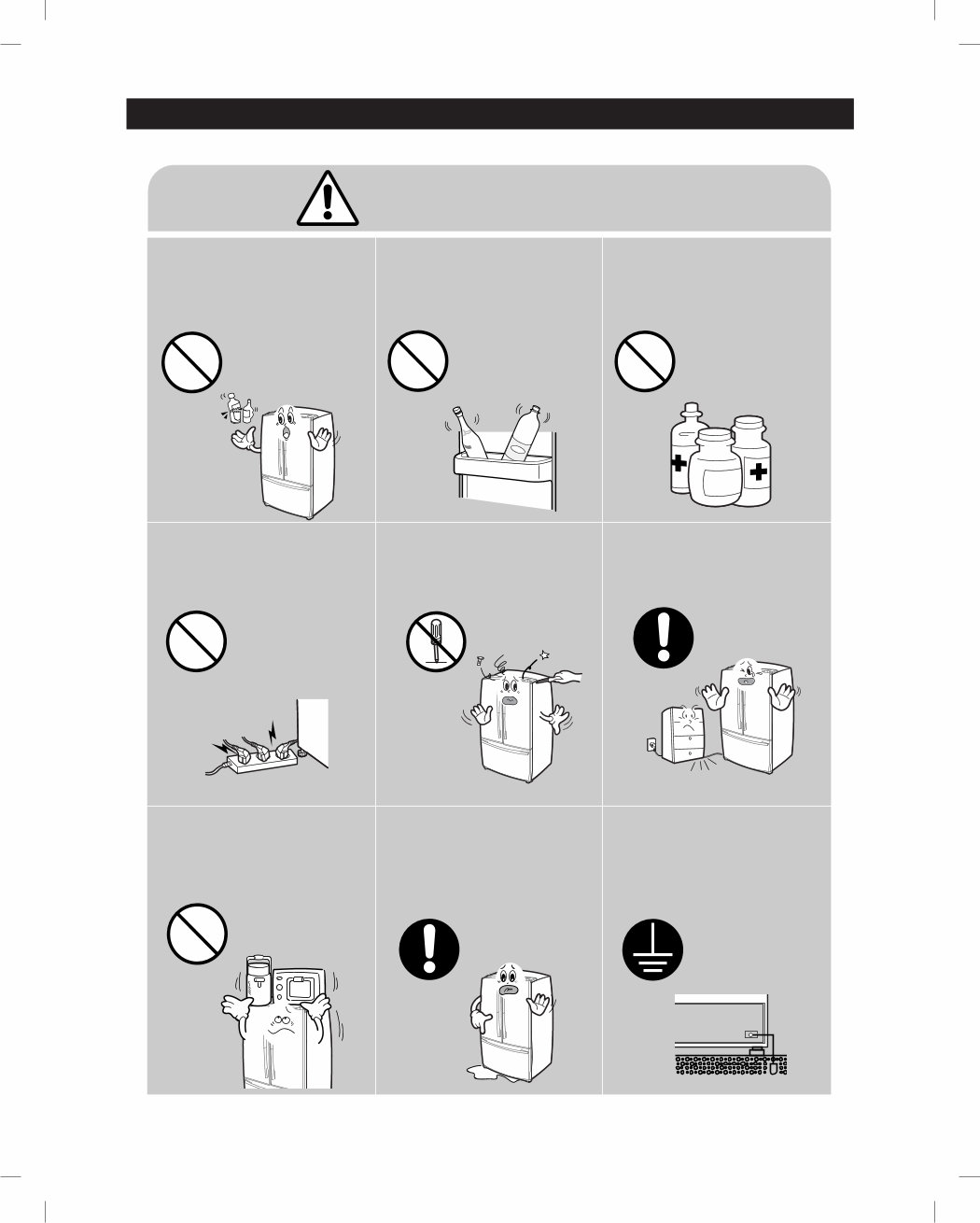

❈ Please let users know following warnings & cautions in detail.
Customers should not store glass
bottles of liquid in the freezer
section.
• Frozen bottles could explode and cause
injury.
Customers should not store narrow
or long bottles or food in a small
door shelf.
• These items could fall when the door is
opened, causing injury tot he customer.
Drugs requiring precise
temperatures should not be stored
in the refrigerator.
Customers should not store
articles on the product.
• Opening or closing the door may cause
things to fall down, which may cause
injury.
Prohibited
Warning & Caution
Consumers must not try to
repair the refrigerator.
• Electrical and mechanical parts could
injure the consumer.
Do not
disassemble
The refrigerator should be
plugged into a dedicated outlet.
• Multiple plugs in the outlet could cause
excessive heat or fire.
Prohibited
Make sure the power cord is not
damaged or crushed.
• A damaged cord could cause excessive
heat or fire.
Check the location where the
refrigerator will be used.
• If the refrigerator will be used in a
damp or wet space, or if installation will
be unstable, the unit should be
relocated.
The refrigerator must be
grounded properly.
• An earth ground should be used if
there is a risk of high humidity or
wetness.
Earth
AW1-12 (RF261BEAESR)-12.05.04.indd 6 AW1-12 (RF261BEAESR)-12.05.04.indd 6 2012.5.4 1:33:26 PM 2012.5.4 1:33:26 PM
7
PRECAUTIONS (SAFETY WARNINGS)
For proper installation, this refrigerator must be
placed on a level surface of hard material that is
the same height as the rest of the flooring. This
surface should be strong enough to support a fully
loaded refrigerator, or approximately
660lbs(299kg).
FLOORING

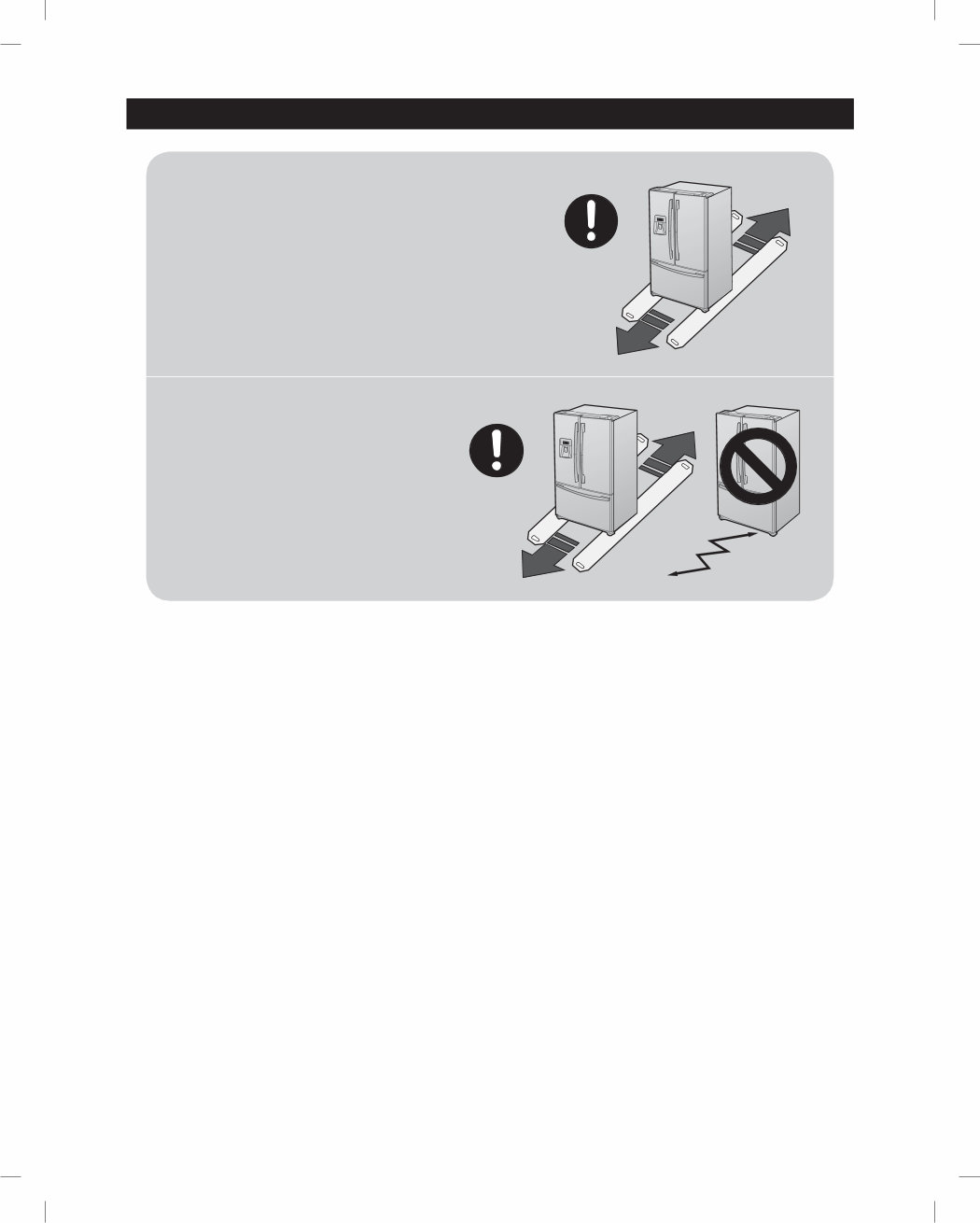

Protect the finish of the flooring. Cut a large
section of the cardboard carton and place
under the refrigerator where you are working.
When moving, be sure to pull the unit straight
out and push back in straight.
MOVING
AW1-12 (RF261BEAESR)-12.05.04.indd 7 AW1-12 (RF261BEAESR)-12.05.04.indd 7 2012.5.4 1:33:26 PM 2012.5.4 1:33:26 PM
8
2. PRODUCT SPECIFICATIONS
2-1) Introduction of Main Function ........................................................................................................................ 9
2-2) Specifications.................................................................................................................................................. 11
2-3) Interior Views ............................................................................................................................................... 12
2-4) Model Specification &Specification Chart ................................................................................................... 13
2-5) Dimensions of Refrigerator (Inches) ............................................................................................................ 16
2-6) Optional Material Specification..................................................................................................................... 17
2-7) Refrigerant Route in Refrigeration cycle ..................................................................................................... 18
2-7-1. Principle of freezeer ......................................................................................................................... 19
2-7-2. Operation theory of refrigeration cycle components .................................................................. 20
2-7-3. Refrigeration Cycle Type ............................................................................................................... 23
2-8) Cooling Air Circulation................................................................................................................................. 24
AW1-12 (RF261BEAESR)-12.05.04.indd 8 AW1-12 (RF261BEAESR)-12.05.04.indd 8 2012.5.4 1:33:26 PM 2012.5.4 1:33:26 PM
9
PRODUCT SPECIFICATIONS

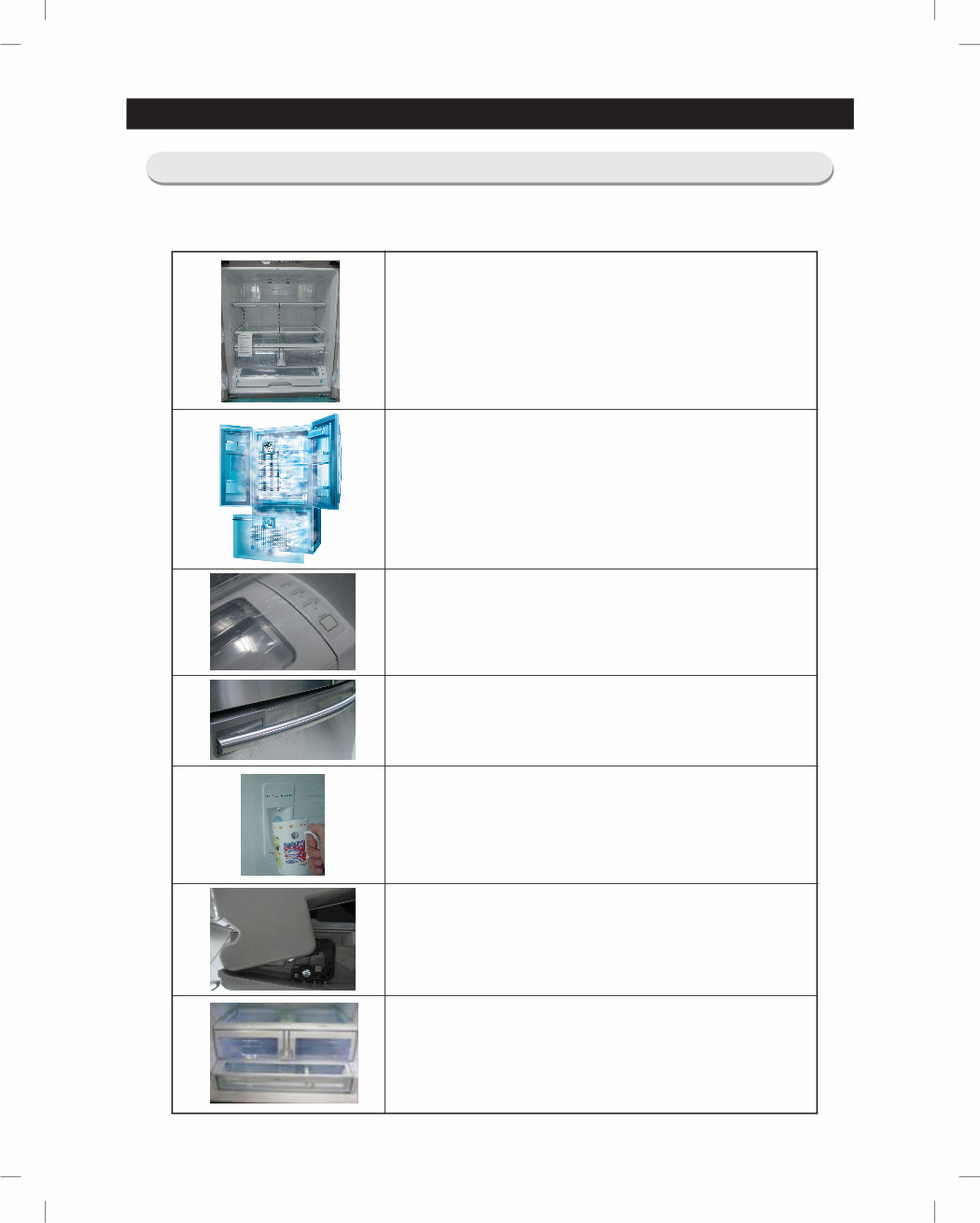

• A newly developed SAMSUNG bottom mount freezer in 2012 has the following
characteristics.
Surround Multi Flow
• Provides uniform cooling for each shelf and every
corner in the fresh food section.
This is accomplished by using a center positioned
fan and duct with multiple cooling flow openings.
Twin Cooling System
• The refrigerator and the freezer each have an evaporator.
Given this independent system, the freezer and the
refrigerator are cooled individually as required and are,
therefore, more efficient.
Food odor from the refrigerator does not affect food in the
freezer due to separate air flow circulation.
One Touch Water Dispenser (Internal)
• One Hand Water Dispenser (RF261B*)
Secure Auto Close Door System
• Doors close tightly.
• Food on the doors stays cool.
• Prevents moisture from forming on the outside of the
doors.
Slim Water Filtration System
• Slim water filter is placed between crispers for changing
filter conveniently without removing items from Refrigerator.
Electronic control from outside of Pantry Cover
• Adjustable temperature control ((around 41℉(5℃) : Deli /
around 38℉(3℃) : Fresh / around 34℉(1℃) Chilled )
Temperature control from outside of the Pantry : user friendly
design helps keep foods fresh for longer
2-1) Introduction of Main Function
Easy Handle System
• Ez-open Freezer Door
• Ergonomic Door Design
AW1-12 (RF261BEAESR)-12.05.04.indd 9 AW1-12 (RF261BEAESR)-12.05.04.indd 9 2012.5.4 1:33:26 PM 2012.5.4 1:33:26 PM
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$36.99
Viewed 89 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$36.99
Are you experiencing issues with your Samsung RF261BEAESR Refrigerator? Instead of replacing it or spending a fortune on repairs, why not take matters into your own hands?
This comprehensive service and repair manual is utilized by Certified Samsung Technicians and is designed to assist you in troubleshooting and fixing your refrigerator.
Here's what you can expect to find in this manual:
- Safety Warnings and Precautions
- Product Specifications
- Disassembly and Reassembly Instructions
- Troubleshooting Guidelines
- Diagnostic Methods
- PCB Diagram
- Wiring Diagram
- Schematic Diagram
This detailed manual is accompanied by illustrations and step-by-step instructions, ensuring you can effectively service and repair your refrigerator.
It's important to note that this is the official and complete service repair manual, available in PDF format. Rest assured, it is not a scanned-in or bootlegged copy and is produced in the highest resolution for optimal print quality.
You can conveniently print this manual from any computer and printer, providing instant access without any shipping fees or waiting for postal delivery.
Specifications:
- Language: English
- Format: PDF
- Pages: 97
- Platform: Windows and MAC
If you're in search of a specific service manual that seems elusive, feel free to reach out to us with your request. With the most extensive service manual database available, we're likely to have what you need!
