BOTTOM MOUNTED FREEZER TYPE BASIC MODEL : RB41J7899S4/EF RB36J8855SR/EF MODEL NAME : RB41J7*****, RB38J7***** RB36J8*****, RB33J8***** REFRIGERATOR REFRIGERATOR CONTENTS 1. PRECAUTIONS (SAFETY WARNINGS) ...... 5 2. PRODUCT SPECIFICATIONS .................. 8 3. DISASSEMBLY & REASSEMBLY ............ 15 4. TROUBLESHOOTING ........................... 43 5. PCB/PBA DIAGRAM ............................ 79 6. WIRING DIAGRAM ...............................85 7. BLOCK DIAGRAM ...............................86 8. REFERENCES .................................... 90

2 IMPORTANT SAFETY NOTICE The service guide is for service men with adequate backgrounds of electrical, electronic, and mechanical experience. Any attempt to repair a major appliance may result in personal injury and property damage. The manufacturer or dealer cannot be responsible for the interpretation of this information. All rights reserved. This service guide may not be reproduced in whole or in part in any form without written permission from the SAMSUNG ELECTRONICS Company. WARNING

3 1. PRECAUTIONS (SAFETY WARNINGS) ............................... 5 2. PRODUCT SPECIFICATIONS ........................................... 8 2-1) Introduction of main function .................................................................................................. 8 2-2) Model Specification................................................................................................................. 9 2-3) Electric Parts Specification................................................................................................... 12 2-4) Dimensions (mm) .................................................................................................................. 14 3. DISASSEMBLY & REASSEMBLY ..................................... 15 3-1) Precaution .............................................................................................................................. 15 3-2) Assy Door .............................................................................................................................. 16 3-3) Door Sub parts...................................................................................................................... 18 3-4) Refrigerator Compartments ..................................................................................................20 3-5) Freezer Compartments ........................................................................................................ 27 3-6) Machine Compartment ......................................................................................................... 31 3-7) COMPRESSOR ...................................................................................................................... 33 3-8) Reversing the Door swing ................................................................................................... 34 4. TROUBLESHOOTING .................................................... 43 4-1) Check before Troubleshooting ................................................................................ 43 4-1-1) Test Function (Forced Operation / Forced Defrost function) ....................................... 43 4-1-2) Test Function (Forced Operation / Forced Defrost function) ....................................... 46 4-1-3) Self-Diagnosis Function ...................................................................................................48 4-1-4) Loading display function .................................................................................................. 51 4-1-5) Operation Restoration function in case of power failure .............................................. 53 4-1-6) Exhibition Mode................................................................................................................. 53 4-1-7) Option Settings function.................................................................................................... 54 4-1-8) Option Table ...................................................................................................................... 57 4-2) Troubleshooting Flow-Chart by Symptoms.............................................................. 60 4-2-1) When Self-Diagnosis Error occurs ................................................................................. 61 4-2-2) When the Freezer Fan does not operate (BLDC Motor) .............................................66 4-2-3) When the C-Fan does not operate (Applies to Models with C-Fan) ........................ 67 4-2-4) When the R-Fan does not operate(Applied to Models with R-Fan) .........................68 CONTENTS

4 4-2-5) When Defrost does not work (F DEF Heater) ...............................................................69 4-2-6) When there is No Power (INVERTER PBA) .................................................................. 70 4-2-7) When the Compressor is not working (INVERTER PBA) .............................................71 4-2-8) When the unit keeps alarming (Buzzer Sound) ............................................................ 72 4-2-9) When PANEL PCB operates abnormally ....................................................................... 74 4-2-10) When the Room Lamp (LED) does not light up .......................................................... 75 4-2-11) When the Handler lamp (LED) does not light up......................................................... 76 4-2-12) When Fridge Damper does not work (Motor DAMPER models only) ....................... 77 4-2-13) LED blinking frequency depending on protecting functions (Inverter PBA) ............ 78 5. PCB/PBA DIAGRAM ..................................................... 79 5-1) PART Layout (Main Board)................................................................................................... 79 5-2) Parts Layout (Inverter Board) ............................................................................................ 80 5-3) Connector Layout & Description (Main Board).................................................................. 81 5-4) Connector Layout & Description (Main Board, A++, MONO CYCLE)............................. 82 5-5) Connector Layout & Description (Main Board, A+, MONO CYCLE) ...............................83 5-6) Connector Layout & Description (Inverter Board) A+++ .................................................84 6. WIRING DIAGRAM ........................................................ 85 7. BLOCK DIAGRAM ........................................................ 86 7-1) PBA Main A+++ ....................................................................................................................86 7-2) PBA Main A++ ...................................................................................................................... 87 7-3) PBA Main A+.........................................................................................................................88 7-4) PBA Inverter A+++ ...............................................................................................................89 8. REFERENCES ..............................................................90 8-1) Model Code table................................................................................................................. 90 8-2) Cycle repair standard working process ............................................................................ 91 CONTENTS

5 1. PRECAUTIONS (SAFETY WARNINGS) ● Upon electronic Control system repair/change, make sure the set unplugged. Be ware of electric shock. ● Use rated electronic Control equipment. Make sure to check out ModeL name, Rated voltage, Rated current, Operation Temp, etc. ● Upon repair, make sure that harnesses are not to be water-penetrated and are bundled tight. Should not be detached by a certain amount of external force. ● Upon repair, completely remove dust or other foreign substances from housing, harness, connector, etc. To prevent fire by tracking, short, etc. ● Check out whether water has penetrated into the electronic Control system. If there is any kind of trace, take necessary measures such as related component change, insulation tapping, etc. ● After repair, check out the assembled state of parts. It should be the same as the previous state. ● Check out the surrounding conditions. Change the location, if the fridge is located at humid, wet places or the installed state is unstable. ● If needed, ground the fridge. Especially, if there is a possibility of electric leakage, ground is indispensable. ● Do not allow consumers to overload a certain outlet. ● Check out whether the power cord or the outlet is broken, squeezed, chopped off or heat- deformed. Repair or replace the defective power cord/outlet immediately. Make sure the power cord is not punctuated or stomped down. ● Do not allow consumers to keep food unstable or place bottles in the Freezer Room. ● Do not allow consumers to repair the fridge for themselves. ● Do not allow consumers to keep things except for food. Pharmaceutical, Chemical substances : These are not possible to be fine-Controlled with a consumer fridge. Flammable material (alcohol, benzene, ether, LPG, etc) : possibility of explosion. 1. PRECAUTIONS (SAFETY WARNINGS)

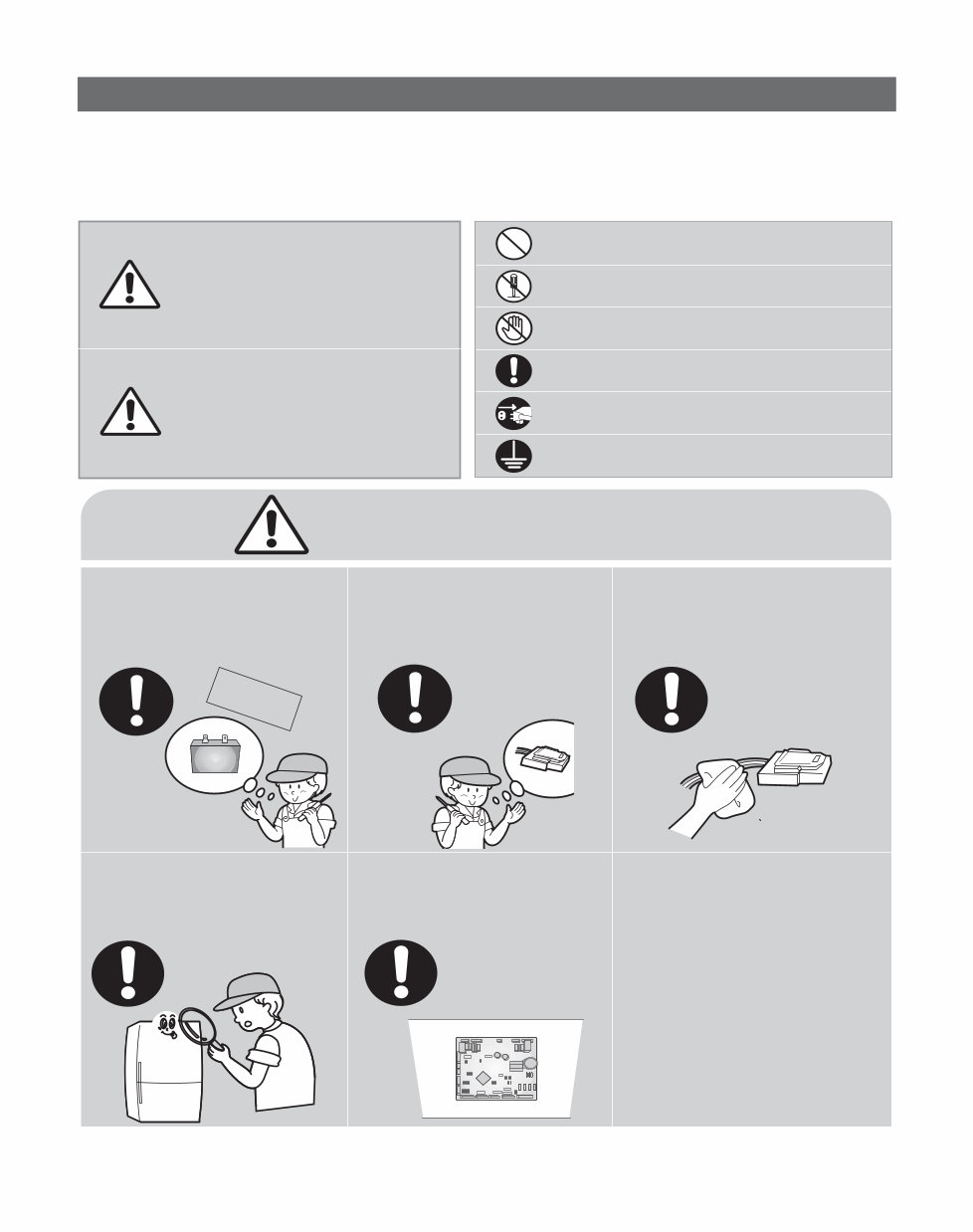

6 1. PRECAUTIONS (SAFETY WARNINGS) Read all instructions before repairing the product and keep to the instructions in order to prevent danger or property damage. CAUTION/WARNING SYMBOLS DISPLAYED SYMBOLS Indicates that a danger of death or serious injury exists. Indicates that a risk of personal injury or material damage exists. means Prohibition”. means Do not disassemble”. means No contact”. means The things to be followed”. means Earth to prevent Electric shock”. means Power cord should be unplugged from the consent” Warning Warning & Caution Caution Use the rated components on the replacement. ● Check the correct model, rated voltage, rated current, operating temperature and so on. On repair, make sure that the wires such as harness are bundled tightly. ● Bundle tightly wires in order not to be detached by the external force and then not to be wetted. Check if there is any trace indicating the permeation of water. ● If there is that kind of trace, change the related components or do the necessary treatment such as taping using the insulating tape. After repair, check the assembled state of components. ● It must be in the same assembled state when compared with the state before disassembly. On repair, remove completely dust or other things of housing parts, harness parts, and check parts. ● Cleaning may prevent the possible fire by tracking or short. Rated components

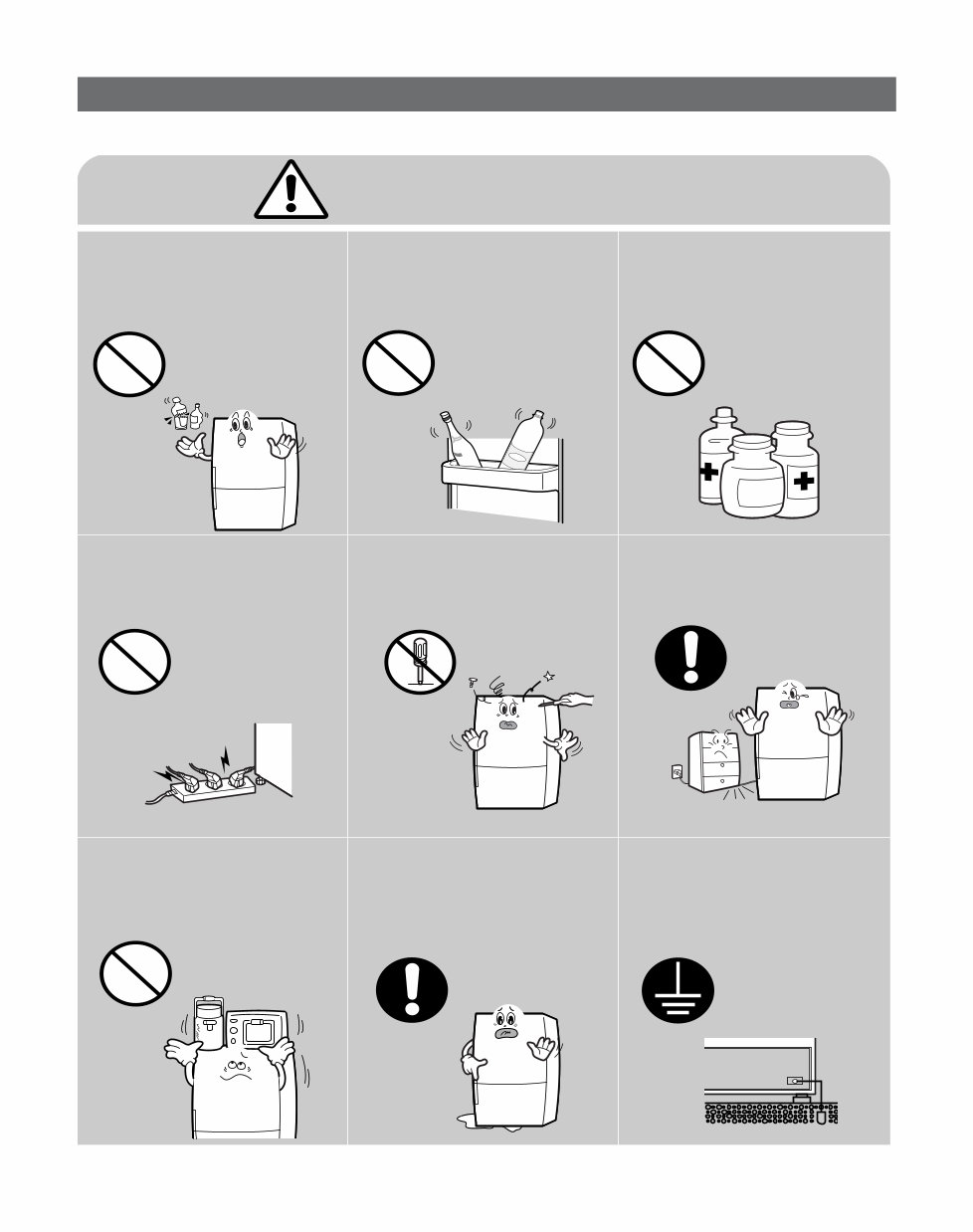

7 1. PRECAUTIONS (SAFETY WARNINGS) ※ Please let users know following warnings & cautions in detail. Do not allow users to put bottles or kinds of glass in the freezer. ● Freezing of the contents may inflict a wound. Do not allow users to store narrow and lengthy bottles or foods in a small multi-purpose room. ● It may hurt you when refrigerator door is opened and closed resulting in falling stuff down. Do not allow users to store pharmaceutical products, scientific materials, etc., in the refrigerator. ● The products which temperature control should not be stored in the refrigerator. Do not allow users to store articles on the product. ● Opening or closing the door may cause things to fall down, with may inflict a wound. Prohibition Prohibition Prohibition Prohibition Warning & Caution Do not allow users to disassemble, repair or alter. ● It may cause fire or abnormal operation which leads to injury. Do not disassemble Do not allow users to insert the power plugs for many products at the same time. ● May cause abnormal generation of heat or fire. Prohibition Do not allow users to bend the power cord with excessive force or do not have the power cord pressed by heavy article. ● May cause fire. Do not allow users to install the refrigerator in the wet place or the place which water splashes. ● Deterioration of insulation of electric parts may cause electric shock or fire. Make sure of the earth. ● If earthing is not done, it will cause breakdown and electric shock. Earth

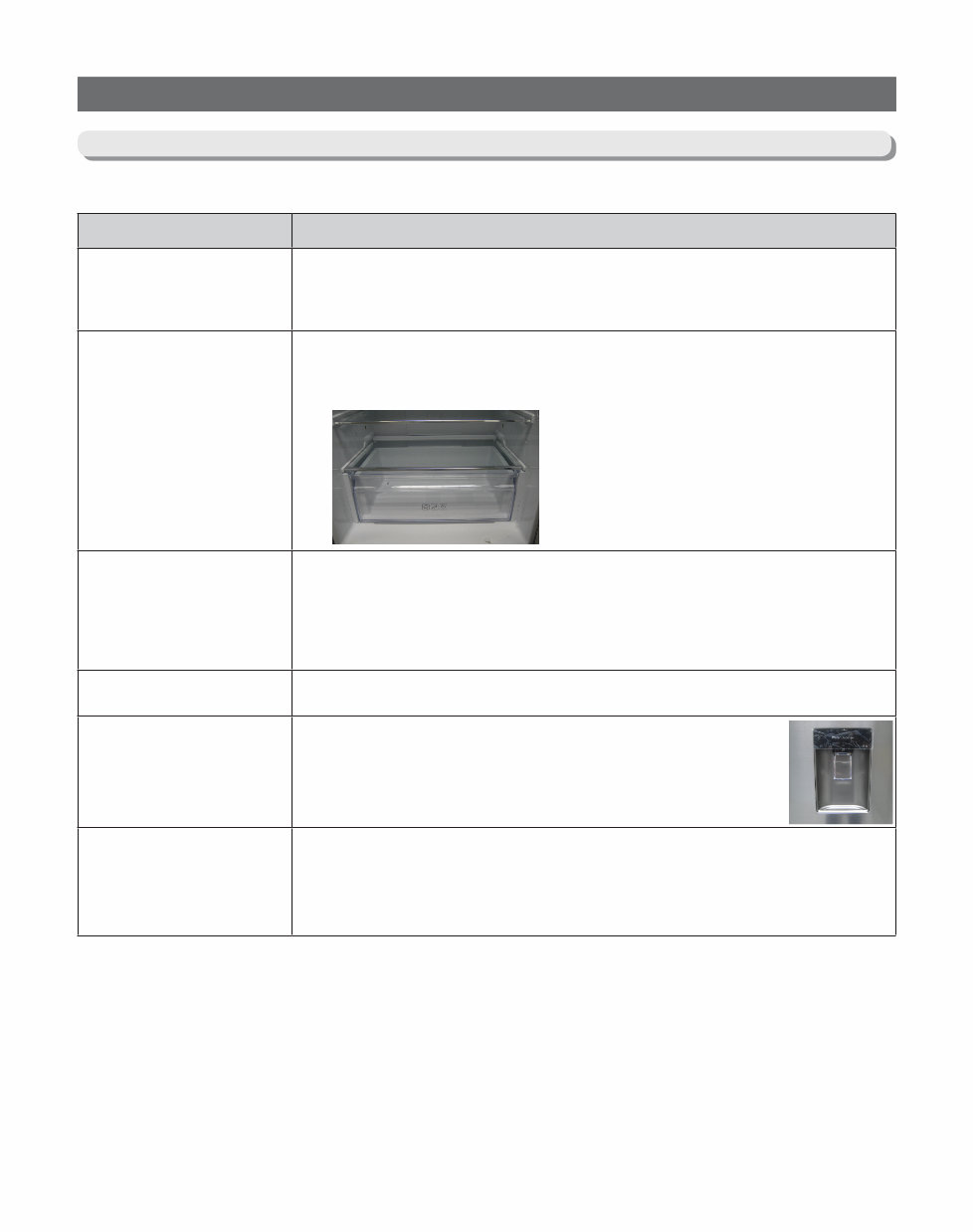

8 2. PRODUCT SPECIFICATIONS 2-1) Introduction of main function ● SAMSUNG refrigerator has the following characteristics. Characteristics Specification Environment-friendly fridge/freezer using R600a • This products protects the environment by using the R600a refrigerant and the cyclopentane blowing agent • Properties: ODP (Ozone Depletion Potential): 0 GWP: Lowest * GWP (Global Warming Potential) High -energy efficiency • Drawer for dry or wrapped food • Drawer for fresh salades,vegetables and fruits • If you set the fridge to desired temperature 1 °C or 2 °C, food on that BOX may be frozen. Fridge at the top, drawer- type freezer at the bottom • The highly ergonomic vegetables compartment is placed at waist height as it is frequently used. • The drawer -type freezer minimize temperature variations and stores food cleanly and conveniently. • The operation switch is handy to switch the appliance on and off without pulling out the main plug. Digital temperature control display • The display shows all functions of the appliance, so that you can easily control them. Supply of cool water without door openning • With the water dispenser, you can obtain chilled water easily without opening the door. In addition, you can save electricty by more than 30% reducing the number of times the door is open. LED LAMP • High Energy Efficiency, Long Life 2. PRODUCT SPECIFICATIONS

9 2. PRODUCT SPECIFICATIONS 2-2) Model Specification ITEM SPECIFICATION Model RB41J7**0 RB41J7**1 RB41J7**5 RB41J7**7 RB41J7*39 RB41J7*59 RB41J7*99 RB38J70*0 RB38J72*0 RB38J73*0 RB38J78*0 RB38J7**1 RB38J7200 (Korea) RB38J75*0 RB38J76*0 RB38J70*5 RB38J71*5 RB38J72*5 RB38J73*5 RB38J77*5 RB38J78*5 RB38J75*5 RB38J76*5 RB38J7**7 RB38J7**9 NET DIMENSION (mm) Width 595 Depth 650 Height 2010 1920 NET CAPACITY (L) TOTAL 410 410 410 407 402 384 401 373 384 373 383 383 Refrigerator 280 280 280 277 272 254 257 243 254 243 253 253 Freezer 130 130 130 130 130 130 144 130 130 130 130 130 Rated Voltage / Frequency 200 - 240V ~ 50Hz, 220V ~ 60Hz Motor rated consumption power C-FAN - 12V, 3W - - - 12V, 3W R-FAN - - 12V, 2.2W - - - - - 12V, 2.2W F-FAN 12V, 2.2W Electric heater rated consumption power 150W (@ AC230V) Kind of Refrigerator INDIRECT COOLING METHOD REFRIGERATOR Refrigerant / Refrigerant Amount (g) R-600a 65 70 67 65 70 67 Freezer Performance 4 Star Product Weight (kg) 85 85 86 97 97 80 80 80 80 80 80 93

10 2. PRODUCT SPECIFICATIONS ITEM SPECIFICATION Model RB36J8**5 RB36J8**7 RB36J8*59 RB36J8*99 RB33J8**5 RB33J8005 (Korea) RB33J8**7 RB33J8797 (Korea) RB33J8**9 NET DIMENSION (mm) Width 595 595 595 595 595 595 595 595 595 Depth 590 590 590 590 590 590 590 590 590 Height 2010 2010 2010 2010 1920 1920 1920 1920 1920 NET CAPACITY (L) TOTAL 357 351 356 350 335 351 328 343 333 Refrigerator 247 241 246 240 225 228 218 220 223 Freezer 110 110 110 110 110 123 110 123 110 Rated Voltage / Frequency 200 - 240V ~ 50Hz, 220V ~ 60Hz Motor rated consumption power C-FAN 12V, 3W R-FAN - 12V, 2.2W - - 12V, 2.2W F-FAN 12V, 2.2W Electric heater rated consumption power 150W (@ AC230V) Kind of Refrigerator INDIRECT COOLING METHOD REFRIGERATOR Refrigerant / Refrigerant Amount (g) R-600a 70 67 70 67 Freezer Performance 4 Star Product Weight (kg) 84 84 95 96 79 79 79 79 90
