Daewoo FR-360/FR-390 Refrigerators OEM Service & Repair Manual

Service Manual S/M No. : Sep. 2001 DAEWOO ELECTRONICS CO., LTD. http : //svc.dwe.co.kr Model: FR-360, FR-390 FR36000001 ✔ Caution : In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information,please refer to PPL(Parts Price List) in Service Information Center (http://svc.dwe.co.kr).

1 TABLE OF CONTENTS SPECIFICATION ........................................................................................................... 2 EXTERNAL VIEWS ........................................................................................................ 3 WIRING DIAGRAM ..................................................................................................... 4 NAME OF PARTS ........................................................................................................ 5 AIR FLOW DIAGRAM ................................................................................................... 6 REFRUGERANT CYCLE DIAGRAM ................................................................................. 7 MACHINE ROOM VIEW AND PART LIST ......................................................................... 8 MAIN COMPONENTS .................................................................................................. 9 POWER CORD ............................................................................................................ 12 PART LIST AND EXPLODED VIEW ................................................................................... 13 1) For starters, be sure to check any chances of the leakage of electricity. 2) You could handle a part in the vicinity of electricity after unplugging. 3) You should put on rubber gloves to prevent an electric shock on operation test. 4) Make sure the rated current, voltage, capacity before using an instrument. 5) Keep your wet hands away from the metal goods in the freezer compartment not to be frostbitten. 6) Be careful not to let water to permeate the electric part in the machine room. 7) With the door open during your repair, you might be hurt by that door. 8) You should give a tilt to the refrigerator for your safe after removing the breakable goods inside the refrigerator. 9) You'd better use gloves if you fix it up around the evaporator. SAFETY AND PRECAUTIONS

2 SPECIFICATION Model Name FR-360 FR-390 Cooling system Fan Cooling Convention Type Refrigeration System Air Forced Convention Defrost System Forced Fin-Evaporator Type Defrost Operation Automatic start & stop Cold Control Adjustable Dial Method NET GROSS NET GROSS Capacity (l) Freezer 78 80 78 80 Refrigerator 226 245 240 260 Total 304 325 318 340 External Dimension (mm) Width (W) 667 667 Depth (D) 637 637 Height (H) 1677 1727 Net Weight (kg) 60 61

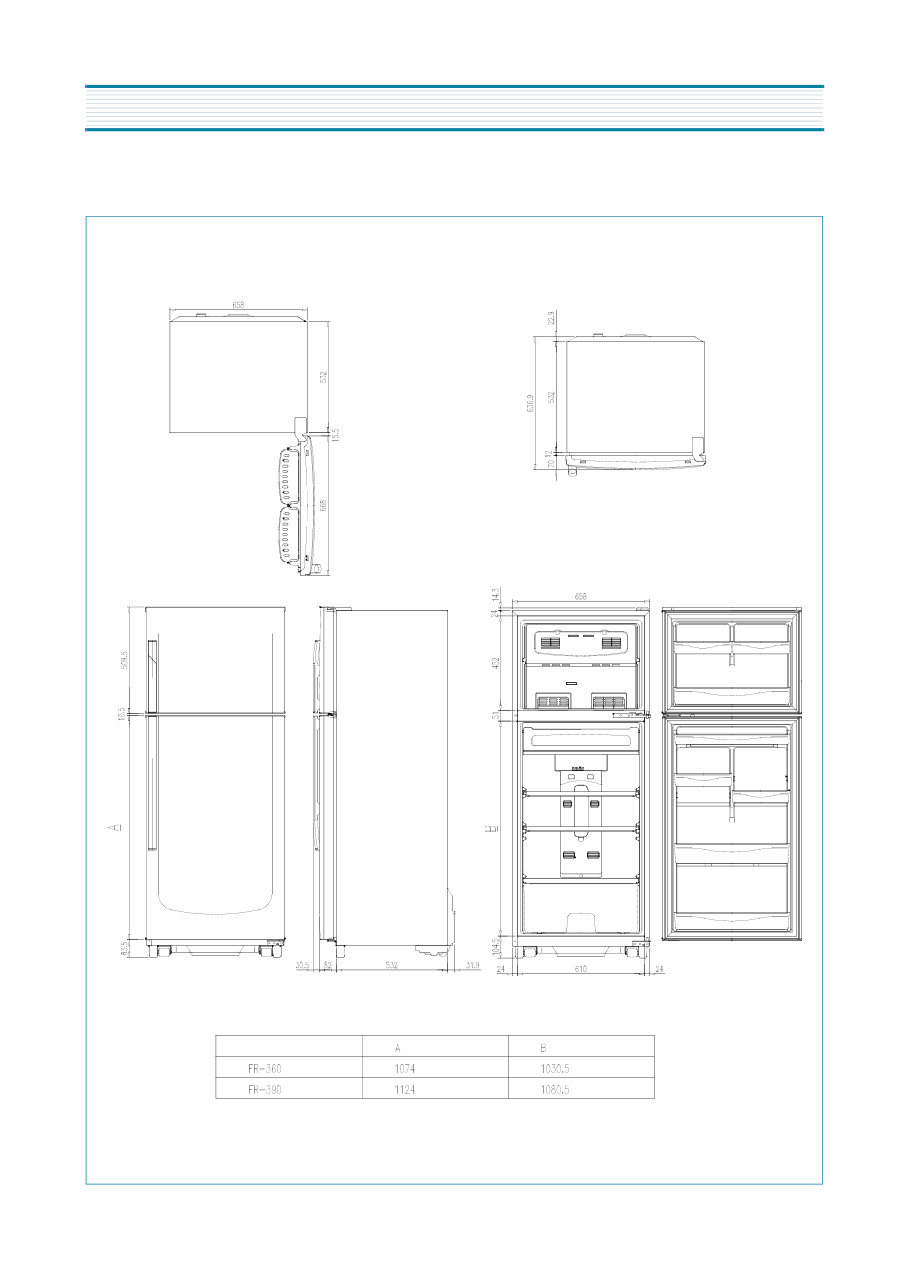

3 EXTERNAL VIEWS 1. FR-360,390

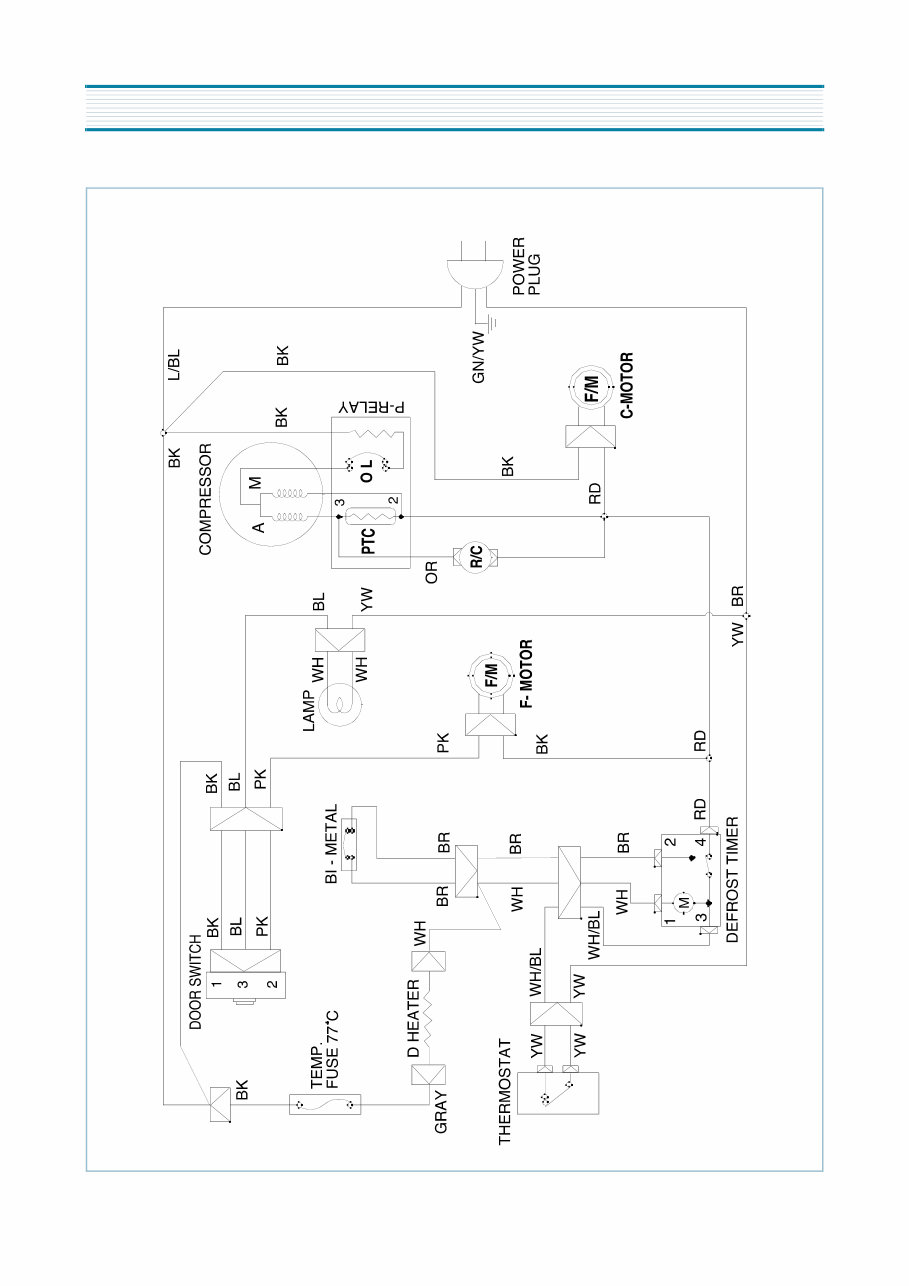

4 WIRING DIAGRAM

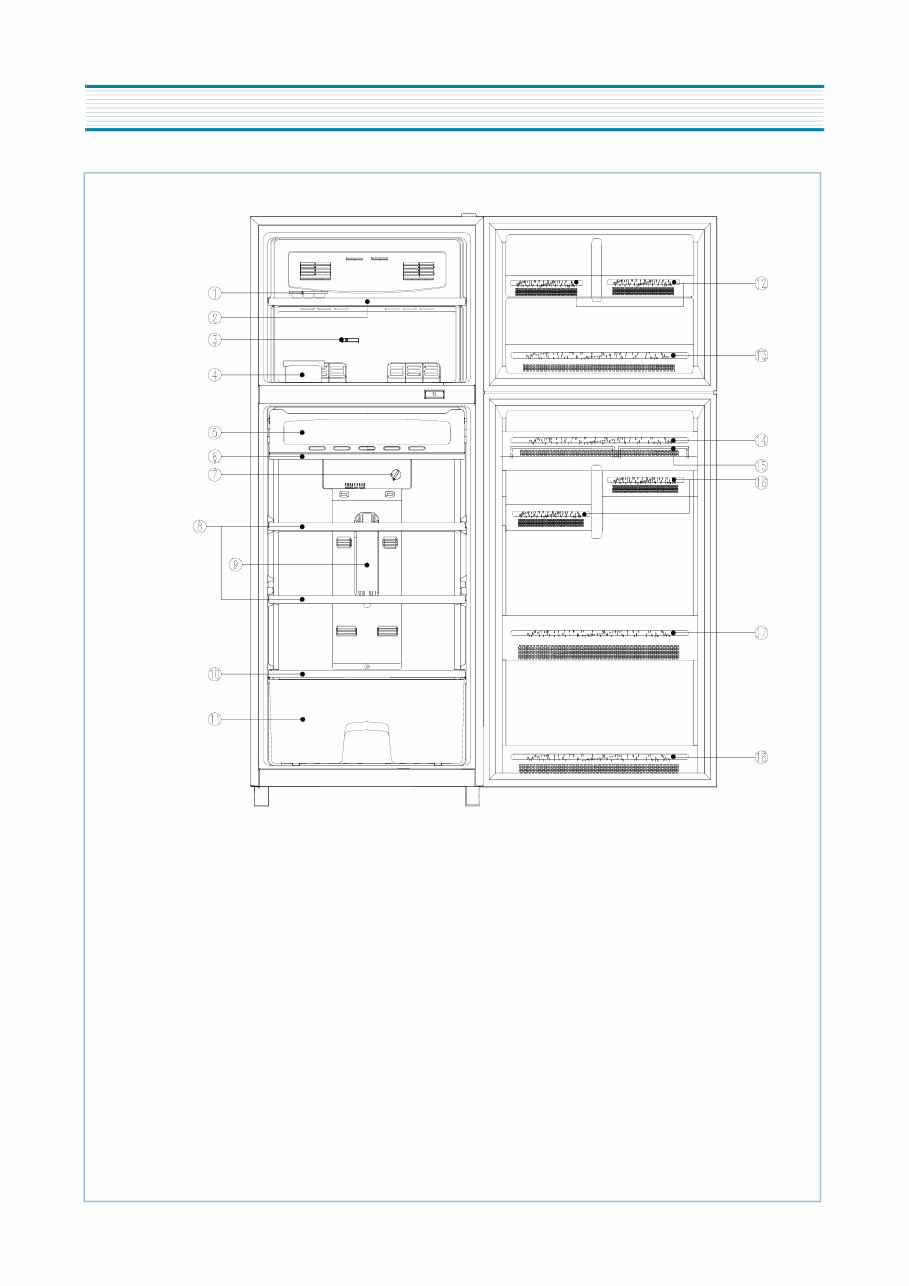

5 NAME OF PARTS 1 CASE ICING 2 F SHELF (REMOVABLE) 3 FREEZER TEMPERATURE CONTROL KNOB 4 CASE ICE 5 CHILLED CASE DOOR 6 CASE CHILLED 7 REFRIGERATOR TEMPERATURE CONTROL SWITCH 8 R SHELF (REMOVABLE) 9 LAMP COVER (SHADE R) 10 COVER CASE VAGETB 11 CASE VEGETABLE 12 FREEZER POCKET (TOP) 13 FREEZER POCKET (BOTTOM) 14 EGG POCKET (TOP) 15 CASE EGG 16 UTILITY POCKET (BOTTOM) 17 BOTTLE POCKET (TOP) 18 BOTTLE POCKET (BOTTOM)

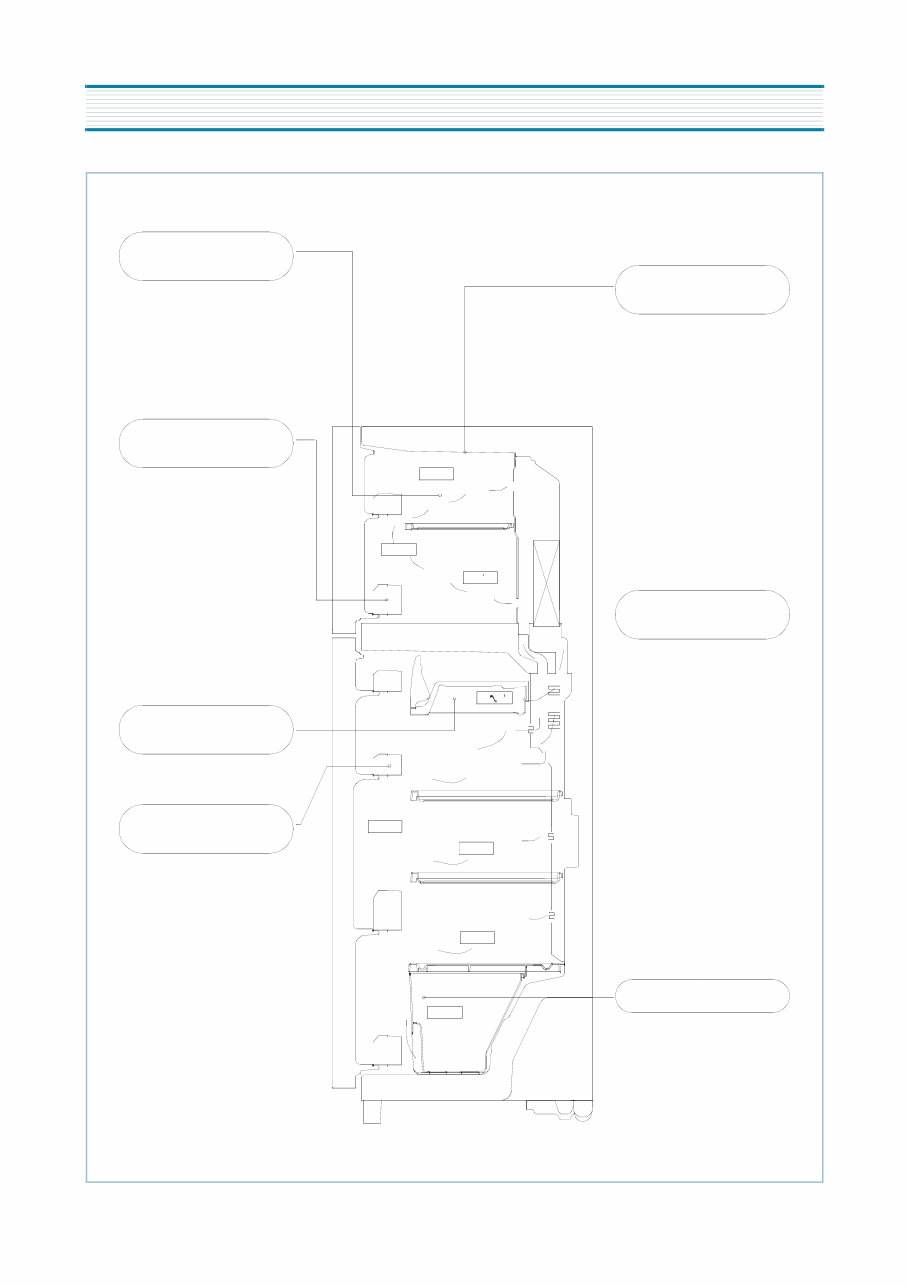

6 AIR FLOW DIAGRAM -18 C -18 C -18 C -1~1 C 4~6 C 1~4 C 1~4 C 4~7 C AIR CIRCULATION in the Freezer. Cold air flow comes out from the upper hole and comes into the lower hole in louver. FREEZER COMPARTMENT Do not put in any breakable bottle. REFRIGERATOR COMPARTMENT Do not place frozen food near the duct. It may freeze due to low temperature. CASE VEGETABLE Vegetables should be stored in this vessel and wrap is used to keep them flesh. FREEZER COMPARTMENT DOOR POCKET Do not store ice cream or frozen food for a long time. Temperature may rise with frequent opening and closing. FRESH FOOD PRESERVING CASE(CHILLED CASE) Use for storing fish or meat. REFRIGERATOR COM- PARTMENT DOOR POCKET The temperature of this position is high. When margarine or something is stored for 1~2 week, You may refrigerator shelf.

7 REFRIGERANT CYCLE DIAGRAM

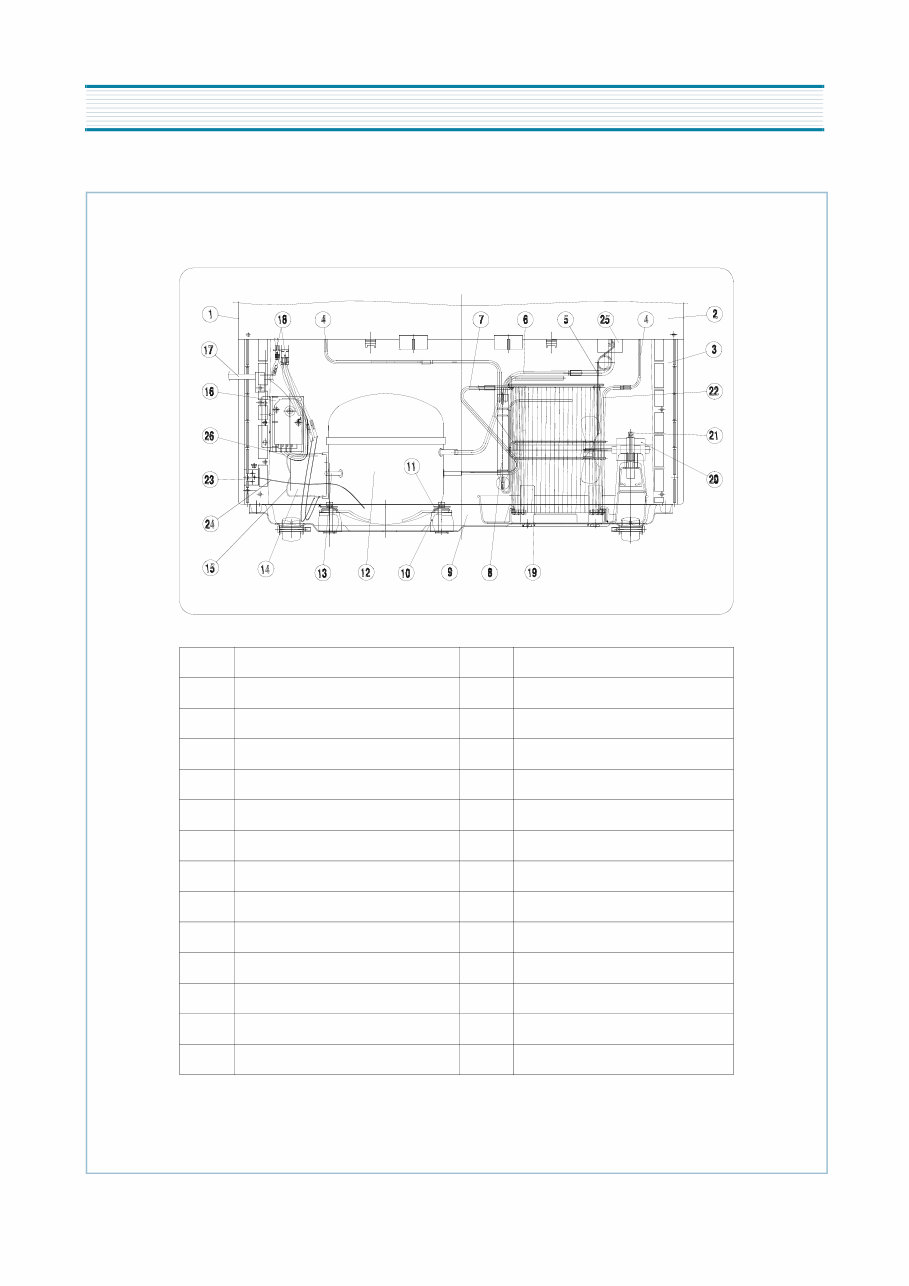

8 MACHINE ROOM VIEW AND PART LIST PART NAME CABINET AS COVER CAB BASE CAB AS PIPE HOT PIPE SUC AS PIPE SUC CONN PIPE CONN A DRYER AS BASE COMP AS ABSORBER COMP WASHER COMP * T COMPRESSOR PIPE SERVICE NO. 1 2 3 4 5 6 7 8 9 10 11 12 13 NO. 14 15 16 17 18 19 20 21 22 23 24 25 26 PART NAME SWITCH P-RELAY AS BAND RELAY BOX POWER AS CORD POWER AS HARNESS MAIN CASE VAPORI C-FAN MOTOR FIXTURE C MOTOR AS WI-CON AS BRACKET EARTH WIRE EARTH BANGJIN GUM HARNESS TIMER AS

9 MAIN COMPONENTS 1.COMPRESSOR 2. RELAY 3. STARTING CAPACITOR REFRIGERANT R12 VOLTAGE ( V/HZ) 110/60 127/60 220~240/50 220V/60 COMP MODEL CL23YE-3 CL23YE-2 SL25YE-5 PL23YE-4 PART CODE 3957123A10 3957123A20 3954125A50 3956123A40 STARTING TYPE CSIR CSIR RSIR RSCR REFRIGERANT(g) 130 REFRIGERANT R134a VOLTAGE ( V/HZ) 110 / 60 115 / 60 220~240/50 220V/60 COMP MODEL HEL23YG-3 HEL21YH-1 HSL25YE-5 HPL25YG2-5 HPL23YE-4 PART CODE 3953123R30 3953121S10 39524125G50 3956125R50 3956123G40 STARTING TYPE RSCR RSCR RSIR RSCR RSCR REFRIGERANT(g) 115 REFRIGERANT R12 VOLTAGE ( V/HZ) 110/60 127/60 220~240/50 220V/60 RELAY MODEL 427THBYY-52 414THBYY-52 232THBYY-52 197SHBYY-52 PART CODE 3018114661 3018114641 3018114631 3018114621 PTC RESISTANCE S068 S068 S220 S330 REFRIGERANT R134a VOLTAGE ( V/HZ) 110 / 60 115 / 60 220~240/50 220V/60 RELAY MODEL 762SHBYY-52 762SHBYY-52 276THBYY-52 213NHBYY-52 174SHBYY-52 PART CODE 3018114720 3018114720 3018114101 3018116911 3018114710 PTC RESISTANCE S068 S068 S220 S330 S330 REFRIGERANT R12 VOLTAGE ( V/HZ) 110/60 127/60 220~240/50 220V/60 PART CODE 3016400100 X X X SPEC. 200VAC 100μF X X X REFRIGERANT R134a VOLTAGE ( V/HZ) 110 / 60 115 / 60 220~240/50 220V/60 PART CODE X X X X X SPEC. X X X X X
