WHIRLPOOL MAX 18 / AW MICROWAVE OVEN Repair Manual

SERVICE Whirlpool Europe Customer Services Model MAX 18/AW Version 8538 018 99261 Page Introduction safety 2 Technical data 3 Spare part list 4 Exploded view 5 Wiring diagram 6 - 7 Service Manual Microwave oven MAX 18/AW MAX 18/AW This documentation is only intended for qualiﬁed technicians who are aware of the respec- tive safety regulations. Date: 01.09.2003 (Mod. 01) Subject to modiﬁcation Document-No.: 4812 714 14499 Downloaded from www.Manualslib.com manuals search engine

SERVICE 10.01.2003 / Page 2 MAX 18/AW Whirlpool Europe Doc. No: 4812 714 14499 8538 018 99261 Customer Service Introduction safety INTRODUCTION Before leaving the factory each oven is carefully checked. It must, however, be installed and used correctly. Despite all the steps taken to make the oven safe, the safety is dependent on the correct installation and the fact the user understands how to use and maintain the oven. The information in this section should be used as a reminder that the oven is safe and that anyone who uses it must first read the instructions for use in order to be able to use the oven correctly and obtain best results. SAFETY To avoid injury to yourself and damage to the appliance always work to the following rules when servicing an oven. Always disconnect the plug from the mains before starting work. If there is no plug switch off the electric supply at the control box. When you have finished servicing an oven before you reconnect it to the mains, make sure that: - all the internal connections are correct - the wires are insulated and not touching the door or the cabinet or anything sharp - all the earth connections are electrically and mechanically sound - do not modify or anyway interfere with the safety devices built-in to the oven - make sure that each replacement part you use conforms to the manufacturer´s specifications Do not start a repair if you have any doubt as to your ability to complete it. CAUTION - MICROWAVE RADIATION PERSONNEL SHOULD NOT BE EXPOSED TO THE MICROWAVE ENERGY WHICH MAY RADIATE FROM THE MAGNETRON, WAVEGUIDE OR ANTENNA IF THEY ARE IMPROPERLY USED OR CONNECTED. ALL INPUT AND OUTPUT MICROWAVE CONNECTIONS, WAVEGUIDES, FLANGES AND GASKETS MUST BE SECURE. NEVER OPERATE THE DEVICE WITHOUT A MICROWAVE ENERGY ABSORBING LOAD ATTACHED. NEVER LOOK INTO AN OPEN WAVEGUIDE OR ANTENNA WHILE THE DEVICE IS ENERGIZED. NEVER OPERATE AN OVEN WITH CABINET OFF WITHOUT MEASURING THE MICROWAVE LEAKAGE AROUND MAGNETRON AND VISIBLE MICROWAVE CONNECTIONS (WELDING JOINTS). Do not operate the oven if the following conditions exist: - the door does not close firmly against the door support because of the door being warped or the hinges damaged. - The door trims or seals are damaged. - If there is any visible damage to the oven. - if the door does not close properly. Avoid operating the oven if known components in the interlock system, oven door or microwave generating assembly are known defective. They must be replaced. WARNING - HIGH VOLTAGE IT IS POSSIBLE TO COME IN CONTACT WITH LETHAL HIGH VOLTAGE WHEN WORKING WITH HV TRANSFORMER, HV CAPACITOR AND MAGNETRON. THEREFORE NEVER TRY TO MEASURE THE HIGH VOLTAGE. ALWAYS TAKE UTMOST CARE WHEN PERFORMING ELECTRIC MEASUREMENTS INSIDE THE OVEN. Downloaded from www.Manualslib.com manuals search engine

SERVICE Whirlpool Europe MAX 18/AW 01.09.2003 (Mod. 01) / Page 3 Customer Service 8538 018 99261 Doc. No: 4812 714 14499 Technical data Product dimensions Height 356 mm Width 392 mm Depth 350 mm Cavity dimensions Height 149 mm Width 290 mm Depth 290 mm Cavity volume 13 l Turntable diameter 280 mm Weight Net 12 kg Gross 13 kg Electrical Voltage 230 V Frequency 50 Hz Fuse 10 A Current consumption 6 A Power Power consumption 1300 W Output power MW 750 W Grill 600 W Maximum input power 1750 W Timer electronic 30 min. 5 power levels Error codes Certain fault conditions are indicated by an error code. The following codes are implemented: ERR 0 Convection temperature sensor fault. Not connected or short circuit. ERR 1 Short circuit in the MW relay. ERR 6 Weight sensor calibration has not been performed. ERR 7 Humidity sensor is defect or has not been connected. ERR 8 Impossible to write to E 2 PROM. ERR 9 Options have not been set. ERR A No wheel detected on weight sensor. ERR B No pulses from the weight sensor or <4267 Hz. ERR C Fuzzy temperature sensor fault. Not 19-41 ˚C. Downloaded from www.Manualslib.com manuals search engine

SERVICE 10.01.2003 / Page 4 MAX 18/AW Whirlpool Europe Doc. No: 4812 714 14499 8538 018 99261 Customer Service Spare part list Model MAX 18/AW Service No. 853801899261 Version 853801899261 Pos. No. 12NC Code Description 001 0 4812 440 10447 Cabinet outer WH 001 5 4812 462 79788 Plate, bottom 001 6 4812 462 79849 Frame distance piece right 001 7 4812 462 79851 Frame distance piece left 002 0 4812 325 58002 Frame top WH 002 1 4812 325 58003 Frame top plate AL 002 2 4812 325 58004 Frame heat shield top 005 0 4812 440 89022 Panel bottom 047 0 4812 492 48178 Hinge pin, top 100 0 4812 442 69289 Door complete Alu/White 117 0 4819 498 78366 Handle for crisp plate 130 0 4812 492 58039 Lever 130 1 4812 460 38114 Cam plate 130 2 4812 492 58041 Clutch 130 3 4812 492 58038 Pin 130 5 4812 492 68172 Spring, tension 245 0 4812 458 19141 Grid 246 0 4812 418 79782 Crisp plate AMW 001 255 0 4812 466 78407 Glass plate turntable 264 0 4812 539 28001 Crosspiece 264 1 4812 539 28002 Spider 404 0 4819 131 58019 Magnetron 406 0 4812 361 58156 Motor Turntable 406 1 4812 492 58037 Tube MW 412 0 4812 145 38032 Transformer HT 420 0 4812 121 58137 Capacitor 1.01μ F 426 0 4819 218 38038 Diode HV 440 0 4812 361 18317 Motor blower 452 0 4812 259 28845 Heating element 115V 452 1 4812 259 28846 Heat shield 490 0 4812 321 18195 Cable, mains 3X1, 0 EU 500 0 4812 214 78952 Control board assembly 505 0 4812 256 98038 Bracket PCB holder 505 1 4812 256 98037 Holder multi 506 0 4812 270 18026 Switch holder 554 0 4812 282 08613 Thermostat Magnetron 554 1 4812 256 98036 Bracket Thermostat 561 0 4812 282 48271 Thermostat waveguide 564 0 4812 282 08625 Thermostat overheat 617 0 4812 280 68349 Relay 633 0 4812 271 38427 Microswitch door 651 0 4819 134 28051 Lamp 774 0 4812 462 28268 Mica plate 774 2 4812 442 69274 Heat shield waveguide 900 2 4812 491 48016 Pin for micaplate 910 0 4812 502 38354 Screw safety 993 0 4812 462 18208 Holder baby bottle Downloaded from www.Manualslib.com manuals search engine

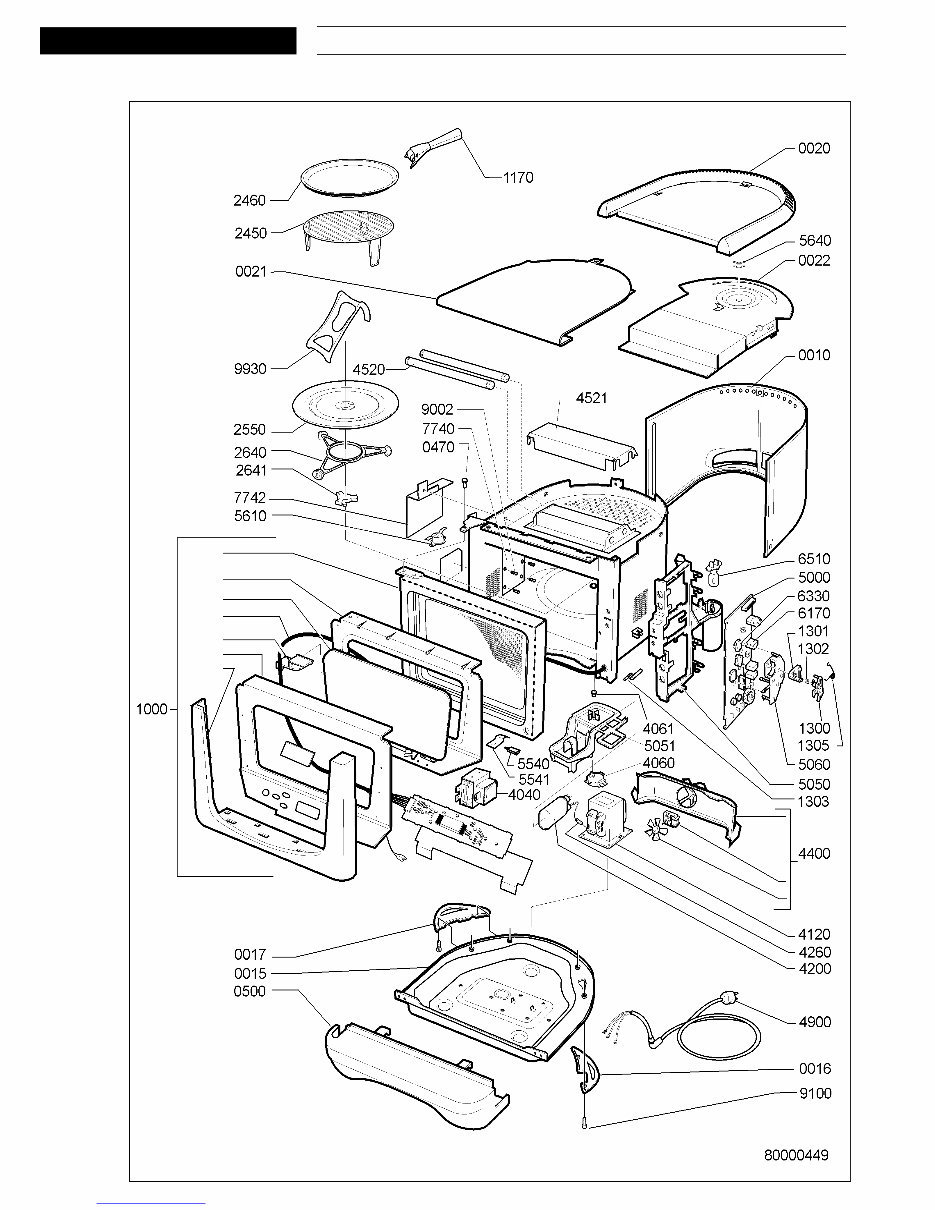

SERVICE Whirlpool Europe MAX 18/AW 10.01.2003 / Page 5 Customer Service 8538 018 99261 Doc. No: 4812 714 14499 Exploded view Downloaded from www.Manualslib.com manuals search engine

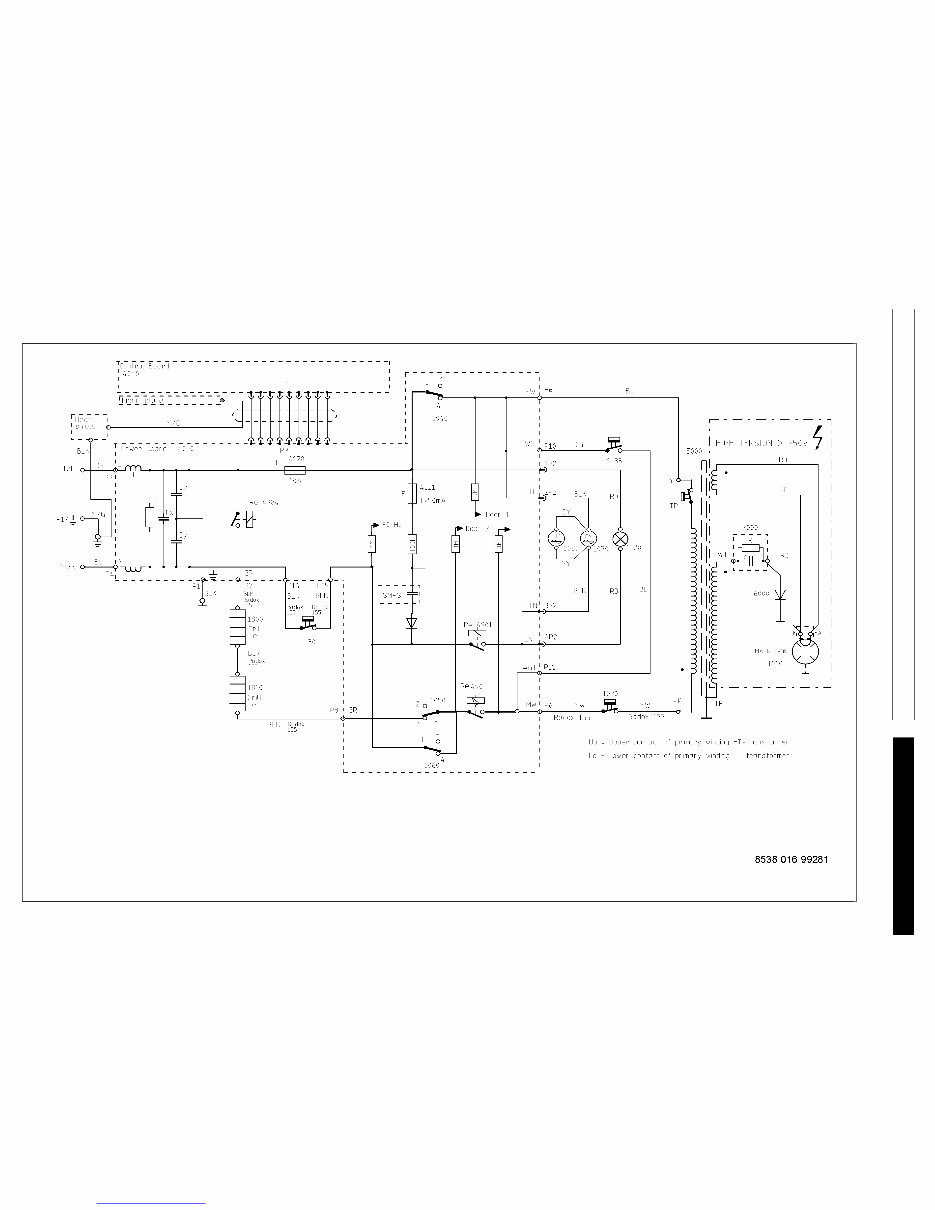

SERVICE 10.01.2003 / Page 6 MAX 18/AW Whirlpool Europe Doc. No: 4812 714 14499 8538 018 99261 Customer Service Wiring diagram OVEN IN OFF POSITION WITH DOOR CLOSED 1010 Magnetron 1020 Thermostat Magnetron 1040 Secondary doorswitch 1050 Monitor doorswitch 1060 Primary doorswitch 1070 Motor fan 1080 Motor turntable 1120 Cavity lamp 1130 Thermostat cavity 1135 Thermostat waveguide 1800 Heating element grill 2000 HT capacitor 4030 Power board 4040 Control system 4120 Fuse T 10 A 4121 Fuse T 250 mA 5000 HT transformer 6000 HT diode BL Blue BLK Black BR Brown GY Grey RD Red WT White YW Yellow Y/G Yellow - green Downloaded from www.Manualslib.com manuals search engine

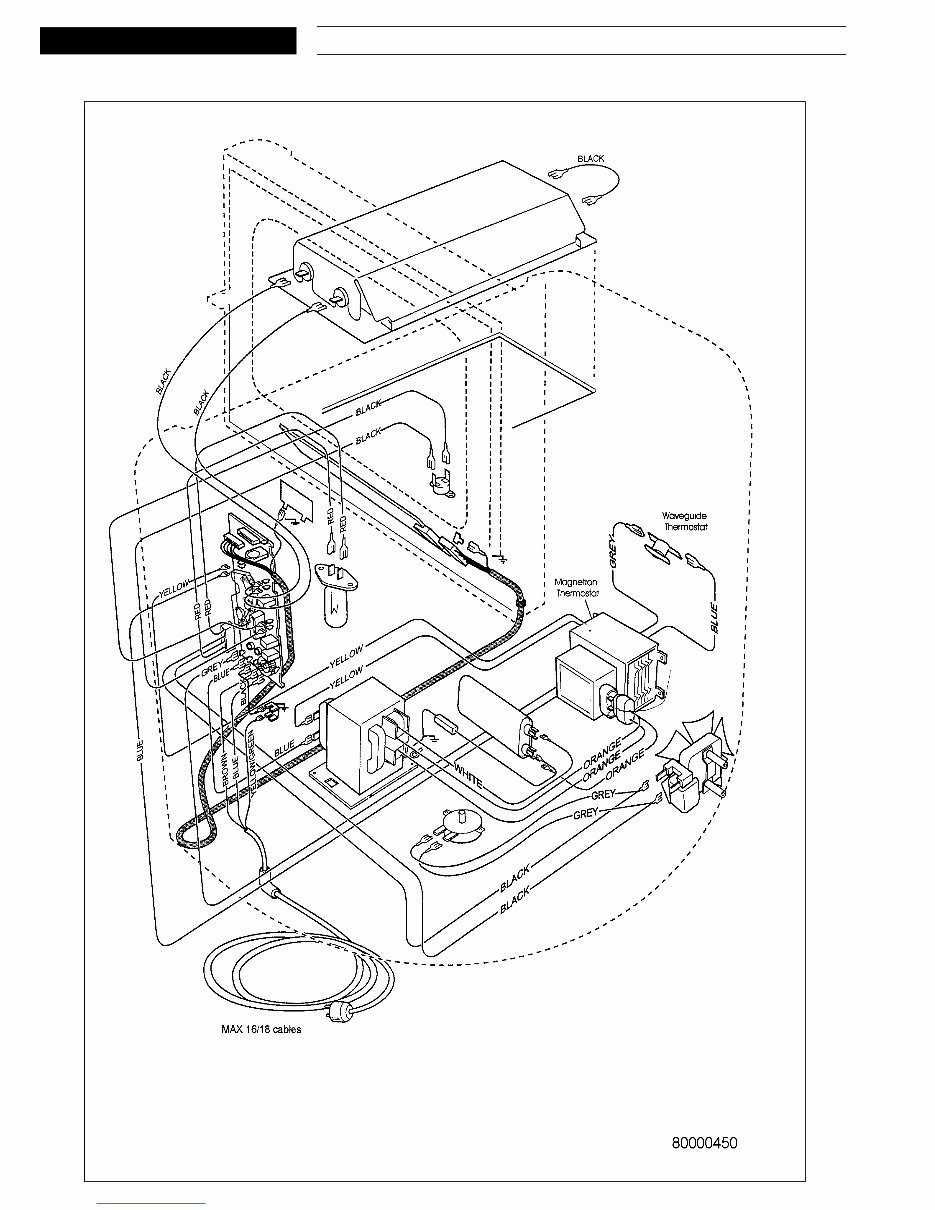

SERVICE Whirlpool Europe MAX 18/AW 10.01.2003 / Page 7 Customer Service 8538 018 99261 Doc. No: 4812 714 14499 Wiring diagram Downloaded from www.Manualslib.com manuals search engine
