SERVICE Whirlpool Europe Customer Services Model ADP 931/2 WH Version 8542 931 01310 Page Technical data 2 - 3 Spare part list 4 - 5 Exploded view 6 - 7 Circuit diagram 8 Program diagram 9 Text/Legend 10 - 16 Family Global A3 Service Manual Dishwasher ADP 931/2 WH ADP 931/2 WH This documentation is only intended for qualiﬁed technicians who are aware of the respec- tive safety regulations. Date: 23.06.1998 Subject to modiﬁcation Document-No.: 4812 718 13521 Downloaded from www.Manualslib.com manuals search engine

SERVICE 23.06.1998 / Page 2 ADP 931/2 WH Whirlpool Europe Doc. No: 4812 718 13521 8542 931 01310 Customer Service Technical data Dimension Height 85.0 cm Width 59.5 cm Depth 59.2 cm Weight 58.3 kg Electronic boards Service boards see spare part list Serial boards UB 4619 720 80721 CB 4619 720 78121 Succession of programs Programs see program diagram Succession 1-4b-6b Program information Start indicator Volume (normal program) Water Volume Level Regeneration 0.3 l 15 mm Back rinse 3x 1.0 l 68 mm Prewash 4.8 l 122 mm Main wash 4.5 l 121 mm Intermediate rinse 1 4.0 l 120 mm Intermediate rinse 2 4.0 l 120 mm Clear rinse 4.0 l 120 mm Safety / overﬂow 8.5 l 141 mm Measuring the level Remove the coarse sieve, put in a measuring meter into the sump, measure the hight of the water level. Detergent max. Pre-wash 10 cm 3 Main-wash 45 cm 3 Rinse aid 125 cm 3 6 Dosage steps 1 - 6 ml Water softener Saltcontainer 2 kg Resin container 900 cm 3 Regeneration dosage 300 cm 3 Water pressure Inlet pressure 0.3-10 bar Spray pump pressure 0.4 bar Rotations Spray pump motor 2800 RPM Drain pump motor 3000 RPM Spray arm lower 20 - 40 RPM Spray arm upper 25 - 35 RPM Ceiling rotor 45 - 65 RPM Flow rates / Inlet volume Flow meter (at 0.3 bar = quantity 1.1 l/min) 208 lmp/l Spray pump ~ 70 l/min Drain pump 16 l/min Pump height max. 1.1 m Inlet valve 4.5 l/min Spray arm lower 33 l/min Sprayarm upper 27 l/min Ceiling rotor 10 l/min Electrical data Base data Voltage 220/230 V Frequency 50 Hz Total power 2.0-2.2 kW Fuse 10 A Motor Spray pump motor Voltage 220/230 V Power consumption 160 W HI 81 Ω HA 44 Ω Capacitor 4 μ F Drain pump motor Voltage 220/240 V Power consumption 30 W Resistance 146 Ω Downloaded from www.Manualslib.com manuals search engine

SERVICE Whirlpool Europe ADP 931/2 WH 23.06.1998 / Page 3 Customer Service 8542 931 01310 Doc. No: 4812 718 13521 Technical data Heating 1 Element system Voltage 220/230 V Power consumption 1.87/2.04 kW Resistance 24.5 Ω Heating speed ~ 2.0 ˚C/min Temperature on surface ~ 115 ˚C Safety thermostat self reset 85 ˚C Potentiometer Position 0 0.0 kΩ Position 1 0.5 kΩ Position 2 1.0 kΩ Position 3 1.4 kΩ Position 4 1.8 kΩ Position 5 2.3 kΩ Position 6 2.6 kΩ Water valves Inlet valve Voltage 220/240 V Frequency 50/60 Hz Resistance 3.76 kΩ Regenerating valve Voltage 220/240 V Frequency 50/60 Hz Resistance 3.13 kΩ Coil of dispenser Voltage 220/240 V Frequency 50/60 Hz Resistance 1.5 kΩ Reedcontact ﬂow meter NTC 15 ˚C 75 kΩ 20 ˚C 62 kΩ 30 ˚C 43 kΩ 40 ˚C 28 kΩ 50 ˚C 19 kΩ 60 ˚C 13 kΩ 70 ˚C 9 kΩ 80 ˚C 6 kΩ 85 ˚C 5 kΩ Regeneration Volume 300 cm 3 Position 0 after wash cycles 10 water hardness 0-5 ˚dh 0-0.9 mmol/l 0-9 ˚Fh Position 1 after wash cycles 8 water hardness 6-10 ˚dh 1-1.8 mmol/l 10-18 ˚Fh Position 2 after wash cycles 6 water hardness 11-15 ˚dh 1.9-2.7 mmol/l 19-27 ˚Fh Position 3 after wash cycles 4 water hardness 16-21 ˚dh 2.8-3.7 mmol/l 28.37 ˚Fh Position 4 after wash cycles 3 water hardness 22-28 ˚dh 3.8-5.0 mmol/l 38-50 ˚Fh Position 5 after wash cycles 2 water hardness 29-35 ˚dh 5.1-6.3 mmol/l 51-63 ˚Fh Position 6 after wash cycles 1 water hardness 36-60 ˚dh 6.4-10.7 mmol/l 64-107 ˚Fh Salt consumption for regeneration 77 g Number of cycles with 2 kg salt 26 Downloaded from www.Manualslib.com manuals search engine

SERVICE 23.06.1998 / Page 4 ADP931/2WH Whirlpool Europe Doc. No: 4812 718 13521 8542 931 01310 Customer Service Spare part list Model ADP 931/2 WH Service No. 854293101310 Version 854293101310 Pos. No. 12NC Code Description 003 0 4812 440 19382 Traverse 004 0 4812 440 18952 Drip tray assy 004 1 4812 401 18402 Holder 011 0 4812 505 18357 Foot short 022 0 4812 440 18951 Side panel left 022 1 4812 440 18949 Side panel right 022 2 4812 440 18953 Spacer 024 0 4812 440 19401 Panel, rear to 98/19 024 0 4812 440 19463 Panel, rear from 98/19 030 0 4812 310 18428 Table top AMH4000WH 034 0 4812 404 78237 Spacer 034 1 4812 404 78242 Fastener table top 040 1 4812 417 18774 Hinge left 040 2 4812 417 18773 Hinge right 044 0 4812 492 38358 Spring f.door 044 1 4812 492 38364 Spring f.cap 047 0 4812 404 48591 Brake f.door 047 1 4812 401 18397 Band,brake 047 2 4812 404 68023 Hook 053 0 4812 440 88887 Plinth WH 103 0 4812 440 18978 Door outer 120 0 4812 440 19456 Door,inner 120 1 4812 440 18969 Batten 130 0 4812 417 58361 Tilt lock 131 0 4812 401 18416 Hook lock 191 0 4812 466 68564 Gasket door 192 0 4812 466 68467 Gasket, door lower 200 0 4812 418 18206 Container 241 0 4812 458 18912 Basket upper straight 241 1 4812 458 18324 Holder cups right white 241 3 4812 528 88068 Wheel,basket upper (set) 241 8 4812 466 68553 Spacer cap set 242 0 4812 458 18923 Basket lower cpl. 242 1 4812 528 88069 Wheel,basket lower 242 2 4812 458 18262 Plate,support f.basket lower 242 3 4812 458 18275 Plate,support f.basket lower 242 4 4812 466 48059 Stop 243 0 4812 458 18272 Basket cutlery 261 0 4819 462 38271 Rail telescope, inner 261 1 4819 404 48819 Cap rail 261 2 4812 462 78995 Cap rail ahead 263 0 4819 520 18013 Ball cage cpl. 263 1 4812 520 48001 Ball Niro 8 D 265 0 4812 404 48637 Basket adjustm. cpl. 265 2 4812 404 48638 Grip basket adjustment 301 0 4812 453 79538 Control panel WH 303 1 4812 460 38055 Plate,handle WH 305 0 4812 440 18964 Batten WH 322 0 4812 453 79994 Insert panel WH 331 0 4812 413 58918 Knob program cpl. WH 332 0 4812 410 28564 Push button cap WH 400 0 4812 361 58126 Motor + spraypump cpl. 405 0 4812 360 18371 Spray pump 405 1 4819 515 28158 Gasket 420 0 4812 121 18132 Capacitor Pos. No. 12NC Code Description 421 0 4812 121 18161 Interf.filter 430 0 4812 360 18357 Pump,draining 430 1 4812 466 68506 Shaft seal 450 0 4812 259 28684 Heating element 480 0 4812 321 28386 Cable harness set 480 1 4812 321 28371 Cable 480 3 4812 401 18418 Protector f.wiring 490 0 4819 321 18136 Cable,mains 2m 490 1 4812 321 28367 Strain relief 521 0 4812 214 78189 Control board (CB) 531 0 4812 273 18055 Switch waterhardness 531 1 4812 273 18056 Wheel,fingertip 571 0 4812 281 28379 Valve inlet 575 0 4812 281 28361 Regen.valve 583 0 4812 271 28355 Switch diaphragm 620 0 4812 218 38043 User board (UB) 623 0 4812 271 38356 Microswitch 633 0 4812 271 38355 Microswitch door 680 0 4812 418 68154 Combidosage 680 1 4812 466 68495 Gasket 681 1 4812 466 68497 Gasket 681 2 4812 440 18975 Flap 682 0 4812 466 68496 Gasket 691 0 4812 282 68012 Feeler NTC 701 0 4812 530 28081 Hose, inlet 3/8Z cpl. 5m 701 0 4812 530 28082 Hose, inlet 3/8Z cpl. 3m 701 0 4819 530 28928 Hose, inlet 701 1 4812 310 18302 Yoke 701 2 4822 480 50159 Sieve inlet 710 0 4812 418 68128 Monoblock 710 2 4819 310 38536 Nut threaded ring set 710 3 4819 466 69562 Gasket set 714 0 4812 462 79643 Threaded cap 714 2 4812 440 18963 Cabinet non-return flap 716 0 4812 418 68147 Reg.dosage 716 1 4812 466 68475 Gasket 716 2 4812 462 78994 Cover 721 1 4812 360 68059 Spray arm lower cpl. 721 2 4812 466 68491 Gasket 25x2,3B 721 3 4812 466 68558 Gasket 30x3,0 721 4 4812 440 19455 Flange 722 0 4812 360 68044 Spray arm upper 722 2 4812 360 68056 Hub upper straight cpl. 723 0 4812 360 68049 Spray arm ceiling 723 1 4812 466 68483 Gasket 723 2 4812 404 48597 Clip,fix spray arm 723 3 4812 505 18362 Screwed joint 726 0 4812 530 28786 Tube 726 1 4812 530 28787 Tube 726 2 4812 505 18358 Nut 726 3 4812 466 68512 Gasket 726 4 4812 462 79633 Centering 743 0 4812 511 48171 Capacitor 743 1 4812 530 28102 Hose, inlet 743 3 4812 505 18364 Nut Downloaded from www.Manualslib.com manuals search engine

SERVICE Whirlpool Europe ADP931/2WH 23.06.1998 / Page 5 Customer Service 8542 931 01310 Doc. No: 4812 718 13521 Spare part list Model ADP 931/2 WH Service No. 854293101310 Version 854293101310 Pos. No. 12NC Code Description 743 4 4812 530 28807 Hose 9x1,5x270+10 743 7 4812 466 68514 Gasket 751 0 4812 418 18205 Water collector 751 1 4812 418 18203 Water guide 751 2 4812 440 19454 Fastener frame 755 0 4812 530 28849 Bend 755 2 4812 530 48148 Tray,leak 756 0 4812 360 58099 Floater 761 0 4812 480 58082 Sieve ﬁne 761 2 4812 418 18204 Cover sieve 762 0 4812 480 58084 Microﬁlter 763 0 4812 480 58083 Sieve coarse 781 0 4812 530 28737 Hose,draining 781 1 4819 530 28286 Sleeve hose 781 2 4819 492 68405 Clip f.non-return valve 781 3 4812 281 28364 Flap non-return 783 4 4812 530 28793 Hose 10x3x230 783 5 4812 530 78028 Distributor 783 6 4812 530 28796 Hose 10x3x180+10 791 0 4812 532 68067 Gasket 791 2 4812 530 58093 Gasket 791 4 4812 466 68503 Gasket 791 5 4812 466 68504 Gasket 794 1 4819 530 58032 Gasket 20x2,5 901 0 4812 401 48575 Strap 017,8 901 1 4812 401 18424 Strap 050,0 901 2 4812 401 18422 Strap W1-1 AL 32-50 901 5 4812 401 48573 Strap 028,6 901 6 4812 401 48574 Strap 038,1 901 7 4812 401 18427 Strap 031,6 904 2 4812 462 79635 Cover WH 3,5x5 910 0 4812 502 18384 Screw 4x35-H 910 1 4812 502 18394 Screw 3,5x14-H 910 2 4812 502 18363 Screw 4,0x12-H 910 3 4812 502 18389 Screw NIRO A2 910 4 4812 502 18386 Screw 3,5x8-TORX T15 910 5 4812 502 18393 Screw 3,5x9-1 Tx15 910 7 4812 502 38132 Screw DIN 965 964 0 4812 466 68536 Gasket housing ri/le 964 1 4812 466 68469 Gasket housing upper 993 0 4812 530 48149 Bow 993 5 4822 532 80216 Funnel salt Downloaded from www.Manualslib.com manuals search engine

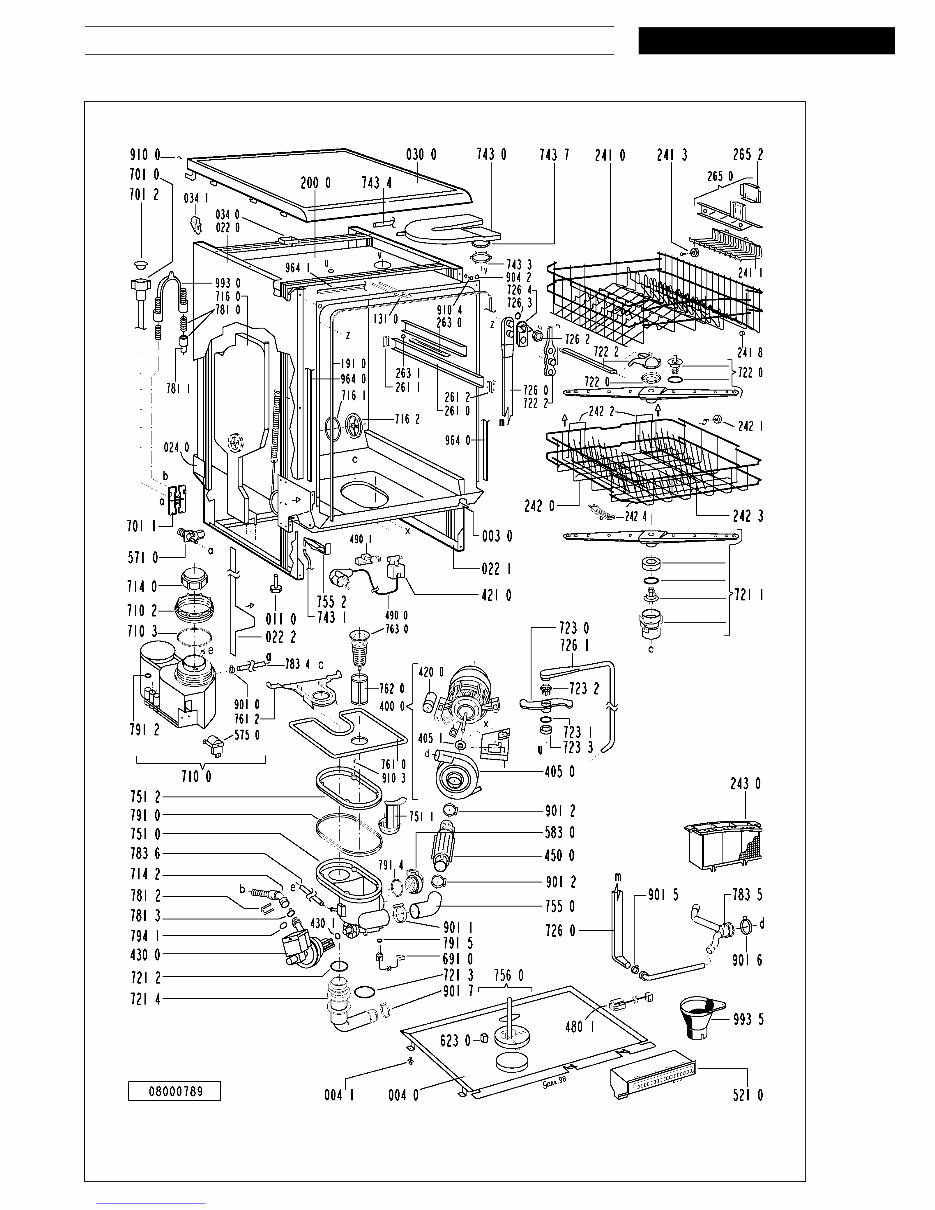

SERVICE 23.06.1998 / Page 6 ADP 931/2 WH Whirlpool Europe Doc. No: 4812 718 13521 8542 931 01310 Customer Service Exploded view Downloaded from www.Manualslib.com manuals search engine

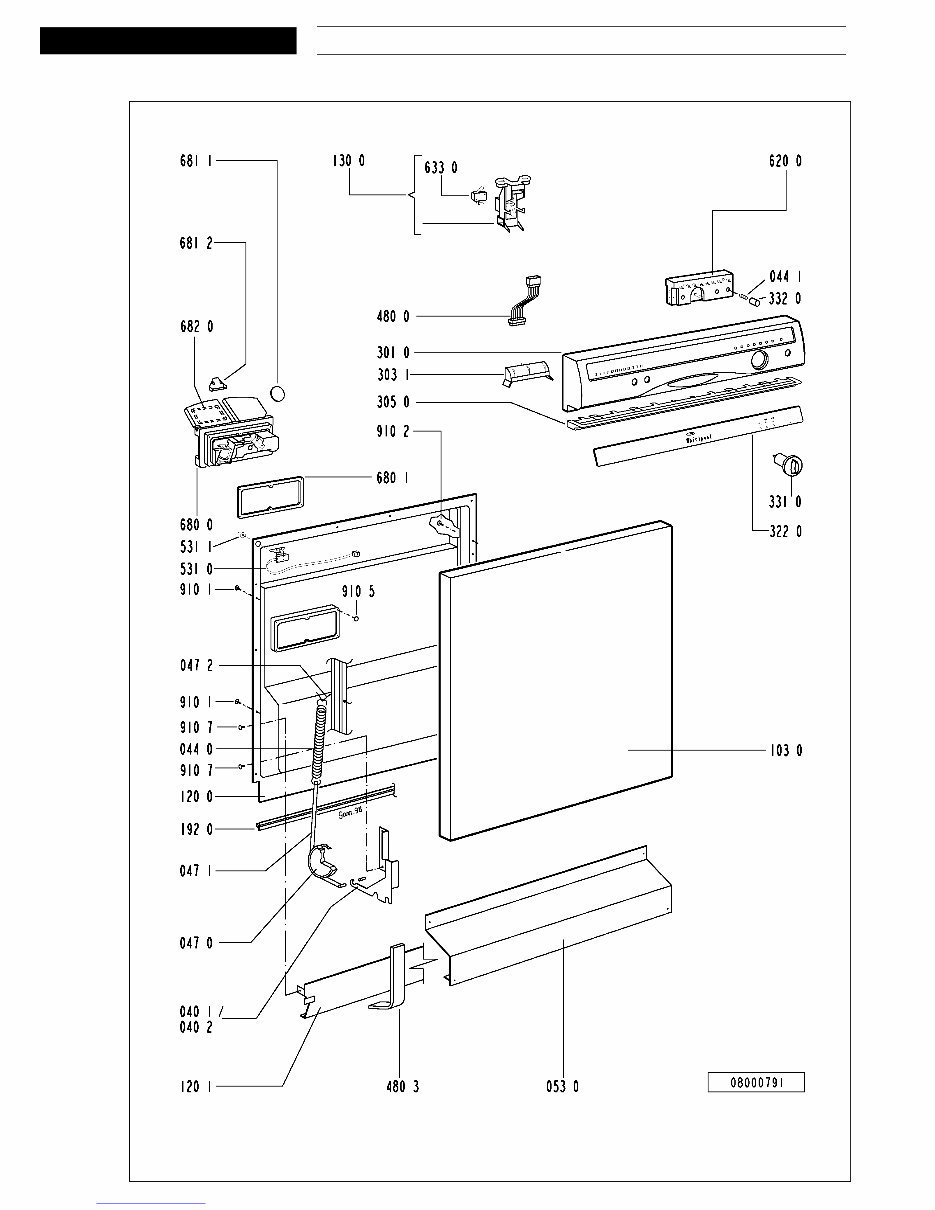

SERVICE Whirlpool Europe ADP 931/2 WH 23.06.1998 / Page 7 Customer Service 8542 931 01310 Doc. No: 4812 718 13521 Exploded view Downloaded from www.Manualslib.com manuals search engine

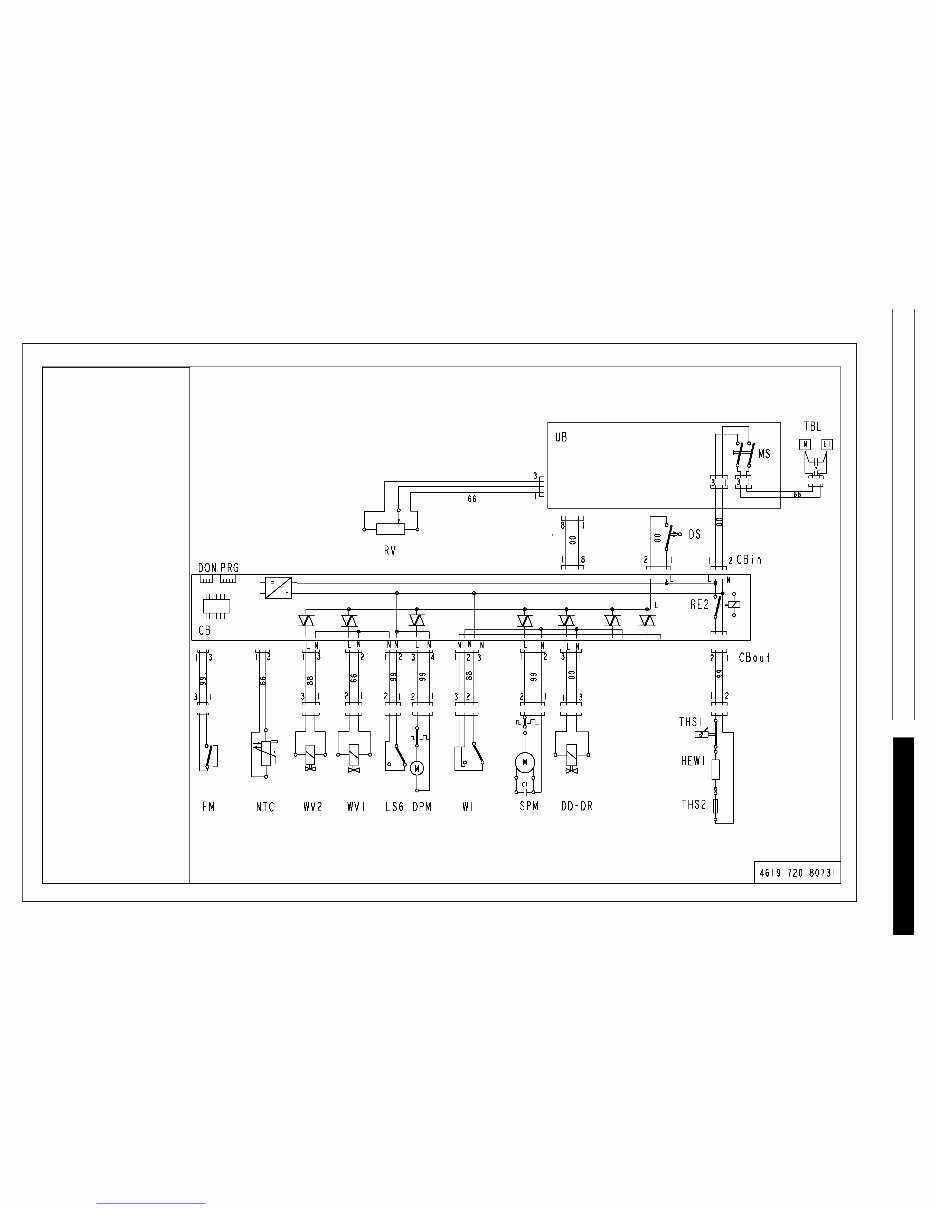

SERVICE 23.06.1998 / Page 8 ADP 931/2 WH Whirlpool Europe Doc. No: 4812 718 13521 8542 931 01310 Customer Service Circuit diagram C1 Capacitor CB Control board DB Display board DPM Drain pump motor DD Cleaning agent dosage DON Additional sensor DR Final rinse dosage DS Door switch FM Flow meter HEWI Heating IF Interference ﬁlter LS6 Water leakage switch L Line MS Main switch NTC Thermostat temp. sensor N Neutral PRG Plug to program RV Water hardness switch RE2 Heating relay RR SA Reed relay salt RR RA Reed relay rinsaid SAB Sprayarm blocked SPM Sprayarm motor THS Safety thermostat THS 2 Fuse TBL Power supply terminal TL Winding protective contact UB User board VM Fan ventilator WV1 Water inlet valve WV2 Water regenerating valve WI Water indicator ZW Zone washing 00 black 66 blue 88 grey 99 white Downloaded from www.Manualslib.com manuals search engine

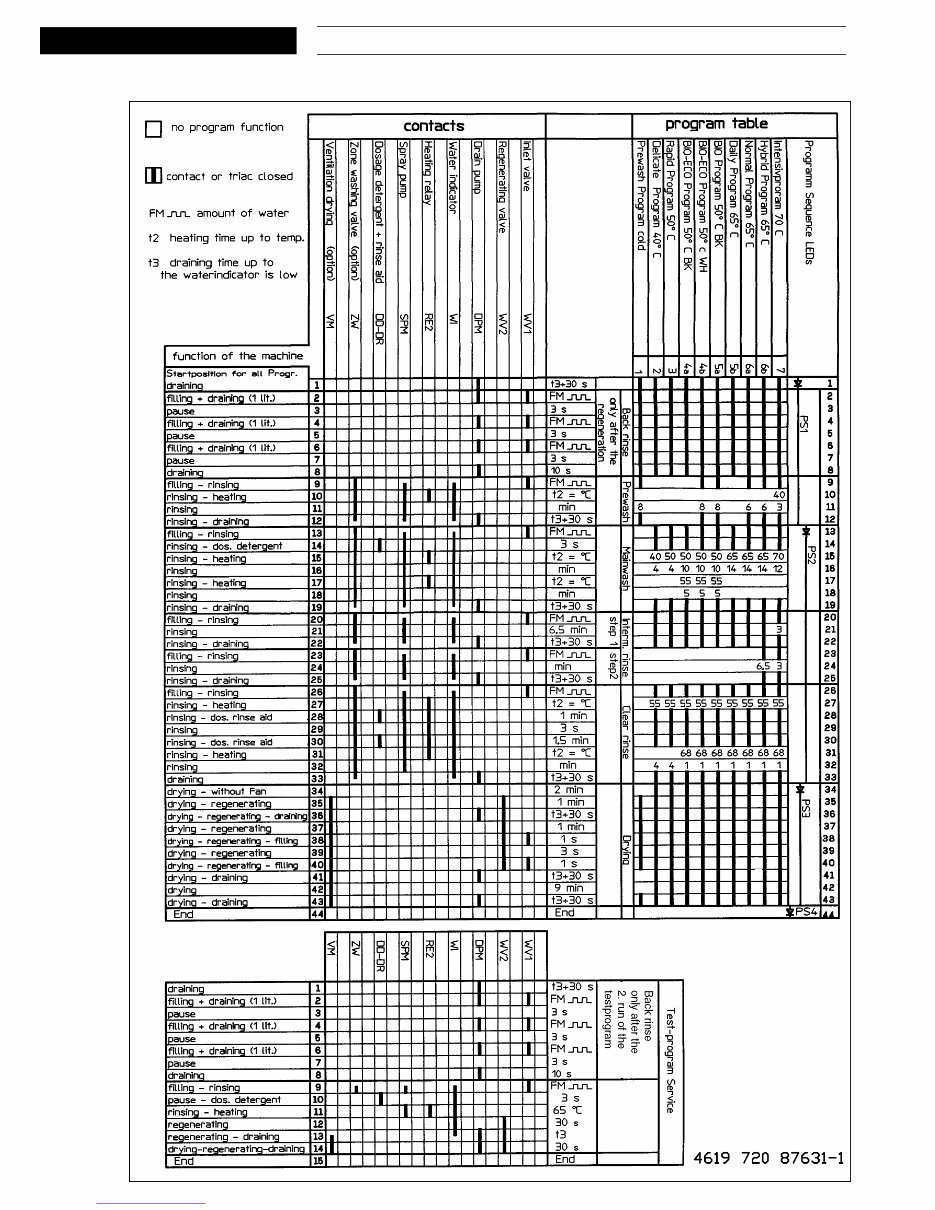

SERVICE Whirlpool Europe ADP 931/2 WH 23.06.1998 / Page 9 Customer Service 8542 931 01310 Doc. No: 4812 718 13521 Program diagram Downloaded from www.Manualslib.com manuals search engine

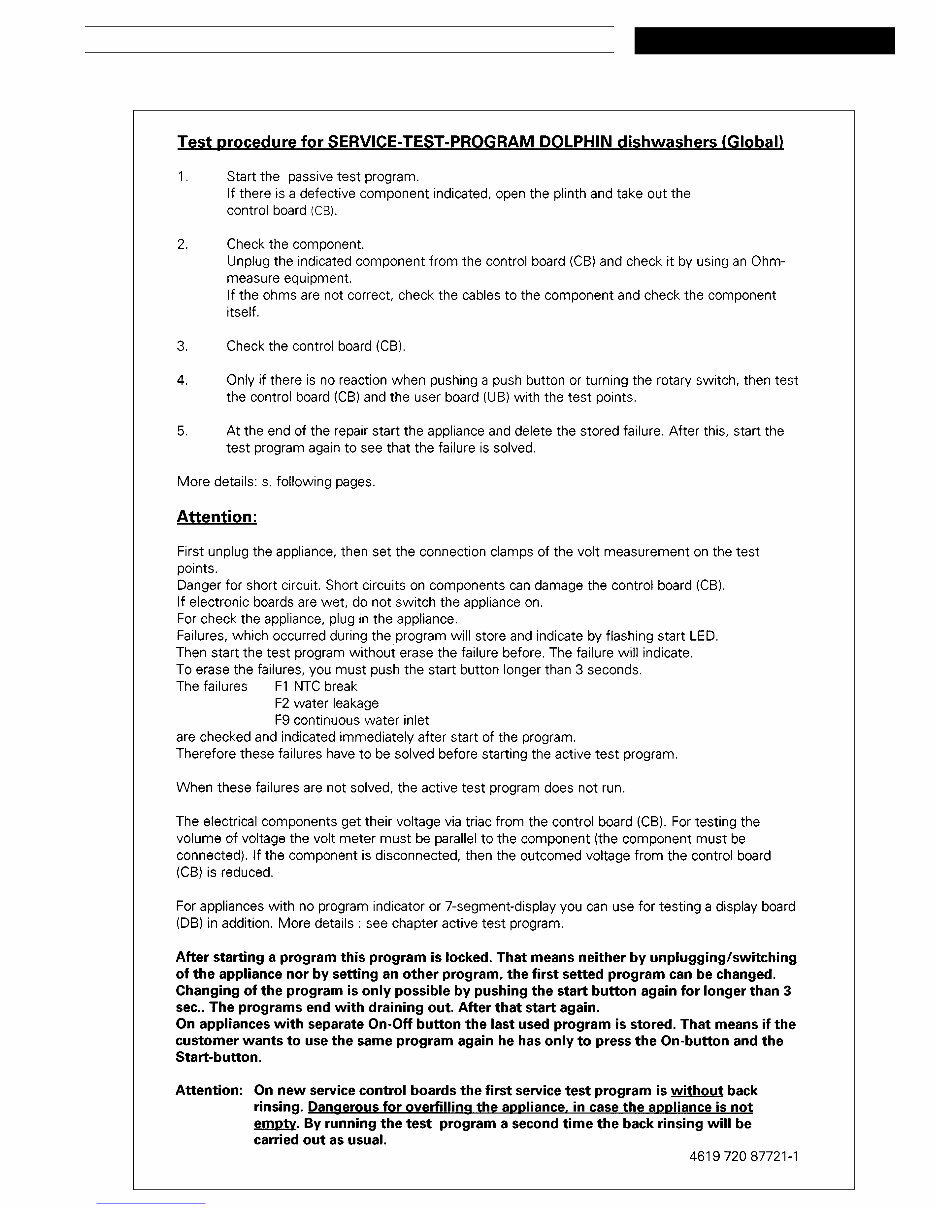

SERVICE 23.06.1998 / Page 10 ADP 931/2 WH Whirlpool Europe Doc. No: 4812 718 13521 8542 931 01310 Customer Service Text/Legend Downloaded from www.Manualslib.com manuals search engine
