SERVICE Whirlpool Europe Customer Services Model AWZ 412 Version 8575 412 03000 Page Technical data 2 Spare part list 3 - 4 Exploded view 5 - 7 Wiring diagram 8 Circuit diagram 9 Program diagram 10 - 12 Service Manual Washer dryer Frontloader AWZ 412 AWZ 412 This documentation is only intended for qualiﬁed technicians who are aware of the respec- tive safety regulations. Date: 04.10.2002 (Mod.01) Subject to modiﬁcation Document-No.: 4812 713 12671

SERVICE 22.05.2002 / Page 2 AWZ 412 Whirlpool Europe Doc. No: 4812 713 12671 8575 412 03000 Customer Service Technical data Dimension Height 85 cm Width 59.5 cm Depth 53 cm Weight Gross ~ 80 kg Net ~ 79 kg Main connection Voltage 230 + 6% / - 10% V Frequency 50 Hz Power Consumption 2200 W Fuse rating 10 A Drum data Volume 42.5 l Cotton/synthetics (washing-rinsing) 50 - 60 rpm Pre-spinning 100 rpm Low spinning 500 rpm High spinning 1200 rpm Capacity of dry laundry Loading - washing max. 5.0 kg Loading - drying max. 2.5 kg Heating Rated power draft: - washing 1950 W - drying(2) 1150 W Drain-pump Power consumption ~ 34 W Capacity 20 - 25 l/min. Rotation speed ~ 2800 rpm Height of drain hose : max. 0.90 m min. 0.60 m Motor Type Universal Timer washing Type ELBI 1837/1 Positions 60 Basic cycles 3 - normal washing - delicate washing Thermostat A- washing fixed thermostat90 ˚C B- drying fixed thermostat 107 ˚C C- safety thermostat 142 ˚C D- safety thermostat 170 ˚C E- adjustable thermostat 10 - 90 ˚C Pressostat (without laundry) Low level ~ 7 l High level ~ 12.5 l Very high level (wool) ~ 15 l Overflow level ~ 35 l Push button switch unit Version with 5 buttons - On / off - Low / High speed - Rinse hold - Intensiv rinse - Half load Timer drying Type Eaton 8314/08 Voltage 220 / 240 V Frequency 50 Hz drying time 2 to 110 min cooling time 10 min Drying motor Type Plaset 63318 Voltage 220 / 240 V Frequency 50 Hz

SERVICE Whirlpool Europe AWZ 412 04.10.2002 (Mod.01) / Page 3 Customer Service 8575 412 03000 Doc. No: 4812 713 12671 Spare part list Model AWZ 412 Service No. 857541203000 Version 857541203000 Pos. No. 12NC Code Description 001 0 4812 440 10613 Cabinet 003 0 4819 404 43391 Bearer hook crosspiece 011 0 4819 462 47014 Foot adjustable 024 0 4819 903 03649 Panel, rear 030 0 4812 440 10614 Table top 041 0 4819 417 19534 Hinge 054 0 4812 462 28312 Cover filter 061 0 4819 466 88802 Counter weight 061 1 4819 466 89461 Counter weight bottom 065 0 4812 325 18002 Insulation 081 0 4819 466 98923 Shock absorber 086 0 4819 502 18416 Screw 086 1 4819 502 18407 Fastener counter weight 086 2 4819 310 39573 Kit fixation 086 3 4819 466 89132 Fastener counter weight 086 5 4819 505 18322 Nut 110 0 4819 498 78431 Handle 110 1 4819 498 78432 Handle cpl 131 0 4819 903 10159 Lock Plate 133 0 4819 903 10175 Door latch 133 1 4819 903 10174 Pin handle 133 2 4819 903 10176 Door catch lever 140 0 4819 450 58178 Door glass 141 1 4819 466 98878 Protector 143 0 4819 903 02494 Strap 144 0 4819 903 10179 Frame,door glas 144 1 4812 416 18441 Frame,door glas 144 2 4819 532 88054 Collarring 190 0 4819 468 18285 Door bellow 200 0 4812 418 18236 Tub 201 0 4812 310 18789 Bearing, kit bottom,crosspiece+bear. 201 1 4819 903 02529 Ring tub 201 3 4819 532 28248 Ring tub cpl. 210 3 4819 404 49869 Crosspiece,drum 220 0 4812 418 18237 Drum 220 1 4812 418 18238 Drum a. Crosspiece 271 0 4812 358 18184 Belt 272 0 4812 528 88098 Pulley 278 0 4812 535 98097 Rod,pull dispenser 291 0 4819 468 18022 Gasket 301 0 4812 464 69008 Control panel 303 1 4812 498 78208 Handle, drawer 331 0 4812 412 58947 Knob,changeover Timer 331 1 4812 413 78645 Knob,timer 331 2 4812 413 78698 Knob disc Timer 332 0 4812 410 28854 Button,push 335 0 4812 412 58919 Knob thermostat 338 0 4812 412 58948 Knob,timer drying 351 0 4819 134 48503 Pilot lamp 351 1 4812 381 18276 Lamp screen 401 0 4812 361 78022 Motor 401 1 4812 361 78019 Motor fan 421 0 4812 121 18212 Interf.filter 422 0 4812 214 78504 Tachometer 430 0 4819 360 18217 Pump,draining Pos. No. 12NC Code Description 432 0 4812 480 58146 Filter body 443 0 4812 515 48011 Fan wheel 451 0 4819 259 28799 Heating element 451 1 4812 418 38086 Heating chamber 451 3 4812 259 28712 Heating element drying 483 0 4812 321 78149 Cable harness 490 0 4812 321 18122 Cable,mains 491 0 4819 401 18738 Clamp 501 0 4812 282 18663 Timer 1837/1 501 1 4819 282 18792 Timer drying 521 0 4812 214 58091 Unit electrical 551 0 4819 282 28627 Thermostat MRTL 170 ˚C 551 1 4812 282 28214 Thermostat 100 ˚C 551 2 4812 282 28215 Thermostat 47 ˚C 551 9 4812 271 28445 Thermostat 554 0 4819 903 08226 Potentiometer 572 0 4812 271 28443 Valve,magnet cold 583 0 4812 271 28421 Pressostat 620 0 4819 410 28985 Switch 630 0 4812 280 58028 Door lock 701 0 4819 530 28932 Hose, inlet 1.5 m cold water 708 4 4819 530 28545 Drainhose inner 711 0 4819 418 78886 Dispenser 711 1 4819 462 79036 Cover dispenser housing 711 2 4812 462 28316 Cover dispenser complete 712 0 4819 418 78067 Drawer 713 0 4819 418 78989 Accessory deterg. fluid 714 0 4819 418 78988 Container liquid detergent 714 1 4819 418 78166 Tray bleach 718 0 4819 360 69849 Nozzle 718 1 4819 310 38651 Accessories liquid detergent 742 0 4812 360 78054 Cover 743 0 4819 529 18071 Bellows 743 1 4812 310 38436 Air guide 743 2 4812 526 48046 Air guide 743 3 4812 526 48045 Air guide upper 754 0 4819 530 28862 Drainhose 760 0 4819 480 58082 Filter 760 1 4819 462 78861 Grip filter 781 0 4812 530 29045 Hose,draining 781 1 4819 903 02515 Hose 781 2 4812 903 08205 Container Non-Overflow 781 3 4812 903 08206 Tube Non-Overflow-Filter cas. 783 0 4819 530 28908 Hose Pressostat 783 1 4819 526 48213 Air guide 783 2 4812 530 28926 Hose 783 3 4812 530 28927 Hose 783 4 4812 530 28928 Hose 783 5 4819 903 10156 Hose 792 0 4812 466 68593 Seal for blower 794 0 4819 903 04978 Gasket 794 1 4819 310 38057 Gasket 794 2 4819 532 68309 Cover filter 900 0 4819 401 13348 Hook 900 1 4819 466 98528 Clamping piece

SERVICE Whirlpool Europe AWZ 412 04.10.2002 (Mod.01) / Page 4 Customer Service 8575 412 03000 Doc. No: 4812 713 12671 Spare part list Model AWZ 412 Service No. 857541203000 Version 857541203000 Pos. No. 12NC Code Description 900 2 4819 464 18162 Bracket heating element 900 4 4819 401 13349 Hook 900 5 4819 466 89459 Holder 900 7 4819 535 38151 Hook 901 0 4822 401 10258 Clamp,hose 10-18 mm 901 1 4812 401 18458 Strap 901 2 4812 401 18576 Clamp,hose 901 3 4819 401 18351 Clamp,hose 901 4 4819 401 18174 Clamp,hose 25-45 mm 901 5 4819 492 68475 Strap 901 6 4819 401 18817 Clamp,hose 902 0 4819 903 02468 Lever 902 1 4812 418 79639 Holder unit electrical 902 2 4812 404 48664 Holder 902 3 4812 418 78991 Holder Modul 903 2 4819 401 18348 Holder,hose 903 3 4819 903 02466 Lever 903 4 4819 903 10167 Door glass insert 903 5 4819 903 02469 Rocker 903 6 4819 492 68488 Clip 903 7 4819 401 18429 Clamp 903 8 4819 401 18883 Staple 910 1 4819 502 18347 Screw 910 2 4819 502 18406 Screw 910 3 4819 502 33254 Screw 910 6 4812 502 18415 Screw 910 7 4812 502 18417 Screw 912 0 4819 502 18345 Screw 912 2 4819 440 19616 Cover Screw 914 0 4819 505 13084 Nut 921 0 4819 532 13433 Washer pulley 921 1 4819 532 38083 Washer 923 0 4819 532 68707 Washer 931 0 4819 903 10178 Spring 931 2 4819 903 02471 Spring 931 3 4819 903 10126 Spring,suspens. 931 5 4819 903 10172 Spring,ret. 932 0 4812 492 68142 Spring Thermostat 932 1 4812 526 48047 Spring 933 0 4819 903 03659 Spring,tension 941 1 4812 530 68026 Shaft seal 951 1 4819 530 57019 Gasket 952 0 4819 466 69816 Gasket 952 1 4819 903 02447 Gasket thermostat 993 0 4819 401 18345 Bow

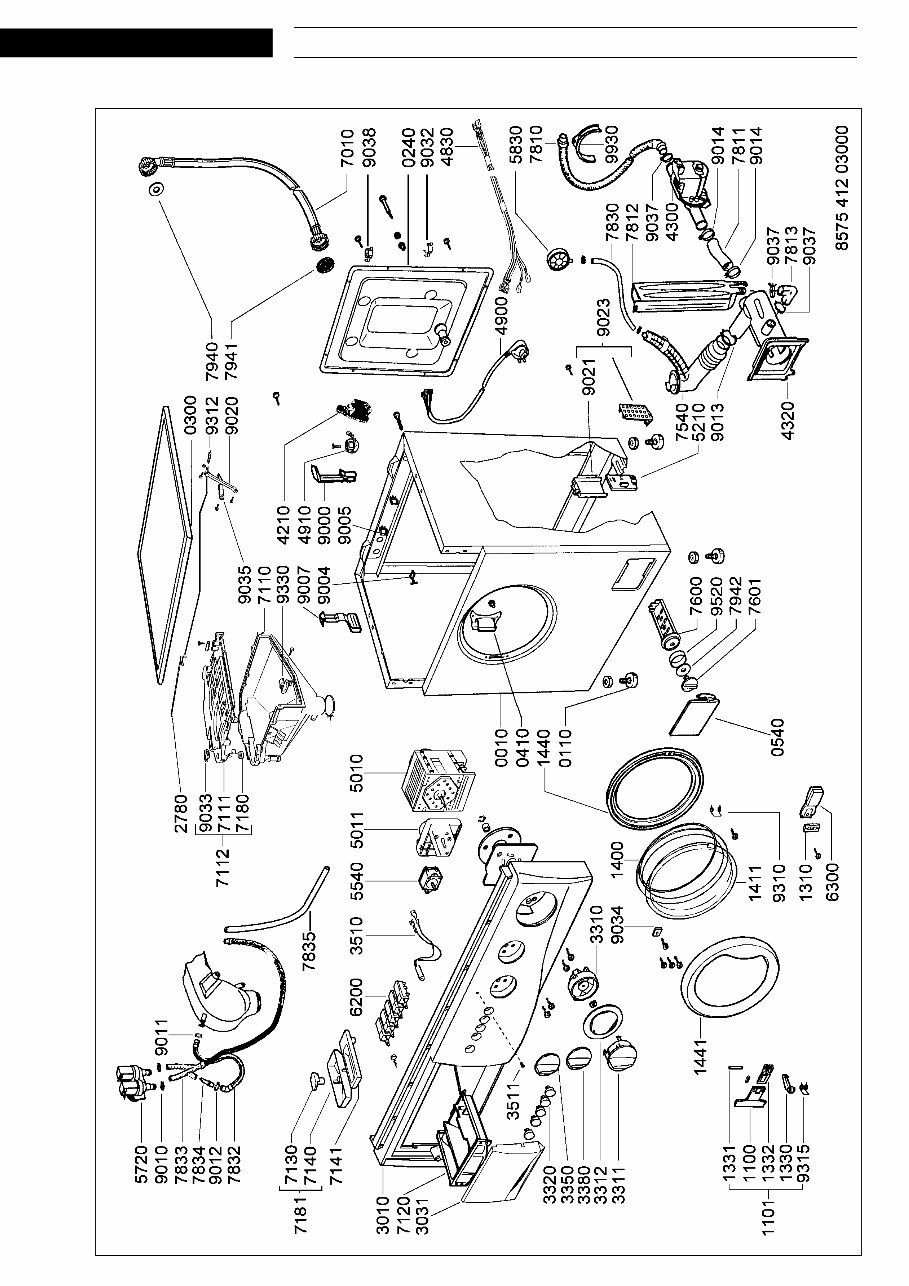

SERVICE Whirlpool Europe AWZ 412 22.05.2002 / Page 5 Customer Service 8575 412 03000 Doc. No: 4812 713 12671 Exploded view

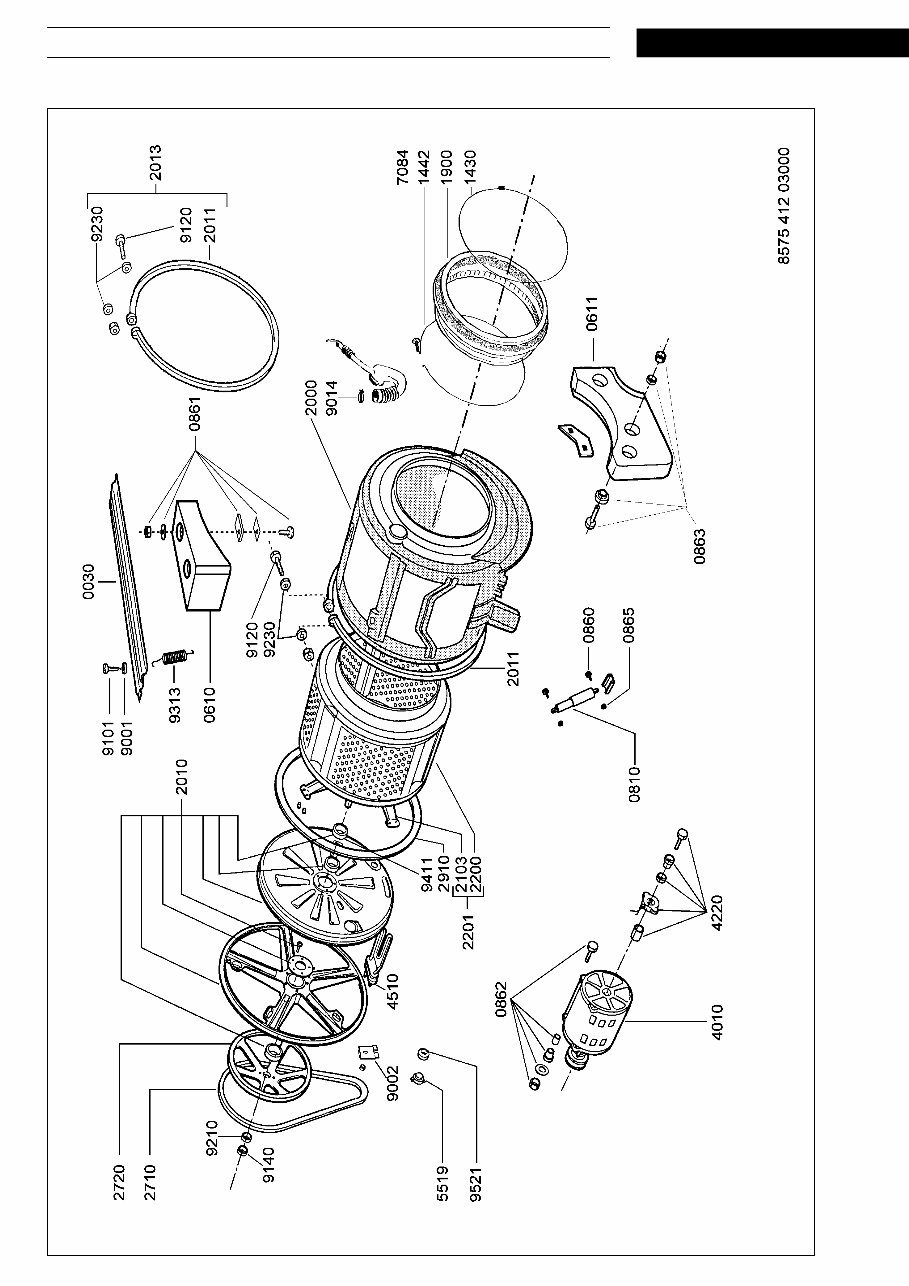

SERVICE 22.05.2002 / Page 6 AWZ 412 Whirlpool Europe Doc. No: 4812 713 12671 8575 412 03000 Customer Service Exploded view

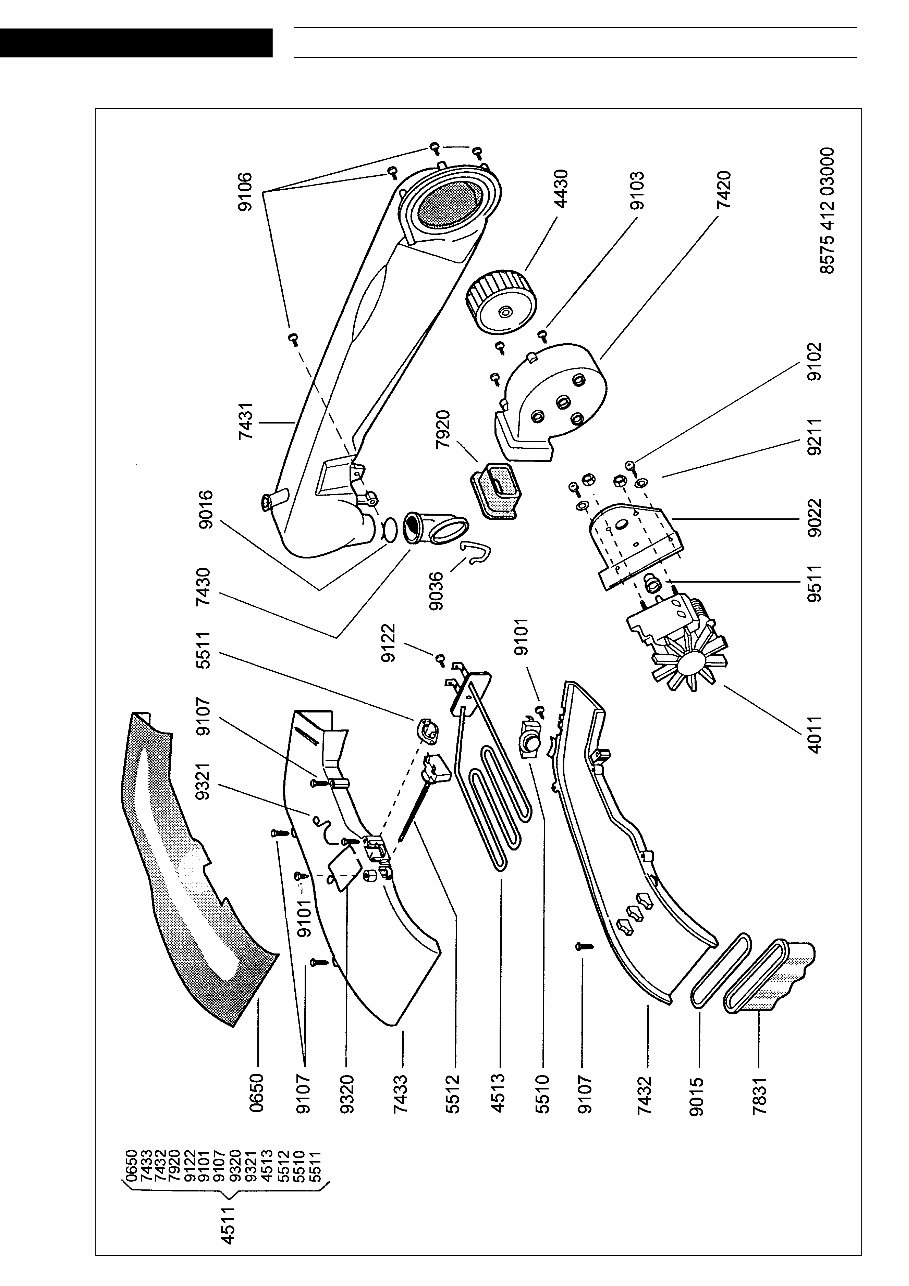

SERVICE Whirlpool Europe AWZ 412 22.05.2002 / Page 7 Customer Service 8575 412 03000 Doc. No: 4812 713 12671 Exploded view

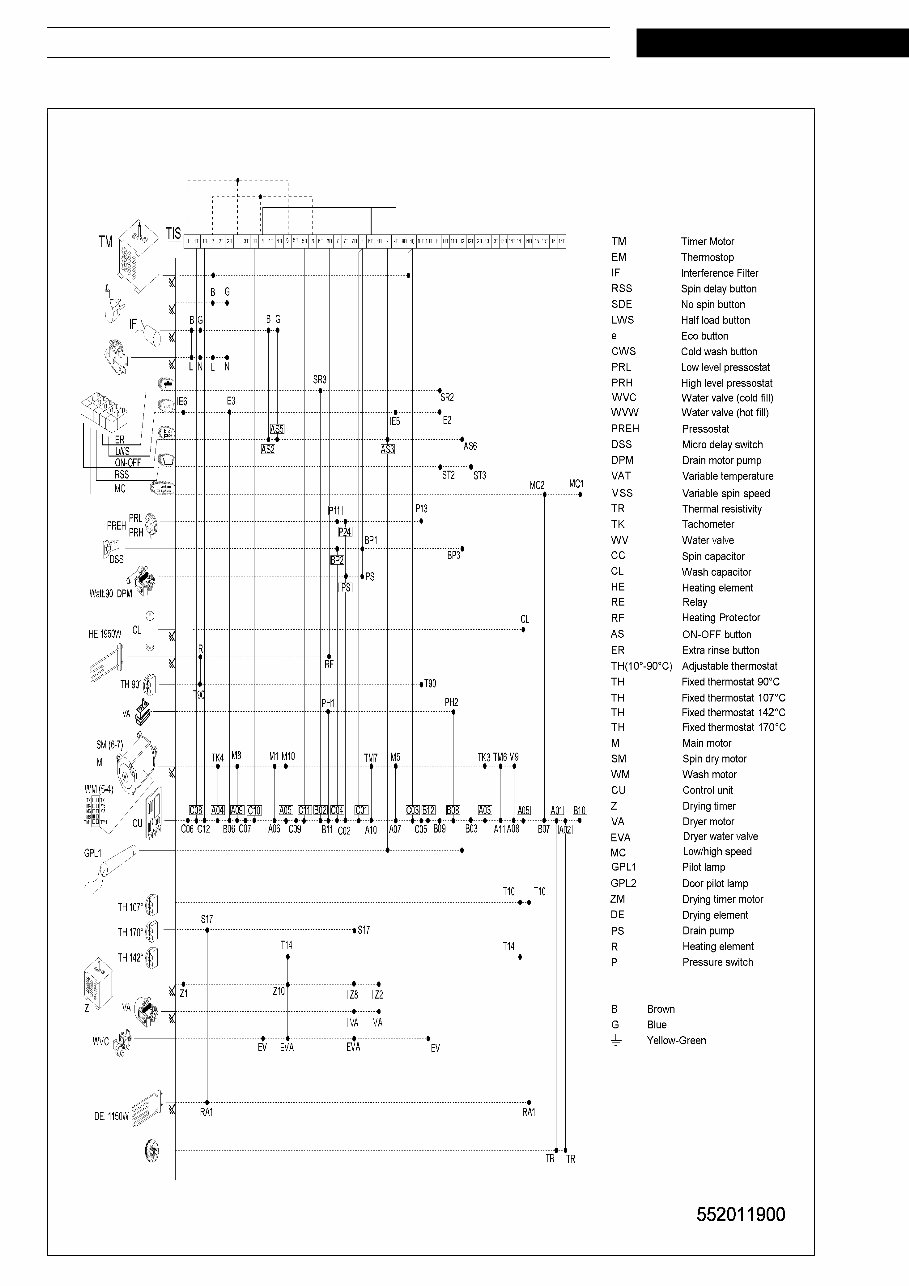

SERVICE 22.05.2002 / Page 8 AWZ 412 Whirlpool Europe Doc. No: 4812 713 12671 8575 412 03000 Customer Service Wiring diagram

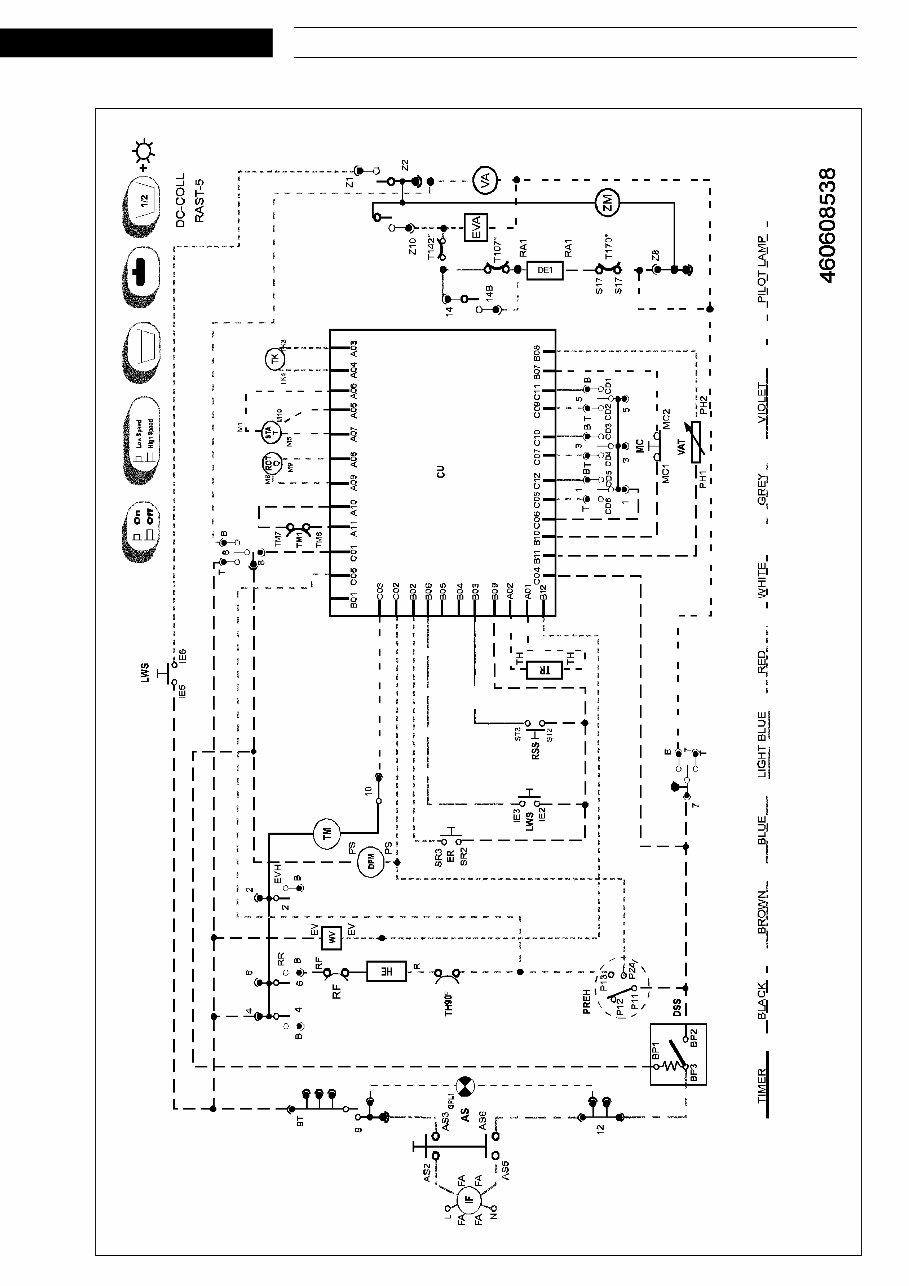

SERVICE Whirlpool Europe AWZ 412 22.05.2002 / Page 9 Customer Service 8575 412 03000 Doc. No: 4812 713 12671 Circuit diagram

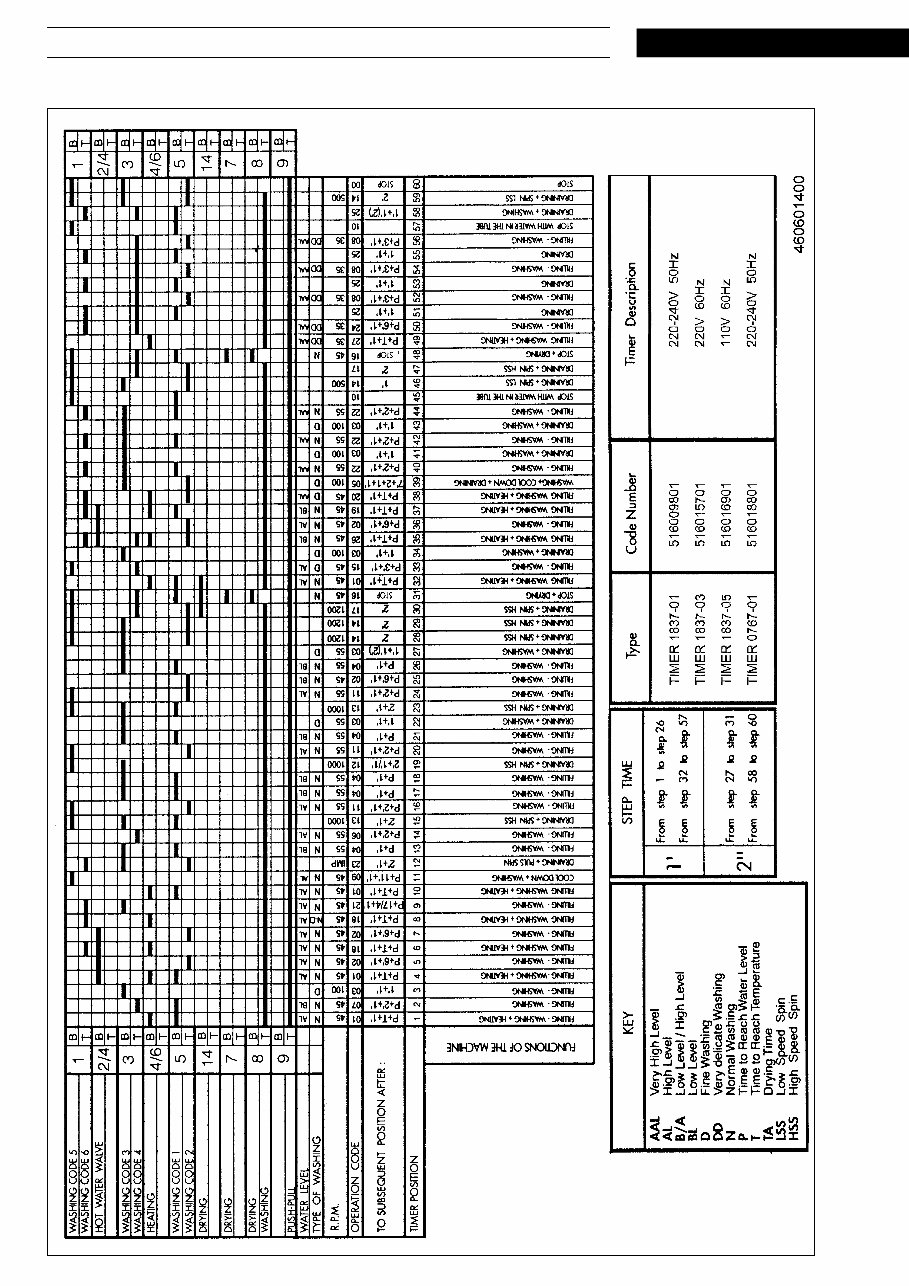

SERVICE 22.05.2002 / Page 10 AWZ 412 Whirlpool Europe Doc. No: 4812 713 12671 8575 412 03000 Customer Service Program diagram
