OWNER Manual Haier XQG50 11 Clothes Washer & Dryer Combo

® What The World Comes Home To TM Front Load Clothes Washer & Dryer Combo XQG50-11 User Manual- Guide de l’Utilisateur- Manual del Usuario- Model # Modèle Modelo # XQG50-11 Lavadora y Secadora de Carga Frontal Lave-Linge Sechant a Chargement Frontal XQG50-11 Manual 10/29/02 1:51 PM Page 2 Downloaded from www.Manualslib.com manuals search engine

IMPORTANT SAFETY INSTRUCTIONS Warning – To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following: 1. Read all instructions before using the appliance. 2. Use this appliance only for its intended purpose as described in this use and care guide. 3. Use only detergents or softeners recommended for use in this appliance and keep them out of the reach of children. 4. This appliance must be properly installed in accordance with the installation instructions before it is used. 5. Never unplug your appliance by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet. 6. Replace immediately worn power cords, loose plugs/power outlets. 7. Unplug your appliance before cleaning or before making any repairs. 8. If your old appliance is not being used, we recommend that you remove the door. This will reduce the possibility of danger to children. 9. Do not operate your appliance in the presence of explosive fumes. 10. Do not use this appliance to wash clothes soaked, spotted or washed in gasoline, dry cleaning solvents or any other explosive or flammable substances that could ignite and explode. 11. Clothes or rags used to clean flammable or explosive materials should not be washed in this appliance till all traces of this material has been removed, to avoid an accident. 12. Do not add or mix any flammable or explosive substances to the wash. 13. Do not try to remove clothes while the tub is moving. Let it come to a complete stop before use. 14. The appliance loading door must be closed when tub is spinning. 15. Do not operate your appliance when parts are missing or parts are broken. 16. Do not use this appliance for commercial clothes washing. 17. Do not operate this appliance unless all enclosure panels are properly in place. 18. Do not tamper with controls. 19. To reduce risk of injury do not allow children to play in or on the appliance. Close supervision of children is necessary when the appliance is used near children. 1 English XQG50-11 Manual 10/29/02 1:51 PM Page 3 Downloaded from www.Manualslib.com manuals search engine

2 20. This appliance must be connected to proper electrical outlet with the correct electrical supply. 21. Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR REMOVE THE GROUNDING PLUG. If you do not have a three-prong electric receptacle outlet in the wall, have a certified electrician install the proper receptacle. The wall receptacle MUST be properly grounded. 22. Hydrogen gas may be produced if the water heater has not been used in more then 2 weeks. This could be explosive and can explode under certain circumstances. If this is the case, before using this appliance turn on all the hot faucets and let the hot water run for a few minutes. This will let the trapped hydrogen escape. During this process do not turn on an electric appliance, smoke, light a match/lighter or use a flame to avoid an accident, as hydrogen gas is flammable and can explode. 23. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode. 24. Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-repair instructions that you understand and have skills to carry out. 25. Do not use heat dry to articles containing foam rubber or similarly textured rubber-like materials. 26. Clean lint trap before and after each load. 27. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire. 28. To reduce the risk or electric shock or fire, do not use extension cords or adapters to connect the unit to electrical power source. SAVE THESE INSTRUCTIONS For Future Use English XQG50-11 Manual 10/29/02 1:51 PM Page 4 Downloaded from www.Manualslib.com manuals search engine

3 Thank you for purchasing our Haier product. This easy-to-use manual will guide you in getting the best use of your washer & dryer combo unit. Remember to record the model and serial number. They are on a label in back of the unit. Model number Serial number Date of purchase Staple your receipt to your manual. You will need it to obtain warranty service. English DANGER Risk of child entrapment. Before you throw away your old appliance, take off the door so that children may not easily get trapped inside. XQG50-11 Manual 10/29/02 1:51 PM Page 5 Downloaded from www.Manualslib.com manuals search engine

Table Of Contents PAGE SAFETY INSTRUCTIONS ....................................................................1 OPERATING INSTRUCTIONS ............................................................4 Parts and Features..................................................................................5 Operations ............................................................................................7 Normal Operating Sounds.................................................................... 16 Care and Cleaning Guide ............................................................16 Cleaning and Maintenance ..................................................................16 Moving and Vacationing ......................................................................17 Storage of Your Washer ......................................................................17 Troubleshooting ..............................................................................18 INSTALLATION INSTRUCTIONS ....................................................21 Tools and Materials Required................................................................ 21 Unpacking Your Washer ......................................................................22 Leveling Your Washer ..........................................................................23 Steps for Installation ............................................................................23 Electrical Connections ....................................................................26 Grounding Instructions.......................................................................... 26 Power Interruptions ..............................................................................26 Warranty ........................................................................................27 English 4 XQG50-11 Manual 10/29/02 1:51 PM Page 6 Downloaded from www.Manualslib.com manuals search engine

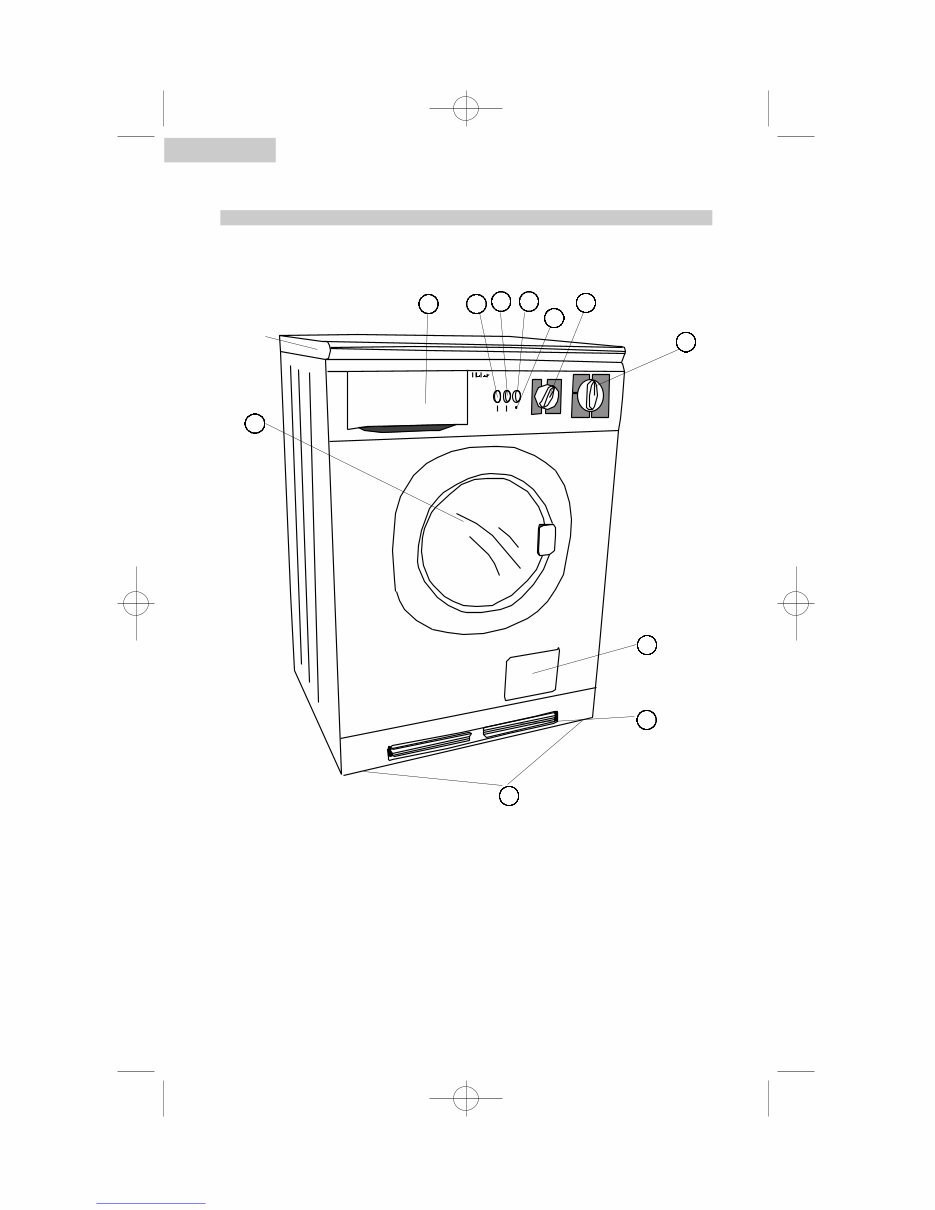

XQG50-11 WATER SAVER NO SPIN ON/OFF 5 English 1. Wash Cycle Selector Knob 2. Dry Cycle Select Knob 3. Power "On" Indicator Light 4. Power "On/OFF" Button 5. No Spin Selector Button 6. Water Saver Button 7. Detergent/Softener Dispenser 8. See Through Glass Window Door 9. Front Adjustable Leveling Legs (Not Shown) 10. Caster Release Levers 11. Button Trap 5 6 7 8 2 3 4 OPERATING INSTRUCTIONS Parts and Features 1 9 10 11 XQG50-11 Manual 10/29/02 1:51 PM Page 7 Downloaded from www.Manualslib.com manuals search engine

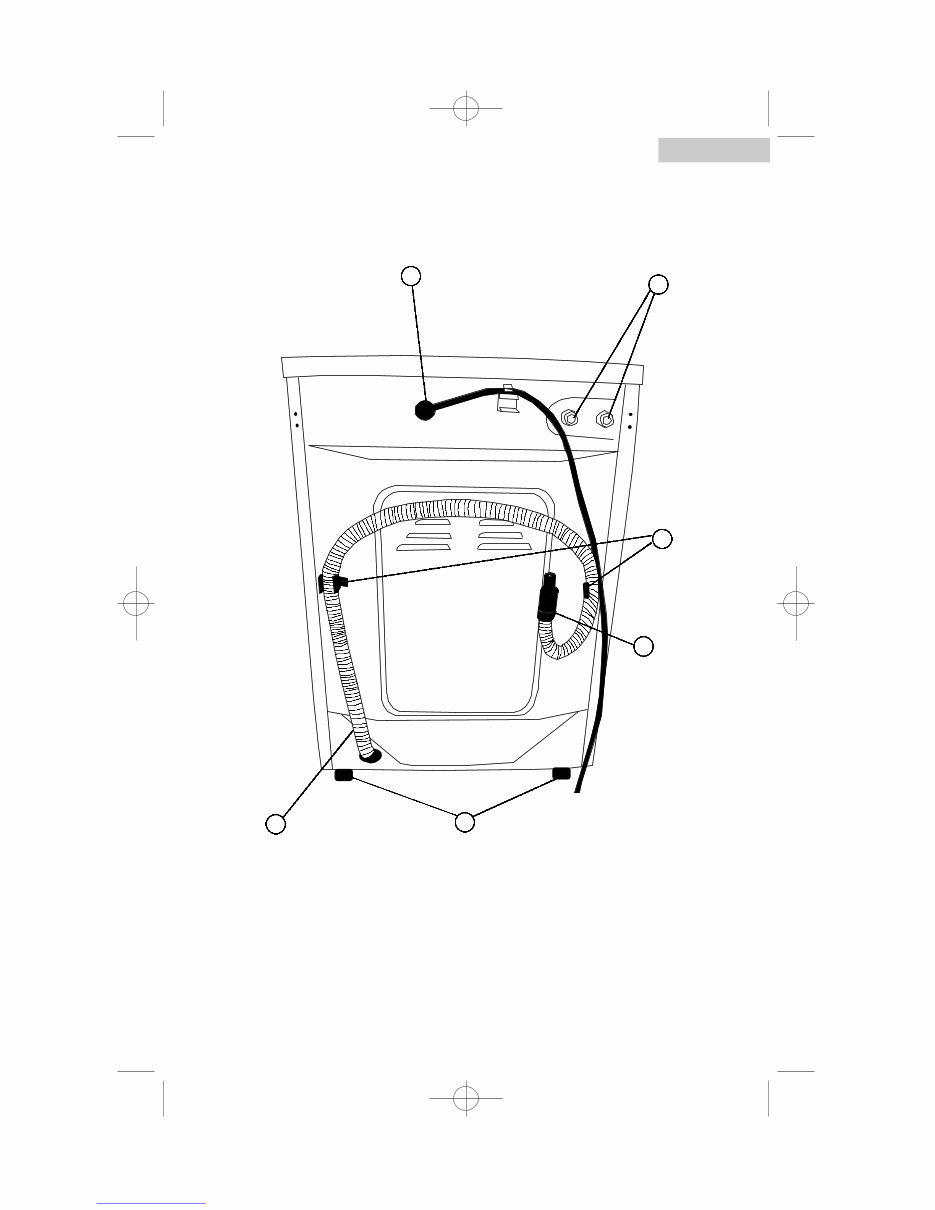

English 1. Water Inlets (Hot/Cold) 2. Power Cord (115 V / 60 Hz) 3. Drain Hose 4. Rear Adjustable Leveling Legs 5. "U" Clamp 6. Hose Retainer Clips 6 2 3 4 1 6 5 XQG50-11 Manual 10/29/02 1:51 PM Page 8 Downloaded from www.Manualslib.com manuals search engine

Power Button: • Push the button in to have your washer "ON". The light will turn on indicating that power is "ON". Push the button out to have your washer "OFF". The light will go off indicating that power is "OFF". Spin Cycle Selector Button: • If you want to extract more water from your clothes during the wash cycle, leave the button in the out position. Clothes will be drier when this option is selected. • If you do not want to extract water from your clothes using the spin cycle, push the button in. If this option is selected, only the excess water in the tub will drain leaving the clothes wet. The "No Spin" button when pushed in will not activate the spin cycle. Advantages of No-Spin Cycle: • The spin cycle may cause excessive creasing and wrinkling in some fabrics. • High speed spin might be too strong for delicate garments. It could result in stretching or excessive wear. Note: When the No Spin is pressed in, the machine will not automatically go to the spin dry function. Water Saver: • To activate this option press in the "Water Saver" button. If you are washing a small or a medium load you may want to use this option. This will reduce the water in the rinse cycle. 7 English "Front Load" Washer This style of washing is gentle on your laundry because it has a tumble wash action. Here there is no agitator to damage your clothes. Since there is no agitator in this style of washer, the washer runs quietly. This style of washer saves you money as it uses less water and detergent to clean your laundry. OPERATIONS ON/OFF NO SPIN XQG50-11 Manual 10/29/02 1:51 PM Page 9 Downloaded from www.Manualslib.com manuals search engine

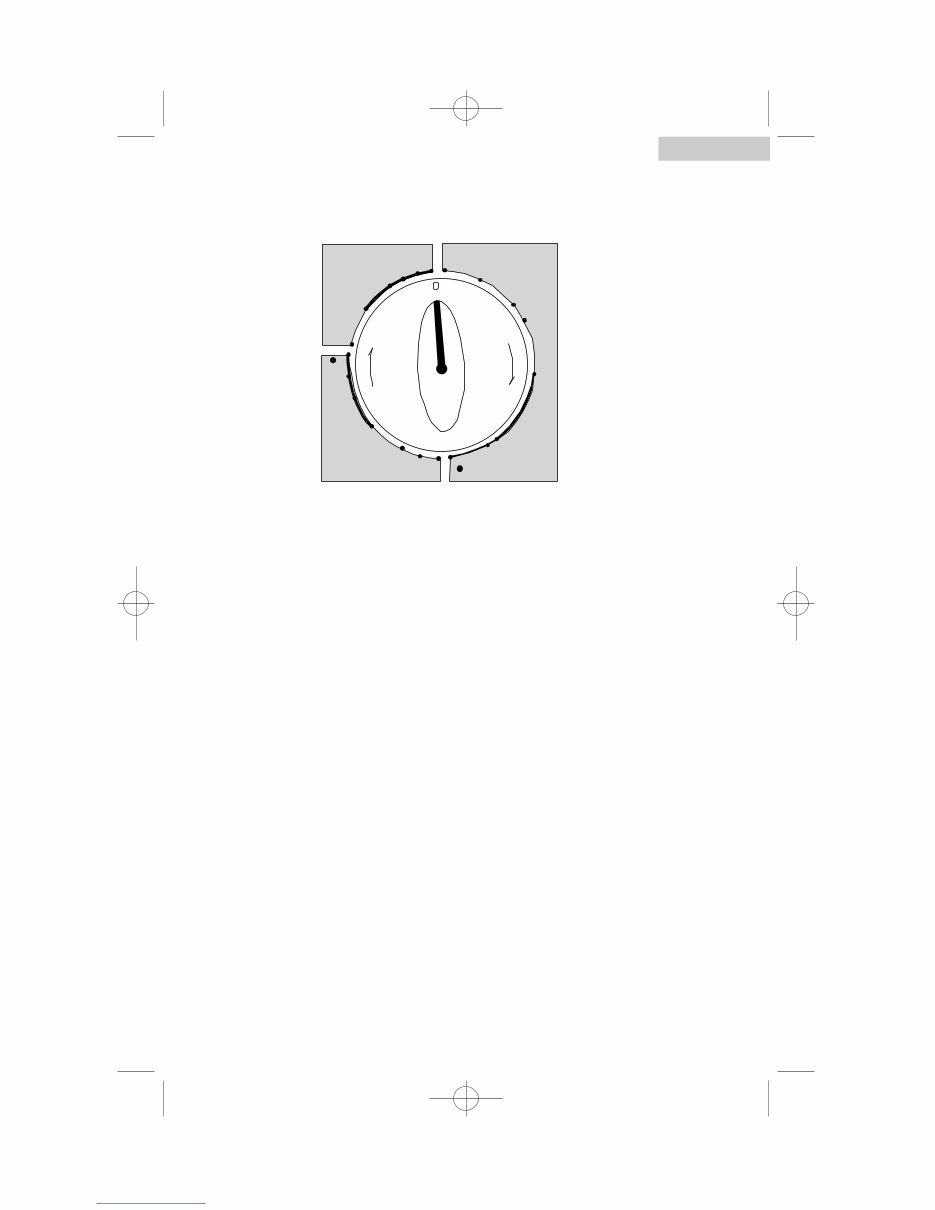

English 8 Wash Cycle Turn the knob CLOCKWISE only to your desired setting when selecting the cycle. Below is the cycle reference chart for your clothes. Follow the steps below to select the proper cycle: 1. Select proper cycle. 2. Turn the knob clockwise. Make sure to line up the symbol indicator on the control panel. 3. Push the power "ON" button. Wool Cotton Synthetic Wash cycle Prewash Intense Normal Delicate Rinse Softening Spin Hot Warm Cold Dry/Off Intense Normal Delicate Rinse Softening Dry/Off spin Delicate Rinse Sottening Spin Draining Off Cotton Cycle 1-Pre-wash 2-Intense 3-Normal 4-Delicate 5-Rinse 6-Softening 7-Spin 8-Dry/Off Synthetics A-Intense B-Normal C-Delicate D-Rinse E-Softening F-Spin G-Dry/Off Wool I-Delicate II-Rinse III-Softening IV-Spin V-Draining VI-Off XQG50-11 Manual 10/29/02 1:51 PM Page 10 Downloaded from www.Manualslib.com manuals search engine

Cotton Cycle: Pre-Wash Cycle: The purpose of this cycle is that if you want to pre-wash heavily soiled clothes before the actual wash cycle begins. This cycle is configured in such a manner that it will go through Intense Normal Delicate wash cycles time mode and then the rinse and spin cycles automatically to complete the wash. The total time for this cycle is approximately 147 minutes when selected. Intense Wash Cycle: This is used for work & play, household linens, heavily soiled and cotton clothes. This cycle is approximately 120 minutes. Normal Wash Cycle: This is used for normal to lightly soiled items that needs to be washed. This cycle is approximately 80 minutes. Delicate Wash Cycle: This is also used for load of soiled items that needs to be washed delicately. This cycle is approximately 60 minutes. Synthetics Cycle: Intense Wash Cycle: This cycle is used for heavily soiled permanent press, silks, woolens, nylon and acrylic fabrics. This cycle is approximately 59 minutes. Normal Wash Cycle: This is used for a small load of lightly soiled items that needs to be washed. This cycle is approximately 42 minutes. Delicate Wash Cycle: This cycle is used for loads of soiled items that need to be washed delicately. This cycle is approximately 33 minutes. • If you set the machine to automatically dry after the wash cycle, the machine will wash and then dry without interruption. However if you press "No Spin" button the machine will drain and shut-off after the wash cycle is complete. It will not spin or advance to the dry cycle. • If you do not set the machine for automatic drying and do not depress the "No Spin" button after the wash portion of the cycle is complete (at "Soak/Pause" indication on control panel) the machine will stop. You must either: A) Drain Only: Prevent spinning by pressing the On/Off switch, advance the “Cycle Selector Knob” to “Drain” and again press the "On/Off" switch. B) Drain and Spin: Press the On/Off switch, advance the "Cycle Selector Knob" to "Spin" and again press the "On/Off" switch. 9 English XQG50-11 Manual 10/29/02 1:51 PM Page 11 Downloaded from www.Manualslib.com manuals search engine
