OWNER Manual Haier HPM07XC5 PORTABLE Air CONDITIONER

® What The World Comes Home To TM PORTABLE AIR CONDITIONER CLIMATISEUR PORTATIF ACONDICIONADOR DE AIRE PORTATIL Model# Modèle# Modelo# HPM07XC5

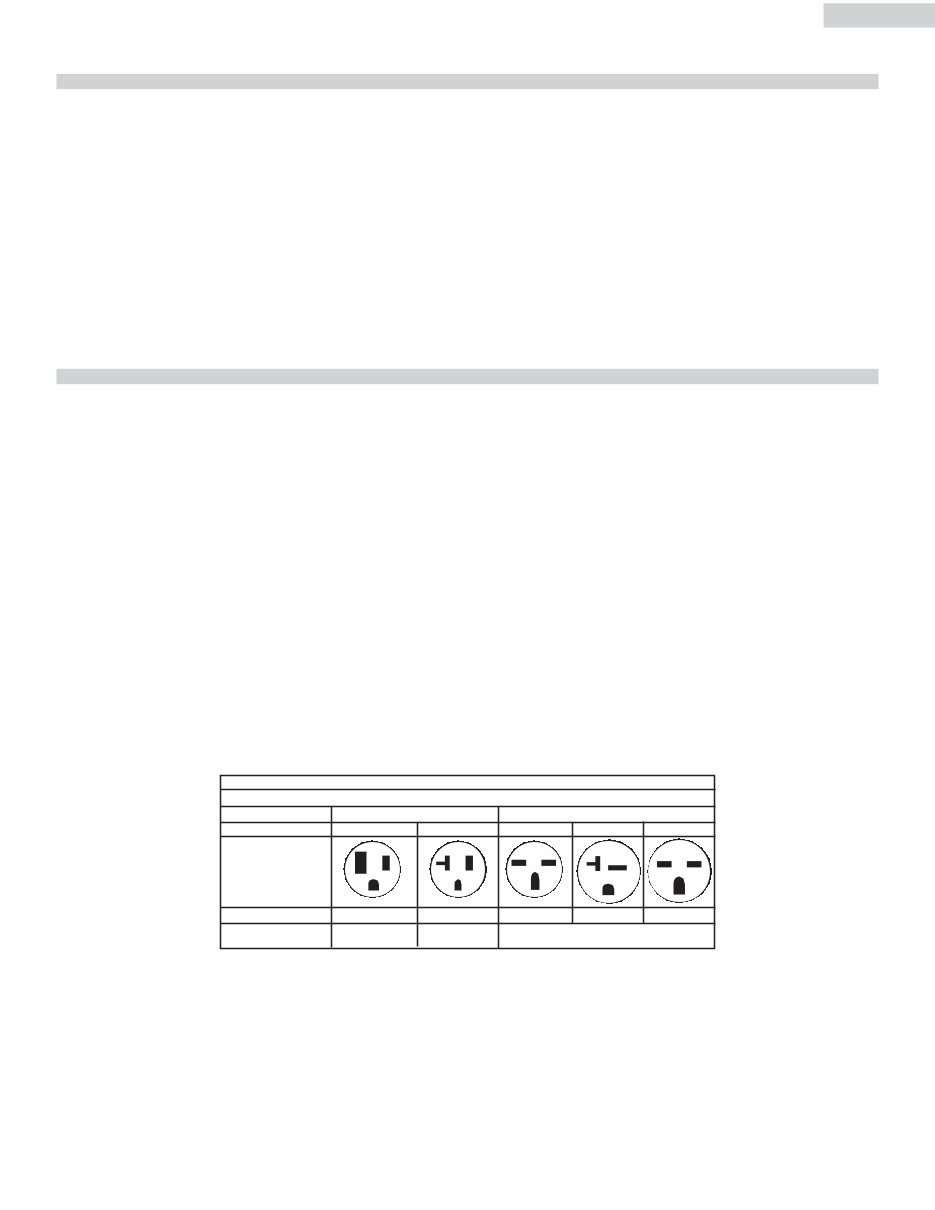

A Word From Haier Product Registration TABLE RECEPTACLE AND FUSE TYPES RATED VOLTS AMPS WALL OUTLET FUSE SIZE TIME DELAY FUSE (or circuit braker) 125/60 250/60 15 20 15 20 30 15 20* 15 20* 30 Plug Plug Plug Thank You for buying a dependable, energy saving and easy to operate HAIER air conditioner. This manual contains useful information for you to maintain, operate, install and safely use your air conditioner. Your air conditioner cleans, cools and dehumidifies the air in your room to provide you with the ultimate level of comfort. Please read instructions carefully before using the product. Also, do not forget to fill out and mail the Product Registration Card. Record Your Model and Serial Number. For all your service calls during the warranty period the following information will be needed. Attach the sales receipt to this guide and keep for future reference. This information can be obtained from the serial plate, which is on your air conditioner. Model Number: ...................................................................................................................... Serial Number: ........................................................................................................................ Date of Purchase: .................................................................................................................... Dealer’s Name: ........................................................................................................................ Dealers Address: .................................................................................................................... Dealers Phone Number: .......................................................................................................... (1) English

SAFETY PRECAUTIONS WARNING: Following these basic precautions will reduce the risk of fire, electrical shock, injury or death when using your air conditioner. 1) Air conditioner must be connected to proper electrical outlet with the correct electrical supply. (see table) 2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric receptacle outlet in the wall, have a certified electrician install the proper receptacle. The wall receptacle MUST be properly grounded. 3) Do not operate air conditioner if power cord is frayed or otherwise damaged. Also avoid using it if there are cracks or abrasion damage along the length, plug connector or if the unit malfunctions or is damaged in any manner. Contact an authorized service for examination, repairs or adjustments. 4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD. 5) Do not block airflow around the air conditioner. Also the exhaust hose should be free of any obstructions. 6) Always unplug the air conditioner before servicing it or moving it. 7) Do not install or use the air conditioner in any area where the atmosphere contains combustible gases or where the atmosphere is oily or sulphurous. Avoid any chemicals coming in contact with your air conditioner. 8) Do not place any object on the top of the unit. 9) Never operate the air conditioner without the filters in place. 10) Do not use the air conditioners near a bathtub, shower or wash basin. (2) English

Table Of Contents PAGE A Word From Haier..................................................................................................................1 Product Registration ................................................................................................................1 Safety Precautions ..................................................................................................................2 Advantages ..............................................................................................................................4 Parts and Features ..................................................................................................................5 Assembly and Installation ......................................................................................................6 Operation ..................................................................................................................................7 Product Specification ..............................................................................................................7 Care and Cleaning ..................................................................................................................8 Storage ......................................................................................................................................8 Trouble Shooting ......................................................................................................................9 Warranty Information ..........................................................................................................10 (3) English

Advantages of this Model 1. This model is easy to operate. The manual control panel has a timer, thermostat, two speed cooling speeds and two fan speeds. 2. This portable air conditioner does not require water to be added. 3. The unit has a unique design which evaporates the water. Therefore no condensation tank is necessary, thus avoiding you to have to wake up in the middle of the night to empty the bucket and turn on the unit. 4. Easy to install window kit is included which consists of the exhaust duct, exhaust hose, hose nozzle and the window panel kit. 5. Full directional adjustable casters are included to help to move the unit to be conveniently used in almost any area. 6. The filter screen is designed for easy cleaning and is easily accessible. 7. Portable air conditioners are easy to store when not in use. (4) English

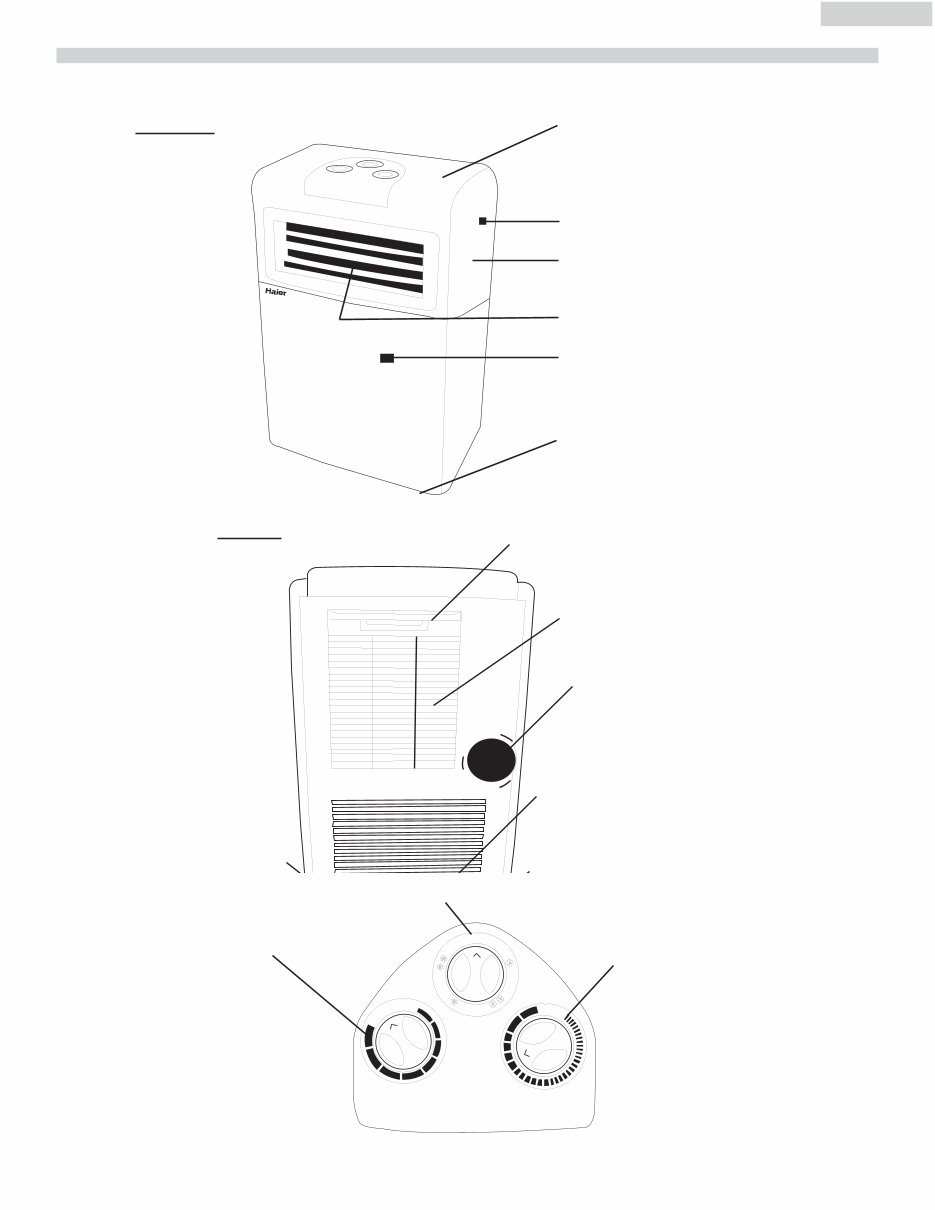

Parts and Features TOP COVER PLATE SIDE PLATE HANDLE AIR OUTLET FRONT PANEL FOUR-WAY MOVEABLE CASTERS FRONT FILTER SCREEN REAR AIR INTAKE EXHAUST DUCT AIR INTAKE FOR CONDENSOR ELECTRIC POWER CORD WATER DRAIN PIPE TIMER OFF OFF CONT 1 2 3 4 5 6 7 8 CONT OFF FAN/COOLING SPEEDS THERMOSTAT (5) English

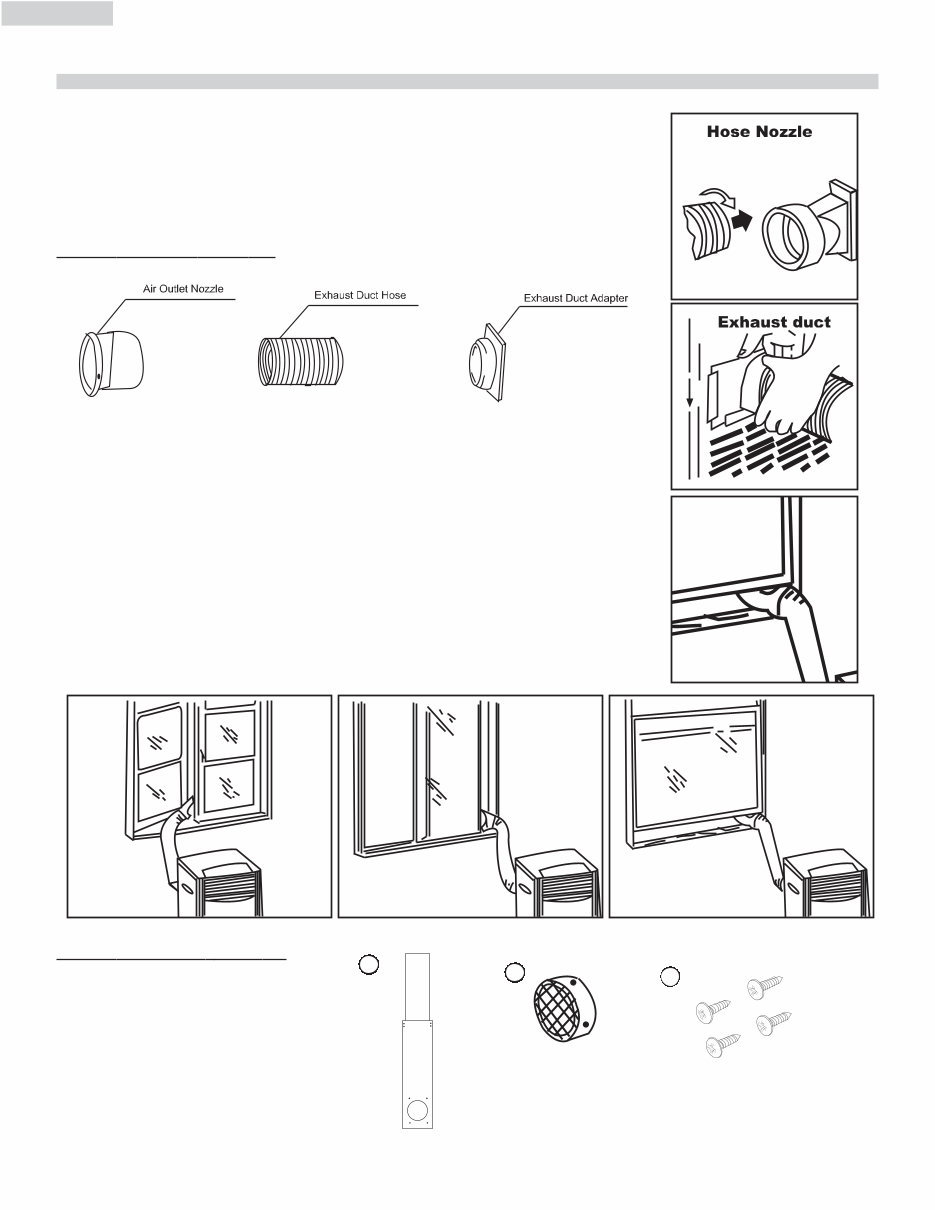

(6) English Assembly and Installation IN DOOR A. Connect exhaust hose to the back of the unit. Extend hose to desired length and connect with window kit. USING EXHAUST DUCT SET 1. Insert ends of Exhaust hose into air outlet nozzle and Exhaust duct “A” by twisting until it stops. 2. Fix the Exhaust duct “A” to the exhaust outlet on the rear of the unit. This is achieved by sliding the appropriate connector downwards over the exhaust outlet ensuring that the lugs on the outlet are engaged with the grooves on the connector. 3. Extend the Exhaust hose and close the Window as far as possible trapping the air outlet nozzle. IN DOOR IN DOOR IN DOOR USING WINDOW P ANEL KIT 1. Plastic panel - 1 piece 2. Nozzle Fitting - 1 piece 3. Screws - 4 pieces 1 2 3

Operation 1. Wait 20 minutes before starting the unti to assure that the coolant has leveled off. 2. Wait 3 minutes before restarting the unit after a normal shutdown so as to complete the compressor cycle. 3. Use an 115 volt 20 amp outlet for the air conditioner. Do not use any other electrical appliances on this line or you may trip the fuse. Dedicate the electric line for the air conditioner alone. 4. Do not place the air conditioner in direct sunlight or close to any heating appliances. eg. baseboard heaters, stoves, etc. 5. Operate the unit on a flat surface only. 6. Check the filter at least once a month in order to acheive highest cooling efficiency. 7. If the unit is not being used for a long period of time, please remove the plug to drain pipe and drain out any condensed water. Product Specification Voltage and Frequency 115V / 60Hz Input Power 950 W Cooling Capacity 7000 BTU Moisture Removal (pints/hr) 2.0 Coolant R22 Timer 8 Hours Operating Temperature Range 64.4˚F - 100˚F Unit Dimensions (WxDxH) (inches) 20 1/4 x 13 13/32 x 29 13/16 Net Weight lbs. approximate 71.5 lbs. (7) English

• Always unplug your air conditioner before cleaning. • Air filter needs to be cleaned at least once a month for your unit to operate at optimum efficiency. The filter can be slid out from the back by pulling on the tab. The filter may be washed or vacuumed. Remove the excess water from the filter by gently shaking the filter. This will remove dust and particles trapped in the filter. After cleaning, reinstall the filter. DO NOT use your air conditioner without the air filter in place. • To clean the cabinet DO NOT use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated detergents, solvents or metal scouring pads. Some of these chemicals may dissolve, damage and/or discolor your air conditioner. • Always use a soft cloth dampened with water or mild soap and water solution to wipe the front of the cabinet. Wipe dry with a soft cloth. • To store your air conditioner when not being used for a long period of time, drain condensed water using the drain pipe. Remove exhaust hose, clean filters, cover with plastic bag and store away. Care and Cleaning Guide Storage (8) English

If air conditioner does not operate: • Check if unit is plugged in. The plug may have come loose. • Check if the electrical wall receptacle is of proper voltage. • Check if the circuit breaker needs to be reset or if the fuse needs to be replaced. • Check if the unit is in “Off” mode. • The fan control may be in “Off” position. Air conditioner working but room not cooling: • Room may have appliances that produce heat. Use an exhaust fan to remove excess heat. • Check exhaust hose for proper installation. • Redirect the airflow. Remove any obstacles. • All doors and windows need to be closed so cool air does not escape the room. • Air filter may be blocked or may need cleaning. • Unit BTU may be too low for the required cooling area. • On extreme hot & humid days air conditioners may take a little longer to cool. Trouble-Shooting (9) English
