Yanmar 3TNV88-BKMS, 4TNV88-BKMS, 4TNV88-BDMS Engines Parts Manual
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
Yanmar
3TNV88-BKMS
4TNV88-BKMS
4TNV88-BDMS
Engines
(P/N’s 192473, 192474,
and 192494)
Gehl 3640, 3840, 4240
Mustang 2026, 2041, 2044
2054
Skid-Steer
Loaders
Form No.
917329
ENGINE PARTS MANUAL
Revision A
06/08
Introduction
This manual covers the Yanmar 3TNV88-BKMS/4TNV88-BKMS and 4TNV88-BDMS engines (P/N
192473/192474, and 192494, respectively), used in Gehl 3640/3840/4240 and Mustang 2026/2041; and
Mustang 2044/2054 skid-steer loaders, respectively.
When ordering service parts, specify the correct part number, full description, quantity required, and the en-
gine model number and serial number.
Items shown that do not have a part number are shown for reference purposes only and are not available for
purchase. Part numbers may change. Your Gehl or Mustang dealer will have the latest part number.
Gehl® Company and the Mustang® Manufacturing Co., Inc., reserve the right to make changes or
improvements in the design or construction of any part of the unit without incurring the obligation to
install such changes on any previously delivered units.
GEHL is a registered trademark of the Gehl Company.
MUSTANG is a registered trademark of the Mustang Manufacturing Co., Inc.
IMPORTANT
For maximum engine life, when shutting the engine down, allow the engine to idle, without load, for five min-
utes. This will allow engine components that operate at high temperatures to cool slightly before the engine
itself is shut down.
DESCRIPTION PAGE
TABLE OF CONTENTS
ENGINE SERVICE PARTS
Cylinder Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Gear Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Flywheel Housing and Oil Sump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Cylinder Head and Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Suction Manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Exhaust Manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Camshaft and Driving Gear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Crankshaft and Piston. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Lubrication Oil System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cooling Water System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Fuel Injection Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Governor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Fuel Injection Valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Fuel Line. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Starting Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Tool and Gasket Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Numerical Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
1 917329/AP0508 PRINTED IN USA
CYLINDER BLOCK
PRINTED IN USA 917329/AP0508 2
Ref. Part Quantity
No. No. Description 3TNV/4TNV88
1 188768 BLOCK ASSY, CYLINDER (4 CYLINDER) 1
188762 BLOCK ASSY, CYLINDER (3 CYLINDER) 1
4 425-34723 PLUG PT1/8 1
5 425-36240 PLUG 50 1
6 425-34721 PLUG PT1/4 2
7 425-34721 PLUG PT1/4 1
8 425-34722 PLUG 1
9 425-34730 BOLT, METAL CAP (4 CYLINDER) 10
425-34730 BOLT, METAL CAP (3 CYLINDER) 8
12 197589 BUSH, CAMSHAFT 1
13 425-34725 PLUG 12 2
14 188757 PLUG 30 (4 CYLINDER) 8
188757 PLUG 30 (3 CYLINDER 6
24 425-34731 METAL, THRUST 2
27 425-34638 STUD, CYL. HEAD (4 CYLINDER) 18
425-34638 STUD, CYL. HEAD (3 CYLINDER) 14
28 425-36006 GASKET,CYL.HEAD (4 CYLINDER) 1
425-36241 GASKET, (NON-ASB.) (3 CYLINDER) 1
29 270942 MAIN BEARING SET (4 CYLINDER) 5
270942 MAIN BEARING SET (3 CYLINDER) 4
32 270943 MAIN METAL US=0.25 (4 CYLINDER 5
270943 MAIN METAL US=0.25 (3 CYLINDER) 4
35 270944 METAL,THRUST.25(4PIE 1
CYLINDER BLOCK
3 917329/AP0508 PRINTED IN USA

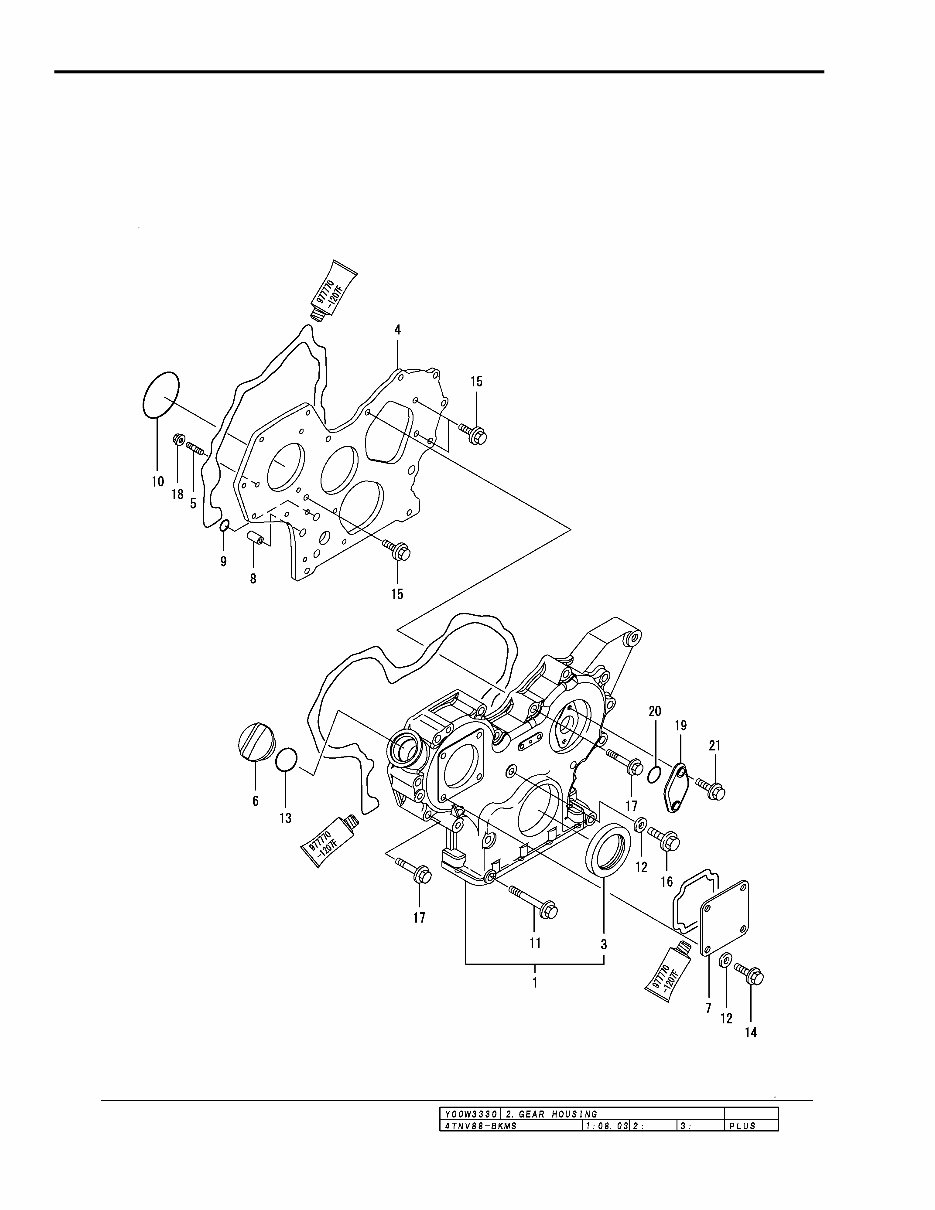

GEAR HOUSING
PRINTED IN USA 917329/AP0508 4
Ref. Part Quantity
No. No. Description 3TNV/4TNV88
1 197755 GEAR CASE ASSY 1
3 270946 SEAL, OIL 1
4 197771 FLANGE, GEAR CASE 1
5 270948 STUD, M8X25 3
6 425-34740 COVER,FILLER 1
7 425-34741 COVER, HO-P 1
8 425-34743 PIPE, KNOCK L=18 2
9 188452 O-RING P16 2
10 425-34681 O-RING, F.I.PUMP 1
11 188537 BOLT M 8X 85 PLATED 3
12 425-34750 8 SEAL WASHER 8S 5
13 425-34745 O-RING 1A P-32.0 1
14 425-34733 BOLT M 8X 16 PLATED 4
15 425-34733 BOLT M 8X 16 PLATED 3
16 425-34760 BOLT M 8X 30 PLATED 1
17 425-34748 BOLT M 8X 55 PLATED 12
18 138140 NUT 3
19 270949 COVER, BLIND 1
20 425-34763 O-RING 1A S-24.0 1
21 425-35164 BOLT M 6X 16 PLATED 2
GEAR HOUSING
5 917329/AP0508 PRINTED IN USA
FLYWHEEL HOUSING AND OIL SUMP
PRINTED IN USA 917329/AP0508 6
Ref. Part Quantity
No. No. Description 3TNV/4TNV88
1 188573 PARALLEL PIN 8X16 2
2 425-34754 HOUSING,FLYWHEEL 1
3 425-34756 CAP, FLYWHEEL COVER 1
4 188749 BOLT M10X25 6
5 188750 BOLT M10X30 4
6 425-34764 SPACER, OIL SUMP (4 CYLINDER) 1
425-35429 SPACER, OIL SUMP (3 CYLINDER) 1
7 192271 SUMP ASSY, LUB.OIL (3 CYLINDER -BKMS) 1
192272 SUMP ASSY, OIL (4 CYLINDER -BKMS) 1
425-35491 SUMP ASSY, LUB. OIL (4 CYLINDER - BDMS) 1
8 425-36121 DRAIN PLUG M22 1
425-35495 PLUG M16 (4 CYLINDER -BDMS) 1
10 138113 22 SEAL WASHER 22S 1
425-35949 16 SEAL WASHER 16S (4 CYLINDER -BDMS) 1
11 425-34733 BOLT M 8X 16 PLATED 4
12 425-34765 BOLT M 8X 25 PLATED 2
13 425-34747 BOLT M 8X 45 PLATED (4 CYLINDER) 24
425-34747 BOLT M 8X 45 PLATED (3 CYLINDER) 20
14 188573 PARALLEL PIN 8X16 2
15 188574 CASE ASSY, OIL SEAL 1
17 425-34759 SEAL, OIL 1
18 188640 BOLT M8X30,COLLAR HD 6
19 425-34761 BOLT M 8X 35 PLATED 3
FLYWHEEL HOUSING AND OIL SUMP
7 917329/AP0508 PRINTED IN USA

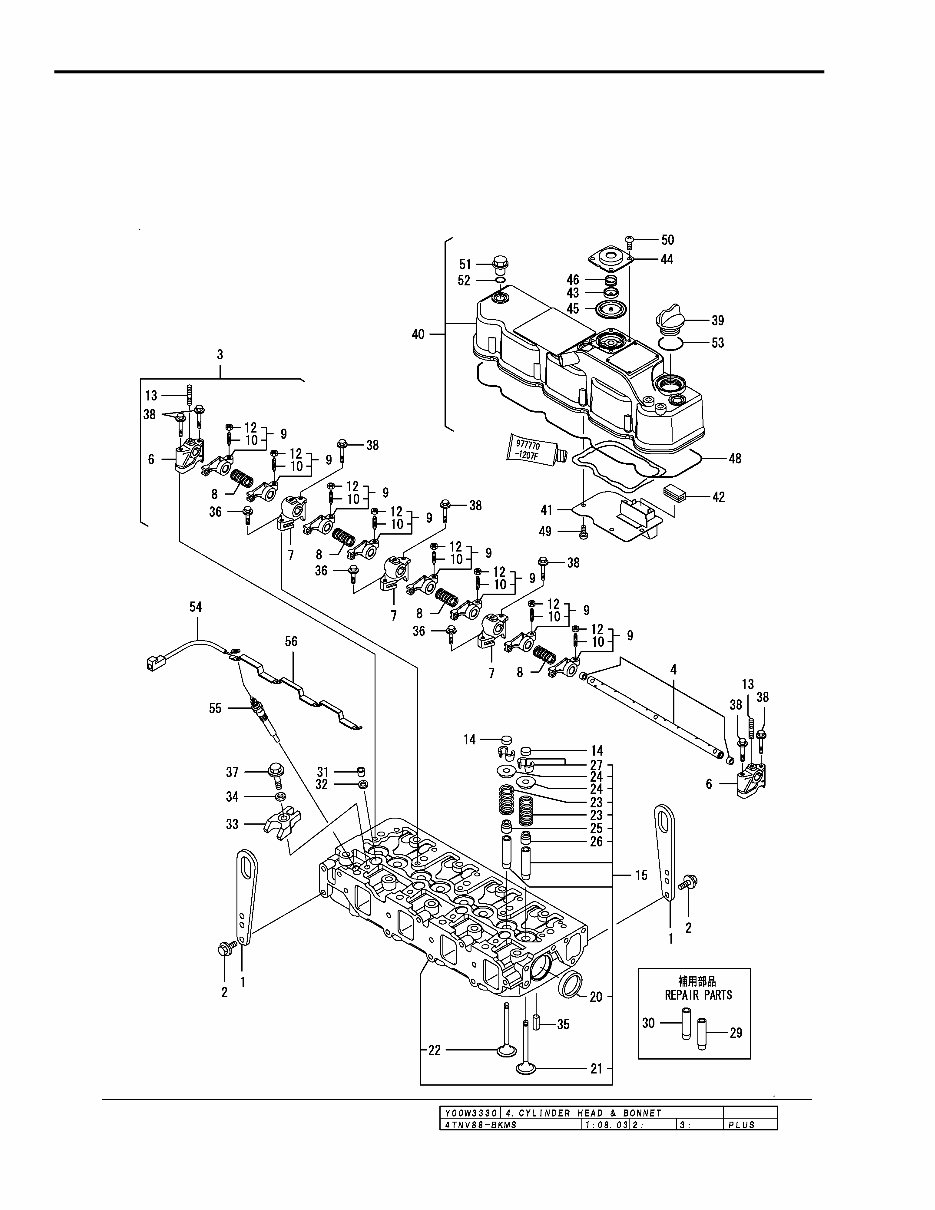

CYLINDER HEAD AND BONNET
