Toyota 3S-FE, 3S-GE, 3S-GTE, 5S-FE Engines OEM Service & Repair Manual

Toyota 3S-FE, 3S-GE, 3S-GTE, 5S-FE Engines OEM Service & Repair Manual

Engines covered:

• 2.0L 3S-FE I4
• 2.0L 3S-GE I4
• 2.0L 3S-GTE turbocharged I4
• 2.2L 5S-FE I4

The Toyota 3S-FE, 3S-GE, 3S-GTE, 5S-FE Engines OEM Service & Repair Manual is the go-to technical guide for anyone maintaining or rebuilding these popular Toyota inline-fours. Whether you're tackling a naturally aspirated 5S-FE or dialing in a turbocharged 3S-GTE, this manual lays out every key service procedure with factory accuracy.

You'll get detailed coverage of engine mechanical work—inspections, overhauls, reassembly—along with turbocharger service, cooling system repairs, EFI diagnostics, and ignition tuning. It also includes step-by-step procedures for starting system checks, alternator servicing, lubrication system testing, and accurate torque specs for reassembly.

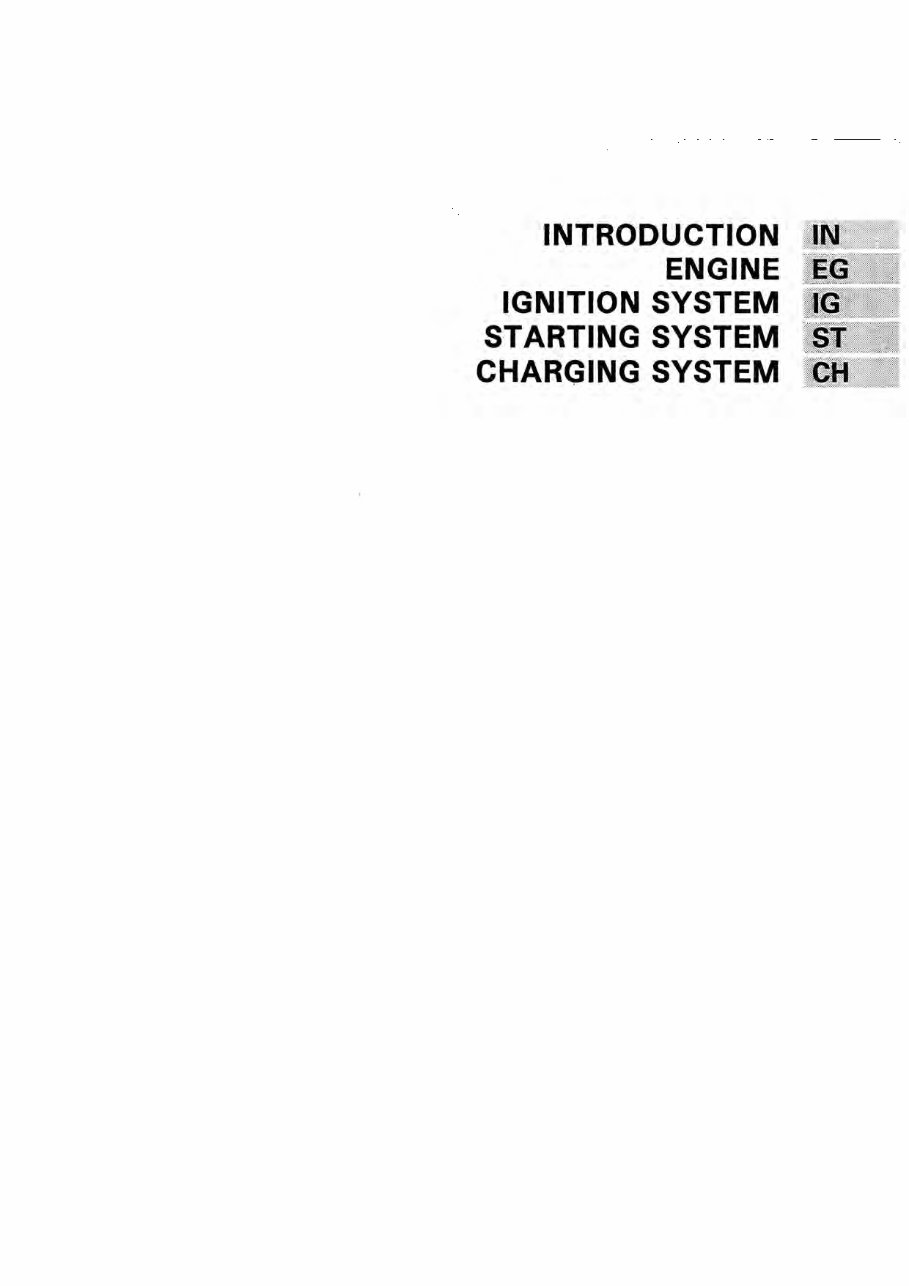

Content overview:

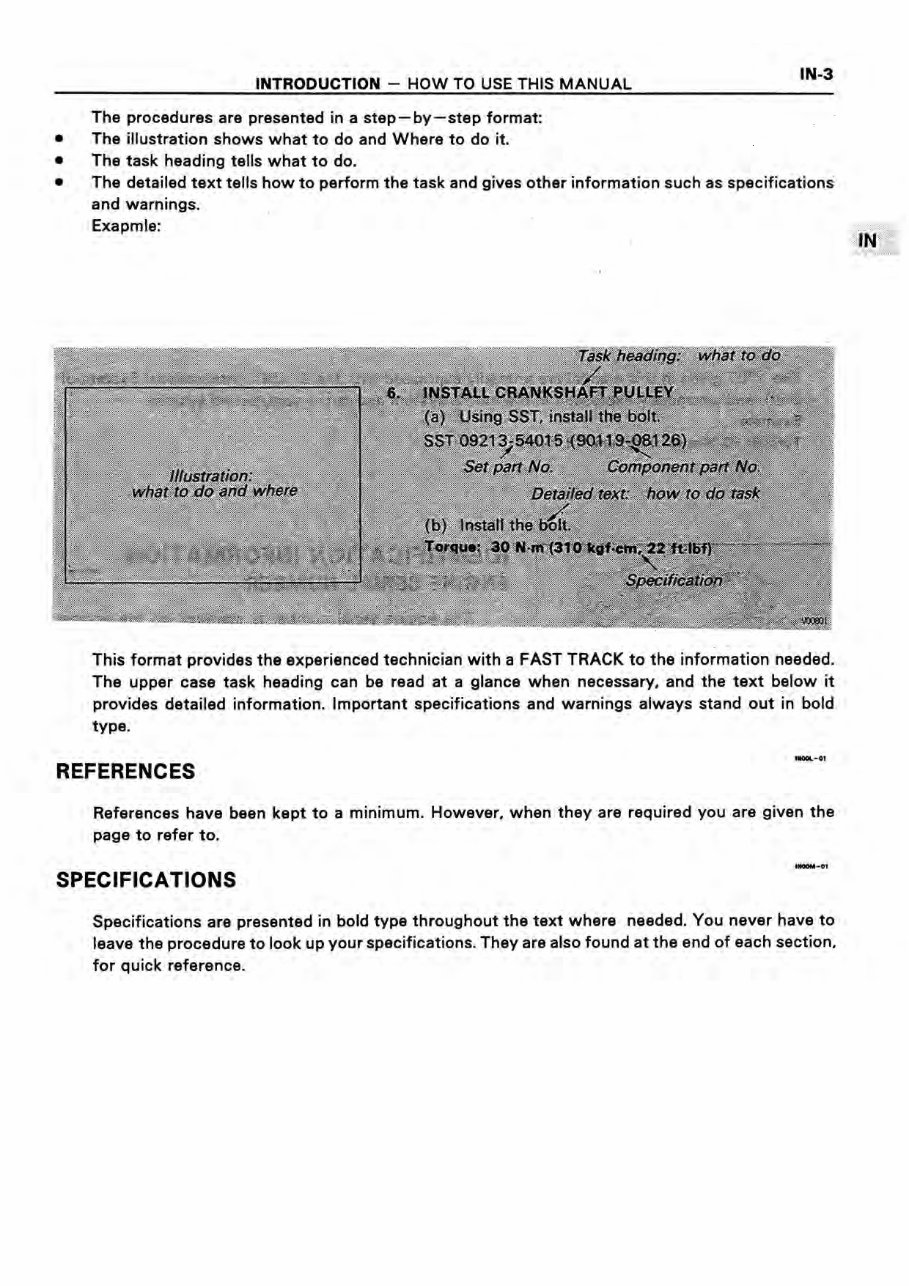

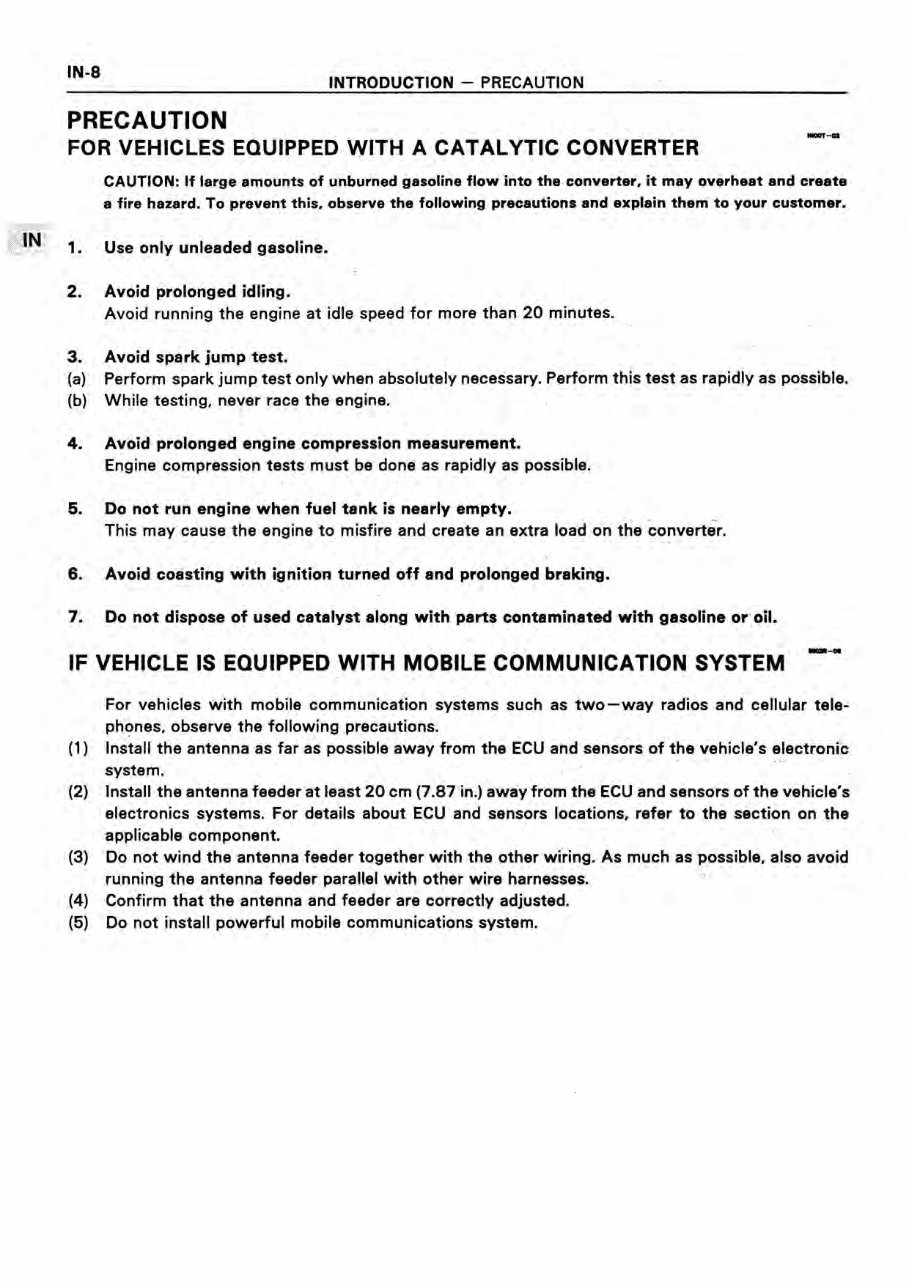

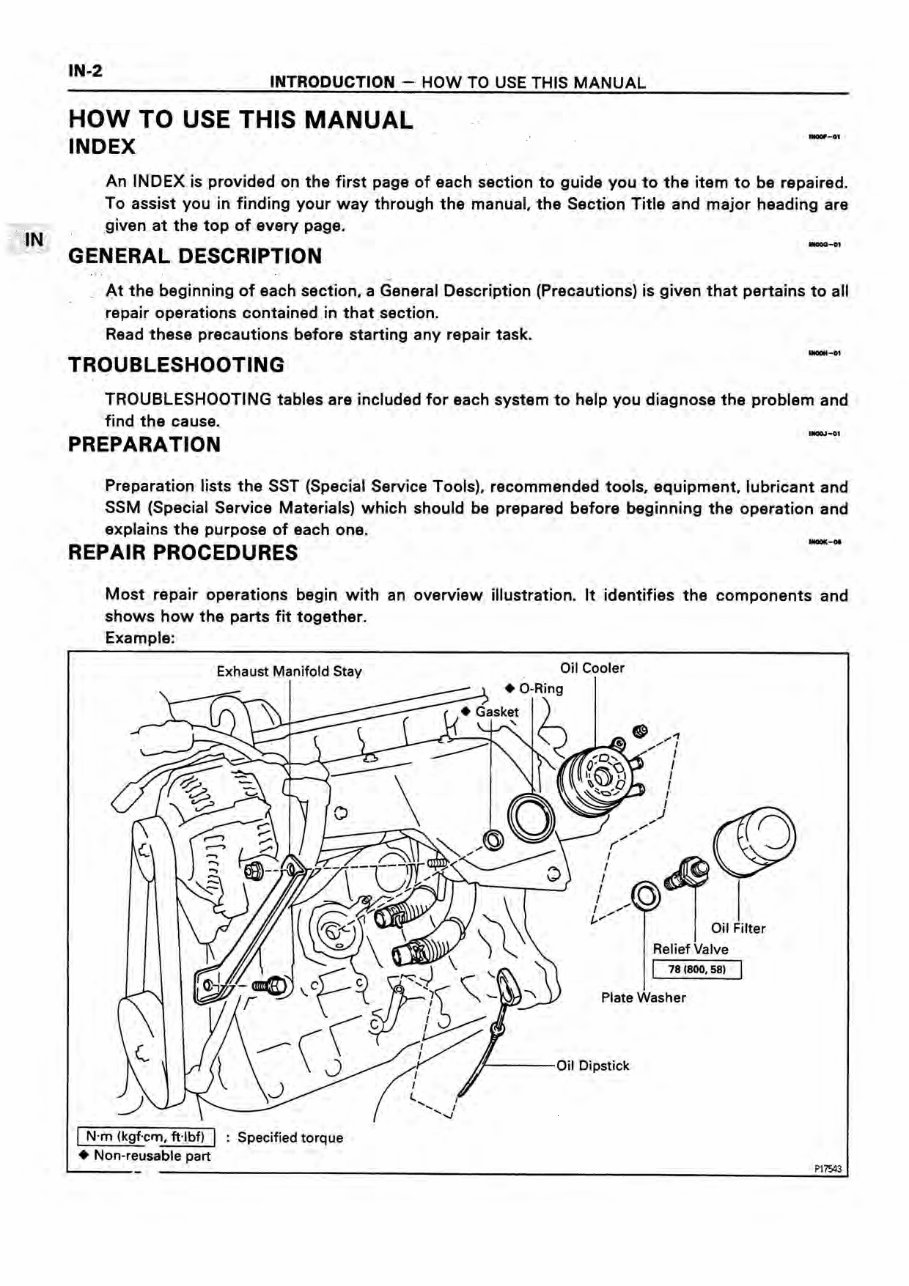

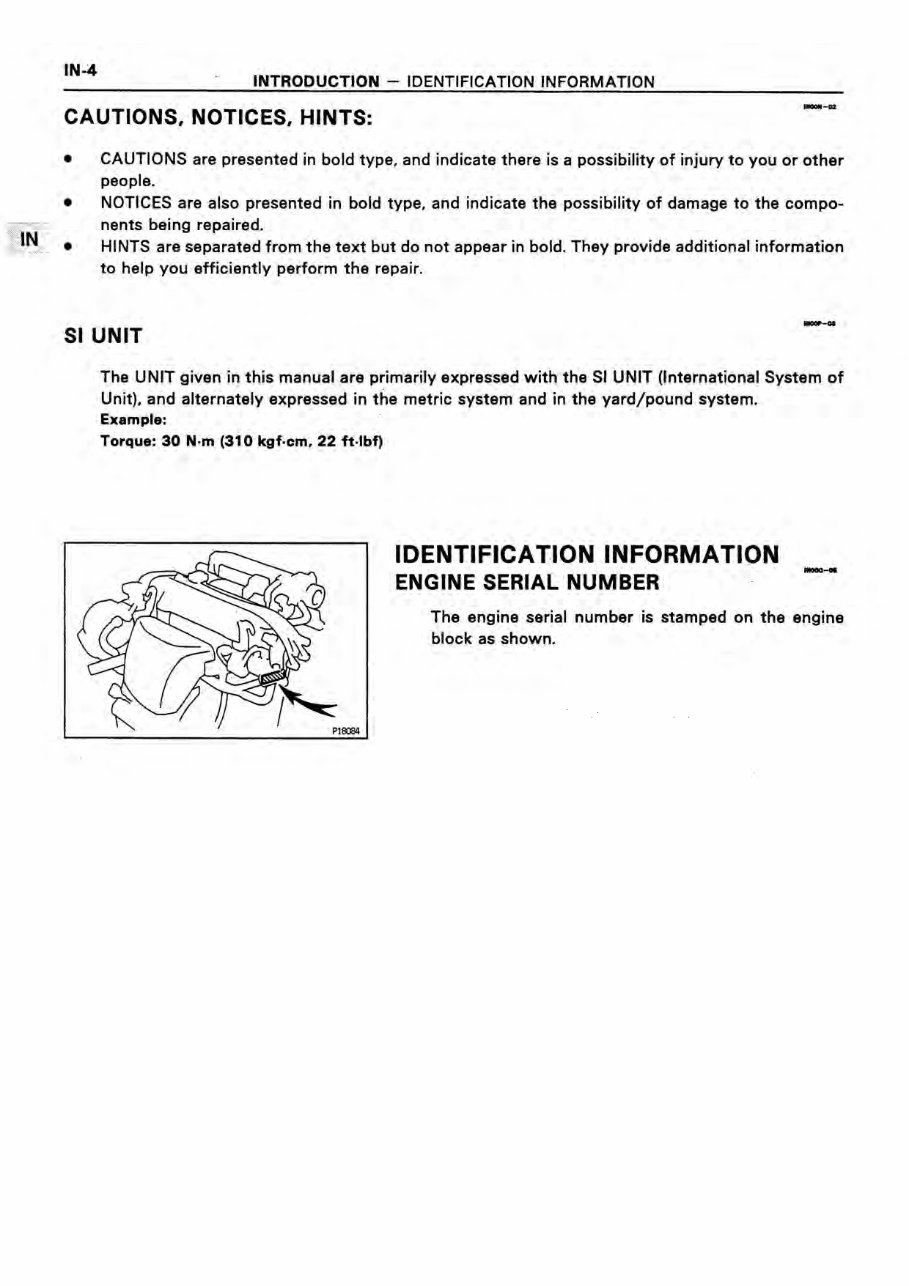

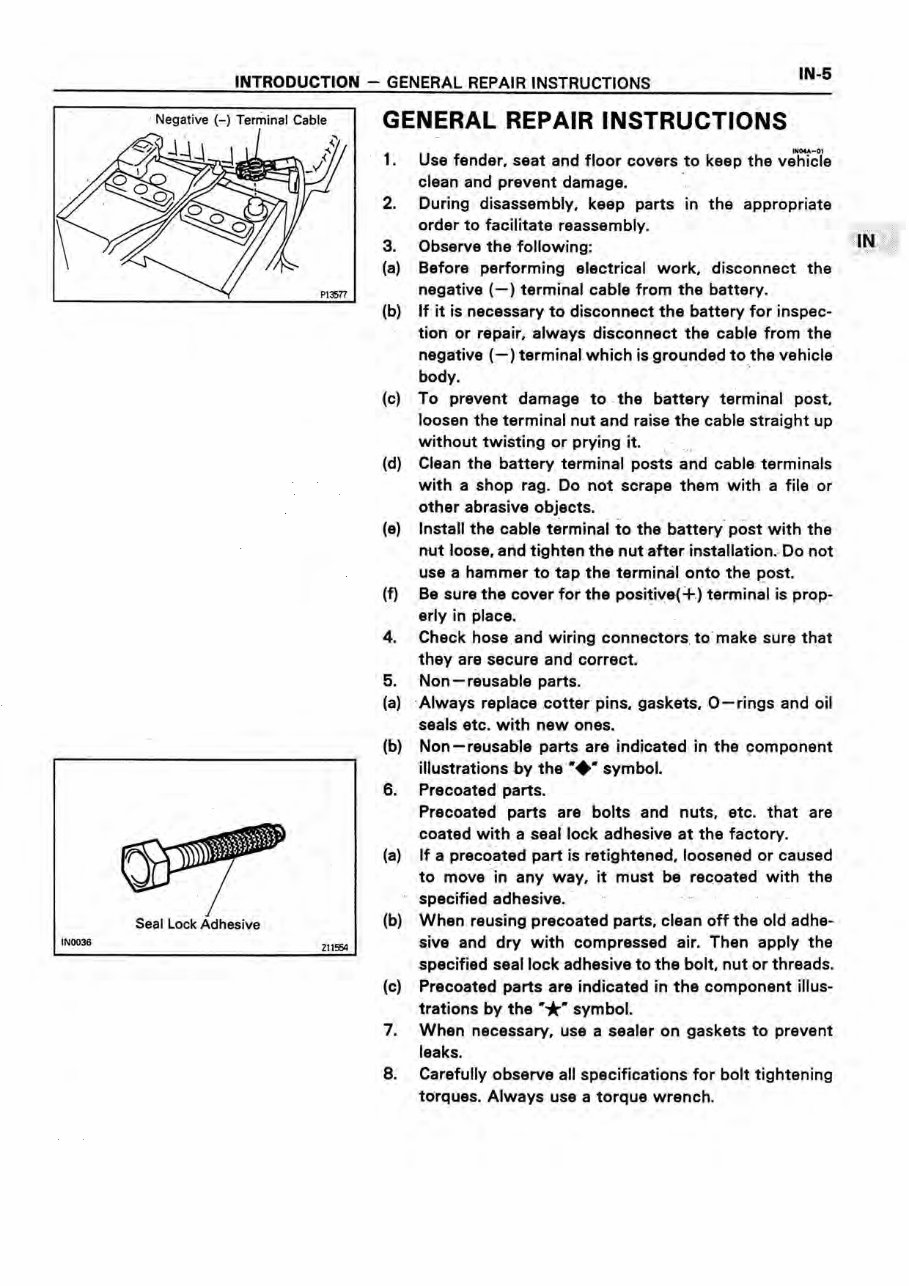

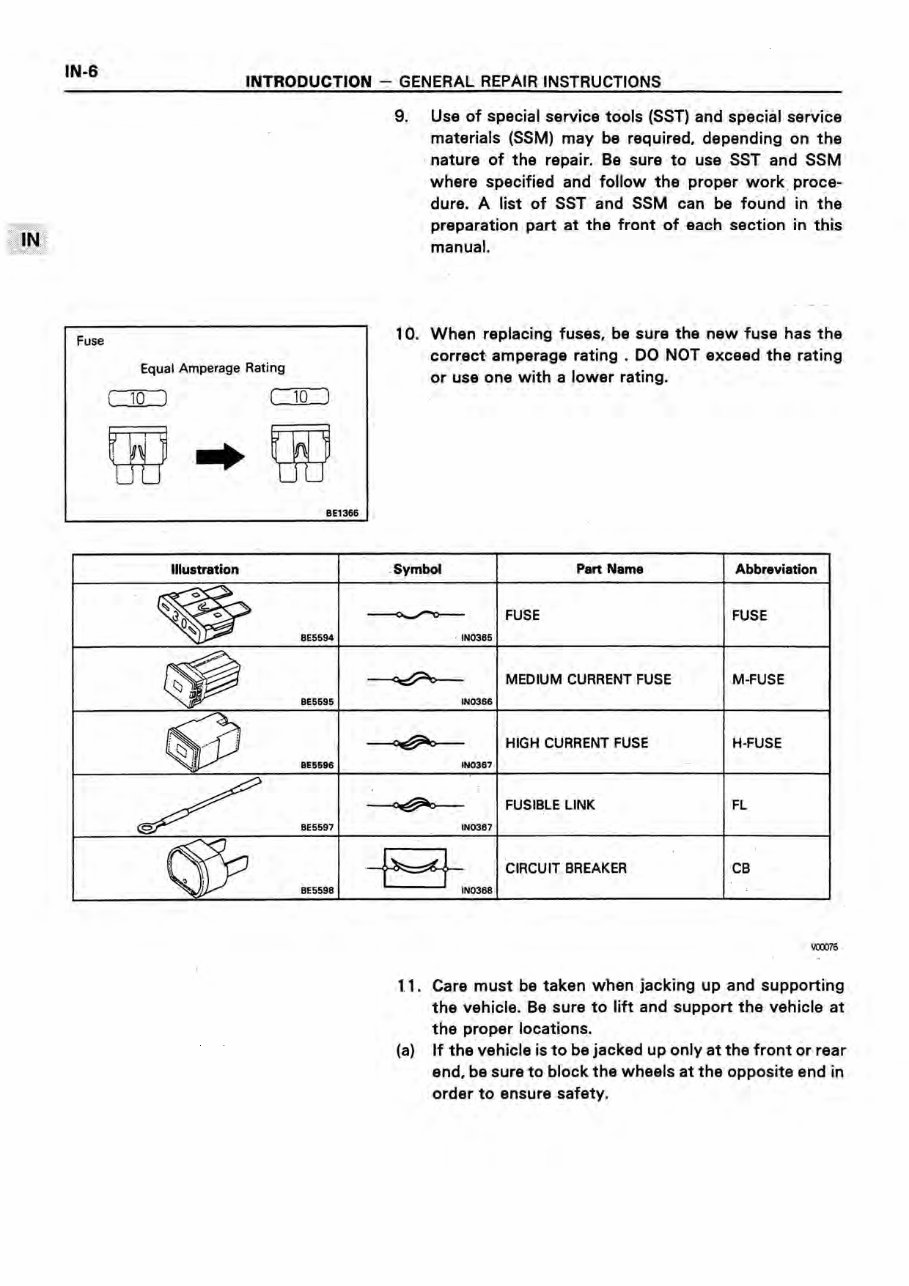

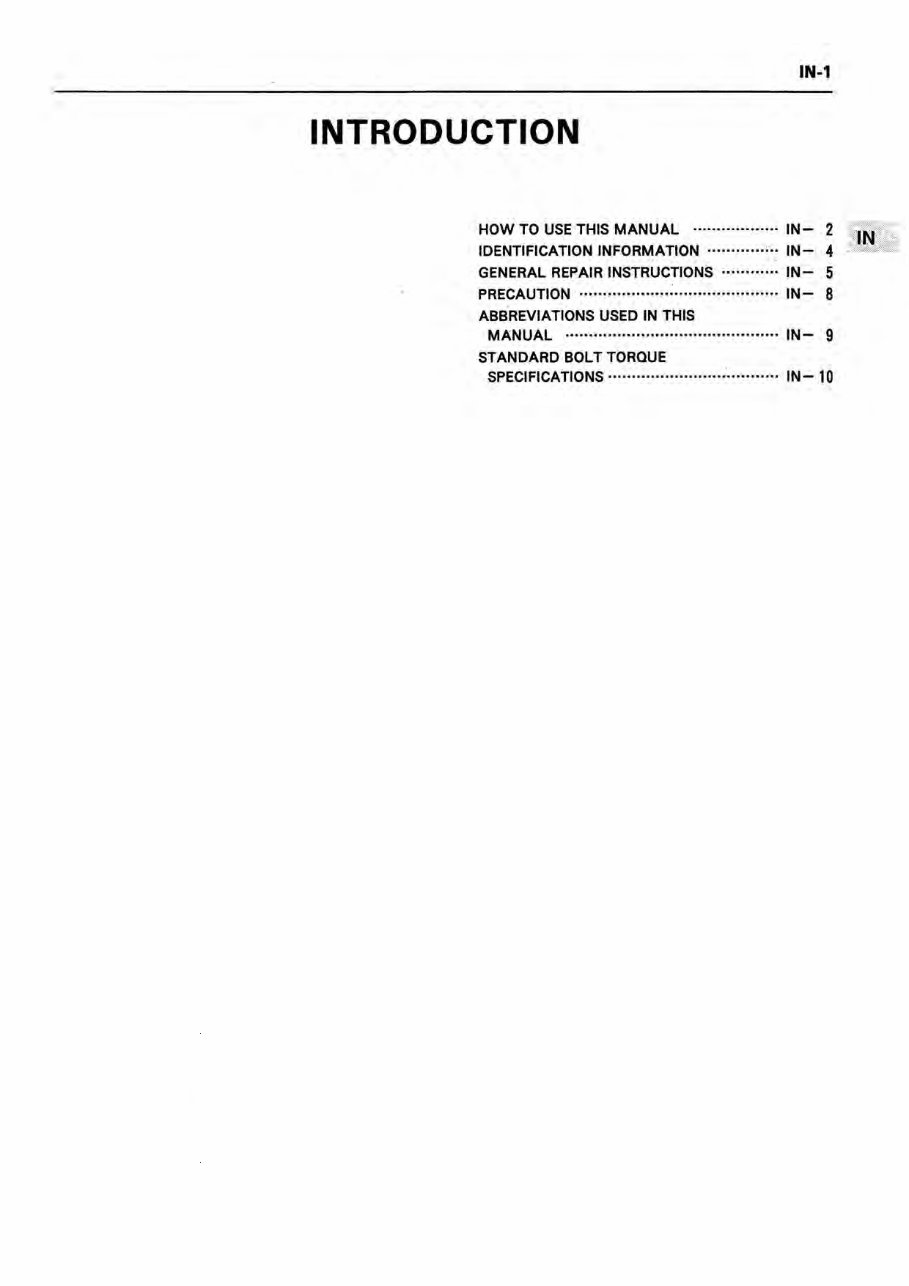

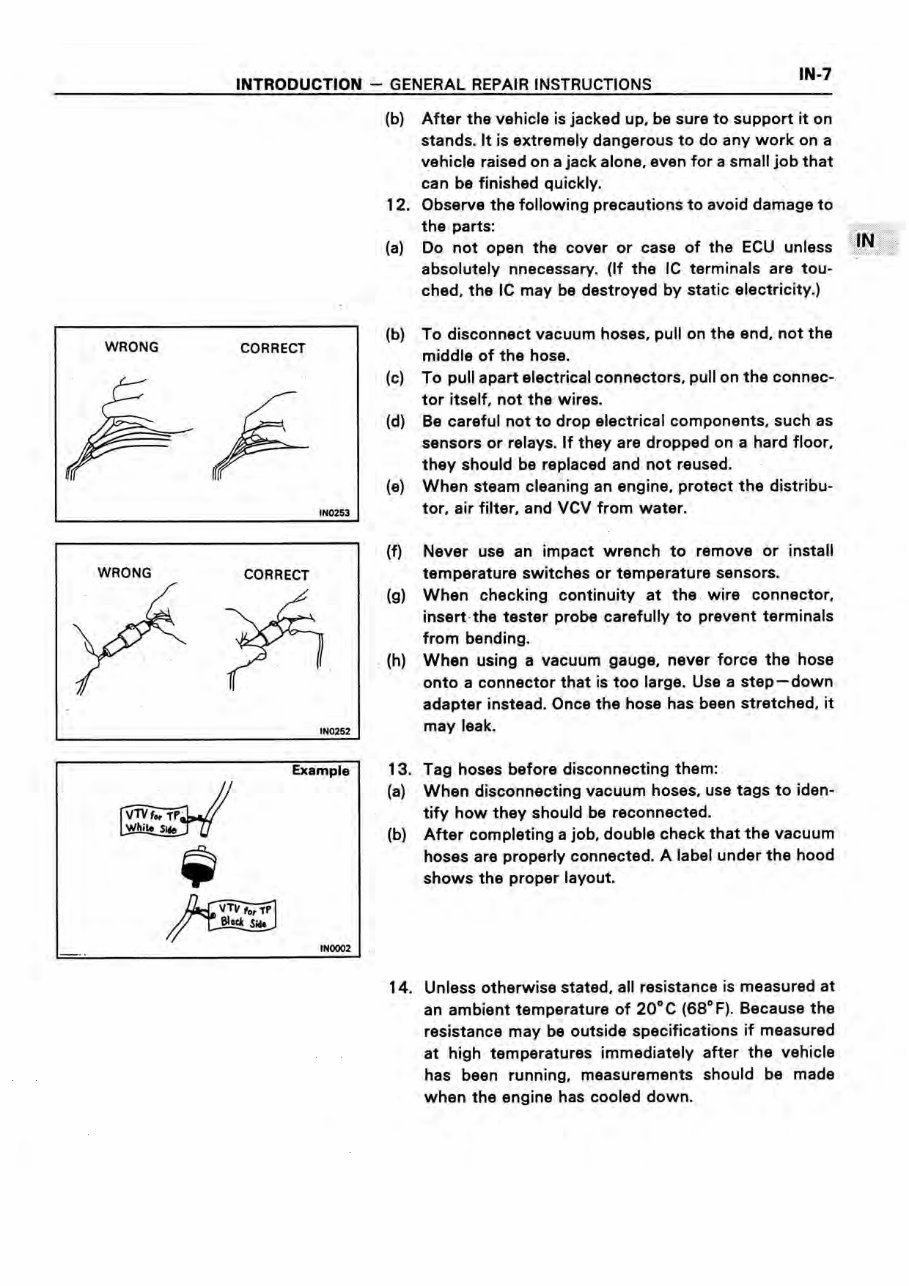

• Introduction and general engine service information
• Engine mechanical inspection, overhaul, and assembly procedures
• Turbocharger system diagnostics, servicing, and replacement steps
• EFI (electronic fuel injection) system troubleshooting and repair
• Cooling system inspection, maintenance, and component replacement
• Lubrication system servicing, oil flow checks, and component replacement
• Ignition system diagnostics, adjustments, and repair procedures
• Starting system troubleshooting, testing, and component servicing
• Charging system inspection, alternator servicing, and wiring checks
• Detailed service specifications for all covered engines
• Standard bolt torque specifications for accurate assembly
• SST (special service tools) and SSM (service standard methods) reference

Built for both dealership techs and capable DIYers, this manual doesn’t waste words—it just gives you the specs, tools, and methods to keep these Toyota engines running strong. If you're working on a Celica, MR2, Camry, or any other 3S/5S-equipped vehicle, this is the manual that speaks your language.

Printable: Yes
Language: English
Compatibility: Pretty much any electronic device, incl. PC & Mac computers, Android and Apple smartphones & tablet, etc.
Requirements: Adobe Reader (free)
