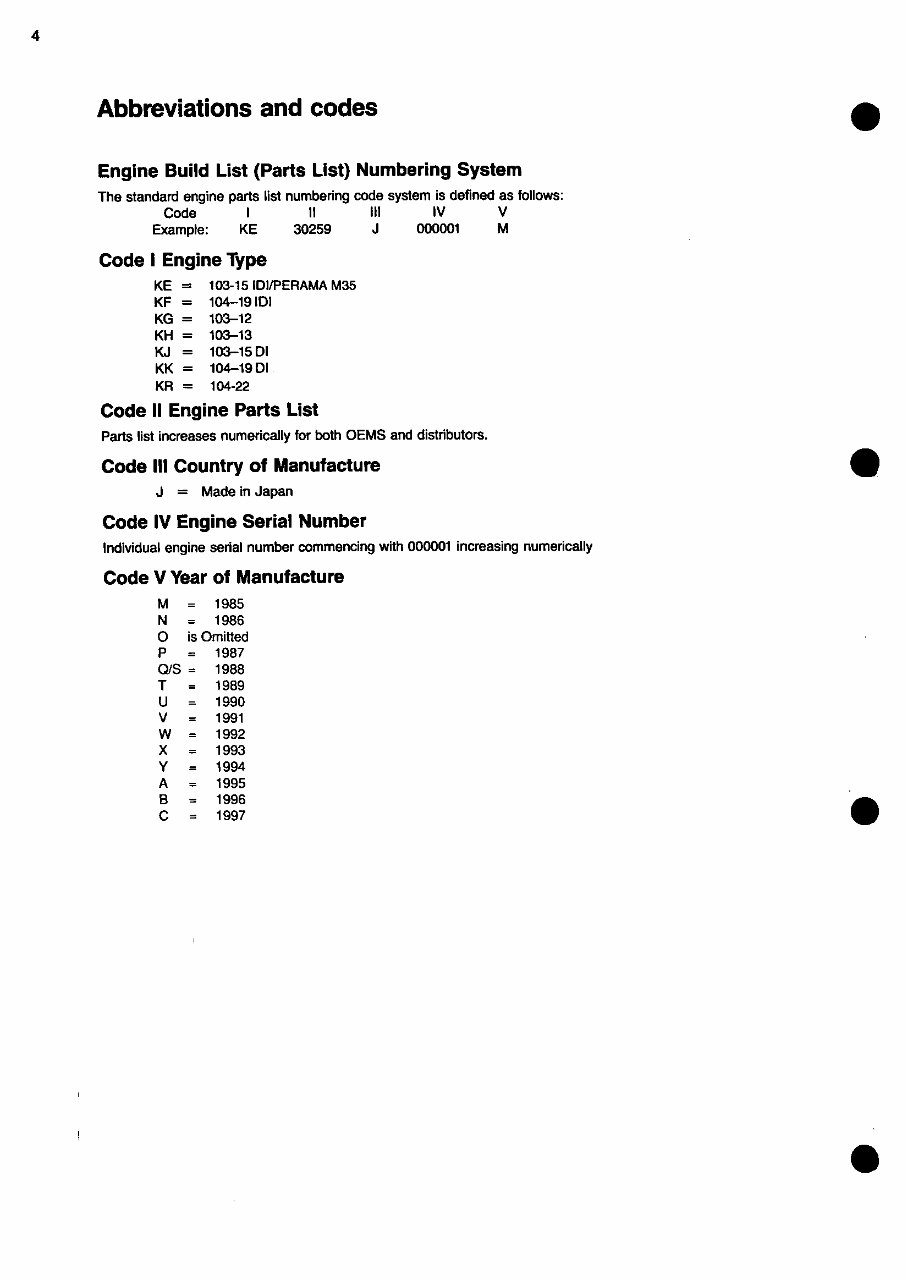

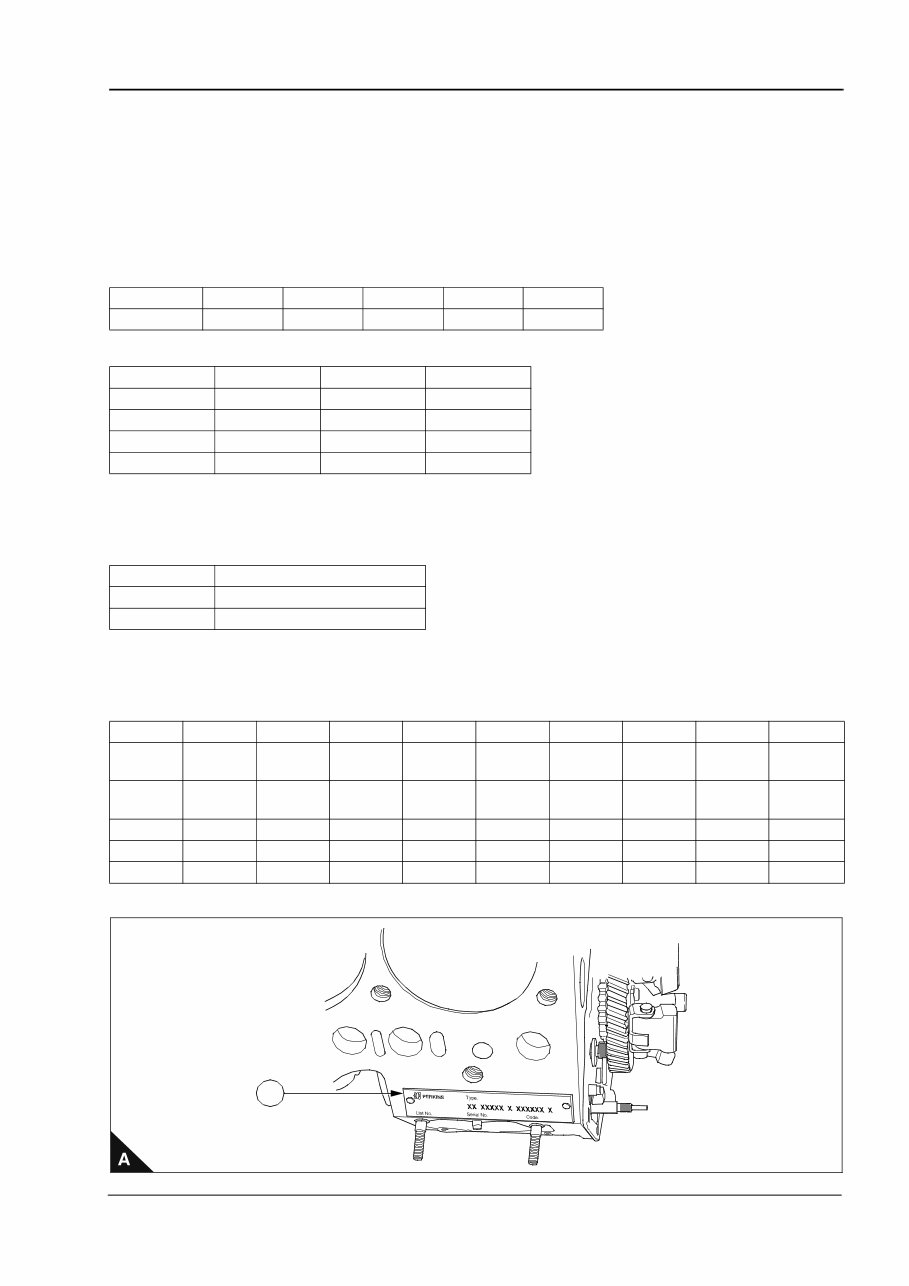

1 Workshop Manual, TPD 1377E, issue 4 7 100 Series Engine I.D. location The engine identification plate (A1) is located on the front right side of the engine, just above the fuel injection pump. It consists of the following: Abbreviations and codes Engine build list (parts list) numbering system The standard engine parts list numbering code system is defined as follows: Code I Engine Build Code Code II Engine parts list Parts list increases numerically for both OEMS and distributors. Code III Country of manufacture Code IV Engine serial number Individual engine serial number commencing with 000001 increasing numerically. Code V Year of Manufacture Code I II III IV V Example KE 30260 U 000001 D Engine Build code Engine Build code 102 - 05 KN 103 - 15 KE 103 - 07 KL 104 - 19 KF 103 - 10 KD 104 - 22 KR 103 - 13 KH Code Country of manufacture J Made in Japan U Made in U.K. Code Year Code Year Code Year Code Year Code Year M 1985 T 1989 Y 1994 E 01/01/99 31/03/99 J 2002 N 1986 U 1990 A 1995 F 01/04/99 31/12/99 K 2003 O not used V 1991 B 1996 G 2000 L 2004 P 1987 W 1992 C 1997 H 2001 Q/S 1988 X 1993 D 1998 I not used‘ 1 http://engine.od.ua/perkins

20 SEBU7992-01 Product Information Section Product Identification Information Product Identification Information i02216958 Engine Identification Perkins engines are identified by a serial number. This number is shown on a serial number plate that is mounted above the fuel injection pump on the right hand side of the engine block. An example of an engine number is HHU000001J. HH _________________________________________Type of engine U ____________________________Built in the United Kingdom Engines that are built in Japan will have a (J). Engines that are built in North America will have a (N). 000001 ___________________________Engine Serial Number J _____________________________________Year of Manufacture Perkins dealers or Perkins distributors need all of these numbers in order to determine the components that were included with the engine. This permits accurate identification of replacement part numbers. i02157258 Serial Number Plate g01094203 Illustration 18 Typical serial number plate The Serial Number Plate is located above the fuel injection pump on the right side of the cylinder block. The following information is stamped on the Serial Number Plate: Engine serial number, Model, and Arrangement number. i02164876 Reference Numbers Information for the following items may be needed to order parts. Locate the information for your engine. Record the information in the appropriate space. Make a copy of this list for a record. Keep the information for future reference. Record for Reference Engine Model _______________________________________________ Engine Serial number _____________________________________ Engine Low Idle rpm ______________________________________ Engine Full Load rpm _____________________________________ Primary Fuel Filter _________________________________________ Water Separator Element ________________________________ Secondary Fuel Filter Element __________________________ Lubrication Oil Filter Element ___________________________ Auxiliary Oil Filter Element _______________________________ Total Lubrication System Capacity _____________________ Total Cooling System Capacity _________________________ Air Cleaner Element _______________________________________ Fan Drive Belt ______________________________________________ Alternator Belt ______________________________________________ i02166528 Emissions Certification Film A typical example is shown. http://engine.od.ua/perkins

SEBU7992-01 21 Product Information Section Product Identification Information g01098670 Illustration 19 http://engine.od.ua/perkins

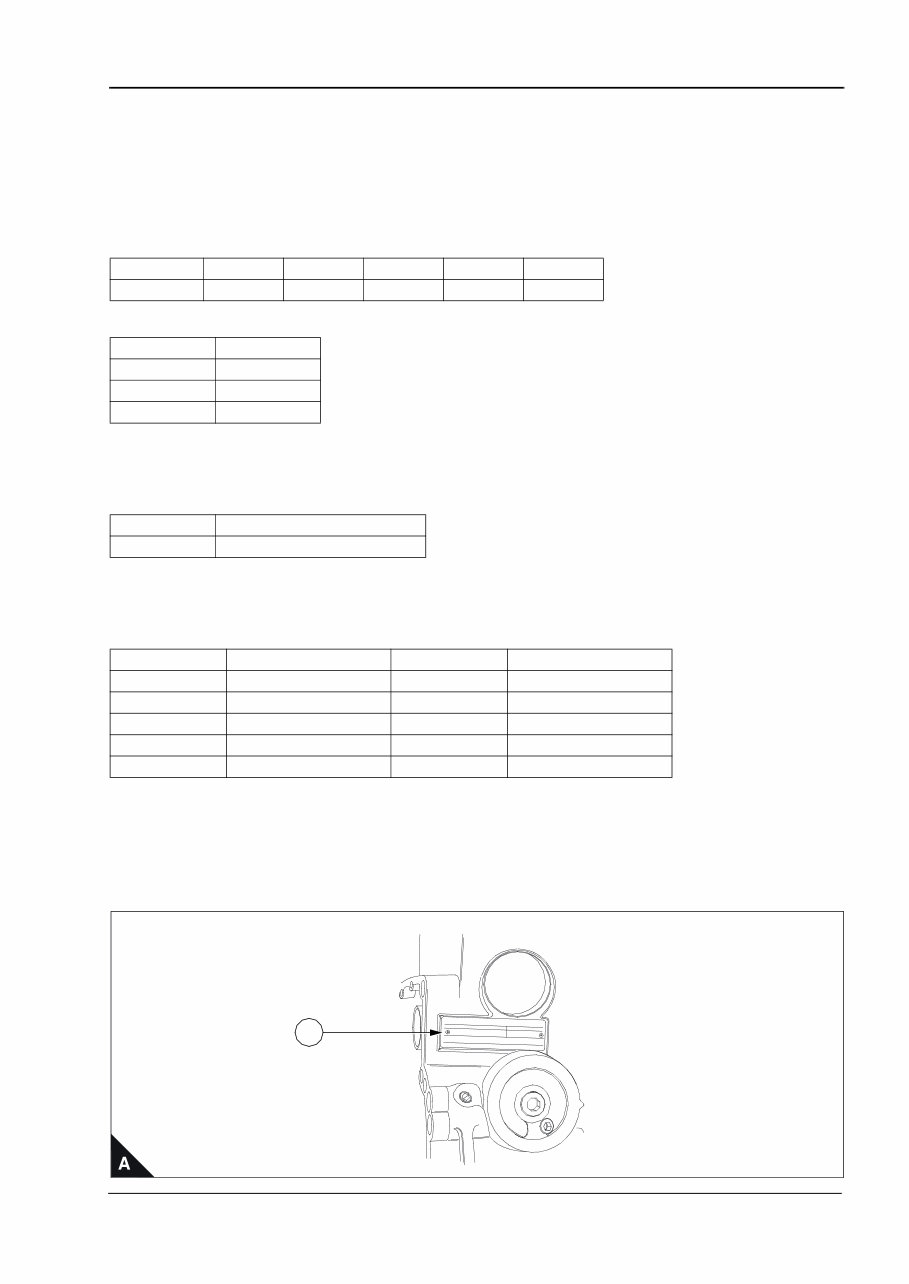

1 Workshop Manual, TPD 1392E, issue 3 5 700 Series Engine I.D. location The engine number is stamped on a label (A1) that is located on the right rear side of the engine. It consists of the following: Abbreviations and codes Engine build list numbering system. The engine parts list numbering system is defined as follows: Code I Engine type code Code II Engine build list number Build list number is dependent upon specification. Code III Country of manufacture Code IV Engine serial number The engine serial number is sequential. Code V Year of Manufacture Code I II III IV V Example UA 80862 U 000001 A Engine Code 704 - 26 UA 704 - 30 UB 704 - 30T UC Code Country of manufacture U Made in U.K. Code Year Code Year A 1995 F 1/4/1999 - 31/12/1999 B 1996 G 2000 C 1997 H 2001 D 1998 J 2002 E 1/1/1999 - 31/3/1999 1 http://engine.od.ua/perkins

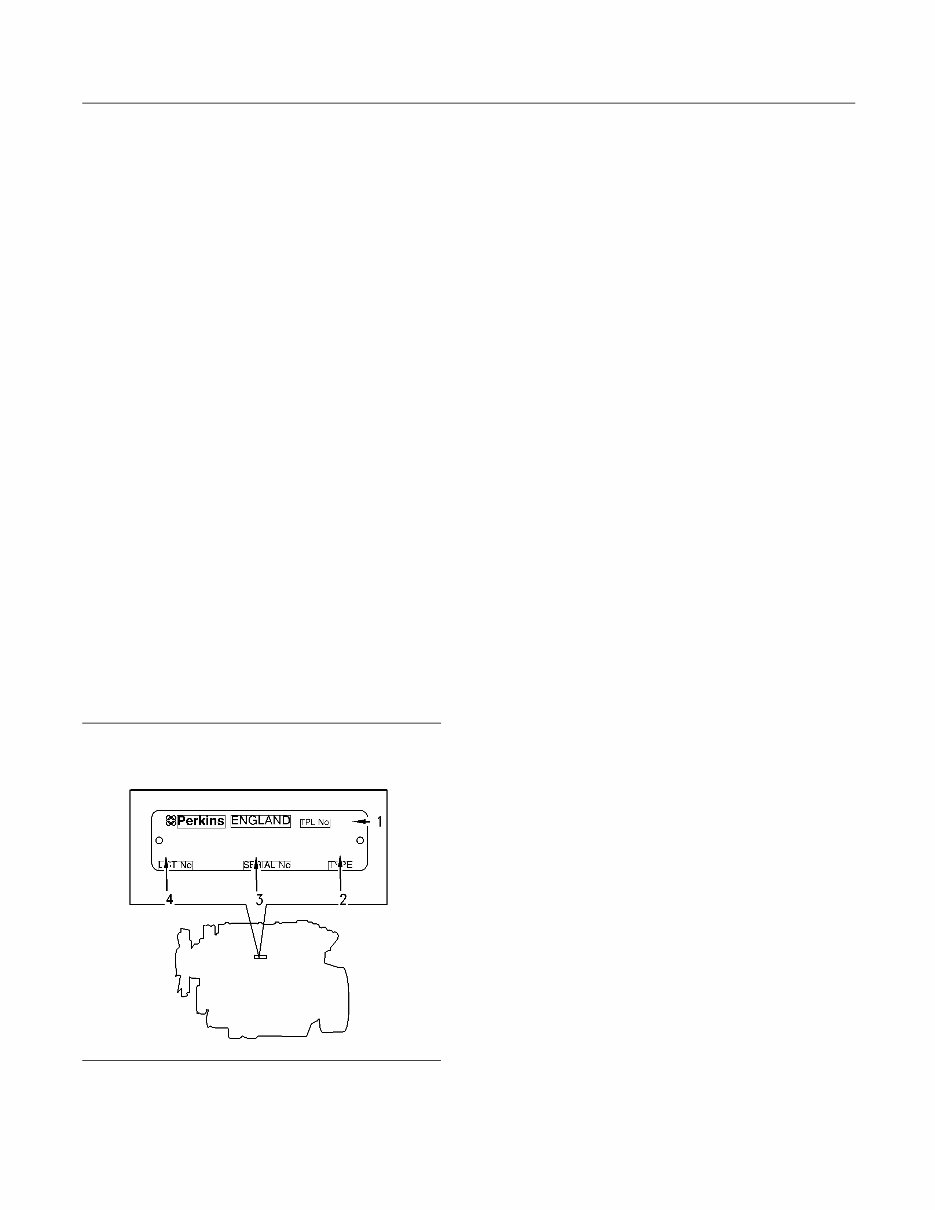

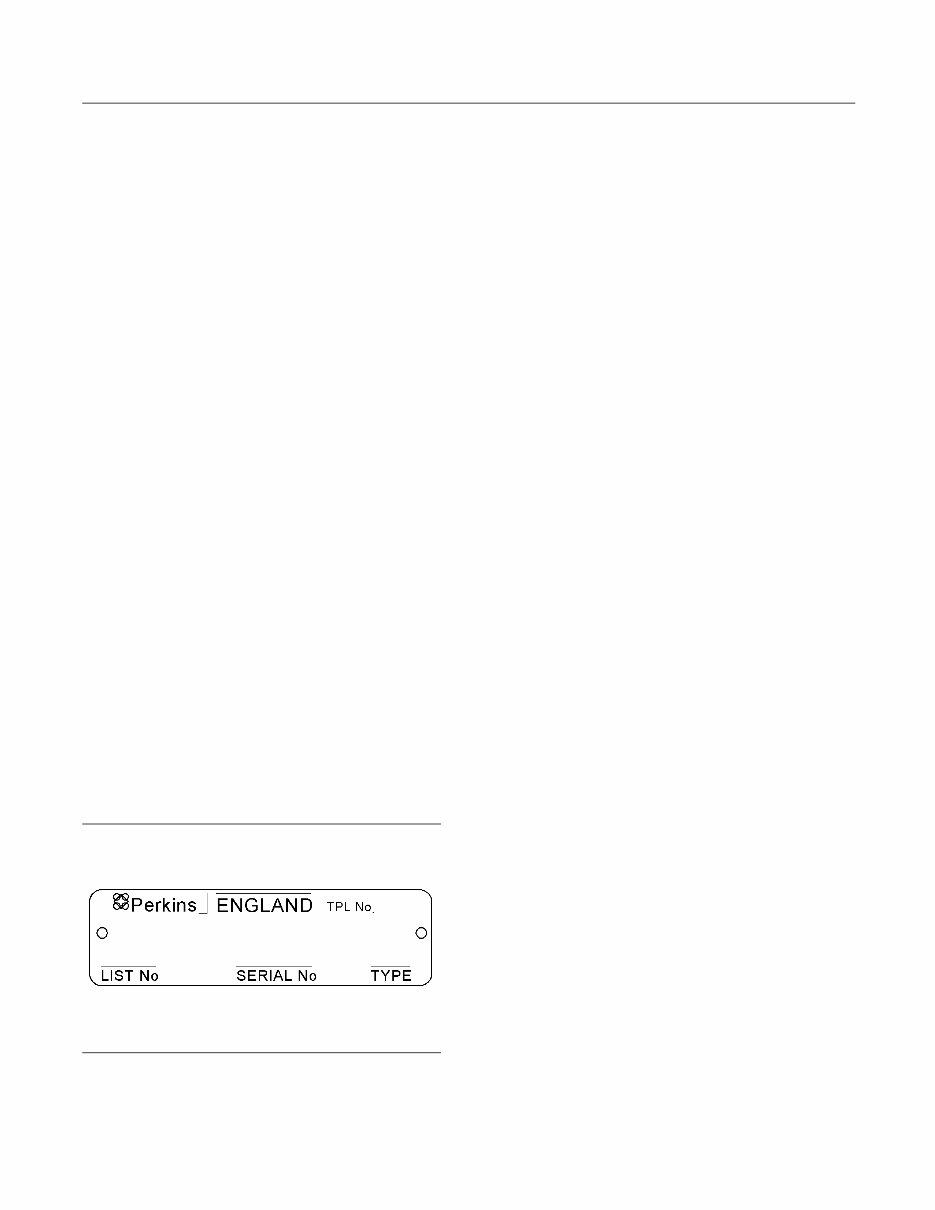

19 Product Information Section Product Identification Information Product Identification Information i01933733 Engine Identification Perkins engines are identified by a serial number. This number is shown on a serial number plate that is mounted on the left hand side of the engine block. An example of an engine number is UEU090001H. UE __________________________________________Type of engine U ____________________________Built in the United Kingdom 0900001 _________________________Engine Serial Number H _____________________________________Year of Manufacture Perkins dealers need all of these numbers in order to determine the components that were included with the engine. This permits accurate identification of replacement part numbers. i01933737 Serial Number Plate g00994966 Illustration 12 Typical serial number plate (1) Temporary Parts List number (2) Type (3) Serial number (4) List number The Serial Number Plate is located on the left side of the cylinder block. The following information is stamped on the Serial Number Plate: Engine serial number, Model, and Arrangement number. i01892045 Reference Numbers Information for the following items may be needed to order parts. Locate the information for your engine. Record the information on the appropriate space. Make a copy of this list for a record. Keep the information for future reference. Record for Reference Engine Model _______________________________________________ Engine Serial No. __________________________________________ Engine Low Idle rpm ______________________________________ Engine Full Load rpm _____________________________________ Primary Fuel Filter No. ____________________________________ Water Separator Element No. ___________________________ Secondary Fuel Filter Element No. ____________________ Lubrication Oil Filter Element No. ______________________ Auxiliary Oil Filter Element No. _________________________ Total Lubrication System Capacity _____________________ Total Cooling System Capacity _________________________ Air Cleaner Element No. _________________________________ Fan Drive Belt No. _________________________________________ Alternator Belt No. _________________________________________ i01933748 Emissions Certification Film A typical example is shown. http://engine.od.ua/perkins

20 Product Information Section Product Identification Information g01002325 Illustration 13 http://engine.od.ua/perkins
