03-M-E3B SERIES, 03-M-DI-E3B SERIES, 03-M-E3BG SERIES WORKSHOP MANUAL DIESEL ENGINE KiSC issued 07, 2014 A

TO THE READER This Workshop Manual tells the servicing personnel about the mechanism, servicing and maintenance of the 03-M-E3B, the 03-M-DI-E3B and the 03-M-E3BG series. It contains 4 parts: "Information", "General", "Mechanism" and "Servicing".  Information This section contains information below. • Safety First • Specification • Dimensions • Wiring Diagram  General This section contains information below. • Engine Identification • General Precautions • Maintenance Check List • Check and Maintenance • Special Tools  Mechanism This section contains information on the structure and the function of the unit. Before you continue with the subsequent sections, make sure that you read this section. Refer to Workshop Manual (Code No. 9Y021-01870) for the diesel engine mechanism that this workshop manual does not include.  Servicing This section contains information below. • Troubleshooting • Servicing Specifications • Tightening Torques • Checking, Disassembling and Servicing All illustrations, photographs and specifications contained in this manual are of the newest information available at the time of publication. KUBOTA reserves the right to change all information at any time without notice. Since this manual includes many models, information or illustrations and photographs can show more than one model. January, 2009 © KUBOTA Corporation 2009 KiSC issued 07, 2014 A

Record of Revisions For pdf, use search function {Search word} to find all the revised locations. Last digit of the Code No. Issue month Main Revised Point and Corrective Measures {Search word} Reference Page 3 2013.04 2. SPECIFICATION [1] MODEL NAME AND OLD ENGINE SERIAL NUMBER [2] MODEL NAME AND NEW ENGINE SERIAL NUMBER Battery Specific Gravity Battery Specific Gravity Replacement of Valve Guide I-10 to I-14 G-1 G-2 G-26 1-S39 1-S81 4 2014.07 ELECTRONIC GOVERNOR Blinking Pattern of Glow Lamp 1-S9 KiSC issued 07, 2014 A

I INFORMATION KiSC issued 07, 2014 A

CONTENTS 1. SAFETY FIRST .............................................................................................................................. I-1 2. SPECIFICATION ............................................................................................................................ I-4 3. DIMENSIONS ............................................................................................................................... I-15 4. WIRING DIAGRAM....................................................................................................................... I-21 INFORMATION KiSC issued 07, 2014 A

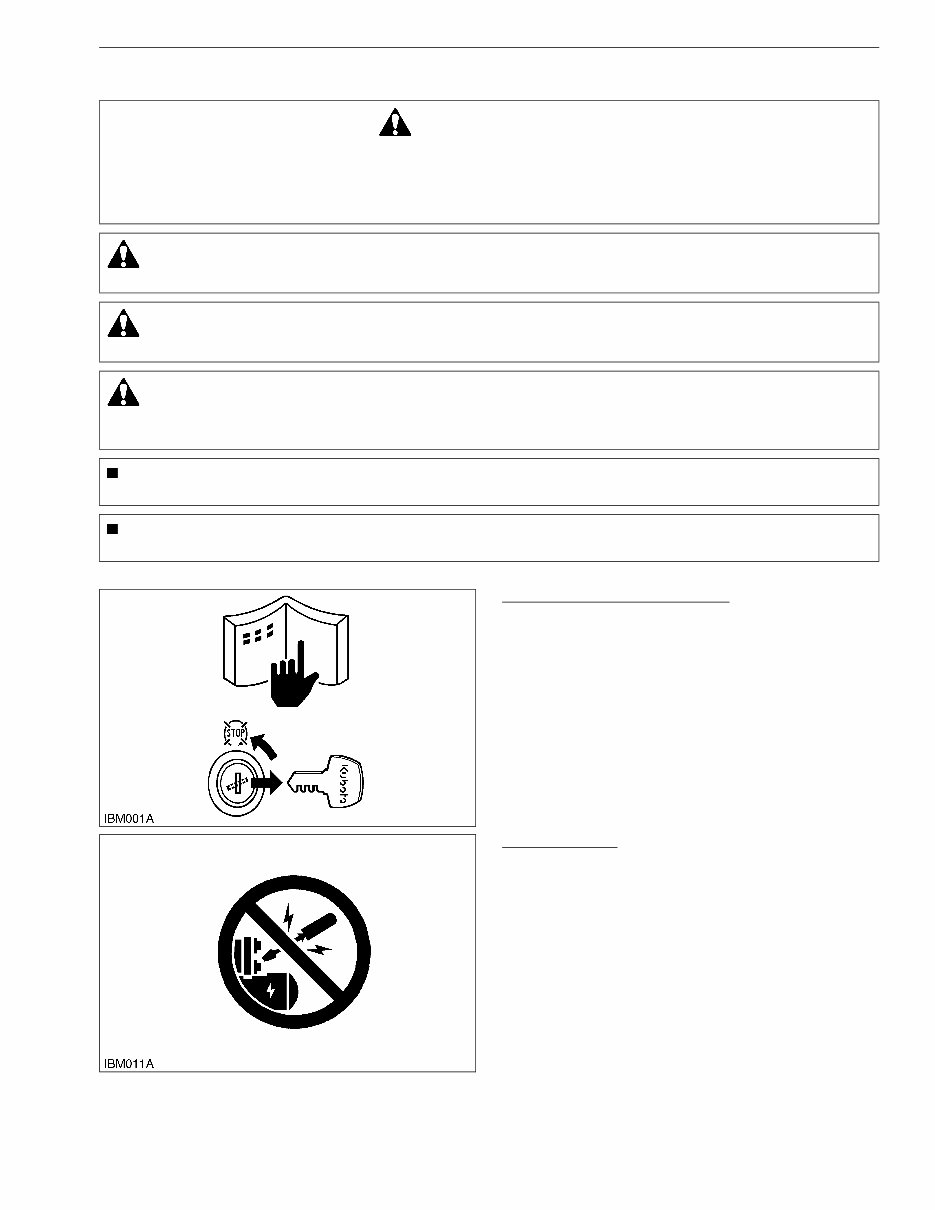

INFORMATION 03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM I-1 1. SAFETY FIRST M00000003INI0001US1 BEFORE YOU START SERVICE • Read all instructions and safety instructions in this manual and on your engine safety decals. • Clean the work area and engine. • Park the machine on a stable and level ground. • Let the temperature of the engine decrease before you start a job. • Stop the engine, then remove the key. • Disconnect the battery negative cable. • Hang a "DO NOT OPERATE" tag in the operator station. M00000003INI0002US1 START SAFELY • Do not do the procedures below when you start the engine. – short across starter terminals – bypass the safety start switch • Do not make unauthorized modifications to the engine. This can cause damage and decrease the engine life. M00000003INI0003US1 SAFETY FIRST • This symbol, the industry's "Safety Alert Symbol", is used throughout this manual and on labels on the machine itself to warn of the possibility of personal injury. Read these instructions carefully. • It is essential that you read the instructions and safety regulations before you attempt to repair or use this unit. DANGER • Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING • Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION • Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. IMPORTANT • Indicates that equipment or property damage could result if instructions are not followed. NOTE • Gives helpful information. KiSC issued 07, 2014 A

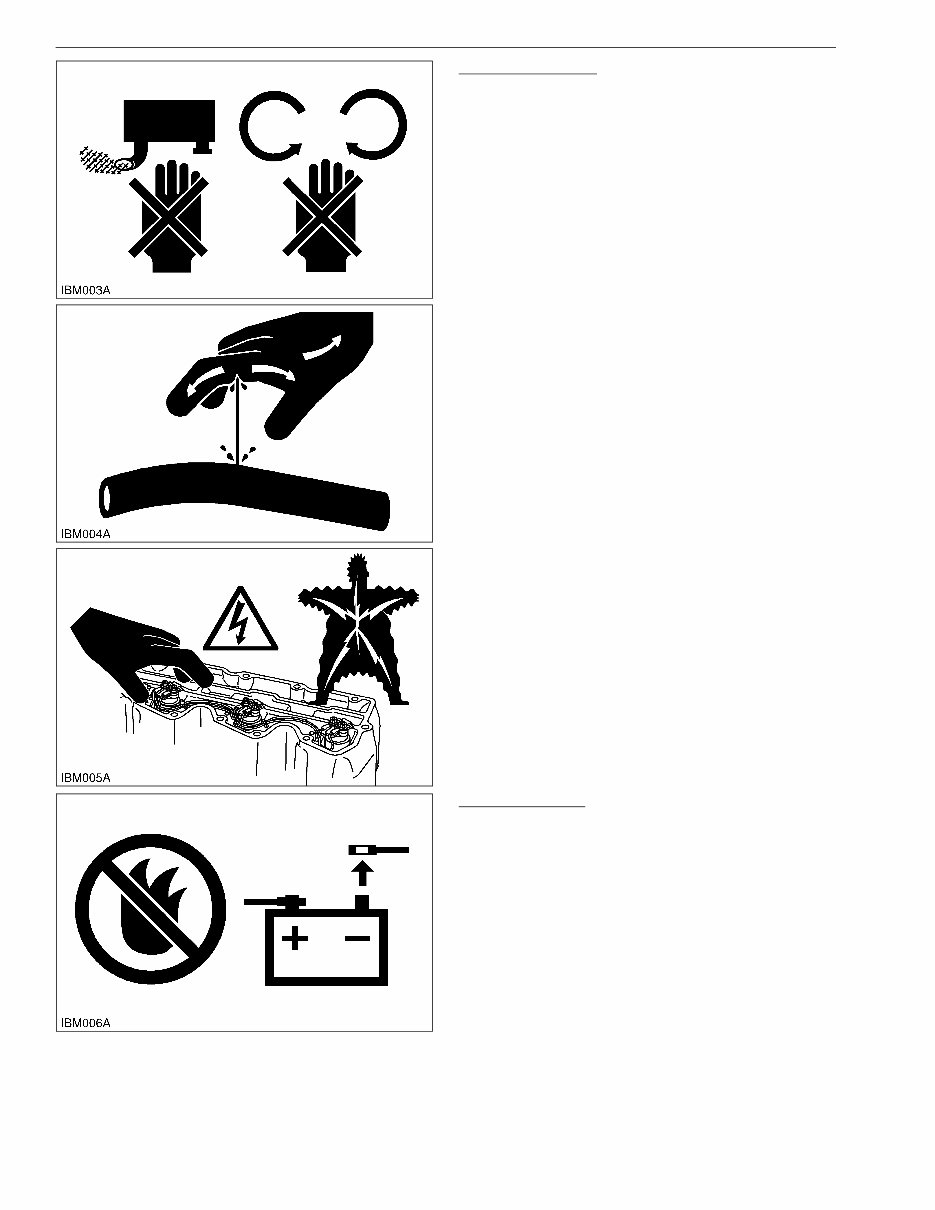

INFORMATION 03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM I-2 OPERATE SAFELY • Do not use the machine after you consume alcohol or medication or when you are tired. • Put on applicable clothing and safety equipment. • Use applicable tools only. Do not use alternative tools or parts. • When 2 or more persons do servicing, make sure that you do it safely. • Do not touch the hot parts or parts that turn when the engine operates. • Do not remove the radiator cap when the engine operates, or immediately after it stops. If not, hot water can spout out from the radiator. Only remove the radiator cap when it is at a sufficiently low temperature to touch with bare hands. Slowly loosen the cap to release the pressure before you remove it fully. • Released fluid (fuel or hydraulic oil) under pressure can cause damage to the skin and cause serious injury. Release the pressure before you disconnect hydraulic or fuel lines. Tighten all connections before you apply the pressure. • Do not open a fuel system under high pressure. The fluid under high pressure that stays in fuel lines can cause serious injury. Do not disconnect or repair the fuel lines, sensors, or any other components between the fuel pump and injectors on engines with a common rail fuel system under high pressure. • Put on an applicable ear protective device (earmuffs or earplugs) to prevent injury against loud noises. • Be careful about electric shock. The engine generates a high voltage of more than DC100 V in the ECU and is applied to the injector. M00000003INI0004US1 PREVENT A FIRE • Fuel is very flammable and explosive under some conditions. Do not smoke or let flames or sparks in your work area. • To prevent sparks from an accidental short circuit, always disconnect the battery negative cable first and connect it last. • The battery gas can cause an explosion. Keep the sparks and open flame away from the top of battery, especially when you charge the battery. • Make sure that you do not spill fuel on the engine. M00000003INI0005US1 KiSC issued 07, 2014 A

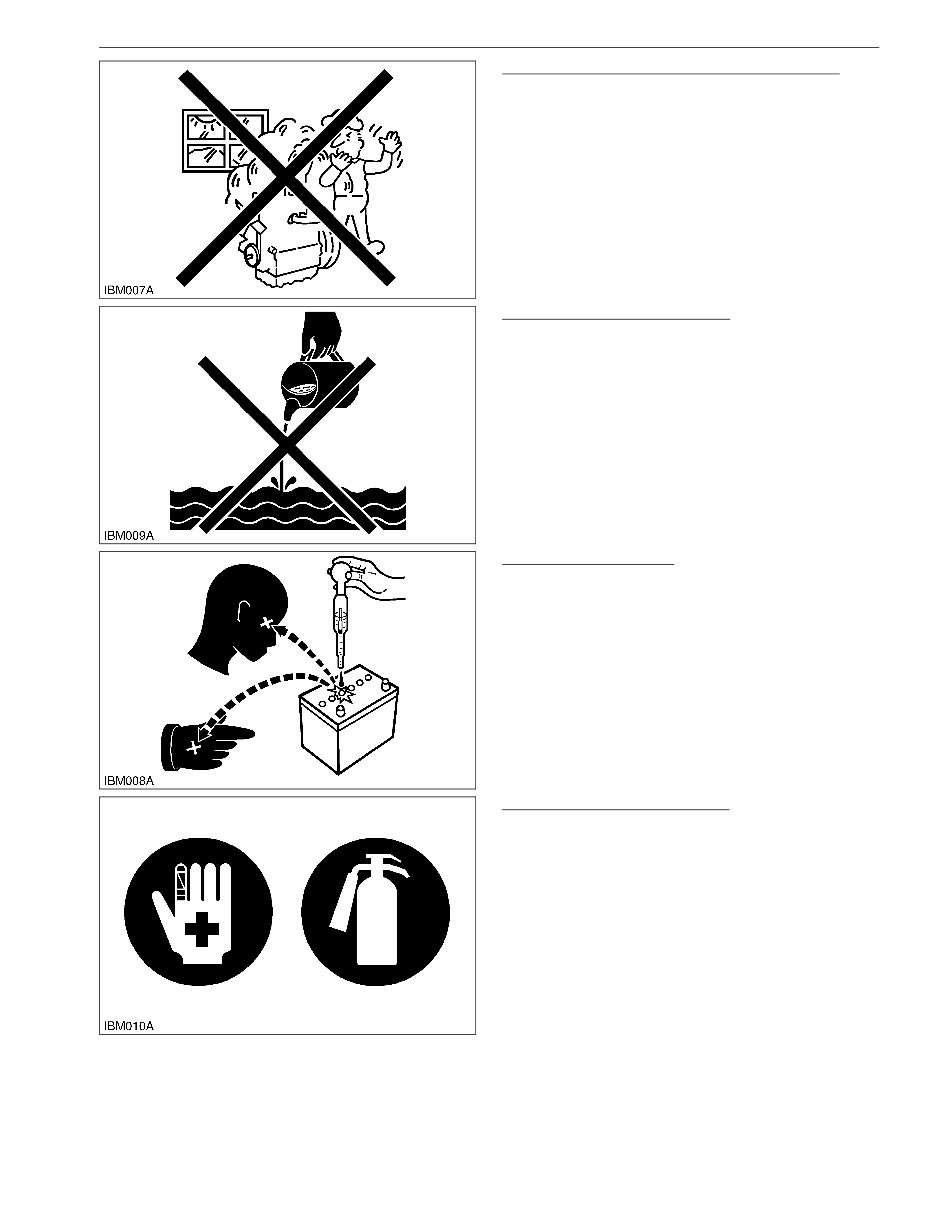

INFORMATION 03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM I-3 KEEP A GOOD AIRFLOW IN THE WORK AREA • If the engine is in operation, make sure that the area has good airflow. Do not operate the engine in a closed area. The exhaust gas contains poisonous carbon monoxide. M00000003INI0006US1 DISCARD FLUIDS CORRECTLY • Do not discard fluids on the ground, down the drain, into a stream, pond, or lake. Obey related environmental protection regulations when you discard oil, fuel, coolant, electrolyte and other dangerous waste. M00000003INI0007US1 PREVENT ACID BURNS • Keep electrolyte away from your eyes, hands and clothing. Sulfuric acid in battery electrolyte is poisonous and it can burn your skin and clothing and cause blindness. If you spill electrolyte on yourself, clean yourself with water, and get medical aid immediately. M00000003INI0008US1 PREPARE FOR EMERGENCIES • Keep a first aid kit and fire extinguisher ready at all times. • Keep the emergency contact telephone numbers near your telephone at all times. M00000003INI0009US1 KiSC issued 07, 2014 A

INFORMATION 03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM I-4 2. SPECIFICATION *The specification described above is of the standard engine of each model. *Conversion Formula : HP = 0.746 kW, PS = 0.7355 kW M00000003INI0010US1 Model D1503-M D1703-M Number of Cylinders 3 Type Vertical, Water-cooled, 4 cycle diesel engine Bore × Stroke 83.0 × 92.4 mm (3.27 × 3.64 in.) 87.0 × 92.4 mm (3.43 × 3.64 in.) Total Displacement 1499 cm 3 (91.47 cu.in.) 1647 cm 3 (100.5 cu.in.) ISO Net Continuous 19.5 kW / 2800 min -1 (rpm) (26.1 HP / 2800 min -1 (rpm)) 21.2 kW / 2800 min -1 (rpm) (28.4 HP / 2800 min -1 (rpm)) ISO/SAE Net Intermittent 22.4 kW / 2800 min -1 (rpm) (30.0 HP / 2800 min -1 (rpm)) 24.4 kW / 2800 min -1 (rpm) (32.7 HP / 2800 min -1 (rpm)) SAE Gross Intermittent 23.8 kW / 2800 min -1 (rpm) (31.9 HP / 2800min -1 (rpm)) 26.1 kW / 2800 min -1 (rpm) (35.0 HP / 2800 min -1 (rpm)) Maximum Bare Speed 3020 min -1 (rpm) Minimum Bare Idling Speed 750 to 850 min -1 (rpm) Combustion Chamber Spherical Type (E-TVCS) Fuel Injection Pump PFR 3M Type Mini Pump (DENSO) Governor Mechanical all speed governor Direction of Rotation Counter-clockwise (viewed from flywheel side) Injection Nozzle OPD Mini Nozzle (DENSO) Injection Timing 0.2662 rad (15.25 °) before T.D.C. 0.2836 rad (16.25 °) before T.D.C. Firing Order 1-2-3 Injection Pressure 13.73 MPa (140.0 kgf/cm 2 , 1991 psi) Compression Ratio 22.8 : 1 22.0 : 1 Lubricating System Forced Lubrication by Trochoid Pump Oil Pressure Indicating Electrical type switch Lubricating Filter Full flow paper filter (cartridge type) Cooling System Pressurized radiator, forced circulation with water pump Starting System Electric Starting with Starter Starting Motor 12 V, 1.2 kW Starting Support Device By glow plug in combustion chamber EGR NONE Battery 12 V, 60 AH equivalent Charging Alternator 12 V, 360 W Fuel Diesel Fuel No.2-D (ASTM D975) Lubricating Oil Class CF lubricating oil as per API classification is recommended. For details on recommended lubricating oils, see page G-8, G-11. Lubricating Oil Capacity Oil Pan Depth 90 mm (3.5 in.) 5.6 L (1.5 U.S.gals) Oil Pan Depth 124 mm (4.88 in.) 7.0 L (1.8 U.S.gals) Weight (Dry) 148 kg (326 lbs) KiSC issued 07, 2014 A

INFORMATION 03-M-E3B, 03-M-DI-E3B, 03-M-E3BG, WSM I-5 *The specification described above is of the standard engine of each model. *Conversion Formula : HP = 0.746 kW, PS = 0.7355 kW M00000003INI0011US1 Model D1803-M Number of Cylinders 3 Type Vertical, Water-cooled, 4 cycle diesel engine Bore × Stroke 87.0 × 102.4 mm (3.43 × 4.031 in.) Total Displacement 1826 cm 3 (111.4 cu.in.) ISO Net Continuous 22.8 kW / 2700 min -1 (rpm) (30.6 HP / 2700 min -1 (rpm)) ISO/SAE Net Intermittent 26.3 kW / 2700 min -1 (rpm) (35.3 HP / 2700 min -1 (rpm)) SAE Gross Intermittent 27.9 kW / 2700 min -1 (rpm) (37.4 HP / 2700 min -1 (rpm)) Maximum Bare Speed 3020 min -1 (rpm) Minimum Bare Idling Speed 750 to 850 min -1 (rpm) Combustion Chamber Spherical Type (E-TVCS) Fuel Injection Pump PFR 3M Type Mini Pump (DENSO) Governor Mechanical all speed governor Direction of Rotation Counter-clockwise (viewed from flywheel side) Injection Nozzle OPD Mini Nozzle (DENSO) Injection Timing 0.2836 rad (16.25 °) before T.D.C. Firing Order 1-2-3 Injection Pressure 13.73 MPa (140.0 kgf/cm 2 , 1991 psi) Compression Ratio 24.3 : 1 Lubricating System Forced Lubrication by Trochoid Pump Oil Pressure Indicating Electrical type switch Lubricating Filter Full flow paper filter (cartridge type) Cooling System Pressurized radiator, forced circulation with water pump Starting System Electric Starting with Starter Starting Motor 12 V, 2.0 kW Starting Support Device By glow plug in combustion chamber EGR NONE Battery 12 V, 92 AH equivalent Charging Alternator 12 V, 360 W Fuel Diesel Fuel No.2-D (ASTM D975) Lubricating Oil Class CF lubricating oil as per API classification is recommended. For details on recommended lubricating oils, see page G-8, G-11. Lubricating Oil Capacity Oil Pan Depth 90 mm (3.5 in.) 5.6 L (1.5 U.S.gals) Oil Pan Depth 124 mm (4.88 in.) 7.0 L (1.8 U.S.gals) Weight (Dry) 151 kg (333 lbs) KiSC issued 07, 2014 A
