Kohler Courage XT Series Owner's Manual

14 590 10 Rev. A KohlerEngines.com XT-6, XT6.5, XT6.75, XT-7, XT8 Owner's Manual IMPORTANT: Read all safety precautions and instructions carefully before operating equipment. Refer to operating instruction of equipment that this engine powers. Ensure engine is stopped and level before performing any maintenance or service. Warranty coverage as outlined in the warranty card and on KohlerEngines.com. Please review carefully as it provides you specific rights and obligations. Record engine information to reference when ordering parts or obtaining warranty coverage. Engine Model Specification Serial Number Purchase Date EN ESS FRC

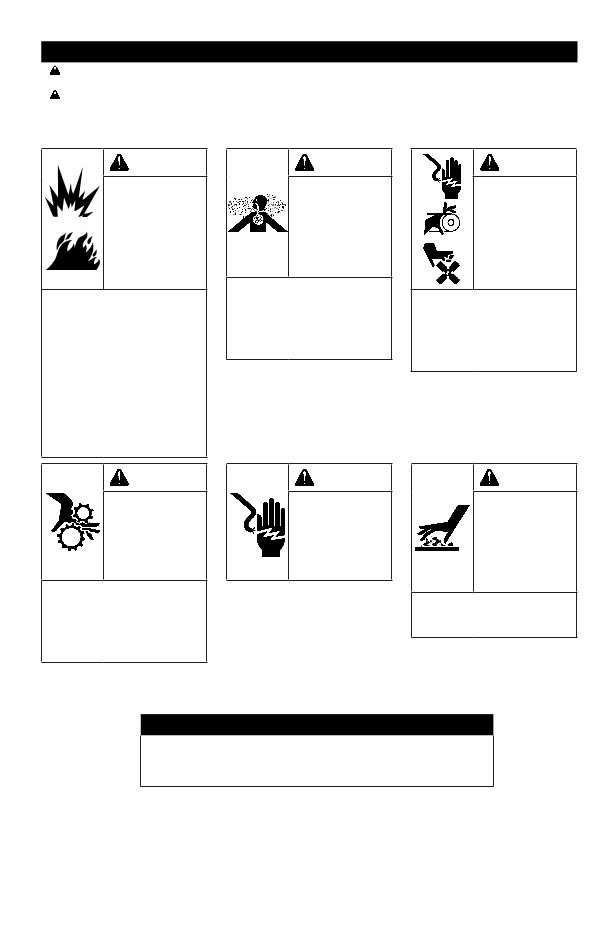

2 14 590 10 Rev. A KohlerEngines.com California Proposition 65 Warning Engine exhaust from this product contains chemicals known to State of California to cause cancer, birth defects, or other reproductive harm. WARNING Explosive Fuel can cause fires and severe burns. Do not fill fuel tank while engine is hot or running. Gasoline is extremely flammable and its vapors can explode if ignited. Store gasoline only in approved containers, in well ventilated, unoccupied buildings, away from sparks or flames. Spilled fuel could ignite if it comes in contact with hot parts or sparks from ignition. Never use gasoline as a cleaning agent. WARNING Hot Parts can cause severe burns. Do not touch engine while operating or just after stopping. Never operate engine with heat shields or guards removed. WARNING Rotating Parts can cause severe injury. Stay away while engine is in operation. Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never operate engine with covers, shrouds, or guards removed. WARNING Accidental Starts can cause severe injury or death. Disconnect and ground spark plug lead(s) before servicing. Before working on engine or equipment, disable engine as follows: 1) Disconnect spark plug lead(s). 2) Disconnect negative (–) battery cable from battery. WARNING Carbon Monoxide can cause severe nausea, fainting or death. Avoid inhaling exhaust fumes. Engine exhaust gases contain poisonous carbon monoxide. Carbon monoxide is odorless, colorless, and can cause death if inhaled. Safety Precautions WARNING: A hazard that could result in death, serious injury, or substantial property damage. CAUTION: A hazard that could result in minor personal injury or property damage. NOTE: is used to notify people of important installation, operation, or maintenance information. CAUTION Electrical Shock can cause injury. Do not touch wires while engine is running.

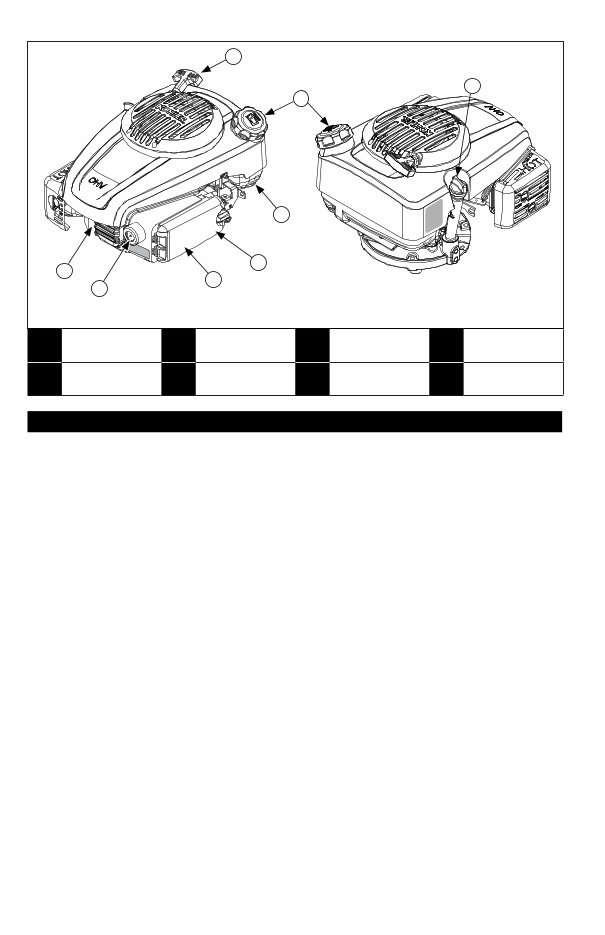

3 14 590 10 Rev. A KohlerEngines.com EN A B G F E D C A Starter Handle B Fuel Cap C Oil Fill Cap/ Dipstick D Fuel Tank E Air Cleaner F Fuel Shut-Off Valve G Primer Bulb H Spark Plug Pre-Start Checklist 1. Check oil level. Add oil if low. Do not overfill. 2. Check fuel level. Add fuel if low. Check fuel system components and lines for leaks. 3. Check and clean cooling areas, air intake areas and external surfaces of engine (particularly after storage). 4. Check that air cleaner components and all shrouds, equipment covers, and guards are in place and securely fastened. 5. Check spark arrestor (if equipped). H

4 14 590 10 Rev. A KohlerEngines.com 4. Retractable Start: Slowly pull starter handle until just past compression-STOP! Return starter handle; firmly pull straight out to avoid excessive rope wear from starter rope guide. Electric Start: Key switch (refer to operating instructions of equipment that this engine powers). 5. Gradually return choke control to OFF position after engine starts and warms up. Engine/equipment may be operated during warm up period, but it may be necessary to leave choke partially on until engine warms up. Cold Weather Starting Hints 1. Use proper oil for temperature expected. 2. Disengage all possible external loads. 3. Use fresh winter grade fuel. Winter grade fuel has higher volatility to improve starting. Stopping 1. If possible, remove load by disengaging all PTO driven attachments. 2. If equipped, move throttle control to slow or idle position; stop engine. 3. If equipped, close fuel shut-off valve. Angle of Operation Refer to operating instructions of equipment this engine powers. Do not operate this engine exceeding maximum angle of operation; see specification table. Engine damage could result from insufficient lubrication. Engine Speed NOTE: Do not tamper with governor setting to increase maximum engine speed. Overspeed is hazardous and will void warranty. High Altitude Operation This engine may require a high altitude carburetor kit to ensure correct engine operation at altitudes above 4000 ft. (1219 meters). To obtain high altitude kit information or to find a Kohler authorized dealer visit KohlerEngines.com or call 1-800-544-2444 (U.S. and Canada). This engine should be operated in its original configuration below 4000 ft. (1219 meters) as damage may occur if high altitude carburetor kit is installed and operated below 4000 ft. (1219 meters). Starting WARNING Carbon Monoxide can cause severe nausea, fainting or death. Avoid inhaling exhaust fumes. Engine exhaust gases contain poisonous carbon monoxide. Carbon monoxide is odorless, colorless, and can cause death if inhaled. WARNING Rotating Parts can cause severe injury. Stay away while engine is in operation. Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never operate engine with covers, shrouds, or guards removed. NOTE: Over priming may make it difficult to start engine. It is usually not necessary to prime a warm engine. NOTE: Choke position for starting may vary depending upon temperature and other factors. Once engine is running and warm, turn choke to OFF position. NOTE: Extend starter cord periodically to check its condition. If cord is frayed have it replaced immediately by a Kohler authorized dealer. 1. Turn fuel shut-off valve to ON position (if equipped). 2. Turn engine on/off switch to ON position (if equipped). 3. Start engine as follows: a. Primer Bulb Models: Place finger or thumb on center of primer bulb. Push primer 3 times. or b. Manual Choke Models: Cold engine: Place throttle control to FAST position. Pull choke control into CHOKE/ON position. Warm engine: place throttle control to RUN/FAST position. or c. Smart-Choke ™ Models: this feature automatically adjusts choke on start-up.

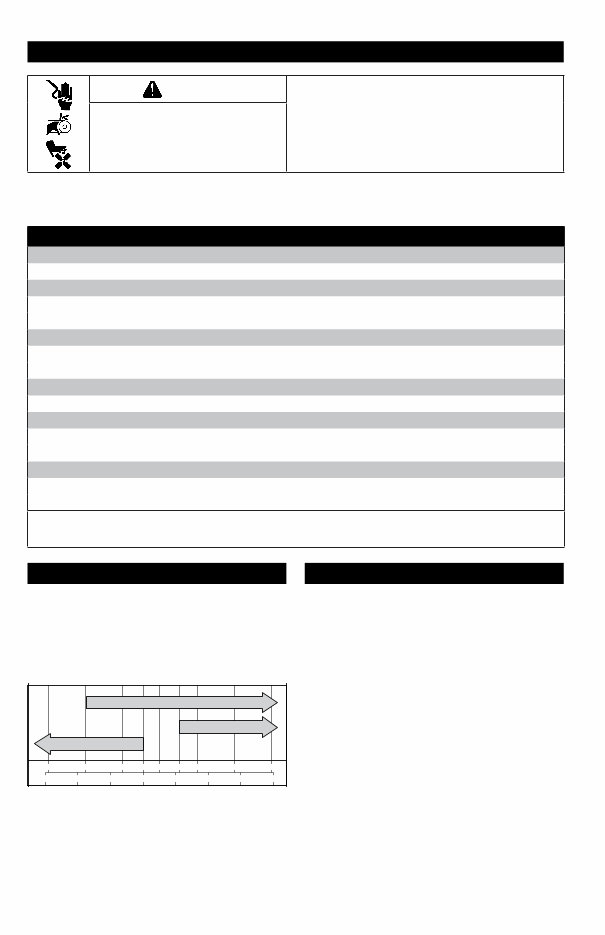

5 14 590 10 Rev. A KohlerEngines.com EN Maintenance Instructions WARNING Before working on engine or equipment, disable engine as follows: 1) Disconnect spark plug lead(s). 2) Disconnect negative (–) battery cable from battery. Accidental Starts can cause severe injury or death. Disconnect and ground spark plug lead(s) before servicing. Normal maintenance, replacement or repair of emission control devices and systems may be performed by any repair establishment or individual; however, warranty repairs must be performed by a Kohler authorized dealer found at KohlerEngines.com or 1-800-544-2444 (U.S. and Canada). Maintenance Schedule After first 3-5 Hours ● Change oil. Every 25 Hours or Annually 1 ● Service/replace precleaner. ● Check air cleaner for dirty, loose or damaged parts. Every 50 Hours or Annually ● Change oil. ● Replace fuel filter (if equipped). Every 50 Hours or Annually 1 ● Replace air cleaner element. Every 100 Hours or Annually 1 ● Replace spark plug and set gap. ● Clean spark arrestor (if equipped). Every 100 Hours or Annually 2 ● Check and adjust valve clearance when engine is cold. ● Have combustion chamber decarbonized. 1 Perform these procedures more frequently under severe, dusty, dirty conditions. 2 Have a Kohler authorized dealer perform this service. Oil Recommendations We recommend use of Kohler oils for best performance. Other high-quality detergent oils (including synthetic) of API (American Petroleum Institute) service class SJ or higher are acceptable. Select viscosity based on air temperature at time of operation as shown in table below. °F -20 0 20 32 40 60 50 80 100 °C -30 -20 -10 0 10 20 30 40 5W-30 10W-30 SAE 30 Check Oil Level NOTE: To prevent extensive engine wear or damage, never run engine with oil level below or above operating range indicator on dipstick. Ensure engine is cool. Clean oil fill cap/dipstick areas of any debris. 1. Remove dipstick; wipe oil off. a. 1/4 turn cap: reinsert dipstick into tube; press completely down and turn 1/4 turn. or b. Threaded cap: reinsert dipstick into tube; rest cap on tube, do not thread cap onto tube. 2. Remove dipstick; check oil level. Level should be at top of indicator on dipstick. 3. If oil is low on indicator, add oil up to top of indicator mark. 4. Reinstall and secure dipstick.

6 14 590 10 Rev. A KohlerEngines.com Change Oil Change oil while engine is warm. Dipstick tube: 1. Clean area around oil fill cap/dipstick. 2. Remove oil fill cap/dipstick. Tilt engine on its side with air cleaner facing up. Drain oil into appropriate container. 3. After crankcase is drained completely, tilt engine upright. 4. Fill crankcase with new oil. Level should be at top of indicator on dipstick. 5. Reinstall oil fill cap/dipstick and tighten securely. 6. Dispose of used oil in accordance with local ordinances. Crankcase plug: 1. Disable engine by disconnecting spark plug. 2. Clean area around oil fill cap/dipstick. Remove oil fill cap/dipstick. 3. Remove crankcase plug on bottom of engine; drain oil into appropriate container. 4. Apply thread sealant around three full threads of drain plug; reinstall drain plug. Torque to 120 in. lb. (13.6 N·m). 5. Fill crankcase with new oil. Level should be at top of indicator on dipstick. 6. Reinstall oil fill cap/dipstick and tighten securely. 7. Dispose of used oil in accordance with local ordinances. Fuel Recommendations WARNING Explosive Fuel can cause fires and severe burns. Do not fill fuel tank while engine is hot or running. Gasoline is extremely flammable and its vapors can explode if ignited. Store gasoline only in approved containers, in well ventilated, unoccupied buildings, away from sparks or flames. Spilled fuel could ignite if it comes in contact with hot parts or sparks from ignition. Never use gasoline as a cleaning agent. NOTE: E15, E20 and E85 are NOT approved and should NOT be used; effects of old, stale or contaminated fuel are not warrantable. Fuel must meet these requirements: ● Clean, fresh, unleaded gasoline. ● Octane rating of 87 (R+M)/2 or higher. ● Research Octane Number (RON) 90 octane minimum. ● Gasoline up to 10% ethyl alcohol, 90% unleaded is acceptable. ● Methyl Tertiary Butyl Ether (MTBE) and unleaded gasoline blend (max 15% MTBE by volume) are approved. ● Do not add oil to gasoline. ● Do not overfill fuel tank. ● Do not use gasoline older than 30 days. Add Fuel WARNING Explosive Fuel can cause fires and severe burns. Do not fill fuel tank while engine is hot or running. Gasoline is extremely flammable and its vapors can explode if ignited. Store gasoline only in approved containers, in well ventilated, unoccupied buildings, away from sparks or flames. Spilled fuel could ignite if it comes in contact with hot parts or sparks from ignition. Never use gasoline as a cleaning agent. Ensure engine is cool. 1. Clean area around fuel cap. 2. Remove fuel cap. Fill to base of filler neck. Do not overfill fuel tank. Leave room for fuel to expand. 3. Reinstall fuel cap and tighten securely. Fuel Line Low permeation fuel line must be installed on carbureted Kohler Co. engines to maintain EPA and CARB regulatory compliance.

7 14 590 10 Rev. A KohlerEngines.com EN Spark Plugs CAUTION Electrical Shock can cause injury. Do not touch wires while engine is running. Clean out spark plug recess. Remove plug and replace. 1. Check gap using wire feeler gauge. Adjust gap, see specification table for adjustment. 2. Install plug into cylinder head. 3. Torque plug to 20 ft. lb. (27 N·m). Air Cleaner NOTE: Operating engine with loose or damaged air cleaner components could cause premature wear and failure. Replace all bent or damaged components. NOTE: Paper element cannot be blown out with compressed air. Loosen knob and remove air cleaner cover. Precleaner (if equipped): 1. Remove precleaner. 2. Replace or wash precleaner in warm water with detergent. Rinse and allow to air dry. 3. Reinstall precleaner into cover, aligning hole in precleaner with upper cover knob. Paper Element: 1. Remove paper element from base and replace. 2. Install element with pleated side out and seat rubber seal onto edges of base. Foam Element: 1. Remove foam element from base and replace. 2. Install element with foam side out and seat rubber seal onto edges of base. Reinstall air cleaner cover and secure with knob. Breather Tube Ensure both ends of breather tube are properly connected. Air Cooling WARNING Hot Parts can cause severe burns. Do not touch engine while operating or just after stopping. Never operate engine with heat shields or guards removed. Proper cooling is essential. To prevent over heating, clean screens, cooling fins, and other external surfaces of engine. Avoid spraying water at wiring harness or any electrical components. See Maintenance Schedule. Repairs/Service Parts We recommend that you use a Kohler authorized dealer for all maintenance, service, and replacement parts for engine. To find a Kohler authorized dealer visit KohlerEngines.com or call 1-800-544-2444 (U.S. and Canada). Storage If engine will be out of service for 2 months or more follow procedure below. 1. Add Kohler PRO Series fuel treatment or equivalent to fuel tank. Run engine 2-3 minutes to get stabilized fuel into fuel system (failures due to untreated fuel are not warrantable). 2. Change oil while engine is still warm from operation. Remove spark plug(s) and pour about 1 oz. of engine oil into cylinder(s). Replace spark plug(s) and crank engine slowly to distribute oil. 3. Disconnect negative (-) battery cable. 4. Store engine in a clean, dry place.

8 14 590 10 Rev. A KohlerEngines.com Troubleshooting Do not attempt to service or replace major engine components, or any items that require special timing or adjustment procedures. This work should be performed by a Kohler authorized dealer. Possible Cause Problem No Fuel Improper Fuel Dirt In Fuel Line Dirty Debris Screen Incorrect Oil Level Engine Overloaded Dirty Air Cleaner Faulty Spark Plug Will Not Start ● ● ● ● ● ● ● Hard Starting ● ● ● ● ● ● Stops Suddenly ● ● ● ● ● ● ● Lacks Power ● ● ● ● ● ● ● Operates Erratically ● ● ● ● ● ● Knocks or Pings ● ● ● ● Skips or Misfires ● ● ● ● ● Backfires ● ● ● ● ● Overheats ● ● ● ● ● ● High Fuel Consumption ● ● ● Engine Specifications Model Bore Stroke Displacement Oil Capacity (Refill) Spark Plug Gap Maximum Angle of Operation (@ full oil level)* XT-6, XT6.5, XT6.75 2.56 in. (65 mm) 1.8 in. (45 mm) 9.1 cu. in. (149 cc) 20 oz. (0.60 L) 0.03 in. (0.76 mm) 20° XT-7, XT8 2.75 in. (70 mm) 10.6 cu. in. (173 cc) *Exceeding maximum angle of operation may cause engine damage from insufficient lubrication. Additional specification information can be found in service manual at KohlerEngines.com. Exhaust Emission Control System for models XT-6, XT6.5, XT6.75, XT-7, XT8 is EM for U.S. EPA, California, and Europe. Any and all horsepower (hp) references by Kohler are Certified Power Ratings and per SAE J1940 & J1995 hp standards. Details on Certified Power Ratings can be found at KohlerEngines.com.

9 14 590 10 Rev. A KohlerEngines.com ESS Manual del usuario IMPORTANTE: Lea detenidamente todas las instrucciones y precauciones de seguridad antes de poner en funcionamiento el equipo. Consulte las instrucciones de funcionamiento del equipo que impulsa este motor. Asegúrese de que el motor esté parado y nivelado antes de realizar cualquier tarea de mantenimiento o servicio. La cobertura de la garantía se detalla tanto en la tarjeta de la garantía como en KohlerEngines.com. Revísela detenidamente, ya que le otorga derechos y obligaciones específicos. Registre la información del motor para referencia a la hora de realizar el pedido de piezas o para obtener cobertura de la garantía. Modelo de motor Especificación Número de serie Fecha de compra XT-6, XT6.5, XT6.75, XT-7, XT8 ESS

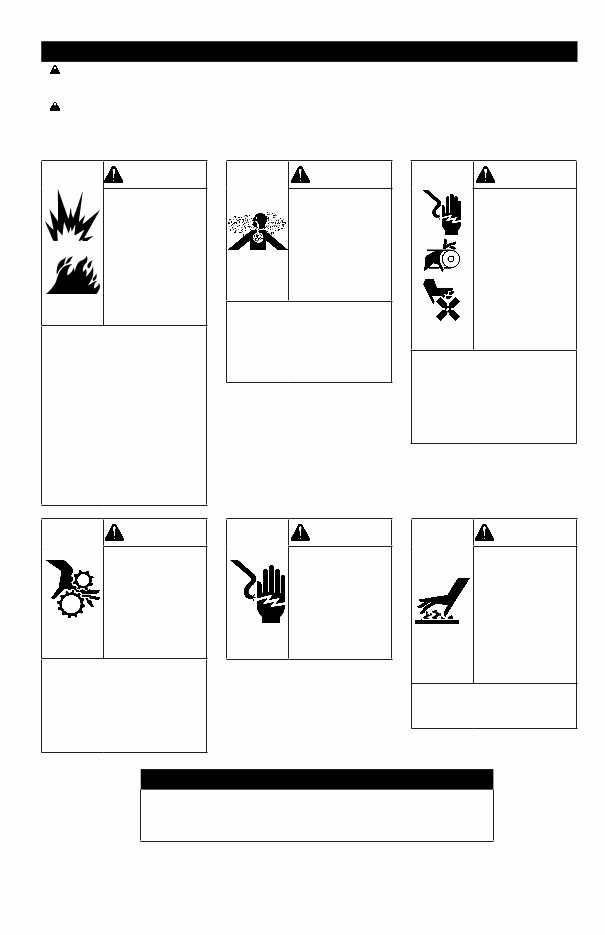

10 14 590 10 Rev. A KohlerEngines.com California Proposición 65 Advertencia Los escapes de motor de este producto contienen químicos que en el estado de California se sabe que pueden producir cáncer, defectos de nacimiento u otros daños reproductivos. ADVERTENCIA La explosión del carburante puede provocar incen- dios y quemadu- ras graves. No llene el tan- que de combus- tible mientras el motor esté calien- te o funcionando. La gasolina es muy inflama- ble y sus vapores pueden ha- cer explosión si se inflaman. Almacene la gasolina siempre en contenedores homologa- dos, en locales desocupados, bien ventilados y lejos de chispas o llamas. El combus- tible derramado puede encen- derse si entra en contacto con las piezas calientes o con las chispas de arranque. No utilice nunca gasolina como agente de limpieza. ADVERTENCIA Las piezas calientes pueden causar quemadu- ras graves. No toque el motor durante el funcionamiento o inmediatamente después de pararse. Nunca utilice el motor sin los escudos o protectores térmicos. ADVERTENCIA Las piezas rotatorias pueden causar lesiones graves. Manténgase alejado del motor cuando esté en funcionamiento. Para evitar lesiones, man- tenga las manos, los pies, el pelo y la ropa alejados de las piezas en movimiento. Nunca permita que el motor funcione sin sus tapas, cubiertas o protecciones. ADVERTENCIA Los arranques accidentales pueden provocar lesiones graves o la muerte. Antes de llevar a cabo trabajos de mantenimiento o reparación, desconecte y aísle el cable de la bujía. Antes de trabajar en el motor o el equipo, desactive el motor de la siguiente manera: 1) Desconecte el (los) cable(s) de la bujía. 2) Desconecte el cable negativo (-) de la batería. ADVERTENCIA El monóxido de carbono puede provocar náuseas, mareos o la muerte. Evite inhalar los humos del escape. Los gases de escape del motor contienen monóxido de carbono venenoso. El monóxido de carbono es inodoro, incoloro y puede causar la muerte si se inhala. Precauciones de seguridad ADVERTENCIA: Un peligro que podría causar la muerte, lesiones graves o daños importantes a la propiedad. PRECAUCIÓN: Un peligro que podría causar lesiones personales menores o daños a la propiedad. NOTA: se utiliza para notificar al personal información importante sobre la instalación, el funcionamiento o el mantenimiento. PRECAUCIÓN Las descargas eléctricas pueden provocar lesiones. No toque los cables con el motor en funcionamiento.
