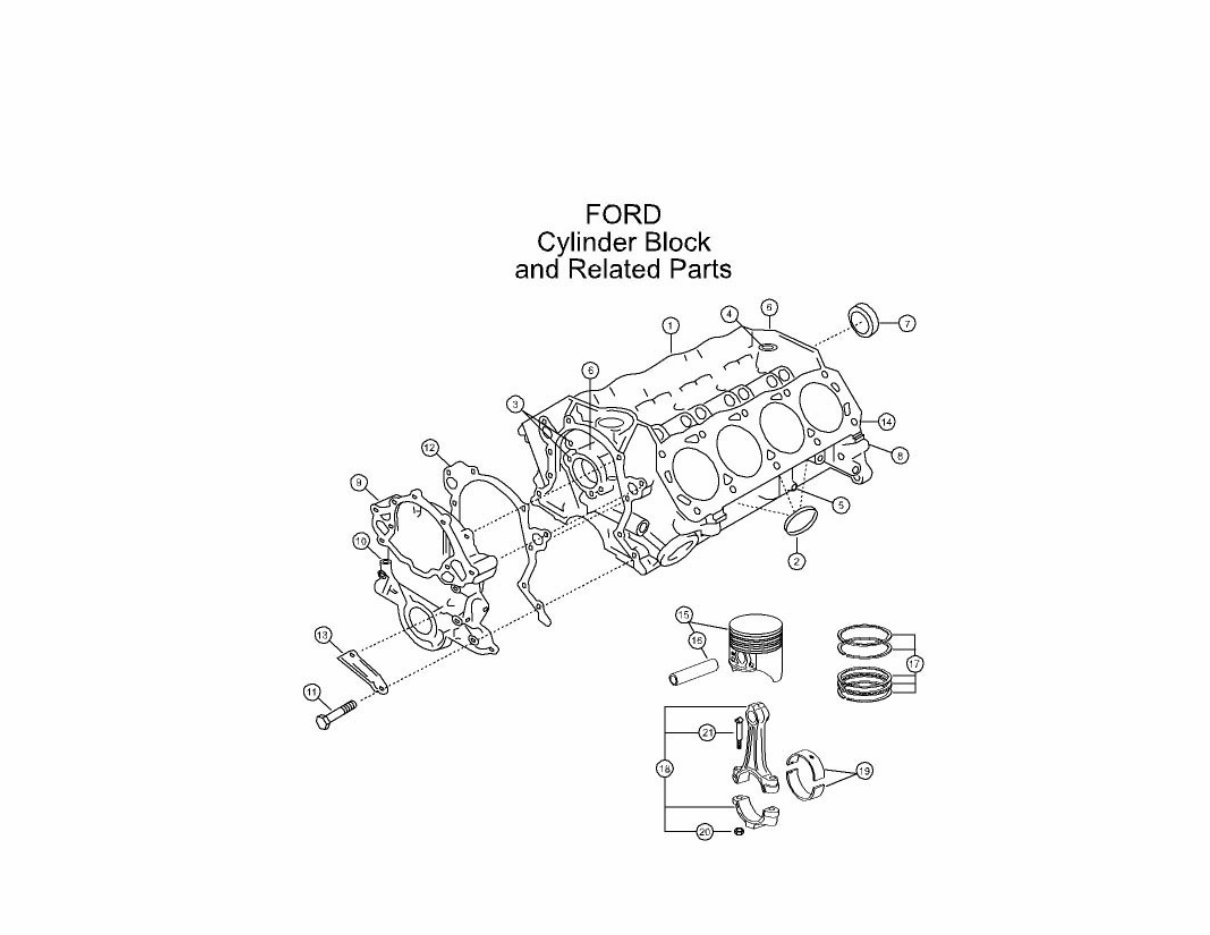

FORD - Cyl Block and Related Parts
Ref Description Qty All 302 Qty 351 Qty 351-HP
1 BLOCK ASSEMBLY 1 59-4046 1 59-4047 1 59-4047
2 PLUG - 1½ CUP - BRASS 6 59-4048 6 59-4048 6 59-4048
3 PLUG - OIL PASSAGE ½ CUP A/R 59-4049 A/R 59-4049 A/R 59-4049
4 PLUG - REAR HOLE - ¾ CUP 1 59-4050 1 59-4050 1 59-4050
5 PLUG - WATER DRAIN ¼ NPT - BRASS 2 59-4051 2 59-4051 2 59-4051
6 PLUG - OIL PASSAGE IN BLOCK ¼ PIPE A/R 59-4052 A/R 59-4052 A/R 59-4052
7 PLUG - CAMSHAFT REAR BEARING 1 59-4053 1 59-4053 1 59-4053
8 DOWEL - FLYWHEEL HOUSING 2 59-4054 2 59-4054 2 59-4054
9 COVER ASSEMBLY 1 59-4055 1 59-4055 1 59-4055
10 PLUG - OIL LEVEL INDICATOR ½ CUP A/R 59-4049 A/R 59-4049 A/R 59-4049
11 BOLT 5/16-18x2 A/R 56-5115 A/R 56-5115 A/R 56-5115
12 GASKET - FRONT COVER 1 59-4009 1 59-4009 1 59-4009
13 POINTER ENG. TIMING 1 59-4056 1 59-4056 1 59-4056
14 DOWEL - CYL. HEAD TO BLOCK 4 59-4057 4 59-4057 4 59-4057
15 PISTON & FITTED PIN 8 59-4058 8 59-4011 8 59-4203
16 PIN 8 59-4059 8 59-4059 8 59-4059
17 RINGS, PISTON (2 PISTONS 4 59-4060 4 59-4060 4 59-4060
18 CONNECTING ROD ASSEMBLY 8 59-4061 8 59-4012 8 59-4012
19 BEARING (UPPER & LOWER 8 59-4062 8 59-4063 8 59-4063
20 NUT 16 59-4064 16 59-4065 16 59-4065
21 BOLT 16 59-4066 16 59-4067 16 59-4067
FO01D

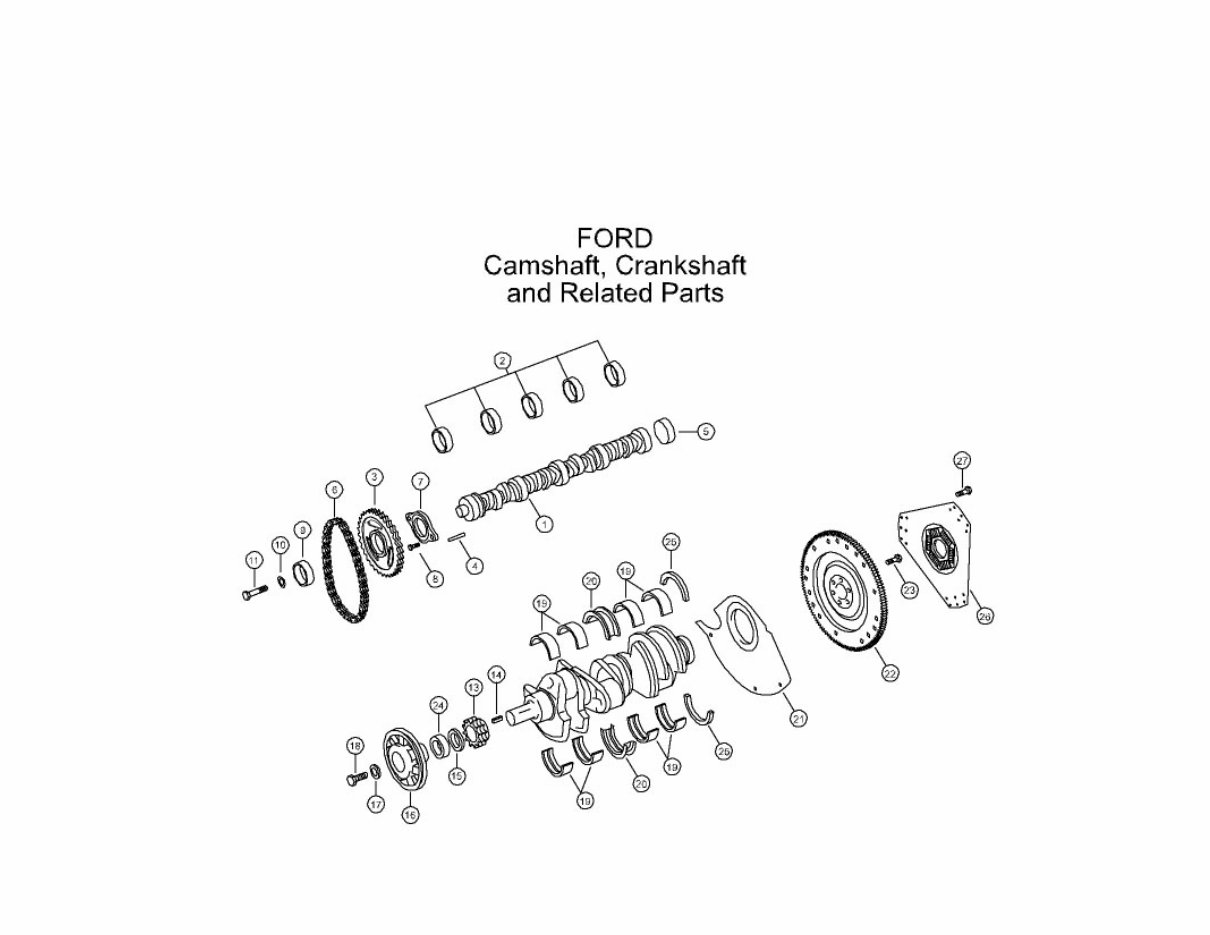

FORD - Cam, Crank and Related
Ref Description Qty 302-2 Qty 302-4 Qty 351 Qty 351 HP
1 CAMSHAFT STD ROT 1 59-4068 1 59-4069 1 59-2046 1 59-4173
1A CAMSHAFT OP ROT 1 59-4070 1 59-4071 1 59-4072
2 BEARING KIT 1 59-4073 1 59-4073 1 59-4073 1 59-4073
3 SPROCKET - DOUBLE, CAMSHAFT 1 59-4074 1 59-4074 1 59-4074 1 59-4074
4 DOWEL, PIN 1 59-4075 1 59-4075 1 59-4075 1 59-4075
5 PLUG - REAR BEARING 1 59-4076 1 59-4076 1 59-4076 1 59-4076
6 CHAIN-TIMING, DOUBLE LINK 1 59-4077 1 59-4077 1 59-4077 1 59-4077
7 PLATE - THRUST 1 59-4078 1 59-4078 1 59-4078 1 59-4078
8 BOLT 1/4 - 20 x 5/8 2 59-4079 2 59-4079 2 59-4079 2 59-4079
9 ECCENTRIC - DUAL FUEL PUMP DRIVE 1 59-4007 1 59-4007 1 59-4007 1 59-4007
10 WASHER - .406 x 1.20 x .224 1 59-4080 1 59-4080 1 59-4080 1 59-4080
11 BOLT-3/8-16x1.50 1 59-4081 1 59-4081 1 59-4081 1 59-4081
12 CRANKSHAFT ASSEMBLY - STD ROT 1 59-4082 1 59-4082 1 59-4017 1 59-4017
12A CRANKSHAFT ASSEMBLY - OP ROT 1 59-4083 1 59-4083 1 59-4084 1 59-4084
13 SPROCKET 1 59-4085 1 59-4085 1 59-4085 1 59-4085
14 KEY 1 59-4086 1 59-4086 1 59-4086 1 59-4086
15 SLINGER 1 59-4087 1 59-4087 1 59-4087 1 59-4087
16 DAMPER - STD ROT 1 59-4088 1 59-4088 1 59-4016 1 59-4016
16A DAMPER-OP ROT 1 59-4089 1 59-4089 1 59-4018 1 59-4018
17 WASHER 1 59-4090 1 59-4090 1 59-4090 1 59-4090
18 BOLT 1 59-4091 1 59-4091 1 59-4091 1 59-4091
19 MAIN BEARING - UPPER 4 59-4092 4 59-4092 4 59-4096 4 59-4096
19A MAIN BEARING - LOWER 4 59-4093 4 59-4093 4 59-4097 4 59-4097
20 MAIN BEARING - CENTER UPPER 1 59-4094 1 59-4094 1 59-4098 1 59-4098
20A BEARING - MAIN, CENTER, LOWER 1 59-4095 1 59-4095 1 59-4099 1 59-4099
21 PLATE, REAR 1 59-4100 1 59-4100 1 59-4100 1 59-4100
22 FLYWHEEL 1 59-4101 1 59-4101 1 59-2023 1 59-2023
23 BOLT, FLYWHEEL 6 59-4102 6 59-4102 6 59-4102 6 59-4102
24 FRONT OIL SEAL - STD ROT 1 59-2050 1 59-2050 1 59-2050 1 59-2050
24A FRONT OIL SEAL-OP ROT 1 59-4103 1 59-4103 1 59-4103 1 59-4103
25 REAR SEAL - STD ROT 1 59-4104 1 59-4104 1 59-2044 1 59-2044
25A REAR SEAL - OP ROT 1 59-4105 1 59-4105 1 59-4106 1 59-4106
26 DRIVE PLATE 1 88-5015 1 88-5015 1 88-5015 1 88-5015
27 SHOULDER BOLT - 5/16 - 18 x 3/4 6 56-5943 6 56-5943 6 56-5943 6 56-5943
FO02D

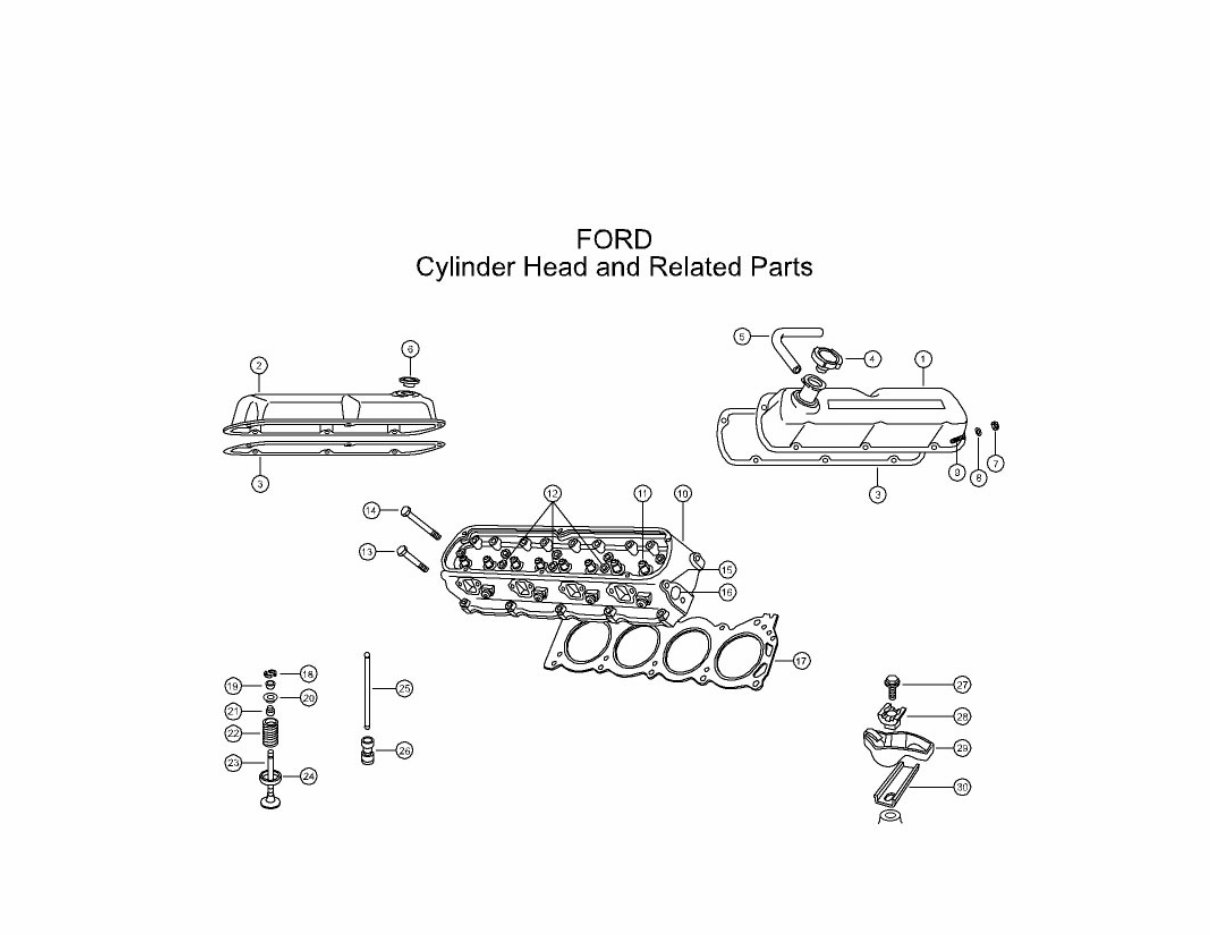

FORD - Cylinder Head and Related
Ref Description Qty All 302 Qty 351 Qty 351-HP
1 VALVE COVER - LH STAMPED STEEL 1 59-2062 1 59-2062 1 59-2062
1A VALVE COVER - LH CHROME PLATED 1 61-2002 1 61-2002 1 61-2002
2 VALVE COVER - RH STAMPED STEEL 1 59-2063 1 59-2063 1 59-2063
2A VALVE COVER-RH CHROME PLATED 1 61-2000 1 61-2000 1 61-2000
3 GASKET 302, 351 - VALVE COVER 2 59-2028 2 59-2028 2 59-2028
4 CAP, OIL FILLER 1 59-2005 1 59-2005 1 59-2005
5 HOSE - EMISSION 5/8 X 11 1/2 1 98-2010 1 98-2010 1 98-2010.
6 GROMMET, PCV 1 61-2007 1 61-2007 1 61-2007
7 NUT-¼ 12 56-5041 12 56-5041 12 56-5041
8 WASHER - ¼ SAE 12 56-5030 12 56-5030 12 56-5030
9 STUD - ¼ - 20 DOUBLE END 12 56-5040 12 56-5040 12 56-5040
10 ASSEMBLY - CYLINDER HEAD, COMP 2 59-4020 2 59-4000 2 59-4169
11 BUSHING - VALVE GUIDE A/R 59-4021 A/R 59-4021 A/R 59-4021
12 PLUG - 34 PIPE 6 59-4022 6 59-4022 6 59-4022
13 BOLT-7/16-14x2.32 10 59-4023
13A BOLT - ½ - 13 x 2.50 10 59-4025 10 59-4025
14 BOLT-7/16-14x3.94 10 59-4024
14A BOLT - ½ - 13 x 40 10 59-4026 10 59-4026
15 PLUG - - 11 0 D 4 59-4027 4 59-4027 4 59-4027
16 PLUG - 1½ CUP BRASS 4 59-4028 4 59-4028 4 59-4028
17 GASKET - CYL HEAD 2 59-4029 2 59-4001 2 59-4001
18 KEY - LOCK VALVE SPRING RETAINER 32 59-4030 32 59-4030 32 59-4030
19 SLEEVE - VALVE SPRING RETAINER 8 59-4031 8 59-4031 8 59-4031
20 RETAINER - INTAKE - VALVE SPRING 8 59-4032 8 59-4032 8 59-4032
20A RETAINER - EXHAUST - VALVE SPRING 59-4033 8 59-4033 8 59-4033
21 SEAL - INTAKE - VALVE STEM 8 59-4034 8 59-4034 8 59-4034
21A SEAL AUST-VALVE STEM 8 59-4035 8 59-4036 8 59-4036
22 SPRING-INTAKE 8 59-4015 8 59-4015 8 59-4026
22A SPRING - EXHAUST 8 59-4038 8 59-4038 8 59-4204
23 VALVE - EXHAUST 8 59-4037 8 59-4037 8 59-4170
23A VALVE-INTAKE 8 59-4013 8 59-4013 8 59-4171
24 INSERT VALVE SEAT EXHAUST 8 59-4039 8 59-4039
25 PUSH ROD - VALVE 16 59-4040 16 59-4041 16 59-4041
26 TAPPET ASSEMBLY 16 59-4008 16 59-4008 16 59-4008
27 BOLT & WASHER - 5/16 - 18 x 1.40 16 59-4042 16 59-4042 16 59-4042
28 SEAT- ROCKER ARM FULCRUM 16 59-4043 16 59-4043 16 59-4043
29 ARM - VALVE ROCKER 16 59-4044 16 59-4044 16 59-4044
30 GUIDE - VALVE ROCKER ARM 8 59-4045 8 59-4045 8 59-4045
FO03D

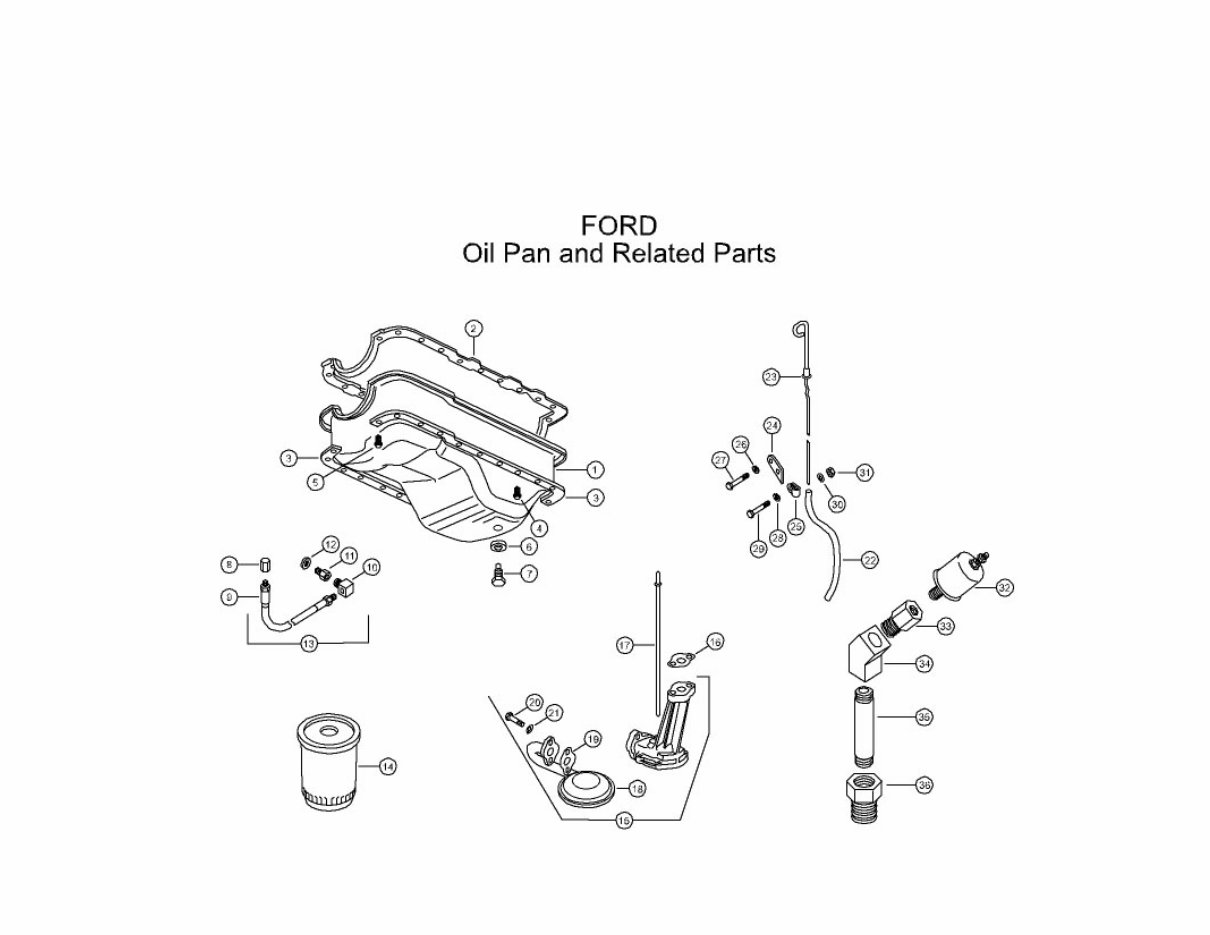

FORD - Oil Pan and Related
Ref Description Qty All 302 Qty All 351
1 OIL PAN 1 59-2049 1 59-2047
2 GASKET - OIL PAN 1 59-2030 1 59-2030
3 REINFORCEMENT RH 1 59-5141 1 59-5141
3A REINFORCEMENT LH 1 59-5142 1 59-5142
4 BOLT - ¼ - 20 x 5/8 18 59-2053 18 59-2053
5 BOLT - 5/16 - 18 x 7/8 4 59-2054 4 59-2054
6 GASKET-OIL DRAIN PLUG 1 51-5002 1 51-5002
7 PLUG - ENGINE OIL DRAIN 1 59-2055 1 59-2055
8 CAP - OIL DRAIN 1 51-5001 1 51-5001
9 HOSE-OIL DRAIN 1 51-5003 1 51-5003
10 FITTING - OIL DRAIN 1 51-2003 1 51-2003
11 FITTING - OIL DRAIN 1 51-2002 1 51-2003
12 GASKET-OIL DRAIN 1 51-5002 1 51-5002
13 KIT-OIL DRAIN 1 51-2001 1 51-2001
14 FILTER - OIL 1 59-2024 1 59-2024
15 ASSEMBLY - OIL PUMP 1 59-2042 1 59-2042
16 GASKET - OIL PUMP 1 59-2057 1 59-2057
17 SHAFT - OIL PUMP 1 59-2058 1 59-2059
18 SCREEN - TUBE & COVER 1 59-2060 1 59-2061
19 GASKET - SCREEN COVER 1 59-2056 1 59-2056
20 BOLT - 5/16 - 18 x 3/4 1 56-5105 2 56-5105
21 WASHER - 5/16 LW. 1 56-5155 2 56-5155
22 TUBE-OIL INDICATOR 1 59-2038 1 59-2017
23 INDICATOR - OIL 1 59-2037 1 59-2016
24 BRACKET 1 98-2009 1 98-2009
25 CLAMP - ADEL 1 65-3001 1 65-3001
26 WASHER - 7/16 L.W. 1 56-5350 1 56-5350
27 BOLT - 7/16 - 14 x 3/4 1 56-5297 1 56-5297
28 WASHER - 3/8 F.W. 1 56-5296 1 56-5296
29 BOLT - 3/8 - 16 x 3/4 1 56-5205 1 56-5205
30 WASHER - 3/8 LW. 1 56-5295 1 56-5295
31 NUT - 3/8 - 16 1 56-5275 1 56-5275
32 SENDER - OIL PRESSURE 1 64-5002 1 64-5002
33 FITTING - 1/8-1/8 1 60-1005 1 60-1005
34 ELBOW 1 60-3001 1 60-3001
35 NIPPLE 1 60-3002 1 60-3002
36 BUSHING 1/4 - 1/8 1 60-1003 1 60-1003
FO04D
s
FORD - Fuel System and Related
Ref Description Qty 302-2 Qty 302-4 Qty 351 Qty 351 - HP
1 MANIFOLD - INTAKE 1 59-2051 1 59-2048 1 59-2045 1 59-2045
2 GASKET SET - INTAKE 1 59-2052 1 59-2052 1 59-2027 1 59-2027
3 BOLT-5/16-18x2 A/R 56-5115 1 56-5115 1 56-5115 1 56-5115
4 STUD - 5/16 - 18 - 24 x 2.47 4 59-4010 4 59-4010 4 59-4010 4 59-4010
5 PLATE - SPACER - CARB 1 59-4021 1 59-4006 1 59-4006 1 59-4006
6 GASKET-CARB 2 61-2014 2 61-2003 2 61-2003 2 61-2003
7 HOSE-PCV 1 61-2006 1 61-2006 1 61-2006 1 61-2006
8 GROMMET-PCV 1 61-2007 1 61-2007 1 61-2007 1 61-2007
9 PCV VALVE 1 50-5001 1 50-5001 1 50-5001 1 50-5001
10 CARBURETOR 1 61-2010 1 61-2008 1 61-2004 1 61-2017
11 WASHER - 5/16 SAE F.W. 4 56-5150 1 56-5150 1 56-5150 1 56-5150
12 NUT - 5/16 - 24 SAE 4 56-5145 1 56-5145 1 56-5145 1 56-5145
13 THERMOSTAT-CHOKE 1 61-5001 1 61-5001 1 61-5001 1 61-5001
14 FLAME ARRESTOR 1 52-5006 1 52-5006 1 52-5006 1 52-5006
15 COVER - FLAME ARRESTOR 1 98-5019 1 98-5019 1 98-5019 1 98-5019
16 WASHER - 1/4 SAE F.W. 1 56-5030 1 56-5030 1 56-5030 1 56-5030
17 BOLT - 1/4 - 20 x 2 1/2 1 56-5010 1 56-5010 1 56-5010 1 56-5010
18 PUMP-FUEL 1 59-2011 1 59-2011 1 59-2011 1 59-2011
19 FITTING 1 60-5006 1 60-5006 1 60-5006 1 60-5006
20 WASHER - 3/8 LW. 2 56-5295 2 56-5295 2 56-5295 2 56-5295
21 BOLT - 3/8- 16 x 1 1/4 2 56-5215 2 56-5215 2 56-5215 2 56-5215
22 GASKET- FUEL PUMP 1 55-1007 1 55-1007 1 55-1007 1 55-1007
23 TUBING - ¼ CLEAR - 25" 1 54-5002 1 54-5002 1 54-5002 1 54-5002
24 LINE - FUEL 1 98-2002 1 98-2002 1 98-2002 1 98-2023
25 FITTING 1 60-1008 1 60-1008 1 60-1008 1 60-1008
26 BALL JOINT 1 69-5001 1 69-5001 1 69-5001 1 69-5001
27 FILTER - FUEL PUMP 1 98-2021 1 98-2021 1 98-2021 1 98-2021
28 EXTENDER - BALL JOINT 1 98-2008 1 98-2008 1 98-2008 1 98-2008
29 BRACKET - THROTTLE 1 98-2003 1 98-2003 1 98-2003 1 98-2003
30 SHIM - THROTTLE BRKT 1 69-5004 1 69-5004 1 69-5004 1 69-5004
31 CLAMP - THROTTLE BRKT 1 69-5005 1 69-5005 1 69-5005 1 69-5005
32 SCREW - 10- 24 x 3/4 3 56-5910 3 56-5910 3 56-5910 3 56-5910
33 NUT - LOCK 10 - 24 3 56-5920 3 56-5920 3 56-5920 3 56-5920
34 LINE-FUEL 351 HP 1 78-1005
FO05D
