Table of Contents Marine Engines and Replacement Parts Section 3.0L Base Engine ................................................................................................................... 1 4.3L Base Engine ................................................................................................................... 2 4.3L Enhanced Base ................................................................................................................... 3 4.3L Bobtail Engine (s) ................................................................................................................... 4 4.3L Block Replacement Parts ....................................................................................... 5 4.3L Cooling Replacement Parts ........................................................................ 6 4.3L Electrical Replacement Parts ........................................................................ 7 4.3L Fuel Replacement Parts ....................................................................................... 8 5.0L New Long Block Green Base ....................................................................................... 9 5.0L Enhanced Base ....................................................................................... 10 5.7L Long Block Green Base ....................................................................................... 11 5.7L Remanufactured Long Block Service Base ..................................................................... 12 5.7L Enhanced Base Fuel and Spark .................................................................................... 13 5.7L Bobtail Carbureted Engine (s) ....................................................................................... 14 5.7L Block Replacement Parts / Carbureted .................................................................. 15 5.7L Cooling Replacement Parts / Carbureted .............................................................. 16 5.7L Electrical Replacement Parts / Carbureted ............................................................ 17 5.7L Fuel Replacement Parts / Carbureted ..................................................................... 18 5.7L Bobtail MPI Engine (s) ..................................................................................................... 19 5.7L Block Replacement Parts / MPI .............................................................................. 20 5.7L Cooling Replacement Parts / MPI .......................................................................... 21 5.7L Electrical Replacement Parts / MPI ........................................................................ 22 5.7L Fuel Replacement Parts / MPI ................................................................................. 23 6.0L MPI Green Base ..................................................................................................... 24 7.4L H.O Long Block ................................................................................................................... 25 8.1L GM EFI Base ................................................................................................................... 26 LS3 ................................................................................................................................................ 27 LSA ................................................................................................................................................ 28 Marine Engine Parts Kits Miscellaneous Replacement Parts Kits ....................................................................................... 29-31 Closed Cooling Kits - Half and Full Systems ........................................................................ 32 Transmissions ................................................................................................................................................ 33 It’s e Law – Know Your Rights ................................................................................................................... 34 Warranty / One Year Engines and Parts ..................................................................................................... 35 – 36 Warranty / Two Year Engines ................................................................................................................... 37 – 39

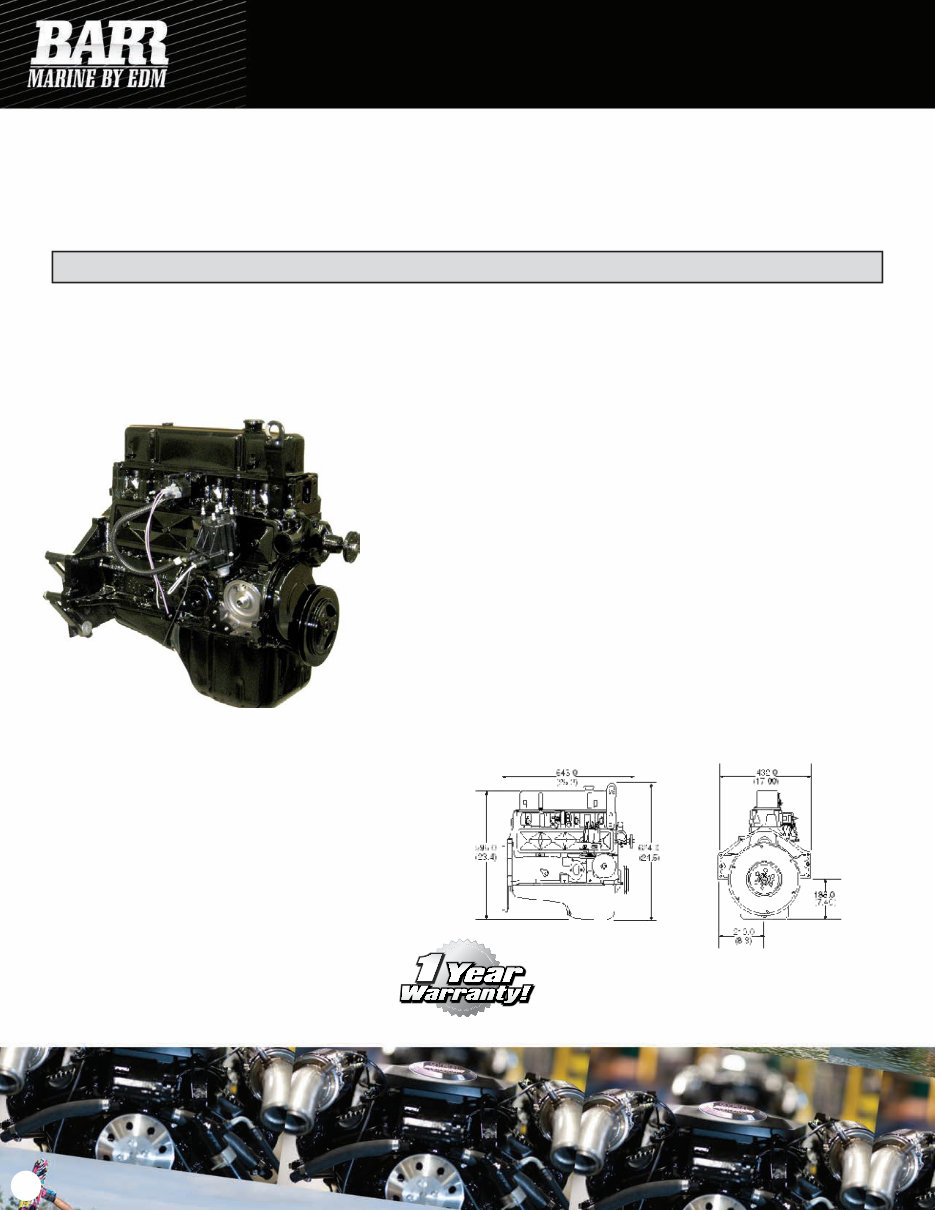

Speciﬁcations Displacement: 181 C.I.D. (2966.59 CC) / 3.0L Cylinders: In-Line 4 Cylinder Comp. Ratio: 9.25:1 (High Flow Vortec Head) Valve Conﬁg.: Pushrod Actuated / Overhead Valves Valve Lifters: Hydralic Flat Tappet Bore x Stroke: 4.00” x 3.60” (101.60 x 91.44 mm) Main Bearings: 2 Bolt Cast Iron Ignition: Delco EST (Electronic) Intake/Exhaust Manifold: Customer Supplied Block MFG.: GM Powertrain Flywheel Dia.: 14” (Ring Gear Towards Engine) Firing Order: 1–3–4–2 Oil Pan Capacity: 4 Quarts (W/O Filter) Oil Type: SAE 15W40 Pennzoil Marine Paint Protectant: High Gloss Black / Superior Corrosion Resistant Horsepower: 140 H.P. @ 4800 RPM (Carburetor) Torque: 177 lb-ft @ 3600 RPM Warranty: 1 Year Limited (90 Days Commercial) 3.0L GM Base Marine Engine NEW Note: Actual power levels may vary depending on Indmar’s calibration and application. Indmar Part # 051079N Block (with all internal components) Harmonic Balancer Valve Cover Water Circulating Pump Electronic Distributor Timing Chain Cover Spark Plugs High Output Coil Interrupter Harness 14” Flywheel Timing Shunt Cable / Coil to Distributor Oil Pan Power Tach Lead e Indmar 3.0L new base engine includes the following (when ordered under the above part number). Indmar is currently working on Bobtail versions of this engine! Please call for availability! 1 www.barrmarine.net Toll Free: 866-255-9265

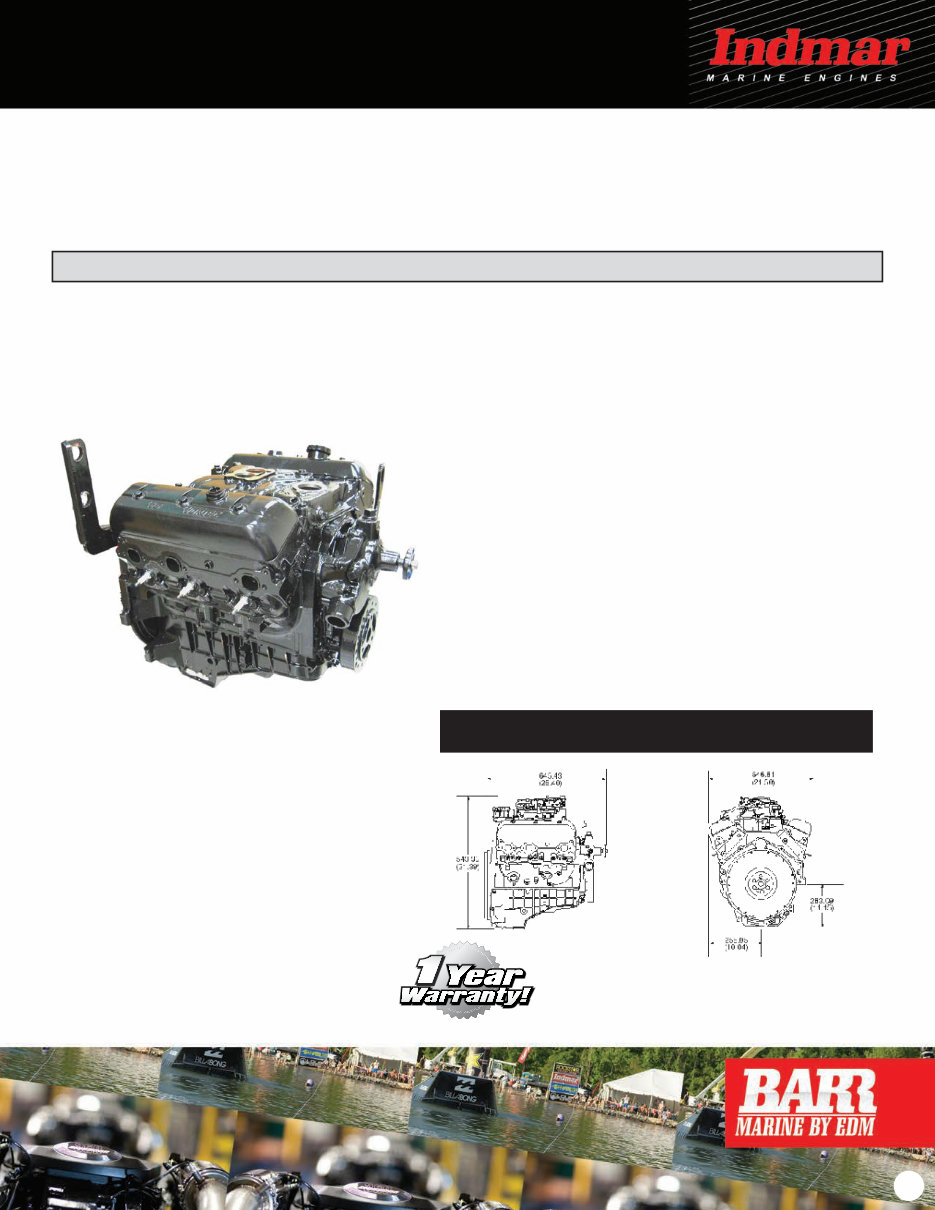

Speciﬁcations Displacement: 262 C.I.D. (4294 CC) / 4.3L Cylinders: 90 Degree V6 Cylinder Comp. Ratio: 9.4:1 Valve Conﬁg.: Overhead Valves (2 valves per cylinder) Valve Lifters: Hydralic Roller Bore x Stroke: 4.00” x 3.48” (101.60 x 88.39 mm) Main Bearings Caps Cast Iron GM232-M Ignition: Customer Supplied Intake Manifold: Cast Iron (2 Barrel Carburetor) Block MFG.: GM Powertrain Flywheel Dia.: 14” (Ring Gear Towards Engine) Firing Order: 1 –6 - 5 - 4 - 3 - 2 Oil Pan Capacity: 4.5 Quarts (W/O Filter) Oil Type: SAE 15W40 Pennzoil Marine Paint Protectant: High Gloss Black / Superior Corrosion Resistant Horsepower: 223 H.P. @ 4800 RPM (Carburetor) Torque: 267 lb-ft @ 2800 RPM Warranty: 1 Year Limited (90 Days Commercial) 4.3L GM Base Marine Engine NEW Note: Actual power levels may vary depending on Indmar’s calibration and application. Indmar Part # 051028N e Indmar 4.3L new base engine includes the following (when ordered under the above part number). Block (with all internal engine components) Harmonic Balancer Valve Covers Water Circulating Pump Timing Chain Cover Spark Plugs 14” Flywheel Cast Iron Intake (2 barrel) Oil Pan Available Options: -A full range of new replacement parts needed to complete the build up! 2 www.barrmarine.net Toll Free: 866-255-9265

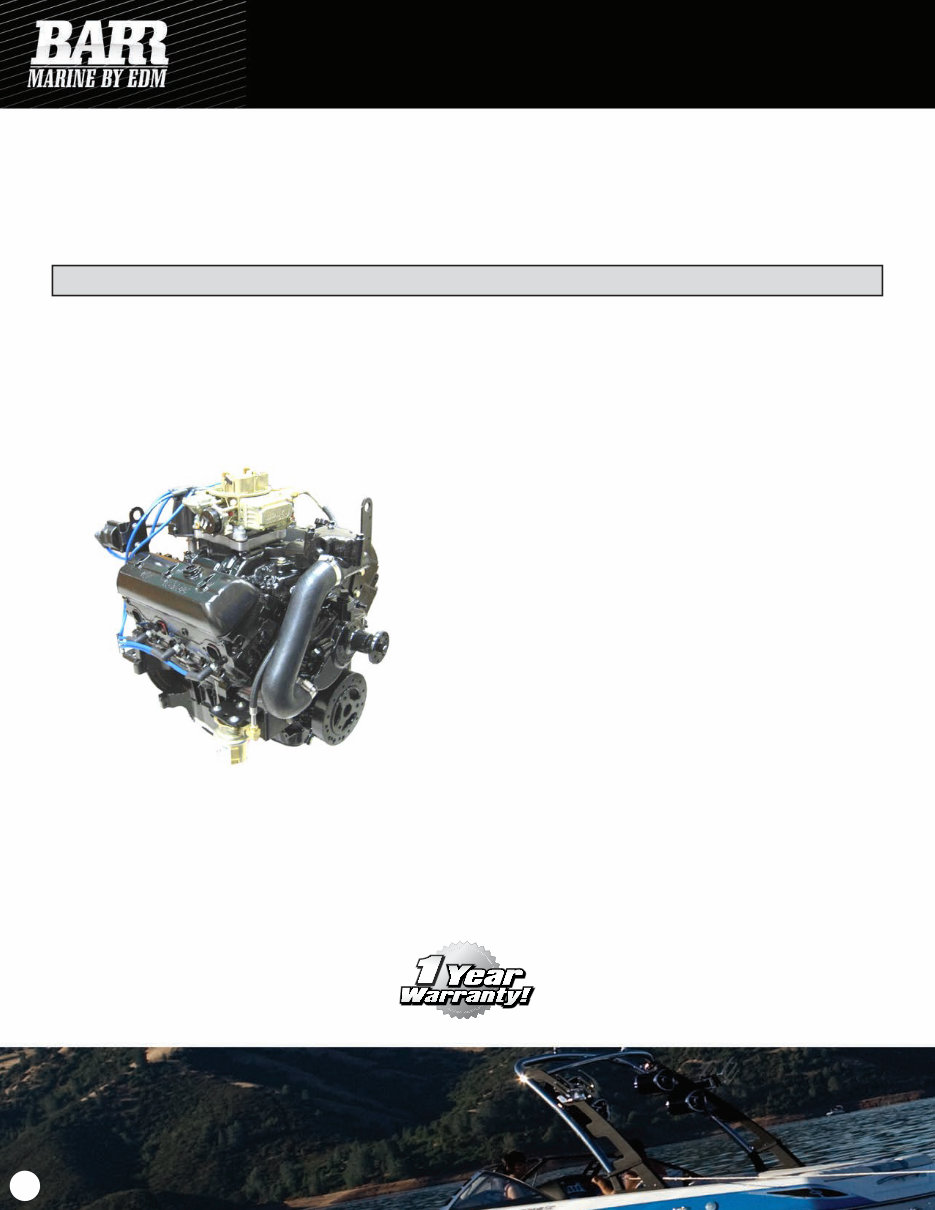

4.3L GM “Enhanced Base” Marine Engine NEW Note: Actual power levels may vary depending on Indmar’s calibration and application. Indmar Part # 051000 e Indmar 4.3L new “Enhanced Base” engine includes the following (when ordered under the above part number). Block (with all internal engine components) Harmonic Balancer Valve Covers Water Circulating Pump Timing Chain Cover Spark Plugs 14” Flywheel Oil Pan Plug Wires Electronic Distributor (HEI-Delco) Fuel Pump (electronic) Coil Carburetor (Holley/600 cfm) ermostat Housing T-HSG Hose e Indmar “Enhanced Base” fuel and spark is brand new and the perfect engine for the boater who requires a new power plant in their boat. is engine is an excellent replacement for customer who has existing components they want to re-install to get their boat back in the water! Speciﬁcations Displacement: 262 C.I.D. (4294 CC) / 4.3L Cylinders: 90 Degree V6 Cylinder Comp. Ratio: 9.4:1 Valve Conﬁg.: Overhead Valves (2 valves per cylinder) Valve Lifters: Hydralic Roller Bore x Stroke: 4.00” x 3.48” (101.60 x 88.39 mm) Main Bearings Caps Cast Iron GM232-M Ignition: Customer Supplied Intake Manifold: Cast Iron (4 Barrel Carburetor) Block MFG.: GM Powertrain Flywheel Dia.: 14” (Ring Gear Towards Engine) Firing Order: 1 –6 - 5 - 4 - 3 - 2 Oil Pan Capacity: 4.5 Quarts (W/O Filter) Oil Type: SAE 15W40 Pennzoil Marine Paint Protectant: High Gloss Black / Superior Corrosion Resistant Horsepower: 223 H.P. @ 4800 RPM (Carburetor) Torque: 267 lb-ft @ 2800 RPM Warranty: 1 Year Limited (90 Days Commercial) Available Options: -A full range of new replacement parts needed to complete the build up! www.barrmarine.net Toll Free: 866-255-9265 3

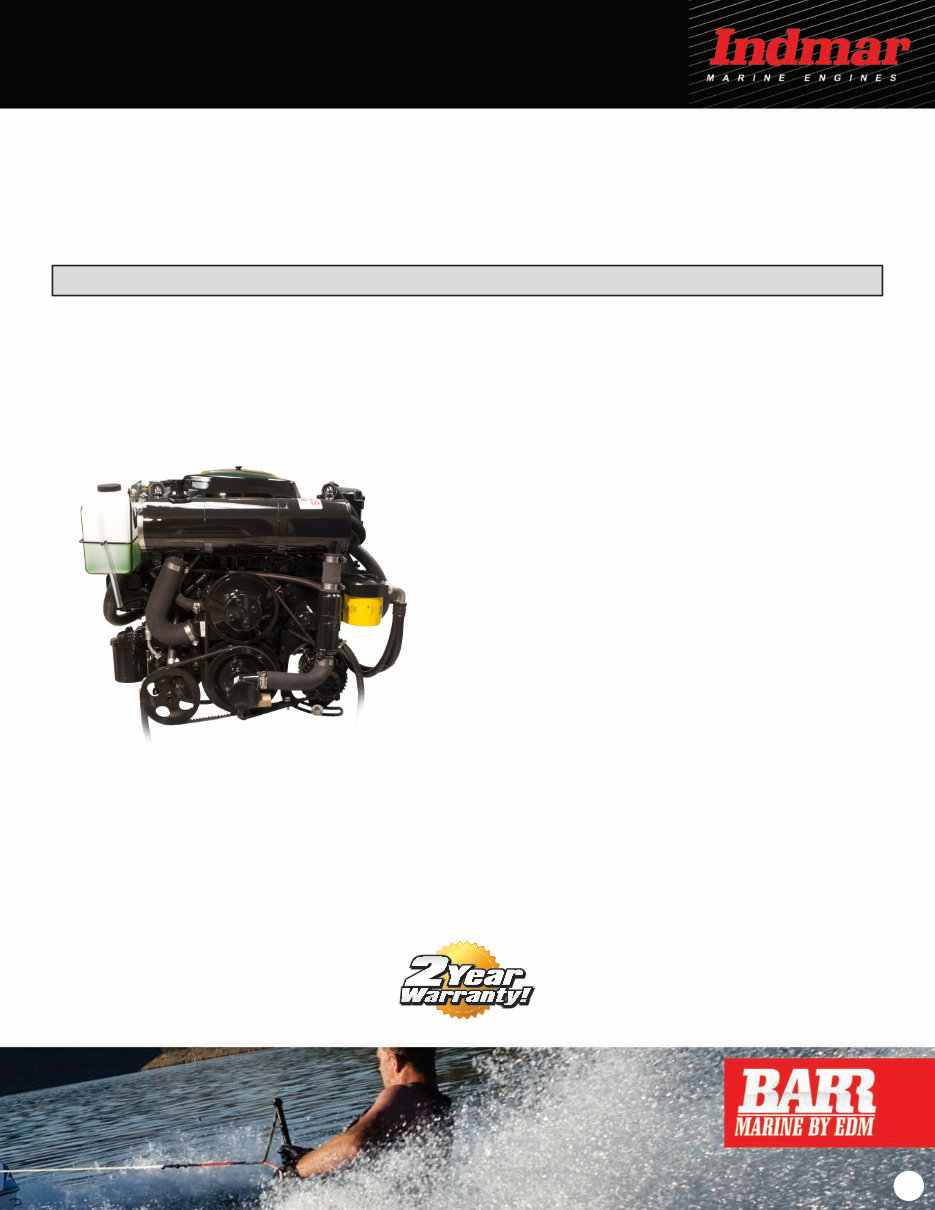

4.3L GM “Bobtail” Marine Engine NEW e Indmar 4.3L “Bobtail” engine includes the following (when ordered under the above part number). Available Options: -Power Steering System (w/ oil cooler) -Closed Cooling (Half or Full System) e “Bobtail” engines by Indmar are built only with premium components to insure many years of boating! ese super high quality engines have everything factory installed to make sure your customer’s complete engine replacement is a smooth transaction! Please give the folks at Barr Marine By EDM or one of our very ﬁne engine distributors a call and we will be glad to help you get started breathing life back into your boat! e Indmar Enhanced Base Plus Note: Closed cooling system, power steering system, and fuel water seperator are shown but must be purchased in addition to the bobtail engine. Fuel / water seperator is only included on I/O Bobtails only (at no extra charge). Part# 051002 Bobtail without exhaust Part# 051002M Bobtail with Merc exhaust I/O Part# 051002VO Bobtail with Volvo exhaust I/O Part# 051003 Inboard Bobtail with exhaust Part# 04430M Carb Bobtail with Merc exhust I/O with Power Steering Part# 04330V Carb Bobtail with Volvo exhust I/O with Power Steering Coupler (Volvo or MerCruiser) Alternator rottle Linkage Exhaust System (Volvo or MerCruiser) Starter (bottom mount) Flame Arrestor Dipstick and Tube Flywheel Hsg. (where applicable) Fuel/Water Sep. (I/O only) Weather Cover E Z Oil Drain High Gloss Paint (non-corrosive) Engine Wiring Harness Crank Pulley Circ. Pump Pulley Dust Cover (where applicable) P/U Pump (when applicable) Torsion Damper (where applicable) www.barrmarine.net Toll Free: 866-255-9265 4

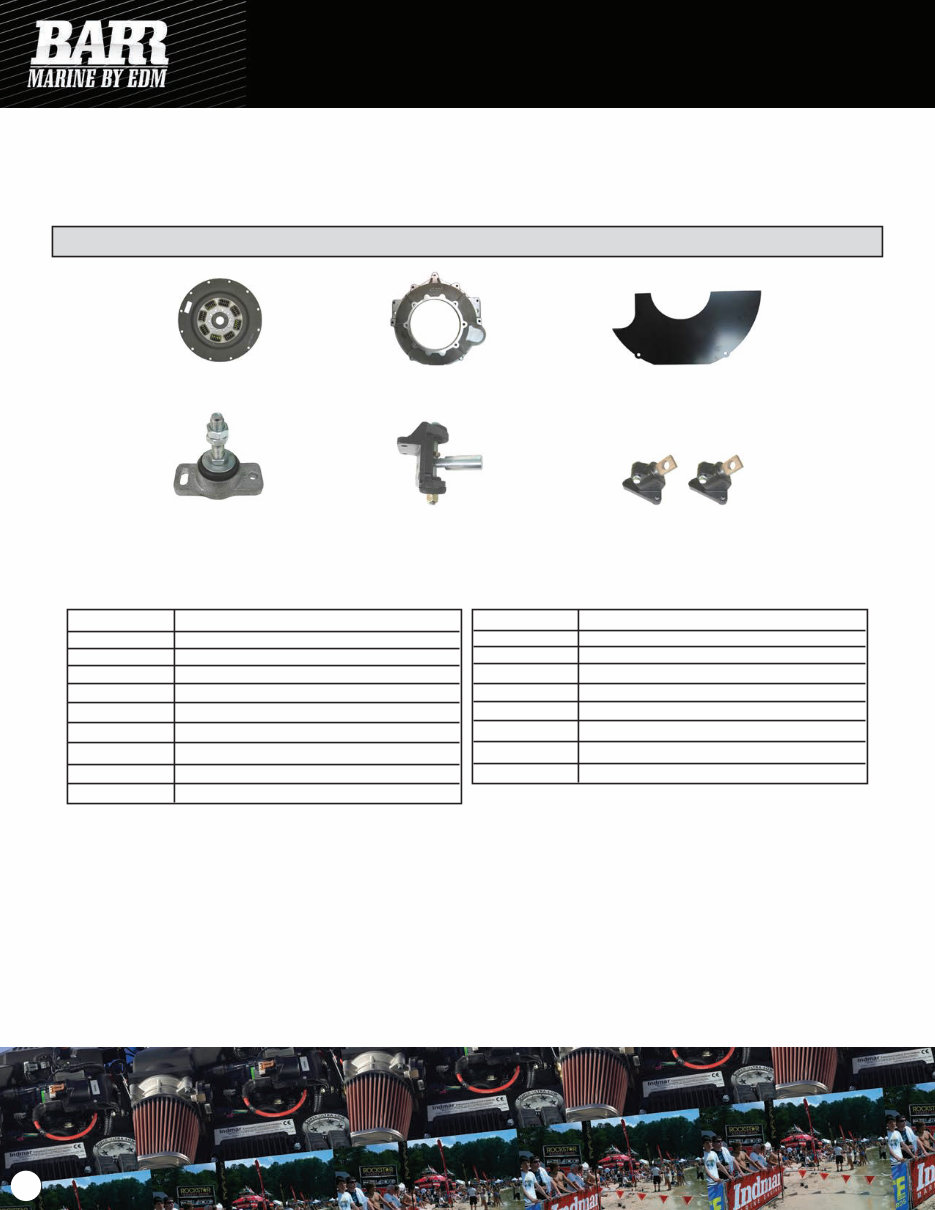

Replacement Block Components and Related Parts All replacement parts are from only the best manufacturers and are used on our production engines as well! For e 4.3L Carbureted Engine 4.3L Block Components 885016 531009 535033 MC 8 66418 8 0006 535011 Note: e Barr Power Steering System is not for sale unless sold as a direct replacement or sold already installed on an Indmar bobtail engine! It is recommended that the new Power Steering System is installed on all bobtail engines. Part Number Part Description 885016 Drive Plate (torsion damper) 531009 Flywheel Housing (bottom mount starter) 535033 Splash Plate (bottom mount starter) 531005 Front Engine Mount, RH (to block) 531004 Front Engine Mount, LH (to block) 535021 Trunion (for #531004 & 5) 8 0006 Stringer Mount (for #MC 8 66418) 535011 Transmission Mount (for direct drive ZF Trans.) 535015R Trans. Mount (RH-for reduction and V-Drive ZF) 535015L Trans. Mount (LH-for reduction and V-Drive ZF) 535032 Stringer Mount (ﬂat) Part Number Part Description MC 8 66418 Front Engine Mount (Merc. replacement-in pairs) 515003KIT E-Z Oil Drain Kit (metric thread) 495121 Remote Oil Filter Kit 25 1000 Power Steering Kit (only installed at Barr Marine) 551660 Dipstick (V6 engine) 551661 Dipstick Tube (V6 engine) 5 www.barrmarine.net Toll Free: 866-255-9265

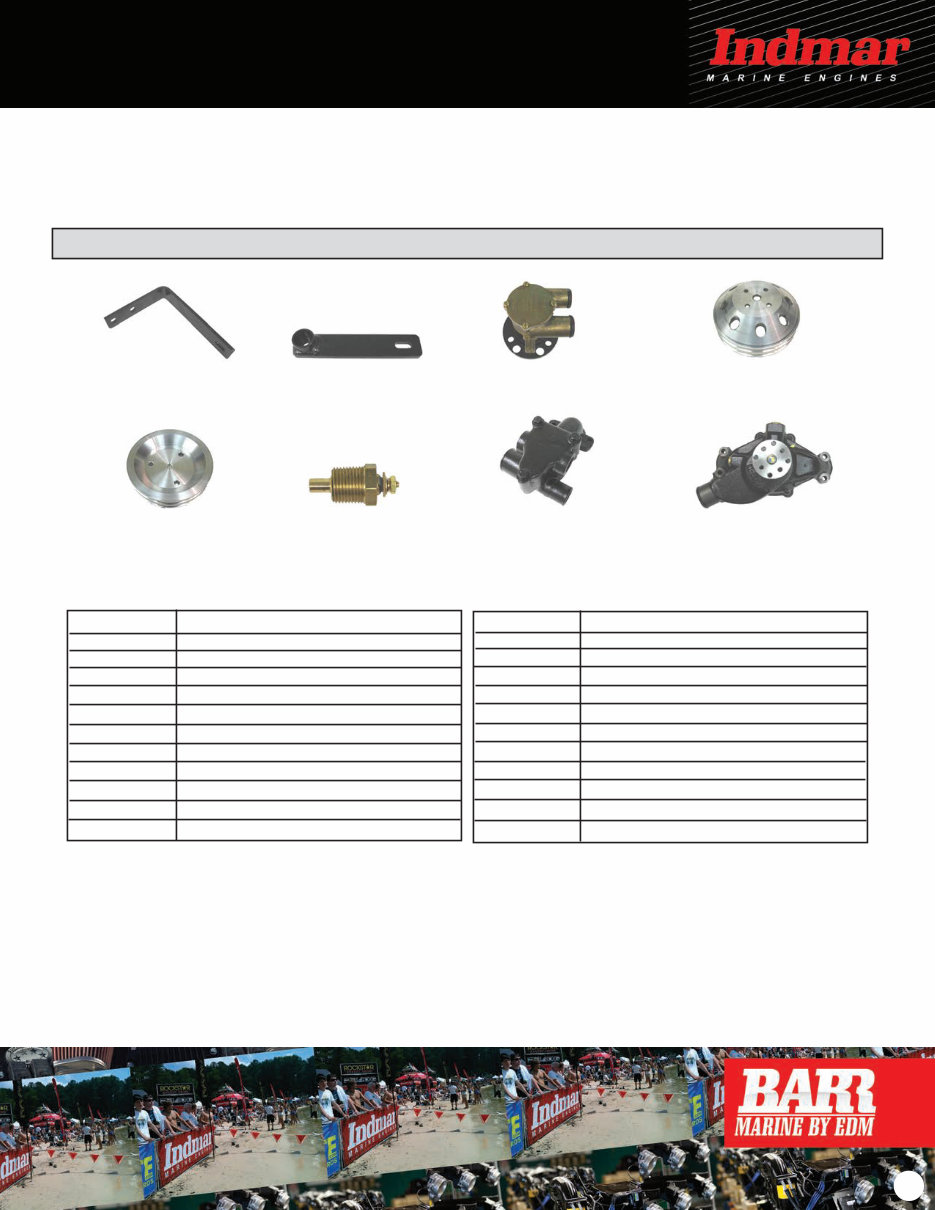

Replacement Cooling System and Related Parts All replacement parts are from only the best manufacturers and are used on our production engines as well! For e 4.3L Carbureted Engine 4.3L Cooling System Note: See the Barr Marine By EDM catalog for exhaust system options. All “bobtail” engines purchased with exhaust will automatically includes “center rise” exhaust systems ONLY! 981108 981204 685001 041242 041494 645001 CHV 29 80 MC 2 17437 Part Number Part Description 981001 Pick Up Pump Bracket (old style) 981108 Pick Up Pump Bracket “A” (new style) 981204 Pick Up Pump Bracket “B” (new style) 685001 Pick Up Pump, Complete (pump only) 685000 Pick Up Pump Rebuild Kit 845010 Hose, Circ. Pump to ermostat Housing 551240 Single Groove Circ. Pump Pulley 041242 Dual Groove Circ. Pump Pulley CHV 29 80 ermostat Housing (Barr style) 531093 1/2” Spacer, T-Stat Housing 986034 ermostat (drilled for FWC) MC47 27 53045 Gasket, Intake to ermostat Housing 551045 Circulation Pump (GM Style) MC 2 17437 Circulation Pump (Barr style) MC47 27 34897 Gasket, Circ Pump to Engine 551241 Single Groove Crank Pulley Part Number Part Description 041494 Dual Groove Crank Pulley 645001 Temperature Sender 531015 ermostat Housing (Indmar Style) 531067 ermostat Housing (low proﬁle) BA 37 0350 Closed Cooling System (full) BA 37 0000 Closed Cooling System (half) 6 www.barrmarine.net Toll Free: 866-255-9265

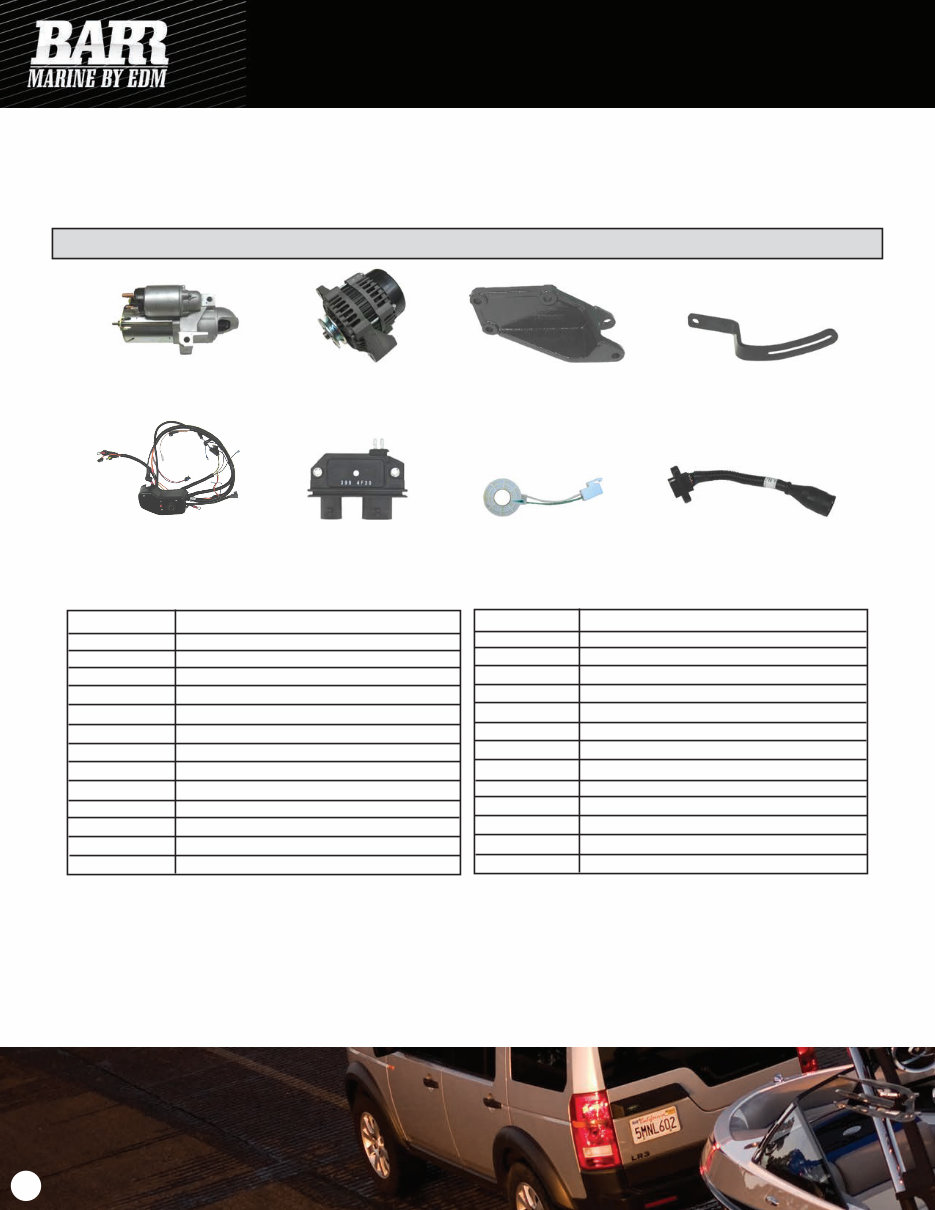

Replacement Electrical System and Related Parts All replacement parts are from only the best manufacturers and are used on our production engines as well! For e 4.3L Carbureted Engine 4.3L Electrical System Part Number Part Description 571006 Bottom Mount Starter 551306 Starter Bolt (single, bottom mount) 805061 Starter Relay (carbureted) 755001 Starter Solenoid (bottom mount) 575003 Starter Solenoid (top mount) 573001 Top Mount Starter (LH) 575001 Top Mount Starter (RH) 575010 Alternator (70 AMP) 556096 Ignition Module 556051 Relay, Ignition and Fuel Pump 556084 Rotor (distributor) 556194 Pick Up Coil (distributor) 551006 Clamp, Distributor 551037 Clamp Bolt, Distributor 550003 Distributor Kit 80 473037 Wire Harness Adaptor (cannon style to square) MC 27 93175 Alternator Bracket (upper) Part Number Part Description BA 27 0430 Alternator Bracket (lower) 27 0430 Bushing For 93175 50 170 235 Mounting Bolt For 93175 50 270 012 Lock Washer For 93175 725036 Alternator Belt (vee) 801059 Wire Harness 805012 Spacer For Wire Harness 801012 Timing Shunt 986045 Liﬅing Eye (single) 571006 575010 MC 27 93175 BA 27 0430 801059 556096 556194 80 473037 7 www.barrmarine.net Toll Free: 866-255-9265
