Deutz MWM Engines (D 226B) OEM Service & Repair Manual

This workshop manual is designed for MWM engines, including the following models:

• TD 226B-3
• TD 226B-4
• TD 226B-6
• D 226B-3
• D 226B-4
• D 226B-6

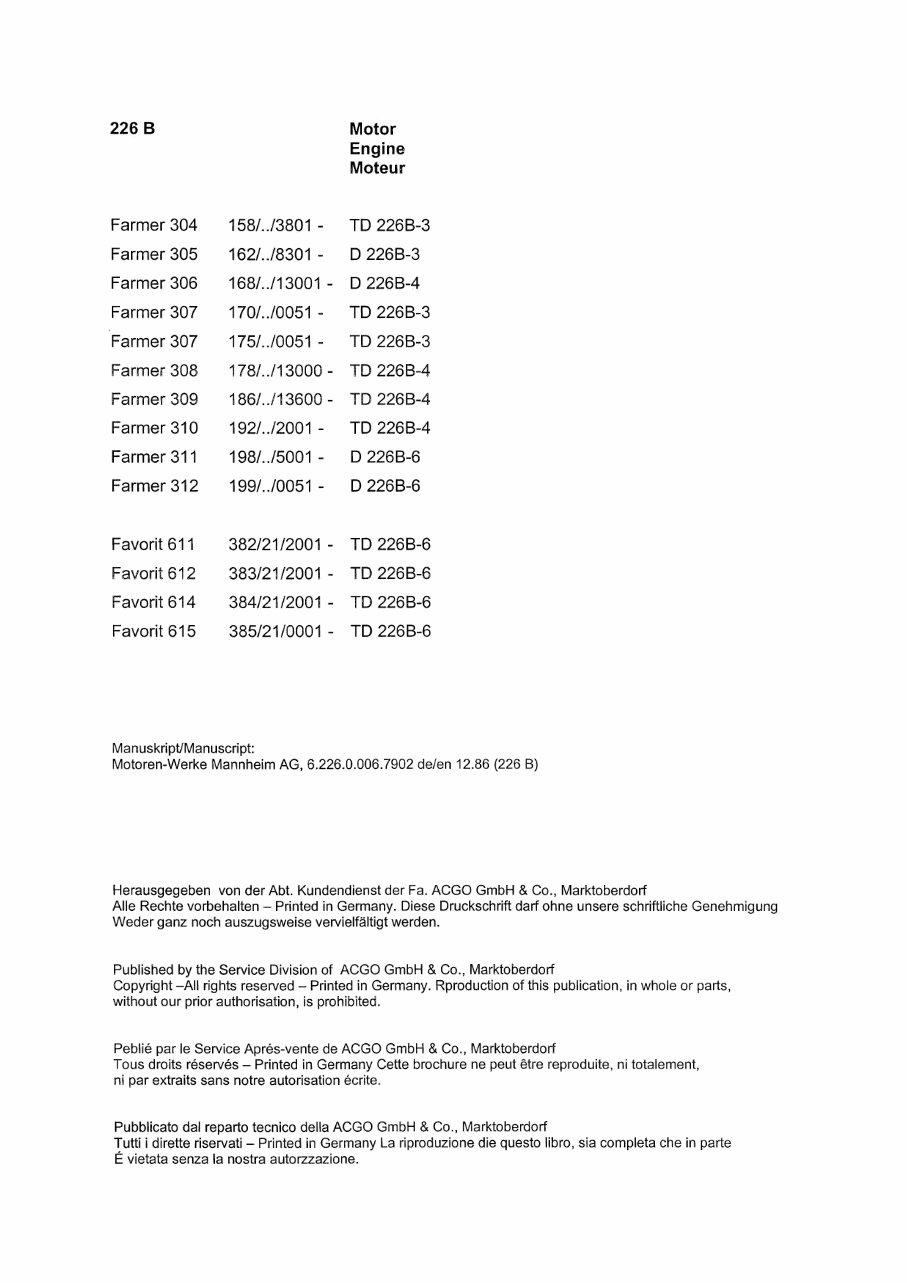

It is applicable to Fendt tractor models equipped with these engines, such as:

• Farmer 304 158/.../3801-
• Farmer 305 162/.../8301-
• Farmer 306 168/.../13001-
• Farmer 307 170/.../0051-
• Farmer 307 175/.../0051-
• Farmer 308 178/.../13000-
• Farmer 309 186/.../13600-
• Farmer 310 192/.../2001-
• Farmer 311 198/.../5001-
• Farmer 312 199/.../0051-
• Favorit 611 382/21/2001-
• Favorit 612 383/21/2001-
• Favorit 614 384/21/2001-
• Favorit 615 385/21/0001-

This manual is of very good quality, consisting of 75 pages and is available in multiple languages, including English and German.

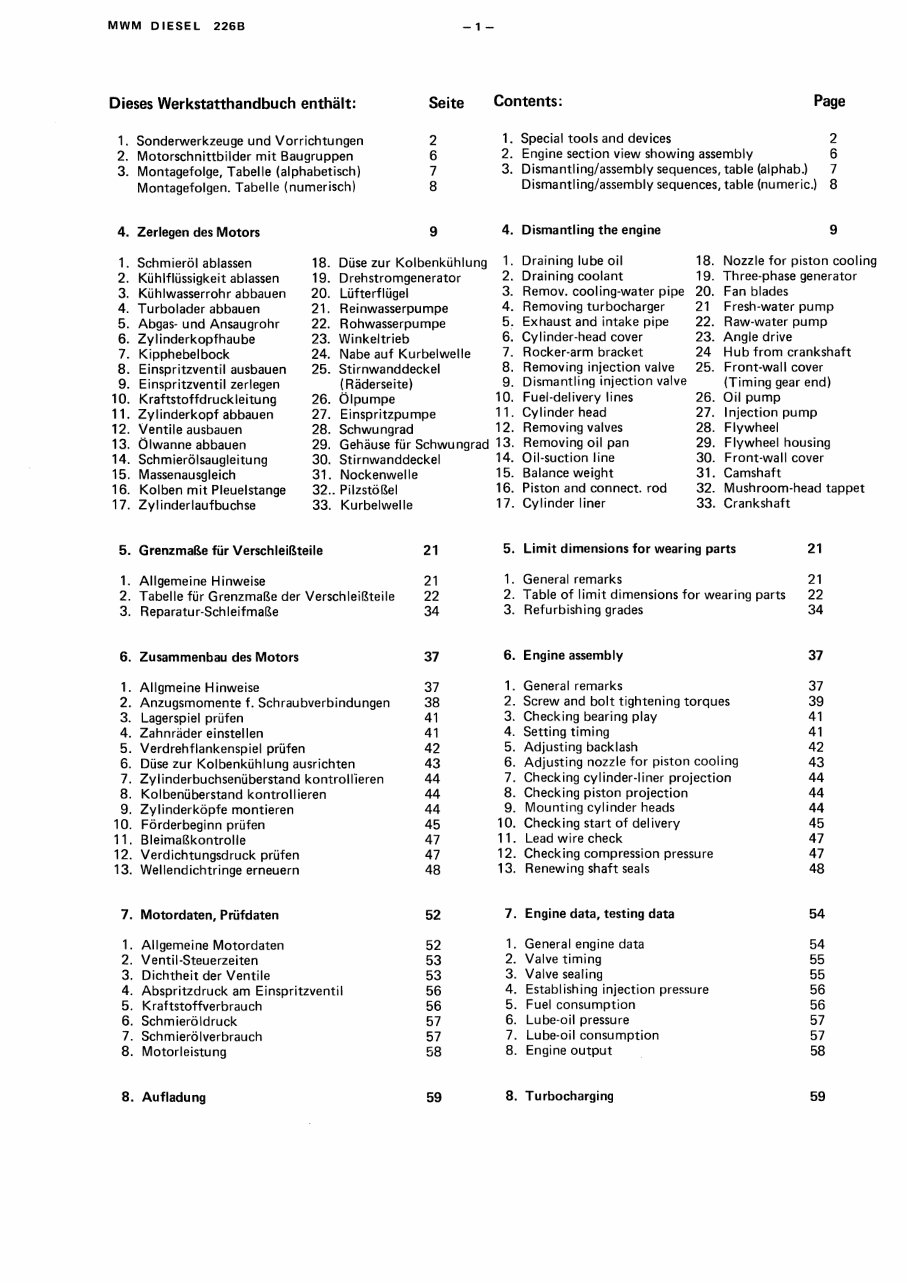

The main sections of the manual cover:

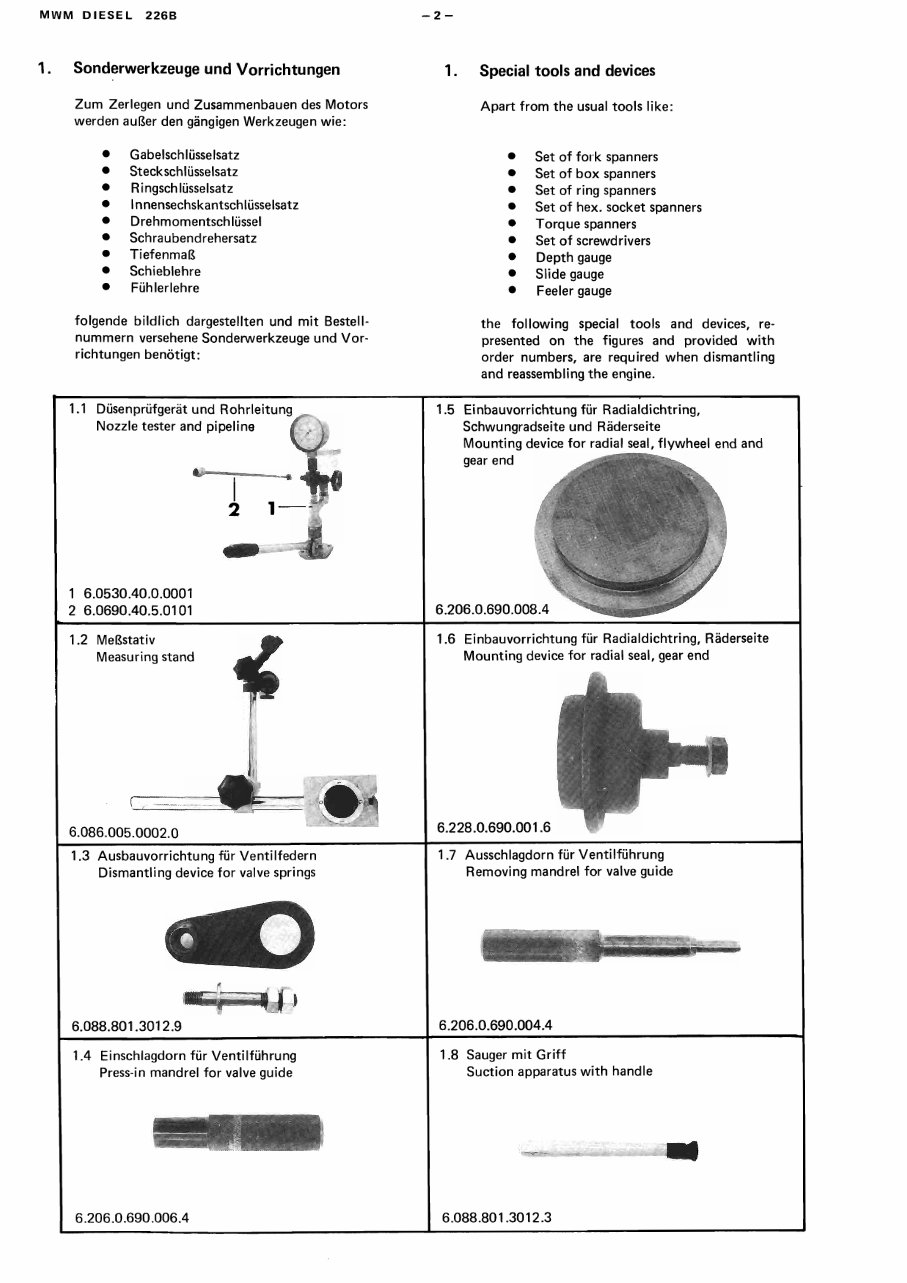

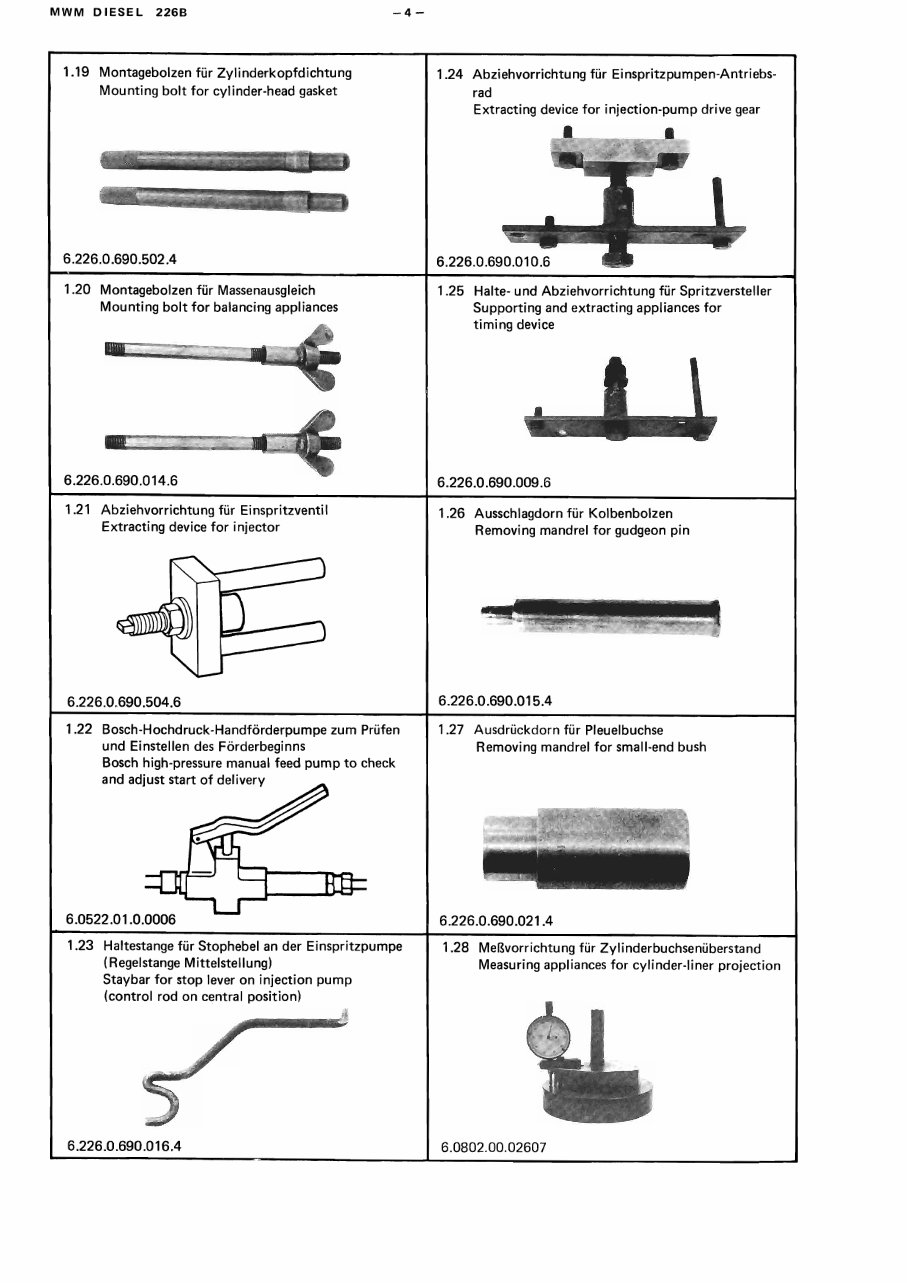

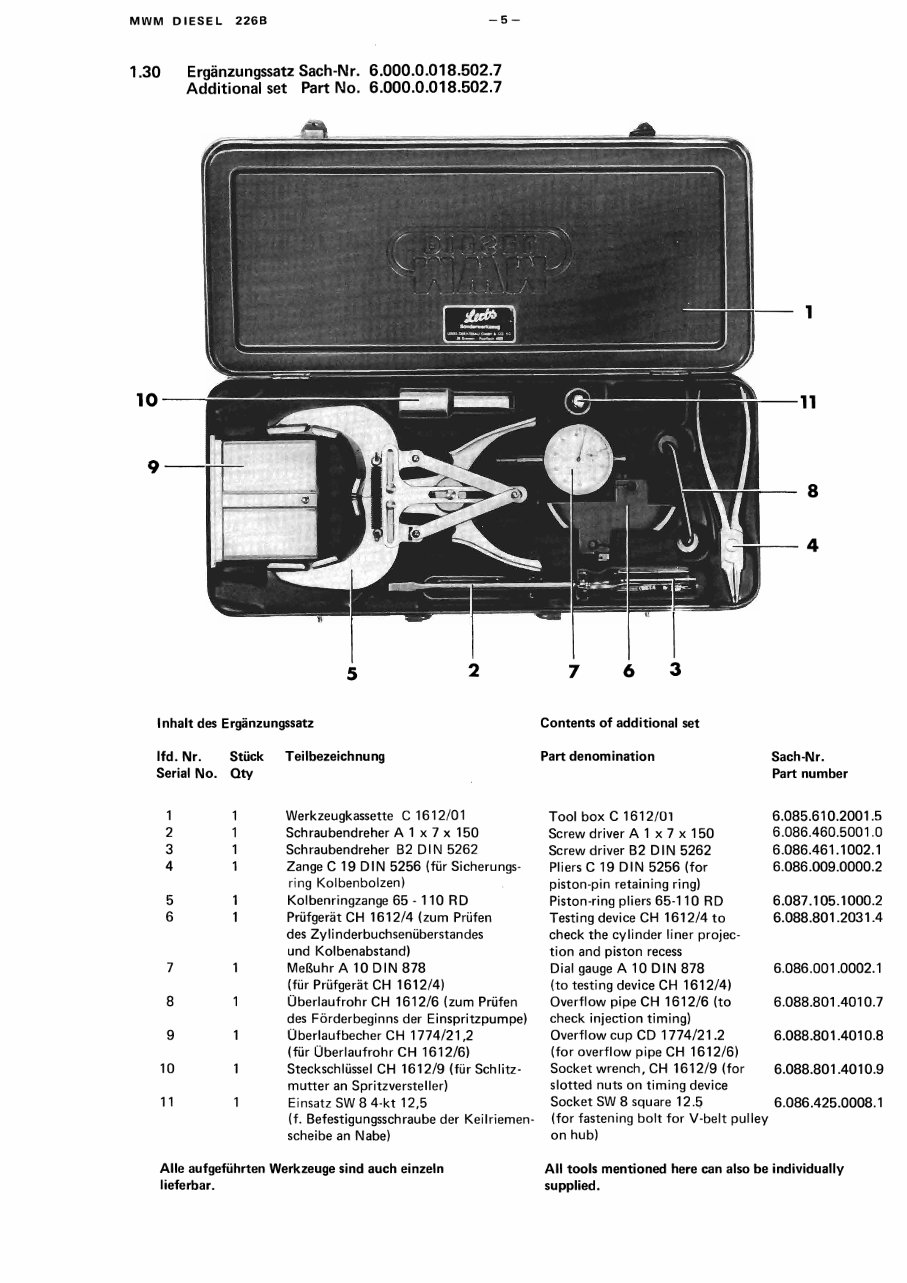

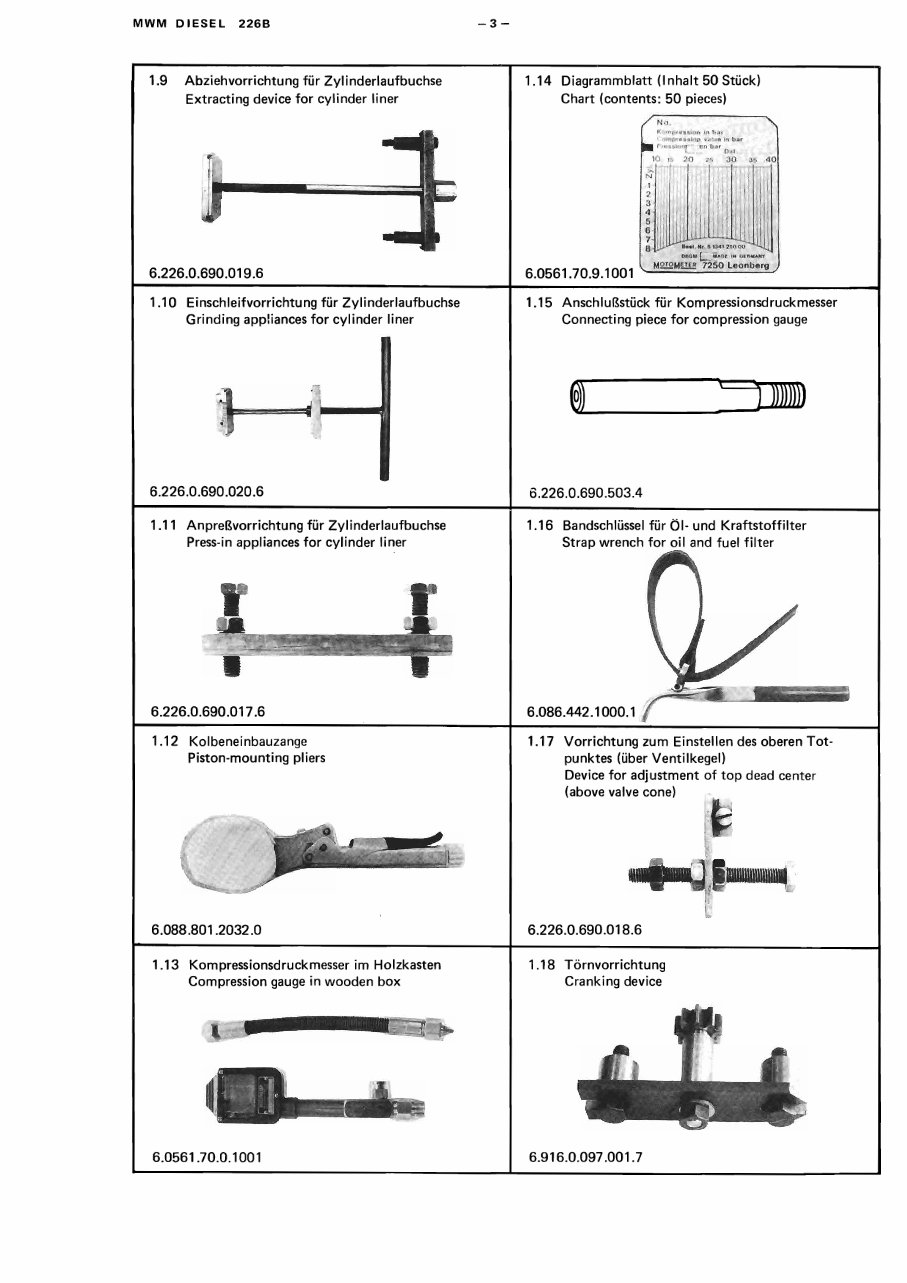

• Special tools and devices
• Engine section view showing assembly
• Dismantling/assembly sequences table
• Dismantling the engine (e.g. Flywheel, oil pump, valves, cylinder-head)
• Limit dimensions for wearing parts
• Engine assembly (e.g. adjust backlash, setting timing, checking compression ratio)
• Engine data, testing data (e.g. valve timing, valve sealing, establishing injection pressure)
• Turbocharging
