Deutz Accessories Catalogue

ENGINE COMPLETION CATALOG Catalog #999-9001 | Revised 1/09

Engine Completion Kit Index Air Compressors Page 5-7 Air Cleaners / Attachments Page1-4 Air Discharge Ducting Page 8 Alternators Page 10-12 Blower Guards Page 12 Air Intake Guide Ring Page 9 Flywheels Page 12-14 Housings Page 15-16 Housing Dust Cover Page 16 Fuel Filters / Fittings Page 17 Fuel Tanks Page 17 Hydraulic Oil Coolers Page 18-19

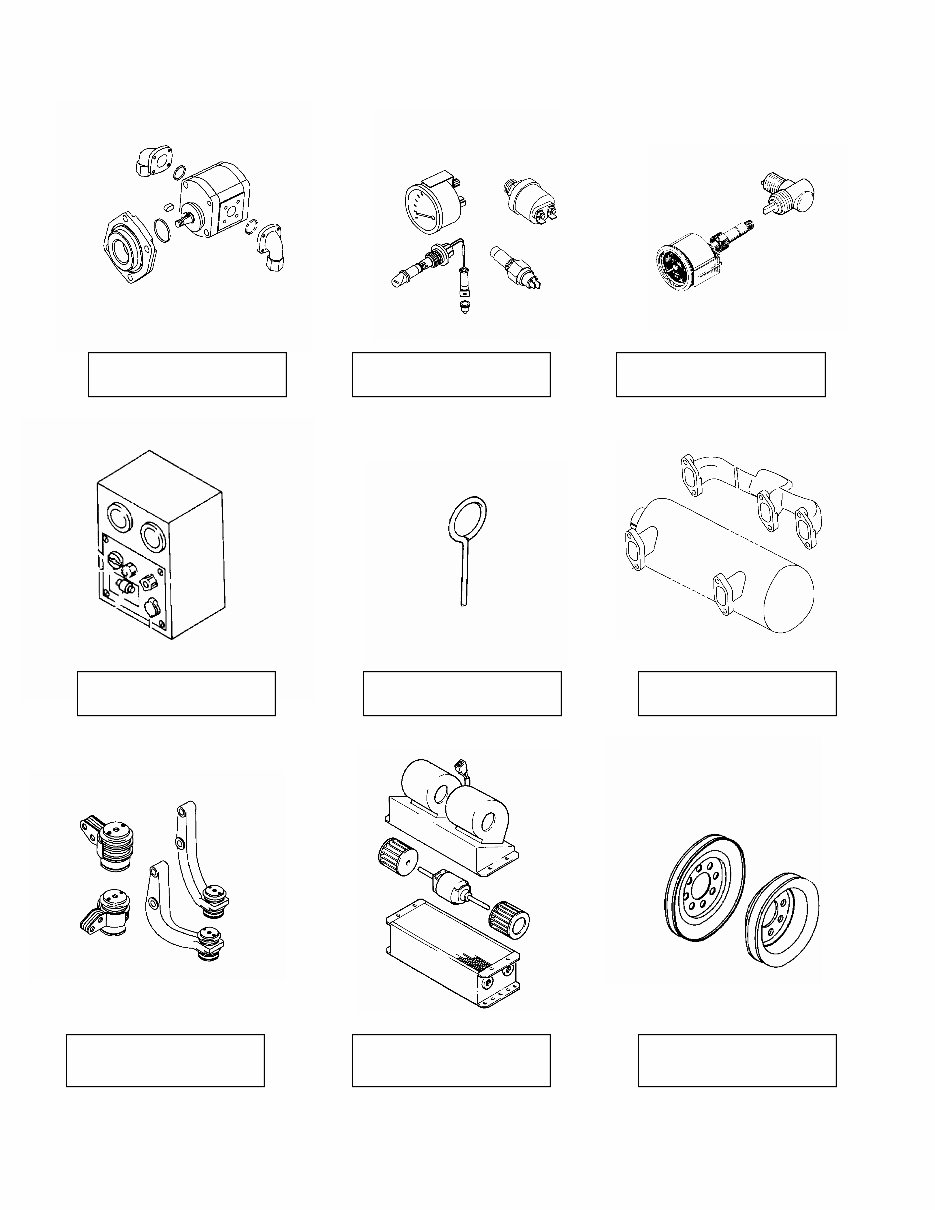

Engine Completion Kit Index Hydraulic Oil Pumps Page 19-22 Switches, Sensors, Gauges Page 23-25 Tach/ Hourmeter/Angle Drive Page 25 Panels / Safety Shutdown Page 25-26 Lifting Eyes Page 27 Manifolds / Mufflers Page 27-31 Engine Mounts Page 32 Oil-To-Air Cab Heaters Page 33 Pulleys / Drives Page 33

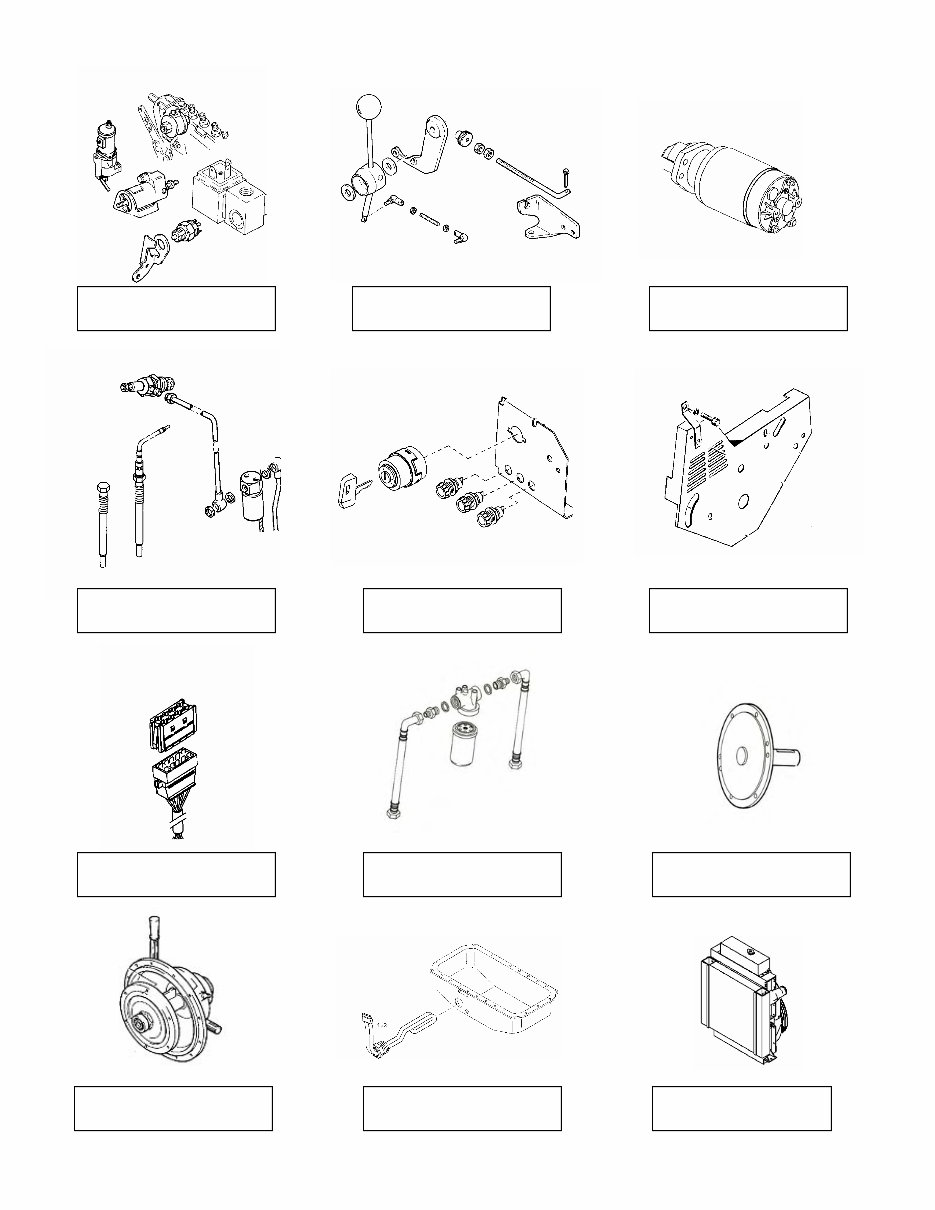

Engine Completion Kit Index Wiring Counter plugs Page 41 Starting Aids Page 37-39 Shutdown Systems Page 34-35 Speed Control Page 36 Starters Page 37 Starting Accessories Page 39 V-Belt Guards Page40 Remote Oil Filter Page 33 Stubshafts Page 40 Clutch PTO Page 45 Engine Heaters / Oil Pans Page 41 Radiators Page 42-44

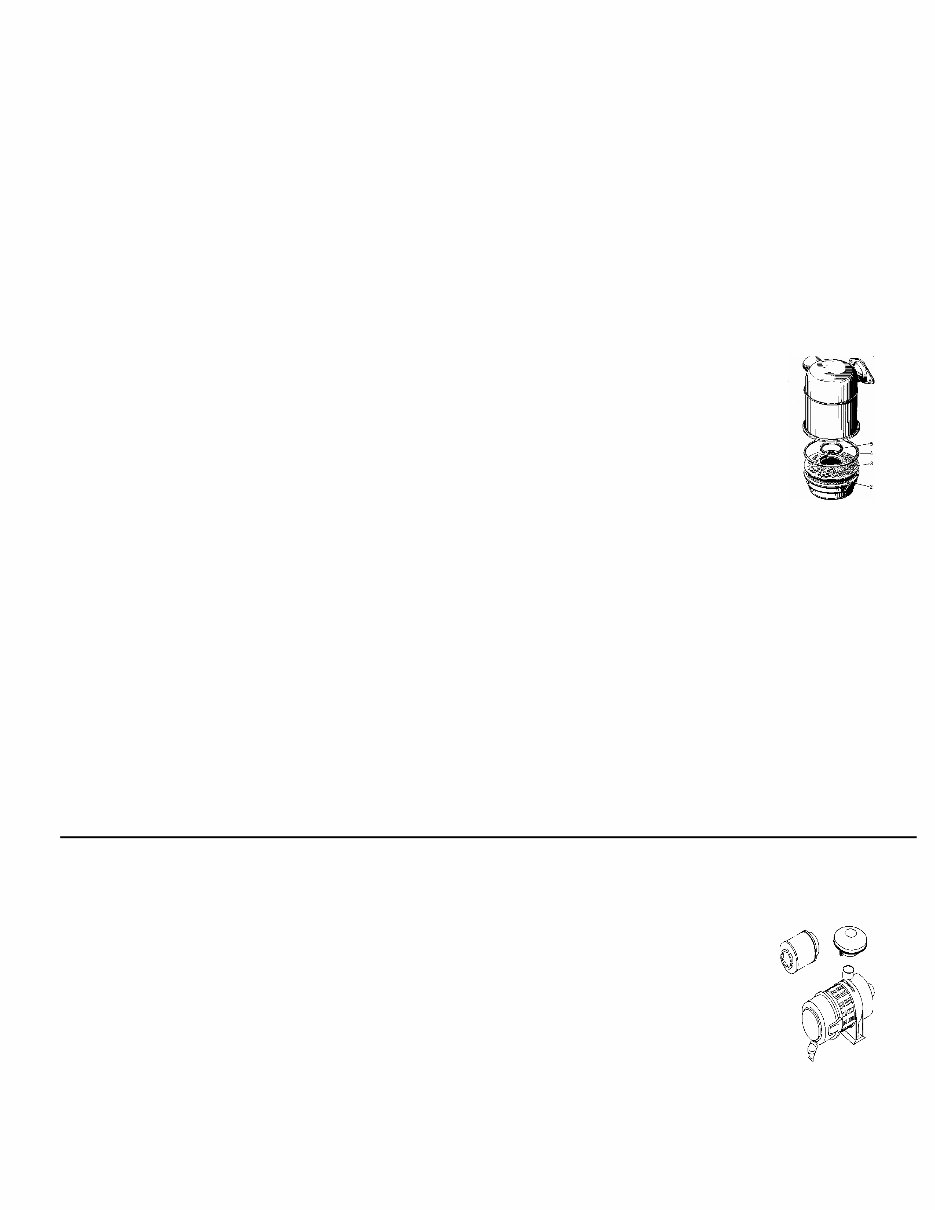

DEUTZ CORPORATION ENGINE COMPLETION CATALOG 1 SECT. 1.1 AIR CLEANER, OIL BATH, ENGINE MOUNTED ENGINE MODEL KIT # / CODE ETL PAGE REMARKS F3-6L 913 027-0463 05003499 4.8 CU. METER/MINUTE, PRECLEANER NOT SPL 05050413 INCLUDED, TOP AIR INLET, FOR ENGINES WITH INTAKE OPENING AT BLOWER END F3-6L 913 027-0465 05003499 4.8 CU. METER/MINUTE, PRECLEANER NOT SPL 05003403 INCLUDED, SIDE AIR INLET, FOR ENGINES WITH INTAKE OPENING AT BLOWER END F3-6L914 / D914 L3,4,5,6 027-7375 05003503 4.8 CU. METER/MINUTE, PRECLEANER NOT SPL 05079466 INCLUDED. CANNOT USE WITH MOUNTED AIR COMP. F3-6L914 / D914 L3, L4 027-7374 05075055 FOR ENGINES WITH AIR COMPRESSOR SPL 05069131 05075051 , 05079585 F6L 913 027-0556 05003504 5.6 CU. METER/MINUTE, PRECLEANER NOT SPL 05023330 INCLUDED, SIDE AIR INLET, FOR ENGINES WITH INTAKE OPENING AT BLOWER END F5-6L914 / BF4L914 / D914 L6 027-0495 05003504 5.6 C.U. LOOSE SIDE MOUNT SPL 05003520 05003521 F5-6L914 / D914 L5, L6 027-7451 05003504 5.6 CU. METER/MINUTE, PRECLEANER NOT SPL 05079606 INCLUDED. CANNOT USE WITH MOUNTED AIR COMP. BF6L 913/C 027-2466 05003954 9.6 CU. METER/MINUTE (CANNOT USE WITH SPL 05018901 SA 27-2595 GUARD); INCLUDES PRECLEANER 05023350 05006618, 05003965, 05006620 BF6L914C / TCD914 L6 027-7362 05003954 FOR ENGINES EQUIPPED WITH FRONT TURBO SPL 05018901 9.6 CU. METER/MINUTE (CANNOT USE WITH 05006618 ALUMINUM V-BELT GUARD); INCLS. PRECLEANER 05003965 05006620, 05079573 F5-6L914 / BF4L914 027-0495 05003504 LOOSE, SIDE MOUNT SPL 05003520 05003521 F6L 913 027-2451 05003956 LOOSE, LATERAL AIR INLET SPL 05050265 BF6L 913 SP/CSP 027-2465 05004825 COMBINATION-TYPE AIR CLEANER, PAPER SPL 05023349 ELEMENT,PRE-CLEANER, SUPPLIED LOOSE 05050265 05003743, 05050617 SECT. 1.2 AIR CLEANER, DRY TYPE, ENGINE MOUNTED ENGINE MODEL KIT # / CODE ETL PAGE REMARKS F6L 913 027-6487 05075053 6.0 CU. METER/MINUTE, W/OUT SERVICE SPL 05075050 F5-6L914 027-7367 05075053 INDICATOR, W/ RAIN CAP, FOR ENG. EQUIPPED SPL 05079579 F3-4L914 027-7368 05075055 WITH INTAKE OPENING AT BLOWER END AND SPL 05069131 WITHOUT FRONT MOUNTED AIR COMPRESSOR 05079579 F3L-4L914 / D914 L3, L4 027-7476 05075052 4.5 CU. METER/MINUTE, W/OUT FRONT SPL 05069129 MTD. AIR COMPRESSOR 05079587 CHECK WITH DC-NORCROSS FOR LEAD TIME ON ITEMS WITH 'SPL' STOCK CODE REV. 01/2009

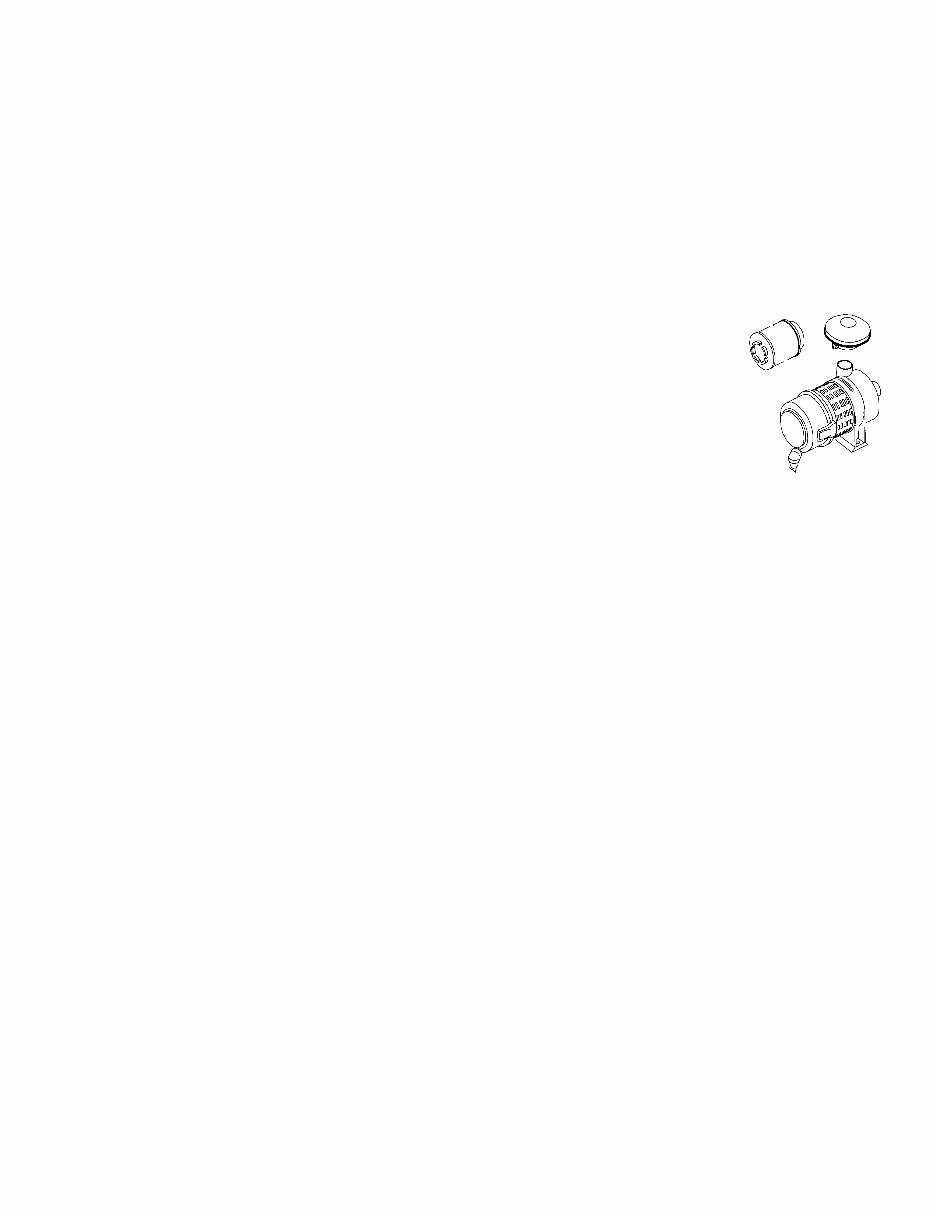

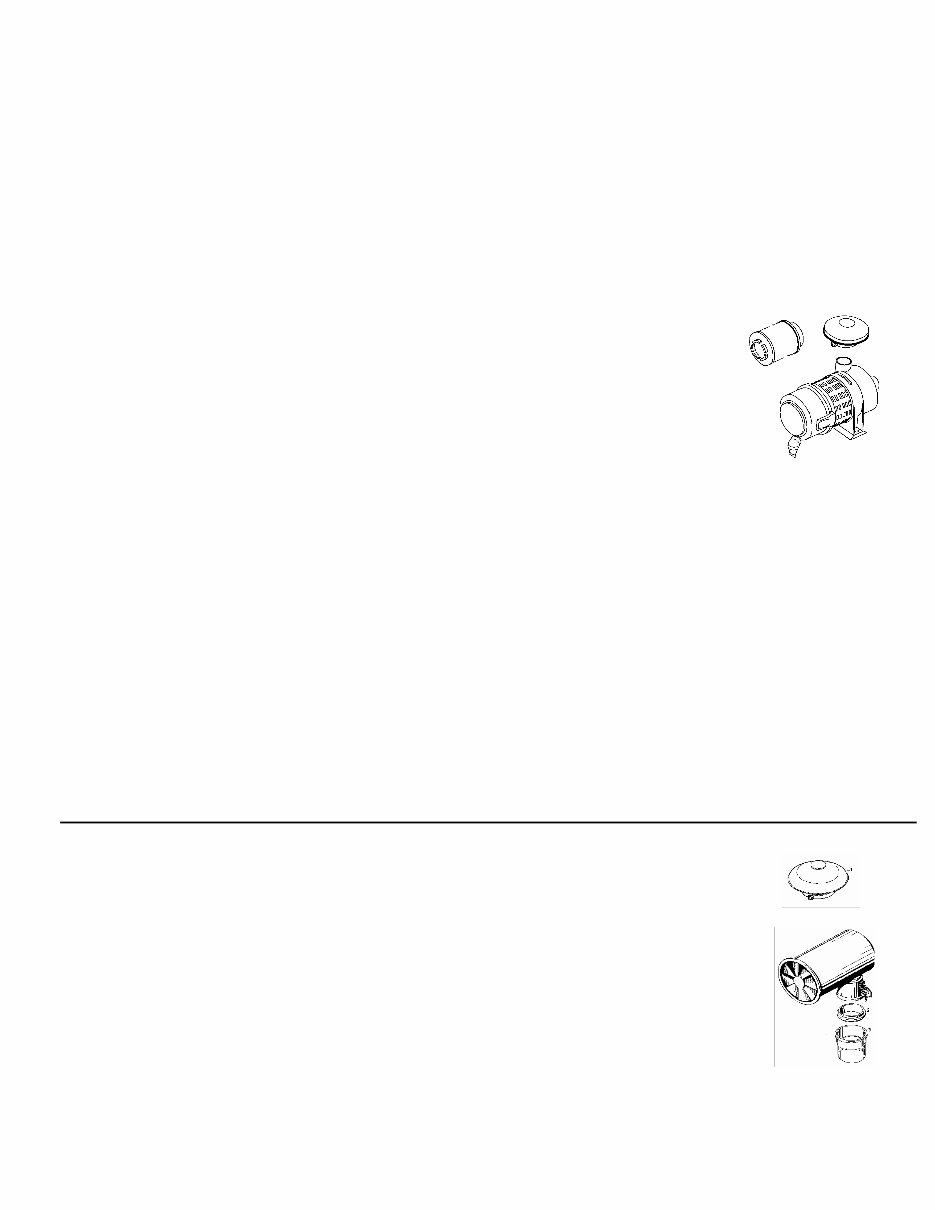

DEUTZ CORPORATION ENGINE COMPLETION CATALOG 2 SECT. 1.2 (CONTINUED) AIR CLEANER, DRY TYPE, ENGINE MOUNTED ENGINE MODEL KIT # / CODE ETL PAGE REMARKS F3-4L 913 027-6481 05075052 4.5 CU. METER/MINUTE, W/ RAIN CAP, W/OUT 05075049 SERVICE INDICATOR, FOR ENGINES EQUIPPED 05069129 WITH INTAKE OPENING AT BLOWER END AND WITHOUT FRONT MOUNTED AIR COMPRESSOR F5/6L914- BF4/6L914 027-6484 05074534 COMBINATION, AIR FILTER 6.0 CCM W/O FASTENING F4-F6L913 / D914 L4,5,6 05069131 PARTS, W/ SAFETY CARTRIDGE 05075051 05075095 F6L 913 027-0498 05005856 6.2 C.U. PER MINUTE COMBINATION TYPE AIR SPL 05023301 CLEANER, PAPER ELEMENT, PRE-CLEANER 05005853 SUPPLIED LOOSE F6L913 027-1565 05023305 COMBINATION TYPE AIR CLEANER, PAPER SPL 05003959 ELEMENT, PRE-CLEANER SUPPLIED LOOSE 05050265 05003743 ALL 2011 999-0216 05067563 AIR INTAKE SOUND RESONATOR , FOR USE SPL WITH AIR CLEANER 2200-0489, PN 417-6677 F2-4L/M2011 2200-0489 05051642 4.5 CU. METER/MINUTE, CANNOT USE WITH D/TD2011 L / L I / W 05063015 FRONT MOUNTED FAN OR AIR COMPRESSOR WITHOUT SAFETY ELEMENT OR SERVICE INDICATOR D2009L4 3101-0399 05112042 5.25" MOUNTED ACROSS SAE 5 FLYWHEEL HOUSING SPL FOR USE BELOW 1800 RPM (W/OUT SERVICE INDICATOR) D2009L3 3101-0400 05112042 5.25" MOUNTED ACROSS SAE 5 FLYWHEEL HOUSING SPL FOR USE BELOW 1800 RPM (W/OUT SERVICE INDICATOR) D2008L4 3101-0101 5.25" MOUNTED ACROSS SAE 5 FLYWHEEL HOUSING SPL FOR USE BELOW 1800 RPM (W/OUT SERVICE INDICATOR) D2008L3 3101-0402 05112151 5.25" MOUNTED ACROSS SAE 5 FLYWHEEL HOUSING SPL FOR USE BELOW 3000 RPM (W/OUT SERVICE INDICATOR) D2008L4 3101-0410 05112208 (6.5" METAL) MOUNT ACROSS SAE 5 FLYWHEEL HOUSING SPL ABOVE 1800 RPM (W/OUT SERVICE INDICATOR) D2009L4 3101-0411 05112153 (6.5" METAL) MOUNT ACROSS SAE 4 FLYWHEEL HOUSING SPL FOR 1800 TO 2800 RPM (W/OUT SERVICE INDICATOR) D2009L3 3101-0412 05112153 (6.5" METAL) MOUNT ACROSS SAE 4 FLYWHEEL HOUSING SPL FOR 1800 TO 2800 RPM (W/OUT SERVICE INDICATOR) D2008L4 3101-0413 (6.5" METAL) MOUNT ACROSS SAE 4 FLYWHEEL HOUSING SPL ABOVE 1800 RPM (W/OUT SERVICE INDICATOR) D2009L4 3101-0414 05112071 7" MOUNT ACROSS SAE 5 FLYWHEEL HOUSING SPL ABOVE 1800 RPM (W/OUT SERVICE INDICATOR) TD2009L4 3101-0416 05112082 7" MOUNT ACROSS SAE 5 FLYWHEEL HOUSING SPL BELOW 3000 RPM (W/OUT SERVICE INDICATOR) D2009L4 3101-0417 05112152 7" MOUNT ACROSS SAE 4 FLYWHEEL HOUSING SPL ABOVE 1800 RPM (W/OUT SERVICE INDICATOR) CHECK WITH DC-NORCROSS FOR LEAD TIME ON ITEMS WITH 'SPL' STOCK CODE REV. 01/2009

DEUTZ CORPORATION ENGINE COMPLETION CATALOG 3 SECT. 2.1 AIR CLEANER, DRY TYPE, REMOTE MOUNTED ENGINE MODEL KIT # / CODE ETL PAGE REMARKS B/F4-6L913/C / D914 L4,5,6 027-6484 05074534 6.0 CU. METER/MINUTE, WITH RAIN CAP F5/6L914 - BF4/6L914 05069131 W/OUT SERVICE INDICATOR 05075051 05075095 BF4L913 - BF6L913/C 027-6491 05003521 8.0 CU. METER/MINUTE, WITH SAFETY CARTRIDGE BF4/6L914/C SPL 05075051 05075057, 05003520, 05075149 BF6L914/C / TCD914 L6 027-6495 05075051 12.0 CU. METER/MINUTE SPL 05050265 05075119, 05075186 F3-4L 913/914 027-6490 05074111 6.0 CU. METER/MINUTE, WITHOUT SERVICE SPL 05069131 INDICATOR, W/ SAFETY ELEMENT AND RAIN CAP. 05075051 05075095 ALL 1013/E / 2012/2013 029-0843 05074526 12.0 CU. METER/MINUTE, WITHOUT SERVICE SPL INDICATOR, WITH SAFETY ELEMENT ALL 1013/E / 2012 029-1460 05074525 8.0 CU. METER/MINUTE, WITHOUT SERVICE SPL INDICATOR, WITH SAFETY ELEMENT ALL 1013/E / 2012 029-1629 05023349 15.0 CU. METER/MINUTE, WITHOUT SERVICE SPL 05004827 INDICATOR, WITH SAFETY ELEMENT FL 2011 / D2011 L2 / L3 / I 2200-0302 05022914 4.2 CU. METER/MINUTE, W/O SERVICE (PICLON) INDICATOR, W/ SAFETY ELEMENT. FL 2011 / D2011 L2 / L3 / I 2200-0303 05022915 6.2 CU. METER/MINUTE, W/O SERVICE (PICLON) SPL INDICATOR W/ SAFETY ELEMENT. B/F4L/M2011 2200-0880 05023303 6.2 CU. METER/MINUTE, WITH SAFETY (PICLON) SPL SAFETY ELEMENT, W/O SERVICE INDICATOR FL 2011 / D2011 L2 / L3 / I 2200-2179 05069128 3 M 3 /MIN, W/ SAFETY ELEMENT, W/O INDICATOR SPL 05069134 FL 2011 / D2011 L2 / L3 / I 2200-2180 05074110 4.5 M 3 /MIN, W/ SAFETY ELEMENT, W/O INDICATOR SPL 05069133 (EUROPICLON) BF3/4L2011 2200-2183 05069132 6.0 M 3 /MIN, W/ SAFETY ELEMENT, W/O INDICATOR D/ TD2011 L4 I / W SPL 05074534 (EUROPICLON) FL 2011 / D2011 L3 / I 2200-2181 05074111 6.0 M 3 /MIN, W/ SAFETY ELEMENT, W/O INDICATOR SPL 05069132 (EUROPICLON) BF4L2011 2200-2182 05069133 4.5 M 3 /MIN, W/ SAFETY ELEMENT, W/O INDICATOR D/TD2011 L4 I / W SPL 05074112 (EUROPICLON) SECT. 2.2 PRECLEANERS, RAIN CAPS ENGINE MODEL KIT # / CODE ETL PAGE REMARKS B/F3-6L 913/C / D914 L6 027-0588 05069540 RAIN CAP FOR 5.6 OR 4.8 CU. METER/MINUTE F6L914 / BF4L914 SPL AIR CLEANER F3-6L913 027-0600 05069540 RAIN CAP WITH ELBOW SPL 05005858 B/F3-6L 913/C / D914 L3,4,5,6 027-0589 05069131 RAIN CAP FOR 4.8 CU. METER/MINUTE FILTER SPL F3-6L 913/914 / D914 L3,4 027-0596 05051044 PRECLEANER FOR 4.8 CU. METER/MIN. FILTER SPL F6L914 / D914 L5, L6 027-0597 05002692 PRECLEANER FOR 5.6 CU. METER/MIN. FILTER SPL 05003526 CHECK WITH DC-NORCROSS FOR LEAD TIME ON ITEMS WITH 'SPL' STOCK CODE REV. 01/2009

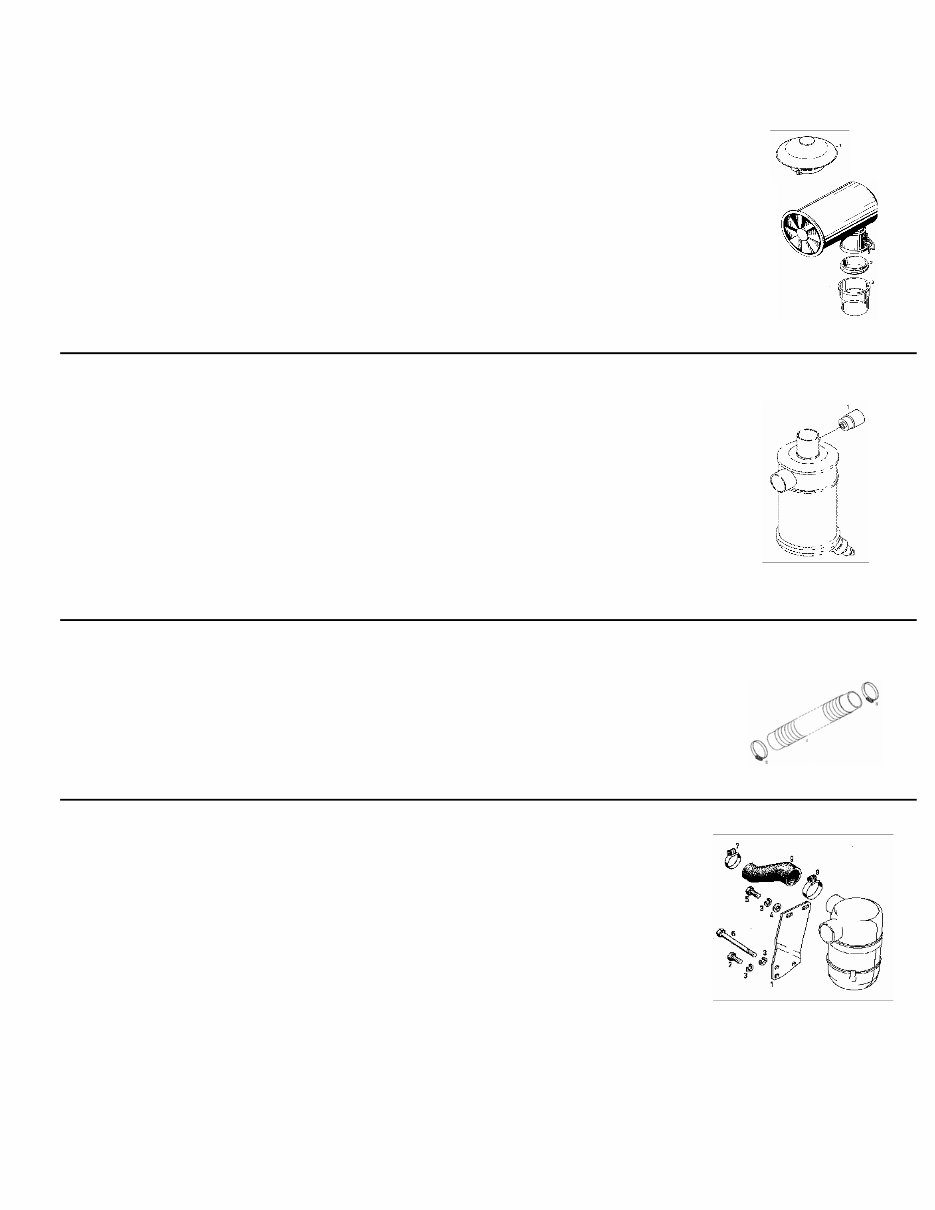

DEUTZ CORPORATION ENGINE COMPLETION CATALOG 4 SECT. 3.1 PRECLEANERS, RAIN CAPS ENGINE MODEL KIT # / CODE ETL PAGE REMARKS ALL 1013/E / 2012 / 2013 029-2221 05072246 RAIN CAP FOR 12ccm DRY AIR CLEANERS SPL ALL 1013/E / 2012 / 2013 029-2222 05023333 RAIN CAP FOR 15ccm DRY AIR CLEANERS SPL ALL 2011 2200-0441 05069129 RAIN CAP FOR OIL BATH AIR CLEANER SPL ALL 2011 2200-0443 05051799 PRECLEANER FOR OIL BATH AIR CLEANER SPL ALL 2011 2200-0798 05069131 RAIN CAP FOR DRY AIR CLEANER SECT. 3.2 SERVICE INDICATORS, FOR DRY AIR CLEANERS ENGINE MODEL KIT # / CODE ETL PAGE REMARKS F3-4L 913/914 / ALL D/TCD914 027-0626 05075409 MECHANICAL, 50 MBAR SPL ALL 1013/E / 2012 / 2013 029-0652 05076508 MECHANICAL, 50 MBAR SPL 05069132 ALL 2011 2200-0429 05075409 MECHANICAL, 50 MBAR ALL 2011 2200-0568 05079307 MECHANICAL 35 BAR SPL ALL 2008 / 2009 3101-0578 05112210 ELECTRONIC 25 M BAR SPL SECT. 3.3 HOSE CONNECTIONS, REMOTE MOUNT AIR CLEANERS ENGINE MODEL KIT # / CODE ETL PAGE REMARKS B/F6L 913/C 027-0710 05003536 250 MM LONG, 80 MM I.D. SECT. 3.4 MOUNTING KITS, FOR OIL BATH AIR CLEANERS ENGINE MODEL KIT # / CODE ETL PAGE REMARKS BF4L 913 999-0124 FOR FRONT MOUNTING F5/6L 913 999-0381 MOUNTING KIT SPL CHECK WITH DC-NORCROSS FOR LEAD TIME ON ITEMS WITH 'SPL' STOCK CODE REV. 01/2009

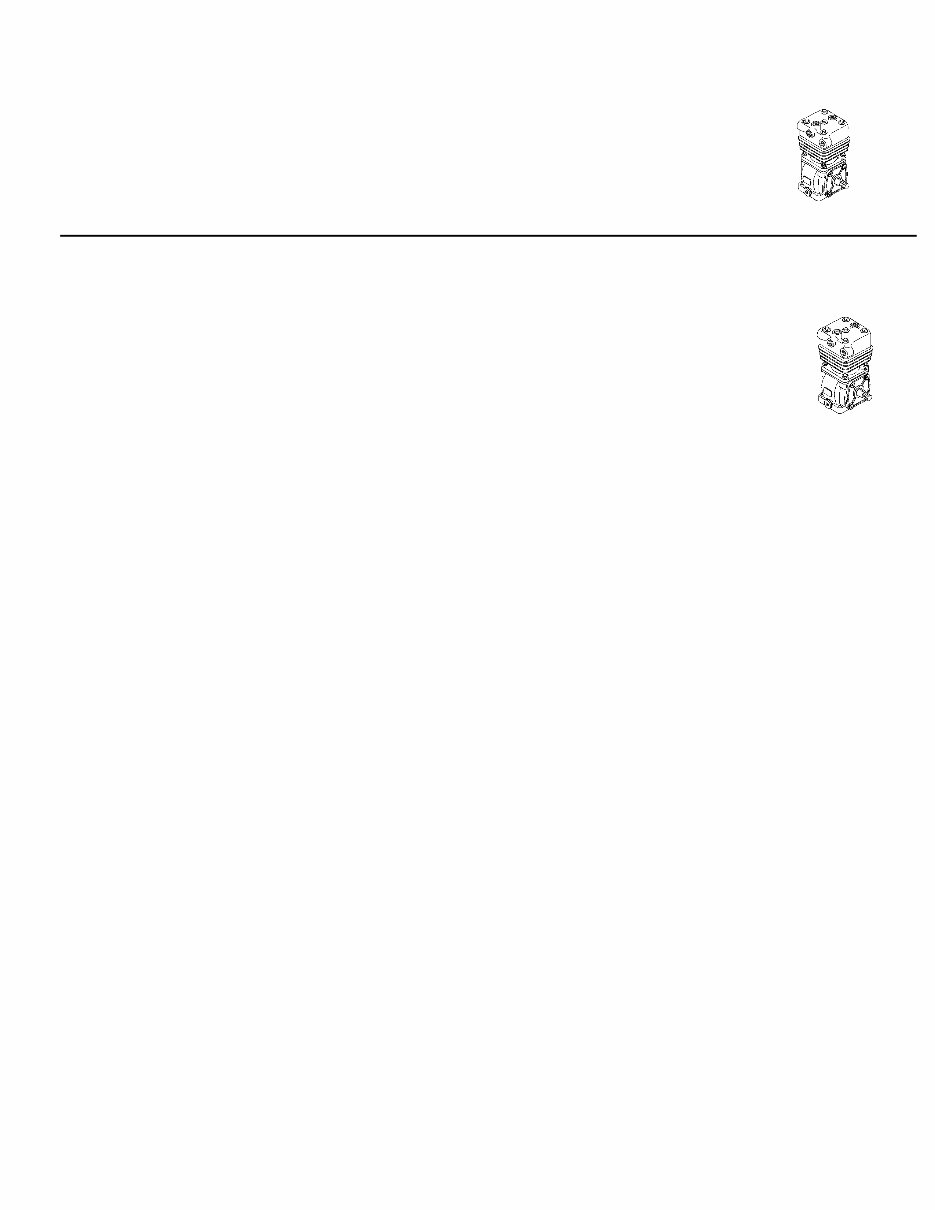

DEUTZ CORPORATION ENGINE COMPLETION CATALOG 5 SECT. 4.1 AIR COMPRESSOR, 110 CCM / REV ENGINE MODEL KIT # / CODE ETL PAGE REMARKS ALL 1013/E 029-1892 05071844 GEAR DRIVEN @ PTO LOCATION "A" AIR COOLED 05111297 MUST ORDER RELATIVE SUCTION PIPE 05111099 SECT. 4.2 AIR COMPRESSOR, 150 CCM / REV ENGINE MODEL KIT # / CODE ETL PAGE REMARKS F3-6L 913 027-1474 05003877 KNORR,FOR ENGINES WITH SINGLE BELT BLOW- SPL 05032754 ER DRIVE & W/OUT MOUNTED AIR CLEANER 05005831 05005834, 05004701, 05005857, 05006890, 05032744, 05042709 BF6L 913/C 027-2386 05006577 KNORR 05003877 05005834, 05005831, 05006582, 05042027, 05029184 05032744 BF4L 913 027-3725 05003877 KNORR SPL 05005834 05029159, 05032741, 05003635, 05016307, 05063815 CONTACT DEUTZ (FOR TIER I & TIER II) 914 AIR COMPRESSOR APPLICATIONS D914 L3 (TIER III) 027-8641 05003877 FOR ENGINES WITHOUT V-BELT GUARD SPL 05005834 05006890, 05032744, 05042709, 05005846, 05113380 D914 L4 (TIER III) 027-8642 05003877 FOR ENGINES WITHOUT V-BELT GUARD SPL 05005831 05005834, 05004701, 05005857, 05006890, 05032744, 05042709, 05113380 D914 L5 (TIER III) 027-7516 05003877 FOR ENGINES WITHOUT V-BELT GUARD SPL 05005834,05042027,05032744,05003635,05016307,05005846 D914 L6 (TIER III) 027-7223 05003877 FOR ENGINES WITHOUT V-BELT GUARD SPL 05005834 05005831, 05042027, 05032744, 05004701, 05005857, 05003635, 05016307 TCD914 L6 (TIER III) 027-2386 05006577 FOR ENGINES WITHOUT V-BELT GUARD 05003877 05005834, 05005831, 05006582, 05042027, 05032744 F2-4 L/M 2011 / BF4L/M2011 999-0606 FOR ENGINES W/OUT FRONT MOUNTED AIR CLEANER 1. KIT INCLUDES COMPR. MTG. PLATE, LUBE OIL LINE & PULLEYS (AIR COMPRESSOR PULLEY & PTO PULLEY) 2. MUST ORDER TIMING BELT COVER KIT (22003439) 3. FOR ENGINES W/OUT AUXILLARY DRIVE, YOU MUST ORDER AUX. DRIVE BRACKET KIT (22003053) 4. SEE SECT. 6.1 FOR REQUIRED SUCTION PIPE KIT BF4M1013 /C/E 029-0951 05070199 GEAR DRIVE, PTO A, WATER COOLED SPL 05071419 05111290, 05111099 BF4M 2012/C 029-5086 05070199 PTO "A" WATER COOLED SPL 05070200 05072971, 05111287, 05077957 BF6M 2012/C 029-5088 05070199 PTO "A" WATER COOLED SPL 05070200 05072971, 05111287, 05077782 CHECK WITH DC-NORCROSS FOR LEAD TIME ON ITEMS WITH 'SPL' STOCK CODE REV. 01/2009

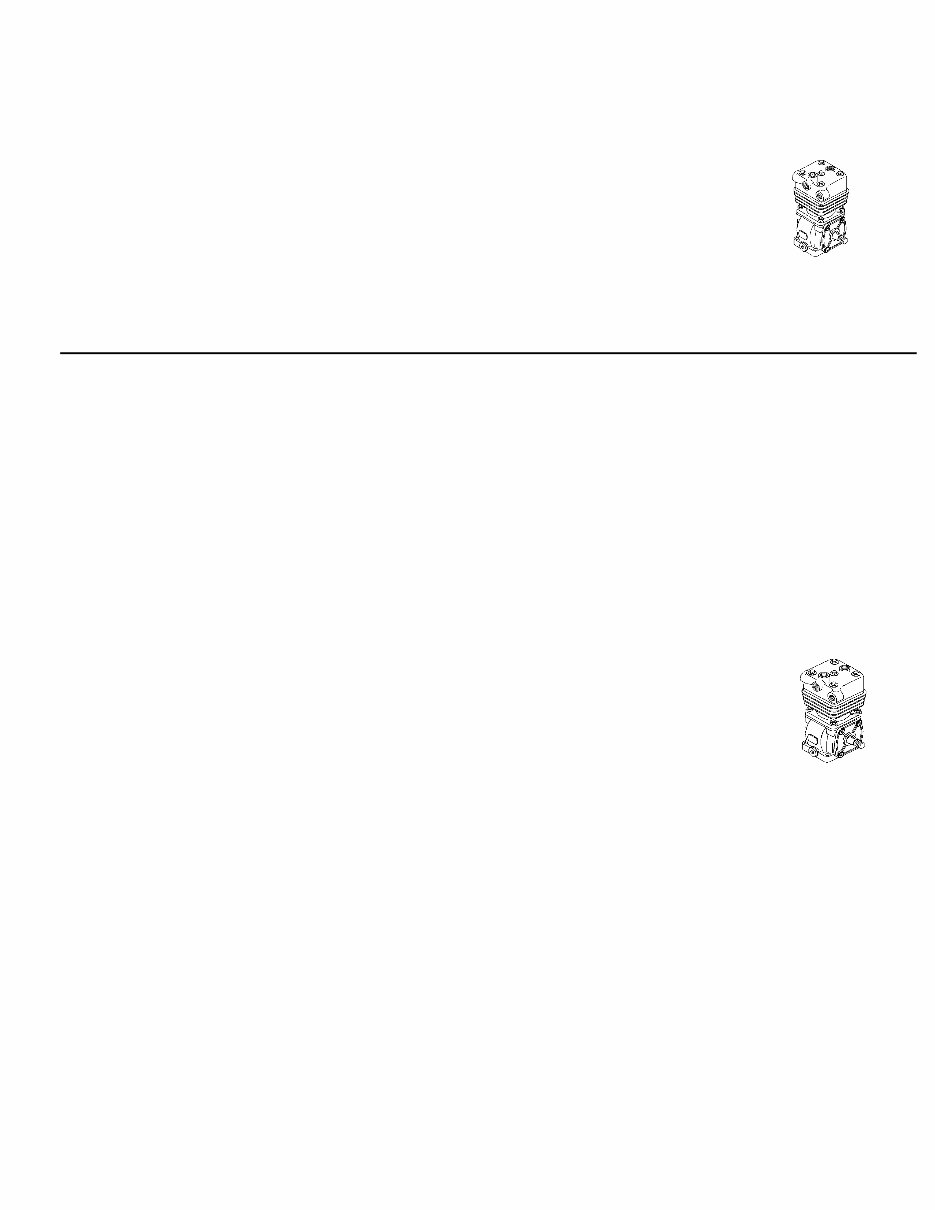

DEUTZ CORPORATION ENGINE COMPLETION CATALOG 6 SECT. 4.2.1 AIR COMPRESSOR, 225 CCM ENGINE MODEL KIT # / CODE ETL PAGE REMARKS TCD 2012 L4 2V 028-2802 05111654 REQUIRES 028-2523 FITTING KIT SPL 05072971 05113585, 05111045, 05114099 TCD 2012 L6 2V 028-1837 05072971 REQUIRES 028-2523 FITTING KIT SPL 05111654 05114688, 05111045, 05111659 TCD 2013 L6 2V 028-1859 05111654 REQUIRES 028-2523 FITTING KIT SPL 05111507 05114688, 05111191, 05113751 TCD 2013 L6 4V 034-2086 05115184 ,05113715,05110147,05110216,05110239 SPL SECT. 4.3 AIR COMPRESSOR, 300 CCM / REV F4-6L 913 027-0538 05003877 KNORR,FOR ENGINES WITH SINGLE BELT BLOW- 05032754 ER DRIVE, INCLUDES SUCTION PIPE TO AIR CLEANER 05005831 05004701, 05005857, 05005838, 05005839, 05005840, 05029185, 05037687 BF6L 913/C 027-2394 05003877 KNORR 05005831 NOT AVAILABLE FOR 913C WITH FRONT OR CENTER MOUNT TURBO. 05042027 05006581, 05005840, 05029185, 05037687, 05042125 BF4M1013E 029-0955 05070199 GEAR DRIVE, PTO "A" WATER COOLED SPL 05072477 ALSO REQUIRES 29-2964 BANJO BOLT KIT 05113940 05111099 BF6M1013E 029-0959 05070199 GEAR DRIVE, PTO "A" WATER COOLED SPL 05072070 ALSO REQUIRES 29-2964 BANJO BOLT KIT 05071414 05113940, 05111099 BF4M1013/C 29-0953 05070199 GEAR DRIVE, PTO "A" WATER COOLED 05072163 ALSO REQUIRES 29-2964 BANJO BOLT KIT 05113940 05111099 BF6M1013/C 29-0957 05070199 GEAR DRIVE, PTO "A" WATER COOLED 05072071 (INCLUDES COOLING WATER LINES) 05071414 ALSO REQUIRES 29-2964 BANJO BOLT KIT 05113940 05111099 BF6M1015 /C 2201-0578 05068405 GEAR DRIVE, PTO "A" WATER COOLED SPL 05068406 05067885, 05068407, 05068408, 05068409, 05078567 05067911 BF6M1015 /C 2201-0588 05068405 GEAR DRIVE, PTO "B" WATER COOLED SPL 05067897 05067885, 05069358, 05067975, 05067887,05078567 05067911 BF8M1015 /C 2201-0580 05068405 GEAR DRIVE, PTO "A" WATER COOLED SPL 05067885 05068413, 05069284, 05068415, 05068416, 05067911 05078563 BF8M1015 /C 2201-0590 05068405 GEAR DRIVE, PTO "B" WATER COOLED SPL 05067885 05069285, 05077482, 05068420, 05067911, 05078563 05068413 BF6M 2012C 029-5082 05070199 PTO "A" WATER COOLED SPL 05070200 05072971, 05077758, 05113936 BF4M 2012/C 029-5090 05070199 PTO "A" WATER COOLED SPL 05070200 05072971, 05113936, 05077976 TCD 2015 V6/4V 2203-0287 05068405 PTO "A" W/OUT STEERING PUMP SPL 05067885 (REQUIRES "A" DRIVE GEAR SEE SEC #20.2 05068408 05079793, 05076797, 05075567, 05075563, 05078567 CONTINUED ON NEXT PAGE CHECK WITH DC-NORCROSS FOR LEAD TIME ON ITEMS WITH 'SPL' STOCK CODE REV. 01/2009
