39 Gerade 5 39 5.1 Maintenance Schedule 5.2 Maintenance Chart 5.3 Maintenance Work Completed Routine Maintenance

40 5 1000 2000 3000 750 500 250 125 2) 50-150 ● ● ● ● ● ● ● ● ● ● ● ● ● ● ● Routine Maintenance 5.1 Maintenance Schedule check clean change Operation see Section Operating Hours (OP) every 1) once after every 10 OH or daily 1) recommended maximum 2) once when commissioning new and reconditioned engines 3) clean if needed 4) Oil quality API-CF-4, CG-4, CH-4 or ACEA-E1-3/96 and E4-98 5) change if required 6) for oil change intervals, naturally aspirated engines, see Section 6.1.1 7) for oil change intervals, turbocharged engines, see Section 6.1.1 8) without toothed belt ventilation renew after 3000 running hours, after 5 years at the latest if running hours are not reached: in both cases together with idler pulley with toothed belt ventilation renew after 4500 running hours, after 5 years at the latest if running hours are not reached: in both cases together with idler pulley 9) during run-in period, check 2 x daily 10) retensioning of toothed belts is not permitted 11) Change at the latest after 2 years . Oil level in engine / separate container 9) 6.1.2/3.1.4 Engine leaks Oil bath- and dry type air cleaners 3) 4) 5) 6.4 Battery and cable connectors 6.7.1 Cooling system (depending on engine use 3) 6.3.1 Engine oil (depending on engine use) 4) 6) 6.1.1 Oil filter cartridge (depending on oil change interval) 4) 6) 6.1.3 Fuel filter cartridge 6.2.1 Valve clearance (adjust if necessary) 6.6.1 Engine mounts (retighten if necessary) 9.2 V-belts (retension if necessary) 6.5 Toothed belts 8) 10) Injection valves Fuel pump / strainer 5) 6.2.2 Fuel leakage line (change defective lines) 11) 6.2.3 The specified engine maintenance times are maximum values. Depending on the operating environment, shorter maintenance intervals may be required. Please observe the operating instructions of the equipment manufacturer. ● ● ● ● ● ● ● ● ● ● ● 7) ● 6) ● ● 7) ● 6) ● ● ● 2) ● ● ● ● ● ● ●

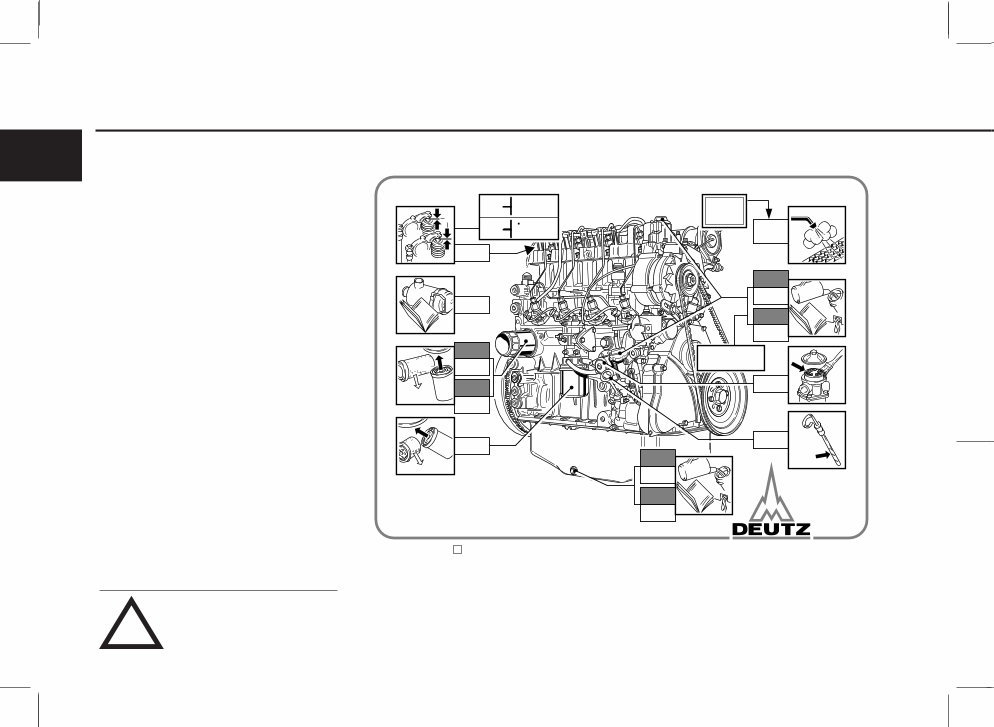

41 Gerade 5 41 ! Routine Maintenance 5.2 Maintenance Chart The maintenance chart shown here is supplied as a self- adhesive label with each engine. It should be affixed where it can be seen clearly on the engine or driven equipment. Check that this is the case. If necessary, ask your engine or equipment supplier for a fresh supply of labels. Routine work should be carried out according to the schedule in 5.1. Stop the engine before carrying out any maintenance work. 1000 125- 2000 B/FL 1011F 10 500 BFL 1000 FL 1000 10 1000 FUEL OIL max. AIR a ex. in. h Std. 0,3 mm 0.012 in. in. 0,5 mm 0.020 in. ex. 0297 7279 1 API CD ACEA E1-96 500 BFL 1000 FL 500 BFL 1000 FL OIL OIL OIL

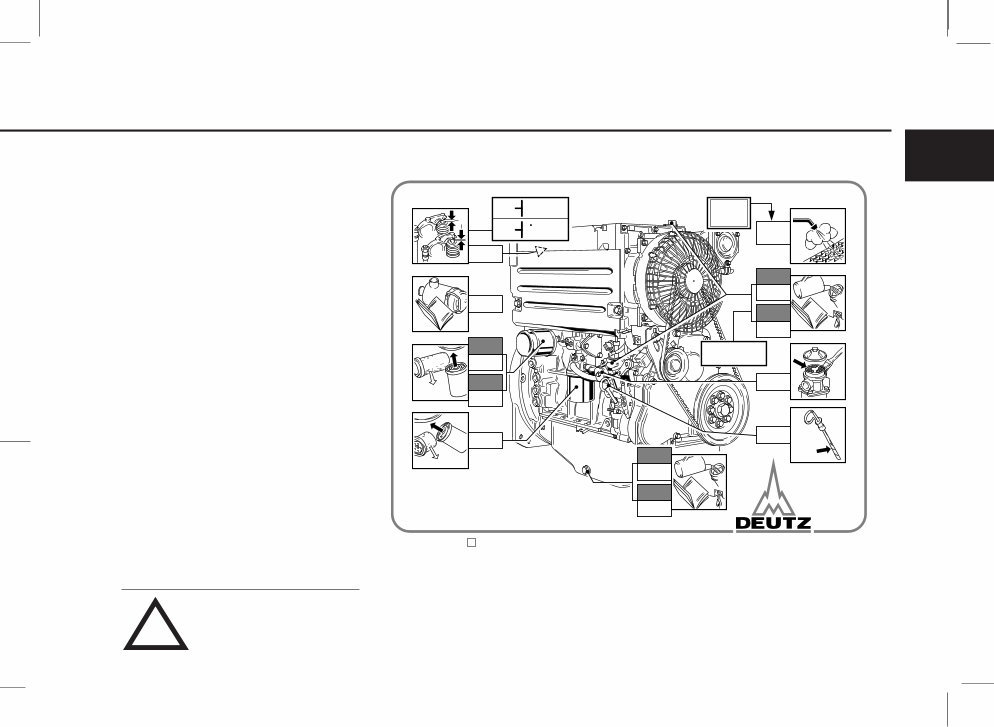

42 5 ! Routine Maintenance The maintenance chart shown here is supplied as a self- adhesive label with each engine. It should be affixed where it can be seen clearly on the engine or driven equipment. Check that this is the case. If necessary, ask your engine or equipment supplier for a fresh supply of labels. Routine work should be carried out according to the schedule in 5.1. Stop the engine before carrying out any maintenance work. 5.2 Maintenance Chart 1000 125- 2000 B/FM 1011/F 10 1000 10 1000 FUEL OIL max. OIL AIR a ex. in. h Std. OIL 0,3 mm 0.012 in. in. 0,5 mm 0.020 in. ex. OIL 0297 7281 2 500 BFM 1000 FM API CD ACEA E1-96 500 BFM 1000 FM 500 BFM FM 1000

Date Hours Signaure / Stamp Hours Date Signaure / Stamp 1 2 3 4 5 6 7 8 9 10 5 49_en - 250 500 750 1000 1250 1500 1750 2000 2250 2500 2750 50-150 * 125 375 625 875 1125 1375 1625 1875 2115 2375 2625 * Commissioning new and overhauled engines The maintenance jobs duly completed can be recorded in the above table. 5.3 Completed Maintenance Jobs Routine Maintenance

Hours. Date Date Signaure / Stamp Hours Signaure / Stamp 50_en 1 2 3 4 5 6 7 8 9 10 5 2875 3125 3375 3625 3875 4125 4375 4625 4875 5125 5375 5625 The maintenance jobs duly completed can be recorded in the above table. 3000 3250 3500 3750 4000 4250 4500 4750 5000 5250 5500 5750 Routine Maintenance 5.3 Completed Maintenance Jobs

Date Hours Signaure / Stamp Hours Date Signaure / Stamp 1 2 3 4 5 6 7 8 9 10 5 51_en The maintenance jobs duly completed can be recorded in the above table. 5875 6125 6375 6625 6875 7125 7375 7625 7825 8125 8375 8625 6000 6250 6500 6750 7000 7250 7500 7750 8000 8250 8500 8750 5.3 Completed Maintenance Jobs Routine Maintenance
