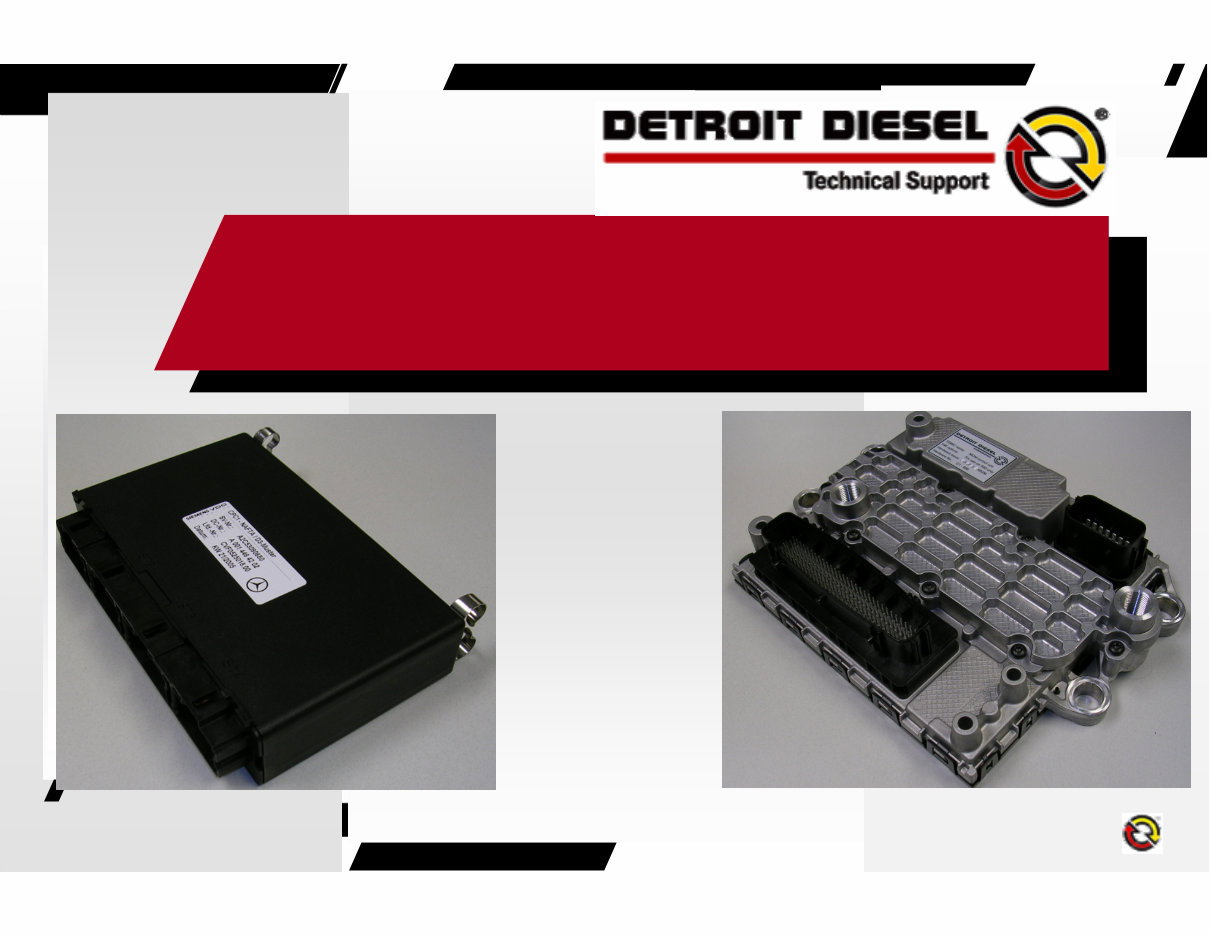

1
2006 Detroit Diesel Corporation and Technical Support. All Righ ts Reserved. Filename/6/6/2008
2007 Electronic Tools for DDEC VI
Using
DDDL
7.0
2006 Detroit Diesel Corporation and Technical Support. All Righ ts Reserved. Filename/6/6/2008
2
2007 Electronic Tools for DDEC VI
I. The 2007 Electronic
Tools Family of
Products
2006 Detroit Diesel Corporation and Technical Support. All Righ ts Reserved. Filename/6/6/2008
3
2007 Electronic Tools for DDEC VI
3 Different Electronic Tools will be
created from 1 main software package
Current Product 2007 Product Equivalent
DDDL Detroit Diesel Diagnostic Link 7.0
(Customer Level simple registration program)
DRS Detroit Diesel Reprogramming System (Service
Level requires hardware key and DRS ID for
programming functions)
DDC Cal Tools Drumroll (Engineering / Plant Level only
advanced access key registration)
2006 Detroit Diesel Corporation and Technical Support. All Righ ts Reserved. Filename/6/6/2008
4
2007 Electronic Tools for DDEC VI
Operations for 2007 Electronic Tools Operations for 2007 Electronic Tools
1- Perform Standard Fault Code Operations
2- Links to Traditional and Advanced
Troubleshooting Information
3- Read Actual Values
4- Configure and Manage Parameters
5- Perform Service Routines
6- Playback Logs of All Connected Activity
7- Programming Capability for the CPC / MCM
(DDRS only with reprogramming station hardware
key and ID)
2006 Detroit Diesel Corporation and Technical Support. All Righ ts Reserved. Filename/6/6/2008
5
2007 Electronic Tools for DDEC VI

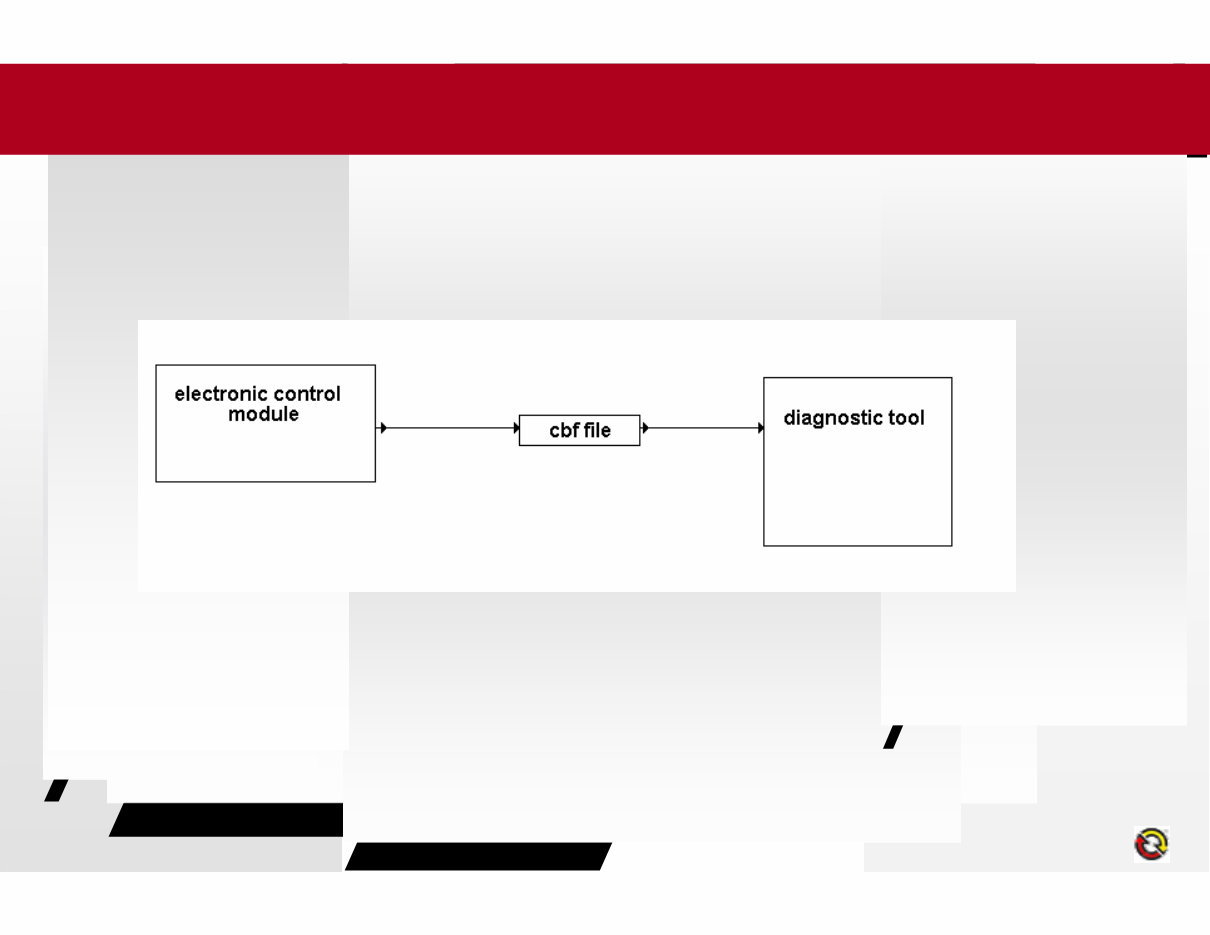

The DDC 2007 electronic tools are written to the new DCX standard.
The new standard calls for the diagnostic tools to be data driven by
the ECU.
With this approach the primary diagnostic functions are contained in the
ECU software with the tool serving as the gateway to these functions.
The CBF file serves as the tools gateway to the functionality of the ECU.
Updates to the new electronic tools may often be done through web
downloads of a new CBF file rather than the release of new CDs.
2006 Detroit Diesel Corporation and Technical Support. All Righ ts Reserved. Filename/6/6/2008
6
2007 Electronic Tools for DDEC VI
There will be two types of updates for the 2007
electronics tools:
CD updates:
1- Will be required when
major changes to the
program occur, such as
changes to the graphical
user interface
Web based updates:
1- Download new CBF files
that will allow the user to
work with new levels of ECU
software and add
functionality to the tool
2- New cases for Advanced
Diagnostics as they are
developed from field
experience
3- Other data based update
2006 Detroit Diesel Corporation and Technical Support. All Righ ts Reserved. Filename/6/6/2008
7
2007 Electronic Tools for DDEC VI
II. Understanding 2007
Hardware and
Communications
2006 Detroit Diesel Corporation and Technical Support. All Righ ts Reserved. Filename/6/6/2008
8
2007 Electronic Tools for DDEC VI
1- All DDEC electronics systems prior to DDEC VI used the J-1587
(messaging) / J-1708 (hardware) standards for all diagnostic and data
communications.
2- All diagnostic software and translator hardware devices conform
to the RP1210A communications standard of The Maintenance
Council (TMC).
3- The DDEC VI system will now use the J-1939 (messaging) / CAN
(hardware) standards for diagnostic communications.
4- DDEC VI Data Communications will continue to use the J-1587
(messaging) / J-1708 (hardware) standards.
5- DDEC VI software and translator hardware devices will continue to
conform to the RP1210A standard.
2006 Detroit Diesel Corporation and Technical Support. All Righ ts Reserved. Filename/6/6/2008
9
2007 Electronic Tools for DDEC VI

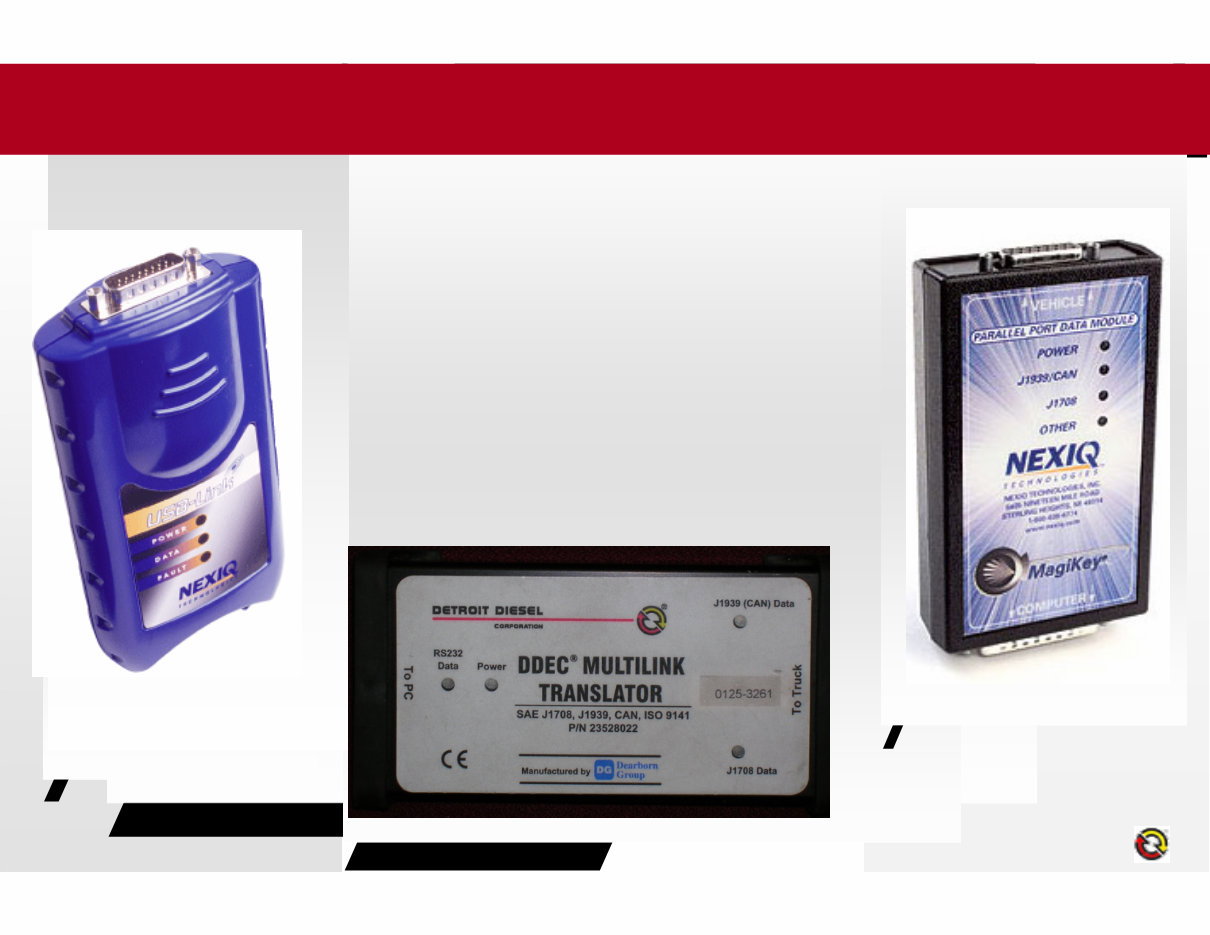

Translator Box Hardware for DDEC VI Diagnostics
1- Translator box hardware for 2007 diagnostics must
support CAN communications.
2- The Nexiq USB Link, the Nexiq Magic Key, and the DDC
Multi-link translator boxes may all be used with 2007
diagnostic software.
3- The Multi-link will need a firmware update to function
properly
4- The Nexiq Lite-link and DDC White translator do not
support CAN communications and may not be used.
2006 Detroit Diesel Corporation and Technical Support. All Righ ts Reserved. Filename/6/6/2008
10
2007 Electronic Tools for DDEC VI
Additional Information on 2007 Electronics
Communications
1- For data extractions (DDEC Reports) all the translator
devices on the last page may be used as well as J-1708
devices like the Nexiq Lite-link.
2- The Nexiq USB Link will be the translator device for
programming DDEC VI modules (MCM and CPC). The
USB Link will also be fully backward compatible with
programming earlier DDEC modules in 1
st
Quarter 2007.
3- DDC electronic tools software may only be used with
the Windows 2000 or Windows XP operating systems.
