TYPE: 16V4000C11 5272010459 FG/FGS:
SERIAL NO.: 5272010459 BOM NO.: 16V4000C11
FG FG DESIGNATION
004 LABELS AND AUXILIARY MATERIALS
011 CRANKCASE
014 OIL PAN
015 ENGINE MOUNTING
016 END HOUSING, DRIVING END AND FREE END
018 CRANKCASE BREATHER
024 GEARCASE, AUX PTO END
028 BELT DRIVE
031 CRANKSHAFT WITH BEARINGS
032 CRANKSHAFT, PTO ON DRIVING END
035 CRANKSHAFT, PTO ON AUX PTO END
036 TRANSPORT LOCK/LOCK FOR CRANKSHAFT
037 PISTON
038 CONNECTING ROD
041 CYLINDER HEAD
051 CAMSHAFT
052 CAMSHAFT DRIVE
054 ROLLER TAPPETS, PUSH RODS
055 VALVE DRIVE
073 INJECTION PUMP / HP PUMP
075 FUEL INJECTOR
077 INJECTION LINE / HP FUEL LINE
081 FUEL PIPEWORK BEFORE DELIVERY PUMP
082 FUEL PIPEWORK FROM DELIVERY PUMP TO FILTER
083 FUEL FILTER
101 EXHAUST TURBOCHARGER, GENERAL OR H.P. TURBOCHARGER
114 CHARGE AIR COOLING, CENTRAL
124 AIR SUPPLY TO CYLINDERS
125 AIR ROUTING BETWEEN TURBOCHARGER AND CHARGE-AIR COOLER
142 CONSTANT-PRESSURE EXHAUST MANIFOLD
146 EXHAUST SYSTEM AFTER ENGINE (EXTERNAL)
172 ELECTRIC STARTING
181 LUBE OIL PUMP AND DRIVE
183 OIL FILTRATION/COOLING
185 TURBOCHARGER OIL SUPPLY
202 COOLANT CIRCUIT, GENERAL, HT CIRCUIT
203 LOW-TEMPERATURE CIRCUIT
206 COOLANT PIPEWORK WITH THERMOSTAT
213 GENERATOR
221 MECHANICAL FAN DRIVE
227 FAN
231 ENGINE MOUNTING
340 DRIVE, ELECTRIC POWER AND SAFETY SYSTEMS
507 WIRING, GEBERAL, FOR ENGINE/GEARBOX/PLANT
810 PAINTING OF COMPLETE ENGINE
© 2011 MTU Friedrichshafen GmbH Page: 1 / 1
Business Portal Online Print 13-12-2011

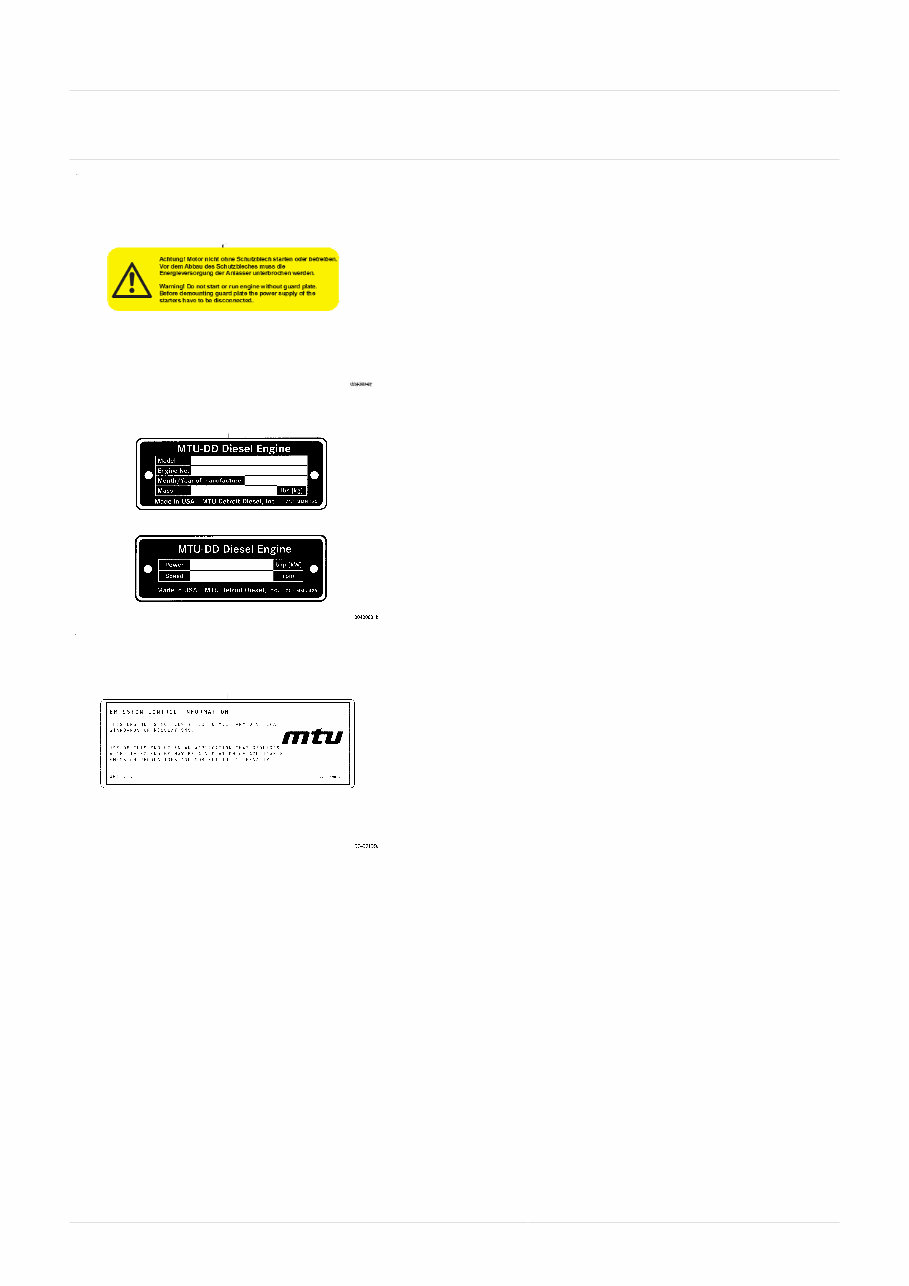

TYPE: 16V4000C11 5272010459 FG/FGS: 004
SERIAL NO.: 5272010459 BOM NO.:
GROUP NUMBER (FG)
GROUP NAME
BOM NO.
PLACARD
XSD01000.00004
PLATE ENGINE IDENTIFICATION 26X74 + 28X7
UPC.14B08A0006
NON-EPA LABEL
XS524000.00019
© 2011 MTU Friedrichshafen GmbH Page: 2 / 1
Business Portal Online Print 13-12-2011

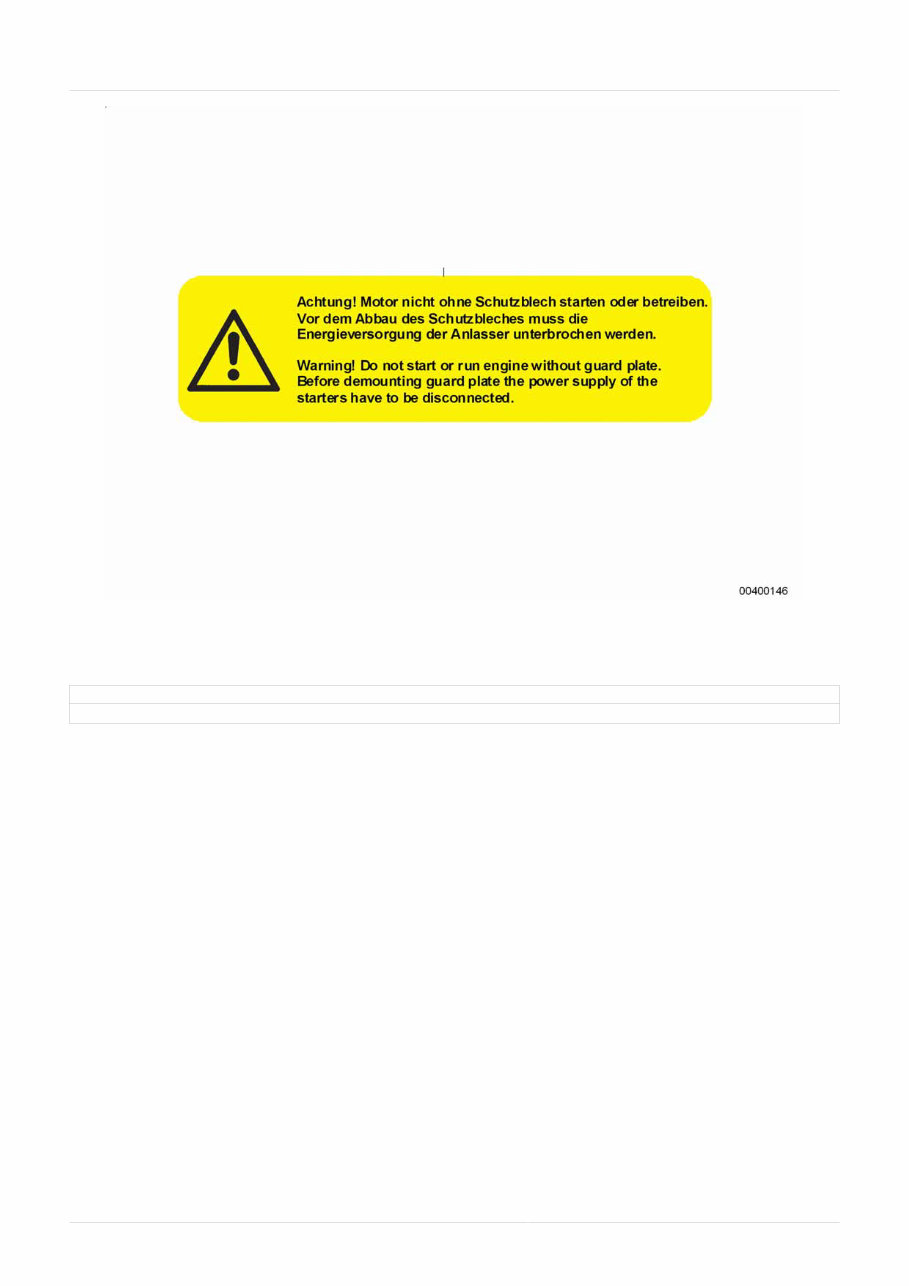

TYPE: 16V4000C11 PLACARD FG/FGS: 004 05
SERIAL NO.: 5272010459 BOM NO.: XSD01000.00004
100
POS. PART NO. DESIGNATION QTY. UNITS WEIGHT
100 XD0100400001 PLACARD 2 PC 10 G
© 2011 MTU Friedrichshafen GmbH Page: 3 / 1
Business Portal Online Print 13-12-2011

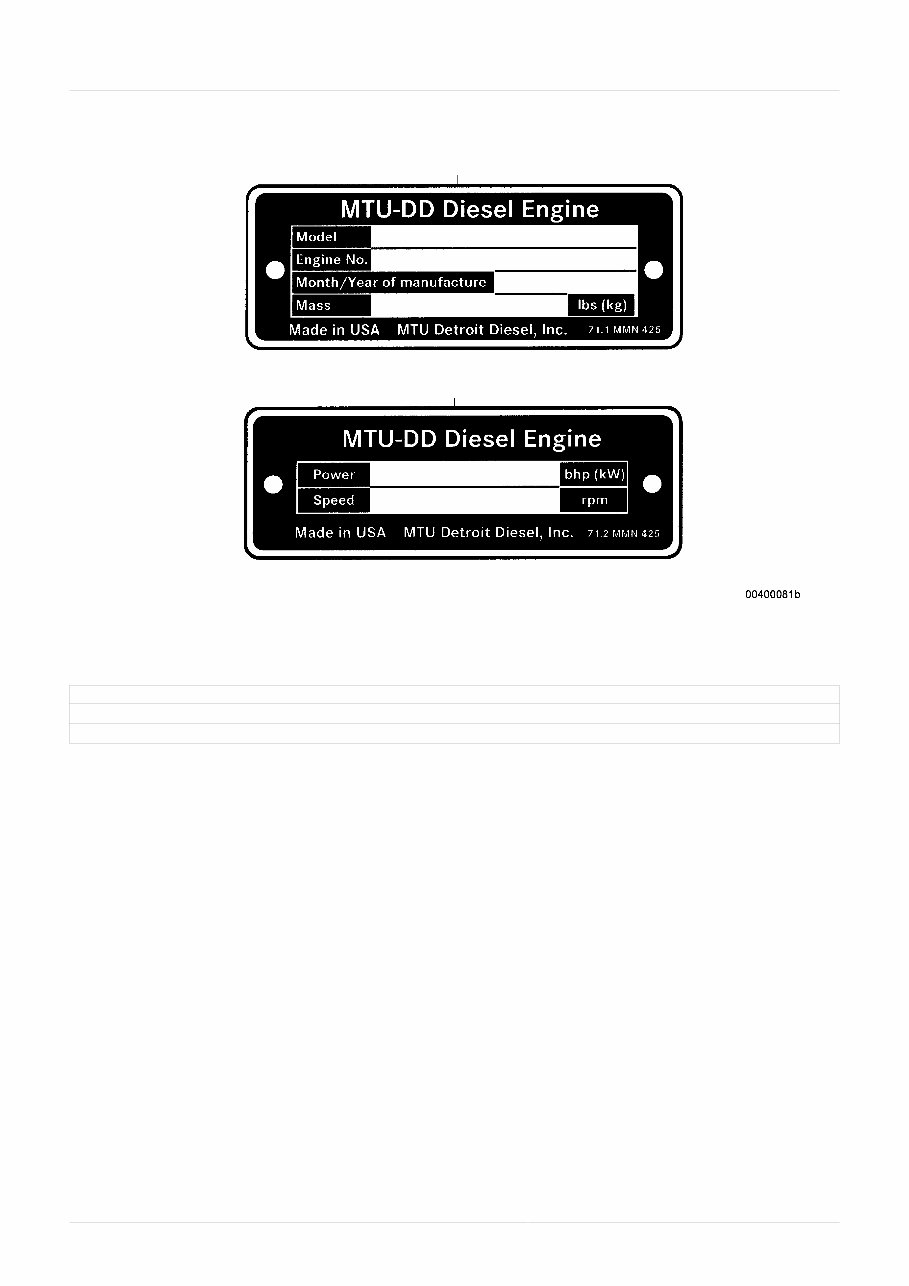

TYPE: 16V4000C11 PLATE ENGINE IDENTIFICATION 26X74 + 28X7 FG/FGS: 004 05
SERIAL NO.: 5272010459 BOM NO.: UPC.14B08A0006
15
5
POS. PART NO. DESIGNATION QTY. UNITS MEASUREMENT STANDARD
5 700425000164 LABEL DDC DIESEL ENGINE ID 71.1 1 PC 71.1 MMN425
15 700425000165 LABEL DDC DIESEL ENGINE HP/RPM INFO 71.2 1 PC 71.2 MMN425
© 2011 MTU Friedrichshafen GmbH Page: 4 / 1
Business Portal Online Print 13-12-2011

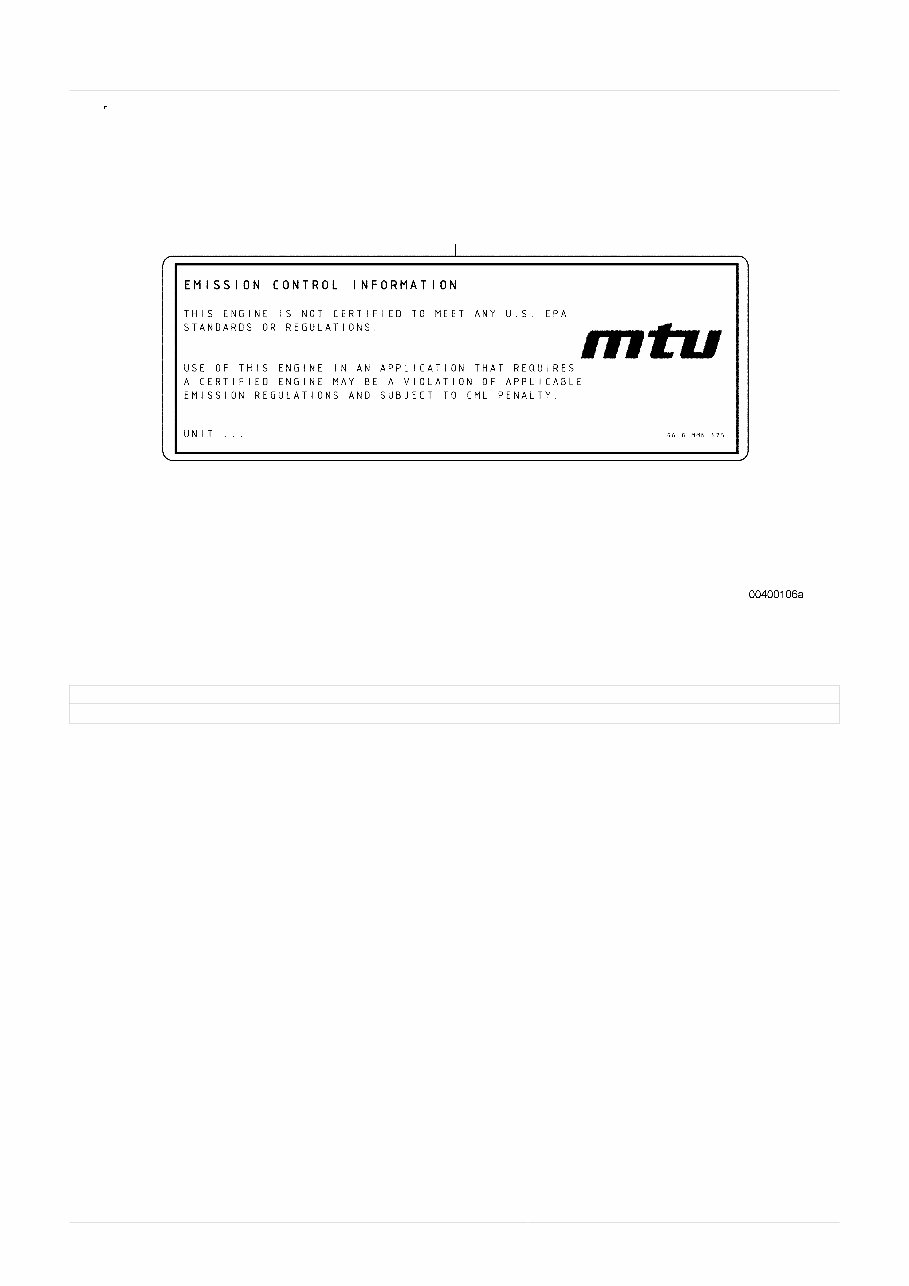

TYPE: 16V4000C11 NON-EPA LABEL FG/FGS: 004 05
SERIAL NO.: 5272010459 BOM NO.: XS524000.00019
100
POS. PART NO. DESIGNATION QTY. UNITS FN MEASUREMENT STANDARD
100 700425000182 EMI-LABEL NON-EPA 1 PC NN 66.8 MMN425
© 2011 MTU Friedrichshafen GmbH Page: 5 / 1
Business Portal Online Print 13-12-2011

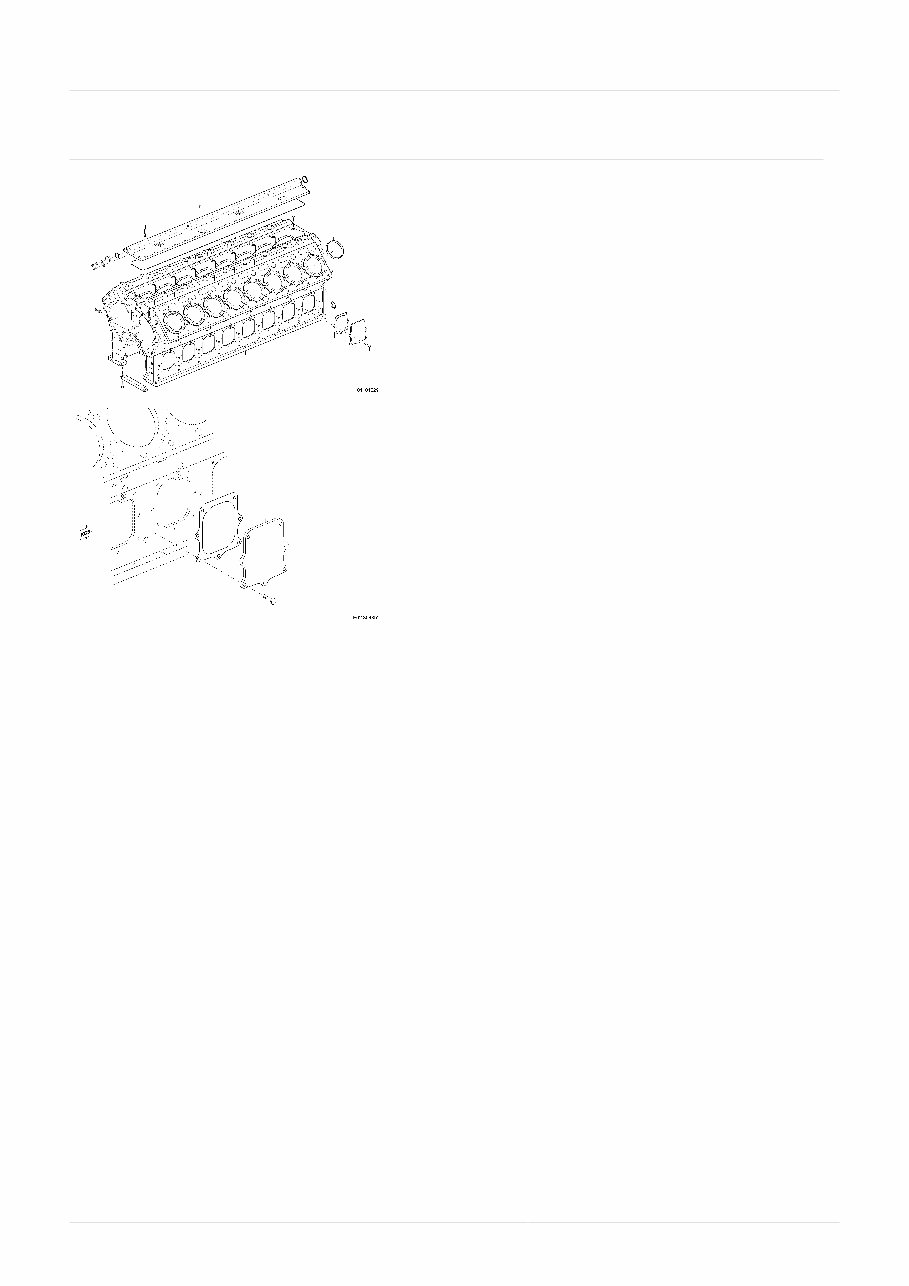

TYPE: 16V4000C11 5272010459 FG/FGS: 011
SERIAL NO.: 5272010459 BOM NO.:
GROUP NUMBER (FG)
GROUP NAME
BOM NO.
CRANKCASE
UPC.06A01 2081
INSPECT PORT COVER
010.00021
OIL FILLER NECK W OIL DIPSTICK, RGH
XS595010.00074
© 2011 MTU Friedrichshafen GmbH Page: 6 / 1
Business Portal Online Print 13-12-2011

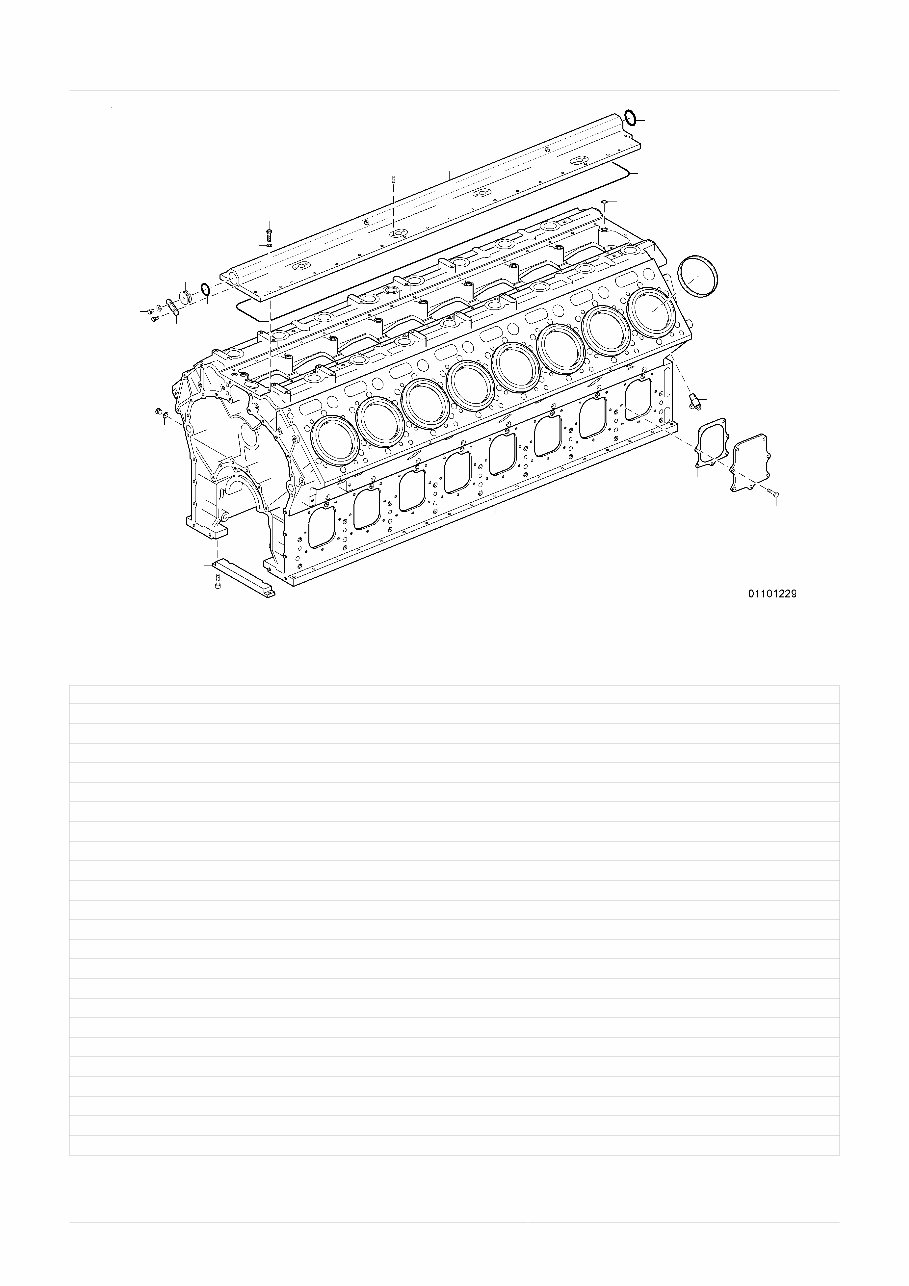

TYPE: 16V4000C11 CRANKCASE FG/FGS: 011 05
SERIAL NO.: 5272010459 BOM NO.: UPC.06A01 2081
355
145
285
165
335
305
405
315
215
255
265 225
235
245
185
135
195
375
365
385
95
105
115
POS. PART NO. DESIGNATION QTY. UNITS WEIGHT FN MEASUREMENT STANDARD
95 5270101805 BLK 1 PC 2.063 KG
105 5240110440 FILLER PIECE STRIP 1 PC 2,900 KG
115 000912008115 BOLT HEX SOC HD 2 PC 12 G M 8 X 16 DIN912
135 0049976736 VALVE DRAIN 2 PC 113 KG
145 5270101214 COVER 1 PC 38 KG NN
165 000835010056 STUD 8 PC 23,160 G M 10 X 25 DIN835
185 000908014001 SCREW PLUG 1 PC 16,600 G M 14 X 1,5 DIN908
195 007603014102 WASHER A COP 1 PC 1,100 G A 14 X 18 DIN7603
215 735084050000 PLUG 1 PC 103,600 G 50 MTN5084
225 700429042000 O-RING 1 PC 6,400 G 42 X 5 MMN429
235 5249950059 STRAP 1 PC 72 G
245 000933010089 BOLT HEX S2000/4000 1 PC 21 G M 10 X 20 DIN933
255 007349010002 WASHER 1 PC 11,130 G 10,5 DIN7349
265 000933010198 BOLT HEX 1 PC 20,080 G M 10 X 16 DIN933
285 5279970345 SEAL STRIP 1 PC 183 G 1357X5
305 000933010093 BOLT HEX S2000/4000 32 PC 28,600 G M M 10 X 35 DIN933
315 000125010524 WASHER 32 PC 2,300 G A 10,5 DIN125
335 700429018005 O-RING 10 PC 1,900 G 18 X 4 MMN429
355 700429055001 O-RING 1 PC 8,110 G 55 X 5 MMN429
365 5240110732 COVER CYL BLOCK ACCESS PORT 9 PC 2,740 KG NN
375 5240111380 GASKET 9 PC
385 000933010035 BOLT HEX S2000/4000 63 PC 2,300 G M 10 X 25 DIN933
405 5240110159 RING CYL LINER CARBON REMOVAL 16 PC 216 G
© 2011 MTU Friedrichshafen GmbH Page: 7 / 1
Business Portal Online Print 13-12-2011

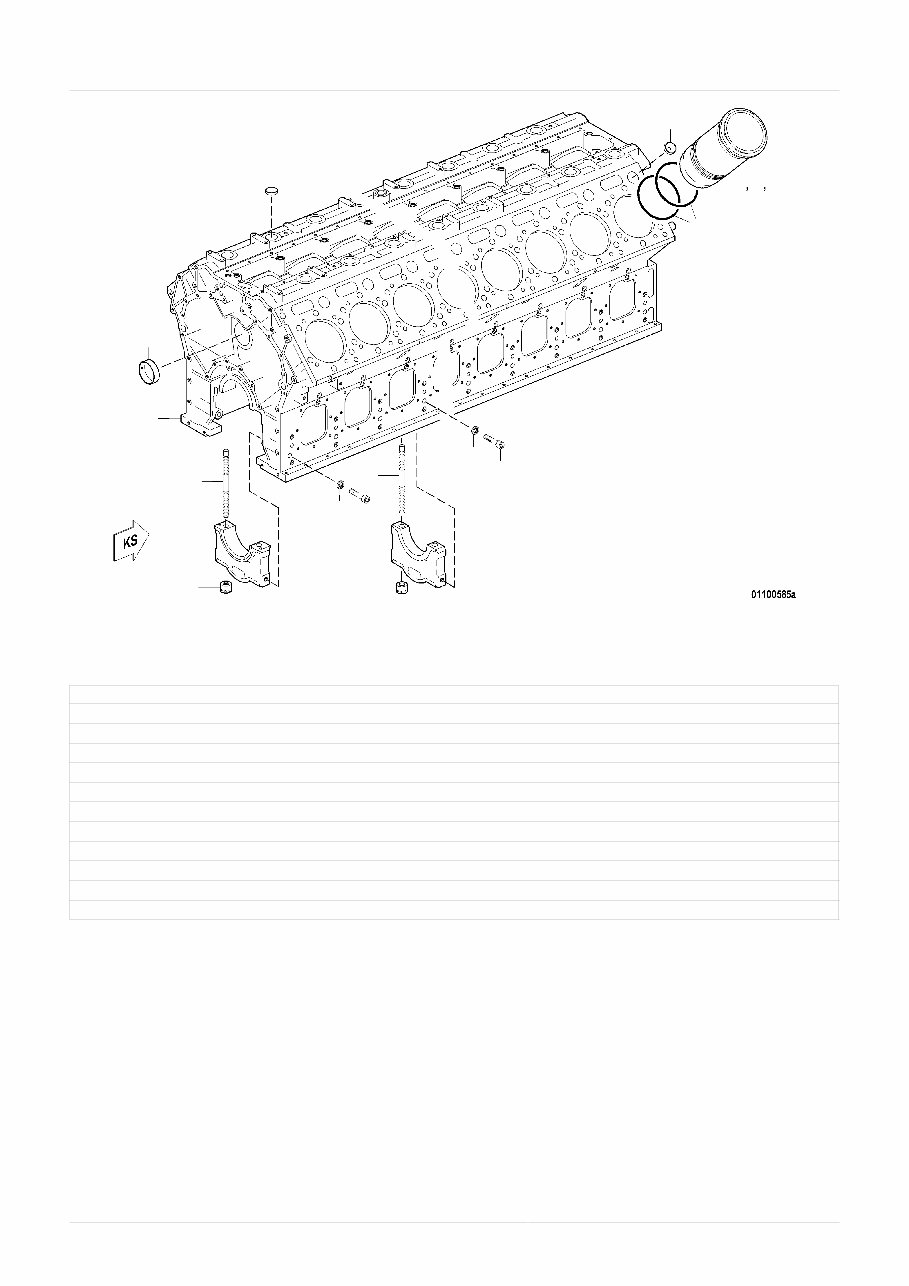

TYPE: 16V4000C11 BLK FG/FGS:
SERIAL NO.: 5272010459 BOM NO.: 5270101805
45
45
55
85
40
5
35
35
30
30
20
20
15
10
25 25
65 75
POS. PART NO. DESIGNATION QTY. UNITS WEIGHT FN MEASUREMENT STANDARD
5 5270111701 CRANKCASE 1 PC
10 5240110111 CAP MAIN BEARING NARROW STD POSITION 8 PC 12,500 KG
15 5240110511 BEARING CAP MAIN 1 PC 13,500 KG
20 5240110570 STUD 18 PC 1,090 KG
25 5240110172 NUT 18 PC
30 000912018008 BOLT HEX SOC HD 18 PC 401 G M 18 X180 DIN912
35 700521018201 WASHER 18 PC 14,800 G 18,2 MMN521
40 5240510110 BEARING CAMSHAFT STD 9 PC 137 G
45 5249970020 CAP SEALING S2000/S4000 32 PC Ø 50
55 5240114210 CYLINDER LINER SIZE 0 15 PC 16,800 KG MN
85 5550110259 SEALING RING 32 PC 24,800 G
© 2011 MTU Friedrichshafen GmbH Page: 8 / 1
Business Portal Online Print 13-12-2011

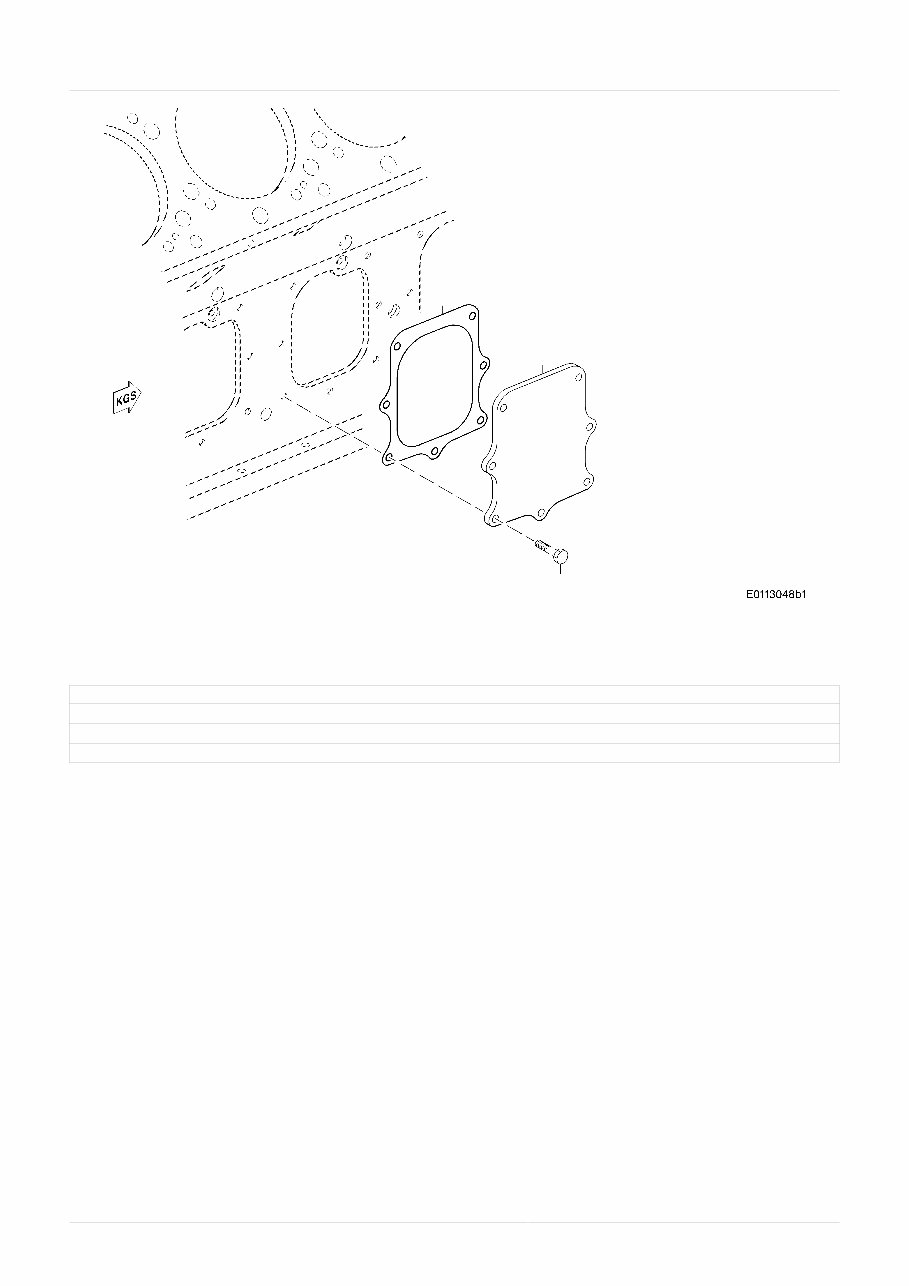

TYPE: 16V4000C11 INSPECT PORT COVER FG/FGS: 011 30
SERIAL NO.: 5272010459 BOM NO.: 010.00021
15
5
20
POS. PART NO. DESIGNATION QTY. UNITS WEIGHT FN MEASUREMENT STANDARD
5 5240110732 COVER CYL BLOCK ACCESS PORT 1 PC 2,740 KG NN
15 5240111380 GASKET 1 PC
20 000933010035 BOLT HEX S2000/4000 7 PC 2,300 G M 10 X 25 DIN933
© 2011 MTU Friedrichshafen GmbH Page: 9 / 1
Business Portal Online Print 13-12-2011
TYPE: 16V4000C11 5272010459 FG/FGS: 011 40
SERIAL NO.: 5272010459 BOM NO.: XS595010.00074
POS. PART NO. DESIGNATION QTY. UNITS WEIGHT FN MEASUREMENT STANDARD
15 X59501100018 INSPECT PORT COVER W:PIPE+OIL FILL.NEC 1 PC 5,760 KG
25 8800180770 CONNECTOR THREADED 1 PC 0,109 KG
30 5240103472 OIL DIPSTICK 1 PC 235 G AB
40 700429012002 O-RING 1 PC 2,330 G 12 X 5 MMN429
50 0000181802 OIL FILL CAP 1 PC 113 G
60 5240111380 GASKET 1 PC
65 000000003021 HEX SCREW 7 PC 23,700 G M 10 X 25 ISO4017
75 5240110732 COVER CYL BLOCK ACCESS PORT 1 PC 2,740 KG NN
85 5240111380 GASKET 1 PC
90 000000003021 HEX SCREW 7 PC 23,700 G M 10 X 25 ISO4017
© 2011 MTU Friedrichshafen GmbH Page: 10 / 1
Business Portal Online Print 13-12-2011
