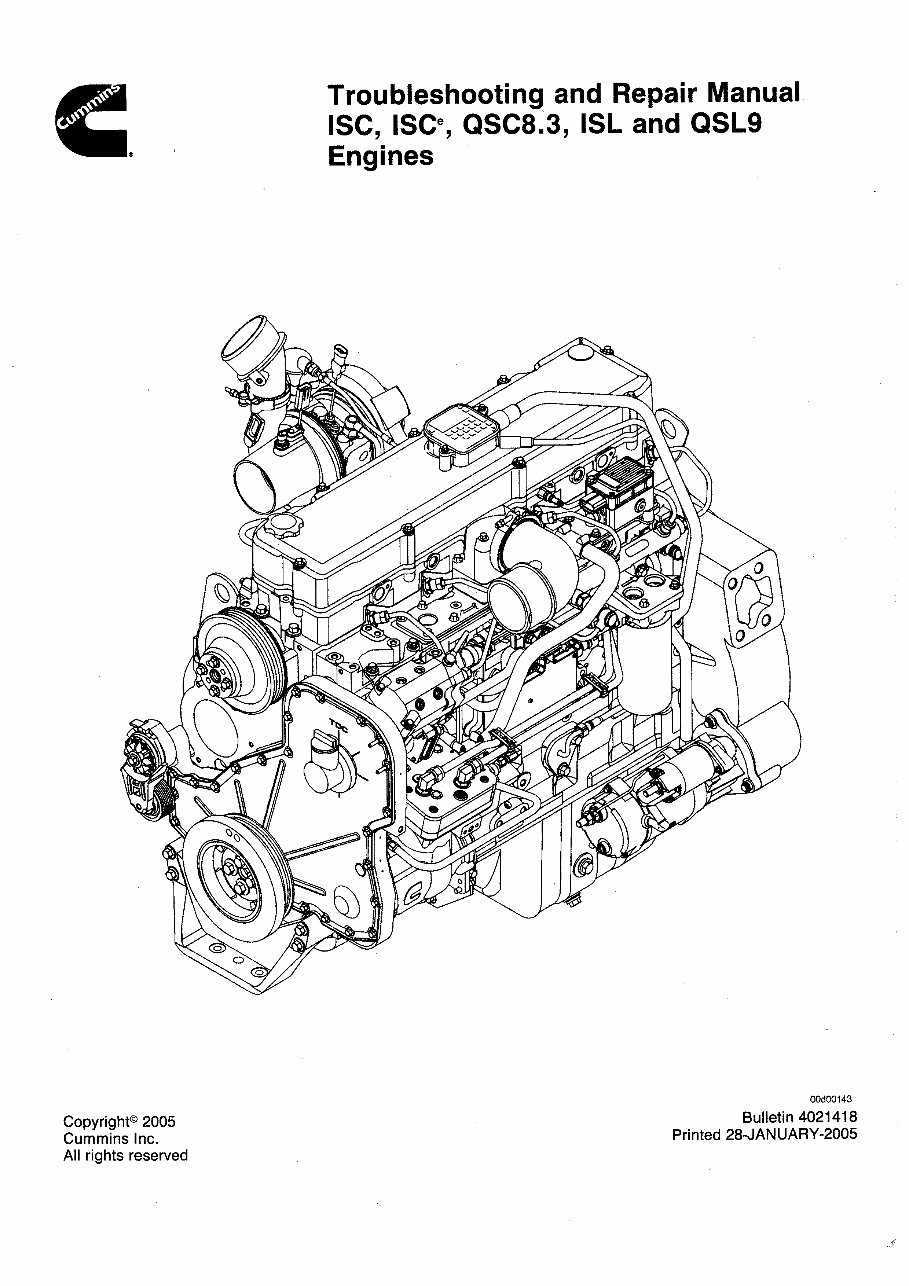

CUMMINS QSC 8.3 QSL 9 Marine Diesel Engine Repair Manual

The CUMMINS QSC 8.3 QSL 9 MARINE DIESEL ENGINE SERVICE REPAIR MANUAL provides comprehensive information for the QSC 8.3 QSL 9 marine diesel engines. It is a valuable resource for both professional mechanics and DIY enthusiasts.

• Engine Specification:
  • Configuration: In-line 6-cylinder, 4-stroke diesel
  • Aspiration: Turbocharged/After-cooled
  • Displacement: 8.3 L (505 in3) / 8.9 L (542 in3)
  • Bore & Stroke: 114 mm x 135 mm / 114 mm x 145 mm
  • Rotation: Counter clockwise facing flywheel
  • Power: 490 - 600 hp / 366 - 448 kW / 285 - 405 hp / 213 - 303 kW
  • Torque: 1327 lb-ft / 1800 - 1800 Nm / 983 - 1194 lb-ft / 1333 - 1619 Nm

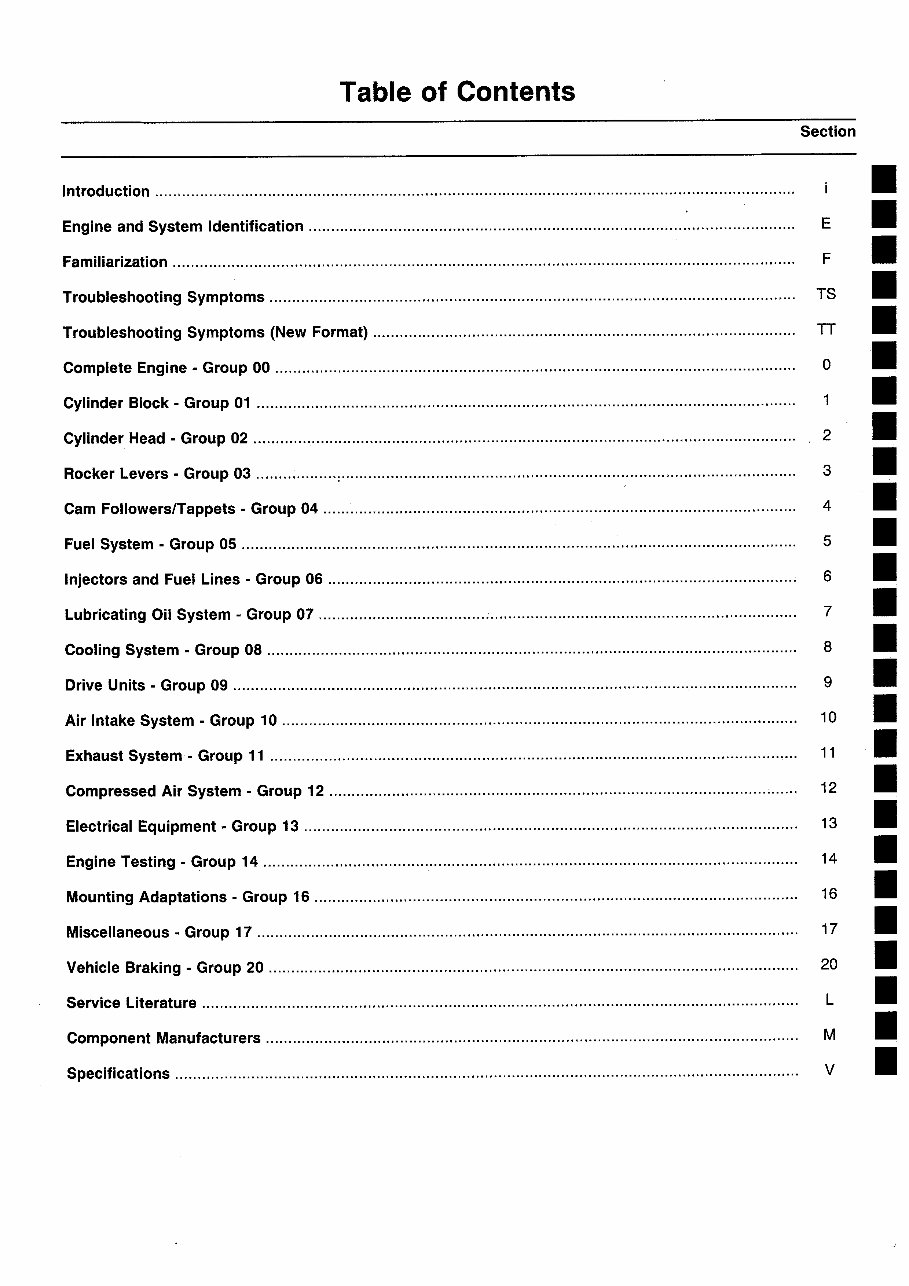

• Contents:

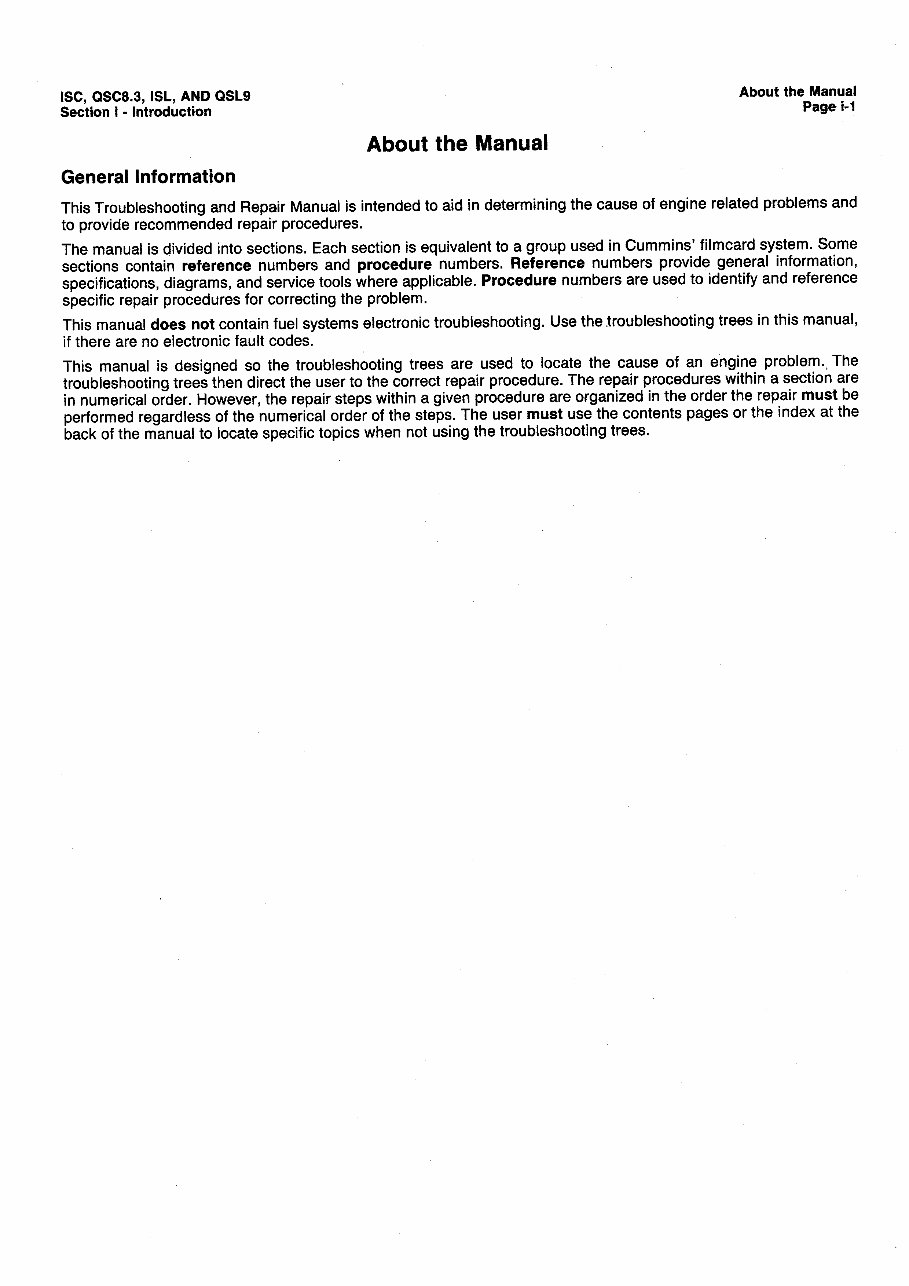

  • Introduction
  • Engine Identification
  • Industrial Features
  • Operating Instructions
  • Maintenance Guidelines
  • Maintenance Procedures at Daily Interval
  • Maintenance Procedures at 250 Hours or 3 Months
  • Maintenance Procedures at 500 Hours or 6 Months
  • Maintenance Procedures at 1000 Hours or 1 Year
  • Maintenance Procedures at 2000 Hours or 2 Years
  • Maintenance Procedures at 5000 Hours or 4 Years
  • Adjustment, Repair, and Replacement
  • System Diagrams
  • Service Literature
  • Component Manufacturers
  • Service Assistance
  • Troubleshooting Symptoms
  • Maintenance Specifications
  • Warranty
• This manual is available in .PDF format and features detailed exploded views. It contains step-by-step procedures with illustrations, making it suitable for repairs, maintenance, and servicing.
