Cummins 6CT and 6CTA8.3 parts manual

Cummins Parts Catalog Cummins Parts Catalog 6CTA8.3 F1, F2, F3 6CTA8.3 F1, F2, F3

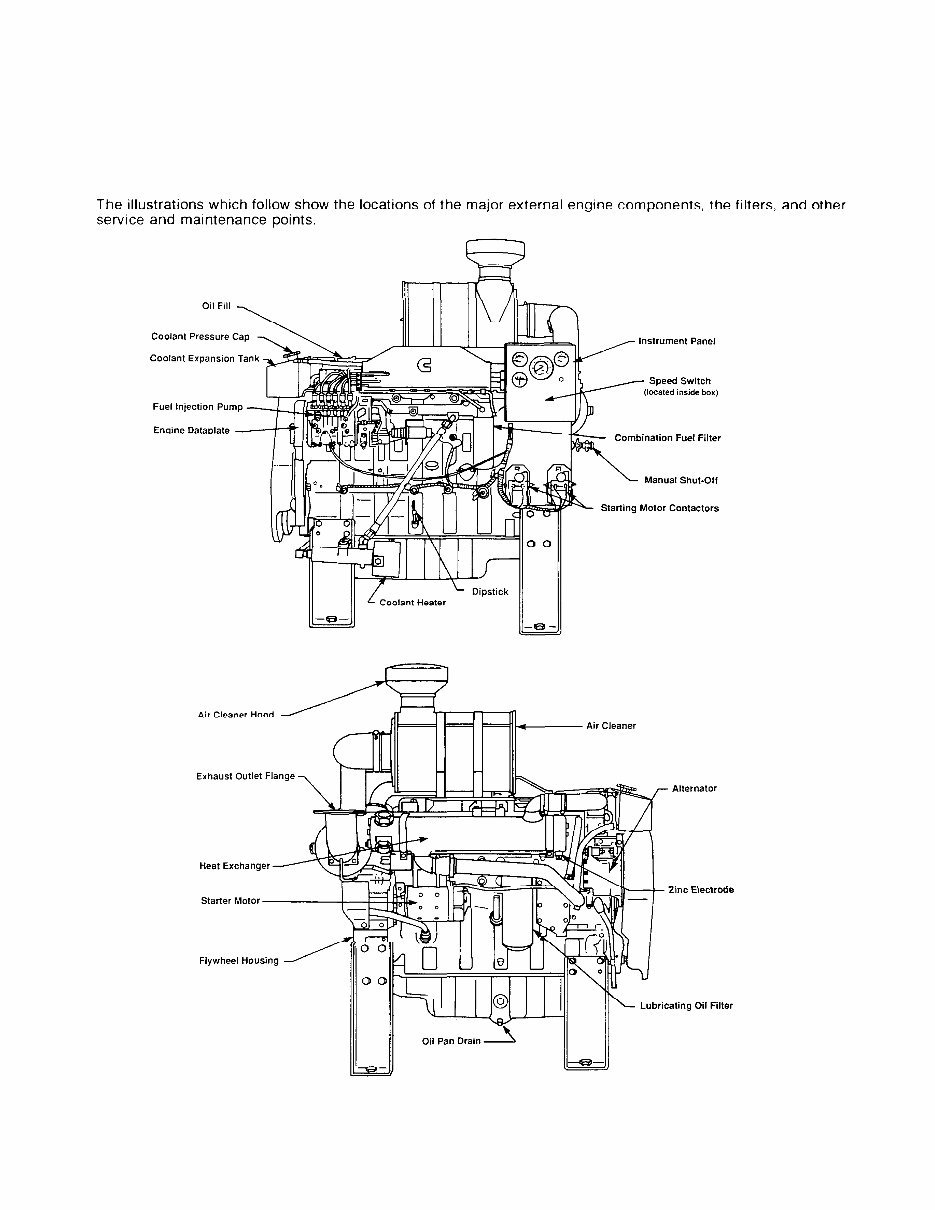

The following parts are suggested spares are for the Cummins 6CTA-F Item Quantity Per Service Interval Cummins PN# Fleetguard PN# 6CTA8.3-F Air Cleaner 1 none AF4669 Fuel Filter 1 3843760 FS1251 Lube Filter 1 3318853 LF3000 Lube Oil 6 Gal. 3377363 Alternator 12V As needed 3016628 Alternator 24V As needed 3016627 Belt As needed 3911562 Starter 12V As needed 3921402 Starter 24V As needed 3921403 Red Paint As needed 3885910 The Lube Oil part number 3377363 is for Cummins Premium Blue 15W40 oil supplied in one gallon plastic jugs. Check voltage Check voltage 1 year or 250 hours

Group No. 10.04 Air-Cleaner Option No. AC9055-01 Eng. Fam. Z 6C8.3 Page 1 Option Date 15 Mar 1997

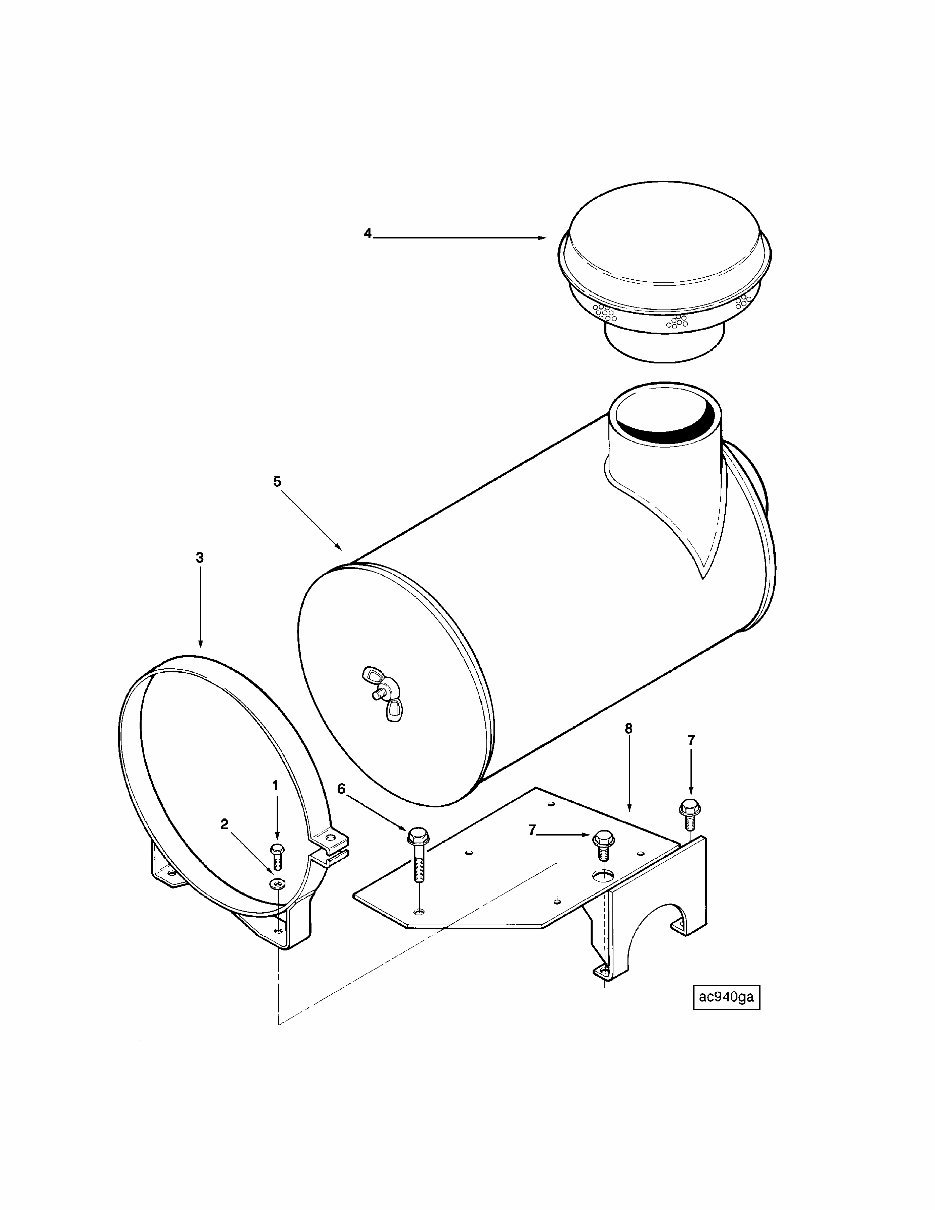

REF NO PART NUMBER PART NAME REQ REMARKS AC9055 Air Cleaner 1 Air Cleaner Duty Rating: Heavy Air Cleaner Exhaust OD (mm): 57.14 Mounting Location: Engine - rear Manufacturer: Fleetguard Filter Quantity: 1 Environment Capability: Outdoor Filter Disposition: Disposable Supply Method: Mounted Engine Family: C Series Structure Code: 02 EBM Cylinders: 6 Aspiration: Jacket Water Aftercooled. 1 S-115 Screw, Hexagon Head Cap 4 5/16 - 18 x .875 2 146160 Washer, Plain 4 3 3833680 Bracket, Air Cleaner 2 4 3833697 Cap, Rain 1 5 3837348 Cleaner, Air 1 6 3901757 Screw, Hex Flange Head Cap 1 M10 x 1.50 x 75 7 3903990 Screw, Hex Flange Head Cap 2 M10 x 1.50 x 20 8 3919520 Bracket, Air Cleaner 1 Group No. 10.04 Air-Cleaner Option No. AC9055-01 Eng. Fam. Z 6C8.3 Page 2 Option Date 15 Mar 1997

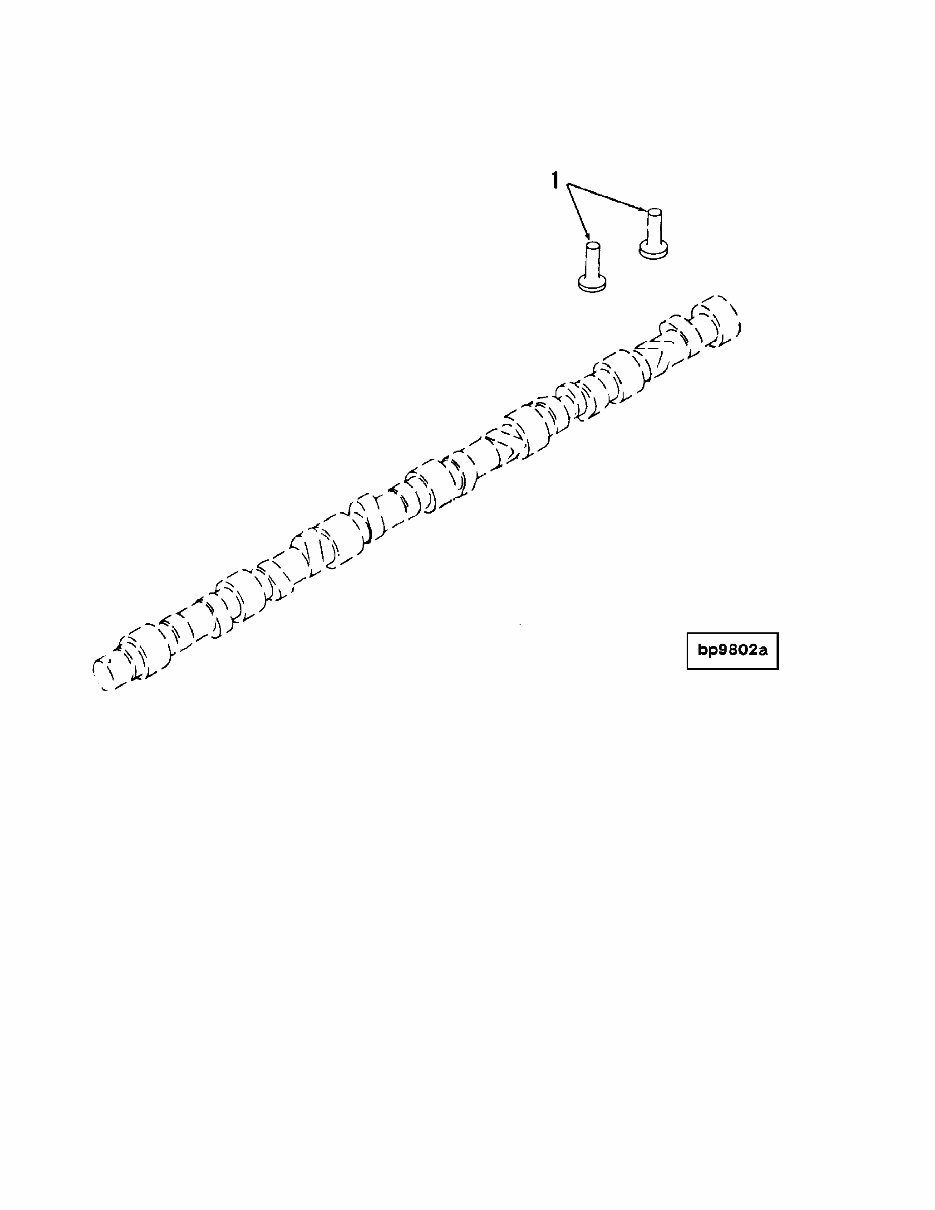

Group No. 04.01 Valve-Tappets Option No. BP9717 Eng. Fam. Z 6C8.3 Page 4 Option Date 28 Dec 1983

REF NO PART NUMBER PART NAME REQ REMARKS BP9717 Valve Tappets 1 CAMFOLLOWER COVER Engine Family: C Series Cylinders: 6 Structure Code: 02 EBM 1 3931623 Tappet, Valve 12 Group No. 04.01 Valve-Tappets Option No. BP9717 Eng. Fam. Z 6C8.3 Page 5 Option Date 28 Dec 1983

Group No. 01.06 Front-Gear-Cover Option No. BP9733-04 Eng. Fam. Z 6C8.3 Page 1 Option Date 15 Jan 1992

REF NO PART NUMBER PART NAME REQ REMARKS BP9733 Front Gear Cover 1 Front gear cover assembly with "high pto" drive, for use with Bosch "A" and "MW", and Nippondenso EP-9 fuel pumps, and without front engine support. Qty (3) 3906619 pipe plugs and Qty (1) 3915073 gear housing may be substituted for Qty (1) 3914316 gear housing. 1 210036 Plug, Expansion 1 2 3900629 Screw, Hex Flange Head Cap 17 M8 x 1.25 x 16 3 3900630 Screw, Hex Flange Head Cap 5 M8 x 1.25 x 20 4 3900633 Screw, Hex Flange Head Cap 6 M8 x 1.25 x 50 5 3903924 Pin, Timing 1 6 3913994 Seal, O Ring 1 7 3904849 Ring, Retaining 1 8 3905933 Housing, Timing Pin 1 9 3915772 Seal, Rectangular Ring 1 10 3917779 Gasket, Gear Cover 1 11 3908139 Front Seal Service Kit 1 Includes Installation Tools 12 3916192 Cover, Gear 1 13 3906619 Plug, Pipe 3 1/8 NPT 14 3914303 Gasket, Gear Housing 1 15 3907998 Screw, Round Head Cap 2 M5 x 0.80 x 17 16 3915073 Housing, Gear 1 17 3902116 Screw, Hex Flange Head Cap 4 M12 x 1.75 x 50 Group No. 01.06 Front-Gear-Cover Option No. BP9733-04 Eng. Fam. Z 6C8.3 Page 2 Option Date 15 Jan 1992

Group No. 03.01 Rocker-Lever Option No. BP9795-03 Eng. Fam. Z 6C8.3 Page 7 Option Date 15 Jan 1998

REF NO PART NUMBER PART NAME REQ REMARKS BP9795 Rocker Lever 1 Rocker Lever Engine Family: C Series Cylinders: 6 P/N 390006 can be used in place of 3934086. 1 3901617 Screw, Twelve Point Cap 12 M10 X 1.50 X 65 2 3901693 Clamp, Retaining 6 3 3905194 Rod, Push 12 4 3905870 Support, Rocker Lever 6 5 3901717 Lever, Rocker 12 6 3927692 Nut, Heavy Hexagon 1 3/8 - 24 UNF 7 3934086 Screw, Rkr Lever Adjusting 8 3906100 Washer, Spring 12 9 3919435 Shaft, Rocker Lever 6 10 3919434 Rivet 2 11 3907206 Washer, Plain 12 12 3919677 Manifold, Oil 1 13 3901764 Ring, Retaining 12 Group No. 03.01 Rocker-Lever Option No. BP9795-03 Eng. Fam. Z 6C8.3 Page 8 Option Date 15 Jan 1998
