Cummins Parts Catalog Cummins Parts Catalog
6BTA5.9 F1, F2, F4
The following parts are suggested spares are for the Cummins 6BTA-F
Item
Quantity
Per Service
Interval
Cummins
PN#
Fleetguard
PN#
6BTA5.9-F
Air Cleaner 1 none AF1735K
Fuel Filter 1 3931063 FF5052
Lube Filter 1 3932217 LF3349
Lube Oil 4 Gal. 3377363
Alternator As needed 3920679
Belt As needed 3911587
Starter 12V As needed 3916854
Red Paint As needed 3885910
The Lube Oil part number 3377363 is for Cummins Premium Blue 15W40 oil supplied
in one gallon plastic jugs.
1 year
or 250
hours

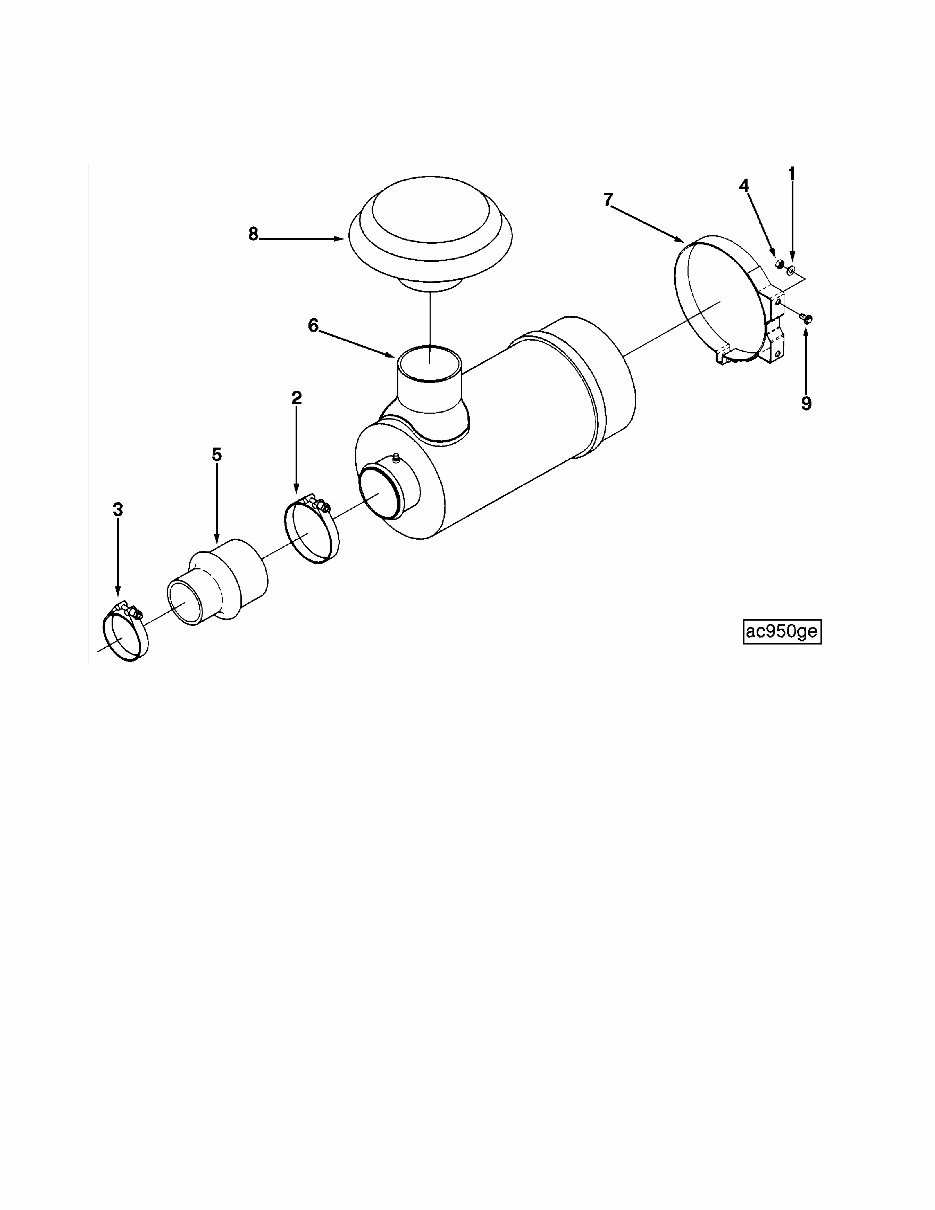

Group No. 10.04 Air-Cleaner Option No. AC9073
Eng. Fam. T 6B5.9 Page 1 Option Date 28 Dec 1983
REF NO PART NUMBER PART NAME REQ REMARKS
AC9073 Air Cleaner 1 Cleaner, Air
Number of Cylinders: 6
Duty Rating: Heavy
Aspiration: Turbocharged
Outlet Diameter MM: 104.6
Mounting Location: Rear of
engine
Cleaner Manufacturer:
Donaldson
Environmental Use: Indoors
Element Disposition:
Disposable
Mounted or Kit: Mounted
1 S-626 Washer, Plain 2 5/16 inch
2 125740 Clamp, T Bolt 1 4 1/2 inch
3 135144 Clamp, T Bolt 1 3 1/2 inch
4 3900240 Nut, Regular Hexagon 2 M8 x 1.25
5 3904060 Hose, Hump 1
6 3915066 Cleaner, Air 1
7 3915067 Strap, Air Cleaner 1
8 3915068 Cap, Rain 1
9 3925883 Screw, Hex Flange Head Cap 2 M8 x 1.25 x 16
Group No. 10.04 Air-Cleaner Option No. AC9073
Eng. Fam. T 6B5.9 Page 2 Option Date 28 Dec 1983

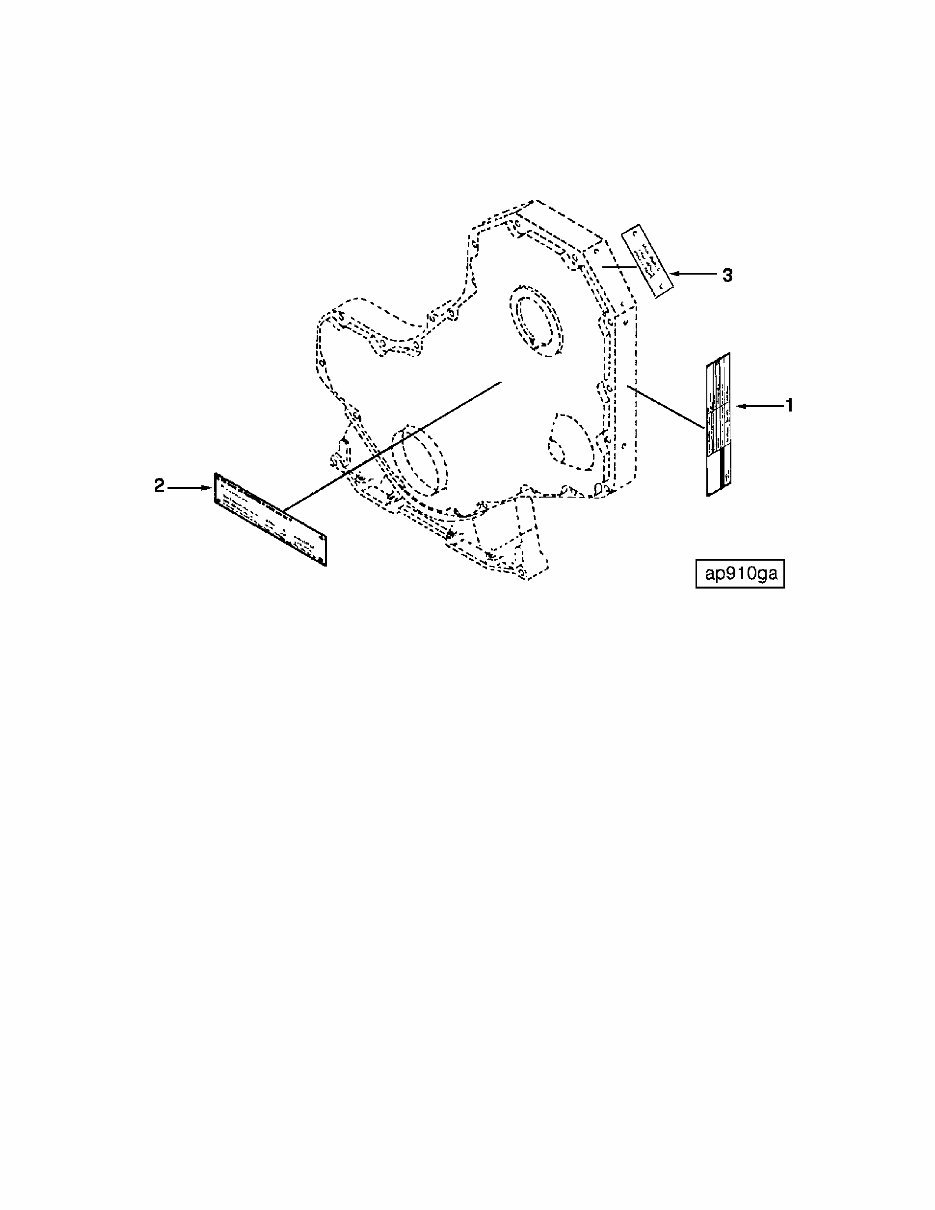

Group No. 01.06.1 Dataplate Option No. AP9046-01
Eng. Fam. T 6B5.9 Page 3 Option Date 14 Feb 1996
REF NO PART NUMBER PART NAME REQ REMARKS
AP9046 Dataplate 1
Fire Pump Certification
Certification Agency:
FM (Factory Mutual)
UL (Underwriters
Laboratories)
Engine Family: B Series
Certification Status:
Approved/Listed
Application: Fire Pump
Unique Characteristics:
208 BHP @ 2100 RPM/182 BHP
@ 1760 RPM
Structure Code: 02 EBM
Fuel Pump Datataplate to be
applied to the fuel pump side
of the instrument panel.
3918890 and 3918891 speed
switch dataplates to be
supplied loose.
1 3915072 Dataplate 1
2 3918890 Dataplate 1
3 3918891 Dataplate 1
Group No. 01.06.1 Dataplate Option No. AP9046-01
Eng. Fam. T 6B5.9 Page 4 Option Date 14 Feb 1996

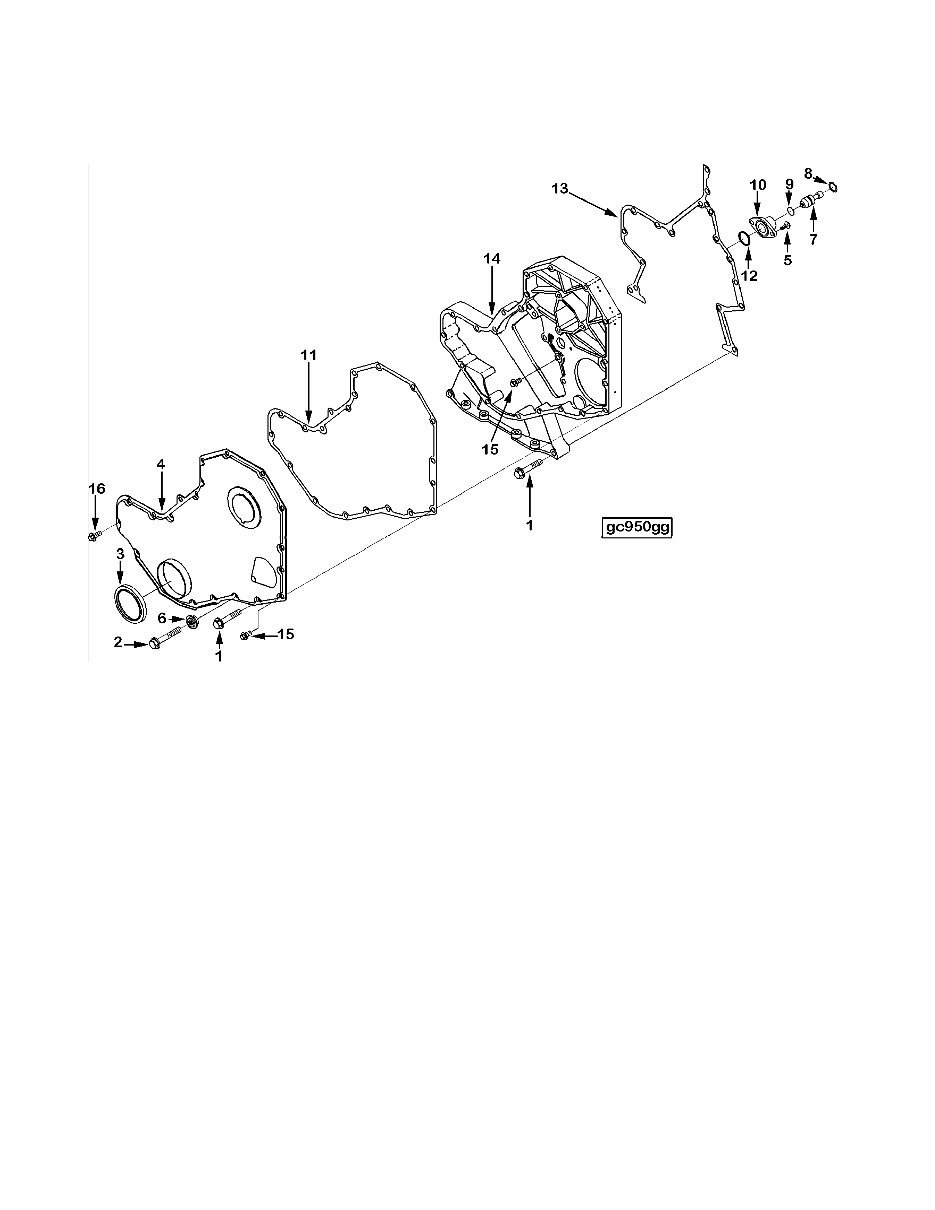

Group No. 01.06 Front-Gear-Cover Option No. BP9703-03
Eng. Fam. T 6B5.9 Page 4 Option Date 15 Apr 1996
REF NO PART NUMBER PART NAME REQ REMARKS
BP9703 Front Gear Cover 1 Front Gear
Cover
Family: B Series
Belt Retainer Included: Yes
Noise Dampening Panel
Provision: No
Access for Tach Drive: Yes
Gear Housing Material: Cast
Aluminum
Fuel Pump Mounted Angle: 35
Degree
ADDL. Clearance for ENG.
Mount: No
Compatible w/Oil Pan Corner
Stiffener: No
Engine Design Phase: Current
Product
Fuel Pump:
Bosch VE
Bosch VP14
CAV DPA
CAV DPS
Stanadyne DB3
Stanadyne DB4
DEP may use 3920518 in place
of 3920758.
DEP
may omit 3912772 belt
retainer and 3901446 capscrew
and add 3900633 capscrew.
1 3900633 Screw, Hex Flange Head Cap 10 M8 x 1.25 x 50
2 3901446 Screw, Hex Flange Head Cap 1 M8 x 1.25 x 60
3 (3904353) Front Seal Service Kit 1
4 3903794 Cover, Gear 1
5 3907998 Screw, Round Head Cap 2 M5 x 0.80 x 17
6 3912772 Retainer, Belt 1
(3913995) Housing, Timing Pin 1
7 3903924 Pin, Timing 1
8 3904849 Ring, Retaining 1
9 3913994 Seal, O Ring 1
10 3919683 Housing, Timing Pin 1
11 3914385 Gasket, Gear Cover 1
12 3915772 Seal, Rectangular Ring 1
13 3931351 Gasket, Gear Housing 1
14 3920758 Housing, Gear 1
15 3924962 Screw, Hex Flange Head Cap 11 M8 x 1.25 x 16
16 3926846 Screw, Hex Flange Head Cap 5 M8 x 1.25 x 20
Group No. 01.06 Front-Gear-Cover Option No. BP9703-03
Eng. Fam. T 6B5.9 Page 5 Option Date 15 Apr 1996

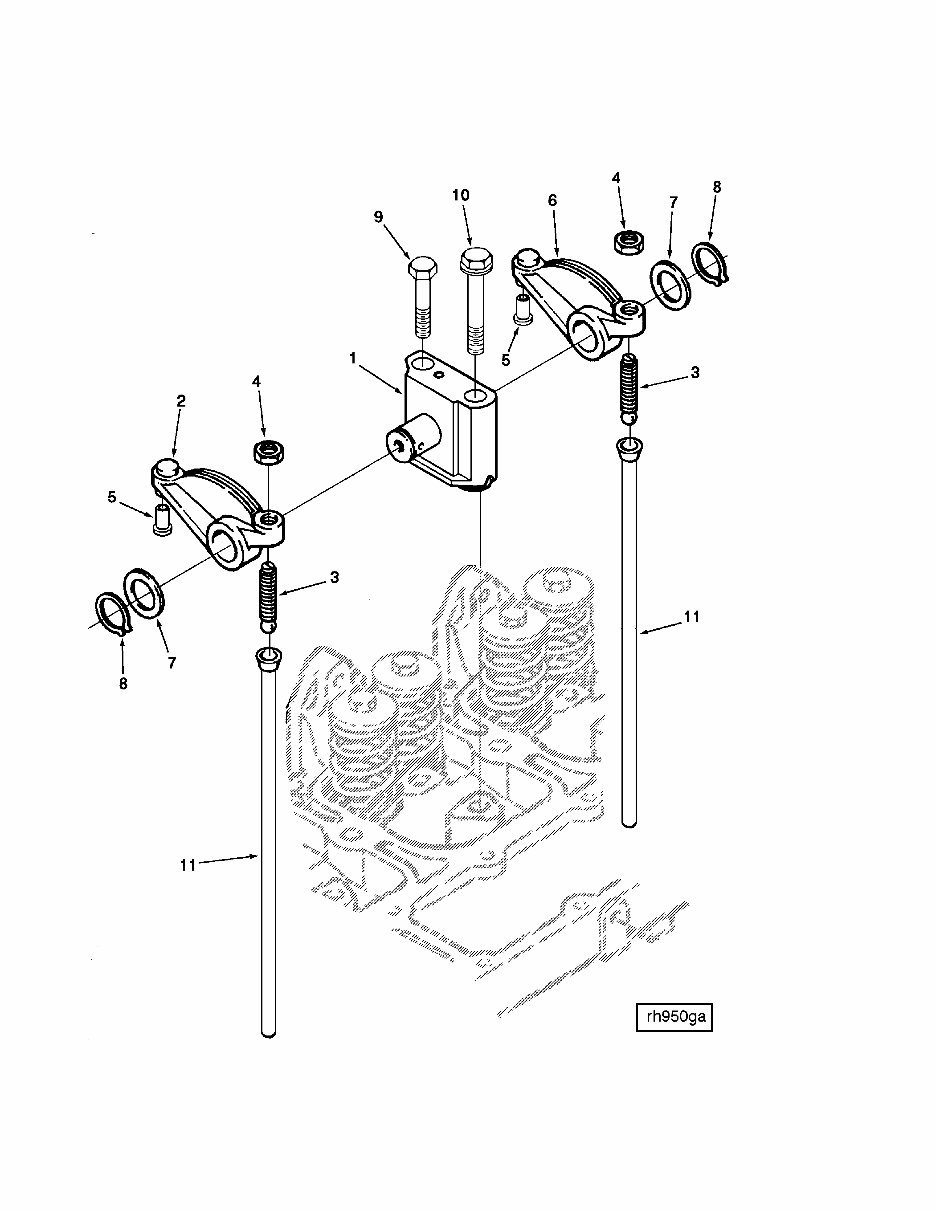

Group No. 03.01 Rocker-Levers Option No. BP9710-03
Eng. Fam. T 6B5.9 Page 6 Option Date 15 Mar 1998
REF NO PART NUMBER PART NAME REQ REMARKS
BP9710 Rocker Levers 1 Rocker Lever
Engine Family: B Series
Cylinders: 6
P/N 3910815 can be used in
place of 3939420.
3922488 Support, Rocker Lever 6
1 (3911423) Support, Rocker Lever 1
(3922487) Shaft, Rocker Lever 1
2 3910811 Lever, Rocker 6
(3910809) Lever, Rocker 1 Intake
3 3934086 Screw, Rkr Lever Adjusting 1
4 3927692 Nut, Heavy Hexagon 1 3/8 - 24 UNF
5 (3900705) Insert, Rocker Lever 1
6 3910810 Lever, Rocker 6
(3910808) Lever, Rocker 1 Exhaust
3 3934086 Screw, Rkr Lever Adjusting 1
4 3927692 Nut, Heavy Hexagon 1 3/8 - 24 UNF
5 (3900705) Insert, Rocker Lever 1
7 3900245 Washer, Plain 12 M19
8 3900242 Ring, Retaining 12
9 3901221 Screw, Hexagon Head Cap 6 M8 x 1.25 x 75
10 3920781 Screw, Hex Flange Head Cap 6
11 3284377 Rod, Push 12
Group No. 03.01 Rocker-Levers Option No. BP9710-03
Eng. Fam. T 6B5.9 Page 7 Option Date 15 Mar 1998
