Systems Operation
S4Q2 Engine
Media Number -KENR6787-03 Publication Date -01/01/2013 Date Updated -29/01/2013
i04956130
Governor Control - Automatic Engine Speed Control
SMCS - 1000; 1264
Page 1 of 3 Media Search - KENR6787 - S4Q2 Engine
1/2/2019 https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/m...

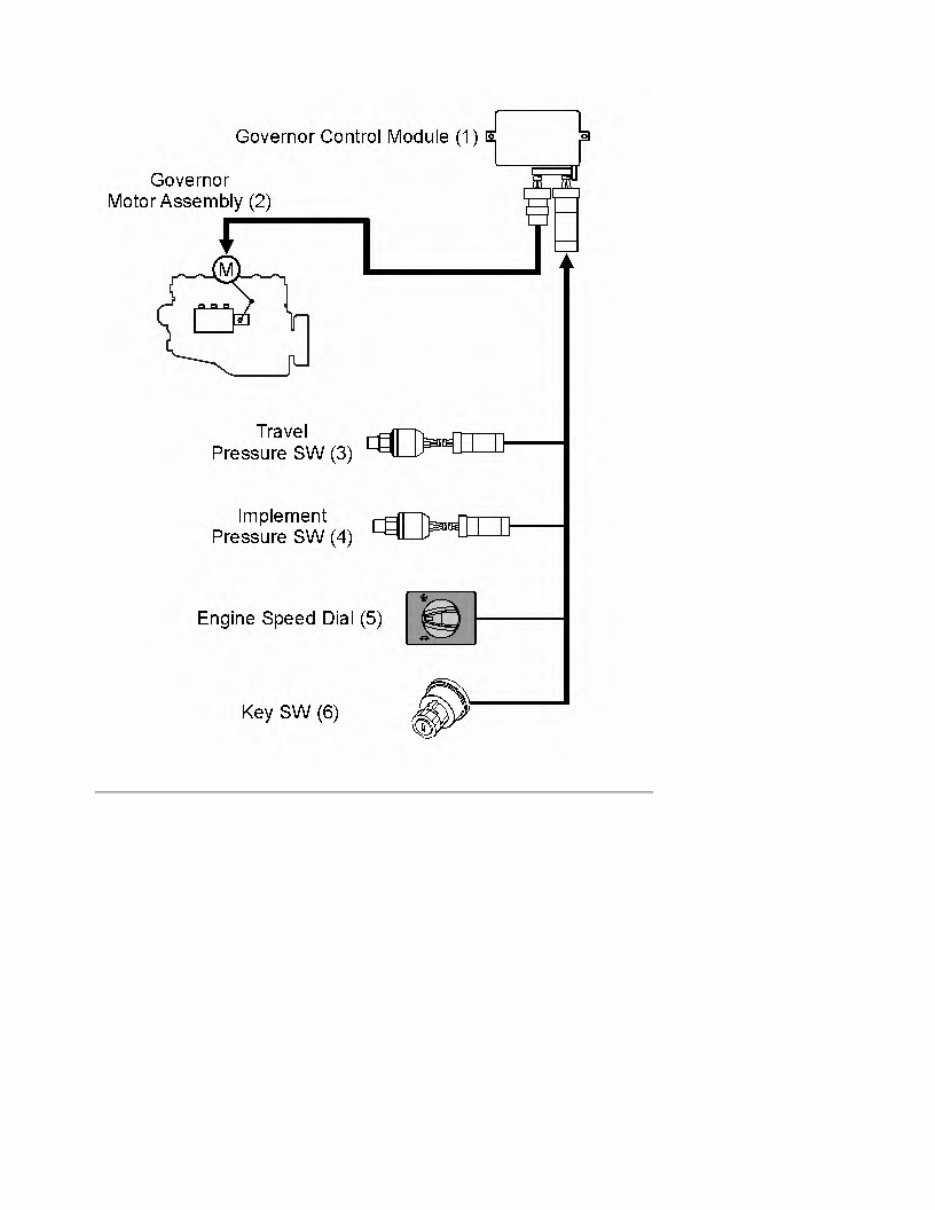

Illustration 1 g03143476
Governor control module (1) is used to adjust engine speed through governor motor assembly (2).
Governor control module (1) uses inputs from travel pressure switch (3) and implement pressure
switch (4), in order to automatically adjust engine speed.
Travel pressure switch (3) detects a travel operation. The travel pressure switch sends an input signal
to the governor control module. The governor control module uses the switch information to control
the engine speed.
Implement pressure switch (4) sends an input signal to the governor control module. When the
joysticks are moved from the NEUTRAL position, the pilot logic passage is blocked, pilot oil is
directed to the implement pressure switch. The increase of pilot pressure activates implement pressure
switch (4). The implement pressure switch sends an electrical signal to the governor control module.
The switch information is used to control engine speed.
Page 2 of 3 Media Search - KENR6787 - S4Q2 Engine
1/2/2019 https://127.0.0.1/sisweb/sisweb/techdoc/techdoc_print_page.jsp?returnurl=/sisweb/sisweb/m...
The low idle indicator lamp illuminates when the governor control module reduces the engine speed
to low idle. The governor control module automatically reduces engine RPM when the when the
machine has been inactive for 5 seconds. The governor control module is designed to reduce fuel
consumption and noise. Lower engine speeds can also increase engine life.
