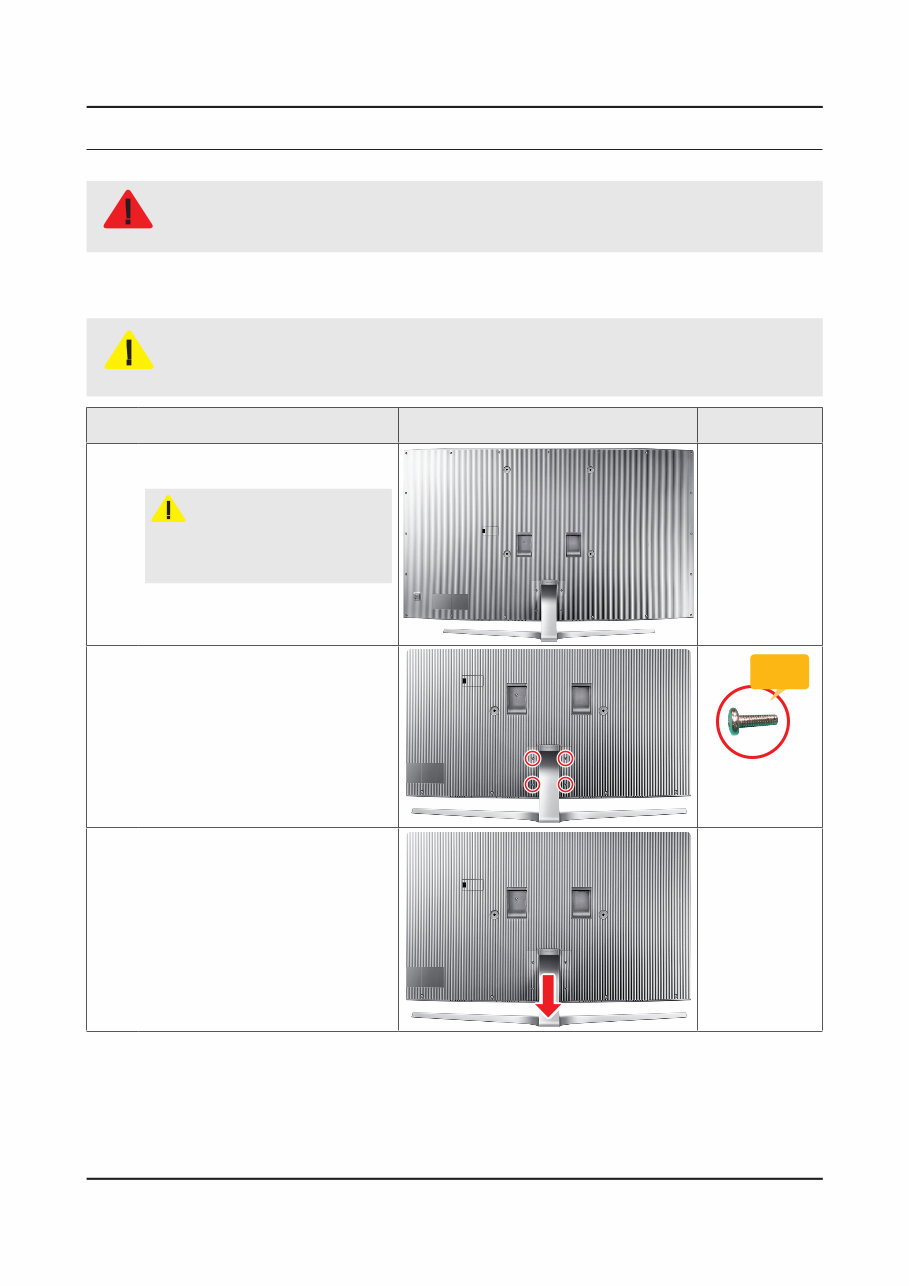

3-1 3. Disassembly and Reassemble 3. Disassembly and Reassembly This section of the service manual describes the disassembly and reassembly procedures for the LED TV. WARNING This LED TV contains electrostatically sensitive devices. Use caution when handling these components. 3-1. Disassembly and Reassembly CAUTION Disconnect the LED TV from the power source before disassembly. 1. Follow these directions carefully; never use metal instruments to pry apart the cabinet. 2. If there is no additional coment, it is same for all inches. 3. Description Picture Description Screws 1 Carefully position the TV so that the screen is facing downwards. CAUTION Make sure to place the TV upon a soft curved cushion or any material that will prevent damage to the screen. 2 Remove the screws from the BRACKET- STAND, LEG (R/L). 48" : 4EA • 55" : 4EA • 65" : 4EA • Torque : 7~8Kgf.cm 6003-001494 M4,L12 3 Remove the ASSY STAND P-BASE.

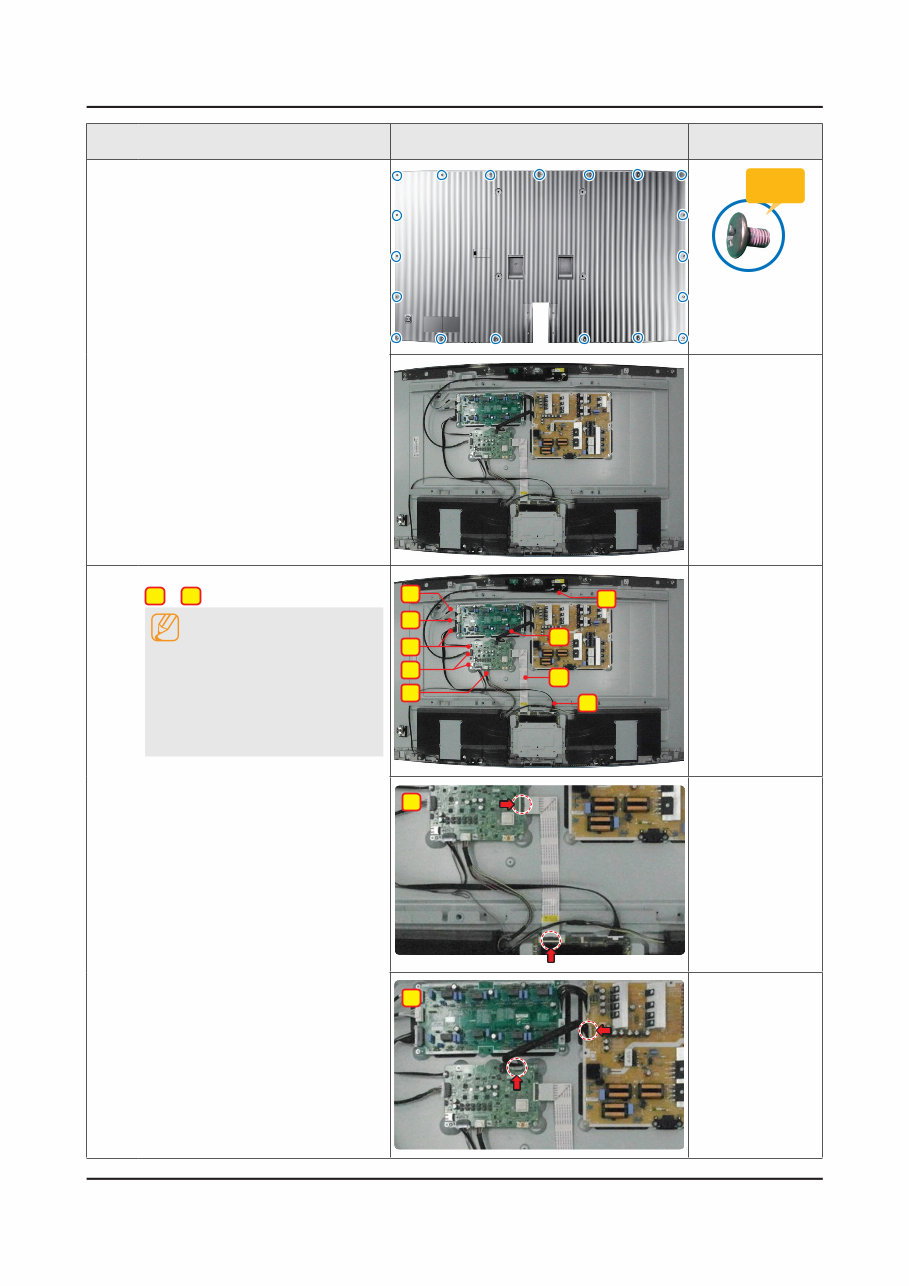

3-2 3. Disassembly and Reassemble Description Picture Description Screws 4 Remove the screws from the ASSY COVER REAR. 48" : 15EA • 55" : 19EA • 65" : 21EA • Torque : 7~8Kgf.cm 6002-001619 M3,L5,ZPC(WHT) ASSY COVER REAR removed • form 5 Remove the Wires and cable from 1 ~ 6 connectors. NOTE When assembling the TV, the • electric tapes must be applied on the same locations. Please remember to take a • picture of where the tapes were ﬁrst applied. 1 5 2 6 3 6 5 4 6 1 2

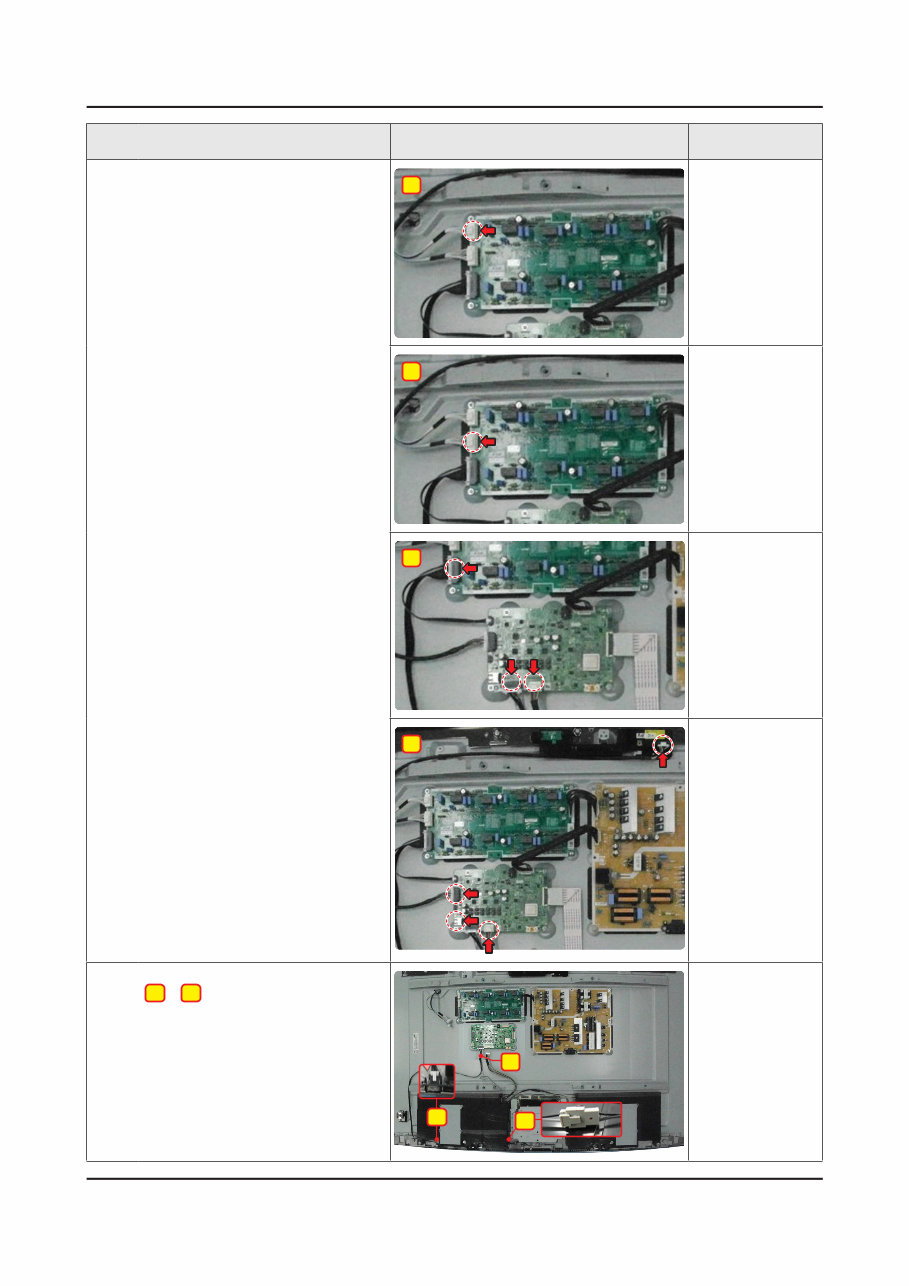

3-3 3. Disassembly and Reassemble Description Picture Description Screws 3 4 5 6 6 Remove the Wires and cable from 1 ~ 3 connectors. 1 2 3

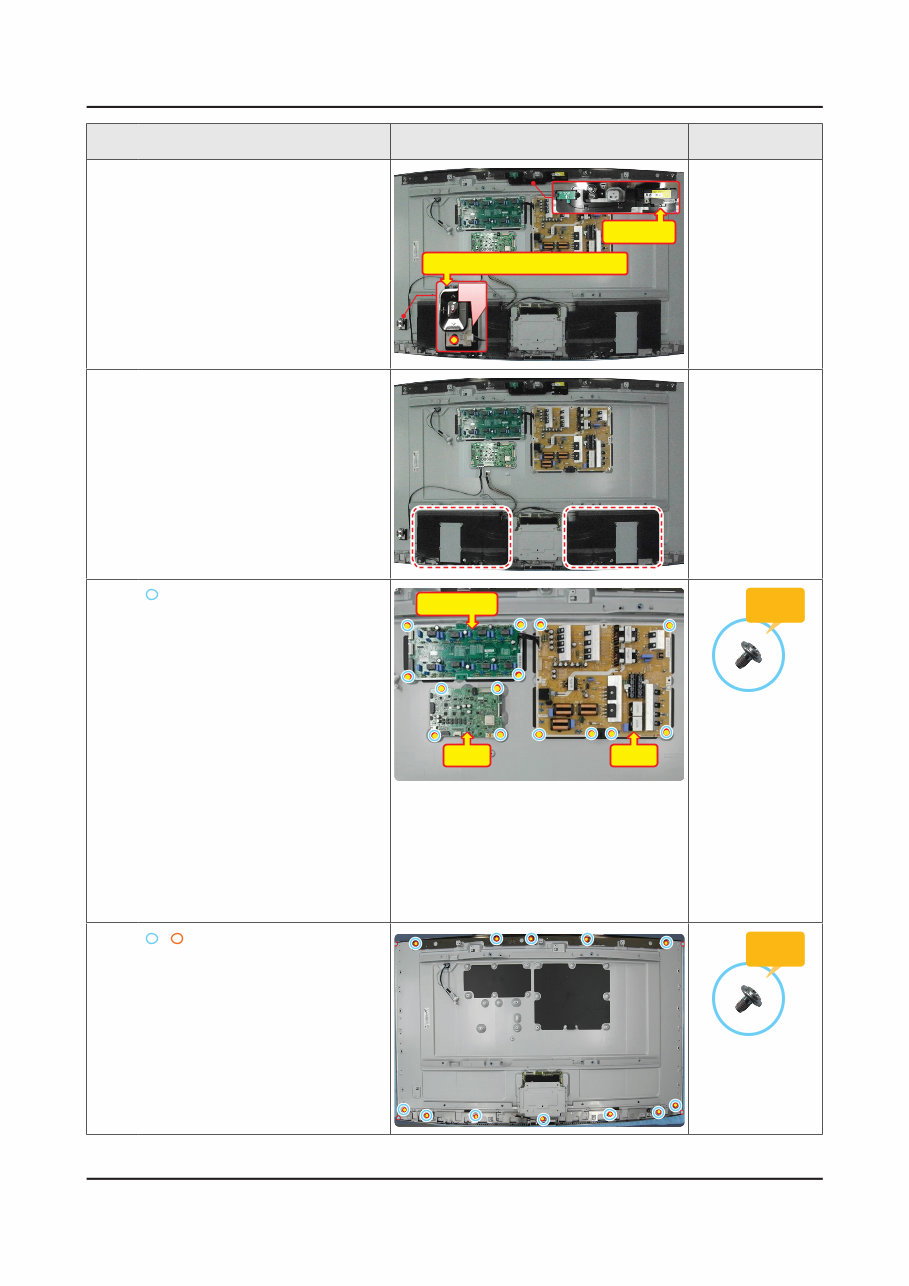

3-4 3. Disassembly and Reassemble Description Picture Description Screws 7 Remove the NETWORK and ASSY BOARD P-JOG FUNCTION. ASSY BOARD P-JOG FUNCTION NETWORK 8 Remove the ASSY SPEAKER P (L/R). 9 After removing the screws of the marked section, LED DRIVER (DC VSS-LED TV PD BD), MAIN (ASSY PCB MAIN), SMPS (DC VSS-LED TV PD BD). 48" • LED DRIVER : 4EA - SMPS : 6EA - MAIN : 4EA - 55" • LED DRIVER : 4EA - SMPS : 6EA - MAIN : 4EA - 65" • LED DRIVER : 4EA - SMPS : 6EA - MAIN : 4EA - MAIN SMPS LED DRIVER Torque : 7~8Kgf.cm 6001-003016 M3.0,L5.0,ZPC(WHT) 10 / After removing the screws of the marked section, Frame Top, remove the Frame Bottom. 48" : Top 4EA / Bottom 5EA • 55" : Top 5EA / Bottom 7EA • 65" : Top 6EA / Bottom 7EA • Torque : 7~8Kgf.cm 6001-003016 M3.0,L5.0,ZPC(WHT)

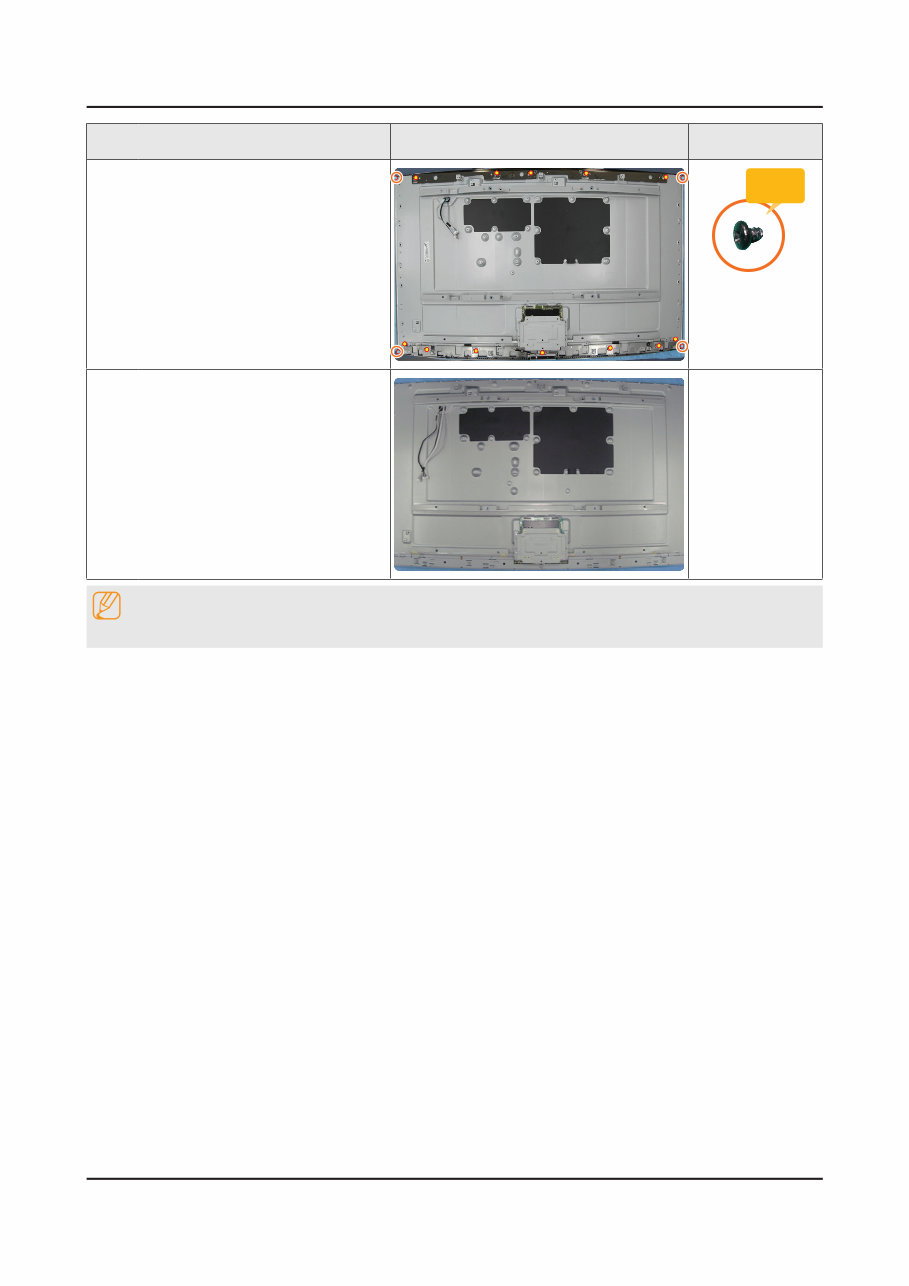

3-5 3. Disassembly and Reassemble Description Picture Description Screws 48" : Top 2EA / Bottom 2EA • 55" : Top 2EA / Bottom 2EA • 65" : Top 2EA / Bottom 2EA • Torque : 4~5Kgf.cm 6003-001206 M3,L4,BLK 11 Completed the disassembly. NOTE Reassembly procedures are in the reverse order of disassembly procedures.
