Exploded Views and Parts List
1. Exploded View & Part List

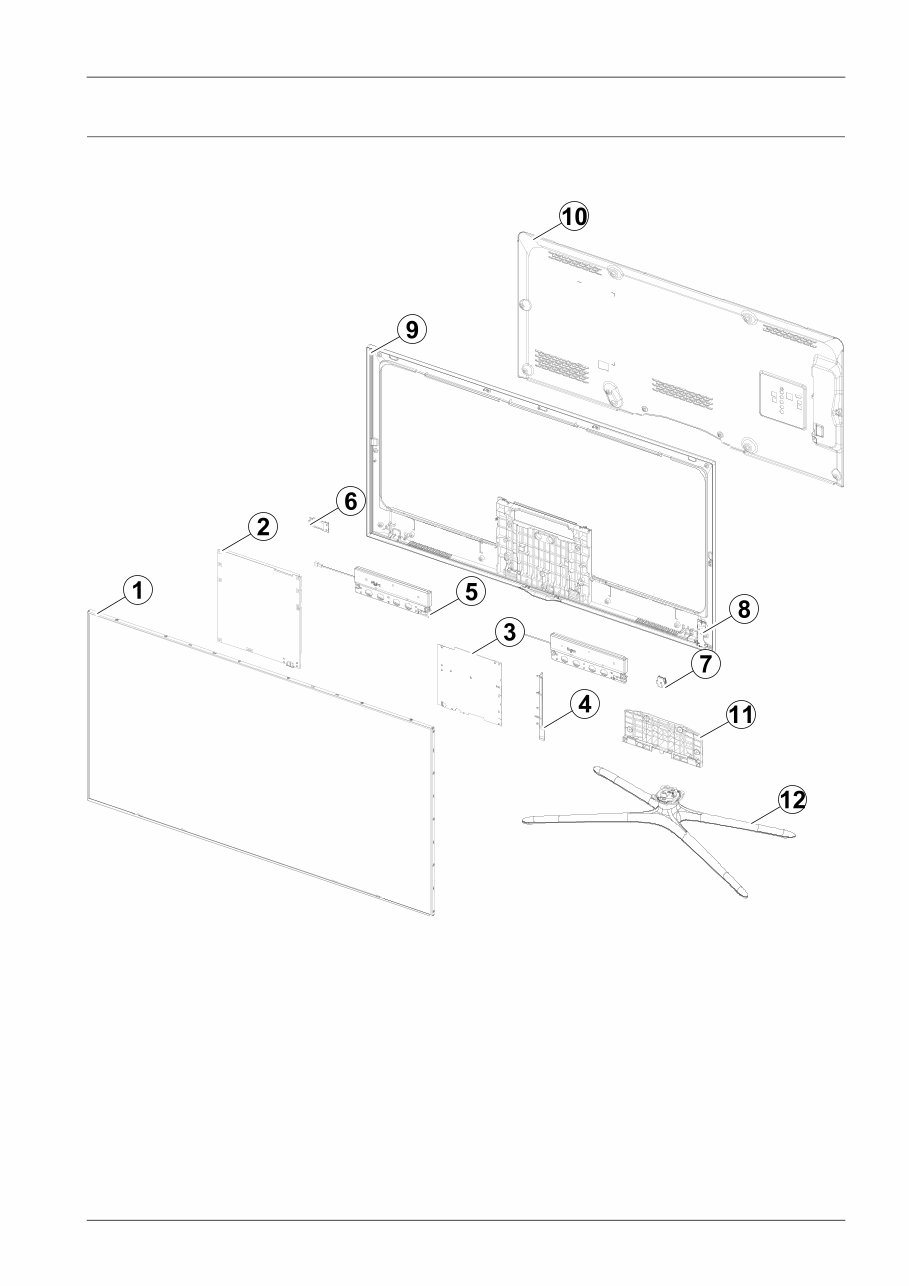

Exploded View
Copyright© 1995-2012 SAMSUNG. All rights reserved. 1
Exploded Views and Parts List
Parts List
No. Lvl. Loc. Material Code Description & Specification SNA Qty.
1 2 PANEL BN95-01020A PRODUCT LCD-AMLCD;
LSF460HQ01,CY-SF460DSL
SA 1
2 2 P001A BN44-00628A DC VSS-LED TV PD BD;
L46X2P_DDY,L46X2P_DD
SA 1
3 2 M0014 BN94-06188A ASSY PCB MAIN; UF7K SA 1
4 2 BN61-08897A HOLDER-SIDE, AV; UF7100 46,HIPS,UO;KO SNA 1
5 2 SP01A BN96-16798R ASSY SPEAKER P; 6ohm,10W,Enclosure_F7k SA 1
6 2 NW01 BN59-01161A NETWORK; WIDT-30Q,Internal WiFi,USB,IEEE8 SA 1
7 2 BT BN96-25376A ASSY BOARD P-RF-MODULE; Bluetooth
Module,
SA 1
8 3 BN96-26985E ASSY BOARD P-5WAY SWITCH FUNCTION;
UN46F7
SNA 1
9 2 M001A BN96-26371A ASSY COVER P-MIDDLE; UF7100 46,MABS
HB CL
SA 1
10 2 R001A BN96-26362A ASSY COVER P-REAR; UF7100 46,PCM T0.4 SA 1
11 2 SG01A BN96-26386A ASSY GUIDE P-STAND; UF7500 40,PC+G/F
20%
SA 1
12 2 SB04A BN96-25548B ASSY STAND P-BASE; UF6400
46/55,W/W,Chrom
SA 1
2 Copyright© 1995-2012 SAMSUNG. All rights reserved.
Exploded Views and Parts List
2. Electrical Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
UN46F7100AFXZA (TD01)
1 S001A BN90-04385A ASSY STAND;PF6500 51 1 SNA
.2 SB04A BN96-25548B ASSY STAND P-BASE;UF6400 46/55,W/W,Chrom 1 SA
..3 6002-001294 SCREW-TAPPING;BH,+,,M4,L16,ZPC(BLK) 4 SA
..3 SCREW 6003-001425 SCREW-TAPTYPE;BH,+,B,M4,L25,ZPC(BLK),SWR 4 SNA
..3 SCREW 6003-001785 SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC 4 SA
..3 SCREW 6003-001832 SCREW-TAPTYPE;FH,+,B,M4,L30,ZPC(BLK),SWR 1 SNA
..3 BN61-07159C HOLDER-SWIVEL,TOP;46/50/55 QUAD STAND,AC 1 SNA
..3 BN61-07739A BRACKET-SWIVEL,BOTTOM;UD8000 46/55 QUAD, 1 SNA
..3 BN61-07745A BRACKET-SWIVEL,TOP;UD8000 46"/55" QUAD,S 1 SNA
..3 BN61-08737A HOLDER-SWIVEL,BOTTOM;46-55 SLIM QUAD STA 1 SNA
..3 BN61-08738A HOLDER-STAND,NECK;46-55 SLIM QUAD STAND, 1 SNA
..3 BN61-08739A BRACKET-STAND,TOP;46-55 SLIM QUAD STAND, 1 SNA
..3 BN61-08740A BRACKET-STAND,BOTTOM;46-55 SLIM QUAD STA 1 SNA
..3 CCM1 BN63-05199B COVER-SHEET;AMBER,PE,T0.08,W65mm,200M,CL 2 SNA
..3 BN63-10158B COVER-STAND,TOP-FRONT;46-55 SLIM QUAD ST 1 SNA
..3 BN63-10159B COVER-STAND,TOP-REAR-LEFT;46-55 SLIM QUA 1 SNA
..3 BN63-10160B COVER-STAND,TOP-REAR-RIGHT;46-55 SLIM QU 1 SNA
..3 BN63-10161B COVER-STAND,BASE;46-55 SLIM QUAD STAND,H 1 SNA
..3 BN67-00385D RUBBER-FOOT;RUBBER-FOOT,SILICONE,ROUND,1 4 SNA
..3 BN68-04284A LABEL-ACCESSORY;Art Paper 100G,T0.08,20m 1 SNA
.2 SG01A BN96-26386A ASSY GUIDE P-STAND;UF7500 40,PC+G/F 20% 1 SA
..3 SG03 BN61-07057A GUIDE-STAND;UD5000 37,PC+G/F 20%,V2,BK00 1 SNA
..3 BN68-04116B LABEL-BASE;A/P100G,0.08,20X,70mm,Dark Gr 1 SNA
..3 BN96-18013Z ASSY ACCESSORY-SCREW;6003-001782,8EA,ZPC 1 SNA
...4 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 8 SA
...4 6902-000341 BAG PE;LDPE,T0.05,L90,W70,TRP,,,PE MARK 1 SNA
1 BN90-04580F ASSY W/I;UF7K 1 SNA
.2 BN81-08159Z PART SET-ELEC W/I;UF4* ~ UF8* ELEC 1 SNA
.2 BN81-08365K PART SET-MECH W/I;UF7V,U46FV* 1 SNA
1 BN90-04641A ASSY COVER MIDDLE;UF7K 1 SNA
.2 M001A BN96-26371A ASSY COVER P-MIDDLE;UF7100 46,MABS HB CL 1 SA
..3 SCREW 6003-000115 SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC 2 SNA
..3 CCM1 BN63-05199D COVER-SHEET;AMBER,PE,T0.08,W75mm,200M,CL 3 SNA
..3 BN63-07229H COVER-SHEET;rose70",SILICONE,T0.052,W25m 4 SNA
..3 R002A BN63-10243A COVER-MIDDLE;UF7100 46,MABS HB CLEAR/ABS 1 SNA
..3 BN63-10260A COVER-DECORATION-LOGO;UF6500-40,PC,inclu 1 SNA
..3 BN96-26985E ASSY BOARD P-5WAY SWITCH FUNCTION;UN46F7 1 SNA
Copyright© 1995-2012 SAMSUNG. All rights reserved. 3
Exploded Views and Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
...4 EC13 BN39-01772L LEAD CONNECTOR;UN46F7100,Lead Connector, 1 SNA
...4 BN96-26985A ASSY BOARD P-5WAY SWITCH FUNCTION;UF7500 1 SNA
1 R001A BN90-04674A ASSY COVER REAR;UF7K 1 SNA
.2 6001-002755 SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 6 SA
.2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 3 SA
.2 R001A BN96-26362A ASSY COVER P-REAR;UF7100 46,PCM T0.4 1 SA
..3 BN63-09121C SHEET-INSULATOR SMPS;UE5.5~UE6.8,40/46/5 1 SNA
..3 R001 BN63-09146B COVER-REAR;UF7100 46,PCM,T0.4,BKN-P824,S 1 SNA
..3 T0071 BN64-02251A INLAY-TERMINAL;UF7100 46",PS SHEET,T0.3, 1 SNA
..3 BN68-04709S LABEL-TERMINAL SIDE;UF6300,PET,T0.05,UO/ 1 SNA
1 BN91-10177A ASSY SHIELD;PF4 490 1 SNA
.2 6001-003016 SCREW-MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S 9 SA
.2 BN02-00102B TAPE FILAMENT;UE7000,#893,0.15,25,50,WHI 0 SNA
.2 EC13 BN39-01773F LEAD CONNECTOR;UN46F7500,Lead Connector, 1 SA
.2 P001A BN44-00628A DC VSS-LED TV PD BD;L46X2P_DDY,L46X2P_DD 1 SA
.2 NW01 BN59-01161A NETWORK;WIDT-30Q,Internal WiFi,USB,IEEE8 1 SA
.2 BN61-08897A HOLDER-SIDE, AV;UF7100 46,HIPS,UO;KO 1 SNA
.2 BN67-00327Y RUBBER-FOOT;UF6500,RUBBER,40*40,5,Dark G 1 SNA
.2 BN67-00364D RUBBER-FOOT;X13,RUBBER,10*10,5,Dark Gray 1 SNA
.2 SP01A BN96-16798R ASSY SPEAKER P;6ohm,10W,Enclosure_F7k 1 SA
.2 LVDS BN96-24278V ASSY CABLE P-FFC;UN46F5500,FFC,390mm,51P 1 SA
.2 BT BN96-25376A ASSY BOARD P-RF-MODULE;Bluetooth Module, 1 SA
..3 BN81-08545A A/S-BT;Bluetooth Module SCREW 1 SNA
..3 BN97-07275A ASSY MICOM-BLUETOOTH F/W;BN81-08385A 1 SNA
...4 BN81-08385A AS-BLUETOOTH F/W;BLUETOOTH F/W 1 SNA
1 M0017 BN91-10337A ASSY CHASSIS;UF7K 1 SNA
.2 M0014 BN94-06188A ASSY PCB MAIN;UF7K 1 SA
..3 BN62-00365B HEAT SINK-PS;F 4k,5k,6k,A1050,ANODIZING, 1 SNA
..3 BN97-07053A ASSY SMD;UF7K,UF7000 1 SNA
...4 0202-001899 SOLDER-CREAM;M705-GRN360-K2-VT,25-36um,S 3 SNA
...4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 2 SA
...4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 4 SNA
...4 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 3 SA
...4 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 4 SA
...4 0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 1 SNA
...4 0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150mW,SOT- 2 SA
...4 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 10 SC
...4 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 10 SA
...4 0505-002560 FET-SILICON;AO6415,P,-20V,-3.3A,0.15ohm, 1 SA
...4 0505-002598 FET-SILICON;AP2317GN,P,-20V,-4.2A,0.052o 1 SA
4 Copyright© 1995-2012 SAMSUNG. All rights reserved.
Exploded Views and Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
...4 0801-002701 IC-CMOS LOGIC;74VHCT125A,BUFFER,TSSOP,14 1 SA
...4 0904-002803 IC-USC;AU6258S-JKF,QFN,28Z30,5.0mm X 5.0 1 SNA
...4 1001-001545 IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF 1 SA
...4 1006-001509 IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 1 SA
...4 1103-001487 IC-EEPROM;AT24C256C-SSHL-T,256Kbit,32Kx8 1 SA
...4 1105-002338 IC-DDR3 SDRAM;K4B4G1646B-HCMA,DDR3 1866, 1 SA
...4 1105-002430 IC-DDR3 SDRAM;K4B2G1646E-BCMA,DDR3 1866, 2 SA
...4 1201-003526 IC-AUDIO AMP;TAS5745,QFP,48Z30,7x7mm,DUA 1 SNA
...4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
...4 1203-006109 IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 2 SA
...4 1203-006130 IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 1 SA
...4 1203-006135 IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T 1 SA
...4 1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T 1 SA
...4 1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 1 SA
...4 1203-007238 IC-PWM CONTROLLER;TPS54427,DDA,8P,4.8x3. 1 SNA
...4 1203-007242 IC-POSI.ADJUST REG.;G2992BP11U,SOP-8,8P, 1 SA
...4 1203-007502 IC-DC/DC CONVERTER;AOZ3011PI,SO-8,8Z30,4 1 SA
...4 1203-007695 IC-DC/DC CONVERTER;AOZ3018,SO-8,8Z30,4.9 1 SNA
...4 1203-007728 IC-VOL. DETECTOR;RT9831GQW,QW : WQFN-20L 1 SA
...4 1204-003421 IC-DECODER;SEMS30,PBGA,729Z30,21.6x21.6m 1 SA
...4 1205-004447 IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3x1.65 3 SA
...4 1205-004691 IC-SWITCH;BD82022FVJ,MSOP-8L JEDEC,8Z30, 1 SNA
...4 1301-002110 IC-CPLD;EPM240M100C4N,100Z30,6x6mm,3.3V, 1 SNA
...4 1405-001271 VARISTOR;35V,20Vdc,5A,1.0x0.5x0.6mm,TP,1 21 SA
...4 2007-000137 R-CHIP;2Kohm,5%,1/16W,TP,1005 13 SNA
...4 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 9 SA
...4 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 51 SA
...4 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 38 SA
...4 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 4 SNA
...4 2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 1 SA
...4 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 16 SNA
...4 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 3 SA
...4 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 14 SA
...4 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 5 SNA
...4 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 10 SA
...4 2007-000256 R-CHIP;1.6Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000336 R-CHIP;120Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000583 R-CHIP;22Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-000695 R-CHIP;3.3ohm,5%,1/10W,TP,1608 2 SNA
...4 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 SNA
Copyright© 1995-2012 SAMSUNG. All rights reserved. 5
Exploded Views and Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
...4 2007-000803 R-CHIP;36Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000857 R-CHIP;4.3Kohm,1%,1/10W,TP,1608 5 SNA
...4 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 5 SA
...4 2007-000979 R-CHIP;5.6Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-001116 R-CHIP;680ohm,1%,1/10W,TP,1608 1 SA
...4 2007-001125 R-CHIP;68Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-001168 R-CHIP;75ohm,5%,1/4W,TP,3216 1 SA
...4 2007-001288 R-CHIP;18ohm,5%,1/16W,TP,1005 4 SA
...4 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 5 SA
...4 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 2 SNA
...4 2007-001301 R-CHIP;68ohm,5%,1/16W,TP,1005 4 SA
...4 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 4 SA
...4 2007-003015 R-CHIP;2.2ohm,5%,1/16W,TP,1005 1 SNA
...4 2007-003022 R-CHIP;62ohm,5%,1/16W,TP,1005 26 SNA
...4 2007-007001 R-CHIP;3.9Kohm,5%,1/16W,TP,1005 1 SA
...4 2007-007095 R-CHIP;390ohm,5%,1/16W,TP,1005 1 SNA
...4 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 7 SNA
...4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 2 SNA
...4 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 13 SA
...4 2007-007238 R-CHIP;8.25Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007316 R-CHIP;3.3Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 33 SA
...4 2007-007331 R-CHIP;90.9Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007463 R-CHIP;1.1Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007517 R-CHIP;240ohm,1%,1/16W,TP,1005 4 SNA
...4 2007-007538 R-CHIP;56Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007942 R-CHIP;1Mohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007981 R-CHIP;180Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 5 SA
...4 2007-008133 R-CHIP;56.2Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-008137 R-CHIP;24Kohm,1%,1/16W,TP,1005 2 SNA
...4 2007-008275 R-CHIP;30Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
...4 2007-008426 R-CHIP;12.4Kohm,1%,1/10W,TP,1608 1 SNA
...4 2007-008649 R-CHIP;220ohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008807 R-CHIP;53.6Kohm,1%,1/16W,TP,1005 1 SA
6 Copyright© 1995-2012 SAMSUNG. All rights reserved.
Exploded Views and Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
...4 2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 SA
...4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1010 4 SA
...4 2011-001506 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,4P,TP,1 2 SA
...4 2011-001527 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,4P,TP, 6 SA
...4 2011-001587 R-NETWORK;100ohm,5%,1/16W,L,CHIP-V,4P,TP 3 SA
...4 AD480 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 4 SA
...4 AD480 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,TP,1005 3 SA
...4 AD480 2203-000425 C-CER,CHIP;0.018nF,5%,50V,C0G,TP,1005 3 SA
...4 AD480 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 13 SA
...4 AD480 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 6 SA
...4 AD480 2203-000530 C-CER,CHIP;2.7nF,10%,50V,X7R,TP,1005,- 1 SNA
...4 AD480 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,TP,2012 6 SA
...4 AD480 2203-000679 C-CER,CHIP;0.027nF,5%,50V,C0G,TP,1005 2 SA
...4 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005 2 SA
...4 AD480 2203-000812 C-CER,CHIP;0.033nF,5%,50V,C0G,TP,1005 6 SA
...4 AD480 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,TP,1005 3 SA
...4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,TP,1005 21 SNA
...4 AD480 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 2 SA
...4 AD480 2203-002711 C-CER,CHIP;100nF,10%,25V,X7R,TP,1608 7 SA
...4 AD480 2203-003039 C-CER,CHIP;0.008nF,0.25pF,50V,C0G,TP,100 2 SA
...4 AD480 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 5 SA
...4 AD480 2203-005344 C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,0.5T 3 SNA
...4 AD480 2203-005642 C-CER,CHIP;0.22nF,5%,50V,NP0,TP,1005 2 SNA
...4 AD480 2203-005968 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1005,0.5 2 SNA
...4 AD480 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 120 SA
...4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 11 SNA
...4 AD480 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,TP,1608 2 SA
...4 AD480 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608,0. 4 SA
...4 AD480 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 22 SC
...4 AD480 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,2012 26 SA
...4 AD480 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 16 SNA
...4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,TP,1608,- 10 SNA
...4 AD480 2203-006890 C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 20 SNA
...4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 9 SNA
...4 AD480 2203-007513 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 4 SA
...4 2703-000158 INDUCTOR-SMD;1uH,10%,2012,.4Ohm,50mA,45, 4 SA
...4 2703-001229 INDUCTOR-SMD;2.2uH,10%,1608,1.15Ohm,15mA 1 SC
...4 2703-001938 INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,1 3 SA
...4 2703-003713 INDUCTOR-SMD;1.5uH,20%,7366,0.015ohm,700 2 SA
...4 2703-003790 INDUCTOR-SMD;4.7uH,20%,8080,0.025ohm,450 1 SA
Copyright© 1995-2012 SAMSUNG. All rights reserved. 7
Exploded Views and Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
...4 2703-003930 INDUCTOR-SMD;4.7uH,20%,5050,0.072Ohm,245 4 SA
...4 2801-000102 CRYSTAL-SMD;12MHz,30ppm,12pF,100ohm,TP 1 SA
...4 2801-003326 CRYSTAL-SMD;24MHz,30ppm,28-ABX,20pF,50oh 1 SA
...4 2801-003856 CRYSTAL-SMD;0.032768MHz,20ppm,28-ACP,7pF 1 SNA
...4 2801-004775 CRYSTAL-SMD;12MHz,30ppm,16pF,30ohm,TP 1 SNA
...4 3301-000314 BEAD-SMD;120ohm,1608,TP,120ohm/100MHz 8 SNA
...4 3301-002039 BEAD-SMD;26ohm,1608,TP 33 SA
...4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,PL 1 SA
...4 3701-001856 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-S,AU 1 SA
...4 3701-001861 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A,AU 3 SA
...4 3707-001106 CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF 1 SA
...4 3708-003073 CONNECTOR-FPC/FFC/PIC;51P,0.5mm,SMD,AU,N 1 SNA
...4 EH01 3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5mm,AN 1 SA
...4 EH01 3711-008441 HEADER-BOARD TO CABLE;BOX,24P,2R,2mm,ANG 1 SA
...4 EH01 3711-008445 HEADER-BOARD TO CABLE;BOX,26P,2R,1.25mm, 1 SA
...4 3722-003226 JACK-PHONE;7P/1C,SN,BLK 1 SA
...4 3722-003229 JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,Au,1 1 SA
...4 3722-003457 JACK-USB;4P/1C,NI,BLK,A 3 SA
...4 3722-003546 JACK-PIN;5P+Screw hole,NI+SN,G,Y/BLU/RED 1 SA
...4 3722-003617 JACK-PHONE;14P/2C,SN,BLK,STRAIGHT,3.6PI, 1 SA
...4 ET01 BN40-00248A TUNER;DTVS20EIH035A,DTVS20EIH035A,VSB-Ha 1 SA
...4 BN41-01958A PCB MAIN;X12, LED 6 Series,FR-4,4,A,1.2T 1 SNA
...4 BN68-04746A LABEL-SMD;all model,POLY*,25.4mm x 9.53m 1 SNA
...4 BN97-07121A ASSY MICOM;X12-PM51-0008-121223,2013.02. 1 SNA
....5 1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4Mbit,SOIC,8P, 1 SNA
...4 BN97-07124A ASSY MICOM;T-MST12AKUC-1011.1,2013.03.05 1 SNA
....5 1107-002077 IC-NAND FLASH;KLM4G1FE3B-B001,4Gbyte,32G 1 SNA
....5 T0527 AA68-03540A LABEL-MICOM;ART PAPE,7X6mm 1 SNA
...4 BN97-07125A ASSY MICOM;T-MST12AKUS-1006,2013.02.28 1 SNA
....5 0903-001863 IC-MICROCONTROLLER;WT61P807-RG48,LQFP,48 1 SNA
...4 BN97-07278A ASSY MICOM-BLASTER;Blaster-Version:3.03, 1 SNA
....5 BN13-00063A PLD;MAXQ610J,QFN,44 1 SNA
..3 BN97-07144A ASSY DRM-KEY;HDCP(BN46-00110N),MAC(BN46- 1 SNA
...4 BN46-00109H KEY CODE-CERTIFI;MAC,TV/AV,General 1 SNA
...4 BN46-00110N KEY CODE-CERTIFI;MIRACAST,TV,X12 /X13 1 SNA
1 BN91-10880A ASSY LCM-AMLCD;BN95-01020A,CY-SF460DSLV5 1 SNA
.2 PANEL BN95-01020A PRODUCT LCD-AMLCD;LSF460HQ01,CY-SF460DSL 1 SA
..3 0203-001602 TAPE-OPP MASKING;#232,0.14,15,50000,YEL 0 SNA
..3 6001-002685 SCREW-MACHINE;CH,+,M3,L2,Cr 3+ Red,SWRCH 22 SNA
..3 6001-002757 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 11 SA
8 Copyright© 1995-2012 SAMSUNG. All rights reserved.
Exploded Views and Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
..3 T0527 AA68-03539A LABEL BAR CODE;65X40mm,ART PAPER 1 SNA
..3 BN02-00102B TAPE FILAMENT;UE7000,#893,0.15,25,50,WHI 0 SNA
..3 BN02-00145A TAPE PET-MASKKING;#8170,PET,0.1,25,BLK,Y 4 SNA
..3 BN68-03216A LABEL-STICKER;WW,Yupo Polyester,80X40,AV 1 SNA
..3 BN90-04872A ASSY MISC-BLU;SNB 7K,46 1 SNA
...4 6001-002759 SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH1 6 SA
...4 BN02-00191A TAPE ETC-SHEET FIXING;Y13 SNB,3M 1360C,0 3 SNA
...4 BN61-07382A HOLDER-SHEET;SNB 40/46/55,SUS416,0.2,32, 2 SNA
...4 BN61-09047A LGP-LED;46" SNB, Lenticular,PMMA,1018.7 1 SNA
...4 BN63-10443A SHEET-PRISM;MAS670F,SHEET,0.3,1018.5,575 1 SNA
...4 BN63-10444A SHEET-DBEF;DBEF D2 400,SHEET*,0.4,1018.5 1 SNA
...4 BN63-10445A SHEET-DIFFUSER;CH273M,SHEET*,0.22,1019.3 1 SNA
...4 BN63-10455A SHEET-REFLECTOR;SRG980C,SHEET*,0.31,1016 1 SNA
...4 BN96-25409A ASSY FRAME P-MOLD MIDDLE U;Y13 SNB 8K 46 1 SNA
....5 BN61-08761A FRAME-MOLD MIDDLE U;SNB 46,PC+GF,WHT,7.0 1 SNA
...4 BN96-25410A ASSY FRAME P-MOLD MIDDLE D;Y13 SNB 8K 46 1 SNA
....5 BN02-00046A TAPE DOUBLE FACE-MIDDLE;SNB 55",SK2100HE 1 SNA
....5 BN60-00677A SPACER-PANEL UD A;SNB 46",SSP 40 0.4T BL 2 SNA
....5 BN60-00678A SPACER-PANEL UD B;SNB 46",SSP 40 0.4T BL 2 SNA
....5 BN60-00685A SPACER-LGP UD;SNB 46",SI(SH0140U)0.4T+AT 2 SNA
....5 BN61-08760A FRAME-MOLD MIDDLE D;SNB 46,PC+GF,WHT,7.0 1 SNA
...4 BN96-25411A ASSY FRAME P-MOLD MIDDLE LR;Y13 SNB 8K 4 2 SNA
....5 BN60-00679A SPACER-PANEL LR;SNB 46",SSP 40 0.2T BLK 2 SNA
....5 BN60-00686A SPACER-LGP LR;SNB 46",SB00.188T+MKT-Z100 2 SNA
....5 BN61-08762A FRAME-MOLD MIDDLE LR;SNB 46,PC+GF,WHT,7. 2 SNA
...4 BN96-25445A ASSY MISC P-LED BAR;46inch SNB LED Bar L 1 SNA
...4 BN96-25446A ASSY MISC P-LED BAR;46inch SNB LED Bar R 1 SNA
...4 BN96-25513B ASSY MISC P-CHASSIS BOTTOM;Y13 SNB 7K 46 1 SNA
....5 6001-002759 SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH1 8 SA
....5 BN02-00040B TAPE DOUBLE FACE-DIFFUSER FIXING;NNB 32/ 1 SNA
....5 BN02-00102B TAPE FILAMENT;UE7000,#893,0.15,25,50,WHI 0 SNA
....5 BN02-00113A TAPE ETC-FIXING WIRE;Y12 NNB2,PET,0.05T, 1 SNA
....5 BN02-00154A TAPE THERMAL-GRAPHITE L;Y13 F7K SNB 46", 1 SNA
....5 BN02-00161A TAPE THERMAL-GRAPHITE R;Y13 F7K SNB 46", 1 SNA
....5 BN02-00194A TAPE THERMAL-GRAPHITE BEADING;Y13 F7K SN 2 SNA
....5 BN39-01748A LEAD CONNECTOR-LED SNB;SNB 46inch L LED 1 SNA
....5 BN39-01749A LEAD CONNECTOR-LED SNB;SNB 46inch R LED 1 SNA
....5 BN61-07432A HOLDER-LGP;SNB,EGI,3.0,3.9 2 SNA
....5 BN61-08345A BRACKET-WALL MOUNT;NNB,SNB 32/40/46/55,S 4 SNA
....5 BN62-00354A INSULATION CABI-S-PCB L;SNB 46",MTU-100, 1 SNA
Copyright© 1995-2012 SAMSUNG. All rights reserved. 9
Exploded Views and Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
....5 BN62-00354B INSULATION CABI-S-PCB R;SNB 46",MTU-100, 1 SNA
....5 BN62-00357A INSULATION CABI-PD BOARD;SNB 46",55",PC- 1 SNA
....5 CC02 BN64-02276A CHASSIS-BOTTOM;SNB 46,AL 3104,1.0,1028.4 1 SNA
..3 TCON BN95-00964A ASSY T CON;LSF460HQ01,46 FHD 240Hz 7K 1 SA
...4 BN62-00371A HEAT SINK-PS;F6000,A1050,ANODIZING,110*6 1 SNA
...4 BN62-00372A HEAT SINK-PS;F7000/8000,A5052*,BLACK,30* 1 SNA
...4 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...4 BN97-07002A ASSY SMD;BN95-00863A 1 SNA
....5 0202-001899 SOLDER-CREAM;M705-GRN360-K2-VT,25-36um,S 2 SNA
....5 DS01A 0401-001192 DIODE-SWITCHING;MMBD7000LT1,100V,200mA,S 2 SA
....5 0403-001172 DIODE-ZENER;UDZ6.8B,6.65-6.93V,200MW,SOD 1 SNA
....5 0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000mA,SOD 2 SA
....5 0404-001643 DIODE-SCHOTTKY;B360A,60V,3000mA,SMA,TP 1 SA
....5 0406-001317 DIODE-TVS;SMAJ14A,15.6/-/17.2V,400W,SMA 1 SNA
....5 0406-001324 DIODE-TVS;RClamp1502B,16.7/-/-V,200W,SOT 1 SNA
....5 0406-001438 DIODE-TVS;SMCJ14A,15.6/-/17.2V,1500W,DO- 1 SA
....5 0406-001445 DIODE-TVS;RClamp7512N,2.7/2.8/2.9,300W,S 2 SA
....5 0406-001483 DIODE-TVS;ESD5B5.0ST1G,5,8V/- /7.8V,50W, 2 SA
....5 0406-001556 DIODE-TVS;NUP4114UCW1,6/-/-V,180W,SC-88 3 SA
....5 0406-001578 DIODE-TVS;P4SMAJ40A,44.4,51.1,400W,SMA 1 SA
....5 0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350mW,SOT-2 3 SA
....5 0502-001331 TR-POWER;NSS30100LT1G,PNP,310mW,SOT-23,T 2 SA
....5 0502-001345 TR-POWER;FCX491A,NPN,1000mW,SOT89,TR,900 4 SA
....5 0502-001346 TR-POWER;FCX591A,PNP,1000mW,SOT89,TR,30/ 4 SA
....5 0505-002826 FET-SILICON;ZXMN6A07F,N,60V,1A,0.4ohm,0. 1 SNA
....5 0505-003224 FET-SILICON;AO6405,P,-30V,-5A,0.052ohm,2 1 SA
....5 EL02 0601-002037 LED;SMD(TOP VIEW),BLUE,1.6x0.8mm,465/470 3 SA
....5 0801-003292 IC-CMOS LOGIC;7WB66,Bus Switch,MAB08A,8P 1 SA
....5 1105-002227 IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM 2 SA
....5 1201-003130 IC-OP AMP;iML2811SEC,TDFN-EP,TP,8P,3x3mm 1 SA
....5 1203-006130 IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 1 SA
....5 1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 1 SA
....5 1203-007193 IC-DC/DC CONVERTER;RT6905BGQW,QFN,48P,7x 1 SNA
....5 1203-007552 IC-DC/DC CONVERTER;TPS56921PWPR,HTSSOP,2 1 SA
....5 1203-007608 IC-DC/DC CONVERTER;ISL24827,QFN,48Z30,7x 1 SA
....5 1204-003406 IC-VIDEO PROCESS;SDP1203,HSFCBGA,756Z30, 1 SA
....5 IS01 1209-002183 IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9x1 1 SA
....5 2007-000040 R-CHIP;150ohm,1%,1/10W,TP,1608 2 SNA
....5 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 2 SA
....5 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 5 SA
10 Copyright© 1995-2012 SAMSUNG. All rights reserved.
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$39.99
Viewed 28 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$39.99
This service manual and repair guide is an essential resource for troubleshooting and repairing the Samsung UN65F7100, UN65F7100AF, UN65F7100AFXZA 3D Smart LED TV. It contains in-depth information on safety and precautions, product specifications, disassembly and reassembly, troubleshooting, adjustments, wiring diagrams, board layouts, block diagrams, exploded views, and a parts list catalog. Additionally, it includes the official Technical Training Guide to further enhance your technical skills related to this television.
The manual is meticulously detailed and includes illustrated pictures and step-by-step instructions for the best possible repair and servicing of the device. It is the official and complete service repair manual in PDF format, ensuring the highest resolution for quality printing. With instant access upon payment, there are no shipping costs or waiting for postal delivery, allowing you to commence repairs within seconds.
Specifications:
- Language: English
- Files: Service Manual (PDF) + Technical Training Guide (PPT)
- Pages: 146 + 88
Whether you are a professional technician, mechanic, or a DIY enthusiast, this comprehensive manual is the same resource used by official Samsung technicians and maintenance employees, guaranteeing that your repair, service, and maintenance tasks are carried out accurately and effectively.
