Exploded Views and Parts List
1. Exploded View & Part List

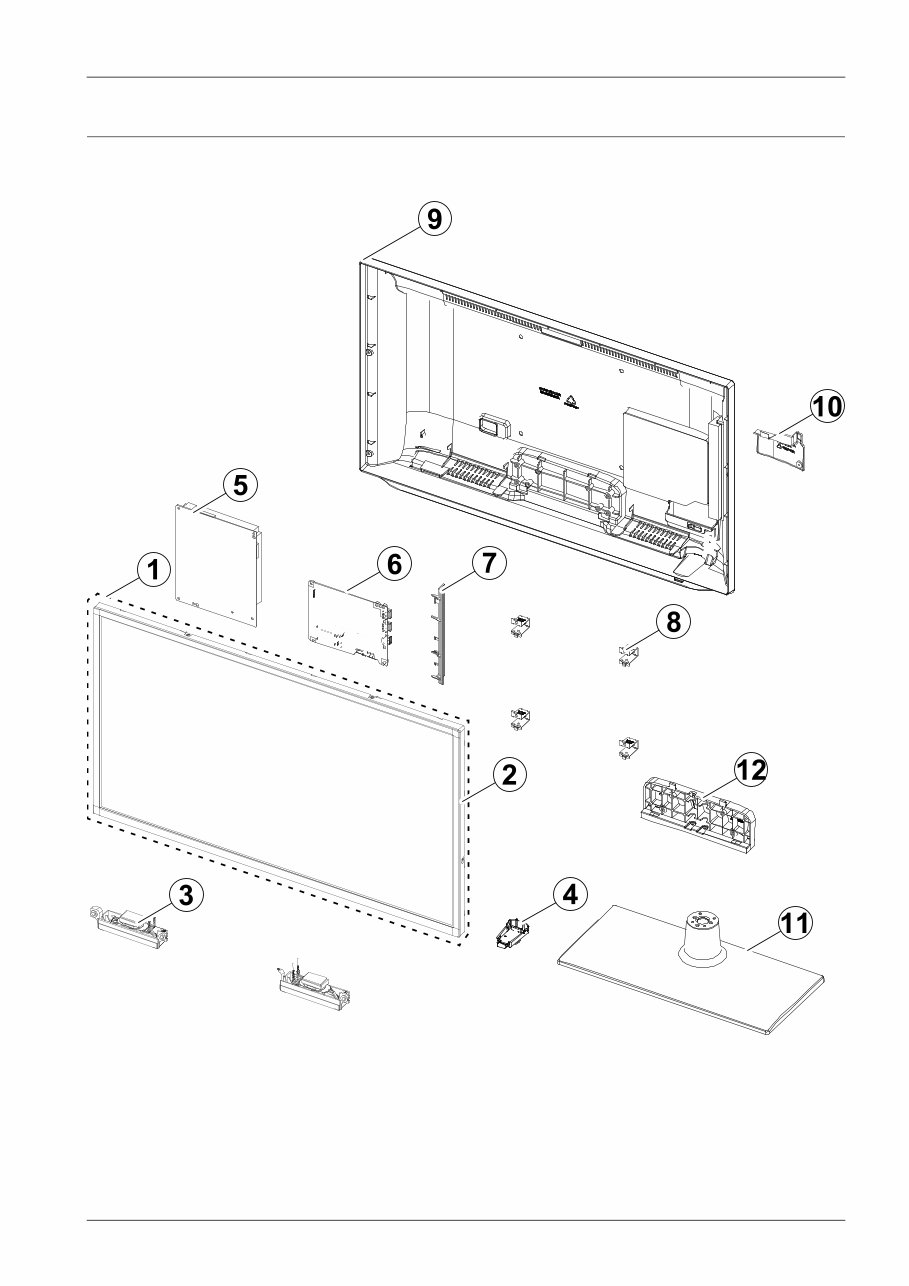

Exploded View
Copyright© 1995-2012 SAMSUNG. All rights reserved. 1
Exploded Views and Parts List
Parts List
No. Parent Lvl. Loc. Material Code Description & Specification SNA Qty.
1 BN91-08712A 2 BN95-00587A PRODUCT LCD-AMLCD; 5k 40"
Direct-LED,LTJ4
SA 1
2 BN95-00587A 3 BN96-21617B ASSY MISC P-CHASSIS TOP; Y12 Full
LED, 40
SNA 1
3 BN91-06929E 2 SP01A BN96-21669B ASSY SPEAKER P;
6ohm,4pin,10W,Enclosure t
SA 1
4 BN91-06929E 2 BN96-22413B ASSY BOARD P-JOG SWITCH & IR;
UN40E5000,F
SA 1
5 BN91-06929E 2 BN44-00496A DC VSS-LED TV PD BD;
PD40AVF_CSM,PSLF760C
SA 1
6 BN91-08843D 2 M0014 BN94-05569D ASSY PCB MAIN; UE5L, E5000 SA 1
7 BN91-06929E 2 BN61-07947A HOLDER-SIDE, AV;
UE4000,26/32/40,UO,HIPS,
SNA 1
8 BN91-06929E 2 CB20 BN61-07952A BRACKET-WALL; UE5000
40",SECC,T1.2
SNA 4
9 BN90-03824A 2 BN96-22203A ASSY COVER P-MIDDLE REAR;
UE5000,40,UO,PC
SA 1
10 BN90-03824A 2 FC05 BN63-09202A COVER-JACK;
UE5000,40,ABS+PC,V0,BK0008
SNA 1
11 BN90-03831A 2 SB04A BN96-21736E ASSY STAND P-BASE;
UE5000,40/46,W/W,ABS,H
SA 1
12 BN90-03831A 2 BN96-21742A ASSY GUIDE P-STAND;
UE5000,40/46/55,UO,PC
SA 1
2 Copyright© 1995-2012 SAMSUNG. All rights reserved.
Exploded Views and Parts List
2. Electrical Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
UN40EH5000FXZA (TS02)
1 BN90-03824A ASSY COVER MIDDLE-REAR;UEH5000,40,UO 1 SNA
.2 6001-002755 SCREW-MACHINE;BH,+,M3.0,L6.0,ZPC(BLK),SW 4 SA
.2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 10 SA
.2 T0527 AA68-03539A LABEL BAR CODE;65X40mm,ART PAPER 1 SNA
.2 FC05 BN63-09202A COVER-JACK;UE5000,40,ABS+PC,V0,BK0008 1 SNA
.2 BN96-22203A ASSY COVER P-MIDDLE REAR;UE5000,40,UO,PC 1 SA
..3 BN63-07556T COVER-SHEET;TOC,urethane,T0.068,W22mm,10 2 SNA
..3 BN63-09080A COVER-MIDDLE REAR;UE5000 40,UO,PC+ABS G/ 1 SNA
..3 T0071 BN64-02036A INLAY-TERMINAL;UE6000 46",PS SHEET,T0.3, 1 SNA
1 S001A BN90-03831A ASSY STAND;UEH5000,40/46,UO 1 SNA
.2 SB04A BN96-21736E ASSY STAND P-BASE;UE5000,40/46,W/W,ABS,H 1 SA
..3 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 3 SA
..3 SCREW 6003-001785 SCREW-TAPTYPE;FH,+,B,M4,L8,ZPC(BLK),SWRC 6 SA
..3 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0 SNA
..3 SG01 BN61-08036A GUIDE-STAND NECK;UE5000,40,PC+G/F 20%,V2 1 SNA
..3 BN61-08105A BRACKET-STAND BOTTOM;UE5000 40/46",SECC, 1 SNA
..3 CCM1 BN63-02183D COVER-SHEET;Rhcm,PE Vinyl,T0.05,680mm,20 0 SNA
..3 BN63-09084A COVER-STAND, BASE;UE5000,40/46,W/W,ABS,H 1 SNA
..3 BN68-04116A LABEL-BASE;A/P100G,0.08,20X,70mm,White,O 1 SNA
..3 BN73-00313A RUBBER-FOOT;UD4000 19,RUBBER,13*13,T2.0, 7 SNA
.2 BN96-21742A ASSY GUIDE P-STAND;UE5000,40/46/55,UO,PC 1 SA
..3 T0524 6902-001063 BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE 1 SNA
..3 SG03 BN61-07941A GUIDE-STAND;UE5000/6000,40/46/55,W/W,PC+ 1 SNA
..3 BN68-04027A MANUAL FLYER-02,STAND GUIDE;U4000(32),SA 1 SNA
..3 BN68-04116B LABEL-BASE;A/P100G,0.08,20X,70mm,Dark Gr 1 SNA
..3 BN96-12031E ASSY ACCESSORY-SCREW;10 LCD-TV,6003-0010 1 SNA
...4 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 8 SA
...4 T0524 6902-000341 BAG PE;LDPE,T0.05,L90,W70,TRP,,,PE MARK 1 SNA
1 BN91-06929E ASSY SHIELD;UE5L,E5000 1 SNA
.2 6001-002756 SCREW-MACHINE;BH,+,M3.0,L6.0,ZPC(WHT),SW 12 SA
.2 BN02-00102A TAPE FILAMENT;UE7000,#893,0.15,25,55,WHI 0 SNA
.2 EC13 BN39-01632C LEAD CONNECTOR;UN40D5000FXZA,Flat Connec 1 SA
.2 BN44-00496A DC VSS-LED TV PD BD;PD40AVF_CSM,PSLF760C 1 SA
.2 BN61-07947A HOLDER-SIDE, AV;UE4000,26/32/40,UO,HIPS, 1 SNA
.2 CB20 BN61-07952A BRACKET-WALL;UE5000 40",SECC,T1.2 4 SNA
.2 BN67-00363A RUBBER-SILICON;UN40EH5000FXZA,SILICON+PO 1 SNA
.2 FL06 BN96-17116Z ASSY CABLE P-FFC;UN40EH5000FXZA,FFC,354m 1 SA
Copyright© 1995-2012 SAMSUNG. All rights reserved. 3
Exploded Views and Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
.2 SP01A BN96-21669B ASSY SPEAKER P;6ohm,4pin,10W,Enclosure t 1 SA
.2 BN96-22413B ASSY BOARD P-JOG SWITCH & IR;UN40E5000,F 1 SA
1 BN91-08712A ASSY LCM-AMLCD;BN95-00587A,LTJ400HM08-V 1 SNA
.2 BN95-00587A PRODUCT LCD-AMLCD;5k 40" Direct-LED,LTJ4 1 SA
..3 6001-002757 SCREW-MACHINE;BH,+,M3.0,L4.0,ZPC(WHT),SW 3 SA
..3 T0527 AA68-03539A LABEL BAR CODE;65X40mm,ART PAPER 1 SNA
..3 BN63-09395A COVER-T CON;Y12 Direct-LED (60hz),FC1811 1 SNA
..3 BN68-03216A LABEL-STICKER;WW,Yupo Polyester,80X40,AV 1 SNA
..3 BN90-03650A ASSY MISC-BLU;F-LED 1 SNA
...4 BN61-07891A SUPPORT-PLATE;Y12 FULL LED,PC,Clear 2 SNA
...4 BN61-08058A LGP-DIFFUSESR PLATE;40" Diffuser Plate,P 1 SNA
...4 BN61-08161A HOLDER-LED-PCB;Direct-LED,PC,white 30 SNA
...4 BN63-09221A SHEET-REFFLECTOR;40",F-LED, SY70 188,SHE 1 SNA
...4 BN63-09484A SHEET-DIFFUSER;40inch DLED UTE24B-10E(6) 1 SNA
...4 BN63-09485A SHEET-DIFFUSER;40inch DLED UTE24B-10B(0) 1 SNA
...4 BN96-21477A ASSY MISC P-LED BAR L;40" Direct_Left,G/ 5 SNA
...4 BN96-21478A ASSY MISC P-LED BAR R;40" Direct_Right,G 5 SNA
...4 BN96-21613A ASSY MISC P-CHASSIS BOTTOM;Y12 Full LED 1 SNA
....5 BN02-00094A TAPE PET;Y12 F-LED,MT-PFR,T 0.05,W30,L40 1 SNA
....5 BN02-00102A TAPE FILAMENT;UE7000,#893,0.15,25,55,WHI 0 SNA
....5 EC13 BN39-01588A LEAD CONNECTOR;40" Direct wire-harness,F 1 SNA
....5 BN61-08161A HOLDER-LED-PCB;Direct-LED,PC,white 2 SNA
....5 BN63-09500A GASKET-EMI;Y12 Direct LED,Conductive Fab 4 SNA
....5 CC02 BN64-01896A CHASSIS-BOTTOM;Y12 FULL-LED 40",EGI-SECC 1 SNA
....5 BN96-21486A ASSY MISC P-SUB PCB;40" Sub PCB,2pin*5ea 1 SNA
...4 BN96-21622A ASSY FRAME P-MOLD MIDDLE U;Y12 Full LED 1 SNA
....5 BN60-00453A SPACER-PANEL (UD);F-LED 40,MGT-30DG,L892 2 SNA
....5 BN60-00454A SPACER-PANEL (LR);F-LED 40,MGT-30DG,L505 2 SNA
....5 BN61-07887A FRAME-MOLD MIDDLE;Y12 FULL_LED 40",PC+GF 1 SNA
..3 BN95-00570A ASSY T CON;FHD,60Hz 40,LSJ400HM05-S 1 SA
...4 T0756 AA68-01018A LABEL-PQS;50mmX,13,WHITE 1 SNA
...4 BN97-06362A ASSY SMD;BN95-00570A 1 SNA
....5 0202-001477 SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/3A 1 SNA
....5 D0254 0404-001314 DIODE-SCHOTTKY;B260A,60V,2000mA,SMA,TP 1 SNA
....5 D0254 0404-001373 DIODE-SCHOTTKY;PD3S160,60V,1000mA,PowerD 2 SNA
....5 T0139 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 1 SA
....5 0406-001317 DIODE-TVS;SMAJ14A,15.6/-/17.2V,400W,SMA 1 SNA
....5 0406-001445 DIODE-TVS;RClamp7512N,2.7/2.8/2.9,300W,S 2 SA
....5 Q613 0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350mW,SOT-2 1 SA
....5 0502-001331 TR-POWER;NSS30100LT1G,PNP,310mW,SOT-23,T 2 SA
4 Copyright© 1995-2012 SAMSUNG. All rights reserved.
Exploded Views and Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
....5 0502-001345 TR-POWER;FCX491A,NPN,1000mW,SOT89,TR,900 3 SA
....5 0502-001346 TR-POWER;FCX591A,PNP,1000mW,SOT89,TR,30/ 2 SA
....5 0505-002485 FET-SILICON;FDC658AP,P,-30V,-4A,0.075ohm 1 SA
....5 0505-002826 FET-SILICON;ZXMN6A07F,N,60V,1A,0.4ohm,0. 1 SNA
....5 1203-006905 IC-VOL. GENERATOR;iML7939AKD-TR,TQFN,48P 1 SNA
....5 1203-006999 IC-DC/DC CONVERTER;SM4152,QFN,48P,7x7mm, 1 SNA
....5 1404-001152 THERMISTOR-NTC;10KOHM,5%,3380K,1MW/C,TP 1 SA
....5 DR1 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 4 SA
....5 PR4 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 2 SA
....5 KAR13 2007-000060 R-CHIP;100Kohm,1%,1/10W,TP,1608 1 SNA
....5 R104 2007-000063 R-CHIP;150Kohm,1%,1/10W,TP,1608 1 SNA
....5 ND51C2 2007-000066 R-CHIP;20Kohm,1%,1/10W,TP,1608 1 SNA
....5 KR24 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 2 SNA
....5 KAR21 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 16 SA
....5 R510 2007-000108 R-CHIP;510Kohm,5%,1/10W,TP,1608 1 SNA
....5 R105 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 4 SA
....5 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 1 SA
....5 2007-000231 R-CHIP;1.3Kohm,1%,1/10W,TP,1608 1 SA
....5 MR9 2007-000455 R-CHIP;18Kohm,1%,1/10W,TP,1608 1 SA
....5 PRS34 2007-000516 R-CHIP;2.7Kohm,1%,1/10W,TP,1608 3 SA
....5 HDR7 2007-000570 R-CHIP;220ohm,1%,1/10W,TP,1608 3 SA
....5 JR11 2007-000614 R-CHIP;24Kohm,1%,1/10W,TP,1608 2 SNA
....5 PR2 2007-000651 R-CHIP;27Kohm,1%,1/10W,TP,1608 1 SA
....5 R945 2007-000726 R-CHIP;300ohm,1%,1/10W,TP,1608 1 SA
....5 V8932 2007-000857 R-CHIP;4.3Kohm,1%,1/10W,TP,1608 1 SNA
....5 HR10 2007-000962 R-CHIP;5.1Kohm,1%,1/10W,TP,1608 5 SA
....5 PR12 2007-000979 R-CHIP;5.6Kohm,1%,1/10W,TP,1608 1 SA
....5 CER42 2007-000999 R-CHIP;510ohm,1%,1/10W,TP,1608 1 SA
....5 AHR41 2007-001175 R-CHIP;8.2Kohm,1%,1/10W,TP,1608 1 SA
....5 R3301 2007-001433 R-CHIP;12Kohm,1%,1/10W,TP,1608 2 SA
....5 2007-002768 R-CHIP;6.2Kohm,1%,1/10W,TP,1608 1 SA
....5 2007-002900 R-CHIP;11Kohm,1%,1/10W,TP,1608 2 SNA
....5 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 10 SNA
....5 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 2 SA
....5 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 12 SNA
....5 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005 2 SA
....5 2007-007310 R-CHIP;8.2Kohm,1%,1/16W,TP,1005 1 SA
....5 2007-007645 R-CHIP;51.1ohm,1%,1/10W,TP,1608 1 SA
....5 V8642 2007-007768 R-CHIP;13Kohm,1%,1/10W,TP,1608 1 SA
....5 2007-007798 R-CHIP;10ohm,1%,1/16W,TP,1005 16 SA
Copyright© 1995-2012 SAMSUNG. All rights reserved. 5
Exploded Views and Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
....5 S0F1352 2007-008596 R-CHIP;0.1ohm,1%,1/4W,TP,3216 1 SC
....5 2007-008779 R-CHIP;0ohm,1%,1/16W,TP,1005 4 SA
....5 AC139 2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1608 2 SA
....5 KAC5 2203-001126 C-CER,CHIP;0.68nF,10%,50V,X7R,TP,1608 1 SNA
....5 C627 2203-001697 C-CER,CHIP;0.082nF,5%,50V,NP0,TP,1608 2 SNA
....5 AVC08 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608 1 SNA
....5 PPC2 2203-005148 C-CER,CHIP;100nF,10%,16V,X7R,TP,1608 1 SA
....5 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 5 SA
....5 C236 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,TP,1608 2 SNA
....5 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,0.5 35 SA
....5 AD480 2203-006320 C-CER,CHIP;2200nF,10%,16V,X7R,TP,2012 1 SNA
....5 AD480 2203-006698 C-CER,CHIP;1000nF,10%,25V,X7R,TP,1608,0. 11 SA
....5 AD480 2203-006960 C-CER,CHIP;1000nF,10%,50V,X7R,TP,2012 2 SNA
....5 AD480 2203-007132 C-CER,CHIP;10000nF,10%,25V,X7R,TP,3216,1 3 SA
....5 AD480 2203-007193 C-CER,CHIP;10000nF,10%,6.3V,X7R,TP,2012 3 SA
....5 AD480 2203-007240 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,1608, 3 SA
....5 AD480 2203-007306 C-CER,CHIP;10000nF,10%,25V,X5R,TP,2012,1 3 SNA
....5 AD480 2203-007423 C-CER,CHIP;10000nF,10%,35V,X7R,TP,3216 7 SA
....5 AD480 2203-007424 C-CER,CHIP;4700nF,10%,50V,X7R,TP,3216 5 SA
....5 2409-001240 C-ORGANIC,SMD;33uF,20%,25V,LR,TP,7343(1. 1 SNA
....5 2703-003747 INDUCTOR-SMD;22uH,20%,6060 2 SA
....5 2703-003803 INDUCTOR-SMD;4.7uH,20%,6060 1 SA
....5 2703-003862 INDUCTOR-SMD;10uH,20%,6060 2 SA
....5 2703-003867 INDUCTOR-SMD;22uH,20%,4040 1 SA
....5 DR32 3301-000314 BEAD-SMD;120ohm,1608,TP,120ohm/100MHz 4 SNA
....5 3301-001864 BEAD-SMD;100ohm,1608,TP,55ohm/29MHz,145o 11 SA
....5 3601-001038 FUSE-SURFACE MOUNT;125V,3A,FAST-ACTING,C 1 SA
....5 3708-002656 CONNECTOR-FPC/FFC/PIC;68P,0.5mm,SMD-A,Au 2 SA
....5 HB01A 3711-005601 HEADER-BOARD TO CABLE;BOX,8P,1R,2mm,SMD- 1 SA
....5 HB01A 3711-005925 HEADER-BOARD TO CABLE;BOX,51P,1R,0.5mm,S 1 SA
....5 BN13-00044A IC ASIC;LPFC041T0A-Q1,32,40,46 60Hz FHD 1 SA
....5 BN41-01797A PCB MAIN;2012 60Hz Tcon,FR-4,2,1.2T,170 1 SNA
....5 BN68-02775A LABEL-SMD;ALL MODELS,8.5,21,COMMON 1 SNA
....5 BN97-06436A ASSY MICOM;1103-00132(ICE1),400HM05,J400 1 SNA
.....6 1103-001321 IC-EEPROM;24WC128,128Kbit,16Kx8,SOP,8P,5 1 SA
....5 BN97-06450A ASSY MICOM;LSJ400HM05,400HM05,2011.10.10 1 SNA
.....6 1103-001254 IC-EEPROM;24C02,2Kbit,256x8,TSSOP,8P,4.4 1 SA
..3 BN96-21517A ASSY OPEN CELL;LSJ400HM05-E,8bit,40 INCH 1 SNA
...4 BN81-07433A A/S-ADHESIVE-A.C.F;ADHESIVE-A.C.F,1-ADHE 1 SNA
...4 BN81-07435A A/S-ADHESIVE-A.C.F;ADHESIVE-A.C.F,2-ADHE 1 SNA
6 Copyright© 1995-2012 SAMSUNG. All rights reserved.
Exploded Views and Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
...4 BN81-07440A A/S-ASSY PCB-SOURCE LEFT;ASSY PCB-SOURCE 1 SNA
...4 BN81-07453A A/S-ASSY PCB-SOURCE RIGHT;ASSY PCB-SOURC 1 SNA
...4 BN81-07470A A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,2- 1 SNA
...4 BN81-07483A A/S-POLARIZER-C/F;POLARIZER-C/F,2-POLARI 1 SNA
...4 BN81-07491A A/S-POLARIZER-TFT;POLARIZER-TFT,2-POLARI 1 SNA
..3 BN96-21617B ASSY MISC P-CHASSIS TOP;Y12 Full LED, 40 1 SNA
...4 BN60-00446A SPACER-GASKET;Full-LED,FG200A,L25,t0.2,W 4 SNA
...4 BN60-00451A SPACER-TOP (UD);Full-LED 40'',FG200A,L90 2 SNA
...4 BN60-00452A SPACER-TOP (LR);Full-LED 40'',FG200A,L52 2 SNA
...4 BN60-00473A SPACER-BLOCK;Full-LED 40'',MTU0.6T(R),L8 1 SNA
...4 BN63-07229T COVER-SHEET;Y12 F-LED,urethane,T0.052,W 4 SNA
...4 AC157 BN64-01901B CHASSIS-TOP;Y12 FULL_LED 40",PC + GF,Bla 1 SNA
1 M0017 BN91-08843D ASSY CHASSIS;UE5L, E5000 1 SNA
.2 M0014 BN94-05569D ASSY PCB MAIN;UE5L, E5000 1 SA
..3 T0756 AA68-01018A LABEL-PQS;50mmX,13,WHITE 1 SNA
..3 BN97-05369B ASSY SMD;UE5L,E5000 1 SNA
...4 0202-001477 SOLDER-CREAM;LST309-M,D20~45um,96.5Sn/3A 3 SNA
...4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 SA
...4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 4 SNA
...4 0403-001785 DIODE-ZENER;NZH5V1B,4.94/5.2V,500mW,SOD- 1 SA
...4 D0254 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 1 SA
...4 T0139 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 1 SA
...4 SD3 0407-000114 DIODE-SWITCHING;KDS184,80V,100mA,SOT-23, 1 SNA
...4 Q101 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 9 SC
...4 CEQ2 0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 2 SA
...4 0505-002694 FET-SILICON;SI3443CDV,P,-20V,-4.7A,0.06o 1 SC
...4 1006-001509 IC-DRIVER/RECEIVER;MAX3222ECPWR,TSSOP,20 1 SA
...4 IC112 1103-001310 IC-EEPROM;24LC02B,256X8BIT,SOIC,8P,3.91X 2 SNA
...4 1103-001448 IC-EEPROM;M24M01-HRMN6TP,1Mbit,256x8,SOP 1 SA
...4 1105-002227 IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM 1 SA
...4 1201-003333 IC-POWER AMP;NTP-7412S,MLF,48P,7x7mm,DUA 1 SNA
...4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
...4 1203-006017 IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 1 SA
...4 T0087 1203-006109 IC-POSI.FIXED REG.;S-1206B33-M3T1G,SOT-2 1 SA
...4 T0087 1203-006130 IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 1 SA
...4 T0087 1203-006135 IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T 1 SA
...4 T0087 1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T 1 SA
...4 IC012 1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 1 SA
...4 1203-006710 IC-DC/DC CONVERTER;RT8016L-GQW,WQFN,8P,1 1 SA
...4 1203-007080 IC-DC/DC CONVERTER;AOZ1051PI,SO-8,8P,4.9 2 SA
Copyright© 1995-2012 SAMSUNG. All rights reserved. 7
Exploded Views and Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
...4 1204-003313 IC-DECODER;SEMS23,LFBGA,568P,20.2x20.2mm 1 SA
...4 1205-003479 IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9x1.6 1 SA
...4 1405-001271 VARISTOR;35V,20Vdc,5A,1.0x0.5x0.6mm,TP,1 8 SA
...4 MR604 2007-000137 R-CHIP;2Kohm,5%,1/16W,TP,1005 7 SNA
...4 R105 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 14 SA
...4 AR49 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA
...4 MR306 2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 1 SA
...4 R319 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 29 SA
...4 R104 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 22 SA
...4 HDR9 2007-000152 R-CHIP;20Kohm,5%,1/16W,TP,1005 1 SNA
...4 MR36 2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 5 SNA
...4 AR43 2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 1 SA
...4 MR13 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 6 SNA
...4 DR39 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 3 SA
...4 MR16 2007-000168 R-CHIP;470Kohm,5%,1/16W,TP,1005 1 SNA
...4 R509 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 SA
...4 R111 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 5 SA
...4 HDR17 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 2 SNA
...4 R338 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 4 SA
...4 VR8 2007-000256 R-CHIP;1.6Kohm,1%,1/10W,TP,1608 1 SA
...4 R809 2007-000475 R-CHIP;1Mohm,1%,1/10W,TP,1608 1 SA
...4 R726 2007-000695 R-CHIP;3.3ohm,5%,1/10W,TP,1608 4 SNA
...4 R124 2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 1 SNA
...4 DR37 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 2 SA
...4 HR10 2007-000962 R-CHIP;5.1Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 2 SA
...4 OTR1 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 7 SA
...4 DR1 2007-001301 R-CHIP;68ohm,5%,1/16W,TP,1005 4 SA
...4 R16 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 2 SNA
...4 R326 2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 1 SNA
...4 2007-001333 R-CHIP;18Kohm,5%,1/16W,TP,1005 2 SA
...4 PR24 2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 2 SA
...4 DR4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 7 SA
...4 2007-007313 R-CHIP;6.8Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 13 SA
...4 2007-007352 R-CHIP;130Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007463 R-CHIP;1.1Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007517 R-CHIP;240ohm,1%,1/16W,TP,1005 1 SNA
...4 MR11 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 3 SA
8 Copyright© 1995-2012 SAMSUNG. All rights reserved.
Exploded Views and Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
...4 2007-008275 R-CHIP;30Kohm,1%,1/16W,TP,1005 2 SNA
...4 2007-008649 R-CHIP;220ohm,1%,1/16W,TP,1005 1 SNA
...4 DRP29 2011-000515 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,8P,TP, 1 SA
...4 2011-001264 R-NETWORK;10ohm,5%,1/16W,L,CHIP,8P,TP,2. 4 SNA
...4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1010 2 SA
...4 2011-001506 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,4P,TP,1 1 SA
...4 2011-001587 R-NETWORK;100ohm,5%,1/16W,L,CHIP-V,4P,TP 1 SA
...4 PC43 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 5 SA
...4 MC2 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,TP,1005 2 SA
...4 C254 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 9 SA
...4 C507 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 4 SA
...4 V1233 2203-000575 C-CER,CHIP;220nF,10%,25V,X7R,TP,2012 3 SA
...4 AD480 2203-000679 C-CER,CHIP;0.027nF,5%,50V,C0G,TP,1005 2 SA
...4 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005 6 SA
...4 DC25 2203-000812 C-CER,CHIP;0.033nF,5%,50V,C0G,TP,1005 3 SA
...4 AD480 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,TP,1005 3 SA
...4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,TP,1005 9 SNA
...4 AD480 2203-002525 C-CER,CHIP;.56nF,10%,50V,X7R,TP,1005 2 SA
...4 AC2 2203-002711 C-CER,CHIP;100nF,10%,25V,X7R,TP,1608 4 SA
...4 AD480 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 1 SA
...4 AAC1 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 9 SA
...4 AD480 2203-005344 C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,0.5T 2 SNA
...4 VC37 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 70 SA
...4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 8 SNA
...4 C102 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,0.5 2 SA
...4 JC10 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,TP,1608 2 SA
...4 C125 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 12 SC
...4 HE4 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,2012 13 SA
...4 HDC11 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 9 SNA
...4 C23 2203-006890 C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 20 SNA
...4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 4 SNA
...4 AD480 2203-007513 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 2 SA
...4 2503-001051 C-NETWORK;100nFx4,20%,16V,2012 1 SA
...4 T0052 2703-002238 INDUCTOR-SMD;1UH,5%,2012 2 SNA
...4 T0052 2703-003149 INDUCTOR-SMD;2.2uH,20%,5050 2 SA
...4 2703-003343 INDUCTOR-SMD;2.2uH,20%,2520 1 SNA
...4 2703-003930 INDUCTOR-SMD;4.7uH,20%,5050 4 SA
...4 X202 2801-003326 CRYSTAL-SMD;24MHz,30ppm,28-ABX,20pF,50oh 1 SA
...4 T0568 3301-002039 BEAD-SMD;26ohm,1608,TP 35 SA
...4 3701-001762 CONNECTOR-HDMI;19P,2ROW,FEMALE,SMD-A,AU 2 SA
Copyright© 1995-2012 SAMSUNG. All rights reserved. 9
Exploded Views and Parts List
Level Loc. Part Code Description & Specification Qty. SA/SNA
...4 3707-001106 CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF 1 SA
...4 HB01A 3711-005925 HEADER-BOARD TO CABLE;BOX,51P,1R,0.5mm,S 1 SA
...4 3711-007569 CONNECTOR-HEADER;BOX,14P,2R,2.0mm,DIP,SN 1 SA
...4 EH01 3711-007582 HEADER-BOARD TO CABLE;BOX,8P,1R,2.0mm,AN 1 SA
...4 3711-007585 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,ANGLE-D 1 SA
...4 3722-003213 JACK-PIN;J/B 5P + Screw hole,NI+SN,BLK,S 1 SA
...4 3722-003225 JACK-USB;4P/1C,Au,BLK,SMD-A(DIP),A 1 SA
...4 3722-003226 JACK-PHONE;7P/1C,SN,BLK 2 SA
...4 ET01 BN40-00225A TUNER;DTVD20FVL084A,DTVD20FVL084A,VSBHal 1 SA
...4 BN41-01778A PCB MAIN;FR-4,4,1.2T,157*122,1 1 SNA
...4 BN68-02775A LABEL-SMD;ALL MODELS,8.5,21,COMMON 1 SNA
...4 BN97-06412A ASSY MICOM;T-MX9FAUSC-1006.2,2012.02.07 1 SNA
....5 1107-002101 IC-NOR FLASH;W25Q128BVFIG,128Mbit,128Mx1 1 SNA
....5 T0527 AA68-03540A LABEL-MICOM;ART PAPE,7X6mm 1 SNA
..3 BN97-06220A ASSY DRM-KEY CODE-ASS`Y;COM_002,TV,-,Gen 1 SNA
...4 BN46-00110G KEY CODE-CERTIFI;HDCP,TV,MSTAR,General 1 SNA
1 BN92-08038C ASSY LABEL;UE5L,E5000 1 SNA
.2 CIS1 0203-001598 TAPE-FILAMENT;#8915,0.15,12,55000,CLR 0 SNA
.2 BN68-03608A LEAFLET-04,STOP GUIDE;All,SAMSUNG,ENG/FR 1 SNA
.2 BN68-04012G LABEL-STICKER;E5000,ZA,PET,T0.05,38,140, 1 SNA
.2 T0527 BP68-00052B LABEL-00,RATING;CCTV,TETRON PAPER,T0.05, 1 SNA
1 ACCE1 BN92-09792J ASSY ACCESSORY;UE5L,E5000 1 SNA
.2 ACCE2 BN96-21953A ASSY ACCESSORY-CABLE;UN32/40EH5000FXZA 1 SNA
..3 T0268 3903-000599 CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,5A, 1 SA
..3 T0685 4301-000103 BATTERY-ALKALINE;1.5V,750mAH,LR03,10.5x4 2 SNA
..3 6902-001340 BAG PE;LDPE,T0.05,W250,L350,TRP,RECYCLE 1 SNA
..3 REMO2 AA59-00600A REMOCON;TM1240,44Key,3V,America, E6050. 1 SA
..3 BN61-05491A HOLDER-WIRE STAND;UB7000 46inch,NYRON 1 SNA
.2 ACCE4 BN96-21953B ASSY ACCESSORY-MANUAL;UN32/40EH5000FXZA 1 SNA
..3 6902-000476 BAG PE;LDPE,T0.03,W250,L350,TRP,Recycle, 1 SNA
..3 AA68-03242L LEAFLET-08,SAFETY GUIDE;comm,Samsung,Eng 1 SNA
..3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
..3 BN68-04214A MANUAL USERS-01;UE4000 UE5000,SAMSUNG,En 1 SNA
..3 BN68-04215A LEAFLET-QSG;UE4000 UE5000,SAMSUNG,Eng,UN 1 SNA
..3 BN68-04359A LEAFLET;ENG,Additional information sheet 1 SNA
..3 BP68-00263E LEAFLET-03,WARRANTY CARD;comm,Samsung,En 1 SNA
1 BN92-10012A ASSY BOX;UEH5000,40,UO 1 SNA
.2 T0077 BH68-00329D LABEL BAR CODE-02;NO CE,NO WT`Y,MPRII,LA 2 SNA
.2 BN69-07258B BOX-02,SET;40UE5000,CB,A-01,SW2,W1092,D1 1 SNA
1 BN92-10016A ASSY P/MATERIAL;UEH5000,40 1 SNA
10 Copyright© 1995-2012 SAMSUNG. All rights reserved.
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$36.99
Viewed 97 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Offline Viewing
Access Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$36.99
Are you experiencing issues with your Samsung LED Television? Instead of spending a significant amount on repairs or replacements, consider taking matters into your own hands with this comprehensive service and repair manual. This manual is utilized by Official Certified Samsung Technicians and is designed to assist you in troubleshooting and repairing your Samsung LED TV.
- Safety and precautions
- Product Specification
- Disassembly and Reassembly
- Troubleshooting
- Adjustments
- Wiring Diagrams
- Exploded Views
- Parts List Catalog
Additionally, you will receive the official Technical Training Guide (PPT) for this TV, providing further technical insights into this LED Television. The service manual is meticulously detailed and includes illustrated pictures and step-by-step instructions for optimal repair and servicing of the device.
It's important to note that this is the OFFICIAL and COMPLETE service repair manual, ensuring the highest resolution and quality for all printed pages. With instant access upon payment, there are no shipping fees or waiting for postal delivery, allowing you to commence repairs promptly.
By obtaining this highly comprehensive service, repair, and workshop manual, you are minutes away from accessing the same resources used by official Samsung technicians and maintenance employees. The manual is available in English and includes the Service Manual (PDF) and Technical Training Guide (PPT), totaling 146 pages, compatible with both Windows and MAC platforms.
