LED-TV
SERVICE
Manual
TFT-LCD TV Contents
Refer to the service manual in the GSPN (see the rear cover) for the more information.
1. Precautions
2. Product specifications
3. Disassembly and Reassembly
4. Troubleshooting
5. Exploded View & Part List
6. Wiring Diagram
Chassis : N96A
Model : UE**C6000R*
UE**C6200R*
UE**C650*U*
UE**C67*0*S
UE**C6000R* / UE**C6200R*
UE**C650*U* / UE**C6700US
Contents
1. Precautions .............................................................................................................. 1-1
1-1. Safety Precautions ......................................................................................................... 1-1
1-2. Servicing Precautions ..................................................................................................... 1-2
1-3. Electrostatically Sensitive Devices (ESD) Precautions .................................................. 1-2
1-4. Installation Precautions .................................................................................................. 1-3
2. Product specifications ............................................................................................ 2-1
2-1. Feature & Specifications................................................................................................. 2-1
2-2. Detail Factory Option .................................................................................................... 2-21
2-3. Spec Comparison to the Old Models ............................................................................ 2-25
2-4. Movie Plus: MJC(Motion Judder Cancellation) ............................................................. 2-30
2-5. Internet@TV ................................................................................................................. 2-31
2-6. Using the Content Management ................................................................................... 2-40
2-7. Media Play .................................................................................................................... 2-41
2-8. Accessories .................................................................................................................. 2-43
2-9. Light Sensor ................................................................................................................. 2-44
2-10. DVB-T2 ....................................................................................................................... 2-45
3. Disassembly and Reassembly ............................................................................... 3-1
3-1. Disassembly and Reassembly ....................................................................................... 3-1
4. Troubleshooting ...................................................................................................... 4-1
4-1. Troubleshooting .............................................................................................................. 4-1
4-2. Alignments and Adjustments ........................................................................................ 4-34
4-3. Factory Mode Adjustments ........................................................................................... 4-35
4-4. White Balance - Calibration .......................................................................................... 4-48
4-5. Servicing Information .................................................................................................... 4-50
5. Exploded View & Part List ...................................................................................... 5-1
5-1. Exploded View ................................................................................................................ 5-1
5-2. Parts List ......................................................................................................................... 5-2
6. Wiring Diagram ........................................................................................................ 6-1
6-1. Wiring Diagram ............................................................................................................... 6-1
6-2. Connector ....................................................................................................................... 6-2
6-3. Connector Functions ...................................................................................................... 6-4
6-4. Cables ............................................................................................................................ 6-4
GSPN (Global Service Partner Network)
Area Web Site
North America http://service.samsungportal.com
Latin America http://latin.samsungportal.com
CIS http://cis.samsungportal.com
Europe http://europe.samsungportal.com
China http://china.samsungportal.com
Asia http://asia.samsungportal.com
Mideast & Africa http://mea.samsungportal.com
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© 2010 Samsung Electronics Co.,Ltd.
All rights reserved.
Printed in Korea
P/N: BN82-00756A-00
3-1
3. Disassembly and Reassemble
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the UN40B7000WF LCD TV.
WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling these components.
3-1. Disassembly and Reassembly
Cautions: 1. Disconnect the monitor from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.

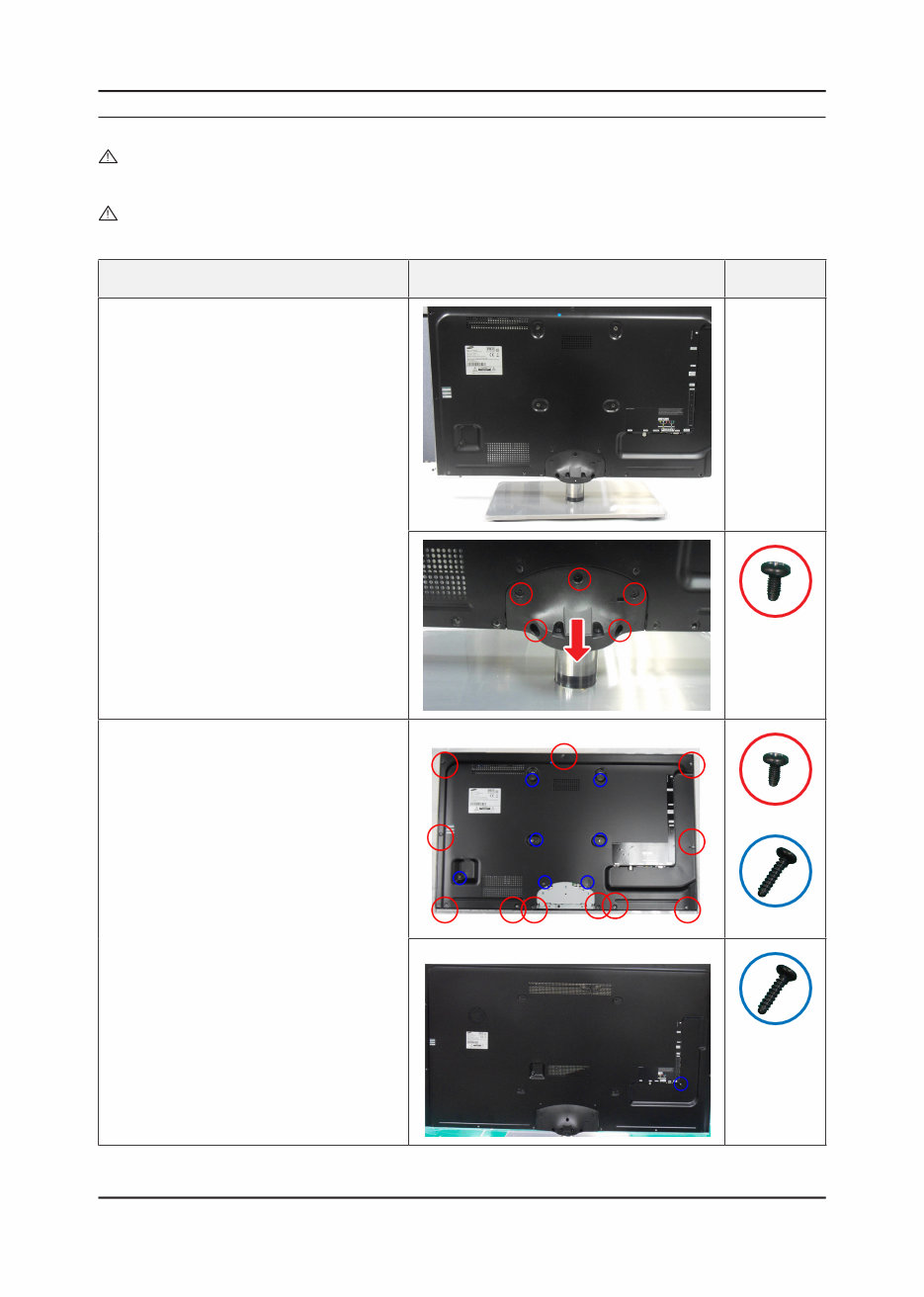

Description Picture Description Screws
1. Place monitor face down on cushioned table.
Remove screws from the Stand.
Remove stand.
6003-000133
2. Remove the screws of rear-cover. 40"
6003-000133
6003-001003
40"/46"/55"
6003-001003
3-2
3. Disassembly and Reassemble
Description Picture Description Screws
Pull out a AC Power Cord.
3. Lift up the rear-cover.
4. Remove the cables and screws from
SMPS, Main board and Woofer and
Bracket stand link.
6001-002283
5. Remove the panel bracket screws from the
panel.
Reassembly procedures are in the reverse order of disassembly procedures. ※
5-1
5. Exploded View & Part List
5. Exploded View & Part List

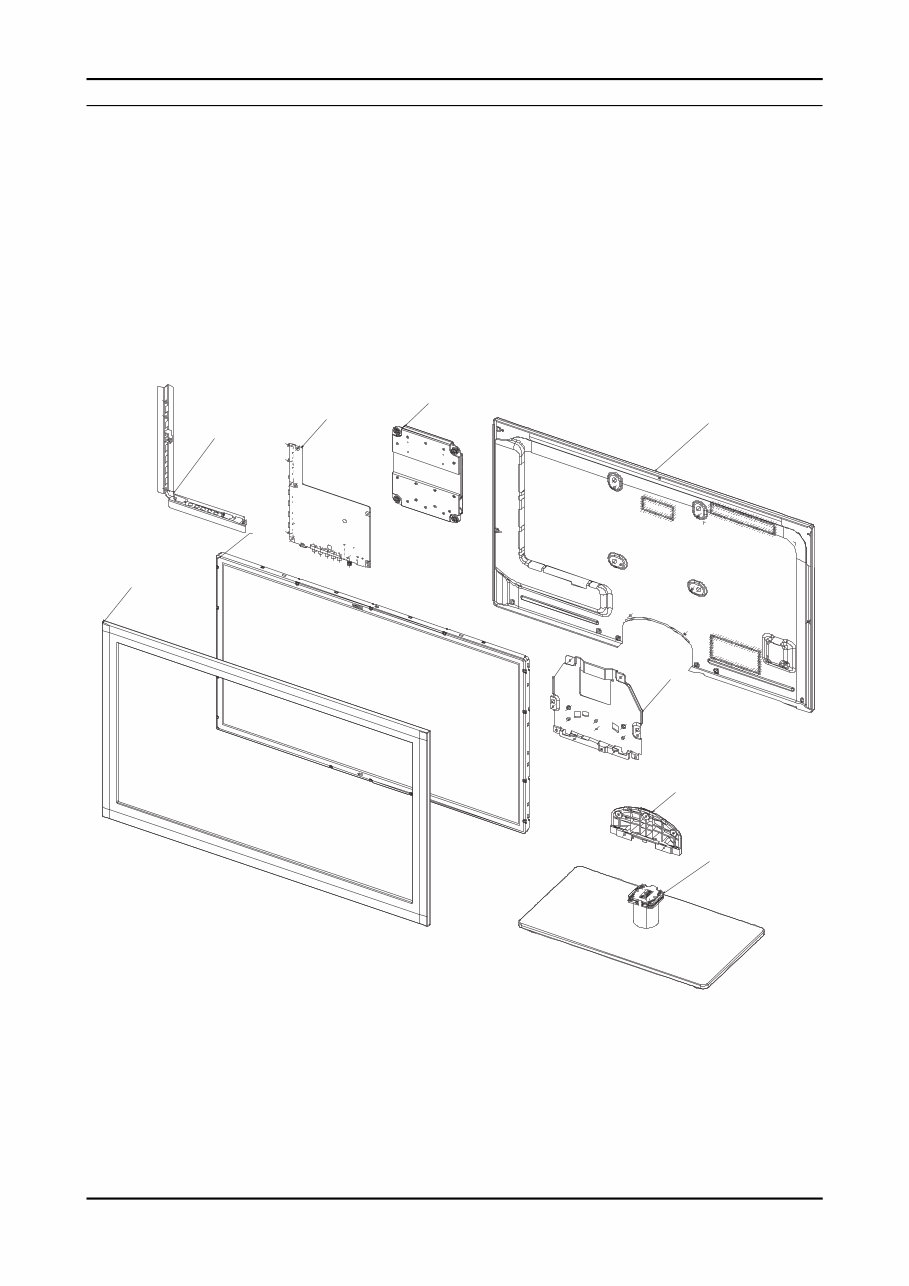

5-1. UE37C6000RW Exploded View
F001A
CB01
M0014
SP01A
R001A
T0910
T0920
M0027
PANEL
5-2
5. Exploded View & Part List
5-2. UE37C6000RW Parts List
Location No. Code No. Description & Specification Q’ty S.A/S.N.A Remark
CB01 BN61-04924A BRACKET-AV;LB700 40,PCM,T0.5,BKN-P824, P 1 SNA
F001A BN96-12896A ASSY COVER P-FRONT;UC6000 37,PC(CLR)+PC( 1 SA
M0014 BN94-03364T ASSY PCB MAIN;UE37C6000RWXXC 1 SA
M0027 BN96-12935A ASSY STAND P-BASE;UC6400 37/40,SUS430,T0 1 SA
PANEL BN07-00851A LCD-PANEL;T370FBE1-DB,CLL5CC1,10bits,37, 1 SA
R001A BN96-12913E ASSY COVER P-REAR;UC6000 37,AUSTRALIA,PC 1 SA
SP01A BN96-12944B ASSY SPEAKER P;4ohm,4pin,10W,R:120,Enclo 1 SA
T0910 BN96-12928A ASSY BRACKET P-STAND LINK;UC6500 40,SECC 1 SNA
T0920 BN61-06221A GUIDE-STAND;UC6500 40inch,PC,G/F 20%,V2, 1 SNA
5-3
5. Exploded View & Part List
5-2-1. UE37C6000RW Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark
0.1 BN90-02539A ASSY COVER FRONT;UC6400 37 1 SNA
..2 F001A BN96-12896A ASSY COVER P-FRONT;UC6000 37,PC(CLR)+PC( 1 SA
...3 AB326 BN61-04661A BRACKET-STOPPER;L650,SK-5,T0.4,Plating,H 2 SNA
...3 BN61-06213A BRACKET-STOPPER BOSS;C8K,SECC+SK5,T1.2 8 SNA
...3 BN61-06215A BRACKET-STOPPER PANEL;C8K,SK5,0.5T 1 SNA
...3 CCM1 BN63-05199B COVER-SHEET;AMBER,PE,T0.08,W65mm,200M,CL 3 SNA
...3 F001 BN63-06619A COVER-FRONT;UC6000 37,PC(CLR)+PC(Charcoa 1 SNA
....4 0103-007268 RESIN-PC;TP0010,2.0V0,NH PC,NH PC 2.0 V2 700 SNA
....4 0103-007269 RESIN-PC;GY0132,2.0V0,NH PC,NH PC 2.0 V2 800 SNA
...3 BN96-12920A ASSY HOLDER P-BOSS;UC6400 37,ABS V0,BK00 1 SNA
....4 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.5 SNA
....4 BN61-05915A BOSS-TAPE;LB650 65",T1.1,W12.0mm,DARK GR 0.39 SNA
....4 BN61-05915B BOSS-TAPE;LB650 65",3M #4711,T1.1,W6.0mm 0.03 SNA
....4 BN61-06237A HOLDER-BOSS BOTTOM;UC6100 37inch,ABS,HB 1 SNA
.....5 0103-004609 RESIN-ABS;BK0007,HB,ABS,High Flow ABS 225 SNA
...3 T0382 BP61-00495C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm 0.16 SNA
...3 BN68-02700A LABEL-LED-POP;Highlight Sticker Color,PE 1 SNA
...3 T0175 BN96-12941B ASSY SPEAKER P;8ohm,4pin,10,L:280 R:630, 1 SA
...3 M0125 BN96-13047C ASSY BOARD P-TOUCH FUNCTION&IR;UC5000,CT 1 SA
...3 CIS1 0203-001598 TAPE-FILAMENT;#8915,0.15,12,55000,CLR 0.06 SNA
...3 BN60-00162Y SPACER-FOAM;FOAM,50000mm,Dark Gray,0.35T 2.46 SA
0.1 R001A BN90-02551D ASSY COVER REAR;UC5000 37 1 SNA
..2 R001A BN96-12913E ASSY COVER P-REAR;UC6000 37,AUSTRALIA,PC 1 SA
...3 T0069 AA63-60131R SPACER-FELT;21Z57,FELT,325,T0.35,7 1 SNA
...3 BN60-00162A SPACER-FOAM;FOAM,50000L,BLK,0.35T,20W 0.85 SNA
...3 R001 BN63-06517D COVER-REAR;UC6500 37,PCM,T0.5,BKN-P824 1 SNA
...3 BN68-02543T LABEL-TERMINAL BOTTOM;Rev.02 UC6000,EO,P 1 SNA
...3 BN68-02544B LABEL-TERMINAL SIDE;Rev.01 UC5000/6000,E 1 SNA
...3 BN96-12924B ASSY MISC P-INSULATOR;UC6500 37/40,PC,T0 1 SNA
....4 T0278 BN60-00122E SPACER-SPONGE;UC6500,CR,L200,T2.0,W10 2 SNA
....4 BN63-06630A SHEET-INSULATOR SMPS;UC6100 40inch,PC,T0 1 SNA
...3 BN60-00162Y SPACER-FOAM;FOAM,50000mm,Dark Gray,0.35T 0.4 SA
..2 T0081 6001-002610 SCREW-MACHINE;BH,+,M4,L6,ZPC(BLK),SWRCH1 7 SA
..2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 11 SA
..2 T0382 BP61-00495C HOLDER-CARE;PJT,ACRYL-FOAM,T0.25,W30.0mm 0.1 SNA
0.1 BN91-05071A ASSY SHIELD;UE40C6500UWXXC 1 SNA
..2 T0081 6001-000115 SCREW-MACHINE;BH,+,-,M3,L10,ZPC(WHT),SWR 2 SNA
..2 T0081 6001-002283 SCREW-MACHINE;BH,+,M3,L5,ZPC(WHT),SWRCH1 9 SNA
..2 M2893 BN39-01267F LEAD CONNECTOR;LB6T,UL2651#26,18P,350mm, 1 SA
..2 P001A BN44-00355B DC VSS-LED TV PD BD;PD37AF1E_ZDY,PD37AF1 1 SA
..2 FL06 BN96-12723K ASSY CABLE P-FPCB LVDS;LED120Hz-37inch,F 1 SA
..2 T0910 BN96-12928A ASSY BRACKET P-STAND LINK;UC6500 40,SECC 1 SNA
...3 M0115 BN61-06165A BRACKET-STAND LINK;UC6500 40inch,SECC,T2 1 SNA
...3 BN61-02932G BRACKET-STOPPER NUT;LED TV,M4,D6,L6.5,BR 5 SNA
...3 BN60-00184A SPACER-FOAM;FOAM,30000mm,DARK GRAY,1T,30 0.18 SNA
..2 SP01A BN96-12944B ASSY SPEAKER P;4ohm,4pin,10W,R:120,Enclo 1 SA
..2 BN73-00273A SILICON/RUBBER-GAPPAD;UE46B7700,SILICON+ 1 SNA
..2 T0081 6001-002610 SCREW-MACHINE;BH,+,M4,L6,ZPC(BLK),SWRCH1 4 SA
5-4
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark
..2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 1 SA
..2 CIS1 0203-001586 TAPE-FILAMENT;#893,0.15,25,55 0.15 SNA
..2 M0131 BN63-00209A GASKET;RS24NS,CONDUCTIVE FAB,4mm,10mm,30 1 SNA
..2 M0131 AA63-01130A GASKET;JD26KO,Conductive Fabric,10mm,8mm 1 SNA
0.1 BN91-05268A ASSY LCD-CMO;BN07-00851A 1 SNA
..2 PANEL BN07-00851A LCD-PANEL;T370FBE1-DB,CLL5CC1,10bits,37, 1 SA
...3 TCON BN81-04457A A/S-T CON T370FBE1-DB;T370FBE1-DB 1 SA
0.1 BN92-05588A ASSY BOX;UC6400 37 1 SNA
..2 BN69-04716B BOX-SET;37UC6000-BS,CB,A-01,DW2,W1130,D1 1 SNA
..2 BH68-00662A LABEL BOX-00;ALL MODEL,MOJO 90G,60,110,W 1 SNA
0.1 BN92-05610A ASSY P/MATERIAL;UC6400 37 1 SNA
..2 T0214 0203-001595 TAPE-OPP MASKING;OPP-2,0.075,75,800M,CLR 2.57 SNA
..2 6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 2.05 SNA
..2 M040 6922-000003 BAND PP;PP,T0.8,W18,L1650M,TRP,DA69-9014 0.51 SNA
..2 BN69-00257F PACKING-BAG SHEET;-,CB,-,1200,500,-,-,WH 1 SNA
..2 BN69-04554A CUSHION-01,SET;UC6100 37inch,EPS,M50 1 SNA
..2 BN69-03982F PAD PACKING-EDGE;LB6T,PAPER,8,120,2160,Y 1 SNA
..2 BN68-02422B LABEL-WARNING SHIPPING;ALL MODEL,A/P 100 1 SNA
..2 BN69-05182A PALLET;-,WOOD,1140,1155,135,8500,2010-65 1 SNA
..2 6902-001176 BAG PE;HDPE/NITRON,T0.015/T0.5,W1200,L50 1 SNA
..2 BN69-00257B PACKING-PAD;PAPER,CB-SW4,1130,820,YEL,28 1 SNA
..2 BN69-05034C PAD CUSHION;37UC6K-BS,EPS,T44,W300,D405 1 SNA
..2 6902-000379 BAG AIR;LDPE,T0.2,W1000,L1800,TRP,1260.0 1 SNA
0.1 BN92-05838A ASSY LABEL;UE32C6000RWXXC 1 SNA
..2 T0527 AA68-03752B LABEL-STICKER;WW,ALL,Art Paper(90g),25,3 1 SNA
..2 T0527 BP68-00052B LABEL-00,RATING;CCTV,TETRON PAPER,T0.05, 1 SNA
0.1 ACCE1 BN92-05839A ASSY ACCESSORY;UE32C6000RWXXC 1 SNA
..2 ACCE2 BN96-13162E ASSY ACCESSORY-CABEL;UN46C5000QFXZA 1 SNA
...3 EC11 3903-000525 CBF-POWER CORD;DT,CEE,LP-21L,250V,2.5A,B 1 SA
...3 T0120 4301-000121 BATTERY-MN;1.5V,R03,10.5x44.5m,HOLDER,7. 2 SNA
...3 BN61-05596A HOLDER-WIRE CABLE;LED TV,LDPE,T0.8,L150, 1 SNA
...3 M9889 BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 SA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 EH03A BN96-10276B ASSY HOLDER P-RING;09 LEDTV ALL MODEL,AB 1 SA
....4 6902-000683 BAG ZIPPER;LDPE,T0.05,W60,L60,TRP,4-PE M 1 SNA
....4 AH365 BN61-05280A HOLDER-RING;LB7000 46inch,ABS, HB,gray 4 SNA
...3 EH02A BN96-10810A ASSY HOLDER P;09 LEDTV MODEL,NYRON 1 SA
....4 BAG 6902-000031 BAG ZIPPER;LDPE,T0.05,W80,L160,TRP,0,0,4 1 SNA
....4 M0114 BN61-05373A HOLDER-WIRE;LB7000 46,NYRON 3 SNA
....4 BN61-05491A HOLDER-WIRE STAND;UB7000 46inch,NYRON 1 SNA
...3 BN96-12031D ASSY ACCESSORY-SCREW;09 LEDTV(40/46/55), 1 SNA
....4 M0081 6003-000133 SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW 1 SA
....4 BN69-04419E PACKING-BAG PE;LB650,LDPE,70,90,6003-000 1 SNA
...3 M0114 BN39-01154C CBF SIGNAL;Chelsea Slim, STEREO Plug to 1 SA
...3 M0114 BN39-01154F CBF SIGNAL;UE40B7000WWXXC,24P/20P,30AWG, 1 SA
...3 M0114 BN39-01154H CBF SIGNAL;UE40B7000WWXXC,RCA 3PIN,30AWG 1 SA
...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,9.2 1 SNA
...3 BN96-14099A ASSY ACCESSORY-CLAMP;10 LEDTV(40/46/55), 1 SNA
....4 AA65-30023A CLAMPER CORE-CABLE;NYLON-66,BLK 1 SNA
....4 BN69-04419J PACKING-BAG PE;UC5000,LDPE,70,90,Power-C 1 SNA
...3 RB01 BN63-06543B COVER-BOTTOM;UC7000 40,HIPS,V0,BK0020 1 SA
5-5
5. Exploded View & Part List
Level Location No. Code No. Description & Specification Q’ty SA/SNA Remark
....4 0103-004637 RESIN-HIPS;BK0020,V0,HIPS,NoN-Deca,NoN-D 70 SNA
...3 REMO2 BN59-01015A REMOCON;TM1060,SAMSUNG,20PIN SINGLE,49KE 1 SA
..2 BN96-13318A ASSY ACCESSORY-MANUAL;UE32C6000RWXXC 1 SNA
...3 T0524 6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,9.2 1 SNA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 BN68-00514E MANUAL FLYER-05,WARRANTY CARD;comm,Samsu 1 SNA
...3 BN68-02186A MANUAL FLYER-TOC GUIDE;COMM,SAMSUNG,11 L 1 SNA
...3 BN68-02748A MANUAL USERS;C6000,SAMSUNG,6LANGS,XC,W/P 1 SNA
...3 BN68-02839D MANUAL FLYER-WARRANTY CARD;comm,Samsung, 1 SNA
...3 AA68-03242V MANUAL FLYER-SAFETY GUIDE;comm,Samsung,1 1 SNA
0.1 S001A BN90-02562B ASSY STAND;UC6000 37 1 SNA
..2 M0027 BN96-12935A ASSY STAND P-BASE;UC6400 37/40,SUS430,T0 1 SA
...3 SCREW 6003-001374 SCREW-TAPTYPE;FH,+,B,M4,L12,NI PLT,SWRCH 6 SNA
...3 BN61-04248D BOSS-TAPE;#4920,acryl,0.45mm,20mm,3M,whi 1.07 SNA
...3 BN61-05383B BRACKET-SWIVEL BOTTOM;UB8000 46inch,HGI, 1 SNA
...3 BN61-05461A HOLDER-SWIVEL RING TOP;UB8000 46inch,Ace 1 SNA
...3 GSN01 BN61-06224A GUIDE-STAND NECK;UC6400 40inch,PETG inse 1 SNA
....4 0103-007257 RESIN-PETG;ECOZEN-SE,NP01,TP0003,3.2 V2, 150 SNA
....4 BN61-06079A GUIDE-NECK-INSERT;40,LC650,PETG,HB,TP000 1 SNA
...3 BN61-06227A HOLDER-SWIVEL RING BOTTOM;UC6500 40inch, 1 SNA
...3 BN61-06233A BRACKET-STAND BOTTOM;UC6400 37/40inch,SE 1 SNA
...3 CCM1 BN63-04755A COVER-SHEET;AMBER,PE,T0.05,W150mm,200M,6 1.14 SNA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 T0527 BN68-01648B LABEL WARNING;WW,PET,T0.05,40,25,EXPORT 1 SNA
...3 M0126 BN73-00182A RUBBER-FOOT;P750,CR RUBBER 4 SNA
...3 M0126 BN73-00216A RUBBER-FOOT;LB650,RUBBER,16*33,T2.5,Dark 4 SNA
...3 BN74-00031A GREASE;kanto-kasei FL-955,grease,wht 0.6 SNA
...3 BN60-00162L SPACER-FOAM;FOAM,50000mm,Dark Gray,0.5T, 1.47 SNA
...3 BN61-04692A BOSS-PRIMER;#94,clear,35cps 0.4 SNA
...3 M0111 BN63-06624A COVER-STAND;UC6400 40inch,Al,T0.6 1 SNA
..2 SC02A BN96-13131E ASSY COVER P-GUIDE STAND;UC7000,PC+ABS G 1 SA
...3 T0524 6902-001063 BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE 1 SNA
...3 T0920 BN61-06221A GUIDE-STAND;UC6500 40inch,PC,G/F 20%,V2, 1 SNA
....4 0103-007285 RESIN-PC;BK0007,2.0 V2,PC/GF20%,Glass fi 450 SNA
...3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA
...3 BN68-02824B MANUAL FLYER-01,STAND GUIDE;5 ~ 6 series 1 SNA
...3 BN96-12031C ASSY ACCESSORY-SCREW;09 LEDTV,6003-00013 1 SNA
....4 M0081 6003-000133 SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW 5 SA
....4 6902-000336 BAG ZIPPER;LDPE,T0.05,W70,L80,TRP,0.500g 1 SNA
....4 BN68-02215H MANUAL FLYER-STAND GUIDE;B6000 ~ 8000,SA 1 SNA
...3 BN96-12031M ASSY ACCESSORY-SCREW;10 LEDTV(40/46/55), 1 SNA
....4 M0081 6003-001003 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 5 SA
....4 BN69-04419K PACKING-BAG PE;UC5000,LDPE,70,90,4X12, 5 1 SNA
0.1 M0017 BN91-05141B ASSY CHASSIS;UE37C6000RWXXC 1 SNA
..2 M0014 BN94-03364T ASSY PCB MAIN;UE37C6000RWXXC 1 SA
...3 BN97-04091T ASSY SMD;UE37C6000RWXXC,BN94-03364S 1 SNA
....4 BN97-04201A ASSY MICOM-MAIN;N84A,2009.12.24,T-VALAUS 1 SNA
.....5 1107-001818 IC-NAND FLASH;KFG1G16U2C-DIB6,1024Mbit,6 1 SNA
....4 0202-001767 SOLDER-CREAM;LST-5710,D20~38,Sn-57Bi-1Ag 1 SNA
....4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 18 SA
....4 0403-001164 DIODE-ZENER;MMSZ5232B,5.32-5.88V,500MW,S 1 SA
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$33.99
Viewed 49 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$33.99
Samsung UE**C67*0*S Led TV Service Manual is a comprehensive guide for repairing and maintaining the following models: UE**C6000R*, UE**C6200R*, UE**C650*U*, and UE**C67*0*S. This manual is an invaluable resource for both professional mechanics and DIY enthusiasts.
- Precautions: The manual includes important safety measures and precautions to be taken during servicing.
- Product specifications: Detailed specifications of the LED TV models are provided for reference.
- Disassembly and Reassembly: Step-by-step instructions for disassembling and reassembling the TV components.
- Troubleshooting: A comprehensive guide to identifying and resolving common issues with the LED TV models.
- Exploded View & Part List: Visual representations of the TV components and a detailed list of parts for easy identification.
- Wiring Diagram: Clear and concise wiring diagrams to aid in understanding the electrical connections.
The manual is available in English language and is provided in PDF format for easy access on Windows and MAC platforms.
