Printed in Korea P/NO : MFL69465801 (1601-REV00) CHASSIS : EA62C MODEL : OLED55C6P OLED55C6P-U CAUTION BEFORE SERVICING THE CHASSIS, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. OLED TV SERVICE MANUAL Internal Use Only

- 2 - LGE Internal Use Only Copyright © LG Electronics. Inc. All rights reserved. Only for training and service purposes CONTENTS CONTENTS .............................................................................................. 2 SAFETY PRECAUTIONS ........................................................................ 3 SERVICING PRECAUTIONS.................................................................... 4 SPECIFICATION ....................................................................................... 6 ADJUSTMENT INSTRUCTION .............................................................. 13 BLOCK DIAGRAM ................................................................................. 24 EXPLODED VIEW .................................................................................. 30 ASSEMBLY / DISASSEMBLY ..................................... ............................ 31 TROUBLE SHOOTING GUIDE ................................................ APPENDIX

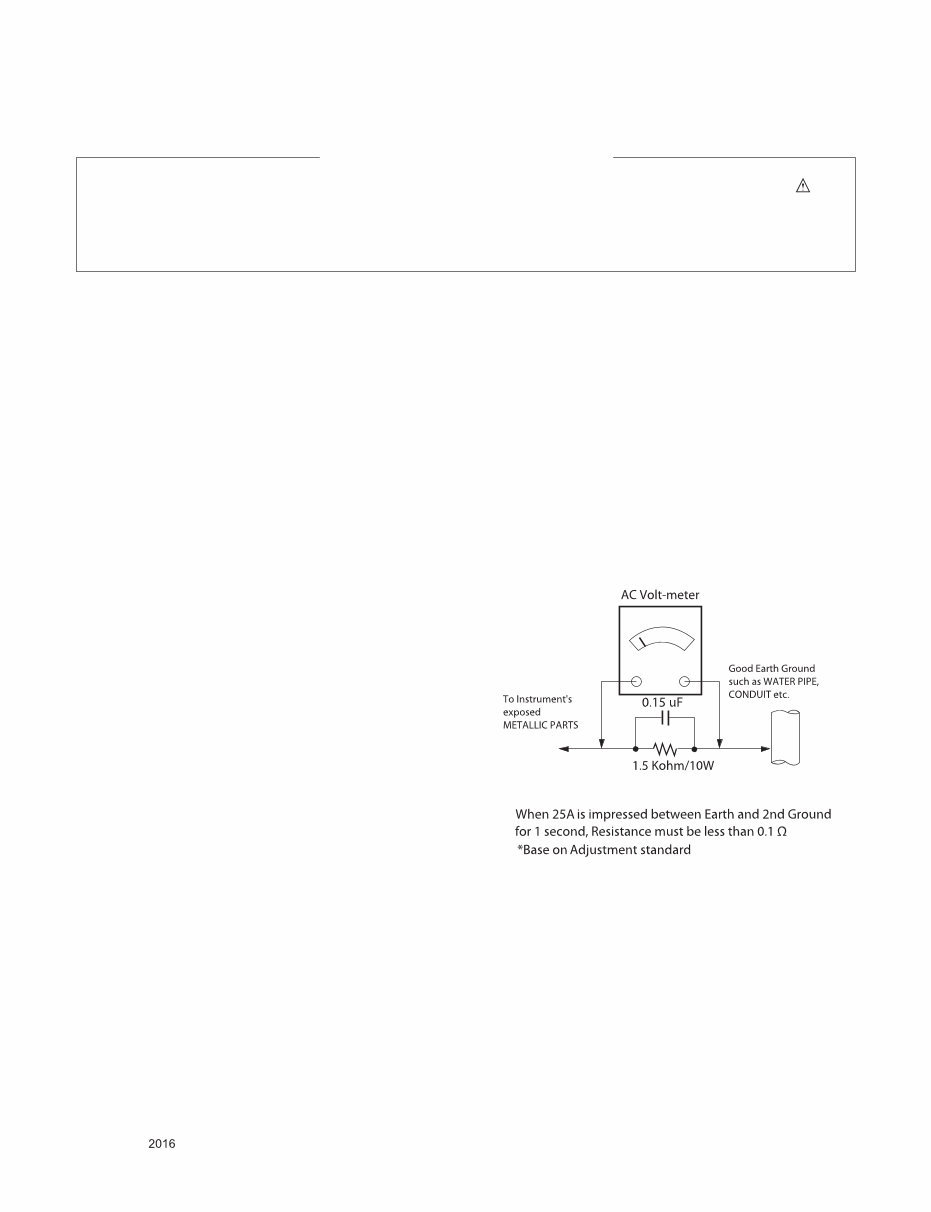

- 3 - LGE Internal Use Only Copyright © LG Electronics. Inc. All rights reserved. Only for training and service purposes Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the Schematic Diagram and Exploded View. It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent Shock, Fire, or other Hazards. Do not modify the original design without permission of manufacturer. General Guidance An isolation Transformer should always be used during the servicing of a receiver whose chassis is not isolated from the AC power line. Use a transformer of adequate power rating as this protects the technician from accidents resulting in personal injury from electrical shocks. It will also protect the receiver and it's components from being damaged by accidental shorts of the circuitry that may be inadvertently introduced during the service operation. If any fuse (or Fusible Resistor) in this TV receiver is blown, replace it with the specified. When replacing a high wattage resistor (Oxide Metal Film Resistor, over 1 W), keep the resistor 10 mm away from PCB. Keep wires away from high voltage or high temperature parts. Before returning the receiver to the customer, always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, etc., to be sure the set is safe to operate without damage of electrical shock. Leakage Current Cold Check(Antenna Cold Check) With the instrument AC plug removed from AC source, connect an electrical jumper across the two AC plug prongs. Place the AC switch in the on position, connect one lead of ohm-meter to the AC plug prongs tied together and touch other ohm-meter lead in turn to each exposed metallic parts such as antenna terminals, phone jacks, etc. If the exposed metallic part has a return path to the chassis, the measured resistance should be between 1 MΩ and 5.2 MΩ. When the exposed metal has no return path to the chassis the reading must be infinite. An other abnormality exists that must be corrected before the receiver is returned to the customer. Leakage Current Hot Check (See below Figure) Plug the AC cord directly into the AC outlet. Do not use a line Isolation Transformer during this check. Connect 1.5 K / 10 watt resistor in parallel with a 0.15 uF capacitor between a known good earth ground (Water Pipe, Conduit, etc.) and the exposed metallic parts. Measure the AC voltage across the resistor using AC voltmeter with 1000 ohms/volt or more sensitivity. Reverse plug the AC cord into the AC outlet and repeat AC voltage measurements for each exposed metallic part. Any voltage measured must not exceed 0.75 volt RMS which is corresponds to 0.5 mA. In case any measurement is out of the limits specified, there is possibility of shock hazard and the set must be checked and repaired before it is returned to the customer. Leakage Current Hot Check circuit IMPORTANT SAFETY NOTICE SAFETY PRECAUTIONS

- 4 - LGE Internal Use Only Copyright © LG Electronics. Inc. All rights reserved. Only for training and service purposes SERVICING PRECAUTIONS CAUTION: Before servicing receivers covered by this service manual and its supplements and addenda, read and follow the SAFETY PRECAUTIONS on page 3 of this publication. NOTE: If unforeseen circumstances create conflict between the following servicing precautions and any of the safety precautions on page 3 of this publication, always follow the safety precautions. Remember: Safety First. General Servicing Precautions 1. Always unplug the receiver AC power cord from the AC power source before; a. Removing or reinstalling any component, circuit board mod- ule or any other receiver assembly. b. Disconnecting or reconnecting any receiver electrical plug or other electrical connection. c. Connecting a test substitute in parallel with an electrolytic capacitor in the receiver. CAUTION: A wrong part substitution or incorrect polarity installation of electrolytic capacitors may result in an explo- sion hazard. 2. Test high voltage only by measuring it with an appropriate high voltage meter or other voltage measuring device (DVM, FETVOM, etc) equipped with a suitable high voltage probe. Do not test high voltage by "drawing an arc". 3. Do not spray chemicals on or near this receiver or any of its assemblies. 4. Unless specified otherwise in this service manual, clean electrical contacts only by applying the following mixture to the contacts with a pipe cleaner, cotton-tipped stick or comparable non-abrasive applicator; 10 % (by volume) Acetone and 90 % (by volume) isopropyl alcohol (90 % - 99 % strength) CAUTION: This is a flammable mixture. Unless specified otherwise in this service manual, lubrication of contacts in not required. 5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this service manual might be equipped. 6. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed. 7. Always connect the test receiver ground lead to the receiver chassis ground before connecting the test receiver positive lead. Always remove the test receiver ground lead last. 8. Use with this receiver only the test fixtures specified in this service manual. CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver. Electrostatically Sensitive (ES) Devices Some semiconductor (solid-state) devices can be damaged eas- ily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor “chip” components. The following techniques should be used to help reduce the incidence of component damage caused by static by static electricity. 1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alter- natively, obtain and wear a commercially available discharging wrist strap device, which should be removed to prevent poten- tial shock reasons prior to applying power to the unit under test. 2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or expo- sure of the assembly. 3. Use only a grounded-tip soldering iron to solder or unsolder ES devices. 4. Use only an anti-static type solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ES devices. 5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices. 6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement ES devices are packaged with leads electri- cally shorted together by conductive foam, aluminum foil or comparable conductive material). 7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. 8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES device.) General Soldering Guidelines 1. Use a grounded-tip, low-wattage soldering iron and appropriate tip size and shape that will maintain tip temperature within the range or 500 °F to 600 °F. 2. Use an appropriate gauge of RMA resin-core solder composed of 60 parts tin/40 parts lead. 3. Keep the soldering iron tip clean and well tinned. 4. Thoroughly clean the surfaces to be soldered. Use a mall wire- bristle (0.5 inch, or 1.25 cm) brush with a metal handle. Do not use freon-propelled spray-on cleaners. 5. Use the following unsoldering technique a. Allow the soldering iron tip to reach normal temperature. (500 °F to 600 °F) b. Heat the component lead until the solder melts. c. Quickly draw the melted solder with an anti-static, suction- type solder removal device or with solder braid. CAUTION: Work quickly to avoid overheating the circuit board printed foil. 6. Use the following soldering technique. a. Allow the soldering iron tip to reach a normal temperature (500 °F to 600 °F) b. First, hold the soldering iron tip and solder the strand against the component lead until the solder melts. c. Quickly move the soldering iron tip to the junction of the component lead and the printed circuit foil, and hold it there only until the solder flows onto and around both the component lead and the foil. CAUTION: Work quickly to avoid overheating the circuit board printed foil. d. Closely inspect the solder area and remove any excess or splashed solder with a small wire-bristle brush.

- 5 - LGE Internal Use Only Copyright © LG Electronics. Inc. All rights reserved. Only for training and service purposes IC Remove/Replacement Some chassis circuit boards have slotted holes (oblong) through which the IC leads are inserted and then bent ﬂat against the circuit foil. When holes are the slotted type, the following technique should be used to remove and replace the IC. When working with boards using the familiar round hole, use the standard technique as outlined in paragraphs 5 and 6 above. Removal 1. Desolder and straighten each IC lead in one operation by gently prying up on the lead with the soldering iron tip as the solder melts. 2. Draw away the melted solder with an anti-static suction-type solder removal device (or with solder braid) before removing the IC. Replacement 1. Carefully insert the replacement IC in the circuit board. 2. Carefully bend each IC lead against the circuit foil pad and solder it. 3. Clean the soldered areas with a small wire-bristle brush. (It is not necessary to reapply acrylic coating to the areas). "Small-Signal" Discrete Transistor Removal/Replacement 1. Remove the defective transistor by clipping its leads as close as possible to the component body. 2. Bend into a "U" shape the end of each of three leads remaining on the circuit board. 3. Bend into a "U" shape the replacement transistor leads. 4. Connect the replacement transistor leads to the corresponding leads extending from the circuit board and crimp the "U" with long nose pliers to insure metal to metal contact then solder each connection. Power Output, Transistor Device Removal/Replacement 1. Heat and remove all solder from around the transistor leads. 2. Remove the heat sink mounting screw (if so equipped). 3. Carefully remove the transistor from the heat sink of the circuit board. 4. Insert new transistor in the circuit board. 5. Solder each transistor lead, and clip off excess lead. 6. Replace heat sink. Diode Removal/Replacement 1. Remove defective diode by clipping its leads as close as possible to diode body. 2. Bend the two remaining leads perpendicular y to the circuit board. 3. Observing diode polarity, wrap each lead of the new diode around the corresponding lead on the circuit board. 4. Securely crimp each connection and solder it. 5. Inspect (on the circuit board copper side) the solder joints of the two "original" leads. If they are not shiny, reheat them and if necessary, apply additional solder. Fuse and Conventional Resistor Removal/Replacement 1. Clip each fuse or resistor lead at top of the circuit board hollow stake. 2. Securely crimp the leads of replacement component around notch at stake top. 3. Solder the connections. CAUTION: Maintain original spacing between the replaced component and adjacent components and the circuit board to prevent excessive component temperatures. Circuit Board Foil Repair Excessive heat applied to the copper foil of any printed circuit board will weaken the adhesive that bonds the foil to the circuit board causing the foil to separate from or "lift-off" the board. The following guidelines and procedures should be followed whenever this condition is encountered. At IC Connections To repair a defective copper pattern at IC connections use the following procedure to install a jumper wire on the copper pattern side of the circuit board. (Use this technique only on IC connections). 1. Carefully remove the damaged copper pattern with a sharp knife. (Remove only as much copper as absolutely necessary). 2. carefully scratch away the solder resist and acrylic coating (if used) from the end of the remaining copper pattern. 3. Bend a small "U" in one end of a small gauge jumper wire and carefully crimp it around the IC pin. Solder the IC connection. 4. Route the jumper wire along the path of the out-away copper pattern and let it overlap the previously scraped end of the good copper pattern. Solder the overlapped area and clip off any excess jumper wire. At Other Connections Use the following technique to repair the defective copper pattern at connections other than IC Pins. This technique involves the installation of a jumper wire on the component side of the circuit board. 1. Remove the defective copper pattern with a sharp knife. Remove at least 1/4 inch of copper, to ensure that a hazardous condition will not exist if the jumper wire opens. 2. Trace along the copper pattern from both sides of the pattern break and locate the nearest component that is directly con- nected to the affected copper pattern. 3. Connect insulated 20-gauge jumper wire from the lead of the nearest component on one side of the pattern break to the lead of the nearest component on the other side. Carefully crimp and solder the connections. CAUTION: Be sure the insulated jumper wire is dressed so the it does not touch components or sharp edges.

- 6 - LGE Internal Use Only Copyright © LG Electronics. Inc. All rights reserved. Only for training and service purposes SPECIFICATION NOTE : Specifications and others are subject to change without notice for improvement. 1. Application range This spec sheet is applied OLED TV with EA62C chassis 2. Test condition Each part is tested as below without special notice. (1) Temperature : 25 ºC ± 5 ºC(77 ± 9 ºF) , CST : 40 ºC ± 5 ºC (2) Relative Humidity: 65 % ± 10 % (3) Power Voltage Market Input voltage Frequency Remark USA 120V 50/60Hz Standard Voltage of each product is marked by models (4) Specification and performance of each parts are followed each drawing and specification by part number in accordance with BOM (5) The receiver must be operated for about 20 minutes prior to the adjustment 3. Test method (1) Performance: LGE TV test method followed (2) Demanded other specification Safety : UL, CSA, CE, IEC specification EMC: FCC, ICES, CE, IEC specification Wireless : Wireless HD Specification (Option) 4. General Specification No Item Speciﬁcation Remark 1 Market USA 2 Receiving System ATSC / NTSC-M / 64 QAM / 256 QAM 3 Program coverage (1) VHF : 02~13 (2) UHF : 14~69 (3) DTV : 02-69 (4) CATV : 01~135 (5) CADTV : 01~135 4 Input Voltage AC 120 ~ 240V 50/60Hz USA (110~240V, 50/60Hz)

- 7 - LGE Internal Use Only Copyright © LG Electronics. Inc. All rights reserved. Only for training and service purposes 5. 2D Mode 5.1. Component input(Y, CB/PB, CR/PR) No. Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 1 720*480i 15.73 59.94 13.500 SDTV, DVD 480I(525I) 2 720*480i 15.75 60.00 13.514 SDTV, DVD 480I(525I) 3 720*576i 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz 4 720*480p 31.47 59.94 27.000 SDTV 480P 5 720*480p 31.50 60.00 27.027 SDTV 480P 6 720*576p 31.25 50.00 27.000 SDTV 576P 50Hz 7 1280*720 44.96 59.94 74.176 HDTV 720P 8 1280*720 45.00 60.00 74.250 HDTV 720P 9 1280*720 37.50 50.00 74.250 HDTV 720P 50Hz 10 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz, 11 1920*1080 33.72 59.94 74.176 HDTV 1080I 12 1920*1080 33.75 60.00 74.25 HDTV 1080I 13 1920*1080 56.25 50 148.5 HDTV 1080P 14 1920*1080 67.43 59.94 148.5 HDTV 1080P 15 1920*1080 67.50 60.00 148.5 HDTV 1080P 5.2. HDMI Input (PC) No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remarks 1 640*350 31.468 70.09 25.17 EGA 2 720*400 31.469 70.08 28.32 DOS 3 640*480 31.469 59.94 25.17 VESA(VGA) 4 800*600 37.879 60.31 40 VESA(SVGA) 5 1024*768 48.363 60.00 65 VESA(XGA) 6 1360*768 47.712 60.015 84.75 VESA(WXGA) 7 1152*864 54.348 60.053 80 VESA 8 1280*1024 63.981 60.020 109.00 SXGA Support to HDMI-PC 9 1920*1080 67.5 60 158.40 WUXGA(Reduced Blanking) 10 3840*2160 54 24.00 297.00 UDTV 2160P 11 3840*2160 56.25 25.00 297.00 UDTV 2160P 12 3840*2160 67.5 30.00 297.00 UDTV 2160P 13 4096*2160 53.95 23.97 296.703 UDTV 2160P 14 4096*2160 54 24 297 UDTV 2160P

- 8 - LGE Internal Use Only Copyright © LG Electronics. Inc. All rights reserved. Only for training and service purposes 5.3. HDMI Input (DTV) No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed 1 640*480 31.469 59.94 25.125 SDTV 480P 2 640*480 31.5 60.00 25.125 SDTV 480P 3 720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I) Spec. out but display 4 720*480 15.75 60.00 13.514 SDTV, DVD 480I(525I) 5 720*576 15.625 50.00 13.500 SDTV, DVD 576I(625I) 50Hz 6 720*480 31.47 59.94 27 SDTV 480P 7 720*480 31.5 60.00 27.027 SDTV 480P 8 720*576 31.25 50.00 27 SDTV 576P 9 1280*720 44.96 59.94 74.176 HDTV 720P 10 1280*720 45 60.00 74.25 HDTV 720P 11 1280*720 37.5 50.00 74.25 HDTV 720P 12 1920*1080 28.125 50.00 74.25 HDTV 1080I 13 1920*1080 33.72 59.94 74.176 HDTV 1080I 14 1920*1080 33.75 60.00 74.25 HDTV 1080I 15 1920*1080 26.97 23.976 63.296 HDTV 1080P 16 1920*1080 27.00 24.000 63.36 HDTV 1080P 17 1920*1080 33.71 29.97 79.120 HDTV 1080P 18 1920*1080 33.75 30.00 79.20 HDTV 1080P 19 1920*1080 56.25 50.00 148.5 HDTV 1080P 20 1920*1080 67.432 59.94 148.350 HDTV 1080P 21 1920*1080 67.5 60.00 148.50 HDTV 1080P 22 3840*2160 53.95 23.98 296.703 UDTV 2160P 23 3840*2160 54 24.00 297.00 UDTV 2160P 24 3840*2160 56.25 25.00 297.00 UDTV 2160P 25 3840*2160 61.43 29.97 296.703 UDTV 2160P 26 3840*2160 67.5 30.00 297.00 UDTV 2160P 27 3840*2160 112.5 50.00 594 UDTV 2160P When HDMI1,2,3 UHD DEEP COLOUR ON 28 3840*2160 134.86 59.94 593.407 UDTV 2160P When HDMI1,2,3 UHD DEEP COLOUR ON 29 3840*2160 135 60.00 594 UDTV 2160P When HDMI1,2,3 UHD DEEP COLOUR ON 30 4096*2160 53.95 23.98 296.703 UDTV 2160P 31 4096*2160 54 24.00 297 UDTV 2160P 32 4096*2160 56.25 25.00 297 UDTV 2160P 33 4096*2160 61.43 29.97 296.703 UDTV 2160P 34 4096*2160 67.5 30.00 297 UDTV 2160P 35 4096*2160 112.5 50.00 594 UDTV 2160P When HDMI1,2,3 UHD DEEP COLOUR ON 36 4096*2160 134.86 59.94 593.407 UDTV 2160P When HDMI1,2,3 UHD DEEP COLOUR ON 37 4096*2160 135 60.00 594 UDTV 2160P When HDMI1,2,3 UHD DEEP COLOUR ON

- 9 - LGE Internal Use Only Copyright © LG Electronics. Inc. All rights reserved. Only for training and service purposes 6.2. HDMI Input 6.2.1. HDMI1.4/2.0 (3D supported mode manually) No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock (MHz) Proposed 3D input proposed mode 1 720*480 31.5 60 27.03 SDTV 480P 2D to 3D, Side by Side(Half), Top & Bottom 2 720*576 31.25 50 27 SDTV 576P 3 1280*720 45.00 60.00 74.25 HDTV 720P 37.500 50 74.25 HDTV 720P 4 1920*1080 33.75 60.00 74.25 HDTV 1080I 28.125 50.00 74.25 HDTV 1080I 5 1920*1080 27.00 24.00 74.25 HDTV 1080P 28.12 25 74.25 HDTV 1080P 33.75 30.00 74.25 HDTV 1080P 67.50 60.00 148.5 HDTV 1080P 56.250 50 148.5 HDTV 1080P 6 3840*2160 4096*2160 53.95 23.976 296.703 HDTV 2160P 2D to 3D, Top & Bottom, Side by Side(half) 54 24.00 297.00 HDTV 2160P 56.25 25.00 297.00 HDTV 2160P 61.43 29.970 296.703 HDTV 2160P 67.5 30.00 297.00 HDTV 2160P 7 3840*2160 112.5 50 594 HDTV 2160P 2D to 3D, Top & Bottom(half), Side by Side(half), When HDMI1,2,3 UHD DEEP COLOUR ON 8 4096*2160 135 60 594 HDTV 2160P 6. 3D Mode(3D supported mode manually) 6.1. RF Input No Resolution H-freq.(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed Remarks 1 1280*720 37.500 50 74.25 HDTV 720P 2D to 3D, Side by Side, Top & Bottom 2 1920*1080 28.125 50 74.25 HDTV 1080I 2D to 3D, Side by Side, Top & Bottom

- 10 - LGE Internal Use Only Copyright © LG Electronics. Inc. All rights reserved. Only for training and service purposes No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) VIC 3D input proposed mode Proposed 1 640*480 31.469 / 31.5 59.94/ 60 25.125/25.2 1 Top-and-Bottom Side-by-side(half) Secondary(SDTV 480P) Secondary(SDTV 480P) 62.938/63 59.94/ 60 50.35/50.4 1 Frame packing Secondary(SDTV 480P) 2 720*480 31.469 / 31.5 59.94 / 60 27.00/27.03 2,3 Top-and-Bottom Side-by-side(half) Secondary(SDTV 480P) Secondary(SDTV 480P) 62.938/63 59.94 / 60 54/54.06 2,3 Frame packing Secondary(SDTV 480P) 3 1280*720 31.25 50 27 17,18 Top-and-Bottom Side-by-side(half) Secondary(SDTV 576P) 62.5 50 54 17,18 Frame packing Secondary(SDTV 576P) 4 1920*1080 15.625 50 27 21 TFrame packing Top-and-Bottom Side-by-side(half) Secondary(SDTV 576I) Secondary(SDTV 576I) Secondary(SDTV 576I) 5 1920*1080 37.500 50 74.25 19 Top-and-Bottom Side-by-side(half) Primary(HDTV 720P) Primary(HDTV 720P) 44.96 / 45 59.94 / 60 74.17/74.25 4 Top-and-Bottom Side-by-side(half) Primary(HDTV 720P) Primary(HDTV 720P) 75 50 148.5 19 Frame packing Primary(HDTV 720P) 89.91/90 59.94 / 60 148.35/148.5 4 Side-by-side(Full) Primary(HDTV 720P) 6 1920*1080 28.125 50.00 74.25 20 Top-and-Bottom Side-by-side(half) Secondary(HDTV 1080I) Primary(HDTV 1080I) 33.72 / 33.75 59.94 / 60 74.17/74.25 5 Top-and-Bottom Side-by-side(half) Secondary(HDTV 1080I) Primary(HDTV 1080I) 56.25 50.00 148.5 20 Frame packing Primary(HDTV 1080I) 67.432/67.50 59.94 / 60 148.35/148.5 5 Frame packing Primary(HDTV 1080I) 7 1920*1080 26.97 / 27 23.97 / 24 74.17/74.25 32 Top-and-Bottom Side-by-side(half) Primary(HDTV 1080P) Primary(HDTV 1080P) 28.125 25 74.25 33 Top-and-Bottom Side-by-side(half) Secondary(HDTV 1080P) Secondary(HDTV 1080P) 33.716 / 33.75 29.976 / 30.00 74.18/74.25 34 Top-and-Bottom Side-by-side(half) Primary(HDTV 1080P) Secondary(HDTV 1080P) 43.94/54 23.97 / 24 148.35/148.5 32 Frame packing Primary(HDTV 1080P) 56.25 25 148.5 33 Frame packing Secondary(HDTV 1080P) 67.432 / 67.5 29.976 / 30 148.35/148.5 34 Frame packing Primary(HDTV 1080P) 56.250 50 148.5 31 Top-and-Bottom Side-by-side(half) Primary(HDTV 1080P) Secondary(HDTV 1080P) 67.43 / 67.5 59.94 / 60 148.35/148.50 16 Top-and-Bottom Side-by-side(half) Primary(HDTV 1080P) Secondary(HDTV 1080P) 6.2.2. HDMI 1.4b (3D supported mode automatically)
