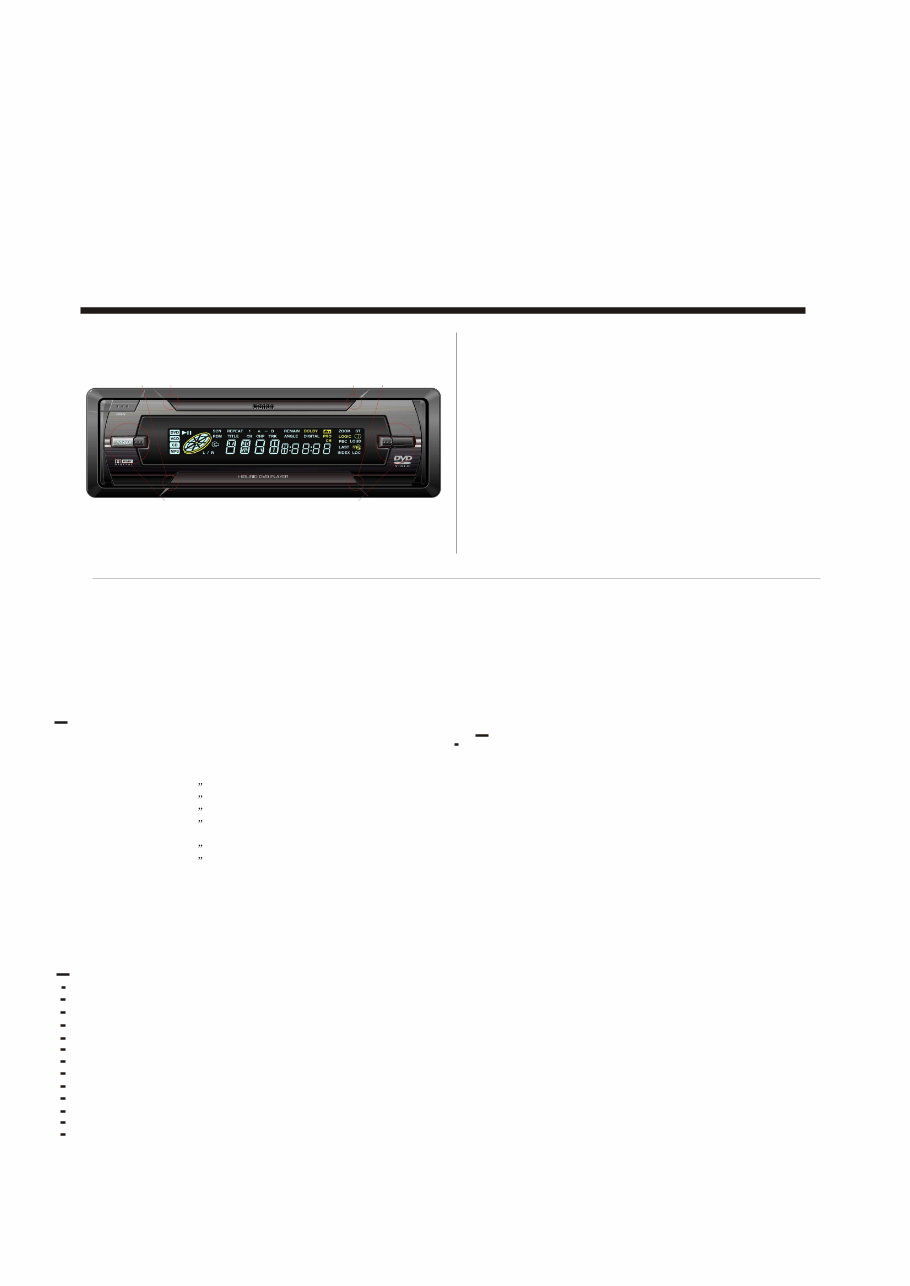

SPECIFICATIONS Supply voltage: 12VDC(11V-16V), test voltage 12V, negativeground Current consumption: Lessthan 2.0A Signal system: Compositive video 1.0Vp-p 75 RCA pin jack Discs played: (1) DVD-VIDEO disc 5 (12cm) single-sided, single-layer 5 (12cm) single-sided, double-layer 3 (8cm) single-sided, single-layer 3 (3cm) single-sided, double-layer (2) Compact disc (CD- DA, VIDEO-CD, CD-R) 5 (12cm) disc 3 (12cm) disc Audio output level: 10K (2ch 1.8 Vrms) Audio signal output Characteristics: (1) Frequency response: 20Hz - 20kHz (2) S/N ratio: 90dB (JIS) (3) Wow and Flutter: Below measurablelimits Features IN-Dash single DVD Players. Front loading with fold down detachable panel IR Remote control Vacuum Fluorescent Display Support multi-Disc formats(DVD,VCD,CD,CD-R,MP3) Multi-languages function Multi-angle function Parental Control Multi-subtitle and multi-audio function Compatible with NTSC/PAL Compositle VIDEO out. L/R Stereo analog Audio outputs (RCA) Dolby Digital OUT DTS Digital OUT COMPONENTS Supplied Accessories Vs735 Digital Media Player DCP case :52-V3601-02 (1) Detachable panel :S1-01206-01P (1) IR remote control :S9-01206-00R (1) Keyboard assembly :S2-01206-00K (1) Main PCB assembly :S2-01206-00M (1) AAA alkaline batteries :24-00000-03 (2) Trim bazel (escutcheon) :51-D2620-10 (1) DIN mounting frame and release levers : 61-68707-08 (1) M4X6 truss head machine screws :40-04006-07 (4) M5X5 truss head machine screws :40-05006-07 (4) M5x5 flat head machine screws:40-05005-00 (4)4 M5x18 hex washer head tapping screws: 40-05018-07 (4) M5 hex nuts :35-40005-00 (4) Plain washer :35-51210-00 (1) Spring washer :35-50001-00 (1) meter 4-pin power supply harness :25-05557-02 (5) meter RCA audio cable :25-01201-50 (5) meter RCA video cable :25-01202-50 (5) Additional IR receiver (5meter cable) :25-01350-53 (1) Installation brackets :39-A1208-00 (1) Backstrap :39-00128-00 (1) Owner s manual/Installation guide 88-V1206-01 (1) Service Manual Service Manual SINGLE DVD PLAYER Model VS735 Model VS735 VS735 1

CAUTIONS This appliance contains a laser system and is classified as a CLASS 1 LASER PRODUCTI . To use this model properly, read this Owner s Manual carefully and keep this manual for your future reference. In case of any trouble with this player, please contact your nearest AUTHORIZED ser- vice station . To prevent direct exposure to the laser beam,do not try to open the enclosure. USEOF CONTROLS OR ADJUSTMENTS OR PERFOR- MANCE OF PROCEDURES OTHER THAN THOSE SPECI- FIED IN THE OWNER S MANUAL MAY RESULT IN HAZ- ARDOUS RADIATION EXPOSURE TROUBLESHOOTING EPPOR DISPLAYS I f an error occurs, one of the following displays is displayed. Take the measure described below to eliminate the problem. Cause The micriprocessor has malfunctioned to noise ,etc. Measure Fold Down the DCP and press the reset button for about 2 seconds with a thin rod. Problem Nothing happens when buttons are pressed. Didplay is not accurate. Disc error Cause A Disc cannot be played due to scratches, etc. A Disc is loaded upside-down the dvd deck Measure Replace with a non-scratched, non-warped disc. Eject the disc then reload it properly.. Error display Wrong Region DVD Disc Region numbler not same as player region number. Replace with a correct region number disc 2

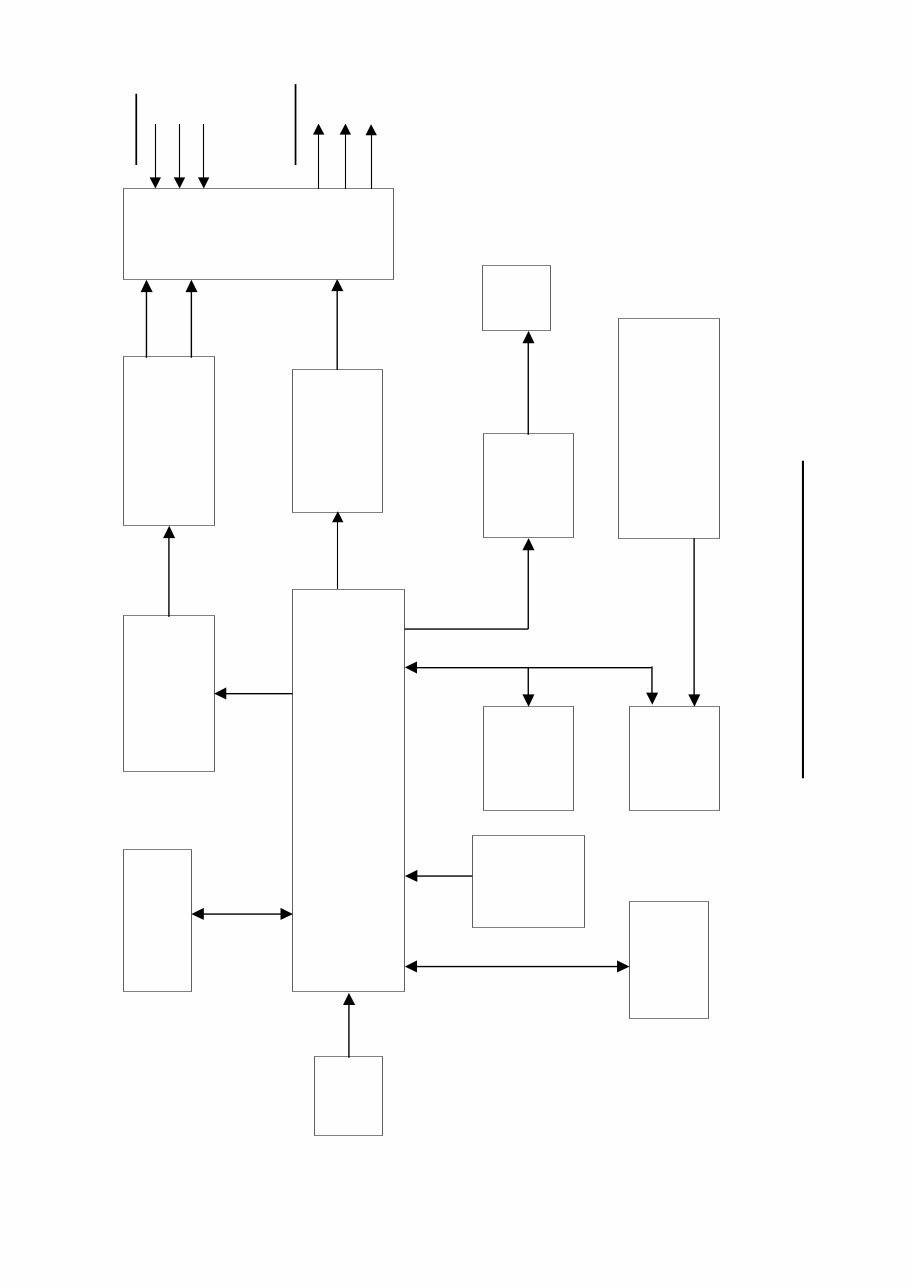

L-ch R-ch +3.6V DVD LOADER AUDIO DAC CS4340 CRYSTAL AUDIO LPF NJM 4558 SYSTEM CONTROL & DECODER ESS-4318 VIDEO DAC CS4955 CRYSTAL FLASH 29F040 SDRAM 1 x 16M (2 Pcs) POWER LD117S VFD DRIVER uPD16315 VFD SWITCHING REGULATOR PQ1CZ21H2Z EEPROM ST24C01A IR CAR DVD BLOCK DIAGRAM +5V BA7609 A/V Switch L R Video L R Video A/V in A/V out 3

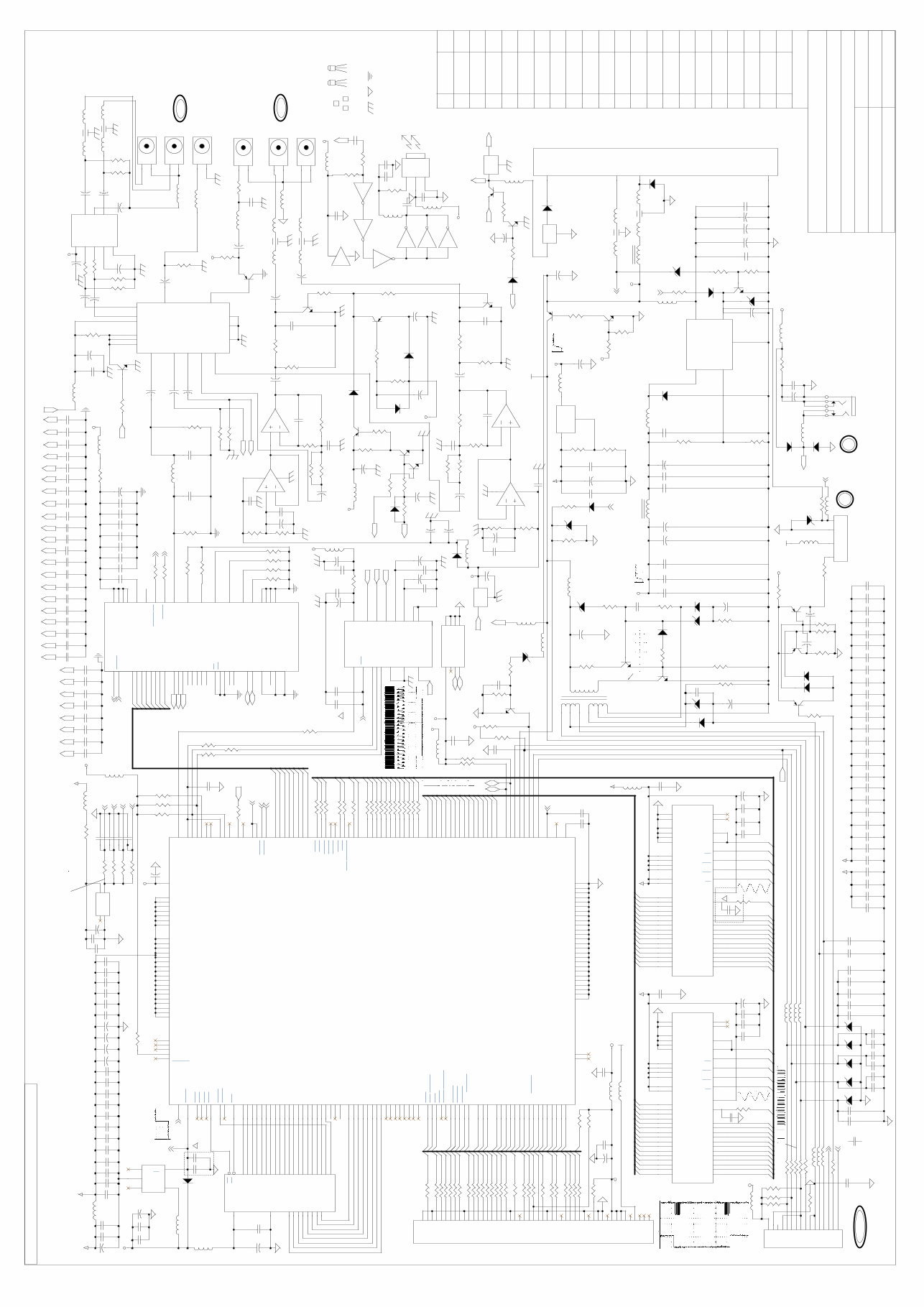

CORE1 R51,R52,R61: BLM11B470SB R19,R21,R22,R23: BLM11B470SB FSRC142150RTB00T E FSRH070080RN000B A H FSRC240150RX000T FSRC142150RTB00T BLM11B470SB CORE3 CORE5 U12 CORE2 FSRH070080RN000B CORE4 R83,R114,R116,R117,R118,R120,R126,R127: ORIENT POWER CAR STEREOS R&D DEPT. SOURCE DATE REVISIONS MainBoard Schematic DATE: DATE: S-12060-043-001 DVD-1206 DATE: APPROVED: DRAWN BY: CHECK: CAD NO: MODEL: DESCRIPTION: A B C D E F G C 1175 E 8550 2002-11-19 AV Pin7 0V BE CB B EC 812,1623 DB7 HD6 DB0 MA6 MA10 MA9 MA11 HA0 DB8 DB0 DB9 WE# /HWR MA8 DB3 MA6 DB14 DB8 DB12 /HCS3 DB4 RAS0# DB7 MA10 /HRD MA3 WE# HD3 DB13 HIRQ MA9 YUV1 DB10 DB11 DB11 HD9 YUV7 DB3 MA8 YUV0 CAS# DB1 MA2 YUV2 DB0 HD14 WE# HD2 DB10 CS0# DB2 DB3 DB12 MA0 CAS# YUV6 DB4 YUV4 HA2 HD15 MA1 HD4 DB13 DB9 YUV1 CS0# HD5 DB15 HD7 /HRST HD12 MA7 HD1 YUV4 MA4 DB5 HD8 YUV0 HD10 HA1 DB6 MA0 YUV3 DSCK DQMX /HWR DB9 YUV2 RAS0# MA6 DB10 HD11 DQMX /HIOCS16 YUV5 /HCS1 MA5 DB15 RAS0# YUV7 DMACK DB15 MA4 DB7 HD7 DMACK DB12 MA11 HD9 HD4 DB8 DB13 /HCS1 DB4 HD13 MA5 MA3 DB6 DB1 YUV6 /HCS3 CS1# MA4 DB14 HD13 MA11 MA5 MA8 HD5 HD2 HD15 CS1# MA2 HD0 DB1 HIORDY HD14 HD6 DB5 MA10 DB2 MA7 DB14 HD10 HD1 HIORDY /HIOCS16 /HRD MA1 MA9 DSCK HD11 YUV3 DB2 DQMX HD0 /HRST MA3 YUV5 HD8 DB11 DSCK DB6 MA2 MA7 MA0 DB5 MA1 HD12 HIRQ HD3 CAS# CLK CLK AccOut Accout VSYNC #Reset Accin AccOut HSYNC #Reset CLK-VIDEO XIN PCLK #Reset VSYNC XIN HSYNC CLK-VIDEO #Reset Accin PCLK VCC VCC VCC3 VCC3-MPEG +12V VCC3_DRAM VCC VCC3-MPEG +12V VCC VCC VCC3 +12V VCC3_DRAM VCC1 VCC1 VCC2 VCC3 VCC VCC3_DRAM VCC3 VCC VCC VCC3 VCC VCC2 BAT BAT +9V +9V +9V VCC VCC VCC VCC VCC U13 78L09 3 1 2 C46 1UF C804 12pF J1 To Lamp Board 1 2 3 4 Reset GND Lamp LED C328 12pF R67 2.2K R91 33 C942 0.1UF D18 1N4148 FB135 BLM11B470SB U7 29F040 (90ns) 12 11 10 9 8 7 5 6 27 26 23 25 4 28 29 3 13 14 15 17 18 19 20 21 2 22 24 31 30 1 32 16 A0 A1 A2 A3 A4 A5 A7 A6 A8 A9 A10 A11 A12 A13 A14 A15 D0 D1 D2 D3 D4 D5 D6 D7 A16 CE OE A18 A17 A19 VCC GND R80 2.2K C912 0.1UF R2 6.8K C7 150pF C48 1UF U12C 74VHC04 5 6 U5 ES4318 183 122 123 124 125 126 127 128 129 53 2 54 1 55 3 56 4 57 5 58 6 7 8 18 10 11 12 13 14 15 16 17 27 19 20 21 22 23 24 25 26 51 28 29 30 31 32 33 34 59 36 37 38 39 40 41 42 43 68 45 46 47 48 49 50 75 52 92 60 61 62 63 64 65 66 67 99 69 70 71 72 73 74 104 76 77 78 79 80 81 82 111 84 85 86 87 88 89 90 91 130 93 94 95 96 97 98 148 100 101 102 103 157 105 106 107 108 109 110 164 112 113 114 115 116 117 118 119 120 193 131 132 133 134 135 136 137 138 201 140 141 142 143 144 145 146 147 9 149 150 151 152 153 154 155 156 35 158 159 160 161 162 163 44 165 166 167 168 169 170 171 83 173 174 175 176 177 178 179 180 181 182 121 184 185 186 187 188 189 190 191 192 139 194 195 196 197 198 199 200 172 202 203 204 205 206 207 208 VCC33 HD0/DCI[0] HD1/DCI[1] HD2/DCI[2] HD3/DCI[3] HD4/DCI[4] HD5/DCI[5] HD6/DCI[6] VSS DMA0 LA4 DMA1 VCC33 DMA2 LA5 DMA3 LA6 DMA4 LA7 DMA5 LA8 LA9 VSS VCC33 LA10 LA11 LA12 LA13 LA14 LA15 LA16 VSS VCC33 LA17 LA18 LA19 LA20 LA21 RESET TDMDX/RSEL VSS VCC33 TDMDR TDMCLK TDMFS TDMTSC TWS/SEL_PLL1 TSD0/SEL_PLL0 VSS VCC33 TSD1/SEL_PLL2 TSD2 TSD3 MCLK TBCK SPDIF_DOBM SPDIF_DIBM VSS VCC33 RSD RWS RBCK APLLCAP XIN XOUT VCC33 VSS VCC33 VSS DMA6 DMA7 DMA8 DMA9 DMA10 DMA11 VSS VCC33 DCAS DOE/DSCK_EN DWE DRAS0 DRAS1 DRAS2 VCC33 VSS DB0 DB1 DB2 DB3 DB4 DB5 VCC33 VSS DB6 DB7 DB8 DB9 DB10 DB11 VSS VCC33 DB12 DB13 DB14 DB15 DCS1 VSS VCC33 DCS0 DQM DSCK VSS VCC33 CLK YUV0 YUV1 YUV2 YUV3 YUV4 VCC33 VSS YUV5 YUV6 YUV7 PCLK2XSCN PCLKQSCN VSSCN HSSCN VSS VCC33 HD7/DCI[7] HD8/DCI_FDS HD9 HD10 HD11 HD12 HD13 VSS VCC33 HD14 HD15 HWRQ/DCI_REQ HRDQ HIRQ/DCI_ERR HRST HIORDY VSS VCC25 HWR/DCI_CLK HRD/DCI_ACK HIOCS16 HCS1FX HCS3FX HA0 HA1 VSS VCC25 HA2 VPP SDA SCL VFD-DATA VSS VCC25 ACC IR AudioDemo VFD-CS# VFD-CLK LOE VSS VCC25 LCS0 LCS1 LCS2 LCS3 VSS LD0 LD1 LD2 LD3 LD4 VCC25 VSS LD5 LD6 LD7 LD8 LD9 LD10 LD11 VSS VCC25 LD12 LD13 LD14 LD15 LWRLL LWRHL VSS VCC25 NC NC LA0 LA1 LA2 LA3 VSS C302 12pF C43 100uF C812 12pF R160 470@1/2W C960 0.1uF R32 330 C917 0.1UF C334 47UF C814 12pF Q19 A812 C822 12pF C606 10UF R92 22K C59 100UF R90 33 R7 0 FB115 BLM11B470SB C321 12pF FB15 BLM18HD102SN1 D22 1N4148 C611 10uF C943 0.1uF C36 open R93 3.3K C68 470UF J4 POWER CONNECTOR 3 1 2 4 ANT-POWER BAT GND ACC C632 10UF R87 33 R34 330 C961 0.1uF R135 1K D26 12V R1 330K Q1 2SC1623 C806 12pF R88 22K C44 47uF C920 0.1UF U2 27MHz 2 1 3 4 G N Q V R86 33 C147 47UF/50V FB14 BLM31P601SG R53 22K R18 330 U19 78L18 1 3 2 C300 12pF C614 10UF FB102 BLM11B470SB C962 0.1uF C902 0.1UF C976 0.1UF C301 12pF C314 220UF C55 open C807 12pF R54 3.3K P3 L-CH IN 1 2 R85 33 C938 0.1UF Q4 A812 R300 10K R56 22K FB30 BLM11B470SB C964 0.1uF C949 0.1UF R64 10 C631 10UF D3 1N5401 C329 12pF C819 12pF R84 33 C607 10UF D29 1N4148 C51 1000PF R45 10 FB106 BLM11B470SB Q5 A812 FB111 BLM11B470SB R65 10 P3 VIDEO IN 1 2 C982 0.1UF C142 10UF C930 0.1UF FB108 BLM11B470SB C344 0.1UF C39 1000PF U12D 9 8 R310 10K C975 0.1UF R66 10 FB125 C963 0.1uF C615 10UF R94 4.7K C79 47UF/50V C808 12pF C800 12PF U12E 11 10 C151 2.2uF Q14 2SC1623 R301 5K Q6 2SC1623 2 1 3 R162 100(0.25W) C941 0.1UF R68 10 C343 0.1UF C936 0.1UF U12A 1 2 R19 C929 0.1UF U12F 13 12 R132 4.7K R50 10K R69 10 Q16 BD436 C967 0.1uF R47 100K C820 12pF R304 5K R72 10 FB122 C132 470UF Q3 A812 C311 12pF R21 FB4 BLM18HD102SN1 C309 12pF C970 0.1uF R75 10 Q13 2SC1623 D13 1N4148 C324 12pF R22 FB123 U10 CS4340 1 3 2 4 5 6 7 8 14 15 12 16 9 10 11 13 RST SCLK/DEM1 SDATA LRCK MCLK DIF1 DIF0 DEM0 VA AOUTL AOUTR MUTEC FILT+ VQ REF_GND AGND R193 4.7K C1 1UF C164 4PF C313 12pF R77 10 EMI5 NFM61R00T181 C937 0.1uF R23 D16 1N4148 R78 10 FB124 C969 0.1uF C136 10UF R109 10K C67 1UF C13 1000PF U17 LM1117 3 2 1 IN OUT ADJ FB113 BLM11B470SB P1 R-CH IN 1 2 P1 R-CH OUT 1 2 R79 10 R153 22K R63 1K FB128 R128 150 FB6 BLM31P601SG R81 10 U3 CS4955 29 34 1 2 3 4 5 6 7 8 26 25 24 23 22 21 20 19 27 28 30 31 32 33 13 17 36 41 46 38 9 10 11 44 48 47 39 40 43 37 18 35 42 45 12 14 15 16 CLOCK RESET V0 V1 V2 V3 V4 V5 V6 V7 PDAT0 PDAT1 PDAT2 PDAT3 PDAT4 PDAT5 PDAT6 PDAT7 RD WR TTXDAT TTXRQ SDA SCL TEST VDD VAA VAA VAA VREF FIELD/CB HSYNC/CB VSYNC CVBS-1 CVBS-2 C RED GREEN BLUE ISET GNDD GNDA GNDA GNDA INT XTALOUT XTALIN PADDR C69 470UF R134 270 C968 0.1uF R111 10K C98 1000PF D25 6.8V P1 L-CH OUT 1 2 R171 10K D33 1N4001 R4 10K C919 0.1UF FB129 C338 0.1UF R25 4.7K R82 10 U16 PQ1CZ21H2 1 2 3 4 5 VIN VOUT GND OADJ ON/OFF C983 open C946 0.1uF R133 22K D17 1N4148 R17 2.2M C918 0.1UF C966 0.1uF C57 150PF Q8 C8550 FB130 D12 6.8V C347 1000PF P1 Video OUT 1 2 D15 6.8V R51 C603 10UF C339 0.1UF J8 TOTX178 1 2 3 GND VCC IN C947 0.1uF R115 10K C60 3300PF D5 6.8V EMI8 NFM61R00T181 C944 0.1uF C965 0.1uF R52 C63 0.01UF FB126 C327 12pF D28 IR31 R105 10K R46 10K C907 0.1UF D11 6.8V R137 3.3K R97 100K C77 220UF C305 12pF Q20 2SC1623 C824 12pF R124 1K R55 33 Q15 2SC1623 D31 1N4148 C617 10UF L5 CHOKE COIL FB116 BLM11B470SB C908 0.1UF C948 0.1uF R89 10 R40 10K C973 0.1uF R73 1K L6 220uH R44 300 D32 12V D10 6.8V C911 0.1UF D24 5.1V C909 0.1UF FB2 C605 10UF R57 33 R123 100K C323 12pF C952 0.1UF R203 4.7K U4 V6300F(SOT-23 5L) 1 2 3 4 5 NC GND NC RES VDD R27 10 FB5 BLM31P601SG C979 0.1uF R59 33 V+ V- U8-1 NJM4558 3 2 1 8 4 R192 4.7K L9 CHOKE COIL D9 6.8V C135 100UF C994 0.1UF C228 100UF R142 2.4K R178 2.2 OHM C14 1000pF R31 10 C931 0.1UF R131 4.7K R61 C901 0.1UF R138 330K EMI4 NFM61R00T181 Q10 2SC1623 C951 0.1UF C317 12pF C978 0.1uF C312 12pF D13 6.8V T1 15-00013-01 8 7 6 2 9 5 4 3 C900 0.1UF C24 2200UF R15 OPEN L4 BLM18AG601SN1 C932 0.1UF C945 0.1UF C154 220UF R96 1K R9 10K FB132 BLM11B470SB C140 1000pF R149 330K C321 12pF C613 10UF U12B 3 4 C816 12pF R95 1K C974 0.1uF R154 22K FB18 BLM18HD102SN1 R5 3K C609 10UF C346 0.1UF EMI7 NFM61R30T472T1 EMI3 NFM61R00T181 R16 1K Q12 BD435 C935 0.1UF C803 12PF R145 33K C972 0.1uF R48 33 C817 12pF C977 0.1UF C950 0.1uF C940 0.1UF R33 180 R14 1K J5 To VFD/KEYBOARD 11 8 9 10 12 7 6 5 4 14 2 3 1 15 13 16 DI IR STB ACK DO GND LED +5V GND VEE F1 F2 Acc2 VEE Panel Acc1 FB101 BLM11B470SB C801 12PF R156 56 C921 0.1UF C604 10UF C610 10UF Q11 A812 C905 0.1UF C971 0.1uF C906 0.1UF C916 0.1UF C5 0.01UF J3 To DVD-ROM (SANYO MDAJ01) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 GND /RESET GND DD7 DD8 DD6 DD9 DD5 DD10 GND DD4 DD11 DD3 DD12 DD2 DD13 DD1 DD14 DD0 GND DD15 DMARO /DIOW /DIOR IORDY DMACK INTRQ GND /IOCS16 DA1 /PDIAG DA0 DA2 /CS1 /CS3 GND /DASP CSEL GND GND (SWA) 5V 5V 5V 5V (EJECT) +12V AUDIO-R AUDIO-G AUDIO-L R188 short C619 10uF C927 0.1uF FB100 BLM11B470SB C903 0.1UF R110 91 C913 0.1UF C904 0.1UF C802 12PF C616 10UF R190 10 C319 12pF FB133 BLM11B470SB C955 0.1uF FB109 BLM11B470SB Q17 A812 C627 10UF R122 33 R71 10K C910 0.1uF R41 3.9K R12 47K D6 1N4148 U1 BA7609F 6 13 8 7 9 4 2 5 14 15 11 12 3 10 1 16 OUTC VCC IN2C CTLc IN1C GND CTLa OUTB IN2B GND IN1B CTLb OUTA GND IN2A IN1A C341 12pF R187 short FB11 BLM31P601SG R302 5K C41 100UF C308 12pF Q21 2SC1623 C958 0.1uF R125 33 R42 300 FB121 BLM11B470SB C166 open D30 5.1V R43 300 R36 33 Q18 2SC1623 R11 10K D34 1N4148 R121 33 FB107 BLM11B470SB R130 470 D8 1N4148 C33 22PF C315 12pF C981 0.1UF FB112 BLM11B470SB C957 0.1uF R38 33 FB127 BLM11B470SB R601 10K C306 12pF C29 open C337 short C934 0.1UF R112 33 C926 0.1UF R8 10 R35 33 EMI6 NFM61R30T472T1 L2 1.8UH R3 68 1 C815 12pF R165 47 R108 470 FB134 BLM11B470SB C980 0.1UF C956 0.1uF R13 47K D2 1N4148 V+ V- U9-1 NJM4558 3 2 1 8 4 C27 330PF R106 33 R29 4.7K U6 BA3121F 3 4 2 5 8 1 6 7 IN1 GND VM1 IN2 VCC OUT1 VM2 OUT2 C28 220PF U15 M12L16161A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 VCC DQ0 DQ1 VSSQ DQ2 DQ3 VCCQ DQ4 DQ5 VSSQ DQ6 DQ7 VCCQ DQML WE CAS RAS CS BA/A11 A10 A0 A1 A2 A3 VCC VSS A4 A5 A6 A7 A8 A9 NC CKE CLK DQMH NC VCCQ DQ8 DQ9 VSSQ DQ10 DQ11 VCCQ DQ12 DQ13 VSSQ DQ14 DQ15 VSS R350 C304 12pF U18 78L05 1 3 2 R303 5K R166 47 FB103 BLM11B470SB C805 12pF C818 12pF C925 0.1UF R129 6.8K FB114 BLM11B470SB C954 0.1uF C336 short C922 0.1UF R197 470 R104 33 C622 10UF R103 33 C325 12pF D21 1N4148 D4 1N4148 R191 short R30 4.7K C923 0.1UF C624 47UF FB136 BLM11B470SB R194 2.2K R200 4.7K R107 33 C821 12pF U14 M12L16161A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 VCC DQ0 DQ1 VSSQ DQ2 DQ3 VCCQ DQ4 DQ5 VSSQ DQ6 DQ7 VCCQ DQML WE CAS RAS CS BA/A11 A10 A0 A1 A2 A3 VCC VSS A4 A5 A6 A7 A8 A9 NC CKE CLK DQMH NC VCCQ DQ8 DQ9 VSSQ DQ10 DQ11 VCCQ DQ12 DQ13 VSSQ DQ14 DQ15 VSS FB110 BLM11B470SB U9-2 5 6 7 C62 100uF R101 33 R141 560 C620 10UF C928 0.1uF R167 47 C924 0.1UF FB119 BLM11B470SB R113 33 R28 4.7K C953 0.1uF R196 3.9K C626 10UF C326 12pF R70 1K C333 470UF C621 10UF FB105 BLM11B470SB U11 AT24C01 1 2 3 4 5 6 7 8 DC/NC RST_/NC WP/RST_ VSS SDA SCL RST/WP VCC C95 1000PF + C623 10uF C307 12pF FB120 BLM11B470SB FB117 BLM11B470SB R201 4.7K C54 150PF C809 12pF R100 33 C318 12pF C993 0.1UF R136 6.8K C602 10UF R163 47 FB131 BLM11B470SB C933 0.1UF C303 12pF C2 0 FB1 BL01RN1 C155 220UF U8-2 5 6 7 C627 10uF C340 47UF Q2 2SC1623 C810 12pF C618 10UF R99 33 D20 1N4148 + C629 10uF D23 1N4148 C310 12pF FB118 BLM11B470SB FB104 BLM11B470SB C823 12pF C914 0.1UF C625 10UF C342 12pF C601 10UF R189 47 + C628 10uF D1 6.8V D27 1N4148 R98 33 C600 10UF C915 0.1UF C38 150PF J6 IR Remote Socket R186 75 C72 47UF C939 0.1UF C813 12pF R76 6.8K C959 0.1uF C811 12pF + C630 10uF C165 4PF D-emphasis SCL Convert AOUTR AOUTL SCL SDA MUTE D-emphasis SDA SPDIF SDA SPDIF Convert SCL IR-in MUTE AOUTR ANTPWR IR-in AOUTL ANTPWR +12V IN +12V IN +5V OUT +12V OUT +12V OUT +5V OUT D1 D0 D3 D2 D5 D4 D7 D6 Convert #LOE LA6 LA8 LA4 #LWRLL LA5 LA0 LA10 LA3 LA2 LA1 LA7 LA15 LA13 LA18 LA11 LA9 LA17 LA12 LA16 LA14 4

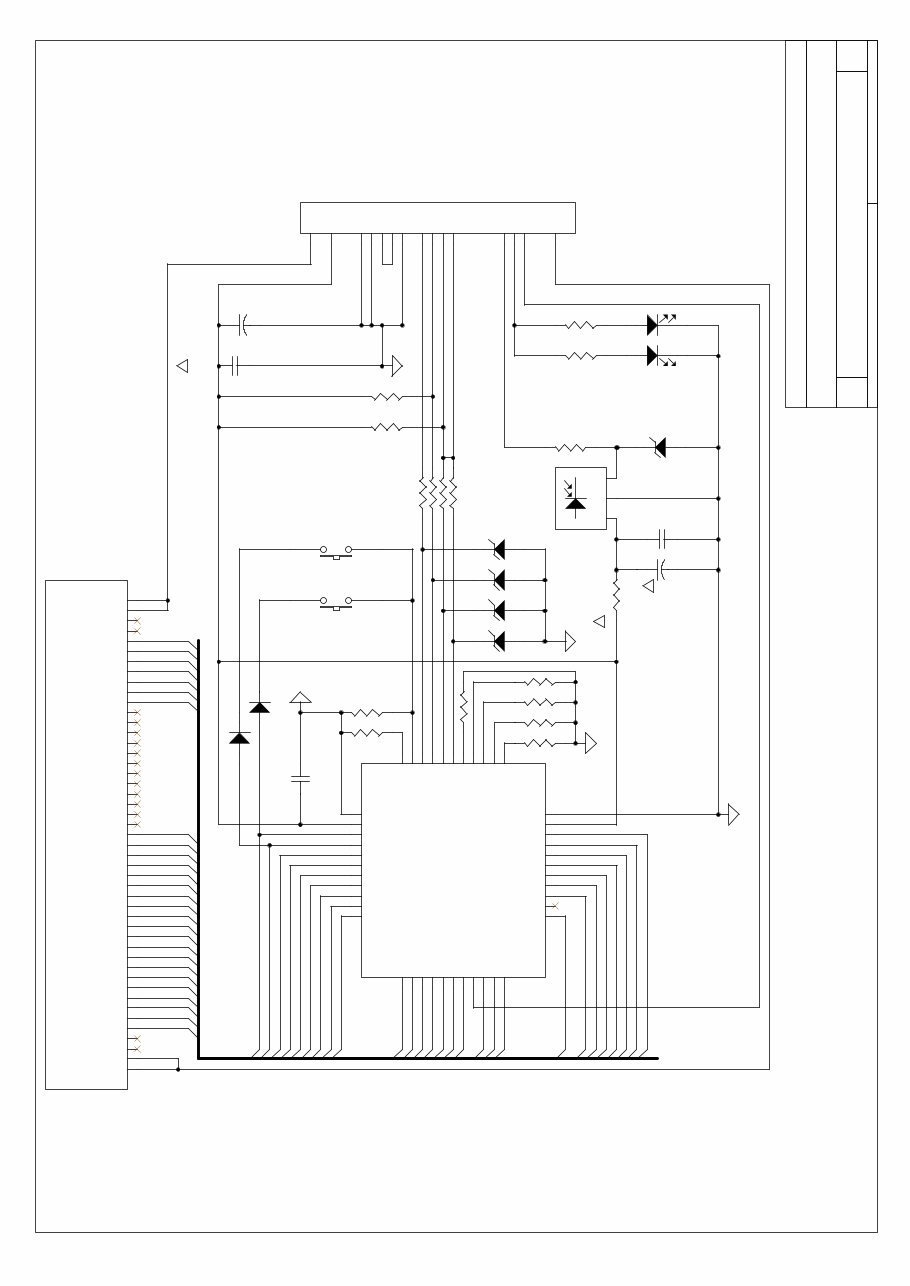

A A A A Key Board (uPD16315) for DVD-1206 A4 3 5 Tuesday, October 22, 2002 Title Size Document Number Rev Date: Sheet of SEG10 SEG11 SEG12 SEG13 SEG15 SEG16 SEG17 SEG18 SEG19 SEG9 SEG8 SEG7 SEG6 SEG5 SEG4 SEG3 SEG20 SEG19 SEG18 SEG17 SEG16 SEG15 SEG14 SEG13 SEG12 SEG11 SEG10 SEG7 Grid7 Grid6 Grid5 Grid4 Grid3 Grid2 Grid1 SEG20 Grid7 Grid6 SEG2 Grid5 Grid4 Grid3 Grid2 Grid1 SEG1 SEG2 SEG4 SEG3 SEG9 SEG8 SEG6 SEG5 SEG14 SEG1 R417 47 C401 470uF ZD405 6V8 D402 POWER LED R401 10K R413 10K R409 82K D403 EJECT KEY LED ZD402 6V8 R412 10K D401 4148 + C402 100u ZD401 6V8 R411 10K D404 4148 S429 POWER VFD1A 7-MT-243GNK 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 46 47 41 42 43 44 45 F1 F1 NP NP P20 P19 P18 P17 P16 P15 P14 P13 P12 P11 P10 P9 P8 P7 P6 P5 P4 P3 P2 P1 NC NC NC NC NC NC NC NC NC NC NC NC G7 G6 G5 G4 F2 F2 G3 G2 G1 NP NP R410 10K ZD403 6V8 S430 EJECT R402 10K IR1 GP1UM261XK(SHARP) 1 2 3 + C404 470uF U401 uPD16315 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 LED1 LED2 LED3 LED4 OSC Dout Din CLK STB K1 K2 Vss Vdd S1/KS1 S2/KS2 S3/KS3 S4/KS4 S5/KS5 S6/KS6 S7/KS7 S8/KS8 S9/KS9 S10/KS10 S11/KS11 S12/KS12 S13/KS13 S14/KS14 S15/KS15 S16/KS16 VEE S17/G12 S18/G11 S19/G10 S20/G9 S21/G8 S22/G7 S23/G6 S24/G5 G4 G3 G2 G1 Vdd Vss R404 4.7K R406 100 J401 14 2 3 4 5 6 7 8 9 10 11 12 13 1 15 VEE F1 F2 GND +5V LED GND IR STB ACK DI DO Panel ACC1 ACC2 R405 100 R408 100 R407 100 R415 100 R416 100 R403 4.7K C403 0.1uF C405 104 R414 100 ZD404 6V8 5

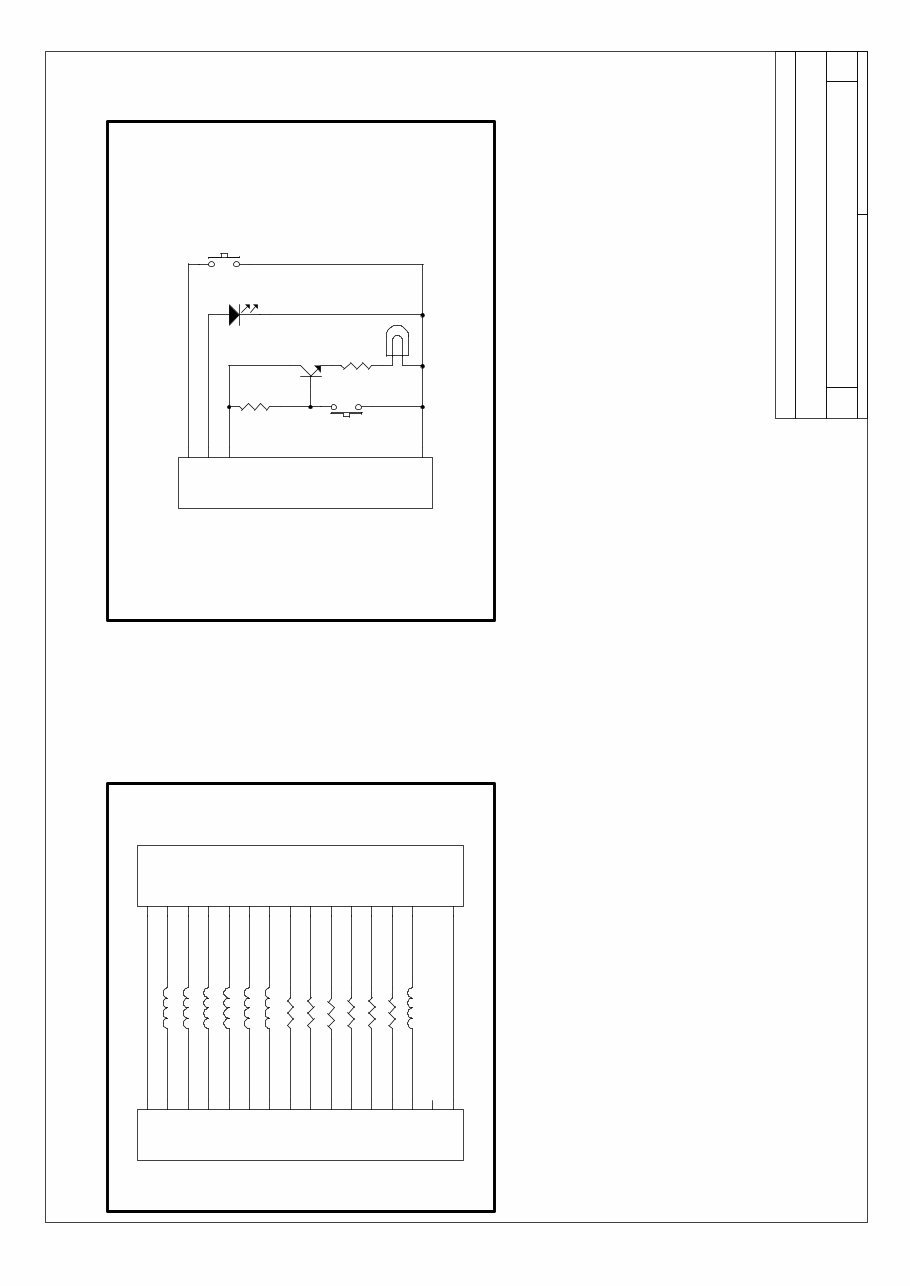

FPC connector Circuit Board Interface Circuit for DVD-1206 FB66 BLM11B470SB FB67 BLM11B470SB FB68 BLM11B470SB FB62 BLM11B470SB J9 To Main Board 11 8 9 10 12 7 6 5 4 14 2 3 1 15 13 16 DI IR STB ACK DO GND LED +5V GND VEE F1 F2 Acc2 VEE Panel Acc1 J10 To VFD Display Board 14 2 3 4 5 6 7 8 9 10 11 12 13 1 15 VEE F1 F2 GND +5V LED GND IR STB ACK DI DO Panel ACC1 ACC2 R206 100 R205 100 D501 RED LED R204 100 S501 7mm TACT. SW R203 100 J501 To Main Board 1 2 3 4 Reset GND Lamp LED R202 100 Q402 8050 2 1 3 R207 100 R408 1K@1/16W FB63 BLM11B470SB R406 150@1/4W FB64 BLM11B470SB S502 SPPB51377A FB65 BLM11B470SB LP501 3V@60mA Lamp A4 2 5 Title Size Document Number Rev Date: Sheet of IR3 GP1UM261XK(SHARP) 6

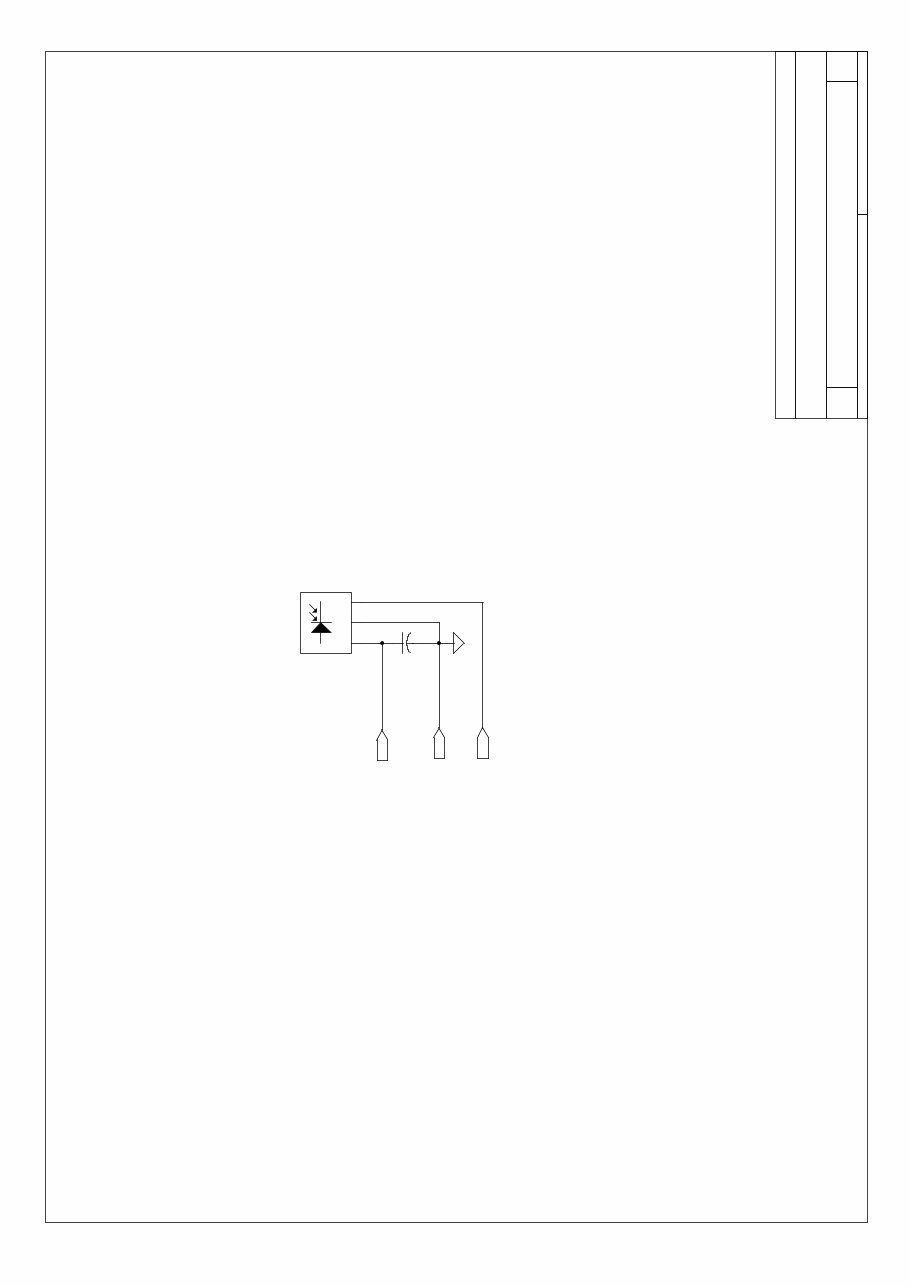

IR RECEIVER MODULE FOR DVD-1206 A4 2 5 Title Size Document Number Rev Date: Sheet of IR3 GP1UM261XK(SHARP) 1 2 3 + CF6 47UF Vcc GND DOUT 7

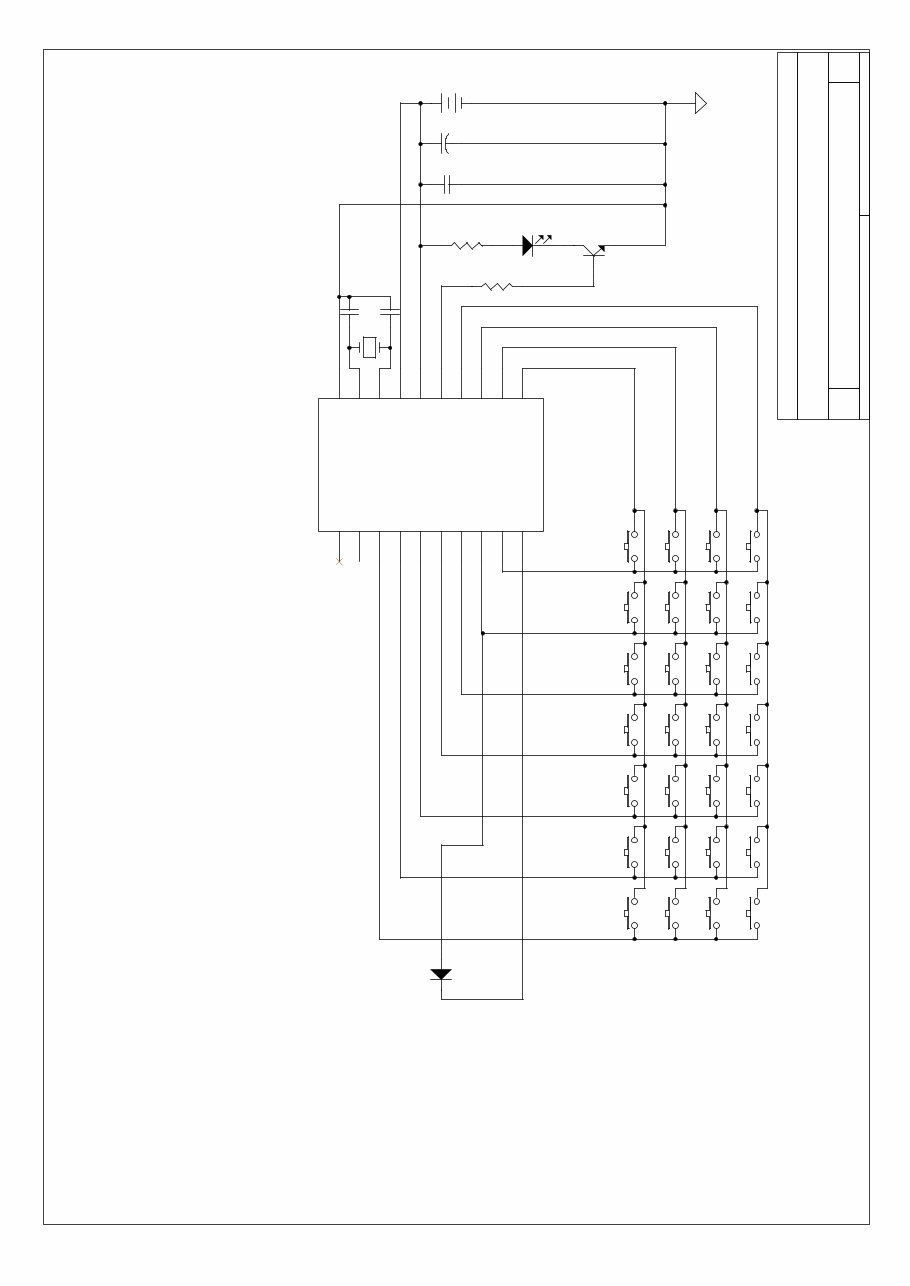

A Remote Board for DVD-1206 A4 5 5 Tuesday, October 22, 2002 Title Size Document Number Rev Date: Sheet of D309 SIR56B S8 ANGLE BT1 BATTERY 1.5Vx2 S25 7 D307 4148 C303 0.1UF C304 47uF S26 8 S21 3 S27 9 S28 ILL R309 220 S22 4 S23 5 S24 6 S17 REPEAT S18 0 S19 1 S20 2 S13 SUBTITLE S14 MENU S15 TITLE S16 SETUP S9 AUDIO U301 uPD6121G-001 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 KI0 KI1 KI2 KI3 REM VDD SEL OSCO OSCI VSS CCS K/IO0 K/IO1 K/IO2 K/IO3 K/IO4 K/IO5 K/IO6 K/IO7 LMP S10 DISPLAY S11 ENTER X301 CSB455E S12 POWER S1 PLAY/PAUSE R310 22 S2 A/V S5 SKIP- C302 120P(NP0) S3 STOP S6 FF C301 120P(NP0) S4 SKIP+ S7 REW Q301 C2785 8

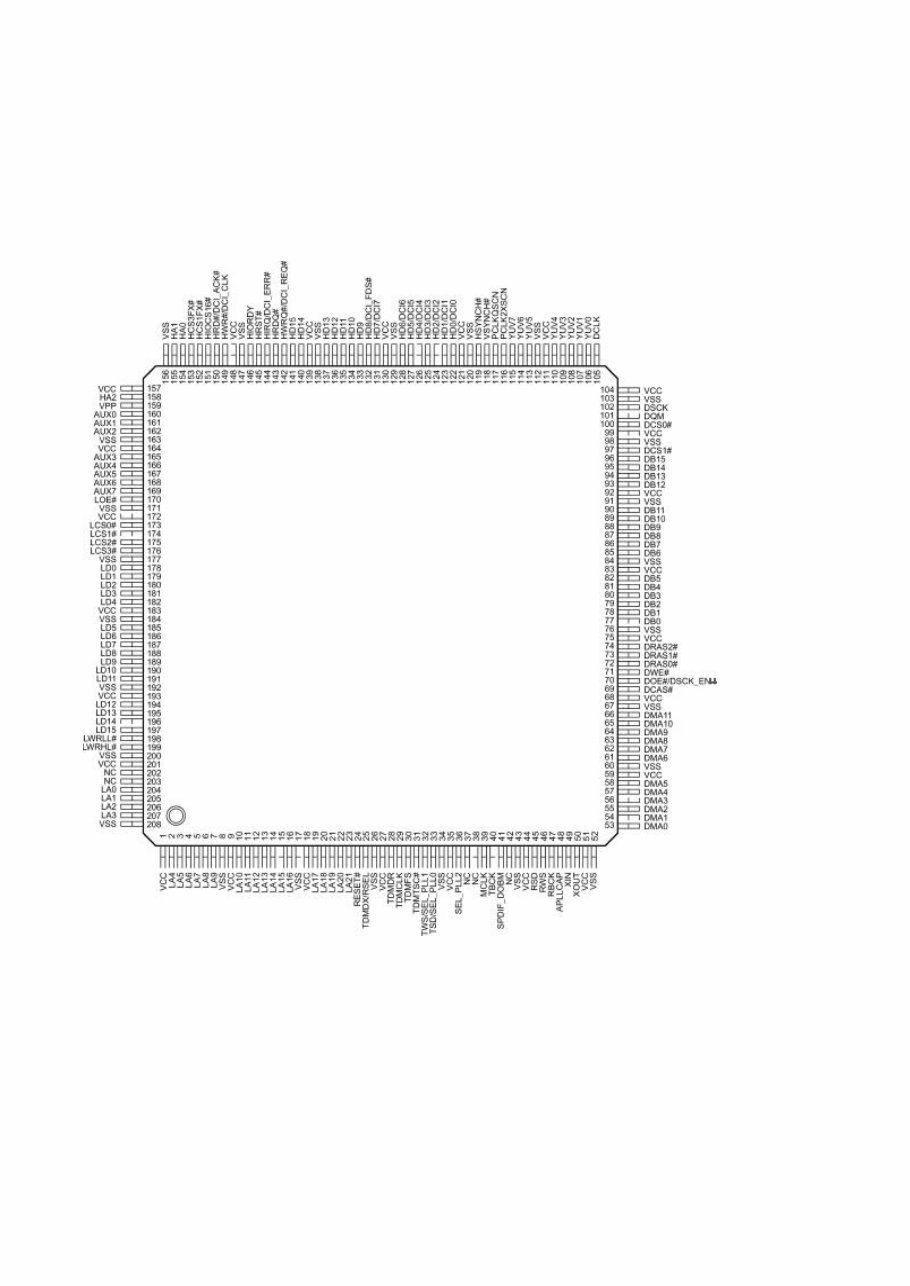

IC Es4318 DATA (DVD PROCESSOR CHIP) ------------I PINOUT DIAGRAM Es4318 9

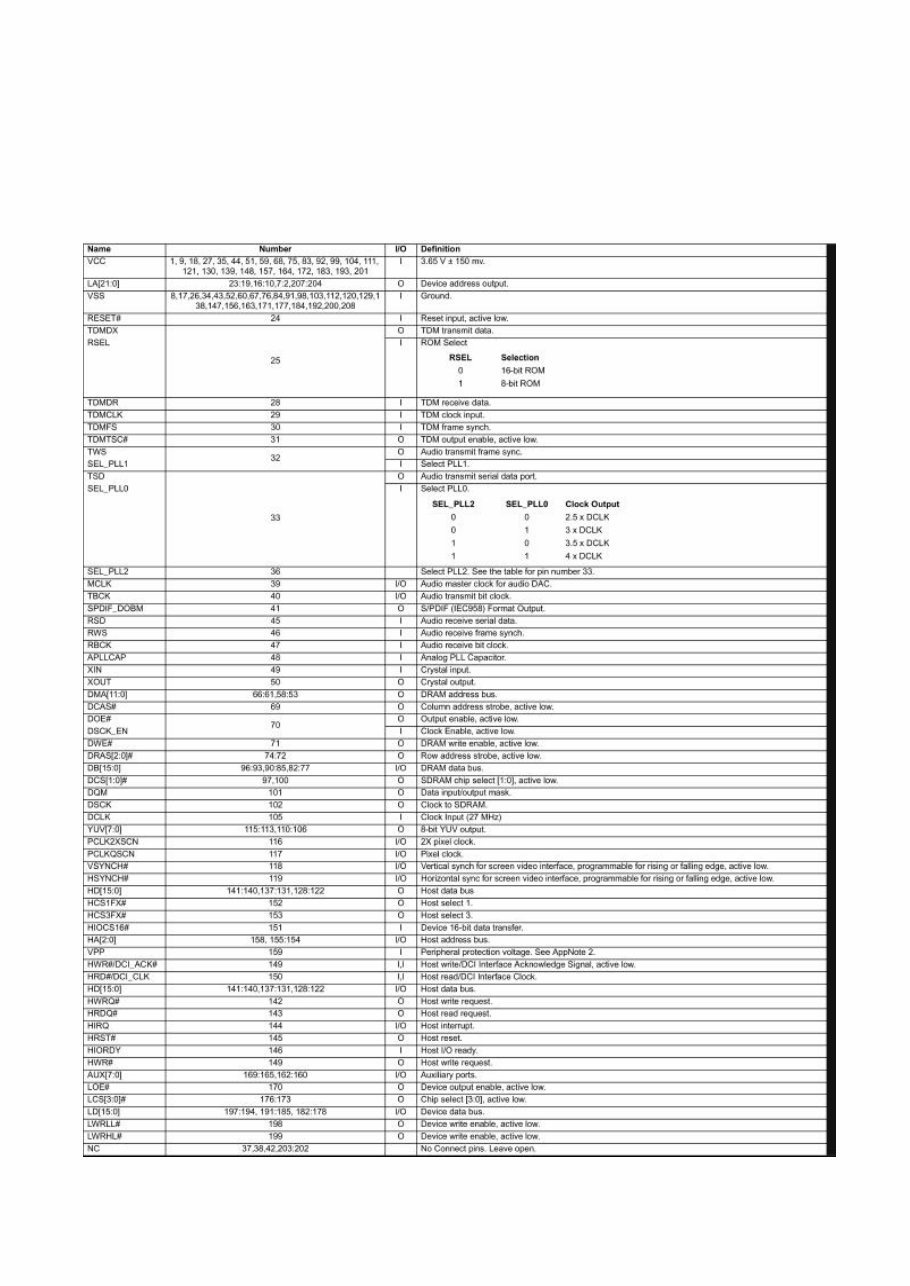

IC Es4318 DATA (DVD PROCESSOR CHIP) -----------II PIN DESCRIPTION 10
