Denon AVR-X4000 AV RECEIVER Service Manual

MODEL JP E3 E2 EK EA E1 E1C E1K AVR-X4100W P P P INTEGRATED NETWORK AV RECEIVER S0853-1V01DM/DG1407 Ver. 1 • Please use this service manual with referring to the operating instructions without fail. • Some illustrations using in this service manual are slightly different from the actual set. • For purposes of improvement, speciﬁcations and design are subject to change without notice. e SERVICE MANUAL e D&M Holdings Inc. Copyright 2014 D&M Holdings Inc. All rights reserved. WARNING: Violators will be prosecuted to the maximum extent possible. Downloaded from www.Manualslib.com manuals search engine

ABOUT THIS MANUAL .............................................................3 What you can do with this manual ............................................3 Using Adobe Reader (Windows version) ..................................4 SAFETY PRECAUTIONS ..........................................................6 NOTE FOR SCHEMATIC DIAGRAM.........................................7 NOTE FOR PARTS LIST ...........................................................7 TECHNICAL SPECIFICATIONS ................................................9 DIMENSION ...............................................................................9 Precautions During Service...................................................10 Initializing This Unit .................................................................10 Service Jigs .............................................................................10 DISASSEMBLY ........................................................................ 11 1. FRONT PANEL ASSY ........................................................13 2. RADIATOR ASSY...............................................................14 3. DIGITAL PCB .....................................................................15 4. VIDEO PCB........................................................................16 5. INPUT PCB ........................................................................16 6. SPK PCB............................................................................17 7. SMPS PCB.........................................................................17 8. TRANS POWER ................................................................17 SPECIAL MODE ......................................................................18 Special Mode Conﬁguration Buttons .......................................18 1. Version Display Mode ........................................................19 2. PANEL / REMOTE LOCK Selection Mode.........................23 3. Selection Modes for Service-related Operations................24 DIAGNOSTIC PATH DIAGRAM.........................................31 4. Remote ID Setup Mode......................................................75 5. Protection Pass Mode ........................................................76 6. CX870 / CY920 Reboot mode............................................76 7. CX870 / CY920 Initialization mode ....................................77 JIG FOR SERVICING ..............................................................78 Procedure after Replacing the Microprocessor, etc. ..........81 Firmware Update Procedure..................................................81 1. Updating by USB................................................................81 2. Updating by DPMS.............................................................90 ADJUSTMENT .........................................................................97 SURROUND MODES AND PARAMETERS ............................98 TROUBLE SHOOTING ..........................................................101 1. POWER............................................................................101 2. Analog video ....................................................................102 3. HDMI/DVI .........................................................................105 4. AUDIO..............................................................................107 5. Network/Bluetooth/USB ................................................... 110 6. SMPS ............................................................................... 115 Audio Check PASS .............................................................. 117 CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK ........... 118 LEVEL DIAGRAM.................................................................. 119 GND DIAGRAM .....................................................................125 POWER DIAGRAM................................................................126 WIRING DIAGRAM ................................................................127 PRINTED WIRING BOARDS.................................................128 SCHEMATIC DIAGRAMS (1/38 ) ..........................................135 SCH01_DIGITAL CONNECT ................................................135 SCH02_DIGITAL POWER ....................................................136 SCH03_MAIN CPU ...............................................................137 SCH04_SUB CPU.................................................................138 SCH05_CPU LEVEL CHG ....................................................139 SCH06_DIR ..........................................................................140 SCH07_AUDIO PLD .............................................................141 SCH08_DSP1 .......................................................................142 SCH09_DSP2 .......................................................................143 SCH10_DSP3 .......................................................................144 SCH11_DSP4........................................................................145 SCH12_ADC .........................................................................146 SCH13_ZONE DAC ..............................................................147 SCH14_CY920......................................................................148 SCH15_VIDEO DECODER ..................................................149 SCH16_HDMI SW2...............................................................150 SCH17_HDMI SW1...............................................................151 SCH18_VSP & IP & OSD......................................................152 SCH19_VIDEO PLD .............................................................153 SCH20_HDMI TX & SCALER ...............................................154 SCH21_ADAPTER................................................................155 SCH22_BLUETOOTH...........................................................156 SCH23_INPUT ......................................................................157 SCH24_PREOUT..................................................................158 SCH25_F-HDMI ....................................................................159 SCH26_VIDEO .....................................................................160 SCH27_RC-5 & MX-PORT ...................................................161 SCH28_RS232C & TRIGGER ..............................................162 SCH29_CONNECT_A...........................................................163 SCH30_CONNECT_B ..........................................................164 SCH31_MAIN DAC1 .............................................................165 SCH32_MAIN DAC2 .............................................................166 SCH33_SPK .........................................................................167 SCH34_REGULATOR & TUNER..........................................168 SCH35_7CH AMP 1 ..............................................................169 SCH36_7CH AMP 2 ..............................................................170 SCH37_FRONT ....................................................................171 SCH38_SMPS ......................................................................172 EXPLODED VIEW .................................................................173 PACKING VIEW .....................................................................174 SEMICONDUCTORS .............................................................175 1. IC's ...................................................................................175 2. FL DISPLAY .....................................................................200 CONTENTS 2 Downloaded from www.Manualslib.com manuals search engine

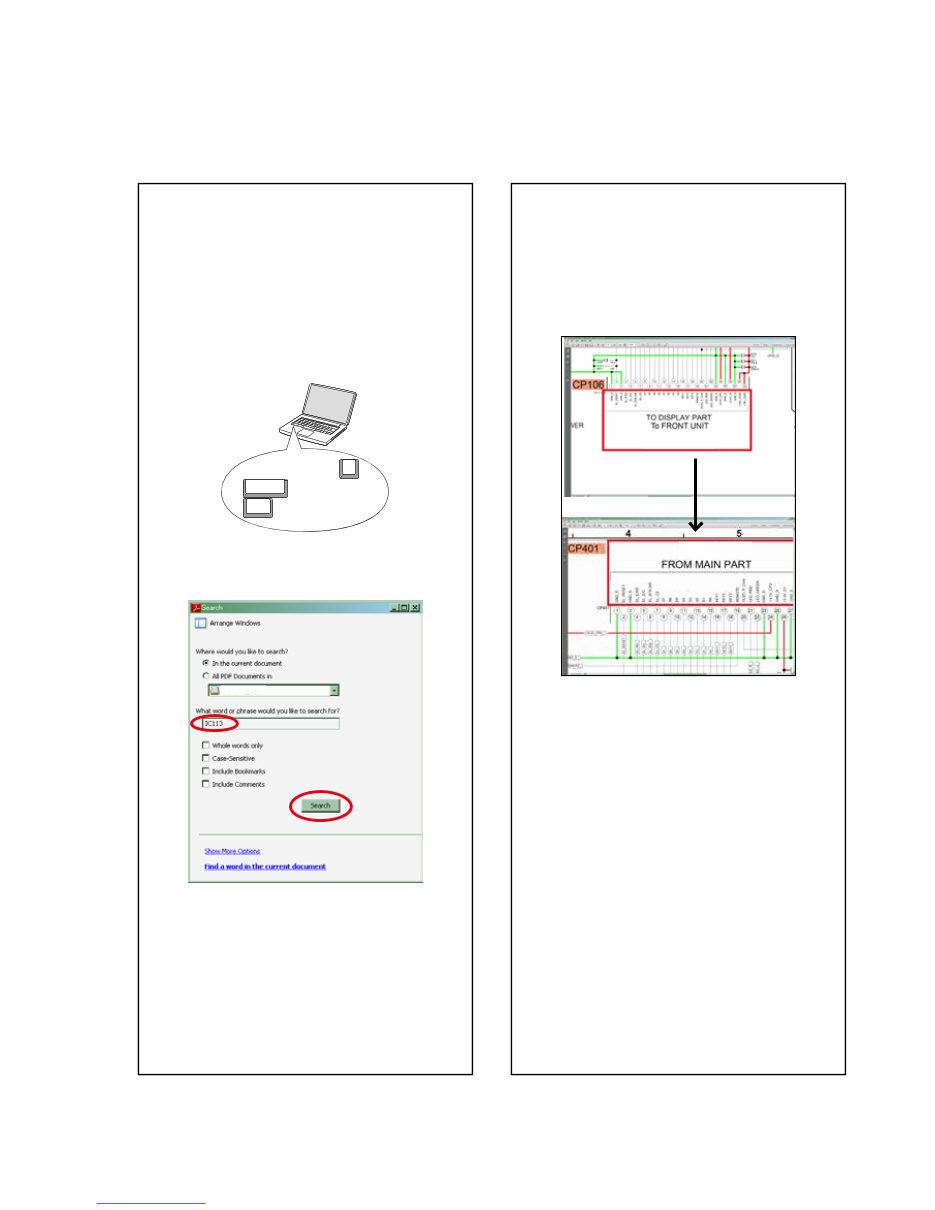

Jump to the target of a schematic diagram connector Click the Ref. No. of the target connector in the red box around a schematic diagram connector. •The screen jumps to the target connector. •Page magniﬁcation stays the same as before the jump. CP401 CP106 v ABOUT THIS MANUAL Read the following information before using the service manual. What you can do with this manual Search for a Ref. No. (phrase) (Ctrl+Shift+F) You can use the search function in Acrobat Reader to search for a Ref. No. in schematic diagrams, printed wiring circuit diagrams, block diagrams, and parts lists. 1.Press Ctrl+Shift+F on the keyboard. • The Search window appears. 2.Enter the Ref. No. you want to search for in the Search window, and then click the Search button. •A list of search results appears. 3.Click an item on the list. • The screen jumps to the page for that item, and the search phrase is displayed. Ctrl Shift F 3 Downloaded from www.Manualslib.com manuals search engine

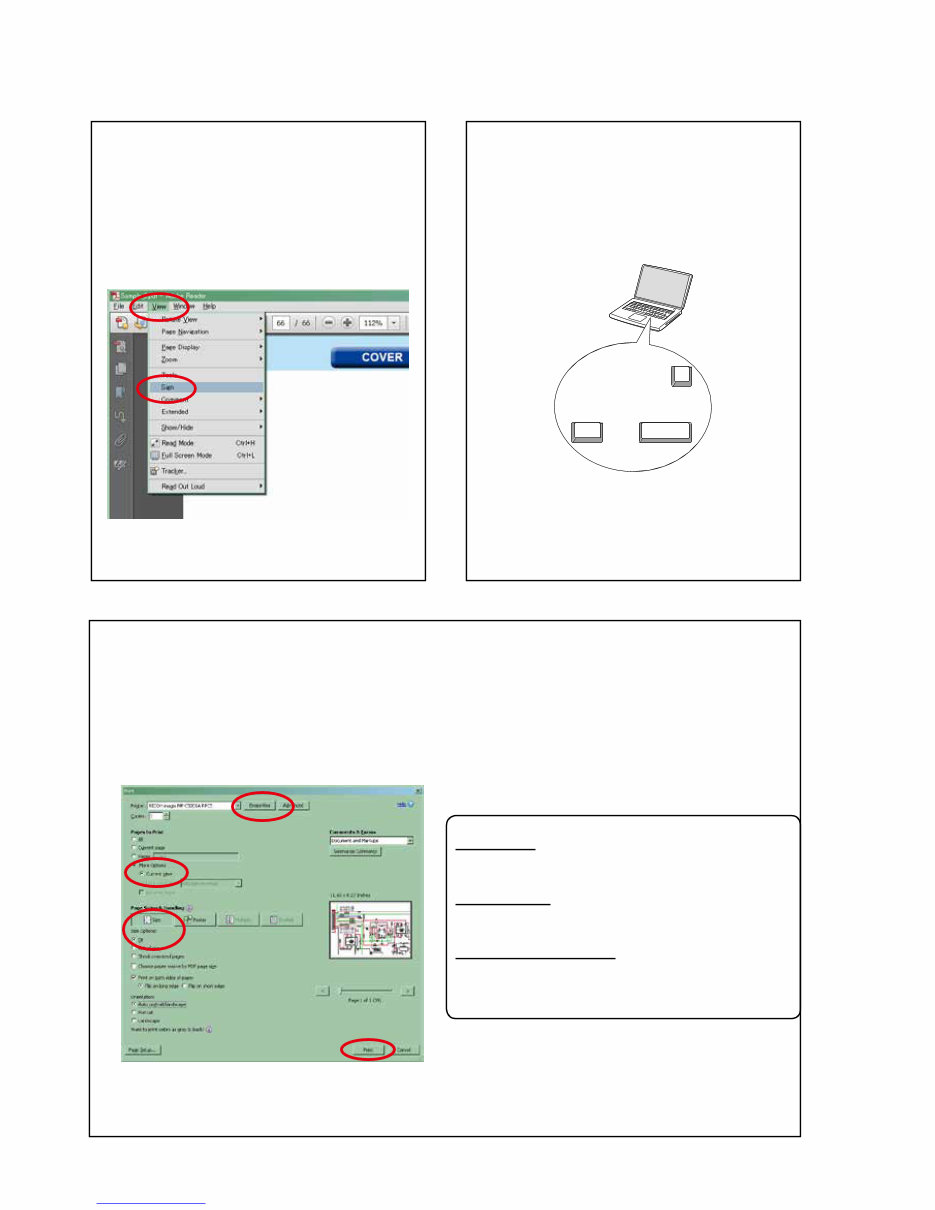

Using Adobe Reader (Windows version) • Properties Click this button and check that the printer is set to a suitable paper size. • Page to print Select the following checkbox. "More Options" : "Current View" • Page Sizing & Handling Select the following checkbox. "Size" / "Size Options" : "Fit" Add notes to this data (Sign) The Sign function lets you add notes to the data in this manual. Save the file once you have finished adding notes. [Example using Adobe Reader X] On the "View" menu, click "Sign". • The Sign pane appears. [Example using Adobe Reader 9] On the "Document" menu, click "Sign". Magnify schematic / printed circuit board diagrams - 1 (Ctrl+Space, mouse operation) Press Ctrl+Space on the keyboard and drag the mouse to select the area you want to view. • The selected area is magnified. • When you want to move the area shown, hold down Space and drag the mouse. • When you want to show a full page view, press Ctrl+0 on the keyboard. Ctrl Space 0 Print a magnified part of the manual The Properties dialog box and functions will vary depending on your printer. 1. Drag the mouse to magnify the part you want to print. 2. On the "File" menu, click "Print". 3. Configure the following settings in the Print dialog box. 4. Click the Print button to start printing. 4 Downloaded from www.Manualslib.com manuals search engine

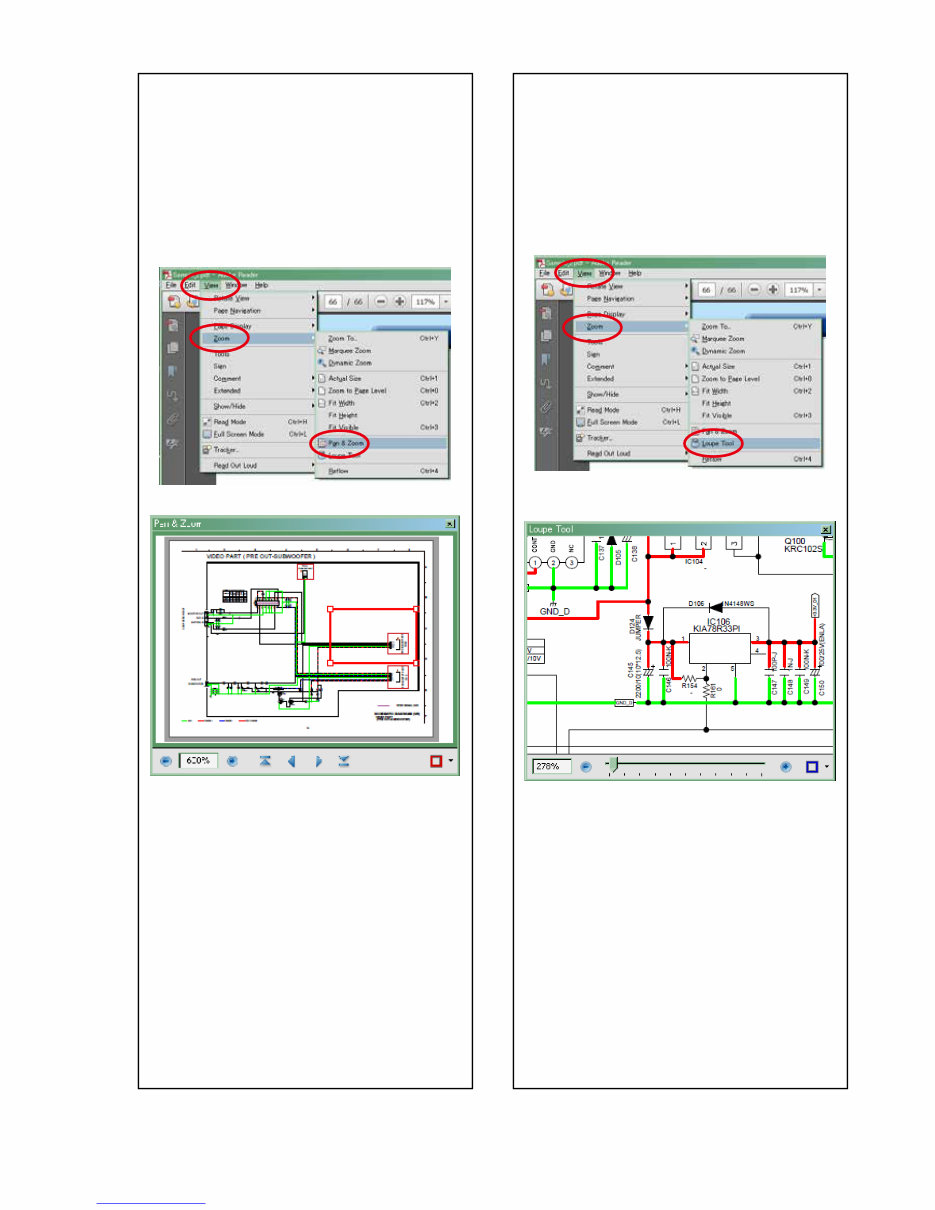

Magnify schematic / printed circuit board diagrams - 2 (Pan & Zoom function) The Pan & Zoom function lets you see which part of a magniﬁed diagram is being shown in a separate window. [Example using Adobe Reader X] On the "View" menu, point to "Zoom", and then click "Pan & Zoom". • The Pan & Zoom window appears on the screen. [Example using Adobe Reader 9] On the "Tools" menu, point to "Select & Zoom", and then click "Pan & Zoom Window". Magnify schematic / printed circuit board diagrams - 3 (Loupe Tool function) The Loupe Tool function lets you magnify a speciﬁc part of a diagram in a separate window. [Example using Adobe Reader X] On the "View" menu, point to "Zoom", and then click "Loupe Tool". • The Loupe Tool window appears on the screen. [Example using Adobe Reader 9] On the "Tools" menu, point to "Select & Zoom", and then click "Loupe Tool Window". 5 Downloaded from www.Manualslib.com manuals search engine

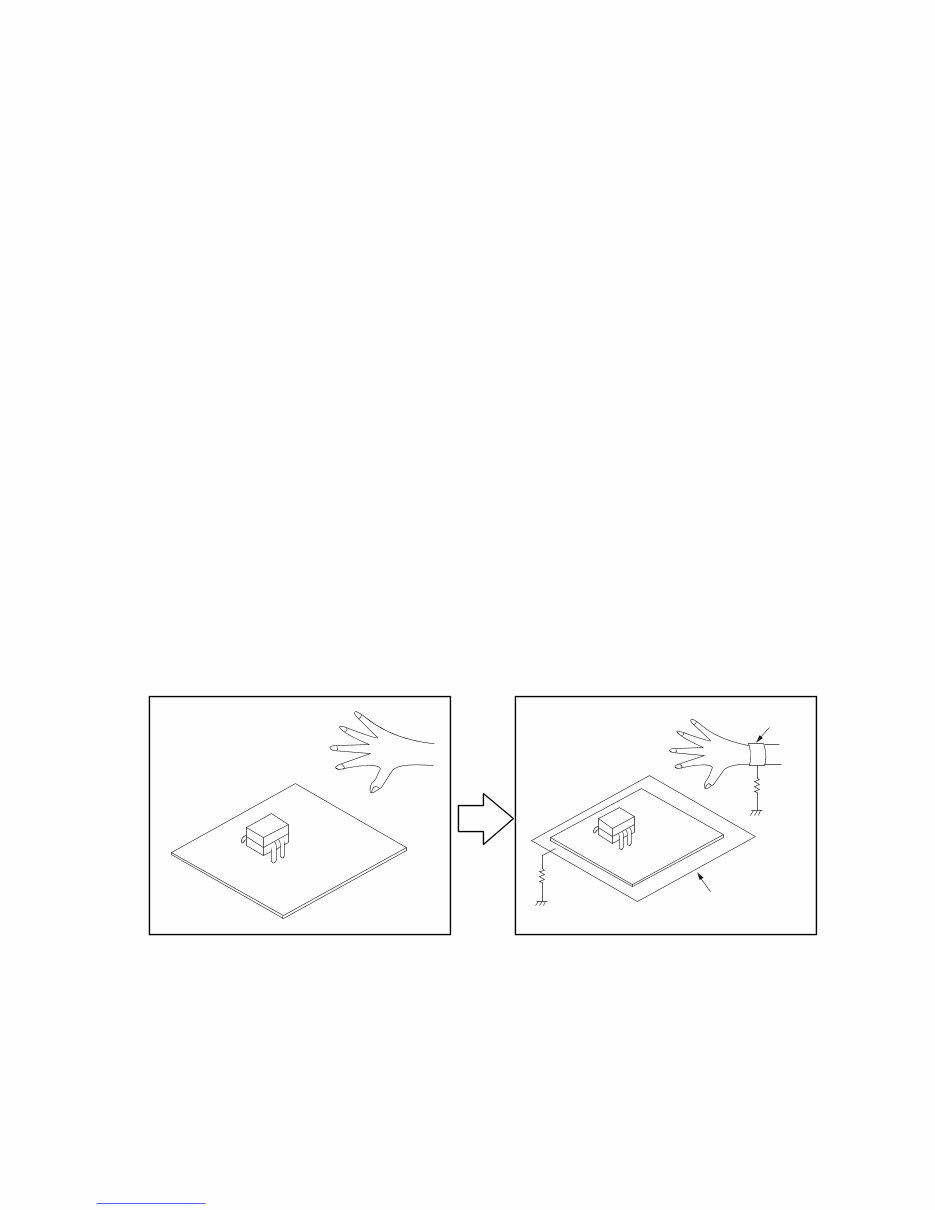

SAFETY PRECAUTIONS The following items should be checked for continued protection of the customer and the service technician. leakage current check Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective. Be sure to test for leakage current with the AC plug in both polarities, in addition, when the set's power is in each state (on, off and standby mode), if applicable. CAUTION Please heed the following cautions and instructions during servicing and inspection. ◎ Heed the cautions! Cautions which are delicate in particular for servicing are labeled on the cabinets, the parts and the chassis, etc. Be sure to heed these cautions and the cautions described in the handling instructions. ◎ Cautions concerning electric shock! (1) An AC voltage is impressed on this set, so if you touch internal metal parts when the set is energized, you may get an electric shock. Avoid getting an electric shock, by using an isolating transformer and wearing gloves when servicing while the set is energized, or by unplugging the power cord when replacing parts, for example. (2) There are high voltage parts inside. Handle with extra care when the set is energized. ◎ Caution concerning disassembly and assembly! Through great care is taken when parts were manufactured from sheet metal, there may be burrs on the edges of parts. The burrs could cause injury if fingers are moved across them in some rare cases. Wear gloves to protect your hands. ◎ Use only designated parts! The set's parts have specific safety properties (fire resistance, voltage resistance, etc.). Be sure to use parts which have the same properties for replacement. The burrs have the same properties. In particular, for the important safety parts that are indicated by the z mark on schematic diagrams and parts lists, be sure to use the designated parts. ◎ Be sure to mount parts and arrange the wires as they were originally placed! For safety seasons, some parts use tapes, tubes or other insulating materials, and some parts are mounted away from the surface of printed circuit boards. Care is also taken with the positions of the wires by arranging them and using clamps to keep them away from heating and high voltage parts, so be sure to set everything back as it was originally placed. ◎ Make a safety check after servicing! Check that all screws, parts and wires removed or disconnected when servicing have been put back in their original positions, check that no serviced parts have deteriorate the area around. Then make an insulation check on the external metal connectors and between the blades of the power plug, and otherwise check that safety is ensured. (Insulation check procedure) Unplug the power cord from the power outlet, disconnect the antenna, plugs, etc., and on the power. Using a 500V insulation resistance tester, check that the insulation resistance value between the inplug and the externally exposed metal parts (antenna terminal, headphones terminal, input terminal, etc.) is 1MΩ or greater. If it is less, the set must be inspected and repaired. Many of the electric and the structural parts used in the set have special safety properties. In most cases these properties are difficult to distinguish by sight, and the use of replacement parts with higher ratings (rated power and withstand voltage) does not necessarily guarantee that safety performance will be preserved. Parts with safety properties are indicated as shown below on the wiring diagrams and the parts list in this service manual. Be sure to replace them with the parts which have the designated part number. (1) Schematic diagrams.......Indicated by the z mark. (2) Parts lists.......Indicated by the z mark. The use of parts other than the designated parts could cause electric shocks, fires or other dangerous situations. CAUTION Concerning important safety parts 6 Downloaded from www.Manualslib.com manuals search engine

NOTE FOR SCHEMATIC DIAGRAM WARNING: Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. CAUTION: Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the set is defective. WARNING: DO NOT return the set to the customer unless the problem is identiﬁed and remedied. NOTICE: ALL RESISTANCE VALUES IN OHM. k=1,000 OHM / M=1,000,000 OHM ALL CAPACITANCE VALUESARE EXPRESSED IN MICRO FARAD, UNLESS OTHERWISE INDICATED. P INDICATES MICRO-MICRO FARAD. EACH VOLTAGE AND CURRENT ARE MEASURED AT NO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. NOTE FOR PARTS LIST 1. Parts indicated by "nsp" on this table cannot be supplied. 2. When ordering a part, make a clear distinction between "1" and "I" (i) to avoid mis-supplying. 3. A part ordered without specifying its part number can not be supplied. 4. Part indicated by " ★ " mark is not illustrated in the exploded view. WARNING: Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. INSTRUCTIONS FOR HANDLING SEMI-CONDUCTORS AND OPTICAL UNIT Electrostatic breakdown of the semi-conductors or optical pickup may occur due to a potential difference caused by electrostatic charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body. 2. Ground for Workbench Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing <Incorrect> CBA Grounding Band Conductive Sheet or Copper Plate 1MΩ 1MΩ <Correct> CBA 7 Downloaded from www.Manualslib.com manuals search engine

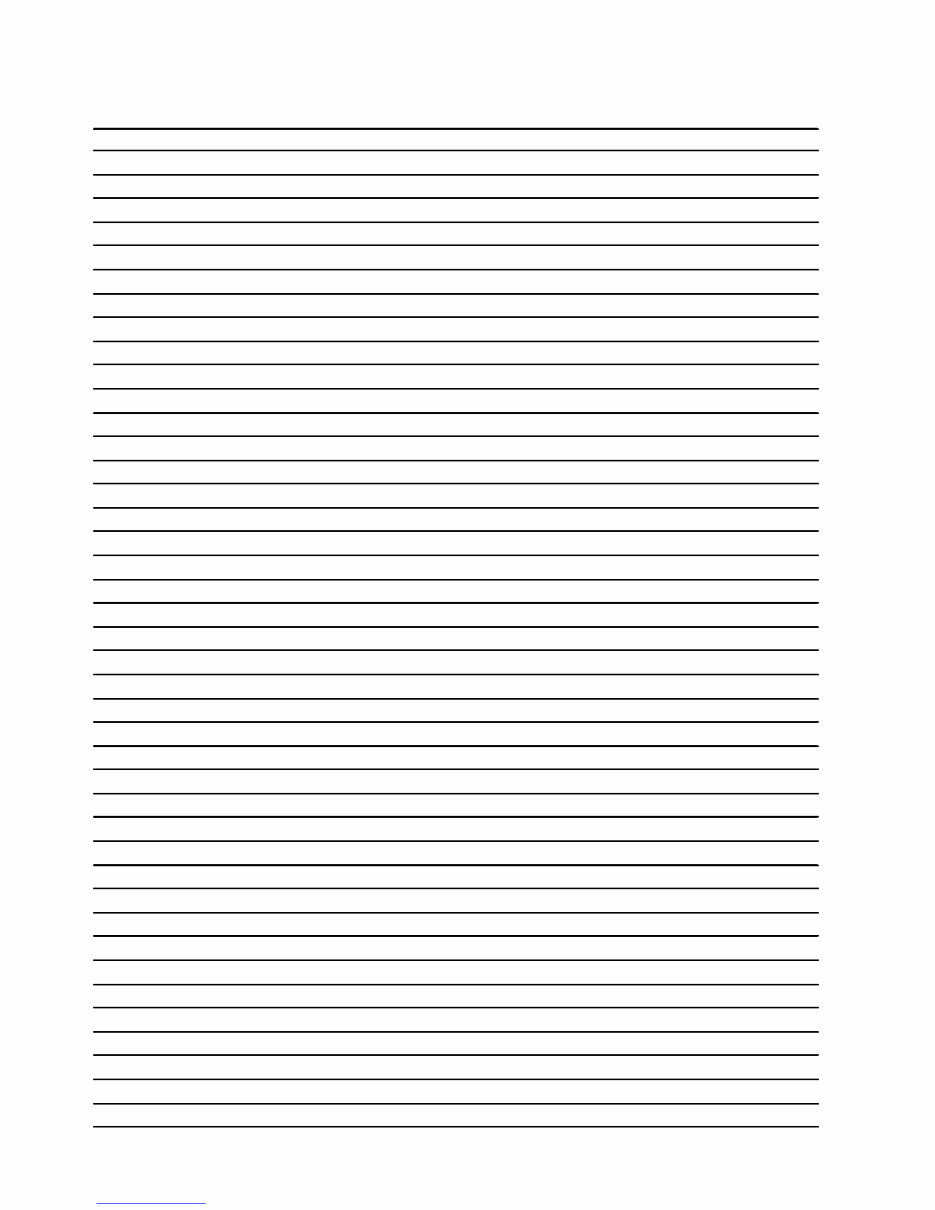

Personal notes: 8 Downloaded from www.Manualslib.com manuals search engine

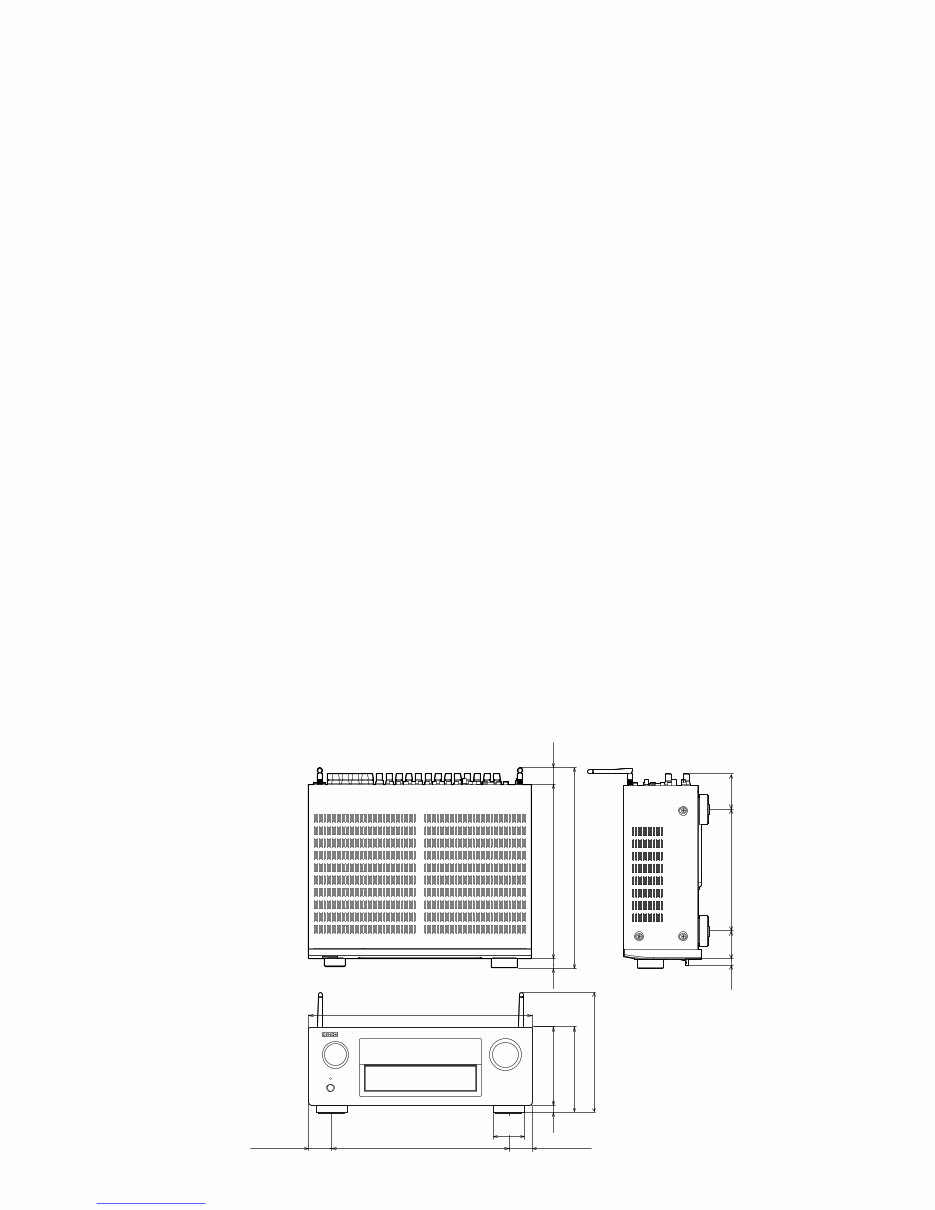

TECHNICAL SPECIFICATIONS n n Audionsection •n Powernamplifier Ratednoutputn: Frontn:n 125W+125W ( 8Ω, 20Hz - 20kHz with 0.05% T.H.D.) 165W+165W ( 6Ω, 1kHz with 0.7% T.H.D) Centern: 125W ( 8Ω, 20Hz - 20kHz with 0.05% T.H.D.) 165W ( 6Ω, 1 kHz with 0.7 % T.H.D.) Surroundn: 125W+125W ( 8Ω, 20 Hz - 20 kHz with 0.05% T.H.D.) 165W+165W ( 6Ω, 1 kHz with 0.7 % T.H.D.) Surroundnbackn/nHeight1n/nFrontnwide/Height2n: 125W+125W ( 8Ω, 20 Hz - 20 kHz with 0.05% T.H.D.) 165W+165W ( 6Ω, 1 kHz with 0.7 % T.H.D.) Dynamicnpowern: 130 W x 2-channel (8 Ω) 190 W x 2-channel (4 Ω) Outputnconnectors： 4 - 16Ω n n Analognsection Inputnsensitivity/Inputnimpedancen: 200 mV/47 kΩ Frequencynresponsen:nn 10 Hz - 100 kHz — +1, -3 dB(Direct mode) S/Nn: 102 dB(IHF-A, weighted, Direct mode) Distortionn: 0.005 % (20 Hz – 20 kHz) (Direct mode) Ratednoutputn: 1.2 V n n Digitalnsection D/Anoutputn: Rated output — 2V (at 0 dB playback) Total harmonic distortion — 0.008 % (1kHz, 0dB) S/N ratio — 102 dB Dynamic range — 100 dB Digitalninputn: Format — Digital audio interface n n Phononequalizernsection Inputnsensitivityn:nn n 2.5 mV RIAAndeviationn: ±1 dB (20 Hz to 20 kHz) S/Nn: 74 dB (IHF-A) Distortionnfactorn:nn 0.03 % (1 kHz, 3 V) n n Videonsection •n Standardnvideonconnectors Input/outputnlevelnandnimpedancen: 1 Vp-p, 75 Ω Frequencynresponsen: 5 Hz – 10 MHz — 0, –3 dB •n Colorncomponentnvideonconnector Inputnsensitivity/Inputnimpedancen: Y signal — 1 Vp-p, 75 Ω PB / CB signal — 0.7 Vp-p, 75 Ω PR / CR signal — 0.7 Vp-p, 75 Ω Frequencynresponsen: 5 Hz – 60 MHz — 0, –3 dB n n Tunernsection FM Receptionnfrequencynrangen: FM 87.5 MHz - 107.9 MHz(for E3) FM 87.5 MHz - 108.0 MHz(for E2,E1. E1C) FM 76.0 MHz - 90.0 MHz(for JP) AM 520 kHz - 1710 kHz(for E3) AM 522 kHz - 1611 kHz(for E2,E1. E1C) AM 522 kHz - 1629 kHz(for JP) Effectivensensitivityn: FM 1.2μV（12.8dBf） AM 18 μV 50ndBnsensitivityn: MONO ― 2.8 μV (20.2 dBf) S/Nnration:MONO ― 70 dB (IHF-A weighted, Direct mode)n STEREO ― 67 dB (IHF-A weighted, Direct mode) Distortionn: MONO ― 0.7 % (1 kHz)n SRETEO ― 1.0 % (1 kHz) n n WirelessnLANnsection Networkntypenn (wirelessnLANnstandard):nConforming to Wi-Fi®z1 Securityn:nWEP 64 bit, WEP 128 bit WPA/WPA2-PSK (AES) WPA/WPA2-PSK (TKIP) Radionfrequencyn: 2.4 GHz No.nofnchannelsn: 1 – 11 ch (for E3) 1 – 13 ch (for E2, E1, E1C, JP) z1 The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo are registered trademarks of the Wi-Fi Alliance. n n Bluetoothnsection Communicationsnsystemn:nn Bluetooth Version 2.1 + EDR (Enhanced Data Rate) Transmissionnpowern: Maximum 2.5 mW (Class 2) Maximumncommunicationnrangen: Approx. 32.8 ft/10 m in line of sight Frequencynbandn: 2.4 GHz band Modulationnschemen: FHSS (Frequency-Hopping Spread Spectrum) Supportednprofilesn: A2DP 1.2 (Advanced Audio Distribution Profile) AVRCP 1.4 (Audio Video Remote Control Profile) Correspondingncodecn: SBC, AAC Transmissionnrangen(A2DP)n:n20 Hz - 20,000 Hz n n General Powernsupplyn: (for E3) : AC 120 V, 60 Hz (for E2/E1) : AC 230 V, 50 Hz / 60Hz (for E1C) : AC 220 V, 50 Hz (for JP) : AC 100V、50/60Hz Powernconsumptionn: 670W Powernconsumptionninnstandbynmoden: 0.1W PowernconsumptionninnCECnstandbynmoden: 0.5W Powernconsumptionninnnetworknstandbynmoden: 2.7W For purposes of improvement, specifications and design are subject to change without notice. DIMENSION Unit： in. (mm) Weight： 27 lb 12 oz (12.6 kg) 17 3/32 (434) 9 21/64 (237) 2 11/64 (55) 2 23/32 (69) 19/32 (15) 5 63/64 (152) 6 37/64 (167) 9 19/64 (236) 13 5/16 (338) 15 5/16 (389) 3/4 (19) 15/32 (12) 1 17/64 (32) 13 25/64 (340) 2 23/64 (60) 1 27/32 (47) 1 27/32 (47) 9 Downloaded from www.Manualslib.com manuals search engine

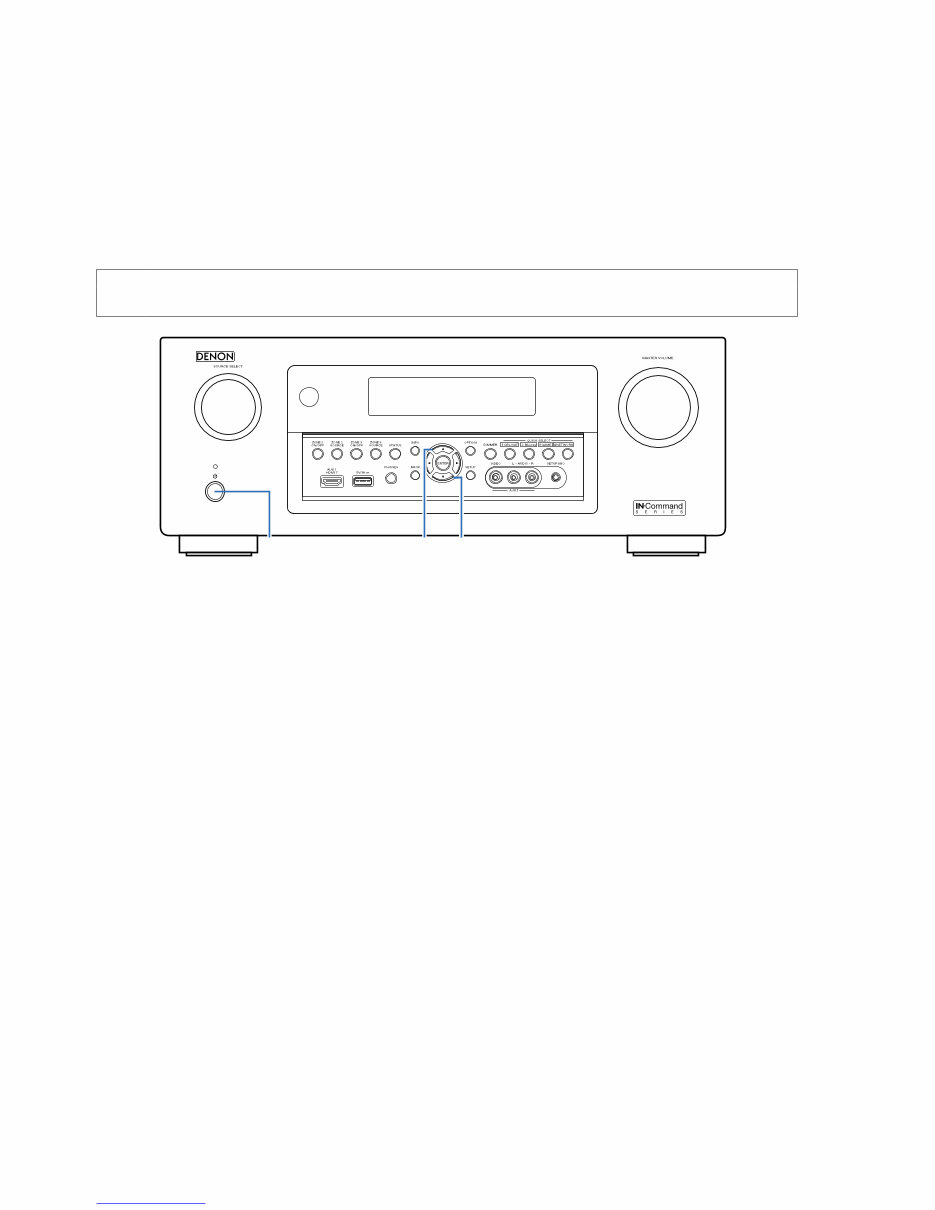

PRECAUTIONS DURING SERVICE Initializing This Unit Initialize this unit if you have replaced the microcomputer, one of the parts around the microcomputer, or the digital PCB. 1. Press the power button to turn off the power. 2. Hold down buttons "CURSOR d" and "CURSOR f" at the same time and press the power button to turn on the power. 3. Release the buttons after confirming that the display flashes in intervals of approximately 1 second. ＊ The unit is initialized. NOTE： • If the status in step 3 does not occur, start again from step 1. • Initializing the device restores settings configured by the user to the factory settings. Take note of your settings beforehand and reconfigure them after initialization. Service Jigs The following jigs (extension cable kit) are used when repairing the PCBs. Order the jigs from your dealer if necessary. 8U- 110084S : EXTENSION UNIT KIT : 1 Set 8U- 110136S : EXTENSION UNIT KIT : 1 Set (See 78 page) X CURSOR d CURSOR f 10 Downloaded from www.Manualslib.com manuals search engine
