MODEL JP E3 E2 EK EA E1 E1C E1K
AVR-X2200W P P P P
AVR-S910W P
INTEGRATED NETWORK AV RECEIVER
Ver. 4
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
• For purposes of improvement, specifications and design are subject to change without notice.
Please refer to the
MODIFICATION NOTICE. e
SERVICE MANUAL
e
D&M Holdings Inc.
ABOUT THIS MANUAL ................................................................3
What you can do with this manual ...........................................3
Using Adobe Reader (Windows version)...................................4
SAFETY PRECAUTIONS ...............................................................6
NOTE FOR SCHEMATIC DIAGRAM..............................................7
NOTE FOR PARTS LIST................................................................7
TECHNICAL SPECIFICATIONS for AVR-X2200W ........................9
DIMENSION for AVR-X2200W..................................................10
TECHNICAL SPECIFICATIONS for AVR-S910W ........................ 11
DIMENSION for AVR-S910W ....................................................12
CAUTION IN SERVICING (AVR-X2200W) ..................................13
Initializing This Unit.................................................................13
JIG FOR SERVICING ..................................................................13
CAUTION IN SERVICING (AVR-S910W).....................................14
Initializing This Unit.................................................................14
JIG FOR SERVICING ..................................................................14
DISASSEMBLY ..........................................................................15
1. FRONT PANEL ASSY............................................................17
2. RADIATOR ASSY .................................................................18
3. HDMI PCB ...........................................................................19
4. VIDEO PCB..........................................................................20
5. MAIN PCB ...........................................................................20
6. SMPS PCB ...........................................................................21
7. TRANS ................................................................................21
SPECIAL MODE .........................................................................22
Special mode setting button (for AVR-X2200W) .....................22
Special mode setting button (AVR-S910W) ............................23
1. Version Display Mode ........................................................24
2. PANEL / REMOTE LOCK Selection Mode ............................28
3. Selecting the Mode for Service-related Operations ...........29
DIAGNOSTIC PATH DIAGRAM ............................................32
4. Remote ID Setup Mode......................................................54
5. Protection Pass Mode ........................................................55
6. CY920 Reboot Mode ..........................................................55
7. CY920 Initialization Mode ..................................................56
JIG FOR SERVICING ..................................................................57
PROCEDURE AFTER REPLACING
THE MICROPROCESSOR, ETC...................................................59
FIRMWARE UPDATE PROCEDURE ............................................60
1. Updating via USB ...............................................................60
2. Updating via DPMS ............................................................69
ADJUSTMENT ...........................................................................76
SURROUND MODES AND PARAMETERS ..................................77
TROUBLE SHOOTING................................................................80
1. POWER ...............................................................................80
2. Analog video......................................................................81
3. HDMI/DVI ...........................................................................85
4. AUDIO ................................................................................87
5. Network / Bluetooth / USB .................................................90
6. SMPS ..................................................................................95
CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK .....................97
BLOCK DIAGRAM ...................................................................104
POWER DIAGRAM ..................................................................107
WIRING DIAGRAM..................................................................108
PRINTED WIRING BOARDS .....................................................109
SCHEMATIC DIAGRAMS (01/27)............................................. 115
SCH01_HDMI SW1 ................................................................ 115
SCH02_HDMI SW2 ................................................................ 116
SCH03_NET_PHY................................................................... 117
SCH04_CPU_LEVEL_CHG ...................................................... 118
SCH05_DIGITAL_CNT ............................................................ 119
SCH06_CPU...........................................................................120
SCH07_FRONT HDMI.............................................................121
SCH08_DSP ...........................................................................122
SCH09_ADV8003...................................................................123
SCH10_ADV8003 DDR...........................................................124
SCH11_D SUPPLY ..................................................................125
SCH12_HDMI TX....................................................................126
SCH13_DIR_A PLD ................................................................127
SCH14_MAIN DAC.................................................................128
SCH15_ADV7850...................................................................129
SCH16_INPUT........................................................................130
SCH17_VIDEO .......................................................................131
SCH18_VIDEO_FRONT_CNT..................................................132
SCH19_VIDEO_RC5 ...............................................................133
SCH20_AMP1 ........................................................................134
SCH21_AMP2 ........................................................................135
SCH22_MAIN_SPK.................................................................136
SCH23_MAIN_TUNER_REG ...................................................137
SCH24_MAIN_RS CNT_AUDIO IN..........................................138
SCH25_FRONT.......................................................................139
SCH26_FRONT_RS232...........................................................140
SCH27_SMPS.........................................................................141
EXPLODED VIEW ....................................................................142
PACKING VIEW .......................................................................143
SEMICONDUCTORS ................................................................144
1. IC's ....................................................................................144
2. FL DISPLAY .......................................................................159
CONTENTS
2

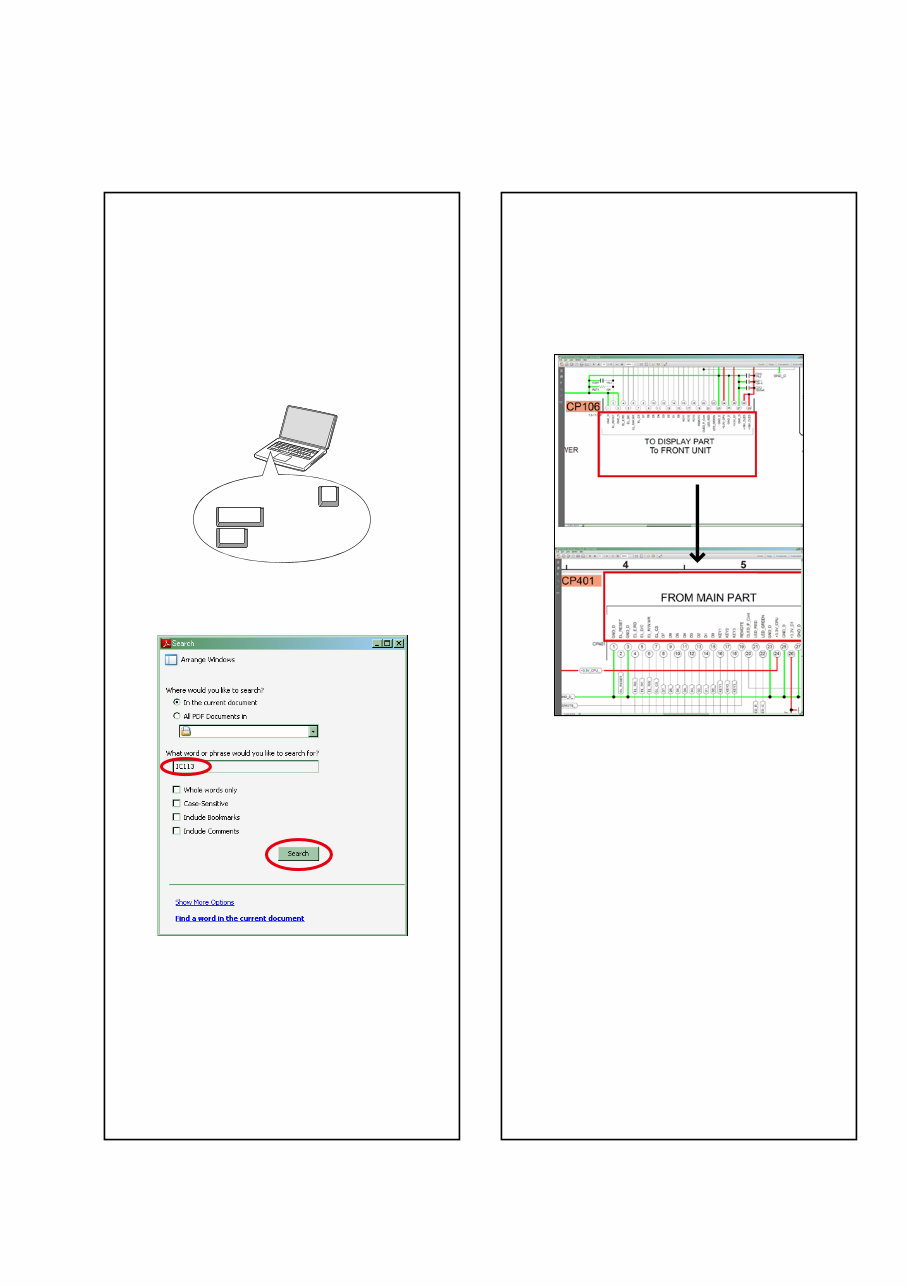

Jump to the target of a schematic
diagram connector
Click the Ref. No. of the target connector in the red
box around a schematic diagram connector.
•The screen jumps to the target connector.
•Page magnification stays the same as before the
jump.
CP401
CP106
v
ABOUT THIS MANUAL
Read the following information before using the service manual.
What you can do with this manual
Search for a Ref. No. (phrase)
(Ctrl+Shift+F)
You can use the search function in Acrobat Reader to
search for a Ref. No. in schematic diagrams, printed
wiring circuit diagrams, block diagrams, and parts
lists.
1.Press Ctrl+Shift+F on the keyboard.
• The Search window appears.
2.Enter the Ref. No. you want to search for in the
Search window, and then click the Search button.
•A list of search results appears.
3.Click an item on the list.
• The screen jumps to the page for that item, and the
search phrase is displayed.
Ctrl
Shift
F
3

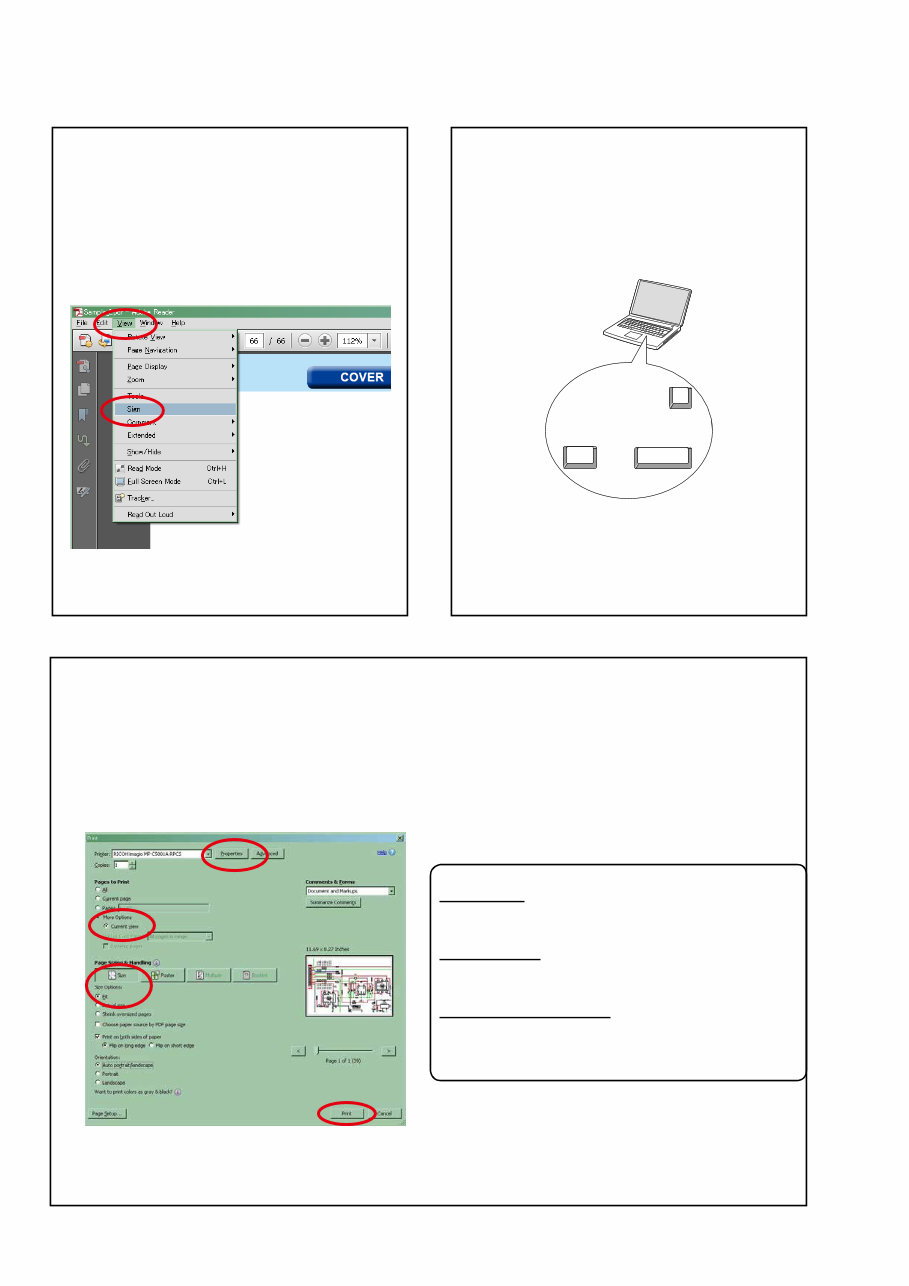

Using Adobe Reader (Windows version)
• Properties
Click this button and check that the printer is set to a
suitable paper size.
• Page to print
Select the following checkbox.
"More Options" : "Current View"
• Page Sizing & Handling
Select the following checkbox.
"Size" / "Size Options" : "Fit"
Add notes to this data (Sign)
The Sign function lets you add notes to the data in
this manual.
Save the file once you have finished adding notes.
[Example using Adobe Reader X]
On the "View" menu, click "Sign".
• The Sign pane appears.
[Example using Adobe Reader 9]
On the "Document" menu, click "Sign".
Magnify schematic / printed circuit
board diagrams - 1
(Ctrl+Space, mouse operation)
Press Ctrl+Space on the keyboard and drag the
mouse to select the area you want to view.
• The selected area is magnified.
• When you want to move the area shown, hold
down Space and drag the mouse.
• When you want to show a full page view, press
Ctrl+0 on the keyboard.
Ctrl Space
0
Print a magnified part of the manual
The Properties dialog box and functions will vary depending on your printer.
1. Drag the mouse to magnify the part you want to print.
2. On the "File" menu, click "Print".
3. Configure the following settings in the Print dialog box.
4. Click the Print button to start printing.
4

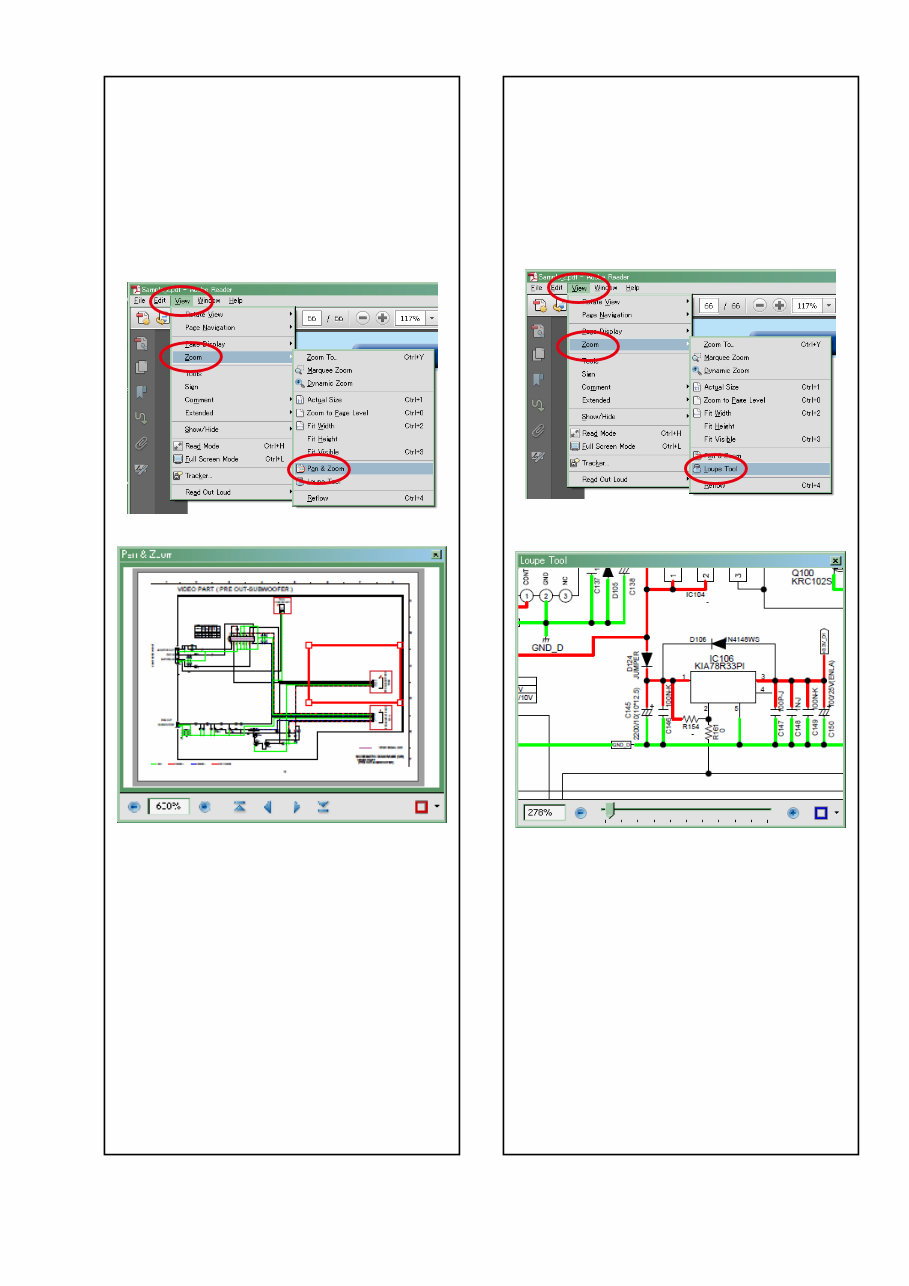

Magnify schematic / printed circuit
board diagrams - 2
(Pan & Zoom function)
The Pan & Zoom function lets you see which part of
a magnified diagram is being shown in a separate
window.
[Example using Adobe Reader X]
On the "View" menu, point to "Zoom", and then click
"Pan & Zoom".
• The Pan & Zoom window appears on the screen.
[Example using Adobe Reader 9]
On the "Tools" menu, point to "Select & Zoom", and
then click "Pan & Zoom Window".
Magnify schematic / printed circuit
board diagrams - 3
(Loupe Tool function)
The Loupe Tool function lets you magnify a specific
part of a diagram in a separate window.
[Example using Adobe Reader X]
On the "View" menu, point to "Zoom", and then click
"Loupe Tool".
• The Loupe Tool window appears on the screen.
[Example using Adobe Reader 9]
On the "Tools" menu, point to "Select & Zoom", and
then click "Loupe Tool Window".
5
SAFETY PRECAUTIONS
The following items should be checked for continued protection of the customer and the service technician.
leakage current check
Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the set is defective.
Be sure to test for leakage current with the AC plug in both polarities, in addition, when the set's power is in each state
(on, off and standby mode), if applicable.
CAUTION
Please heed the following cautions and instructions during servicing and
inspection.
◎ Heed the cautions!
Cautions which are delicate in particular for servicing
are labeled on the cabinets, the parts and the chassis,
etc. Be sure to heed these cautions and the cautions
described in the handling instructions.
◎ Cautions concerning electric shock!
(1) An AC voltage is impressed on this set, so if you
touch internal metal parts when the set is energized,
you may get an electric shock. Avoid getting an
electric shock, by using an isolating transformer
and wearing gloves when servicing while the set is
energized, or by unplugging the power cord when
replacing parts, for example.
(2) There are high voltage parts inside. Handle with
extra care when the set is energized.
◎ Caution concerning disassembly and
assembly!
Through great care is taken when parts were
manufactured from sheet metal, there may be burrs on
the edges of parts. The burrs could cause injury if fingers
are moved across them in some rare cases. Wear gloves
to protect your hands.
◎ Use only designated parts!
The set's parts have specific safety properties (fire
resistance, voltage resistance, etc.). Be sure to use parts
which have the same properties for replacement. The
burrs have the same properties. In particular, for the
important safety parts that are indicated by the z mark
on schematic diagrams and parts lists, be sure to use
the designated parts.
◎ Be sure to mount parts and arrange the wires
as they were originally placed!
For safety seasons, some parts use tapes, tubes or other
insulating materials, and some parts are mounted away
from the surface of printed circuit boards. Care is also
taken with the positions of the wires by arranging them
and using clamps to keep them away from heating and
high voltage parts, so be sure to set everything back as
it was originally placed.
◎ Make a safety check after servicing!
Check that all screws, parts and wires removed or
disconnected when servicing have been put back in their
original positions, check that no serviced parts have
deteriorate the area around. Then make an insulation
check on the external metal connectors and between
the blades of the power plug, and otherwise check that
safety is ensured.
(Insulation check procedure)
Unplug the power cord from the power outlet, disconnect
the antenna, plugs, etc., and on the power. Using a 500V
insulation resistance tester, check that the insulation
resistance value between the inplug and the externally
exposed metal parts (antenna terminal, headphones
terminal, input terminal, etc.) is 1MΩ or greater. If it is
less, the set must be inspected and repaired.
Many of the electric and the structural parts used in the
set have special safety properties. In most cases these
properties are difficult to distinguish by sight, and the use
of replacement parts with higher ratings (rated power
and withstand voltage) does not necessarily guarantee
that safety performance will be preserved. Parts with
safety properties are indicated as shown below on the
wiring diagrams and the parts list in this service manual.
Be sure to replace them with the parts which have the
designated part number.
(1) Schematic diagrams.......Indicated by the z mark.
(2) Parts lists.......Indicated by the z mark.
The use of parts other than the
designated parts could cause electric
shocks, fires or other dangerous
situations.
CAUTION Concerning important
safety parts
6
NOTE FOR SCHEMATIC DIAGRAM
WARNING:
Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts recommended by the manufacturer.
CAUTION:
Before returning the set to the customer, be sure to carry out either (1) a leakage current check or (2) a line to chassis resistance check.
If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the
set is defective.
WARNING:
DO NOT return the set to the customer unless the problem is identified and remedied.
NOTICE:
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM / M=1,000,000 OHM
ALL CAPACITANCE VALUESARE EXPRESSED IN MICRO FARAD, UNLESS OTHERWISE INDICATED. P INDICATES MICRO-MICRO
FARAD. EACH VOLTAGE AND CURRENT ARE MEASURED AT NO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT
TO CHANGE WITHOUT PRIOR NOTICE.
NOTE FOR PARTS LIST
1. Parts indicated by "nsp" on this table cannot be supplied.
2. When ordering a part, make a clear distinction between "1" and "I" (i) to avoid mis-supplying.
3. A part ordered without specifying its part number can not be supplied.
4. Part indicated by " ★ " mark is not illustrated in the exploded view.
WARNING: Parts indicated by the z mark have critical characteristics. Use ONLY replacement parts recommended by the manufacturer.

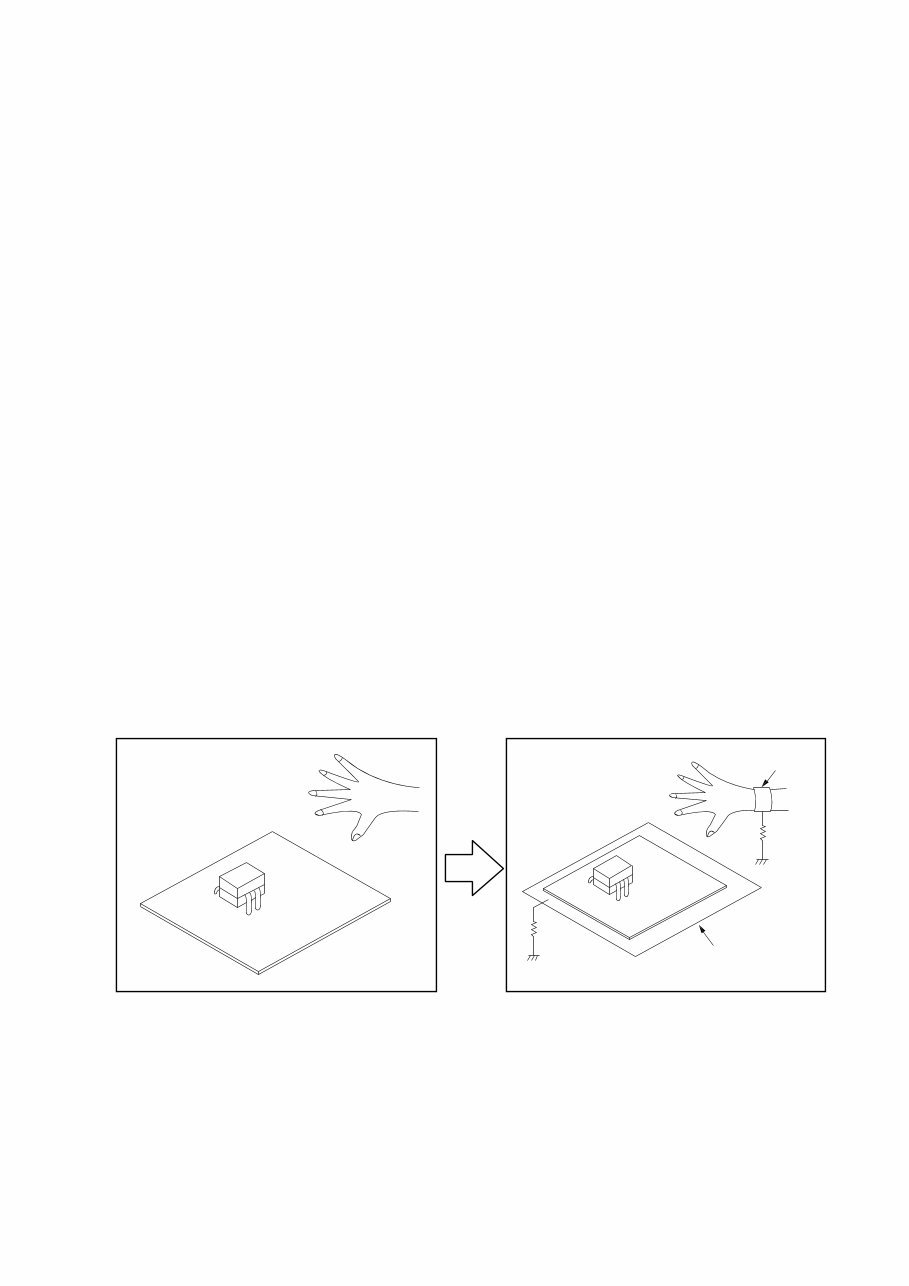

INSTRUCTIONS FOR HANDLING SEMI-CONDUCTORS AND OPTICAL UNIT
Electrostatic breakdown of the semi-conductors or optical pickup may occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be
charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface,
where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through
the body grounding band, be careful to avoid contacting semi-conductors with your clothing
<Incorrect>
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
<Correct>
CBA
7

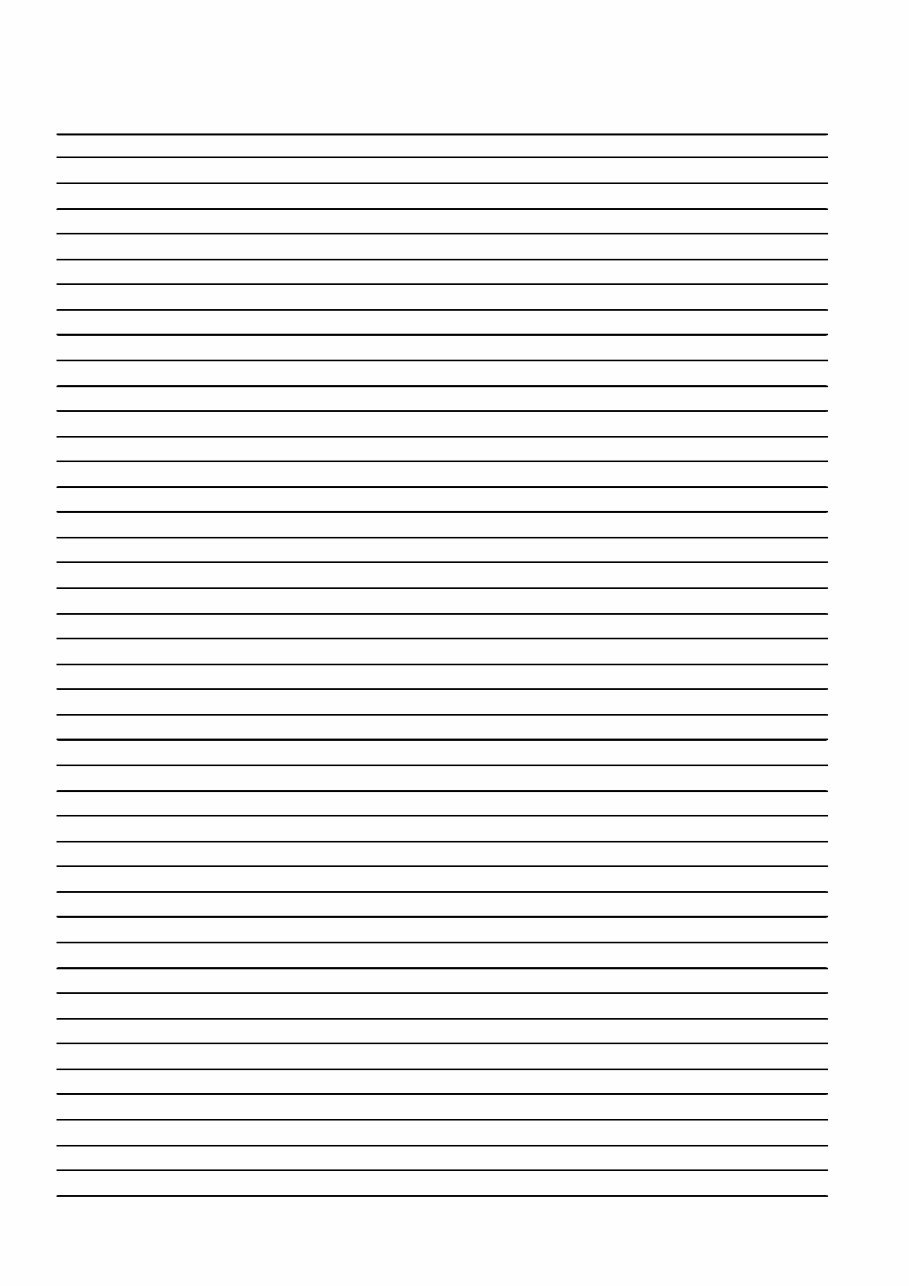

Personal notes:
8
TECHNICAL SPECIFICATIONS FOR AVR-X2200W
n Audio section
• Power amplifier
Rated output :
Front :
95 W + 95 W ( 8 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.)
125 W + 125 W ( 6 Ω, 1 kHz with 0.7 % T.H.D.)
Center :
95 W ( 8 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.)
125 W ( 6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround :
95 W + 95 W ( 8 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.)
125 W + 125 W ( 6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround back :
95 W + 95 W ( 8 Ω, 20 Hz - 20 kHz with 0.08 % T.H.D.)
125 W + 125 W ( 6 Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors : 4 - 16 Ω
n Analog section
Input sensitivity/Input impedance : 200 mV / 47 kΩ
Frequency response : 10 Hz - 100 kHz — +1, -3 dB (Direct mode)
S/N ratio : 100 dB (IHF-A, Direct mode)
n Video section
• Color component video connector
Input/output level and impedance : Y signal — 1 Vp-p, 75 Ω
PB / CB signal — 0.7 Vp-p, 75 Ω
PR / CR signal — 0.7 Vp-p, 75 Ω
Frequency response : 5 Hz - 60 MHz — 0, –3 dB
n Tuner section
(Note : μV at 75 Ω, 0 dBf = 1 x 10
–15
W)
Reception frequency range : FM 87.5 MHz - 107.9 MHz (for E3)
FM 87.5 MHz - 108.0 MHz (for E2, E1C)
FM 76.0 MHz - 95.0 MHz (for JP)
AM 520 kHz - 1710 kHz (for E3)
AM 522 kHz - 1611 kHz (for E2, E1C)
AM 522 kHz - 1629 kHz (for JP)
Effective sensitivity : FM 1.2 μV (12.8 dBf) (for E3)
FM 1.2 μV (12.8 dBf) (for E2, E1C, JP)
AM 18 μV (for E3)
AM 18 μV (for E2, E1C, JP)
50 dB sensitivity : MONO ― 2.8 μV (20.2 dBf)
S/N ratio (IHF-A) : MONO ― 70 dB (for E3)
MONO ― 78 dB (for E2, E1C, JP)
STEREO ― 67 dB (for E3)
STEREO ― 67 dB (for E2, E1C, JP)
Distortion : MONO ― 0.7 % (for E3)
MONO ― 0.7 % (1 kHz) (for E2, E1C, JP)
SRETEO ― 1.0 % (for E3)
SRETEO ― 1.0 % (1 kHz) (for E2, E1C, JP)
n Wireless LAN section
Network type (wireless LAN standard) : Conforming to IEEE 802.11b
Conforming to IEEE 802.11g
Conforming to IEEE 802.11n
(Wi-Fi® compliant)z1
Security : WEP 64 bit, WEP 128 bit
WPA/WPA2-PSK (AES)
WPA/WPA2-PSK (TKIP)
Radio frequency : 2.4 GHz
No. of channels : 1 - 11 ch (for E3)
1 - 13 ch (for E2, E1C, JP)
z1 The Wi-Fi® CERTIFIED Logo and the Wi-Fi CERTIFIED On-Product Logo
are registered trademarks of the Wi-Fi Alliance.
n Bluetooth section
Communications system : Bluetooth Version 2.1 + EDR
(Enhanced Data Rate)
Transmission power : Maximum 2.5 mW (Class 2)
Maximum communication range : Approx. 32.8 ft/10 m in line of sight
Frequency band : 2.4 GHz band
Modulation scheme : FHSS (Frequency-Hopping Spread Spectrum)
Supported profiles : A2DP (Advanced Audio Distribution Profile)1.2
AVRCP (Audio Video Remote Control Profile)1.4
Corresponding codec : SBC, AAC
Transmission range (A2DP) : 20 Hz - 20,000 Hz
z2 The actual communication range varies depending on the influence of
such factors as obstructions between devices, electromagnetic waves
from microwave ovens, static electricity, cordless phones, reception
sensitivity, antenna performance, operating system, application
software etc.
n General
Power supply : (for E3) : AC 120 V, 60 Hz
(for E2) : AC 230 V, 50 Hz / 60 Hz
(for E1C) : AC 220 V, 50 Hz
(for JP) : AC 100 V, 50 Hz / 60 Hz
Power consumption : 500 W
Power consumption in standby mode : 0.1 W
Power consumption in CEC standby mode : 0.5 W
Power consumption in network standby mode : 2.7 W
For purposes of improvement, specifications and design are subject to
change without notice.
