Sony RDR-GX315 DVD Recorder Service Manual

US Model Canadian Model SERVICE MANUAL DVD RECORDER SPECIFICATIONS RMT-D223A — Continued on next page — RDR-GX315 Laser Semiconductor laser Channel coverage VHF 2 to 13 UHF 14 to 69 CATV A-8 to A-1, A to W, W+1 to System Antenna 75-ohm antenna terminal for VHF/UHF Inputs and outputs LINE 1 IN and LINE 2 IN VIDEO IN, phono jack (1 each) Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO IN, phono jacks (2 each) Input level: 327 mVrms Input impedance: more than 47 kilohms LINE 2 IN S VIDEO, 4-pin, mini-DIN jack Y: 1.0 Vp-p, unbalanced, sync negative C: 0.286 Vp-p, load impedance 75 ohms DV IN, 4-pin jack, i.LINK S100 W+84 LINE OUT VIDEO OUT, phono jack (1) Output signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO OUT, phono jacks (2) Standard output: 327 mVrms Load impedance: 47 kilohms Output impedance: less than 10 kilohms [DVD recorder section] Audio recording format Dolby Digital Video recording format MPEG Video [Timer section] [Tuner section] Clock Quartz locked Timer indication 12-hour cycle Timer setting 12 programs (max.) Power back-up Back-up duration: 0 min 5°C to 35°C (41°F to 95°F) General Power requirements 120 V AC, 60 Hz Power consumption 28 W Operating temperature DIGITAL OUT OPTICAL, Optical output jack COAXIAL, phono jack Output signal: 0.5 Vp-p, 75 ohms COMPONENT VIDEO OUT (Y, PB, PR) Phono jack Y: 1.0 Vp-p/PB , PR: 0.7 Vp-p, 75 ohms S VIDEO OUT 4-pin, mini-DIN jack Y: 1.0 Vp-p, unbalanced, sync negative C: 0.286 Vp-p, load impedance 75 ohms −18 dBm (wave length: 660 nm) http://www.xiaoyu163.com http://www.xiaoyu163.com

— 2 — Storage temperature −20°C to 60°C (−4°F to 140°F) Operating humidity 25% to 80% Dimensions including projecting parts and controls (w/h/d) Approx. 430 × 63 × 263 mm (Approx. 17 × × 10 3 /8 in 2 1 /2 ches) Supplied accessories Remote commander (remote) (1) Size AA (R6) batteries (2) Antenna cable (1) Audio/video cord (1) Design and specifications are subject to change without notice. Mass Approx. 2.9 kg (Approx. 6.4 lbs) http://www.xiaoyu163.com http://www.xiaoyu163.com

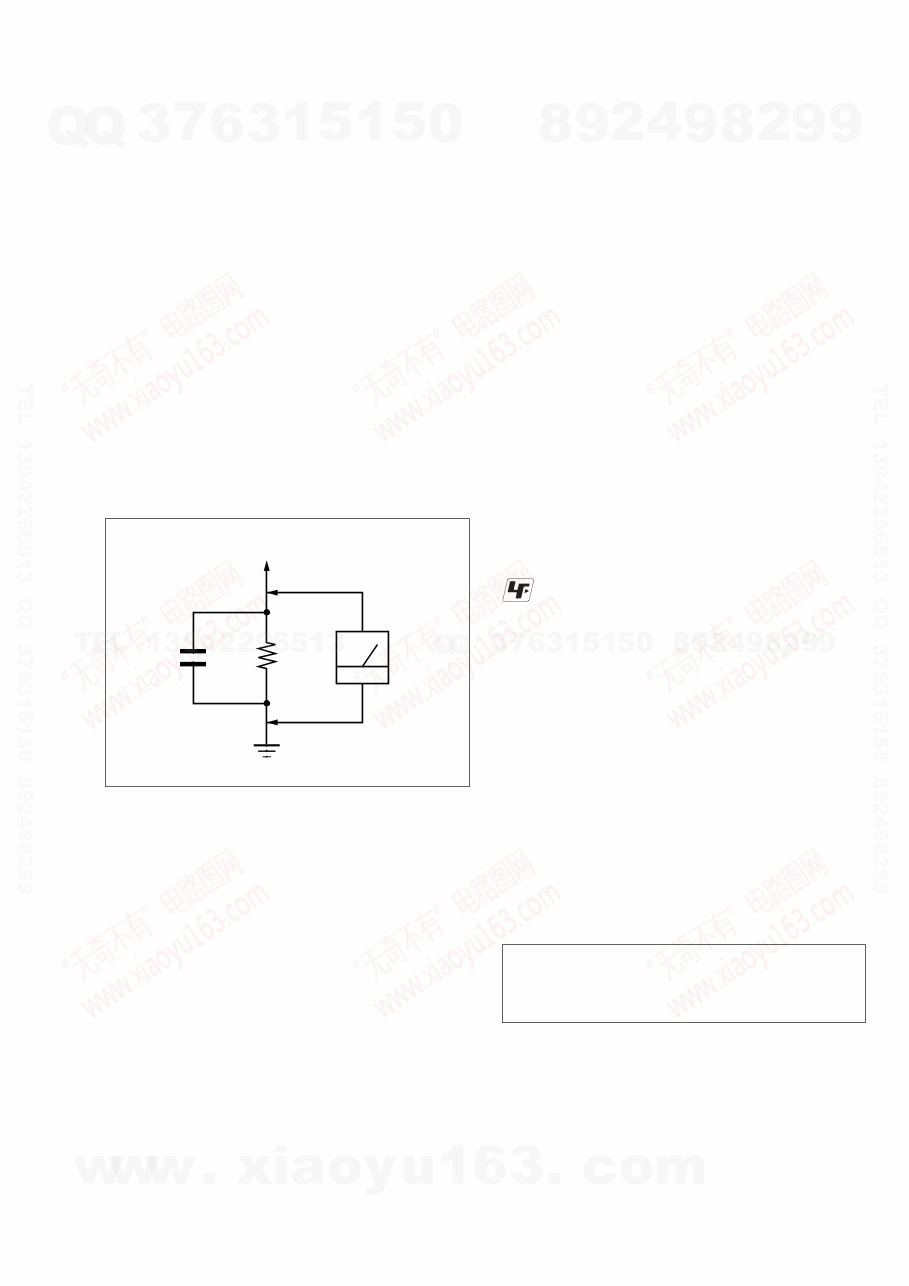

— 3 — WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CAUTION: The use of optical instrument with this product will increase eye hazard. Fig. A. Using an AC voltmeter to check AC leakage. 1.5 k Ω 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers' instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) 1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges. 2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors. 3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement. 4. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement. 5. Check the line cord for cracks and abrasion. Recommend the replacement of any such line cord to the customer. 6. Check the B+ voltage to see it is at the values specified. 7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. http://www.xiaoyu163.com http://www.xiaoyu163.com

— 4 — TABLE OF CONTENTS Precautions 1 Safety Precautions ······························································ 5 2 Servicing Precautions ························································ 7 3 ESD Precautions ································································· 8 4 Handling the Optical Pick-up ············································· 9 1. General Hookups and Settings ······················································ 1-2 Quick Guide to Disk Types ············································· 1-6 Playback ·········································································· 1-7 Recording ······································································ 1-10 Editing ··········································································· 1-13 DV/D8 Dubbing (DV/D8 y DVD) ····························· 1-16 Settings and Adjustments ·············································· 1-17 Additional Information ·················································· 1-20 2. Disassembly and Reassembly 2-1 Cabinet and Board ·························································· 2-1 2-1-1 Cabinet Top Removal ·····················································2-1 2-1-2 Assy Front-cabinet Removal ·········································· 2-1 2-1-3 Assy-deck Removal ························································ 2-2 2-1-4 Digital Main and SMPS PCB Removal ························· 2-2 2-1-5 Jack PCB Removal ························································· 2-3 2-1-6 DC Fan Removal ···························································· 2-3 2-2 Circuit Boards Locations ················································ 2-4 3. Block Diagram .......................................................... 3-1 4. PCB Diagrams 4-1 SMPS PCB ······································································ 4-3 4-2 Digital Main PCB ···························································· 4-7 4-3 Jack PCB ······································································· 4-11 4-4 Function Timer PCB ······················································ 4-15 5. Schematic Diagrams 5-1 S.M.P.S (SMPS PCB) ······················································5-3 5-2 Power (SMPS PCB) ························································ 5-5 5-3 Tuner/F-Micom (Jack PCB) ············································ 5-7 5-4 Function Timer (Function Timer PCB) ···························5-9 5-5 Encoder (Digital Main PCB) ········································· 5-11 5-6 Decoder (Digital Main PCB) ········································· 5-13 5-7 Video Decoder and Connector (Digital Main PCB) ······ 5-15 5-8 DV Interface and 1394 Connector (Digital Main PCB) ······················································· 5-17 5-9 Connectors and Power (Digital Main PCB) ·················· 5-19 5-10 ADC/DAC (Jack PCB) ··················································5-21 5-11 I.O (Jack PCB) ······························································ 5-23 6. Troubleshooting ················································· 6-1 7. Repair Parts List 7-1 Exploded Views ·······························································7-2 7-2 Electrical Parts List ························································· 7-3 5 Reset operation after IC203 or IC205 was replaced...........10 http://www.xiaoyu163.com http://www.xiaoyu163.com

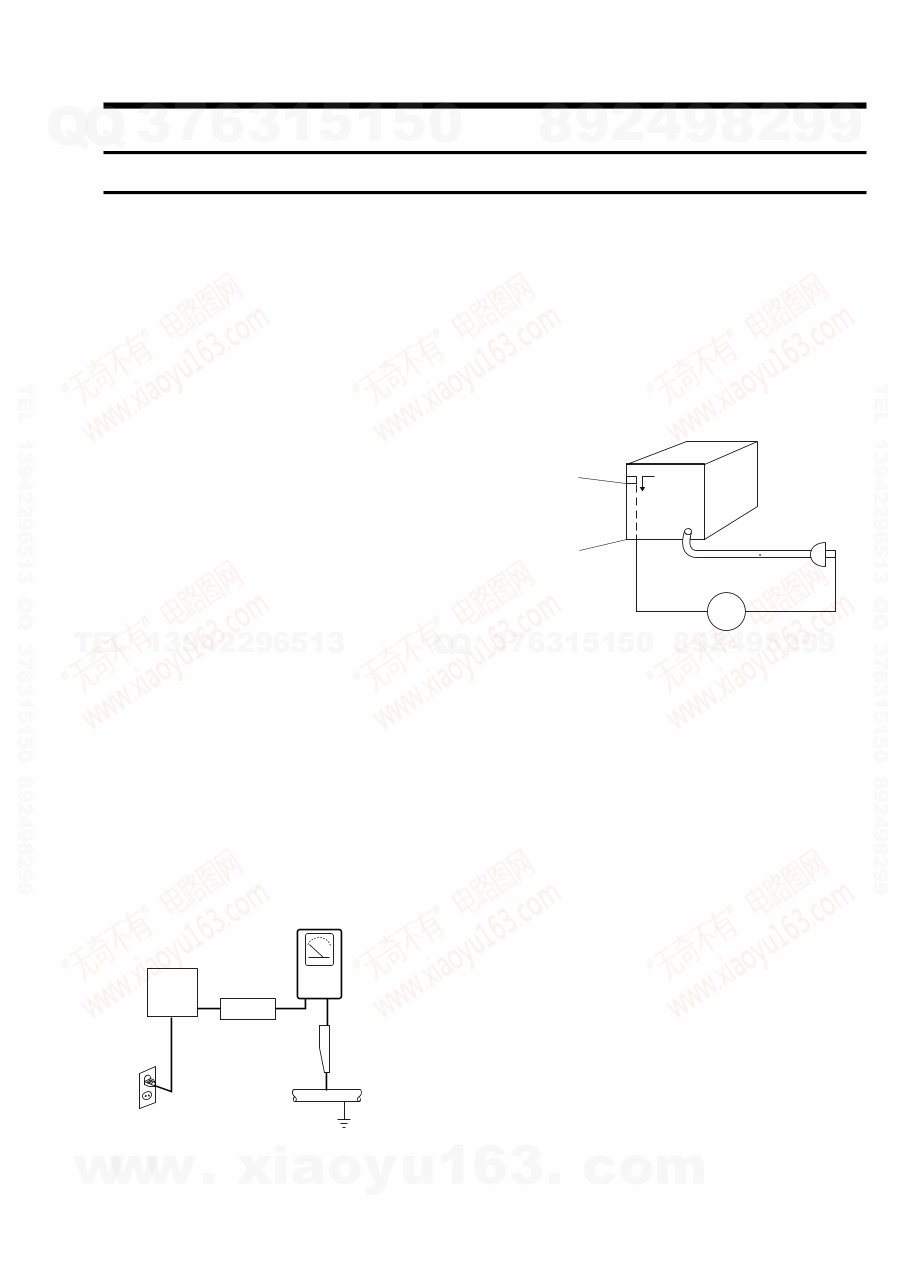

— 5 — PRECAUTIONS 1 SAFETY PRECAUTIONS 1) Before returning an instrument to the customer, always make a safety check of the entire instrument, including, but not limited to, the following items: (1) Be sure that no built-in protective devices are defective or have been defeated during servicing. (1)Protective shields are provided to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2)When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including, but not limited to, nonmetallic control knobs, insulating fish papers, adjustment and compartment covers/ shields, and isolation resistor/capacitor networks. Do not operate this instrument or permit it to be operated without all protective devices correctly installed and functioning. (2) Be sure that there are no cabinet openings through which adults or children might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, excessively wide cabinet ventilation slots, and an improperly fitted and/or incorrectly secured cabinet back cover. (3) Leakage Current Hot Check-With the instrument completely reassembled, plug the AC line cord directly into a 120V AC outlet. (Do not use an isolation transformer during this test.) Use a leakage current tester or a metering system that complies with American National Standards institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1270 (40.7). With the instrument’s AC switch first in the ON position and then in the OFF position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinets, screwheads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current measured must not exceed 0.5mA. Reverse the instrument power cord plug in the outlet and repeat the test. See Fig. 1. Any measurements not within the limits specified herein indicate a potential shock hazard that must be eliminated before returning the instrument to the customer. (4) Insulation Resistance Test Cold Check-(1) Unplug the power supply cord and connect a jumper wire between the two prongs of the plug. (2) Turn on the power switch of the instrument. (3) Measure the resistance with an ohmmeter between the jumpered AC plug and all exposed metallic cabinet parts on the instrument, such as screwheads, antenna, control shafts, handle brackets, etc. When an exposed metallic part has a return path to the chassis, the reading should be between 1 and 5.2 megohm. When there is no return path to the chassis, the reading must be infinite. If the reading is not within the limits specified, there is the possibility of a shock hazard, and the instrument must be repared and rechecked before it is returned to the customer. See Fig. 2. DEVICE UNDER TEST (READING SHOULD NOT BE ABOVE 0.5mA) LEAKAGE CURRENT TESTER EARTH GROUND TEST ALL EXPOSED METER SURFACES ALSO TEST WITH PLUG REVERSED (USING AC ADAPTER PLUG AS REQUIRED) 2-WIRE CORD Fig. 1 AC Leakage Test Fig. 2 Insulation Resistance Test 2) Read and comply with all caution and safety related notes on or inside the cabinet, or on the chassis. 3) Design Alteration Warning-Do not alter or add to the mechanical or electrical design of this instrument. Design alterations and additions, including but not limited to, circuit modifications and the addition of items such as auxiliary audio output connections, might alter the safety characteristics of this instrument and create a hazard to the user. Any design alterations or additions will make you, the servicer, responsible for personal injury or property damage resulting therefrom. 4) Observe original lead dress. Take extra care to assure correct lead dress in the following areas: (1) near sharp edges, (2) near thermally hot parts (be sure that leads and components do not touch thermally hot parts), (3) the AC supply, (4) high voltage, and (5) antenna wiring. Always inspect in all areas for pinched, out-of-place, or frayed wiring, Do not change spacing between a component and the printed- circuit board. Check the AC power cord for damage. 5) Components, parts, and/or wiring that appear to have overheated or that are otherwise damaged should be replaced with components, parts and/ or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard. Antenna Terminal Exposed Metal Part ohm ohmmeter http://www.xiaoyu163.com http://www.xiaoyu163.com

— 6 — 6) Product Safety Notice-Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by shading, an ( ) or a ( ) on schematics and parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire and/or other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate. http://www.xiaoyu163.com http://www.xiaoyu163.com

— 7 — 2 SERVICING PRECAUTIONS CAUTION: Before servicing units covered by this service manual and its supplements, read and follow the Safety Precautions section of this manual. Note: If unforseen circumstances create conflict between the following servicing precautions and any of the safety precautions, always follow the safety precautions. Remember: Safety First. 2-1 General Servicing Precautions (1) a. Always unplug the instrument’s AC power cord from the AC power source before (1) re-moving or reinstalling any component, circuit board, module or any other instrument assembly, (2) disconnecting any instrument electrical plug or other electrical connection, (3) connecting a test substitute in parallel with an electrolytic capacitor in the instrument. b. Do not defeat any plug/socket B+ voltage interlocks with which instruments covered by this service manual might be equipped. c. Do not apply AC power to this instrument and/or any of its electrical assemblies unless all solid-state device heat sinks are correctly installed. d. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the test instrument positive lead. Always remove the test instrument ground lead last. Note: Refer to the Safety Precautions section ground lead last. (2) The service precautions are indicated or printed on the cabinet, chassis or components. When servicing, follow the printed or indicated service precautions and service materials. (3) The components used in the unit have a specified flame resistance and dielectric strength. When replacing components, use components which have the same ratings. Components identified by shading, by ( ) or by ( ) in the circuit diagram are important for safety or for the characteristics of the unit. Always replace them with the exact replacement components. (4) An insulation tube or tape is sometimes used and some components are raised above the printed wiring board for safety. The internal wiring is sometimes clamped to prevent contact with heating components. Install such elements as they were. (5) After servicing, always check that the removed screws, components, and wiring have been installed correctly and that the portion around the serviced part has not been damaged and so on. Further, check the insulation between the blades of the attachment plug and accessible conductive parts. 2-2 Insulation Checking Procedure Disconnect the attachment plug from the AC outlet and turn the power ON. Connect the insulation resistance meter (500V) to the blades of the attachment plug. The insulation resistance between each blade of the attachment plug and accessible conductive parts (see note) should be more than 1 Megohm. Note: Accessible conductive parts include metal panels, input terminals, earphone jacks, etc. http://www.xiaoyu163.com http://www.xiaoyu163.com

— 8 — 3 ESD PRECAUTIONS Electrostatically Sensitive Devices (ESD) Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated circuits and some field-effect transistors and semiconductor chip components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity. (1) Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device, which should be removed for potential shock reasons prior to applying power to the unit under test. (2) After removing an electrical assembly equipped with ESD devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly. (3) Use only a grounded-tip soldering iron to solder or unsolder ESD devices. (4) Use only an anti-static solder removal devices. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ESD devices. (5) Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESD devices. (6) Do not remove a replacement ESD device from its protective package until immediately before your are ready to install it. (Most replacement ESD devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive materials). (7) Immediately before removing the protective materials from the leads of a replacement ESD device, touch the protective material to the chassis or circuit assembly into which the device will be installed. CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety precautions. (8) Minimize bodily motions when handling unpackaged replacement ESD devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ESD device). http://www.xiaoyu163.com http://www.xiaoyu163.com

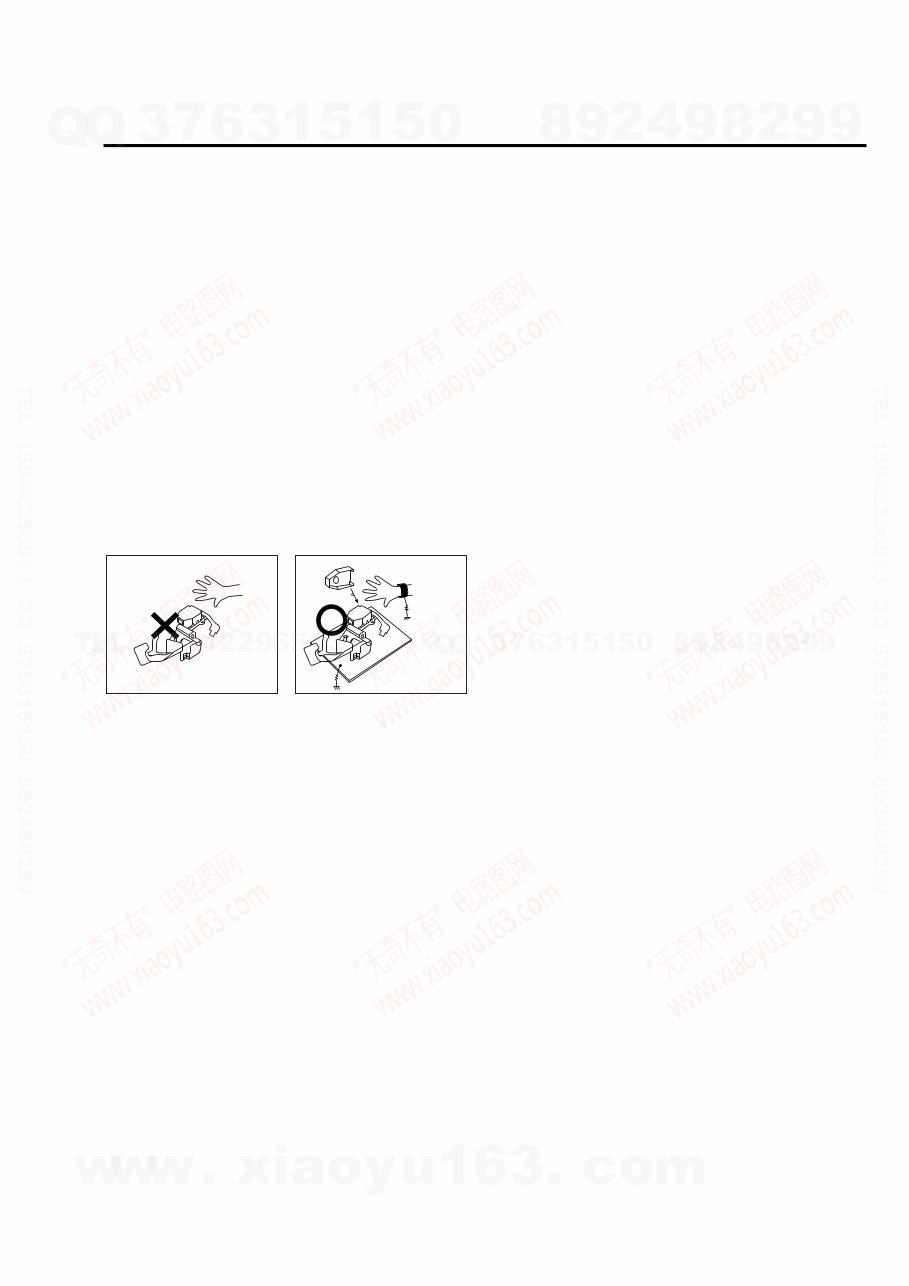

— 9 — 4 HANDLING THE OPTICAL PICK-UP The laser diode in the optical pick up may suffer electrostatic breakdown because of potential static electricity from clothing and your body. The following method is recommended. (1) Place a conductive sheet on the work bench (The black sheet used for wrapping repair parts.) (2) Place the set on the conductive sheet so that the chassis is grounded to the sheet. (3) Place your hands on the conductive sheet (This gives them the same ground as the sheet.) (4) Remove the optical pick up block (5) Perform work on top of the conductive sheet. Be careful not to let your clothes or any other static sources to touch the unit. ◆ Be sure to put on a wrist strap grounded to the sheet. ◆ Be sure to lay a conductive sheet made of copper etc. Which is grounded to the table. Fig.3 (6) Short the short terminal on the PCB, which is inside the Pick- Up ASS’Y, before replacing the Pick-Up. (The short terminal is shorted when the Pick-Up Ass’y is being lifted or moved.) (7) After replacing the Pick-up, open the short terminal on the PCB. THE UNIT WRIST-STRAP FOR GROUNDING 1M 1M CONDUCTIVE SHEET http://www.xiaoyu163.com http://www.xiaoyu163.com

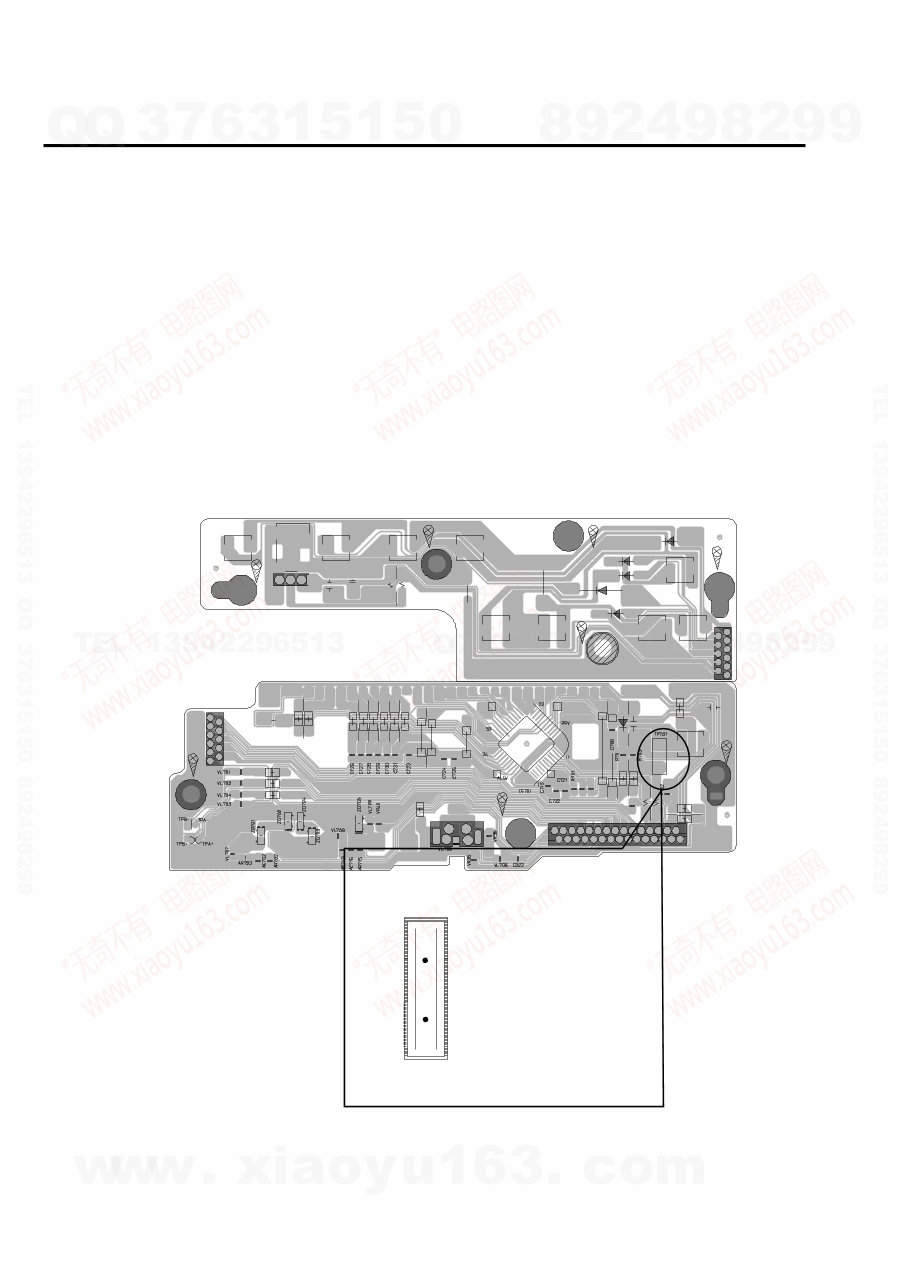

— 10 — 5 Reset operation after IC203 or IC205 was replaced Be sure to perform the reset by the method described below, if the IC203(IC FLASH MEMORY) or IC205(IC EEPROM) used on the Resetting method 1. Intermittently short-circuit the TP701 on Function Timer PCB with pincers to the adjustment mode.(refer to Fig-1) 2. Enter the Adjustment mode, and press two times the "1" button on the remote commander. The tray will automatically open and the version information Short-Circuit for few seconds and release. (Just one time) TP701 Function Timer PCB Fig-1 Function Timer PCB (TOP VEW) will be displayed on the TV screen. Digital Main board was replaced. 3. Turn the power off. http://www.xiaoyu163.com http://www.xiaoyu163.com
