Roland RD-200 RD-300 rd200 rd300 complete service manual
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
You're Reading a Preview
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$35.99
Viewed 93 Times Today
Secure transaction
What's Included?
Lifetime Access
Fast Download Speeds
Online & Offline Access
Access PDF Contents & Bookmarks
Full Search Facility
Print one or all pages of your manual
$35.99
This comprehensive service manual provides detailed specifications, parts list, exploded views, and circuit board diagrams essential for repairing and servicing Roland products. It is an invaluable resource for both professional mechanics and DIY enthusiasts.
Key topics covered in this manual include:

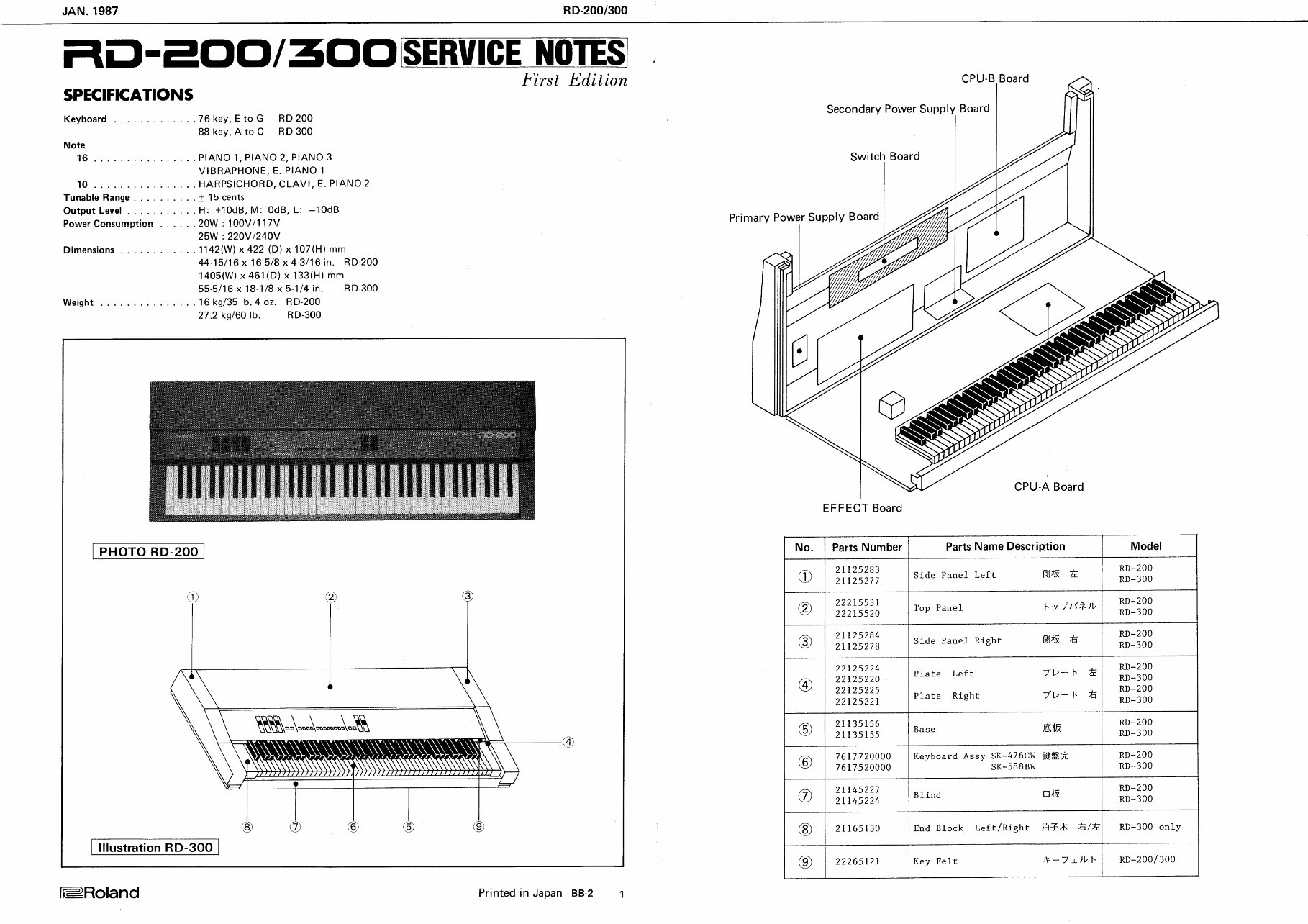

- SPECIFICATIONS
- PANEL LAYOUT

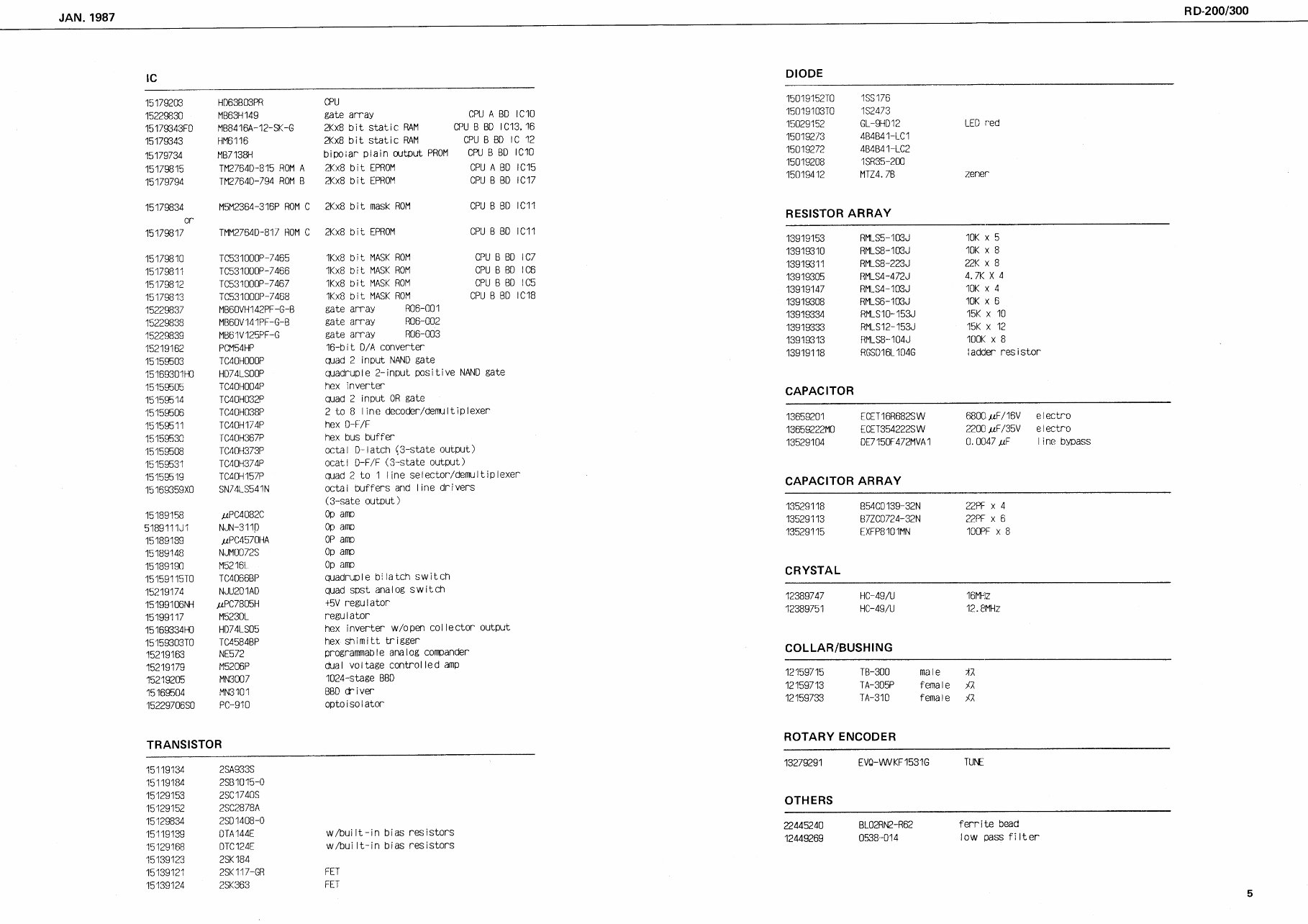

- CIRCUIT BOARD LAYOUT
- BLOCK DIAGRAM

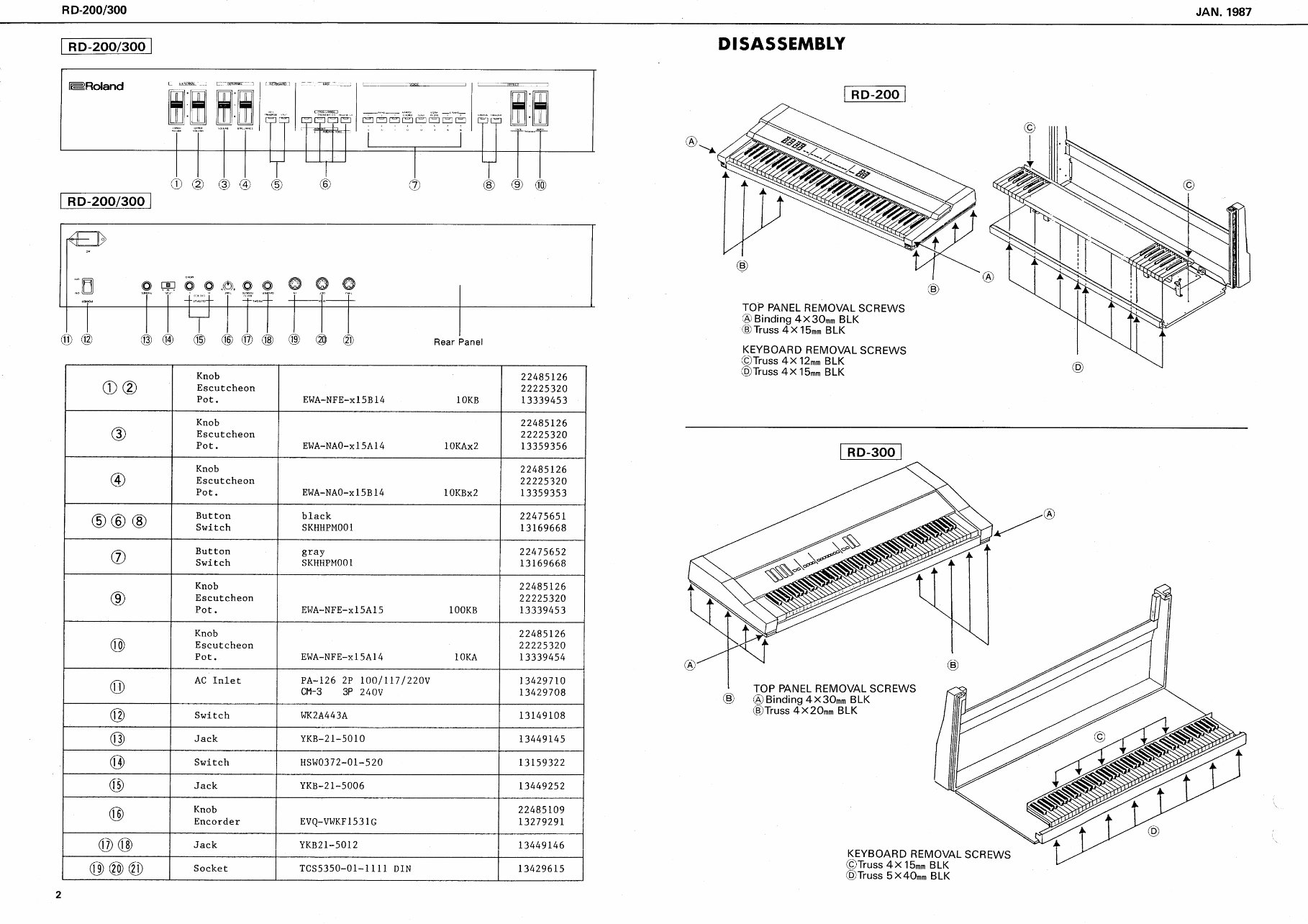

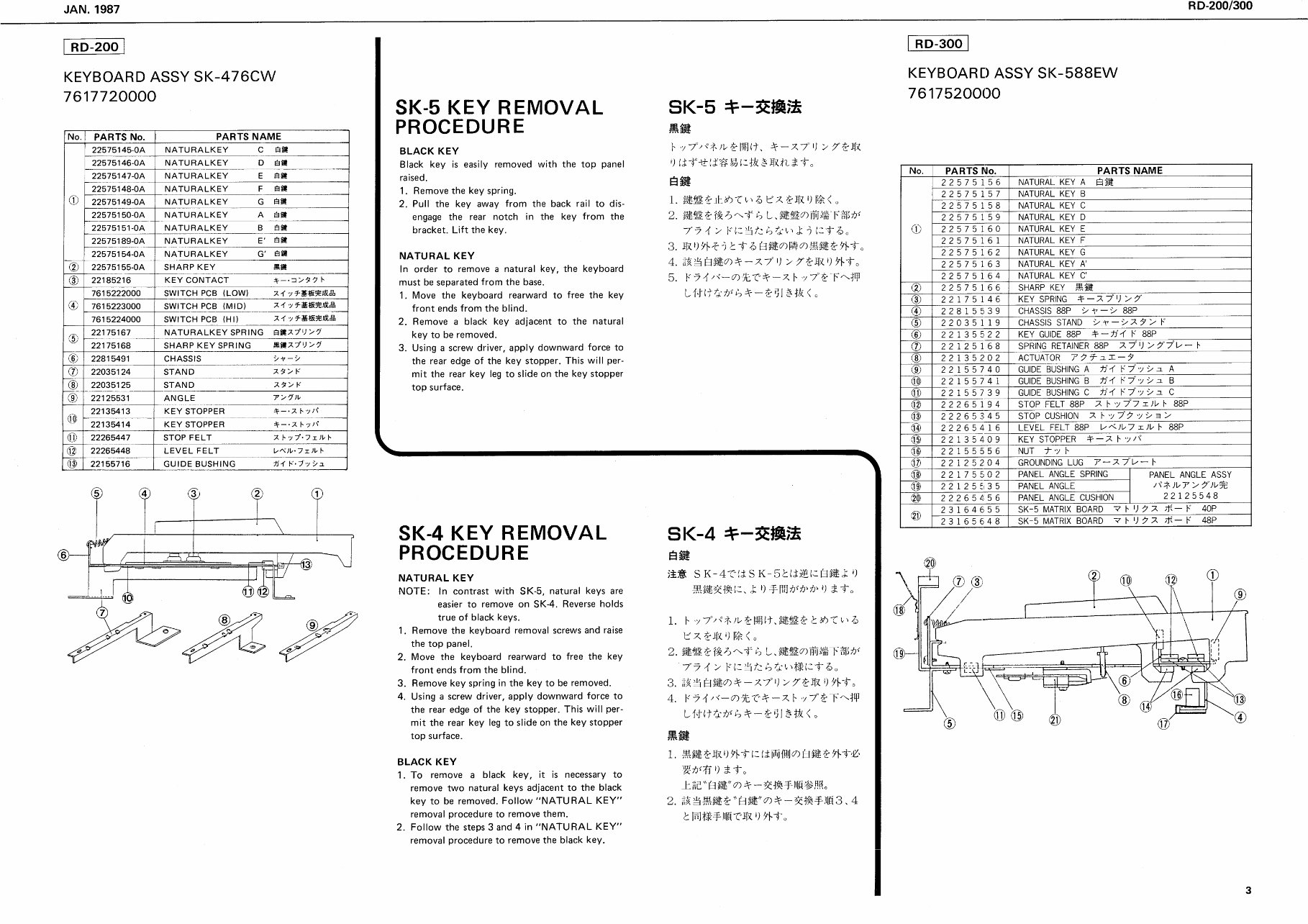

- DISASSEMBLY PROCEDURE

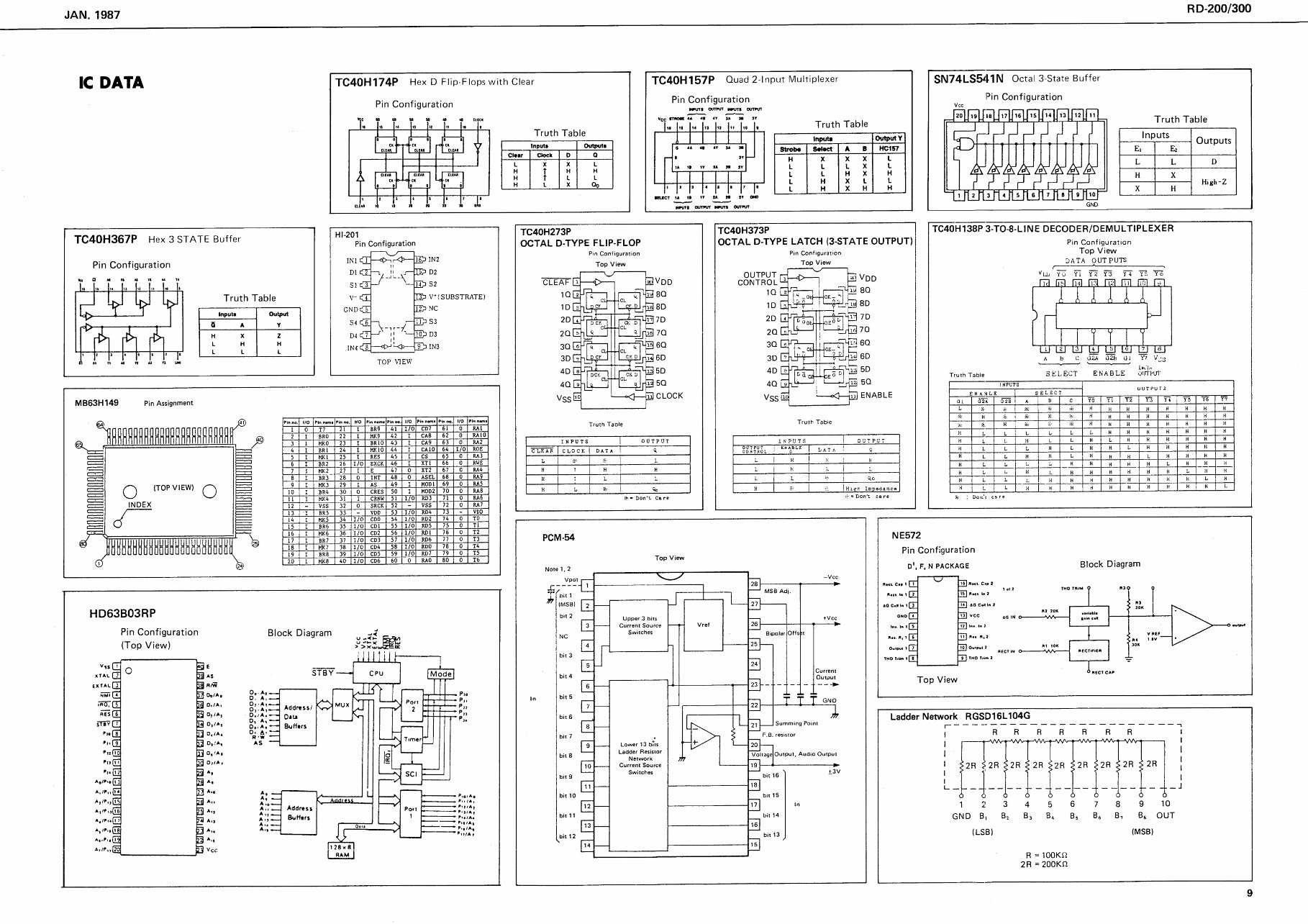

- LSI PIN DESCRIPTION
- IC BLOCK DIAGRAM
- CIRCUIT BOARDS

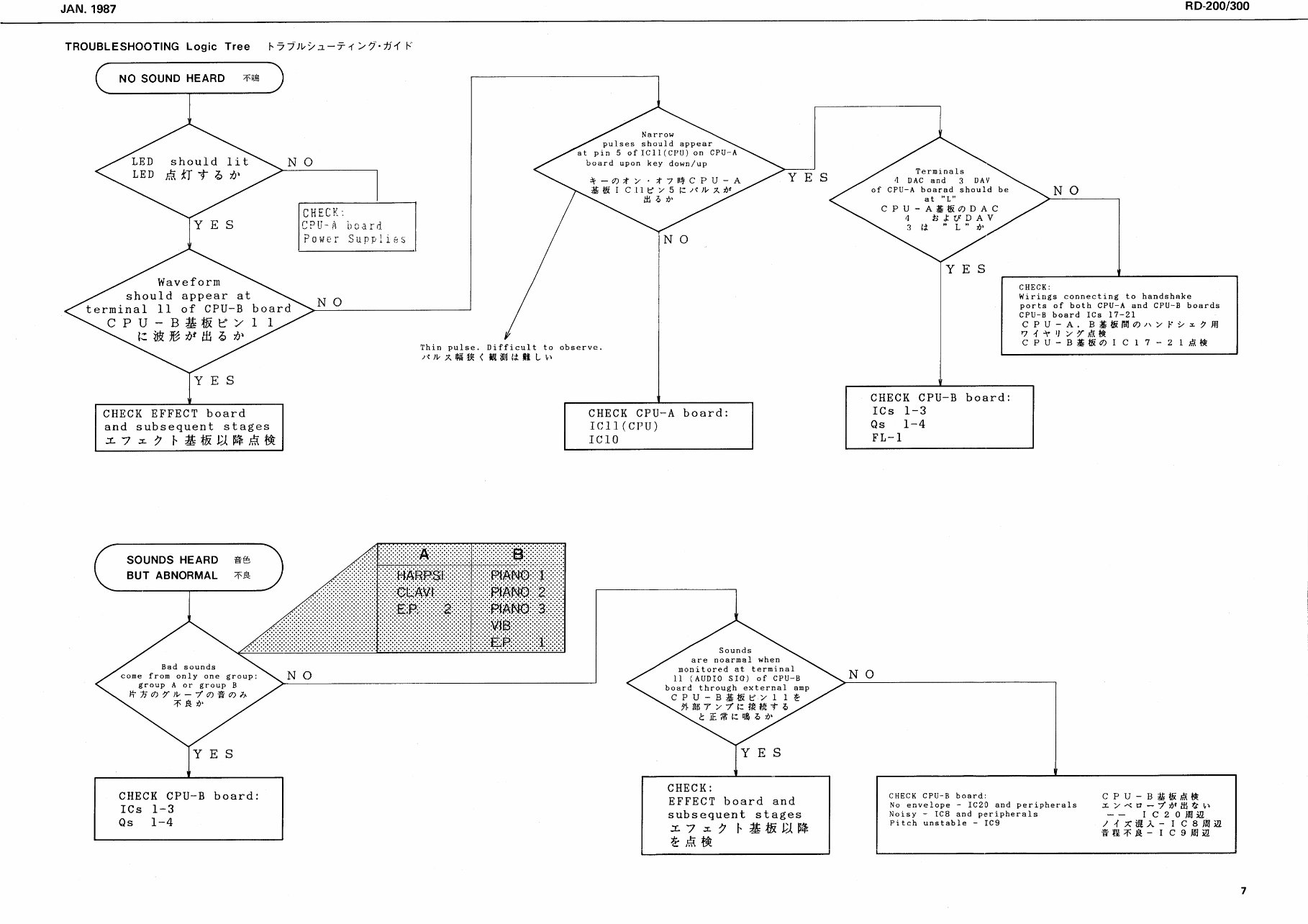

- INSPECTION
- MIDI IMPLEMENTATION CHART

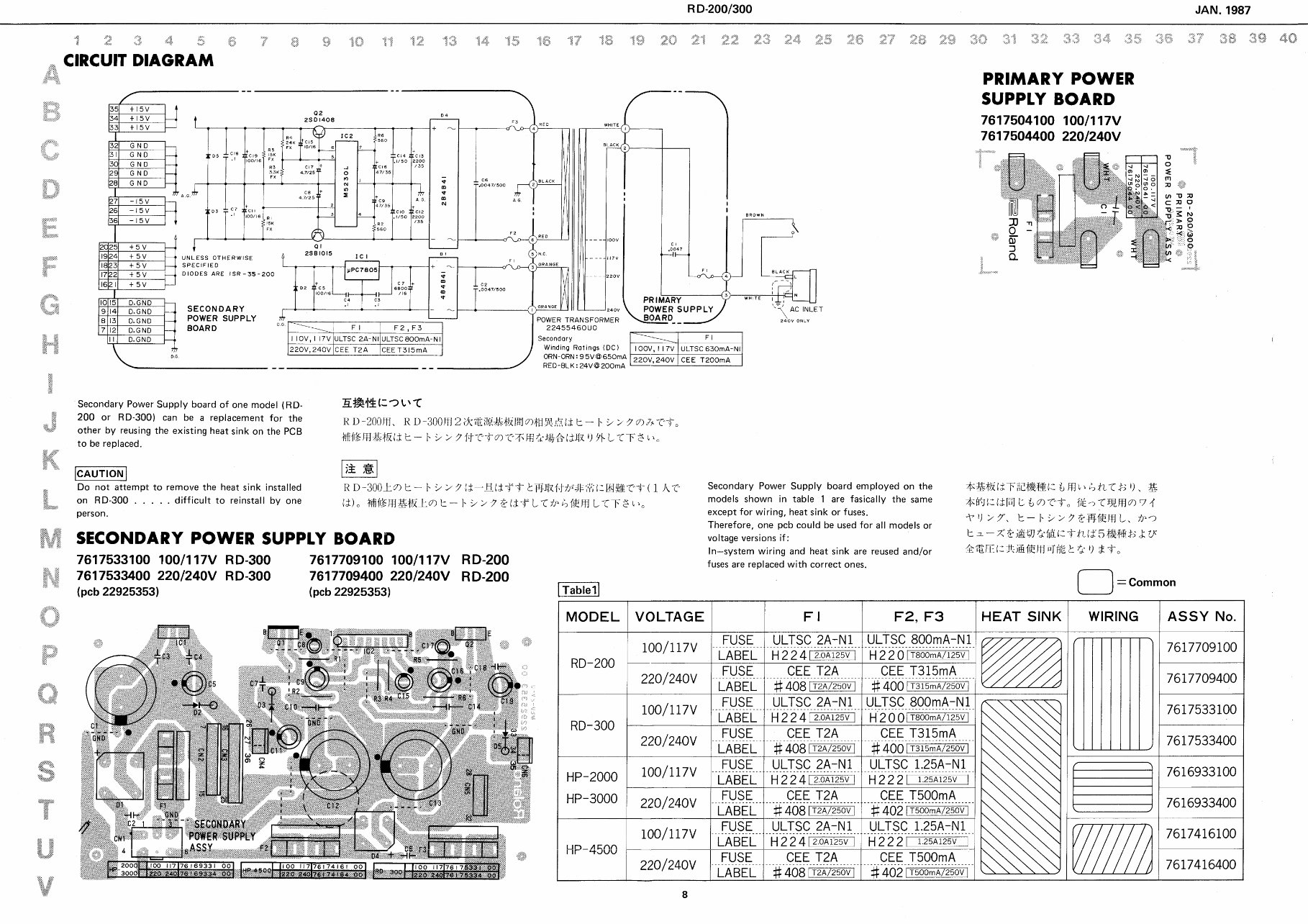

- OVERALL CIRCUIT DIAGRAM

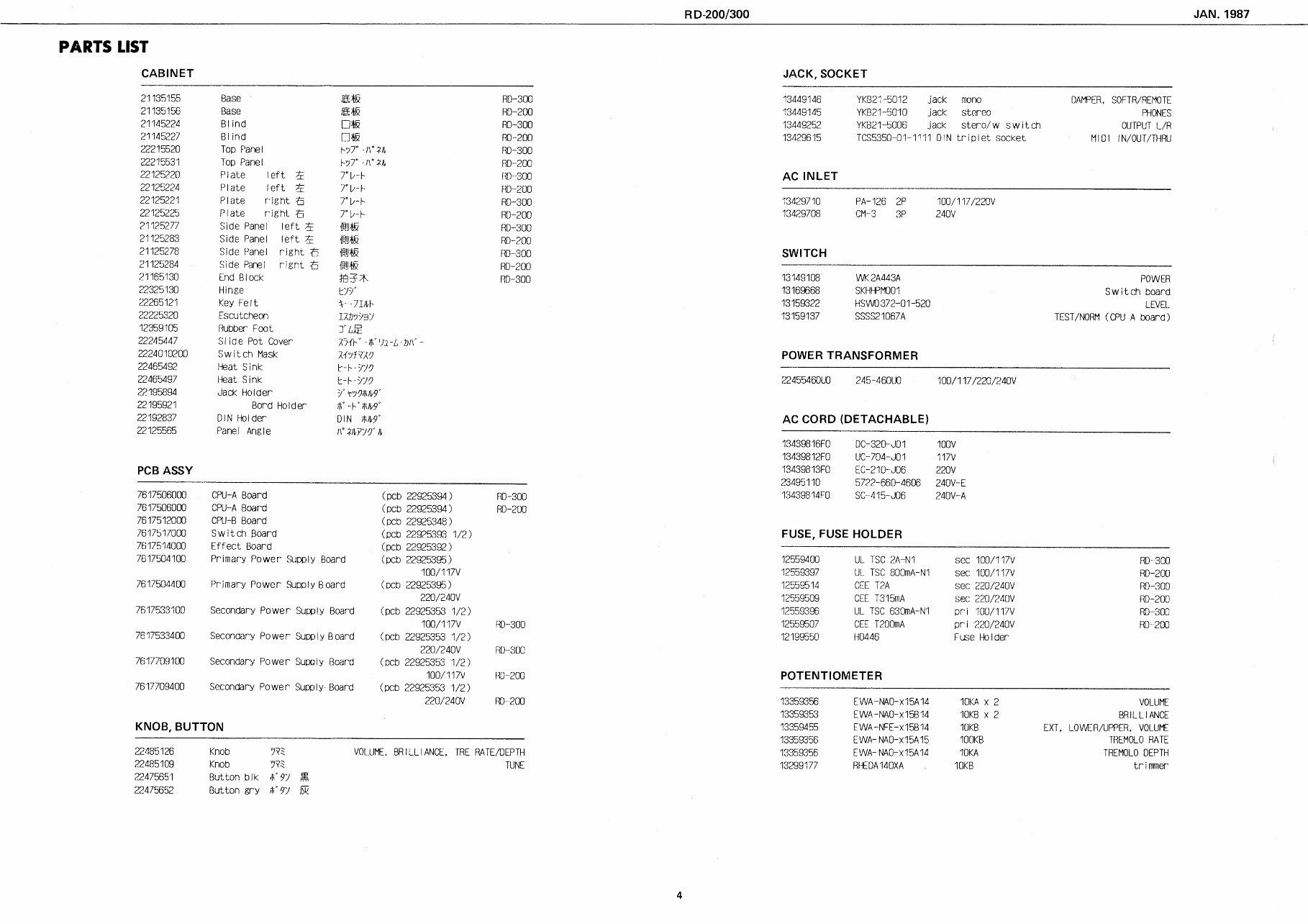

- PARTS LIST
This official service and repair manual is available in high-resolution PDF format, ensuring excellent print quality for the pages needed. Instant access after payment eliminates shipping delays, allowing for immediate repairs without waiting for postal delivery.
Specifications:
- Language: English
- Format: PDF
- Platform: Windows, MAC, Linux, etc.
For any other Roland product service manual needs, feel free to inquire. Thank you!
