SERVICE NOTES Issued by RJA Copyright © 2004 ROLAND CORPORATION All rights reserved. No part of this publication may be reproduced in any form without the written permission of ROLAND CORPORATION. Printed in Japan (0500) (AS) 17058252E0 Mar.2004 FANTOM-X6 TABLE OF CONTENTS SPECIFICATIONS............................................................. 2 LOCATION OF CONTROLS .......................................... 4 LOCATION OF CONTROLS PARTS LIST ................... 6 EXPLODED VIEW ............................................................ 8 EXPLODED VIEW PARTS LIST ................................... 11 WIRING DIAGRAM....................................................... 12 PARTS LIST...................................................................... 14 MAIN BOARD SETTING FOR SELECTING MODEL PROCEDURE ................................................................... 24 CHECKING THE VERSION NUMBER....................... 24 USERS DATA SAVE AND LOAD................................ 25 TEST MODE..................................................................... 25 RESTORING THE FACTORY SETTINGS ................... 33 SYSTEM SOFTWARE UPDATE PROCEDURE ......... 33 KEYBOARD PARTS LIST .............................................. 36 KEYBOARD CIRCUIT BOARD .................................... 37 KEYBOARD CIRCUIT DIAGRAM .............................. 38 KEYBOARD DISASSEMBLY ........................................ 39 BLOCK DIAGRAM......................................................... 42 CIRCUIT BOARD(MAIN 1) .......................................... 44 CIRCUIT BOARD(MAIN 2) .......................................... 45 CIRCUIT DIAGRAM(MAIN 1)..................................... 46 CIRCUIT DIAGRAM(MAIN 2)..................................... 48 CIRCUIT DIAGRAM(MAIN 3)..................................... 50 CIRCUIT DIAGRAM(MAIN 4)..................................... 52 CIRCUIT DIAGRAM(MAIN 5)..................................... 54 CIRCUIT BOARD(PANEL-A KEYTOP, PANEL-B KEYTOP) ........................................................ 56 CIRCUIT DIAGRAM(PANEL-A KEYTOP, PANEL-B KEYTOP) ........................................................ 58 CIRCUIT BOARD(LCD, INVERTER, JACK, PANEL-C KEYTOP, INLET) ......................................... 60 CIRCUIT BOARD(LCD, INVERTER, JACK, PANEL-C KEYTOP, INLET) ......................................... 62 CIRCUIT DIAGRAM(JACK 1) ...................................... 64 CIRCUIT DIAGRAM(JACK 2) ...................................... 66 CIRCUIT DIAGRAM(JACK 3) ...................................... 68 CIRCUIT DIAGRAM(JACK 4) ...................................... 70 CIRCUIT DIAGRAM(JACK 5) ...................................... 72 CIRCUIT DIAGRAM(PANEL-C KEYTOP) ................ 74 CIRCUIT DIAGRAM(LCD) ........................................... 76 CIRCUIT DIAGRAM(INVERTER) ............................... 77 CIRCUIT DIAGRAM(INLET) ....................................... 77 CIRCUIT BOARD(EXP BASE) ...................................... 78 CIRCUIT DIAGRAM(EXP BASE)................................. 80 CIRCUIT BOARD(PC CARD 1) .................................... 82 CIRCUIT BOARD(PC CARD 2) .................................... 82 CIRCUIT DIAGRAM(PC CARD) ................................. 83 ERROR MESSAGES ........................................................ 84 Downloaded from www.Manualslib.com manuals search engine

2 Mar.2004 SPECIFICATIONS Fantom-X6 Synthesizer Keyboard (Conforms to General MIDI 2 System) Keyboard 61 keys (with velocity and channel aftertouch) Sound Generator Section Maximum Polyphony 128 voices (shared with the sampling section) Parts 16 parts Wave Memory 128 M bytes (16-bit linear equivalent) Waveforms 1,480 Preset Memory Patches: 1,024 + 256 (GM2) Rhythm Sets: 40 + 9 (GM2) Performances: 64 User Memory Patches: 256 Rhythm Sets: 32 Performances: 64 Card Memory (PC card) Patches: 256 Rhythm Sets: 32 Performances: 64 Effects Multi-Effects: 3 systems, 78 types Chorus: 3 types Reverb: 5 types Input Effects: 6 types Mastering Effects: 3-band compressor Sampling Section Data Format 16-bit linear (File Type: .WAV/.AIFF) Sampling Frequency 44.1 kHz (fixed) Maximum Sampling Time • When sampling memory isn’t expanded (32 MB) mono: 360 sec. approx., stereo: 180 sec. approx. • When sampling memory is expanded with DIMM (544 MB) mono: 108 min. approx., stereo: 54 min. approx. Number of Samples User memory: 2,000 (maximum total approximately 32 MB) Card memory: 7,000 (PC card) Sequencer Section Tracks Phrase tracks (16 MIDI channels per track): 16 Tempo track: 1 Beat track: 1 Patterns 100 Resolution 480 TPQN Tempo 5–300 Note Capacity approx. 400,000 notes Song Length 9,998 measures Recording Method Realtime recording, Step recording Others Arpeggio Preset: 128 User: 128 Rhythm Pattern Preset: 256 (32 groups) User: 256 (32 groups) Downloaded from www.Manualslib.com manuals search engine

3 FANTOM-X6 Chord Memory Preset: 64 User: 64 Display Graphic 320 x 240 dots backlit LCD (Color) Pads 16 pads, Velocity and Aftertouch sensitive Controllers Pitch Bend/Modulation Lever Control Knob x 4 Assignable Switch x 2 D Beam Controller Connectors Headphones Jack A (MIX) Output Jacks (L/MONO, R): 1/4 inch TRS phone type B Output Jacks (L, R): 1/4 inch phone type Input Jacks (L/MONO/MIC, R): 1/4 inch phone type Hold Pedal Jack (Half Pedal recognition) Control Pedal Jack (assignable) MIDI Connectors (IN, OUT, THRU) USB Connector (supports file transfer (mass storage class) and MIDI) Digital Audio Interface (COAXIAL INPUT/OUTPUT) AC Inlet Expansion Slots • Expansion of waveforms and patchs for the internal sound generator SRX expansion boards: 4 slots • Expansion of sampling memory DIMM: 1 slot (supports 128 MB, 256 MB, 512 MB (3.3 V)) External Storage Device PC card: 1 slot (supports SmartMedia and CompactFlash using a PC card adapter) Power Supply AC 117 V, AC 230 V, AC 240 V (50/60 Hz) AC 220 V (60 Hz) Power Consumption 17 W Dimensions 1,050 (W) x 358 (D) x 125 (H) mm Weight 12.5 kg / 27 lbs 9 oz Accessories Owner’s Manual English:(#72564812) Japanese:(#72564078) Sample Data (Audio) CD:(#********) CD-ROM (Editor, USB MIDI driver):(#03569745) Sticker:(#40565990) PC Card Protector:(#03120712) Power Cord 100V:(#03340956) 120V:(#00894378) 230V:(#00894389) 240VA:(#23495124) 240VE:(#00907001) Options Wave Expansion Board: SRX Series Keyboard Stand: [X6] [X7] KS-12 / [X8] KS-17 Pedal Switch: DP series Foot Switch: BOSS FS-5U Expression Pedal: EV-5 * In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice. Downloaded from www.Manualslib.com manuals search engine

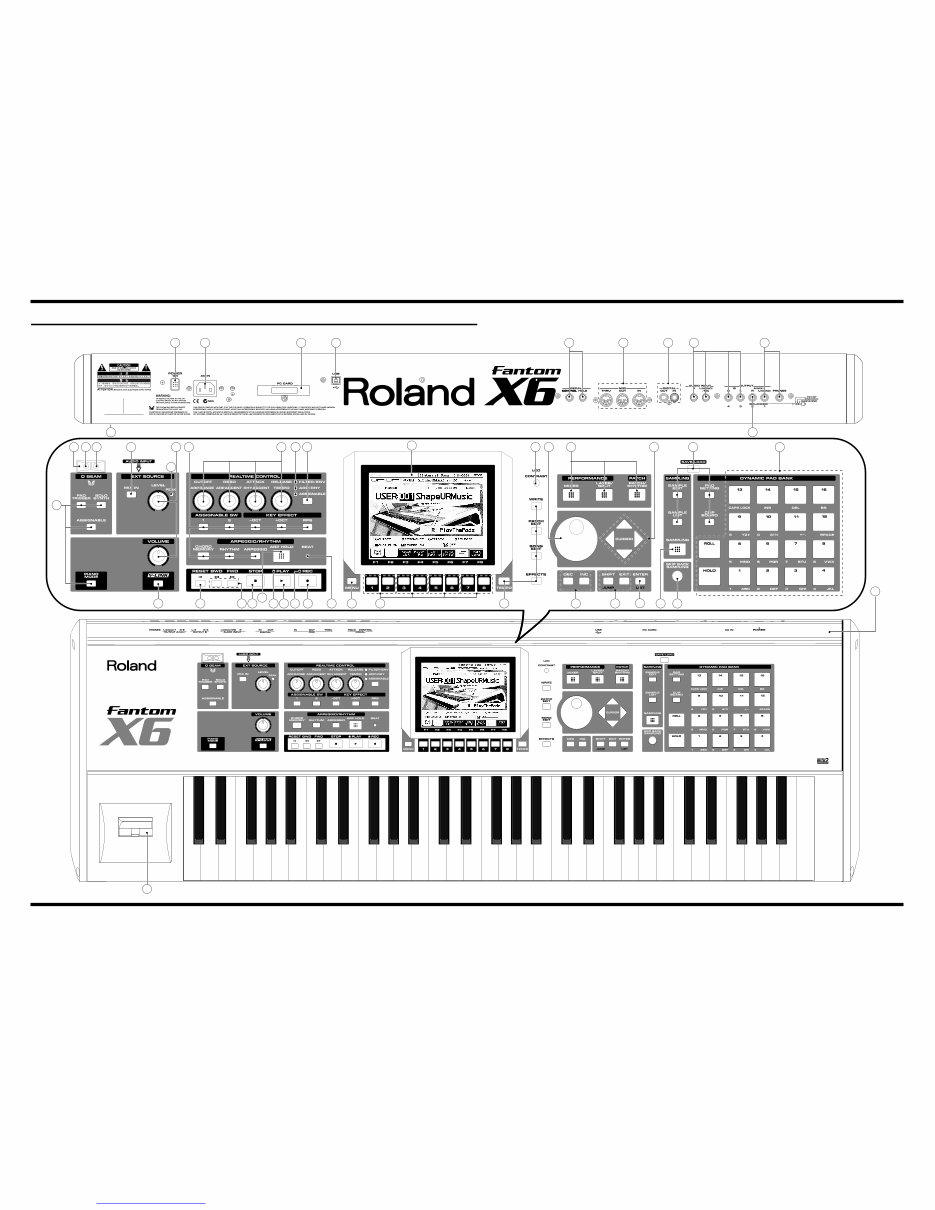

5 Mar.2004 FANTOM-X6 LOCATION OF CONTROLS fig.panel-x6 26 7 6 8 9 4 10 12 20 18 2 25 34 27 29 30 35 33 31 32 9 3 11 11 14 15 17 12 16 19 10 13 13 12 13 13 23 18 5 22 9 24 [REAR] [TOP] 9 28 10 18 12 1 21 Downloaded from www.Manualslib.com manuals search engine

6 Mar.2004 LOCATION OF CONTROLS PARTS LIST [TOP] [REAR] NO PART CODE CATEGORY PART NAME DESCRIPTION Q’TY 1 03562134 CASING TOP PANEL 1 2 03562112 CASING DISPLAY COVER 1 2 03560889 DISPLAY UNIT LCD KCG057QV1DB-G00 1 2 03565245 CASING DISPLAY ESCT 3 03565234 KNOB,BUTTON J R-KNOB SF-ELA BLK/SLV 2 3 03126167 POTENTIOMETER 12M/M ROTARY POTENTIOMETER EVJY10FB6A24 2 4 03565234 KNOB,BUTTON J R-KNOB SF-ELA BLK/SLV 4 4 03126178 POTENTIOMETER 9M/M ROTARY POTENTIOMETER EVUF2JFK3B14 4 5 22485303 KNOB,BUTTON D R-KNOB(ALPHA-DIAL) L BLK 248-303 1 5 01905467 ENCODER ROTARY ENCODER EVE GC1 F20 24B 1 6 01343089 CASING ESCUTCHEON D-BEAM CONTROLLER ESCT BLK 1 7 01900612 DIODE DIODE TPS611 1 7 12169368 MISCELLANEOUS LED SPACER LDS-40B 1 8 03126134 DIODE LED TLN233 1 8 02230578 MISCELLANEOUS LED SPACER LDS-50R 1 9 03120890 KNOB,BUTTON D S-KEYTOP SX1H-B GRS 18 9 02125167 DIODE LED (YELOW) SLI-343DCT32W 18 9 01340290 SWITCH TACT SWITCH EVQ11A H=5.0 18 10 01011656 DIODE LED (RED) SLR-332VR3F 5 10 12169406 MISCELLANEOUS LED SPACER 5 11 03120890 KNOB,BUTTON D S-KEYTOP SX1H-B GRS 1 11 03122112 DIODE LED(BLUE) SLR-343BBT3F 1 11 01340290 SWITCH TACT SWITCH EVQ11A H=5.0 1 12 03120890 KNOB,BUTTON D S-KEYTOP SX1H-B GRS 9 12 01340290 SWITCH TACT SWITCH EVQ11A H=5.0 9 13 03120889 KNOB,BUTTON D S-KEYTOP SX2H-B GRS 7 13 01340290 SWITCH TACT SWITCH EVQ11A H=5.0 14 14 03565190 KNOB,BUTTON KEYTOP STOP 1 14 00894645 SWITCH TACT SWITCH SKECAF WITHOUT LED 1 15 00894645 SWITCH TACT SWITCH SKECAF WITHOUT LED 1 15 03565212 KNOB,BUTTON KEYTOP PLAY 1 16 00894645 SWITCH TACT SWITCH SKECAF WITHOUT LED 1 16 03565223 KNOB,BUTTON KEYTOP REC 1 17 01012078 DIODE LED (GREEN) SLR-332MG3F 1 17 12169406 MISCELLANEOUS LED SPACER 1 18 01783923 KNOB,BUTTON N S-KEYTOP MD1H 5 18 02894090 DIODE LED (ORNG) SLR-343DUT32 5 19 01455901 MISCELLANEOUS LED SPACER LH-36-9 1 19 00127367 DIODE LED (RED/GREEN) SPR-39MVW 1 20 03562256 POTENTIOMETER ROTARY POTENTIOMETER EVUF2AE20B14 1 21 03234723 POWER SUPPLY UNIT BENDER PB-H0204 1 22 01234090 KNOB,BUTTON D T-KEYTOP MX4B BLK 1 22 01340290 SWITCH TACT SWITCH EVQ11A H=5.0 4 23 02013090 KNOB,BUTTON F C-KEYTOP MX1H CLR 1 23 03122112 DIODE LED(BLUE) SLR-343BBT3F 1 23 01340290 SWITCH TACT SWITCH EVQ11A H=5.0 1 24 03562145 KNOB,BUTTON RUBBER SW 1 24 03122067 CASING RUBBER SW ESCT 1 24 03128767 PICK UP,SENSOR PRESSURE SENSOR SHEET 1 NO PART CODE CATEGORY PART NAME DESCRIPTION Q’TY 25 72235056 CASING BOTTOM COVER ASSY 1 26 32490595 KNOB,BUTTON P S-KEY MX BLK 1 26 ******** SWITCH PUSH SWITCH 1 27 ******** AC INLET, OUTLET AC INLET 1 When you order the above parts, please order the 72564312 INLET BOARD ASSY. 28 03562156 CASING PC CARD ESCUTCHEON BLK 1 28 02900867 JACK,EXT TERMINAL CARD EJECTOR SCAB1A5600 1 29 02781189 JACK,EXT TERMINAL USB CONNECTOR YKF45-0021 1 30 13449275 JACK,EXT TERMINAL 6.5MM JACK YKB21-5074 2 31 13429274 JACK,EXT TERMINAL MIDI SOCKET YKF51-5041 1 32 03231812 JACK,EXT TERMINAL RCA(PIN) YKC21-4173 1 33 13449283 JACK,EXT TERMINAL 6.5MM JACK HLJ7101-01-3010 4 34 13449258 JACK,EXT TERMINAL 6.5MM JACK HLJ4306-01-3080 1 35 13449284 JACK,EXT TERMINAL 6.5MM JACK HLJ7001-01-3010 2 Downloaded from www.Manualslib.com manuals search engine

7 FANTOM-X6 Downloaded from www.Manualslib.com manuals search engine

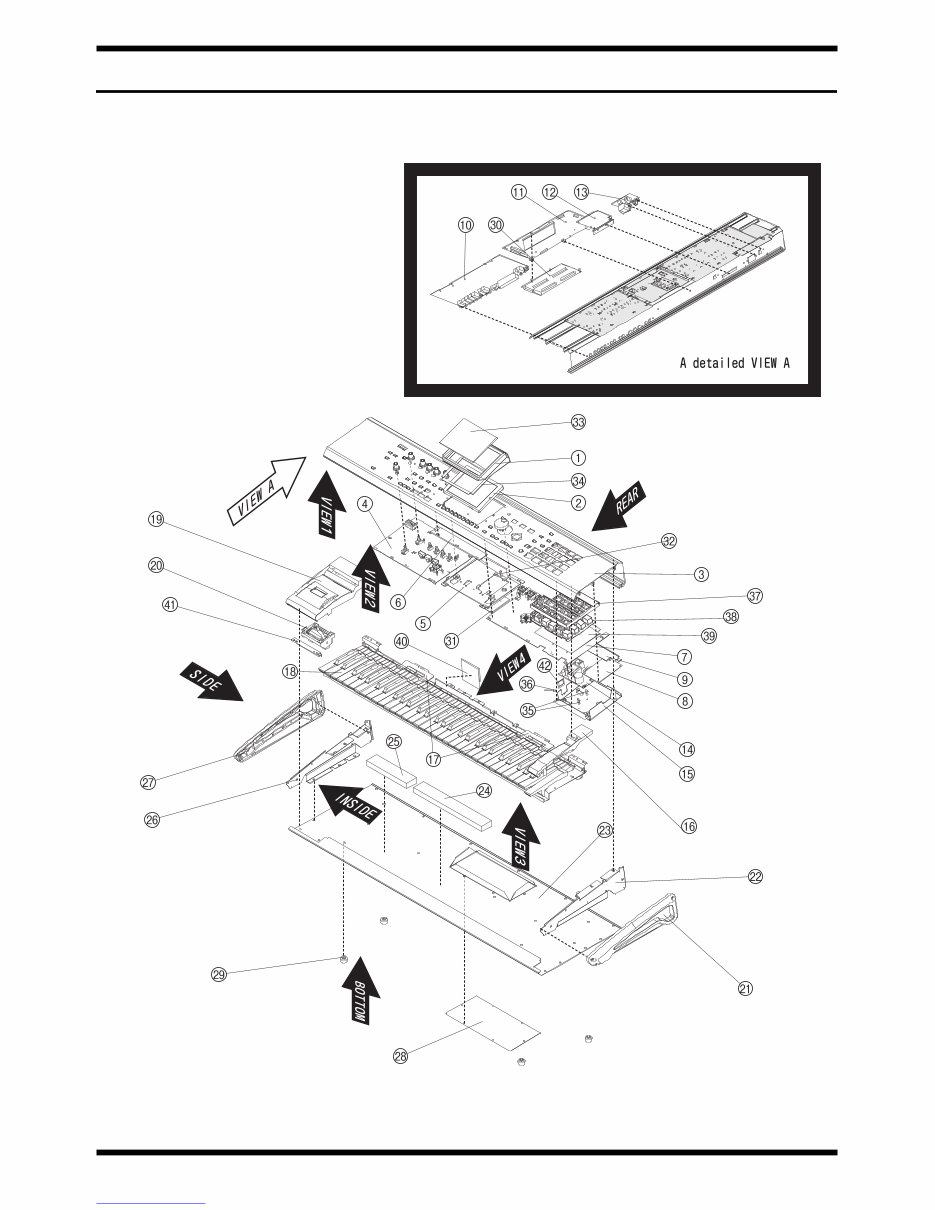

8 Mar.2004 EXPLODED VIEW fig.FANTOM-6_explo1_e Downloaded from www.Manualslib.com manuals search engine

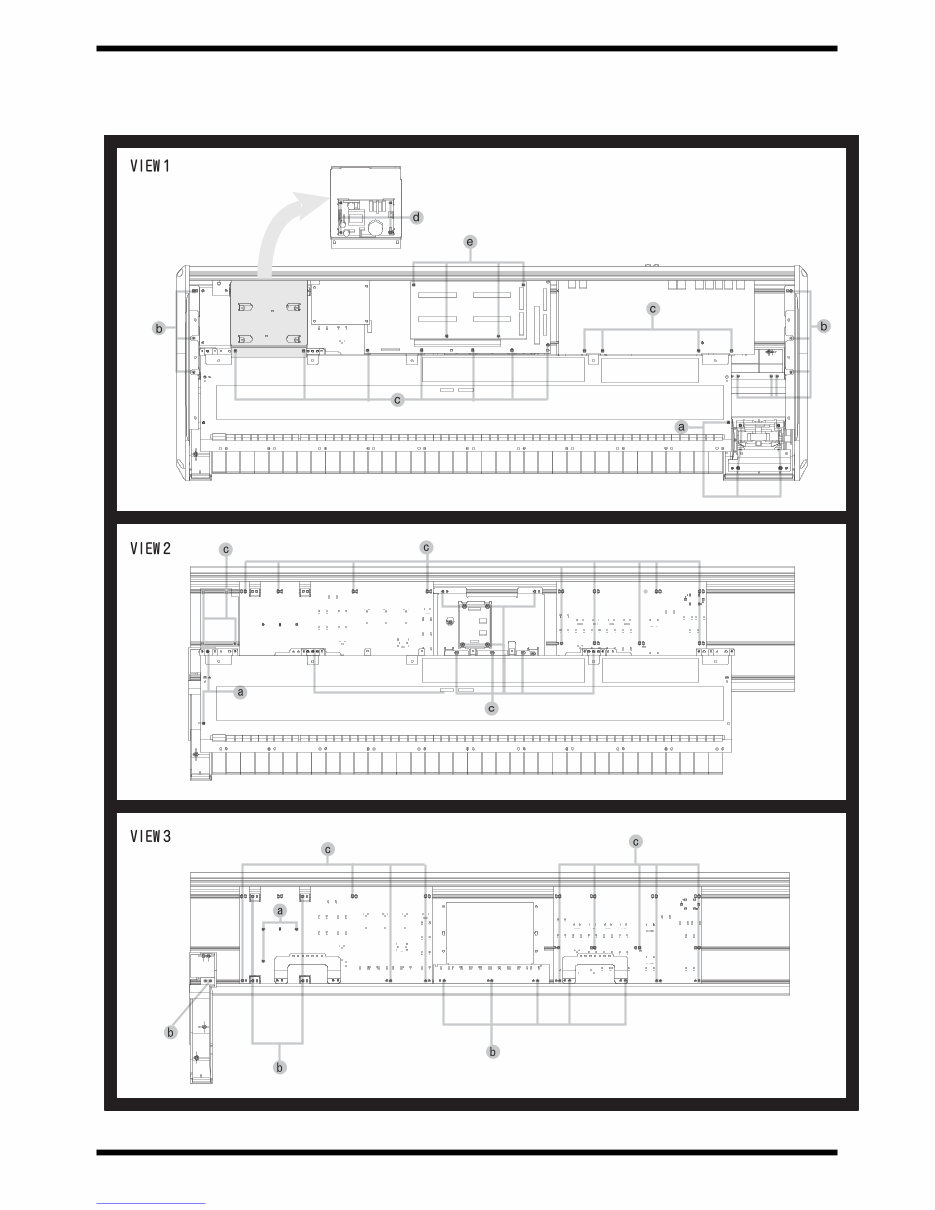

9 FANTOM-X6 fig.FANTOM-6_explo2_e Downloaded from www.Manualslib.com manuals search engine

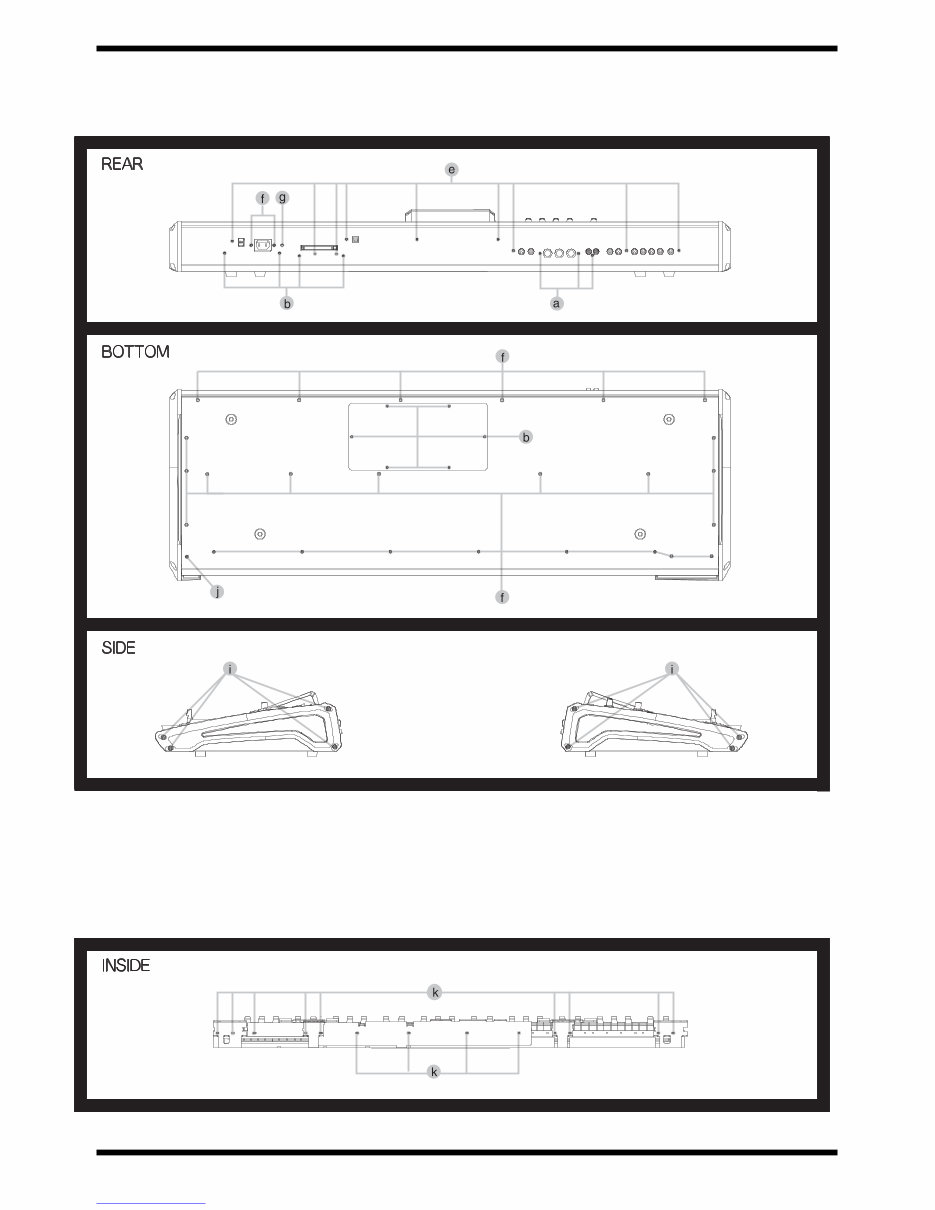

10 Mar.2004 fig.FANTOM-6_explo3_e Downloaded from www.Manualslib.com manuals search engine

11 FANTOM-X6 EXPLODED VIEW PARTS LIST [PARTS] [SCREWS] No PART CODE CATEGORY Part name Description Q'TY 1 03565245 CASING DISPLAY ESCT 1 2 03560889 DISPLAY UNIT LCD KCG057QV1DB-G00 1 3 03562134 CASING TOP PANEL 1 4 72564256 PWB ASSY PANEL-A KEYTOP ASSY 1 5 03562123 CHASSIS DISPLAY HOLDER 1 6 72564278 PWB ASSY PANEL-B KEYTOP ASSY 1 7 72564334 PWB ASSY PANEL-C KEYTOP ASSY 1 8 72564212 PWB ASSY INVERTER BOARD ASSY 1 9 03567789 MISCELLANEOUS INSULATING SHEET 1 10 72564323 PWB ASSY JACK BOARD ASSY 1 11 72564734 PWB ASSY MAIN BOARD ASSY 1 NOTE:When you replace the MAIN BOARD ASSY for repairng, be sure to perform the "MAIN BOARD SETTING FOR SELECTING MODEL PROCEDURE"(to see P24). In addition, we supply the MAIN BOARD ASSY of FANTOM-X6 setting for spare parts. 12 72564245 PWB ASSY PC CARD BOARD ASSY 1 13 72564312 PWB ASSY INLET BOARD ASSY 1 14 01785823 POWER SUPPLY UNIT SWITCHING REGULATOR A1DU2L3B034 1 15 03125845 CHASSIS PWR SPLY HOLDER 1 16 03126556 CASING END BLOCK 1 17 02674034 CHASSIS PANEL HOLDER 2 18 72568667 KEYBOARD ASSY KEYBOARD ASSY SK-961-L 1 19 03126567 CASING BENDER PANEL 1 20 03234723 BENDER UNIT BENDER PB-H0204 1 21 03122045 CASING SIDE COVER R 1 22 03125812 CHASSIS SIDE HOLDER R 1 23 72235056 CASING BOTTOM COVER ASSY UNIT 1 24 03670689 MISCELLANEOUS CUSHION A 1 25 03670701 MISCELLANEOUS CUSHION B 1 26 03125801 CHASSIS SIDE HOLDER L 1 27 03122034 CASING SIDE COVER L 1 28 03017778 CASING EXP COVER 1 29 12359139 MISCELLANEOUS RUBBER FOOT FF-018 BLK 4 30 72235090 PWB ASSY EXP BASE BOARD ASSY 1 31 72564223 PWB ASSY LCD BOARD ASSY 1 32 03670734 MISCELLANEOUS SPACER M3X20 HEX 1 33 03562112 CASING DISPLAY COVER 1 34 03567790 CASING DISPLAY CUSHION 4 35 03017867 MISCELLANEOUS CARD SPACER MPS-10-0 2 36 40120967 MISCELLANEOUS COATING CLIP CS-3 1 37 03122067 CASING RUBBER SW ESCT 1 38 03562145 KNOB,BUTTON RUBBER SW 1 39 03128767 PICK UP,SENSOR PRESSURE SENSOR SHEET 1 40 03670712 MISCELLANEOUS CUSHION C 1 41 02673945 MISCELLANEOUS STAY BENDER 1 42 01455523 MISCELLANEOUS CORD BUSHING EDS-1717U 1 No PART CODE Part name Description Q'TY a 40011312 SCREW 3X8 BINDING TAPTITE P BZC 23 b 40011101 SCREW 3X8 BINDING TAPTITE B BZC 18 c 40011056 SCREW 3X6 BINDING TAPTITE B ZC 57 d 40017934 SCREW M3X6 PAN MACHINE W/SW+PW FE ZC 4 e 40011490 SCREW M3X6 PAN MACHINE W/SW BZC 22 f 40011123 SCREW 4X8 BINDING TAPTITE B BZC 6 g 40010345 SCREW M4X10 BINDING MACHINE FE BZC 1 h 40013078 SCREW M3X10 PAN MACHINE W/SW FE ZC 1 i 40454045 SCREW 3X8 FLAT TAPTITEB NI FLANGE SOCKET 8 j 40012501 SCREW M4X12 BINDING TAPTITE P FE BZC 1 k 40011067 SCREW 3X8 BINDING TAPTITE B FE ZC 16 l 22150501 STAND OFF M3 L10C 4 Downloaded from www.Manualslib.com manuals search engine
